二级6-8型静高压装置厘米级腔体内置石墨加热组装的设计与实验研究

王强; 贺端威; 刘进; 刘方明; 丁未; 马迎功; 刘腾; 李媛媛; 吴京军; 张佳威; 寇自力

doi:10.11858/gywlxb.2017.05.002

二级6-8型静高压装置厘米级腔体内置石墨加热组装的设计与实验研究

doi: 10.11858/gywlxb.2017.05.002

王强^{1, 2,},
贺端威^{1, 2,*, ,},
刘进^{1, 2},
刘方明^{1, 2},
丁未^{1, 2},
马迎功^{1, 2},
刘腾^{1, 2},
李媛媛^{1, 2, 3},
吴京军^{1, 2},
张佳威^{1, 2},
寇自力¹

1.
四川大学原子与分子物理研究所，四川成都 610065
2.
四川大学高能量密度物理教育部重点实验室，四川成都 610065
3.
中国工程物理研究院流体物理研究所，四川绵阳 621999

基金项目:

国家自然科学基金 51472171

国家自然科学基金重大仪器研制项目 11427810

详细信息

作者简介:
王强(1990—)，男，硕士，主要从事大腔体静高压装置、超硬材料合成和材料的高压物性研究. E-mail:wangqiangwsrf@outlook.com

通讯作者:
贺端威(1969—)，男，博士，教授，主要从事大腔体静高压技术、超硬材料及高压下弹塑性行为的研究. E-mail:duanweihe@scu.edu.cn

中图分类号: O521.3
计量
- 文章访问数: 7260
- HTML全文浏览量: 2791
- PDF下载量: 204
出版历程
- 收稿日期: 2017-03-12
- 修回日期: 2017-04-13

Design and Experimental Research of the Graphite Heating Assembly of Centimeter-Size Chamber for Two-Stage 6-8 Type Multi-Anvil High Pressure Apparatus

WANG Qiang^{1, 2
,},
HE Duan-Wei^{1, 2,*
, ,},
LIU Jin^{1, 2},
LIU Fang-Ming^{1, 2},
DING Wei^{1, 2},
MA Ying-Gong^{1, 2},
LIU Teng^{1, 2},
LI Yuan-Yuan^{1, 2, 3},
WU Jing-Jun^{1, 2},
ZHANG Jia-Wei^{1, 2},
KOU Zi-Li¹

1.
Institute of Atomic and Molecular Physics, Sichuan University, Chengdu 610065, China
2.
Key Laboratory of High Energy Density Physics and Technology of Ministry of Education, Sichuan University, Chengdu 610065, China
3.
Institute of Fluid Physics, CAEP, Mianyang 621999, China

摘要

摘要: 基于国产铰链式六面顶压机二级6-8型静高压装置，采用去尖3节式36/20结构，设计了一种“桥式”结构的石墨加热组装，通过高压原位温度测量获取加热功率与温度的对应关系，得到了稳定的p-T(2.5~10.4 GPa，0~1 650/1 800 ℃)区域。同时样品腔体直径可以达到13 mm，实现了厘米级大样品的高温高压制备。讨论了组装的电阻与温度之间的关系，并分析了电阻变化的原因。通过对样品烧结情况的表征，来反映腔体的温度分布情况。研究工作对基于国产铰链式六面顶压机的二级6-8型静高压装置的加热设计有一定的参考意义，并具有良好的实用性。
- 二级6-8型静高压装置 /
- 石墨加热组装 /
- 温度-功率关系 /
- 温度-电阻关系
Abstract: We designed a built-in graphite heating assembly, called "Bridge", based on a domestic 6-8 type static high pressure apparatus and using the cut-apex three-segment 36/20 assembly, and obtained the relationship between the heating power and the temperature using the high pressure in-situ measurement technology.We also achieved a stable p-T (2.5-10.4 GPa; 0-1 650/1 800 ℃) region.Moreover, we successfully synthesized a centimeter sample under high pressure and at high temperature, one that can reach 13 mm.We discussed the relation between the resistances of the assembly and the heating temperature, and analyzed the cause of the resistance change.The temperature distribution of the assemble was reflected by the characterization of the sample.This study will broaden the applicability of the domestic hinge-type cubic-anvil press 6-8 type static high pressure apparatus, and offer a better practicability.
- two stage 6-8 type static high pressure apparatus /
- graphite heating assembly /
- temperature-power relation /
- temperature-resistance relation

HTML全文

图 1 36/20石墨加热组装存在的问题

Figure 1. Problems of graphite heating installation in 36/20 assemble

下载: 全尺寸图片幻灯片

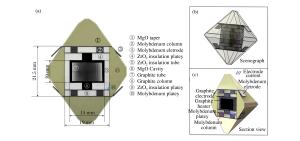

图 2 “桥式”结构石墨加热组装相关示意图

Figure 2. "Bridge" graphite heating installation in 36/20 assemble

下载: 全尺寸图片幻灯片

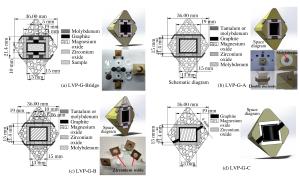

图 3 不同石墨加热组装相关示意图

Figure 3. Different graphite heating installations in 36/20 assemble

下载: 全尺寸图片幻灯片

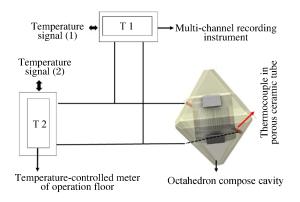

图 4 温度标定的示意图

Figure 4. Temperature calibration

下载: 全尺寸图片幻灯片

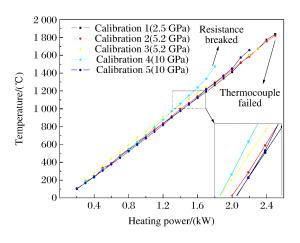

图 5 不同压力下功率与腔体温度关系

Figure 5. Relation of heating power and temperature under different pressures

下载: 全尺寸图片幻灯片

图 6 不同组装的加热功率与腔体温度关系

Figure 6. Relation of heating power and chamber temperature in different assembles

下载: 全尺寸图片幻灯片

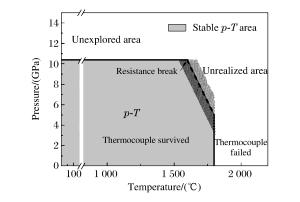

图 7 “桥式”加热组装可实现的稳定的p-T区域

Figure 7. p-T stable area of graphite heating installation in 36/20 assemble

下载: 全尺寸图片幻灯片

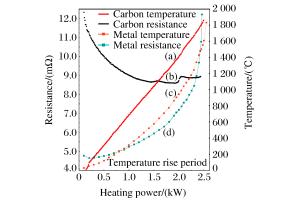

图 8 升温过程中电阻与温度的关系

Figure 8. Variation of resistance and temperature in temperature rise period

下载: 全尺寸图片幻灯片

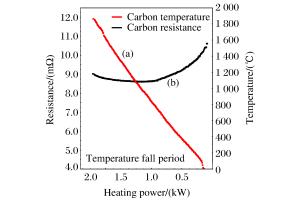

图 9 降温过程中电阻与温度的关系

Figure 9. Variation of resistance and temperature in temperature fall period

下载: 全尺寸图片幻灯片

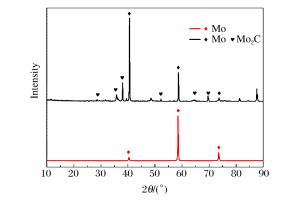

图 10 实验前后钼的X射线衍射图

Figure 10. X-ray diffraction spectra of molybdenum before and after experiment

下载: 全尺寸图片幻灯片

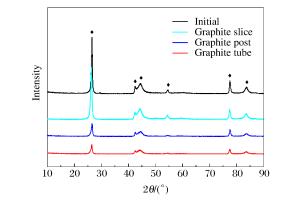

图 11 实验前后石墨各部分X射线衍射图

Figure 11. X-ray diffraction spectra of various graphite components before and after experiment

下载: 全尺寸图片幻灯片

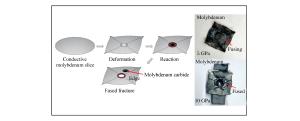

图 12 石墨与钼反应导致电阻突变

Figure 12. Resistance mutation caused by graphite and molybdenum's reaction

下载: 全尺寸图片幻灯片

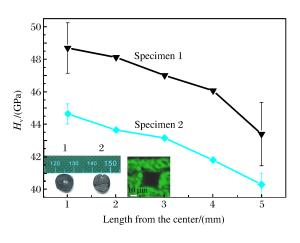

图 13 cBN烧结体距中心各点的硬度

Figure 13. Vicker's hardness of cBN compact at each point from the center

下载: 全尺寸图片幻灯片

参考文献(31)

[1]	IRIFUNE T, KURIO A, SAKAMOTO S, et al.Materials:ultrahard polycrystalline diamond from graphite[J].Nature, 2003, 421(6923):599-600. http://d.old.wanfangdata.com.cn/Periodical/cuihuaxb201601001
[2]	TIAN Y, XU B, YU D, et al.Ultrahard nanotwinned cubic boron nitride[J].Nature, 2013, 493(7432):385-388. doi: 10.1038/nature11728
[3]	WANG S, HE D, WANG W, et al.Pressure calibration for the cubic press by differential thermal analysis and the high-pressure fusion curve of aluminum[J].High Pressure Res, 2009, 29(4):806-814. doi: 10.1080/08957950903335521
[4]	赵有祥, 徐小平, 陈红, 等.环状容器内的温度校正和高压下温度相关性问题[J].物理学报, 1979, 28(6):872-876. doi: 10.3321/j.issn:1000-3290.1979.06.013 ZHAO Y X, XU X P, CHEN H, et al.Temperature measurement in "belt" apparatus and problem of temperature correlation at high pressures [J].Acta Phys Sin, 1979, 28(6):872-876. doi: 10.3321/j.issn:1000-3290.1979.06.013
[5]	王海阔, 贺端威, 许超, 等.基于国产铰链式六面顶压机的大腔体静高压技术研究进展[J].高压物理学报, 2013, 27(5):633-661. http://www.gywlxb.cn/CN/abstract/abstract1618.shtml WANG H K, HE D W, XU C, et al.Development of large volume-high static pressure techniques based on the hinge-type cubic presses[J].Chinese Journal of High Pressure Physics, 2013, 27(5):633-661. http://www.gywlxb.cn/CN/abstract/abstract1618.shtml
[6]	亓曾笃.人造金刚石生长中的温度控制[J].高压物理学报, 1990, 4(3):204-209. http://www.gywlxb.cn/CN/abstract/abstract1618.shtml QI Z D.The temperature control for the crowth of sythetic diamond[J].Chinese Journal of High Pressure Physics, 1990, 4(3):204-209. http://www.gywlxb.cn/CN/abstract/abstract1618.shtml
[7]	XIE L, YONEDA A, YOSHINO T, et al.Graphite-boron composite heater in a Kawai-type apparatus:the inhibitory effect of boron oxide and countermeasures[J].High Pressure Res, 2016, 36(2):105-120. doi: 10.1080/08957959.2016.1164151
[8]	SHATSKIY A, KATSURA T, LITASOV K D, et al.High pressure generation using scaled-up Kawai-cell[J].Phys Earth Planet Inter, 2011, 189(1/2):92-108. http://d.old.wanfangdata.com.cn/NSTLQK/NSTL_QKJJ0224900744/
[9]	方啸虎, 温简杰, 郑日升.中国超硬材料新态势[J].超硬材料工程, 2010, 22(1):18-21. doi: 10.3969/j.issn.1673-1433.2010.01.004 FANG X H, WEN J J, ZHENG R S, et al.New trends of china superhard materials[J].Superhard Material Engineering, 2010, 22(1):18-21. doi: 10.3969/j.issn.1673-1433.2010.01.004
[10]	贾晓鹏.优质Ⅱa型宝石级金刚石的合成技术[J].金刚石与磨料磨具工程, 2005(3):8-11. doi: 10.3969/j.issn.1006-852X.2005.03.002 JIA X P.Technology of growing large crystals of high quality type-Ⅱ a diamond crystal[J].Diamond & Abrasives Engineering, 2005(3):8-11. doi: 10.3969/j.issn.1006-852X.2005.03.002
[11]	何强, 唐俊杰, 王霏, 等.一种适用于极端高温条件的六面顶压机实验组装[J].高压物理学报, 2013, 28(2):145-151. http://www.gywlxb.cn/CN/abstract/abstract1618.shtml HE Q, TANG J J, WANG F, et al.High temperature stable assembly designed for cubic press [J].Chinese Journal of High Pressure Physics, 2013, 28(2):145-151. http://www.gywlxb.cn/CN/abstract/abstract1618.shtml
[12]	杜建国, 贺端威, 高春晓, 等.矿物岩石高温高压实验与理论研究[M].北京:地震出版社, 2011:8-11. DU J G, HE D W, GAO C X, et al.Experimental and theoretical studies of mineral and rock at high pressure and temperature [M].Beijing:Earthquake Press, 2011:8-11
[13]	王文丹, 贺端威, 王海阔, 等.二级6-8型大腔体装置的高压发生效率机理研究[J].物理学报, 2010, 59(5):3107-3115. http://d.old.wanfangdata.com.cn/Periodical/wlxb201005030 WANG W D, HE D W, WANG H K, et al.Research on pressure generation efficiency of 6-8 type multi-anvil high pressure apparatus [J].Acta Phys Sin, 2010, 59(5):3107-3015. http://d.old.wanfangdata.com.cn/Periodical/wlxb201005030
[14]	XU C, HE D, WANG H, et al.Nano-polycrystalline diamond formation under ultra-high pressure[J].Int J Refract Metals Hard Mater, 2013, 36(1):232-237. http://d.old.wanfangdata.com.cn/NSTLQK/NSTL_QKJJ0229996906/
[15]	何飞, 贺端威, 马迎功, 等.二级6-8型静高压装置厘米级腔体的设计原理与实验研究[J].高压物理学报, 2015, 29(3):161-168. http://www.gywlxb.cn/CN/abstract/abstract1799.shtml HE F, HE D W, MA Y G, et al.Design principles and experimental study of centimeter-scale sample chamber for two-stage 6-8 type static high pressure apparatus[J].Chinese Journal of High Pressure Physics, 2015, 29(3):161-168. http://www.gywlxb.cn/CN/abstract/abstract1799.shtml
[16]	马迎功, 贺端威, 韩晶晶, 等.二级6-8型静高压装置厘米级腔体内置加热元件的设计与温度标定[J].高压物理学报, 2017, 31(1):61-66. http://www.gywlxb.cn/CN/abstract/abstract1930.shtml MA Y G, HE D W, HAN J J, et al.Design and temperature calibration for heater cell of centimeter-scale sample chamber for two-stage 6-8 type static high pressure apparatus[J].Chinese Journal of High Pressure Physics, 2017, 31(1):61-66. http://www.gywlxb.cn/CN/abstract/abstract1930.shtml
[17]	陈晓芳, 贺端威, 王福龙, 等.基于铰链式六面顶压机的二级6-8模超高压大腔体内置加热元件的设计与温度标定[J].高压物理学报, 2009, 23(2):98-104. doi: 10.3969/j.issn.1000-5773.2009.02.004 CHEN X F, HE D W, WANG F L, et al.Split-sphere high pressure apparatus based on hinge-type cubic-anvil press [J].Chinese Journal of High Pressure Physics, 2009, 23(2):98-104. doi: 10.3969/j.issn.1000-5773.2009.02.004
[18]	吕世杰, 罗建太, 苏磊, 等.滑块式六含八超高压实验装置及其压力温度标定[J].物理学报, 2009, 58(10):6852-6857. http://d.old.wanfangdata.com.cn/Periodical/wlxb200910031 LV S J, LUO J T, SU L, et al.A slide-type multianvil ultrahigh pressure apparatus and calibration of its pressure and temperature[J].Acta Phys Sin, 2009, 58(10):6852-6857. http://d.old.wanfangdata.com.cn/Periodical/wlxb200910031
[19]	亓曾笃.金刚石生产的加热方法[J].超硬材料与宝石, 2002, 14(4):26-28. http://d.old.wanfangdata.com.cn/Periodical/zbkj200204008 QI Z D.The heating mathods of diamond production[J].Superhard Material & GEM, 2002, 14(4):26-28. http://d.old.wanfangdata.com.cn/Periodical/zbkj200204008
[20]	HERNLUND J.A numerical model for steady-state temperature distributions in solid-medium high-pressure cell assemblies[J].Am Mineralog, 2006, 91(2/3):295-305.
[21]	方啸虎, 邓福铭, 郑日升.现代超硬材料与制品[M].杭州:浙江大学出版社, 2011:181-189. FANG X H, DENG F M, ZHENG R S, et al.Adanced superabrasives and related products[M].Hangzhou:Zhejiang University Press, 2011:181-189.
[22]	郭欣, 刘衍聪, 伊鹏.六面顶压机合成金刚石加热规律研究[J].人工晶体学报, 2010, 39(4):966-971. doi: 10.3969/j.issn.1000-985X.2010.04.028 GUO X, LIU Y C, YI P.Study on the law of heating process of diamond synthesized by cubic anvil press[J].Journal of High Synthetic Crystals, 2010, 39(4):966-971. doi: 10.3969/j.issn.1000-985X.2010.04.028
[23]	冯吉福, 林峰, 李立惟, 等.六面顶压机上不同组装结构的温度研究[J].超硬材料工程, 2009, 21(3):21-25. doi: 10.3969/j.issn.1673-1433.2009.03.005 FENG J F, LIN F, LI L W, et al.Study on temperature of different assembly structure in cubic hinge apparatus[J].Superhard Material Engineering, 2009, 21(3):21-25. doi: 10.3969/j.issn.1673-1433.2009.03.005
[24]	杨君刚.材料加热炉基础[M].西安:西北工业大学出版社, 2009:134-137. YANG J G.Material heating furnace foundation[M].Xi'an:Northwestern Industry University Press, 2009:134-137.
[25]	王秦生.超硬材料及制品[M].郑州:郑州大学出版社, 2006:116-118. WANG Q S.Superhard materials and products [M].Zhengzhou:Zhengzhou University Press, 2006:116-118.
[26]	LIU Y, HE D, LEI L, et al.High pressure infiltration sintering of cBN-Si composites[J].Int J Refract Metals Hard Mater, 2015, 50:247-252. doi: 10.1016/j.ijrmhm.2015.01.006
[27]	LIU G, KOU Z, YAN X, et al.Submicron cubic boron nitride as hard as diamond[J].Appl Phys Lett, 2015, 106(12):121901. doi: 10.1063/1.4915253
[28]	FUJISAKI K, YOKOTA H, FURUSHIRO N, et al.Development of ultra-fine-grain binderless cBN tool for precision cutting of ferrous materials[J].J Mater Proc Technol, 2009, 209(15/16):5646-5652. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=c325829517e40df5b37d1dfc8b69ffc3
[29]	刘芳, 刘永刚, 谢鸿森.六面顶压机高压腔体温度场的数值模拟[J].高压物理学报, 2010, 26(2):135-140. http://www.gywlxb.cn/CN/abstract/abstract1437.shtml LIU F, LIU Y G, XIE H S, et al.Numerical simulation of temperature field in sample assembly od cubic press[J].Chinese Journal of High Pressure Physics, 2010, 26(2):135-140. http://www.gywlxb.cn/CN/abstract/abstract1437.shtml
[30]	李瑞, 马红安, 韩奇钢, 等.基于ANSYS的金刚石合成腔内的温度场分析[J].吉林大学学报(工学版), 2008, 38(3):535-538. http://d.old.wanfangdata.com.cn/Periodical/jlgydxzrkxxb200803008 LI R, MA H A, HAN Q G, et al.Analysis of temperature field in diamond synthetic chamber based on ANSYS[J].Journal of Jilin University (Engineering and Technology Edition), 2008, 38(3):535-538. http://d.old.wanfangdata.com.cn/Periodical/jlgydxzrkxxb200803008
[31]	WANG H, HE D, YAN X, et al.Quantitative measurements of pressure gradients for the pyrophyllite and magnesium oxide pressure-transmitting mediums to 8 GPa in a large-volume cubic cell[J].High Pressure Res, 2011, 31(4):581-591. doi: 10.1080/08957959.2011.614238
