圆柱形障碍物对2H2+O2+nAr预混气体的再起爆实验研究

刘虎; 李权; 吕兆文; 王昌建; 魏臻; 孙昊丞

doi:10.11858/gywlxb.20230672

圆柱形障碍物对2H₂+O₂+nAr预混气体的再起爆实验研究

doi: 10.11858/gywlxb.20230672

刘虎^1,,
李权^{1, 2, 3,*, ,},
吕兆文¹,
王昌建^{1, 2, 4},
魏臻³,
孙昊丞¹

1.
合肥工业大学土木与水利工程学院，安徽合肥　230009
2.
合肥工业大学安徽省氢安全国际联合研究中心，安徽合肥　230009
3.
高科信息科技股份有限公司，安徽合肥　230088
4.
合肥工业大学安全关键工业测控技术教育部工程研究中心，安徽合肥　230009

基金项目: 国家自然科学基金（12102117）；中国博士后科学基金（2021M690848）；安徽省重点研究与开发计划项目（2022h11020013）

详细信息

作者简介:
刘虎（1998－），男，硕士研究生，主要从事气体爆轰研究.E-mail：2021110590@mail.hfut.edu.cn

通讯作者:
李权（1991－），男，博士，副教授，主要从事气相爆轰传播动力学研究. E-mail：quanli@hfut.edu.cn

中图分类号: O383
计量
- 文章访问数: 117
- HTML全文浏览量: 40
- PDF下载量: 74
出版历程
- 收稿日期: 2023-05-30
- 修回日期: 2023-06-16
- 录用日期: 2023-07-20
- 网络出版日期: 2023-10-16
- 刊出日期: 2023-11-07

Experimental Study on Re-initiation of 2H₂+O₂+nAr Premixed Gas by Cylindrical Obstacle

LIU Hu^1
,,
LI Quan^{1, 2, 3,*
, ,},
LV Zhaowen¹,
WANG Changjian^{1, 2, 4},
WEI Zhen³,
SUN Haocheng¹

1.
School of Civil and Hydraulic Engineering, Hefei University of Technology, Hefei 230009, Anhui, China
2.
Anhui International Joint Research Center on Hydrogen Safety, Hefei University of Technology, Hefei 230009, Anhui, China
3.
Hefei Gocom Information & Technology Co., Ltd., Hefei 230088, Anhui, China
4.
Engineering Research Center of Safety Critical Industrial Measurement and Control Technology, Ministry of Education, Hefei University of Technology, Hefei 230009, Anhui, China

摘要

摘要: 开展了不同反应活性的2H₂+O₂+nAr气相爆轰波与圆柱形障碍物相互作用的实验研究。通过在管道顶部布置压电式压力传感器记录压力到达时间，并以此计算爆轰波传播速度。采用纹影技术和烟迹法记录爆轰破坏到再起爆全过程的波系及胞格结构。结果表明：爆轰波在障碍物上游接触障碍物时会发生反射；越过障碍物后，在障碍物下游会发生衍射。爆轰波越过障碍物时，受障碍物尾部膨胀波的影响，爆轰波衰减解耦，但随着从圆柱形障碍物两侧绕过的衍射激波在障碍物后轴线和管道中心轴线处碰撞，继而发生马赫反射以及入射激波与下游管道壁面碰撞发生马赫反射，完成再起爆过程。直径较小的障碍物造成的爆轰波能量损失较少，其胞格爆轰波的再起爆距离随障碍物直径的减小而缩短。针对不同直径障碍物的实验结果均表明，随着初始压力升高，预混气体反应活性增加，爆轰的自持稳定性增强，从而削弱了障碍物几何尺寸的影响，有利于减弱爆轰的衰减并缩短再起爆距离。在所研究的障碍物几何尺寸下，通过测量爆轰再起爆距离，建立了不同比例Ar稀释下的2H₂+O₂在圆柱形障碍物后的再起爆距离与圆柱垂直间距及胞格尺寸的关系。
- 爆轰波 /
- 氢能 /
- 圆柱形障碍物 /
- 衍射 /
- 再起爆
Abstract: In this paper, the interaction between 2H₂+O₂+nAr gas-phase detonation waves with different reactivities and cylindrical obstacles was investigated by experiments. Piezoelectric pressure sensors were flushed-mounted on the top wall of the channel to record pressure time histories, from which the detonation wave velocities were calculated. The schlieren technology and smoked foil technique were used to record the wave system and cellular structure of the whole process from detonation failure to re-initiation. The results show that the detonation wave will be reflected when it touches the obstacle, and diffraction will occur downstream of the obstacle after crossing the obstacle. When the detonation wave crosses the obstacle, it is attenuated and decoupled by the expansion wave at the tail of the obstacle, but Mach reflection occurs as the diffraction shock wave bypassing both sides of the cylindrical obstacle collides at the rear axis of the obstacle and the central axis of the channel, and Mach reflection occurs when the incident shock collides with the downstream channel wall, completing the re-initiation process. The obstacles with smaller diameters cause less energy loss of the detonation wave, and the re-initiation distances of the cell detonation wave shorten with the decrease of the diameters of the obstacles. The experimental results of obstacles of different diameters show that with the increase of initial pressure, the reactivity of the premixed gas increases and the stability of self-sustaining detonation increases, thereby weakening the influence of the geometric size of the obstacles, which is conducive to weakening the attenuation of detonation and shortening the re-initiation distance. Under the geometric dimensions of the obstacles experimented in this paper, the detonation re-initiation distance was measured, and the relationship of re-initiation distance of 2H₂+O₂ after the cylindrical obstacle under different dilution ratios of Ar was established with the cylindrical vertical spacing and cell size.
- detonation wave /
- hydrogen /
- cylindrical obstacle /
- diffraction /
- re-initiation

HTML全文

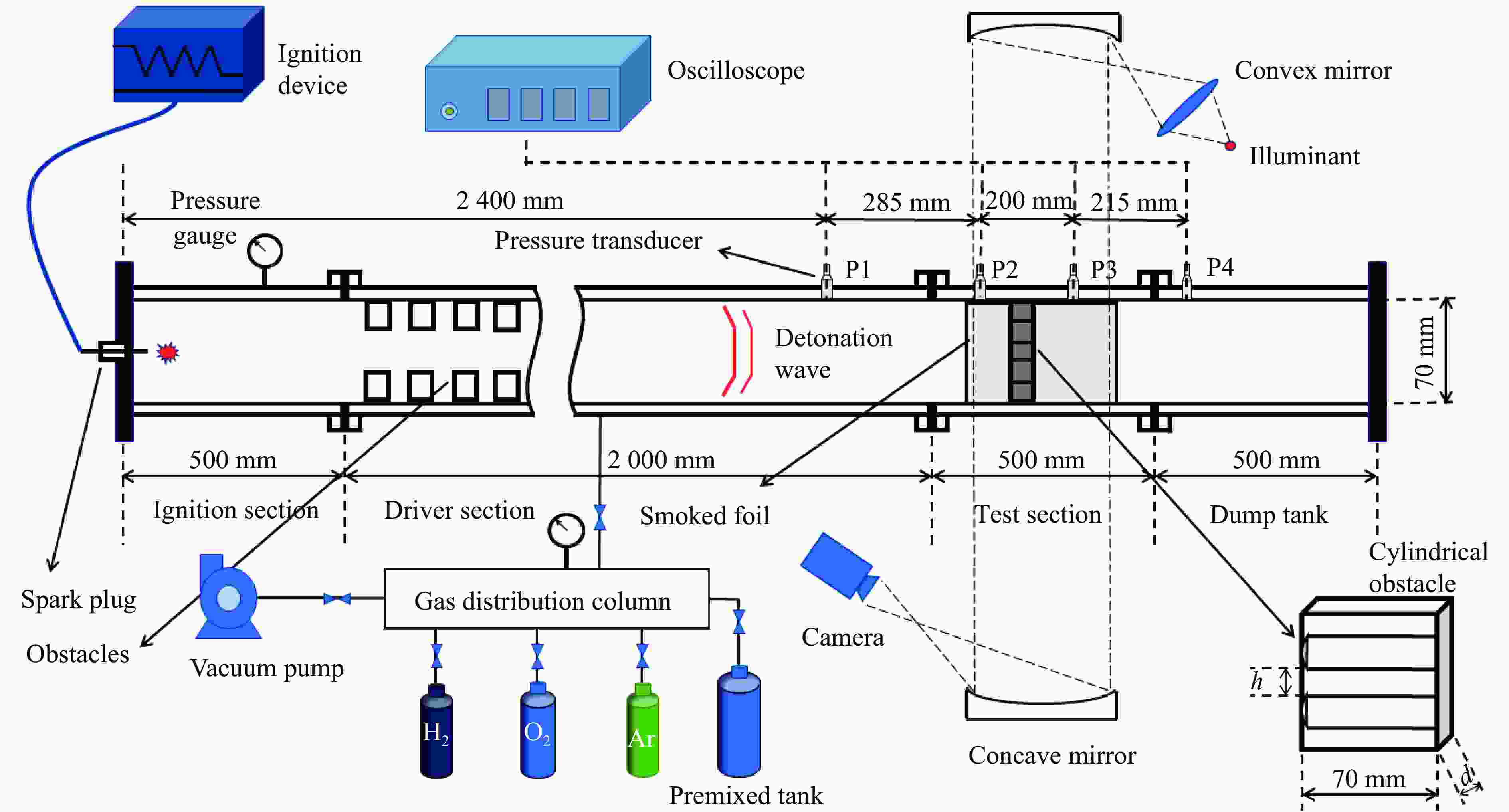

图 1 实验系统装置示意图

Figure 1. Schematic diagram of experimental facilities

下载: 全尺寸图片幻灯片

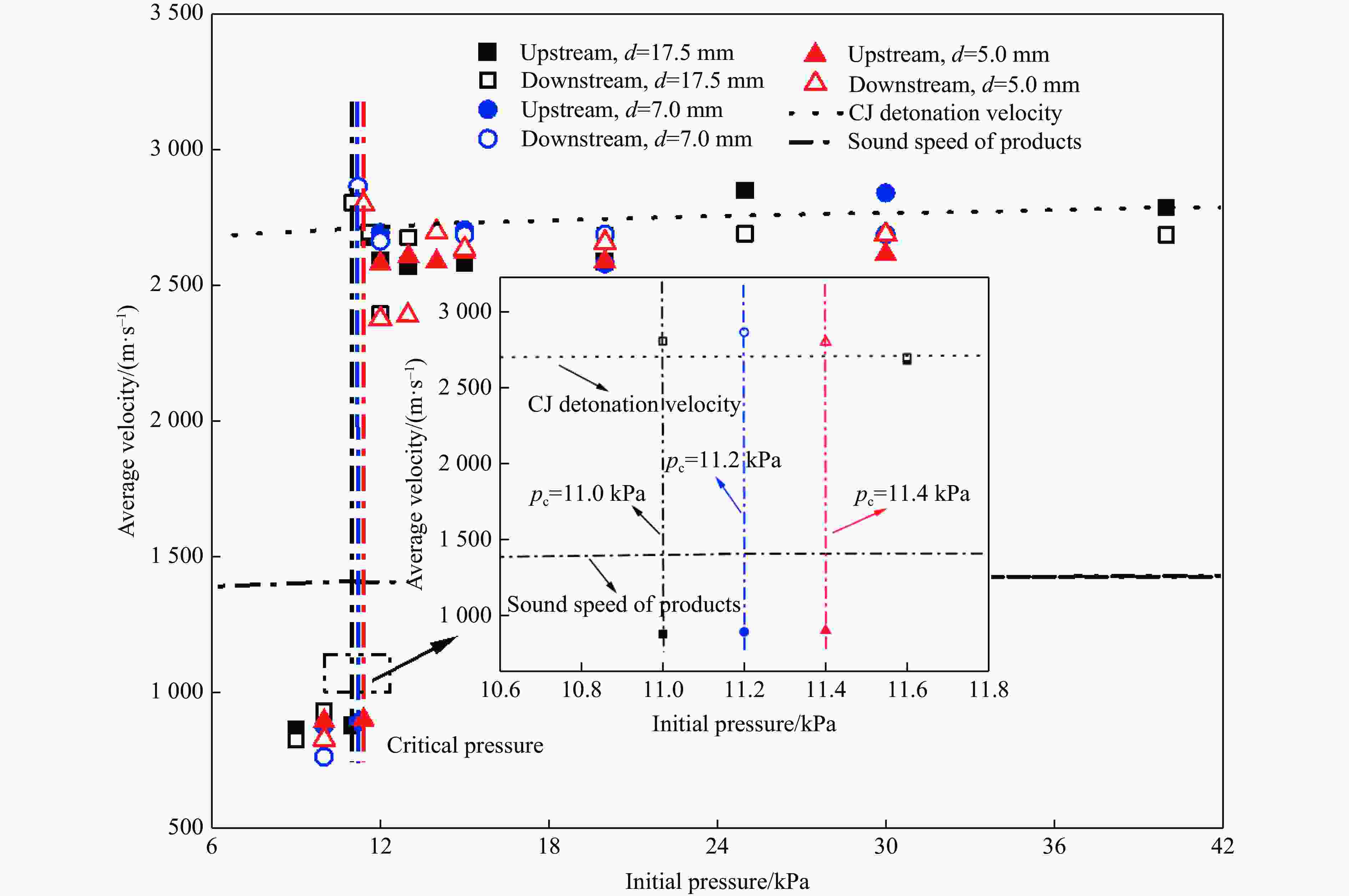

图 2 不同直径障碍物下的上、下游平均速度与初始压力的关系

Figure 2. Upstream and downstream average velocity versus initial pressure in the cases of various diameter obstacles

下载: 全尺寸图片幻灯片

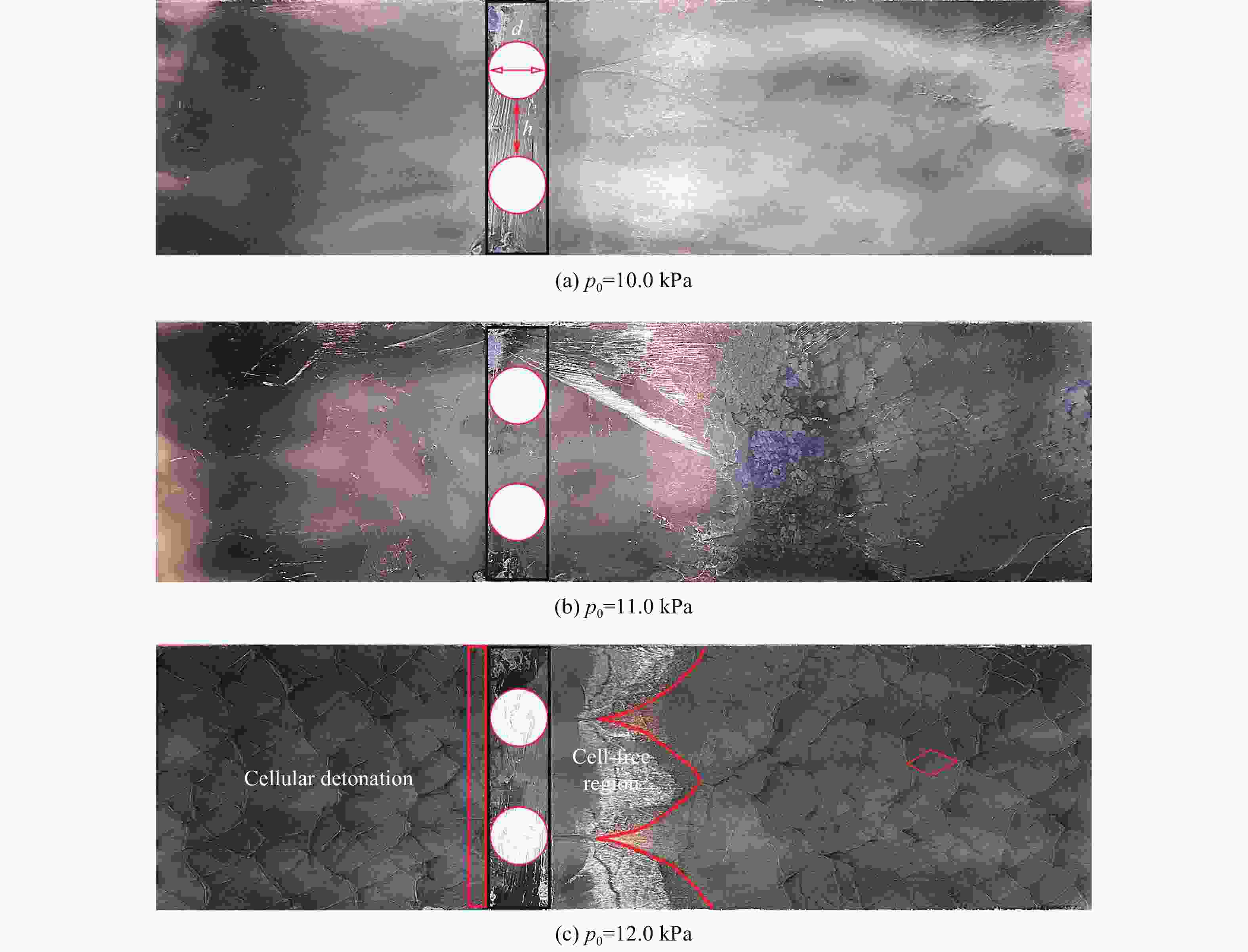

图 3 障碍物直径d=17.5 mm时快速火焰在不同初始压力下的传播烟迹

Figure 3. Smoked foils of the propagation pattern of fast flame at different initial pressures at obstacle diameter d=17.5 mm

下载: 全尺寸图片幻灯片

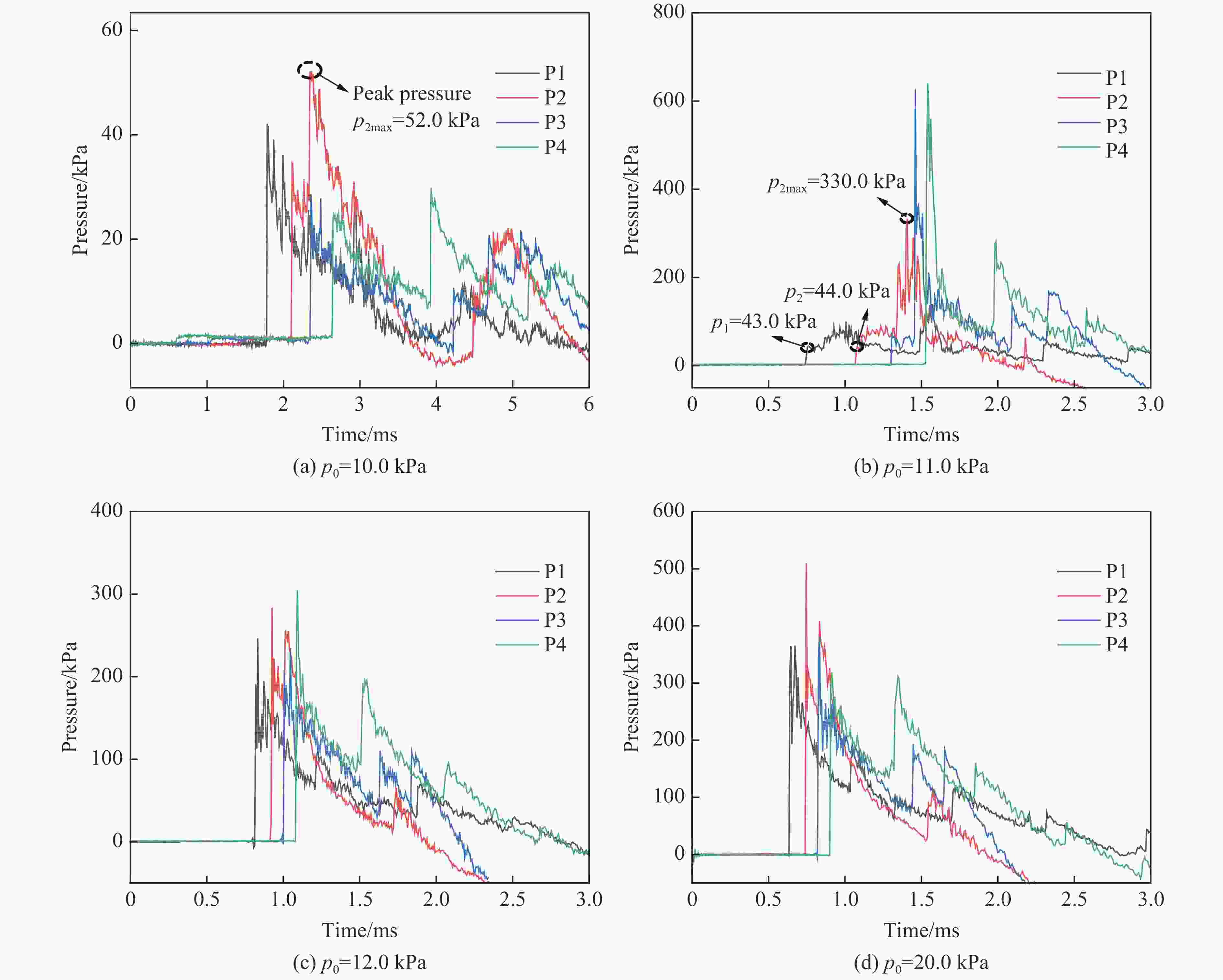

图 4 障碍物直径d=17.5 mm、不同初始压力下压力传感器P1、P2、P3、P4处的压力曲线

Figure 4. Pressure profiles at pressure sensor P1, P2, P3, P4 under different initial pressures at obstacle diameter of 17.5 mm

下载: 全尺寸图片幻灯片

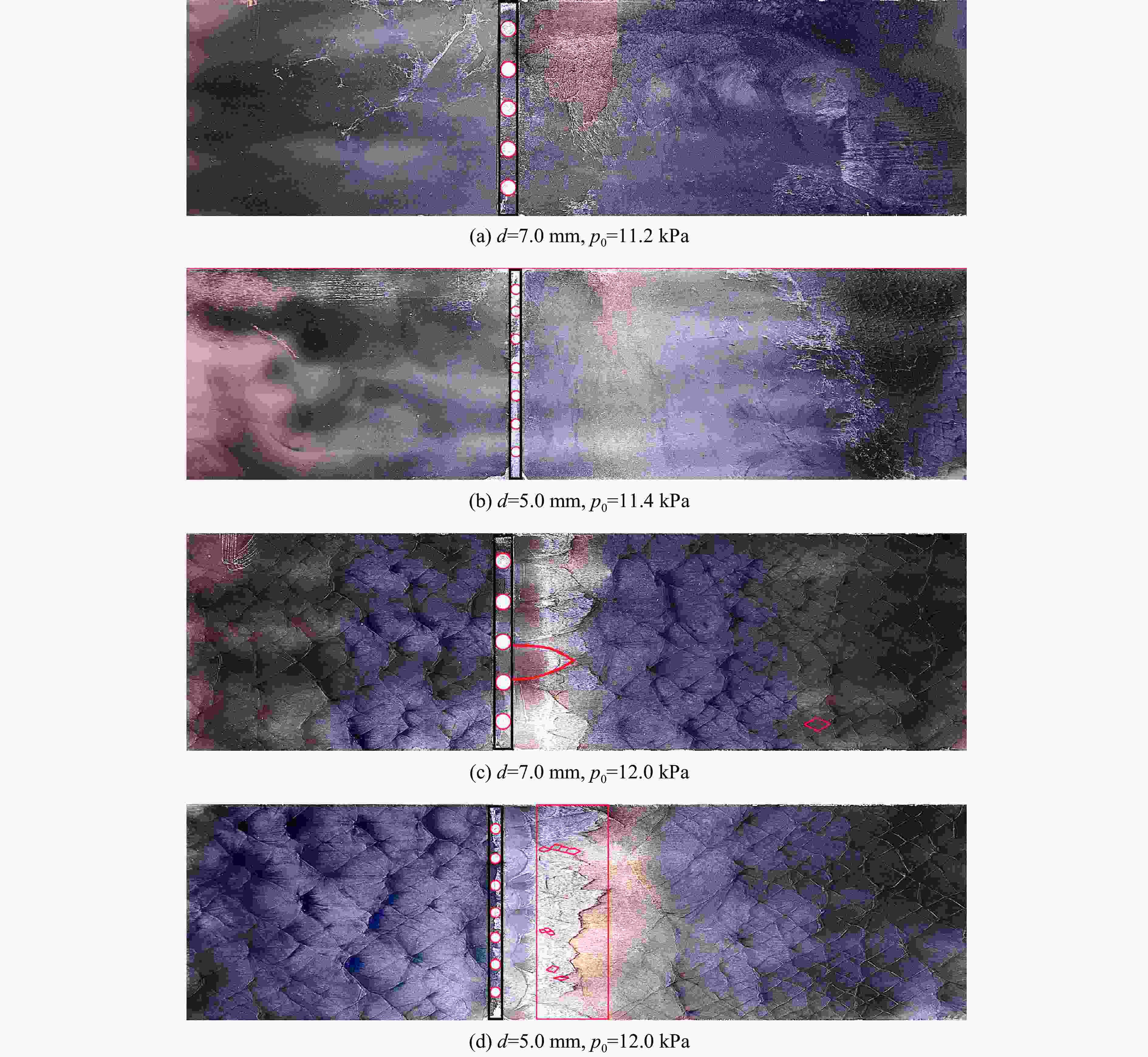

图 5 快速火焰在不同直径障碍物、不同初始压力下的传播烟迹

Figure 5. Smoked foils of the propagation pattern of fast flame in obstacles with different diameters and different initial pressures

下载: 全尺寸图片幻灯片

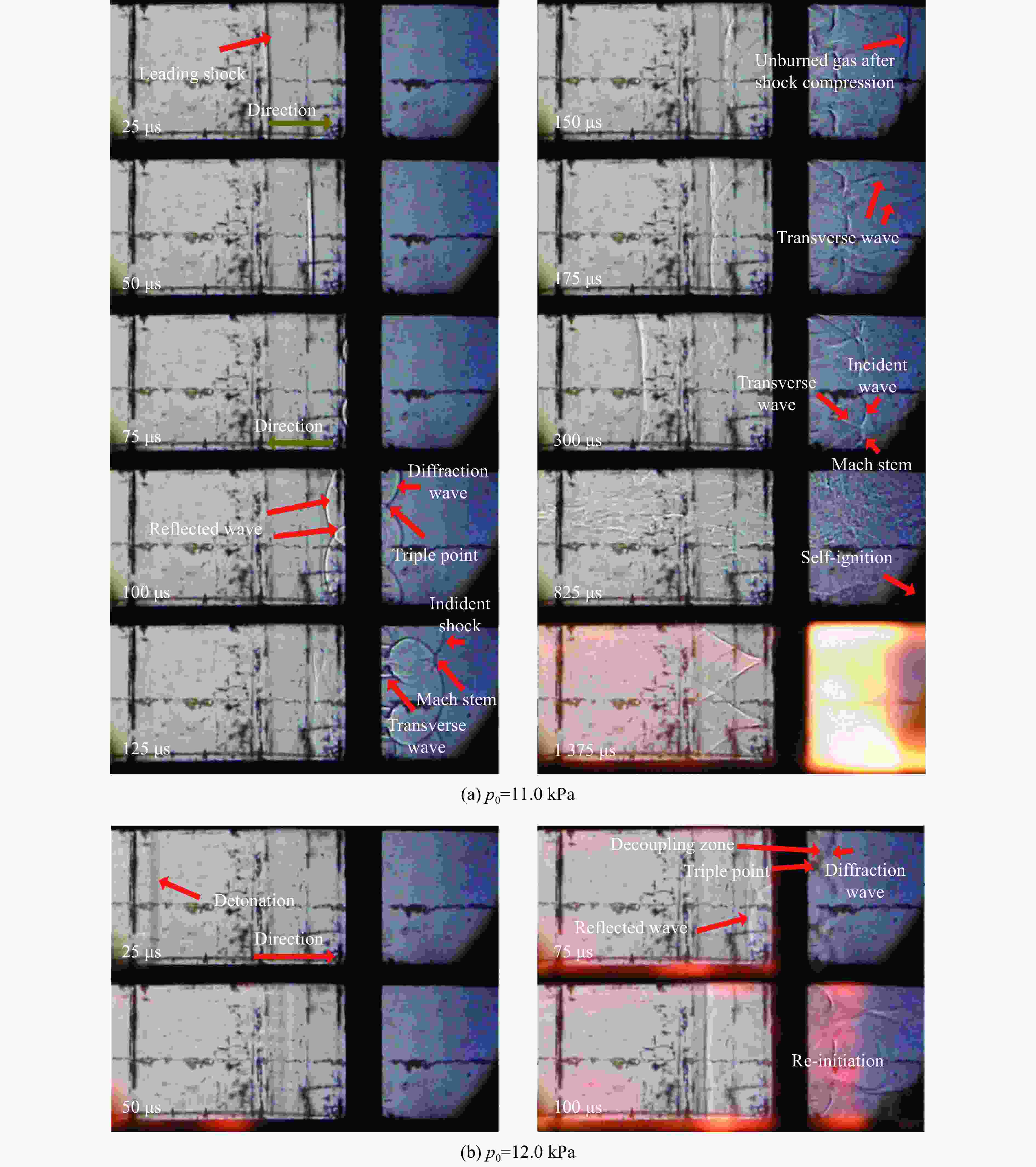

图 6 前导激波、CJ爆轰撞击直径d=17.5 mm的圆柱形障碍物时下游纹影照片

Figure 6. Schlieren shots of leading shock or CJ detonation colliding with the cylindrical obstacle diameter of 17.5 mm

下载: 全尺寸图片幻灯片

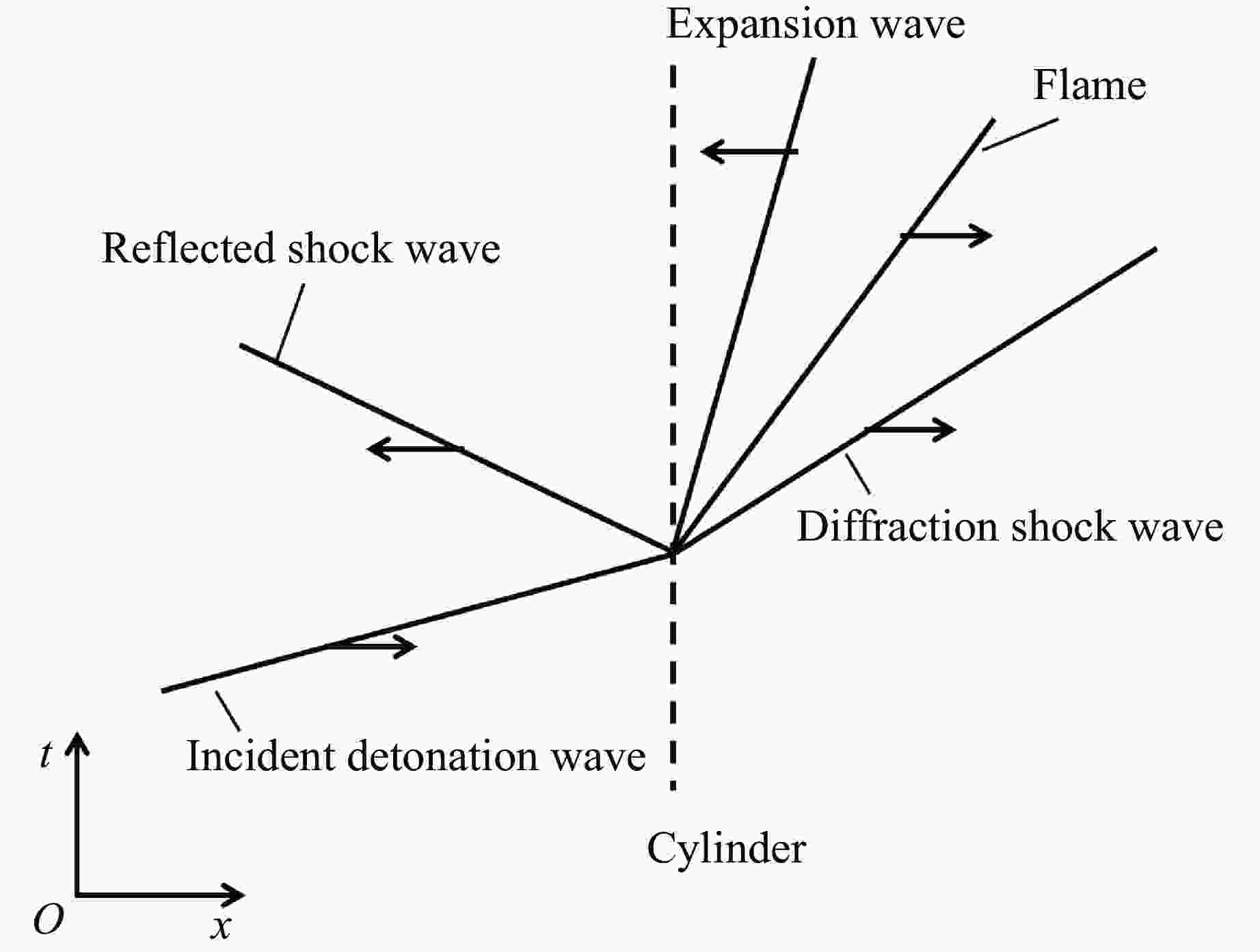

图 7 入射爆轰波与柱形障碍物碰撞结构示意图

Figure 7. Schematic diagram of the collision structure of the incident detonation and the cylindrical obstacle

下载: 全尺寸图片幻灯片

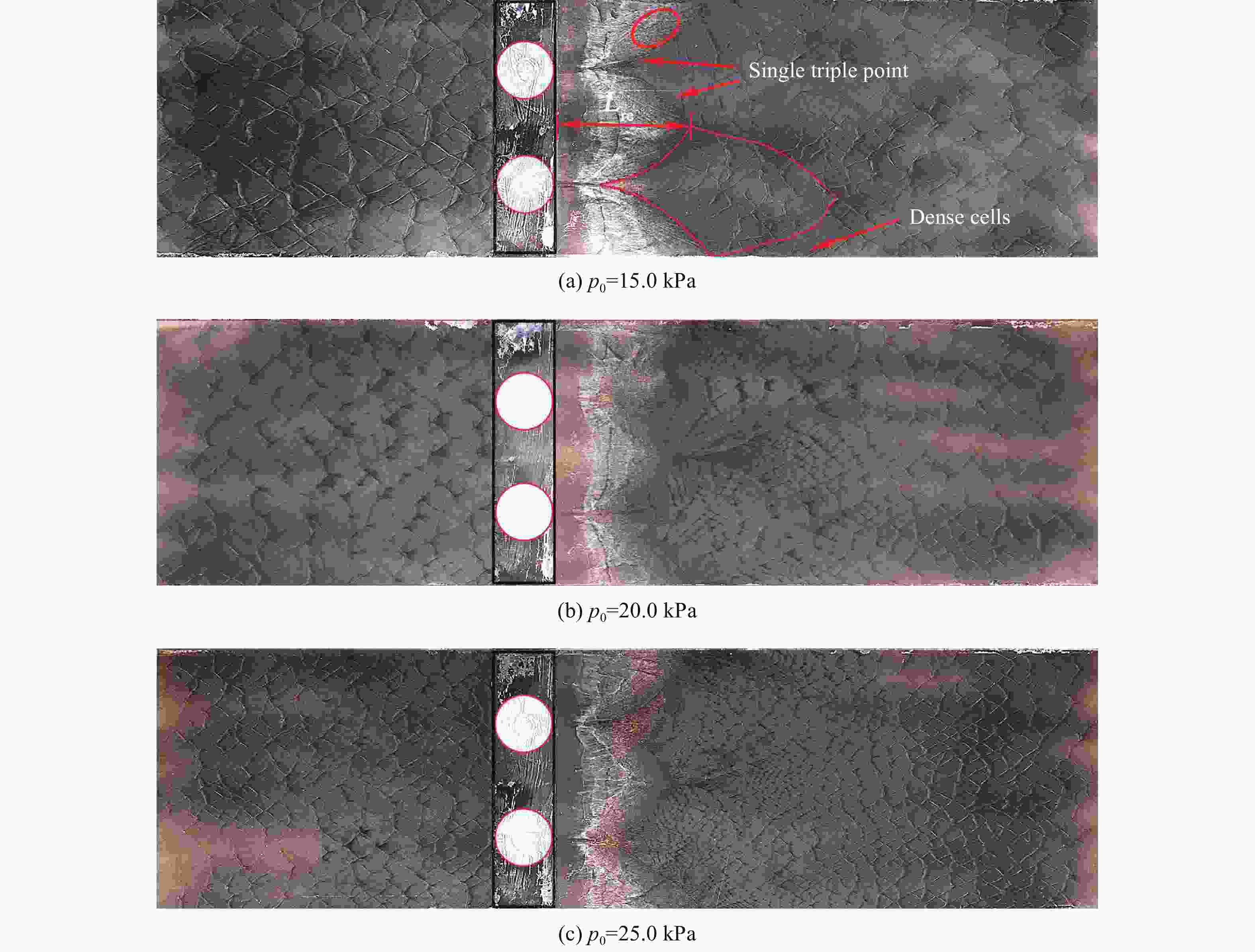

图 8 障碍物直径d=17.5 mm时不同初始压力下再起爆胞格图像

Figure 8. Smoked re-initiation foils downstream of the cylindrical obstacle with the diameter of 17.5 mm under different initial pressures

下载: 全尺寸图片幻灯片

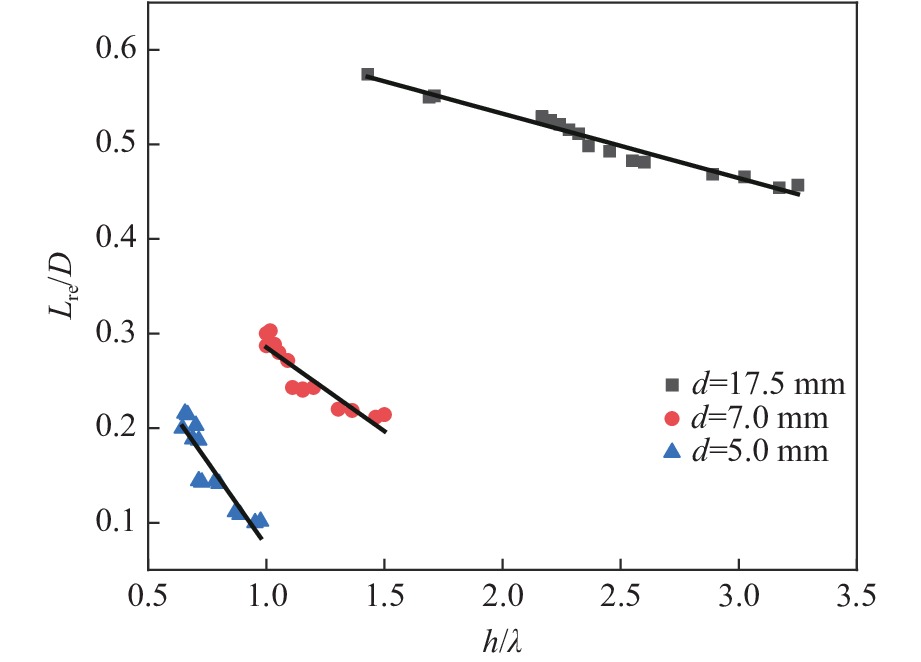

图 9 越过不同尺寸圆柱形障碍物后2H₂+O₂的L_re/D与h/λ的关系

Figure 9. Relationship between the L_re/D and h/λ of 2H₂+O₂ after crossing cylindrical obstacles of different sizes

下载: 全尺寸图片幻灯片

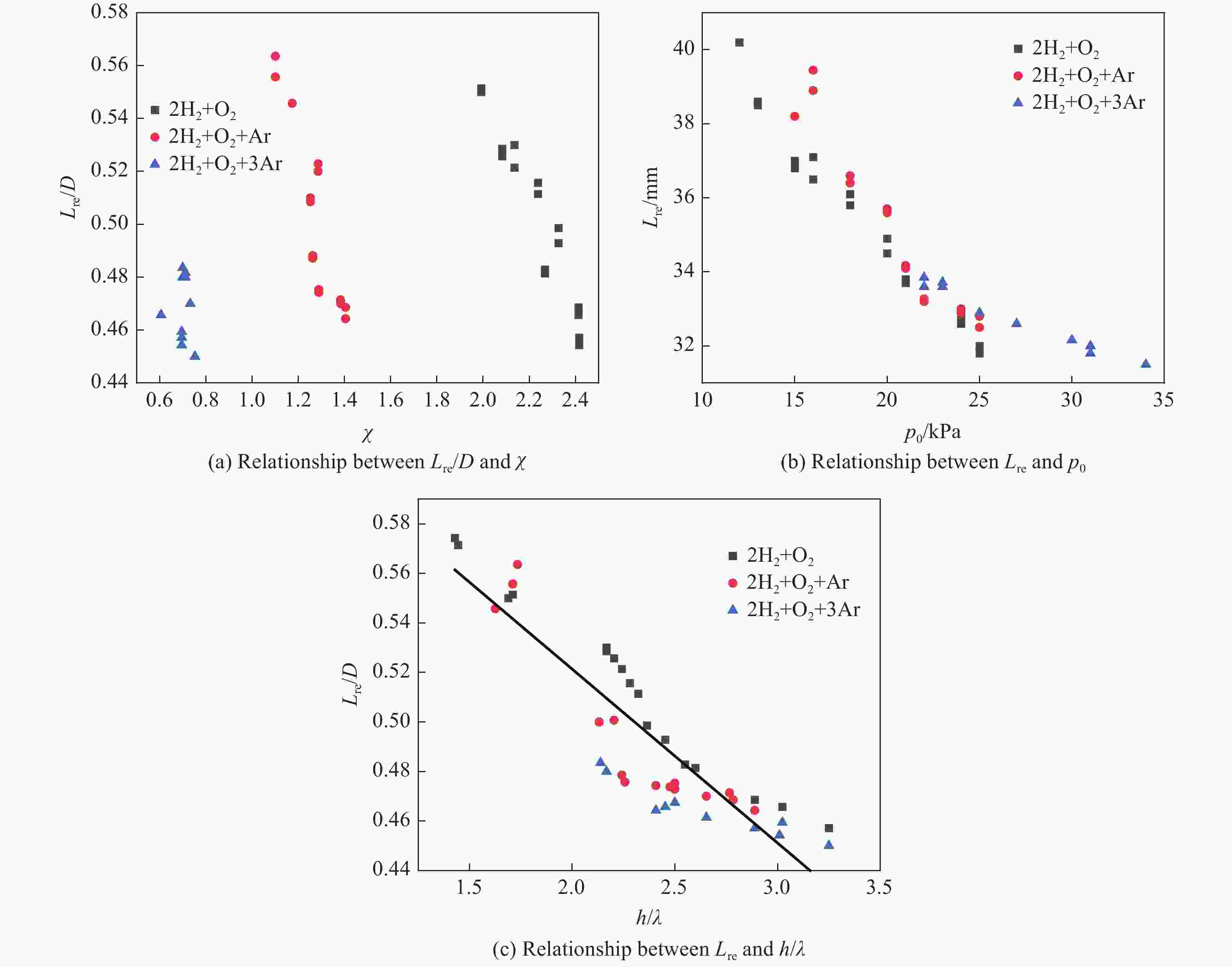

图 10 障碍物直径d=17.5 mm时Ar对再起爆距离的影响

Figure 10. Effect of Ar on the re-initiation distance with the obstacle diameter of 17.5 mm

下载: 全尺寸图片幻灯片
