高温高压下花岗岩部分熔融时的电导率

王双杰; 易丽; 王多君; 申珂玮; 韩珂楠

doi:10.11858/gywlxb.20200502

高温高压下花岗岩部分熔融时的电导率

doi: 10.11858/gywlxb.20200502

王双杰^1,,
易丽¹,
王多君^2,*, ,,
申珂玮²,
韩珂楠¹

1.
中国地震局地震预测研究所，北京　100036
2.
中国科学院大学地球与行星科学学院，北京　100049

基金项目: 国家自然科学基金（41373060）；中央高校基本科研业务费专项资金（Y954012）

详细信息

作者简介:
王双杰（1992－），男，硕士研究生，主要从事矿物电学性质研究. E-mail：1193938748@qq.com

通讯作者:
王多君（1974－），男，博士，教授，主要从事矿物物理、地球内部物理研究.E-mail：duojunwang@ucas.edu.cn

中图分类号: O732; P574.1
计量
- 文章访问数: 7189
- HTML全文浏览量: 2466
- PDF下载量: 35
出版历程
- 收稿日期: 2020-01-06
- 修回日期: 2020-02-18

Experimental Conductivity of Partial Melt Granite at High Temperature and Pressure

1.
Institute of Earthquake Forecasting, CEA, Beijing 100036, China
2.
School of Earth and Planetary Sciences, University of Chinese Academy of Sciences, Beijing 100049, China

摘要

摘要: 大地电磁测深结果显示青藏高原中上地壳存在高导层，而花岗岩是地壳岩石的主要组成部分，在地壳演化过程中发挥着重要作用。在高温高压下开展花岗岩部分熔融时电导率实验对认识青藏高原地壳电性结构及地壳演化过程具有重要意义。在0.5～2.0 GPa压力、773～1 373 K温度条件下测量花岗岩的电导率。实验结果表明：在温度为773～1 223 K时，样品的活化焓为1.01～1.09 eV；在温度为1 223～1 373 K时，样品的活化焓为2.16～2.97 eV。不同温度段内活化焓的变化可能与花岗岩样品中黑云母的脱水熔融有关，推断花岗岩部分熔融时导电机制为离子导电，Na⁺起主导作用。将实验测得的电导率与西藏高导层地壳温度背景结合发现：在973～1 223 K范围内实验电导率值在0.016～0.310 S/m范围内，与大地电磁测深数据吻合较好，表明西藏地壳高导层的成因与花岗岩部分熔融关系较为密切。
- 高温高压 /
- 电导率 /
- 花岗岩 /
- 部分熔融
Abstract: Magnetotelluric (MT) surveys reveal that high conductivity layer appear in the upper crust beneath Tibet. Granite is the main rocks composed of upper crust, playing an important role in the process of crustal evolution. Electrical conductivity of granite during partial melting is of great significance to understanding the conductivity structure of Tibetan Plateau crust and the crustal evolution process. Electrical conductivity of granite collected from the Tibet was conducted under the conditions of 0.5－2.0 GPa and 773－1 373 K. The activation enthalpies of 1.01－1.09 eV and 2.16－2.97 eV are derived from 773 to 1 223 K and from 1 223 to 1 373 K, respectively. The change of activation enthalpy in different temperature zones may be related to the partial melting of granite induced by the biotite dehydration. Combining the experimental results and geothermal gradient of Tibet, we found that the experimental conductivity values fell between 0.016 S/m and 0.310 S/m in the temperature range of 973－1 223 K, which was in good agreement with the magnetotelluric sounding data. This may indicate that there is a close relationship between the genesis of the high conductivity layer and the partial melting of granite.
- high temperature and high pressure /
- conductivity /
- granite /
- partial melting

HTML全文

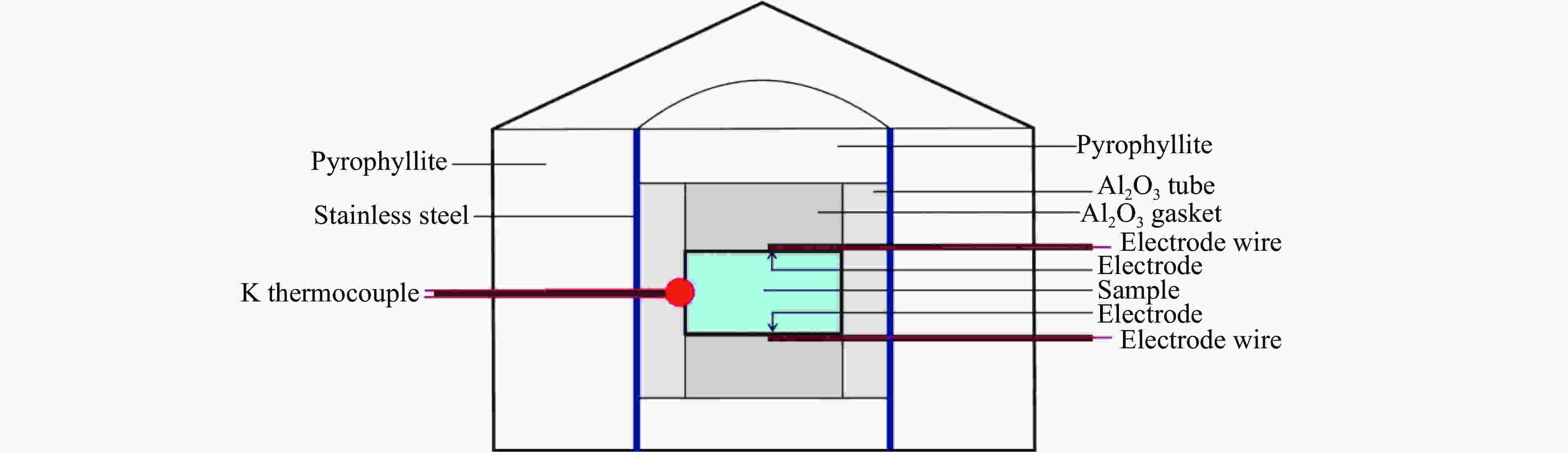

图 1 样品高压电导率测量组装示意图

Figure 1. Sample assembly for high pressure conductivity measurement

下载: 全尺寸图片幻灯片

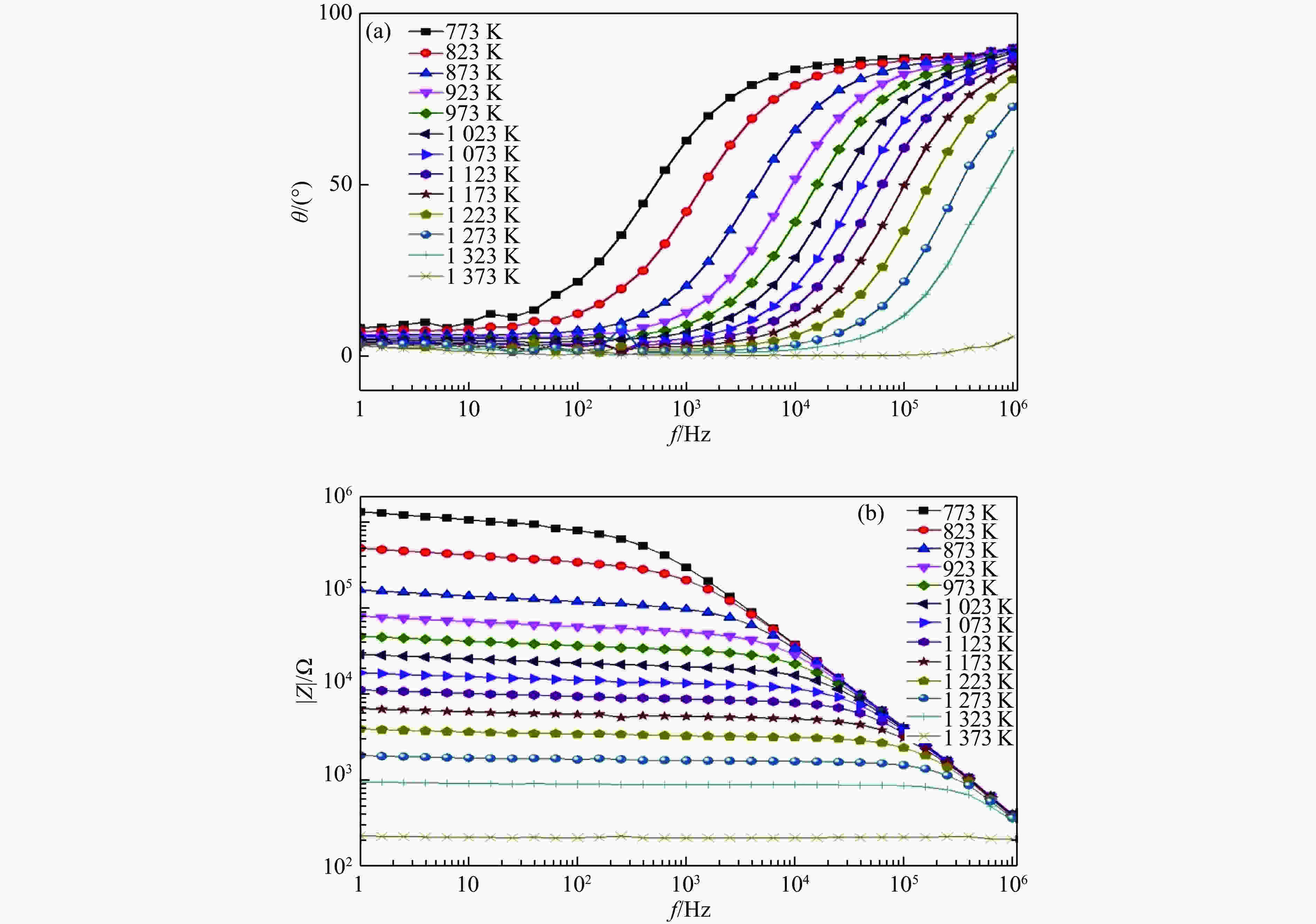

图 2 压强1.0 GPa、温度773 ～1 373 K条件下花岗岩样品相角和模随频率的变化

Figure 2. Respectively changes of phase angle and modulus of impedance as the function of frequency for granite at 1.0 GPa and 773－1 373 K

下载: 全尺寸图片幻灯片

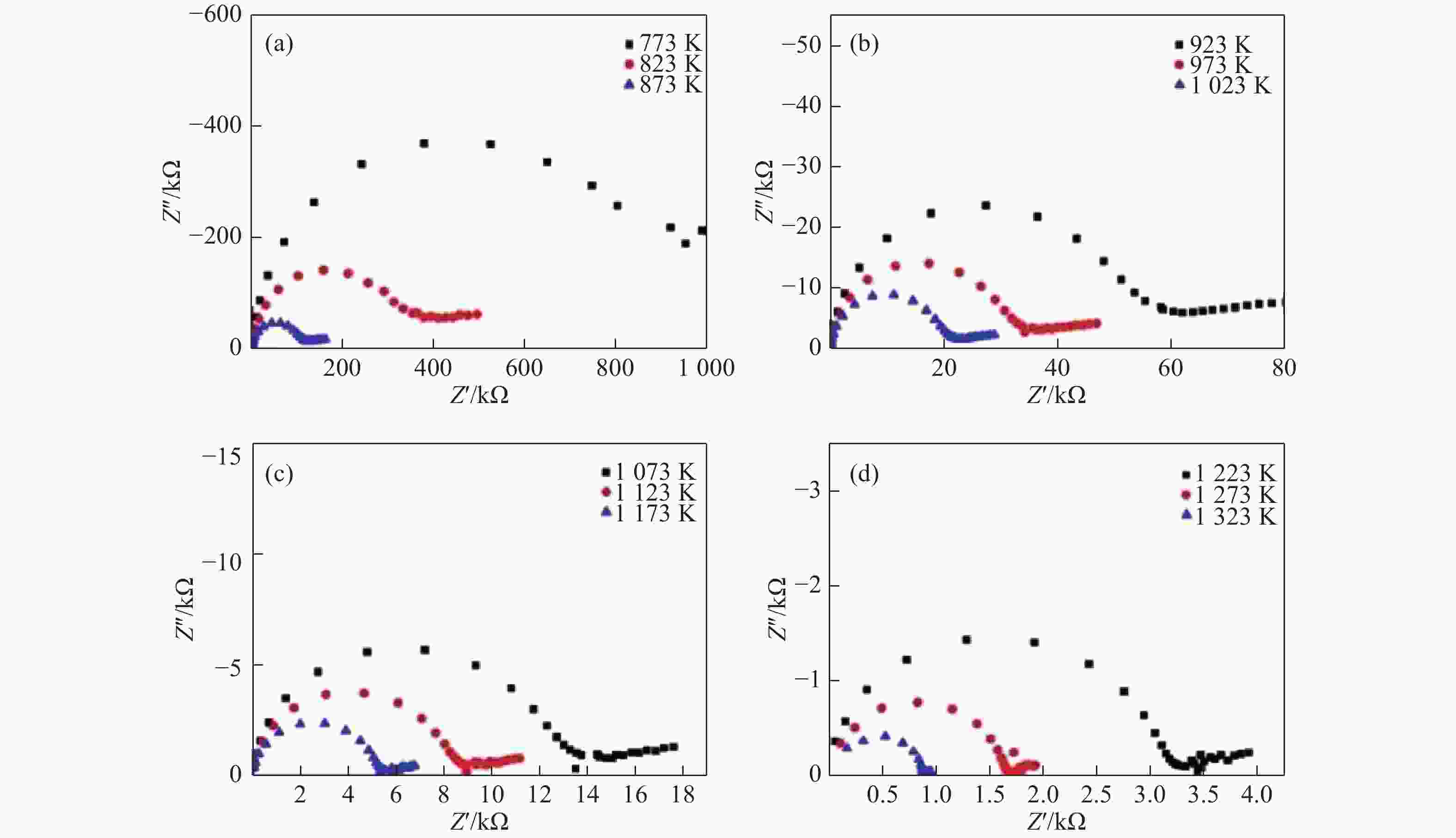

图 3 1.0 GPa、773～1 373 K条件下样品的复阻抗谱

Figure 3. Complex impedance spectra of the samples at 1.0 GPa and 773－1 373 K

下载: 全尺寸图片幻灯片

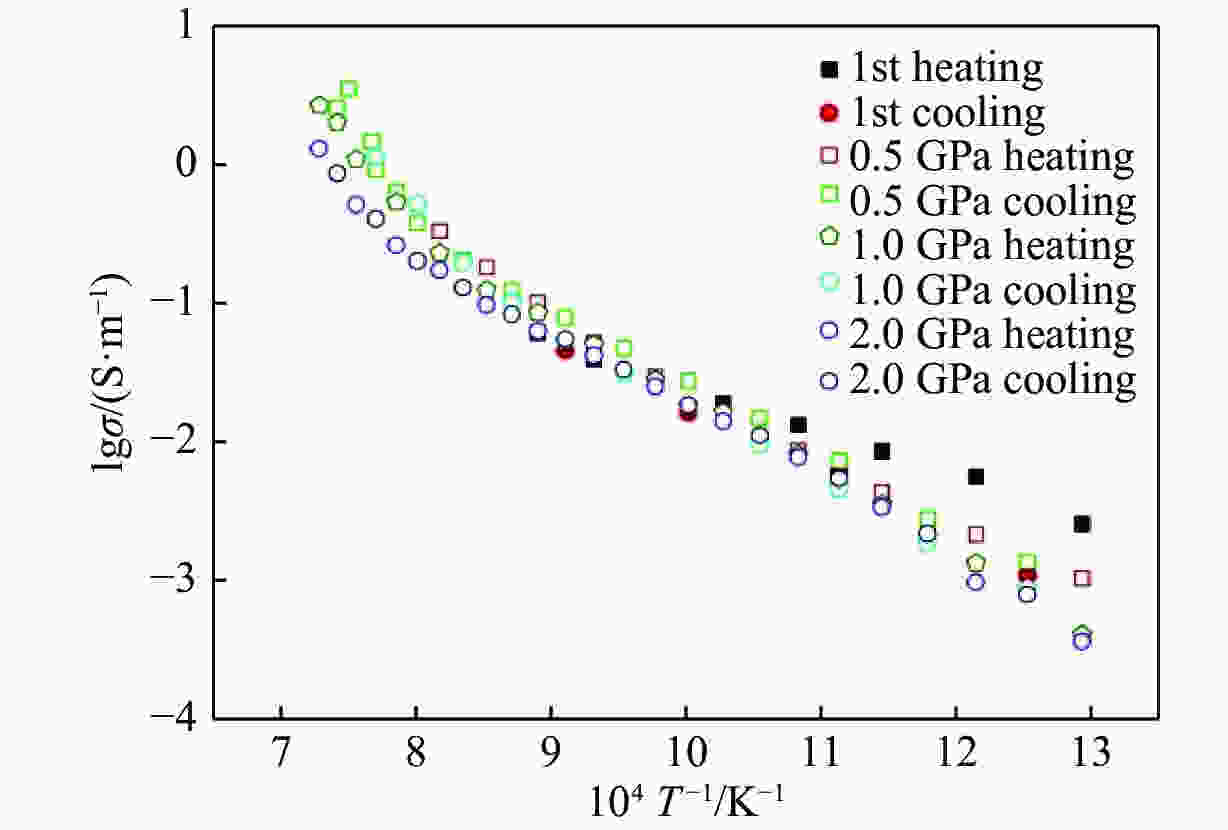

图 4 0.5～2.0 GPa压强下电导率随温度的变化

Figure 4. Electrical conductivity as the function of temperatures at 0.5－2.0 GPa

下载: 全尺寸图片幻灯片

图 5 高压实验前（a）、后（b）样品的扫描电镜图像

Figure 5. Images of scanning electron microscope for the samples before (a) and after (b) the experiment

下载: 全尺寸图片幻灯片

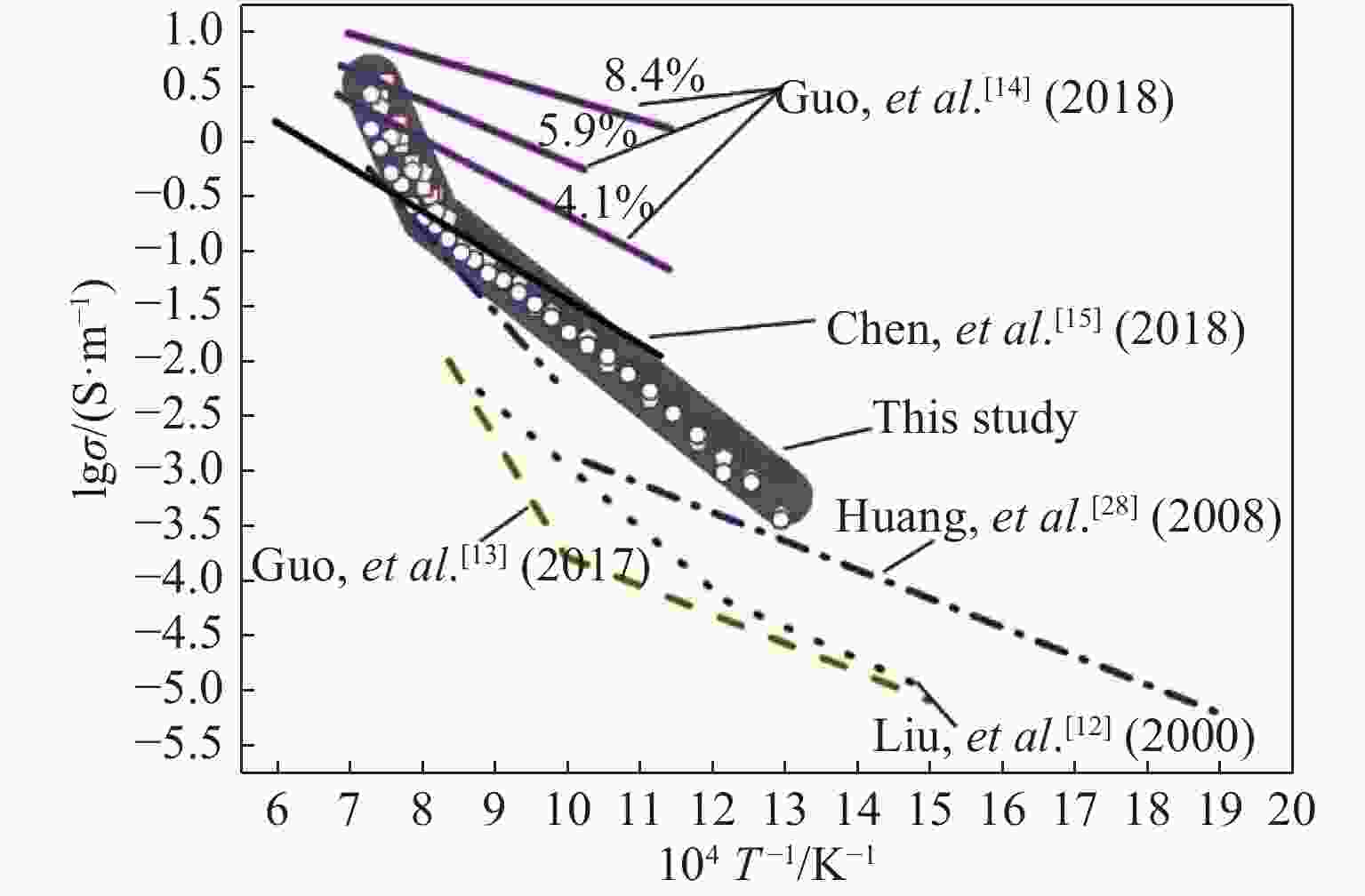

图 6 花岗岩电导率实验结果对比

Figure 6. Comparison of the conductivity results in this work with previous data

下载: 全尺寸图片幻灯片

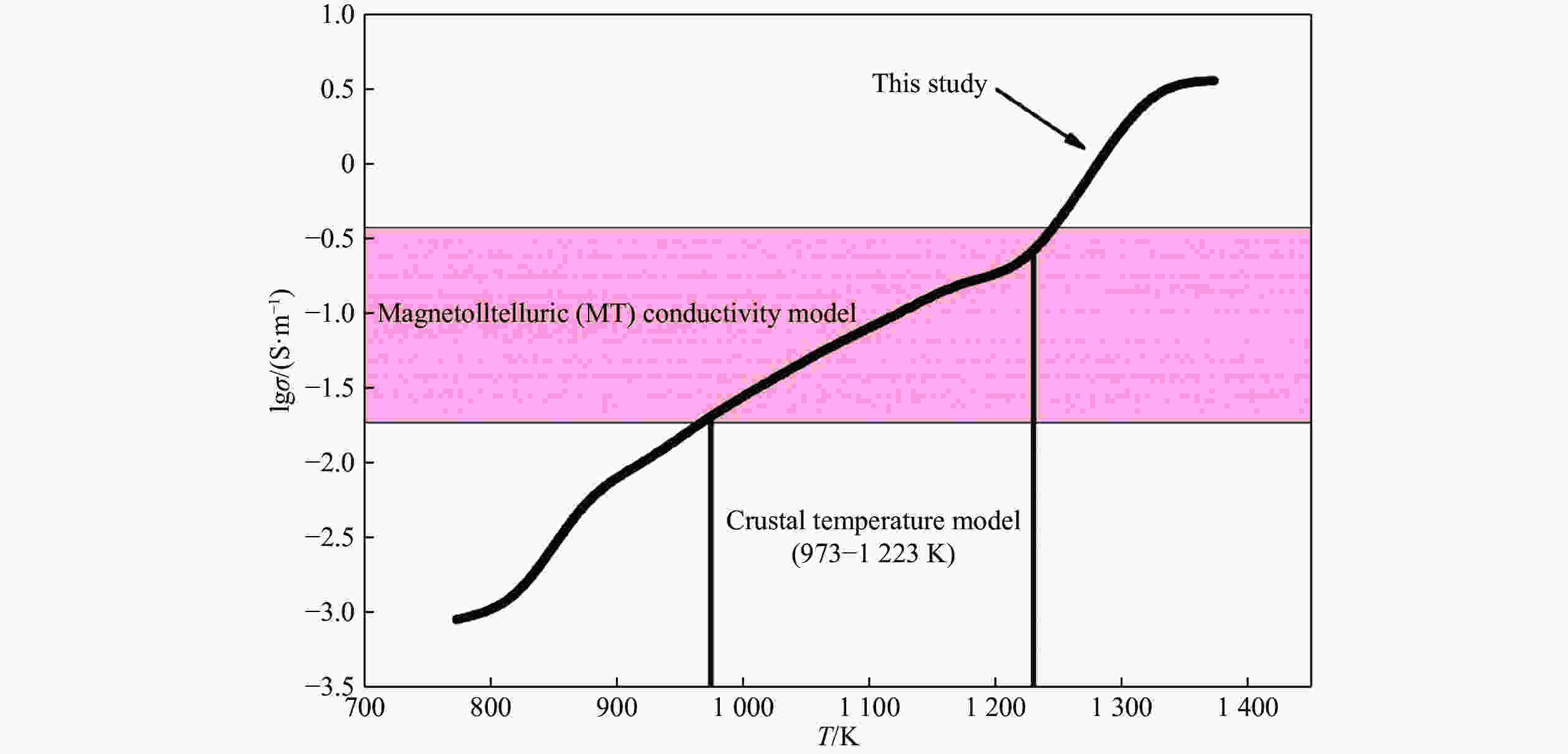

图 7 基于实验室电导率模型与大地电磁结果对比

Figure 7. Comparison of laboratory-based conductivity profile established with the result of the upper crust derived from MT conductivity model

下载: 全尺寸图片幻灯片

表 1 花岗岩样品的矿物成分及含量

Table 1. Compositions of the minerals in granite

Compounds	Content/%
Compounds	Quartz	K-feldspar	Albite	Biotite
Na₂O	0.008	0.774	10.887	0.319
MgO	0.002	0	0	2.694
Al₂O₃	0.113	18.771	22.019	20.368
SiO₂	97.196	67.117	65.805	40.506
SrO	0.288	0.639	0.240	0
K₂O	0.026	15.175	0.144	8.342
CaO	0.016	0.003	1.550	0.084
MnO	0.023	0.072	0	0.470
FeO	0.087	0.096	0.016	24.901
TiO₂	0.069	0.103	0	2.147
Total	97.828	102.750	100.661	99.831

下载: 导出CSV

表 2 不同压力下花岗岩样品电导率的Arrhenius关系拟合参数

Table 2. Fitting parameters of Arrhenius relationship of the conductivity of granite samples under different pressures

p/GPa	T/K	lg $\sigma $₀/(S·m⁻¹)	ΔH/eV
0.5	773－1 223	3.53 ± 0.08	1.01 ± 0.01
0.5	1 223－1 373	11.66 ± 1.00	2.97 ± 0.26
1.0	773－1 223	3.82 ± 0.09	1.09 ± 0.02
1.0	1 223－1 373	8.38 ± 0.63	2.16 ± 0.16
2.0	773－1 223	3.64 ± 0.09	1.06 ± 0.02
2.0	1 223－1 373	8.22 ± 0.59	2.21 ± 0.13

下载: 导出CSV
