一种超高温动态力学行为测试及原位图像获取方法

张超 索涛 谭伟力 张欣玥 汪存显 李玉龙

张超, 索涛, 谭伟力, 张欣玥, 汪存显, 李玉龙. 一种超高温动态力学行为测试及原位图像获取方法[J]. 高压物理学报, 2018, 32(1): 013202. doi: 10.11858/gywlxb.20170522
引用本文: 张超, 索涛, 谭伟力, 张欣玥, 汪存显, 李玉龙. 一种超高温动态力学行为测试及原位图像获取方法[J]. 高压物理学报, 2018, 32(1): 013202. doi: 10.11858/gywlxb.20170522
ZHANG Chao, SUO Tao, TAN Weili, ZHANG Xinyue, WANG Cunxian, LI Yulong. A Method for Testing Dynamic Mechanical Behavior of Materials at Ultra-High Temperature and in-Situ Observation[J]. Chinese Journal of High Pressure Physics, 2018, 32(1): 013202. doi: 10.11858/gywlxb.20170522
Citation: ZHANG Chao, SUO Tao, TAN Weili, ZHANG Xinyue, WANG Cunxian, LI Yulong. A Method for Testing Dynamic Mechanical Behavior of Materials at Ultra-High Temperature and in-Situ Observation[J]. Chinese Journal of High Pressure Physics, 2018, 32(1): 013202. doi: 10.11858/gywlxb.20170522

一种超高温动态力学行为测试及原位图像获取方法

doi: 10.11858/gywlxb.20170522
基金项目:

国家自然科学基金 11522220

国家自然科学基金 11272267

国家自然科学基金 11527803

详细信息
    作者简介:

    张超(1991-), 男, 博士研究生, 主要从事高温动态测量研究. E-mail: zhcdao@outlook.com

    通讯作者:

    索涛(1979-), 男, 博士, 教授, 主要从事材料及结构的动态力学行为研究. E-mail: suotao@nwpu.edu.cn

  • 中图分类号: O347;O521.3

A Method for Testing Dynamic Mechanical Behavior of Materials at Ultra-High Temperature and in-Situ Observation

  • 摘要: 提出了一种新的超高温(1 600 ℃)动态力学性能测试及原位图像获取方法:在原有分离式Hopkinson压杆的基础上,利用加热源为MoSi2的超高温炉实现超高温环境,采用两个活塞组成双同步系统,利用高速摄像机记录动态变形过程。为了验证所提方法的可行性,以TC4钛合金和SiC陶瓷为研究对象,进行超高温动态力学性能测试,其中:在TC4钛合金实验中,应变率为2 000 s-1,温度范围为20~1 400 ℃,测得其流动应力从1.6 GPa降到150 MPa;在SiC实验中,应变率为250 s-1,温度范围为20~1 200 ℃,测得其压缩强度从250 MPa降到220 MPa。根据高速摄像机记录的试样动态变形过程,分析试样的破坏模式,结果表明:在高温空气环境下,TC4钛合金试样表面有氧化层裂开现象,而在氩气环境下则没有;室温下,SiC试样初始裂纹产生时的应力为压缩强度的80%,而在1 200 ℃下为压缩强度的99%。

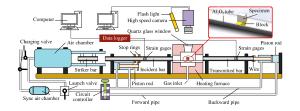

  • 图  带有超高速摄像机的超高温双同步SHPB装置示意图

    Figure  1.  Schematic illustration of the ultra-high temperature SHPB with a double-synchronically assembled heating system and high speed camera

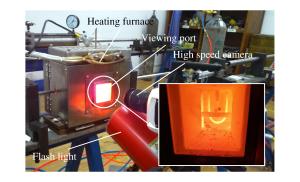

    图  高速摄像机布局(插图为高温炉内部图像)

    Figure  2.  High speed camera (The inset shows the internal of the furnace.)

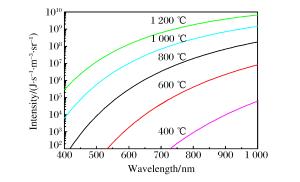

    图  不同温度下波长与热辐射能量的关系曲线

    Figure  3.  Wavelength vs.thermal radiation energy at different temperatures

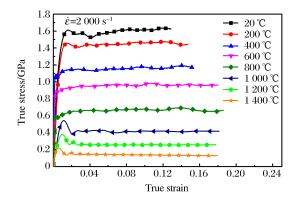

    图  TC4在应变率为2 000 s-1、温度范围为20~1 400 ℃条件下的应力-应变曲线

    Figure  4.  Stress-strain curves of TC4 at strain rate of 2 000 s-1 and temperature range of 20 ℃ to 1 400 ℃

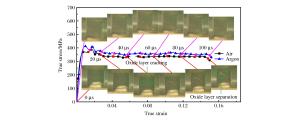

    图  TC4在应变率为2 000 s-1、温度为1 100 ℃、不同气体环境下的应力-应变曲线及形貌

    Figure  5.  Stress-strain curves and morphologies of TC4 at 2 000 s-1 and 1 100 ℃ in different gas environments

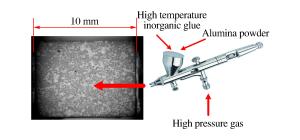

    图  高温散斑

    Figure  6.  High temperature speckle

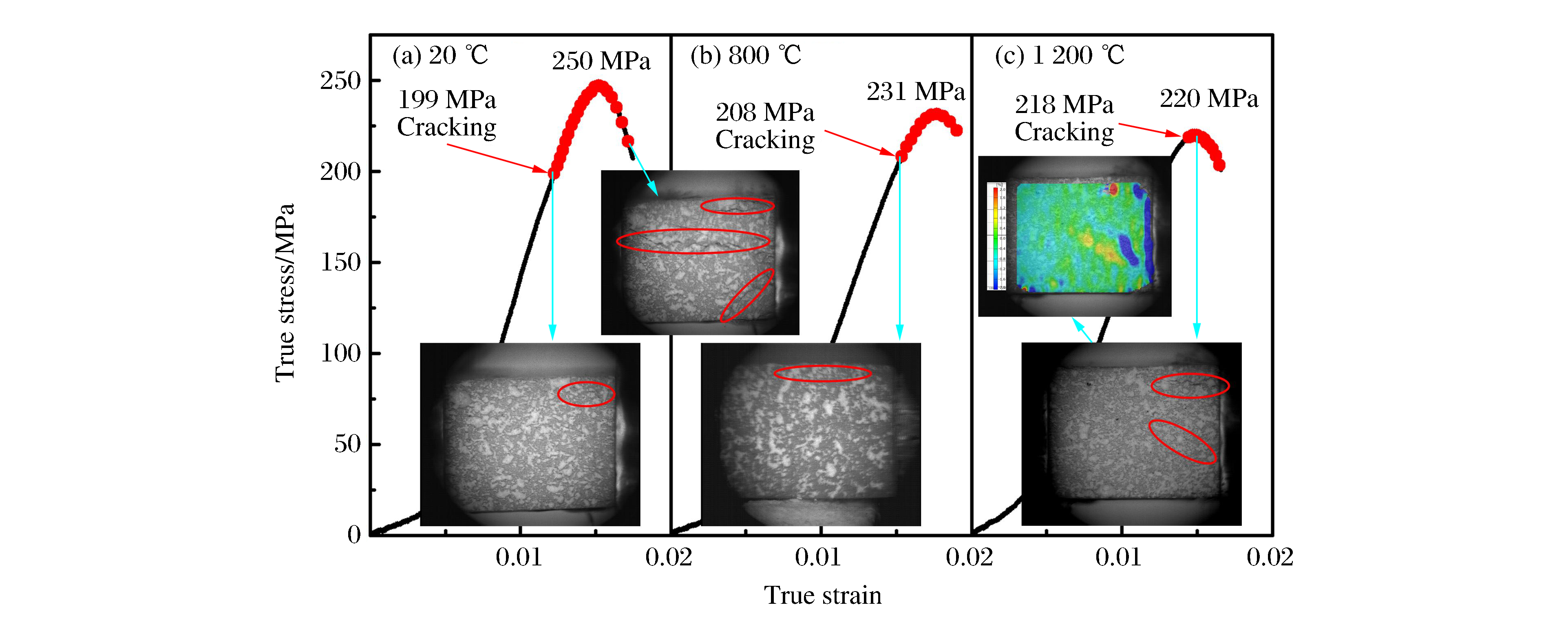

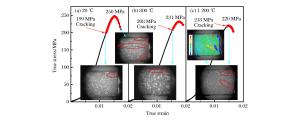

    图  SiC在应变率为250 s-1,温度为20、800和1 200 ℃时的应力-应变曲线及形貌

    Figure  7.  Stress-strain curves and morphologies of SiC at strain rate of 250 s-1 and temperature of 20, 800 and 1 100 ℃
