二次压缩条件下JOB-9003炸药特性研究

訾攀登; 陈军; 张蓉; 钟斌; 张旭

doi:10.11858/gywlxb.2017.02.007

二次压缩条件下JOB-9003炸药特性研究

doi: 10.11858/gywlxb.2017.02.007

訾攀登^1,,
陈军²,
张蓉³,
钟斌³,
张旭^3,*, ,

1.
中国工程物理研究院研究生部，四川绵阳 621999
2.
中国工程物理研究院，四川绵阳 621999
3.
中国工程物理研究院流体物理研究所，四川绵阳 621999

基金项目:

国防技术基础科研项目 JSZL2015212C01

详细信息

作者简介:
訾攀登(1991—), 男，硕士研究生，主要从事炸药状态方程研究.E-mail:973804489@qq.com

通讯作者:
张旭(1972—), 男，研究员，博士生导师，主要从事反应流体动力学研究.E-mail:caepzx@sohu.com

中图分类号: O381
计量
- 文章访问数: 6633
- HTML全文浏览量: 2708
- PDF下载量: 196
出版历程
- 收稿日期: 2016-04-28
- 修回日期: 2016-06-30

Characteristics of JOB-9003 in Double Shocks Experiments

ZI Pan-Deng^1
,,
CHEN Jun²,
ZHANG Rong³,
ZHONG Bin³,
ZHANG Xu^{3,*
, ,}

1.
Graduate School of CAEP, Mianyang 621999, China
2.
China Academy of Engineering Physics, Mianyang 621999, China
3.
Institute of Fluid Physics, CAEP, Mianyang 621999, China

摘要

摘要: 采用火炮加载技术对HMX基JOB-9003炸药进行一维平面冲击实验。实验使用的飞片由蓝宝石和Kel-F黏合而成，撞击炸药后，先后传入两道不同压力的冲击波。通过组合式电磁粒子速度计测量撞击界面和炸药内部不同深度处的粒子速度，得到粒子速度-时间图。根据粒子速度-时间图，计算出撞击界面粒子速度和冲击波传播速度，进一步获得炸药雨贡纽关系。根据炸药雨贡纽关系，并对比已有实验数据，通过Pop图说明炸药在二次压缩下的“钝化”特性。
- 二次压缩 /
- 电磁粒子速度计 /
- 雨贡纽关系 /
- Pop图
Abstract: One-dimensional plate impact experiments were performed to study the double shocks to detonation transition and Hugoniot state in the HMX-based explosive JOB-9003.The flyer was a combination of sapphire and Kel-F, which could pass two different pressure waves after the impact.We measured the particle velocities at the interface and the different depths using the Al-based electromagnetic particle velocity gauge technique, and obtained the particle velocity-time diagram, according to which we calculated the impact velocity, the shock wave velocity, and then the Hugoniot relation of the explosive.By comparing them with the existing experiment data in the Pop plot, we can draw the conclusion that the explosives pressed by the double shocks will exhibit desensitization features.
- double shocks /
- eletromagnetic particle velocity gauge /
- Hugoniot relation /
- Pop plot

HTML全文

图 1 实验装置(1.弹托; 2.飞片; 3.测速环; 4.炸药样品; 5.组合式电磁粒子速度计; 6.永磁铁; 7.缓冲靶)

Figure 1. Experimental set-up (1.Sabot; 2.Flyer; 3.Velocity measured ring; 4.Explosive sample; 5.EMV gauge; 6.Permanent magnet; 7.Target buffer)

下载: 全尺寸图片幻灯片

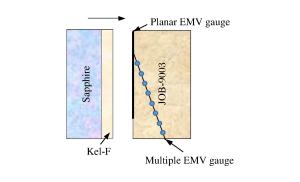

图 2 飞片与炸药样品

Figure 2. Flyer and explosive sample

下载: 全尺寸图片幻灯片

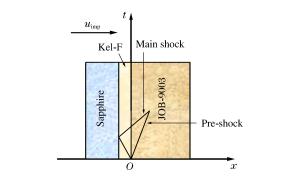

图 3 压力波在飞片和炸药内传播示意图

Figure 3. Shock transmission in flyer and explosive

下载: 全尺寸图片幻灯片

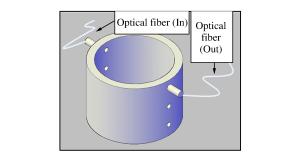

图 4 飞片测速系统

Figure 4. Flyer velocity measured ring

下载: 全尺寸图片幻灯片

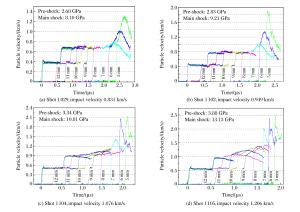

图 5 不同撞击速度下的粒子速度-时间历程(5，6，…，12 mm指该条粒子速度曲线所对应的电磁粒子速度计中金属丝的有效长度; 前驱波、主波压力在3.2节标定)

Figure 5. Particle velocity versus time under different impact velocities (5, 6, …, 12 mm refer to the effective length of Al wire corresponding to each particle velocity curve in the EMV gauge, and the pressures of pre-shock and main shock are specified in Section 3.2)

下载: 全尺寸图片幻灯片

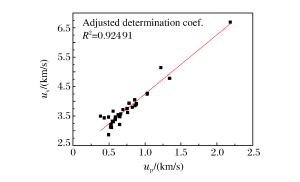

图 6 前驱波u_s-u_p拟合直线(JOB-9003雨贡纽线)

Figure 6. Fitted curve of u_s-u_p(Hugoniot relation of JOB-9003)

下载: 全尺寸图片幻灯片

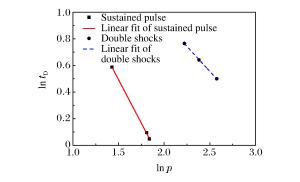

图 7 二次压缩和单次压缩下引爆时间t_D(μs)和冲击压力p (GPa)的Pop关系图

Figure 7. Pop plot showing the time to detonation t_D (μs)versus the initial shock pressure p (GPa) for double shocks and sustained pulse

下载: 全尺寸图片幻灯片

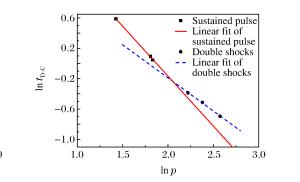

图 8 二次压缩和单次压缩下引爆时间t_D-C(μs)和冲击压力p (GPa)的Pop关系图

Figure 8. Pop plot showing the time to detonation t_D-C (μs)versus the initial shock pressure p (GPa) for double shocks and sustained pulse

下载: 全尺寸图片幻灯片

表 1 单次冲击和二次冲击压缩中前驱波的冲击波速-粒子速度

Table 1. u_s and u_p data from pre-shock and sustained pulse

Shot No.	u_s/ (km/s)	u_p/ (km/s)	Shot No.	u_s/ (km/s)	u_p/ (km/s)	Shot No.	u_s/ (km/s)	u_p/ (km/s)	Shot No.	u_s/ (km/s)	u_p/ (km/s)
1	2.871	0.495	10	3.470	0.587	19	3.721	0.693	28	3.921	0.884
2	3.130	0.520	11	3.411	0.591	20	3.748	0.750	29	4.250	1.030
3	3.210	0.525	12	4.270	1.031	21	3.765	0.753	30	4.783	1.342
4	3.213	0.531	13	5.151	1.220	22	3.621	0.758	31	6.692	2.185
5	3.112	0.536	14	3.553	0.628	23	3.941	0.778	1 029	3.498 7	0.381 1
6	3.325	0.547	15	3.502	0.637	24	3.803	0.825	1 102	3.440 7	0.432 3
7	3.320	0.554	16	3.215	0.647	25	4.057	0.858	1 104	3.467 3	0.494 7
8	3.311	0.561	17	3.480	0.650	26	3.856	0.860	1 105	3.667 6	0.558 2
9	3.384	0.584	18	3.578	0.663	27	3.892	0.876
Note:u_s, u_p of Shot 1-Shot 31 are obtained from Ref.[5], while those of Shot 1029, Shot 1102, Shot 1104 and Shot 1105 are estimated directly from experiment data.

下载: 导出CSV

表 2 前驱波入射压力和界面粒子速度

Table 2. Pressure of pre-shock and particle velocity at the interface

Shot No.	u_imp/ (km/s)	u_p/ (km/s)	p/ (GPa)
1 029	0.831	0.460 6	2.681 8
1 102	0.949	0.480 1	2.830 1
1 104	1.077	0.544 3	3.338 1
1 105	1.206	0.608 3	3.875 0
Note:u_imp is obtained directly from experiment.

下载: 导出CSV

表 3 前驱波波后各物理量

Table 3. Parameters after the pre-shock

Shot No.	u_s/ (km/s)	u_p/ (km/s)	ρ/ (g/cm³)
1 029	3.498 7	0.460 6	2.124 7
1 102	3.440 7	0.480 1	2.144 2
1 104	3.467 3	0.544 3	2.188 6
1 105	3.667 6	0.608 3	2.211 9
Note:u_s are obtained directly from experiment.

下载: 导出CSV

表 4 主波各物理量

Table 4. Parameters of the main shock

Shot No.	u_s/ (km/s)	u_p/ (km/s)	ρ/ (g/cm³)	p/ (GPa)
1 029	5.651 0	0.674 5	2.124 7	8.098 5
1 102	5.596 1	0.768 3	2.144 2	9.219 0
1 104	5.552 7	0.889 5	2.188 6	10.809 8
1 105	6.237 4	0.951 5	2.211 9	13.127 4
Note:u_s, u_p are obtained directly from experiment.

下载: 导出CSV

表 5 JOB-9003二次压缩和单次压缩实验数据对比

Table 5. Data from double shocks versus sustained pulse

Sustained pulse^[5]		Double shocks
Pressure/ (GPa)	t_D/ (μs)	Pressure/(GPa)		t_D/ (μs)	t_C/ (μs)	t_D-C/ (μs)
Pressure/ (GPa)	t_D/ (μs)	Pre-shock	Main shock	t_D/ (μs)	t_C/ (μs)	t_D-C/ (μs)
3.11		2.681 8	8.098 5		1.60
4.17	1.80	2.830 1	9.219 0	2.15	1.47	0.68
6.10	1.10	3.338 1	10.809 8	1.90	1.30	0.60
6.28	1.05	3.875 0	13.127 4	1.65	1.15	0.50
Note:t_D and t_C are obtained directly from experiment.

下载: 导出CSV

参考文献(6)

[1]	BURNS M J, GUSTAVSEN R L, BARTRAM B D.One-dimensional plate impact experiments on the cyclotetramethylene tetranitramine (HMX) based explosive EDC32[J].J Appl Phys, 2012, 112:064910. doi: 10.1063/1.4752865
[2]	WINTER R E, SORBER S S, SALISBURY D A, et al.Experimental study of the shock response of an HMX-based explosive[J].Shock Waves, 2006, 15(2):89-101. doi: 10.1007/s00193-006-0010-9
[3]	WHITWORTH N.Mathematical and numerical modelling of shock initiation in heterogeneous solid explosives[D].Cranfield University, 2008.
[4]	李志鹏, 龙新平, 黄毅民, 等.用组合式电磁粒子速度计研究JOB-9003炸药的冲击起爆过程[J].爆炸与冲击, 2006, 26(3):269-272. doi: 10.3321/j.issn:1001-1455.2006.03.013 LI Z P, LONG X P, HUANG Y M, et al.Initiation of JOB-9003 explosive study with electromagnetic particle velocity technique[J].Explosion and Shock Waves, 2006, 26(3):269-272. doi: 10.3321/j.issn:1001-1455.2006.03.013
[5]	王延飞, 刘杰, 张旭, 等.JOB-9003炸药反应增长规律研究[J].高压物理学报, 2016, 30(5):387-391. http://www.gywlxb.cn/CN/abstract/abstract1898.shtml WANG Y F, LIU J, ZHANG X, et al.The reaction laws of JOB-9003 explosive[J].Chinese Journal of High Pressure Physics, 2016, 30(5):387-391. http://www.gywlxb.cn/CN/abstract/abstract1898.shtml
[6]	李维新.一维不定常流与冲击波[M].北京:国防工业出版社, 2003:204-206. LI W X.One-dimensional nonsteady flow and shock waves[M].Beijing:National Defense Industry Press, 2003:204-206.
