Numerical Simulation of Electrical Explosion of Micro-Exploding Foil
-

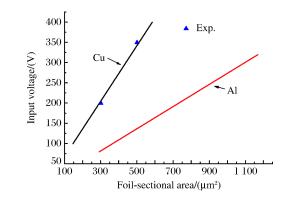

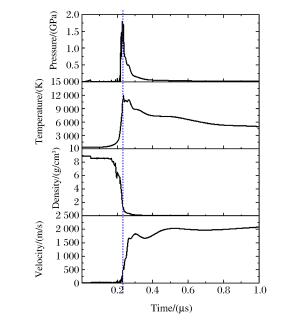

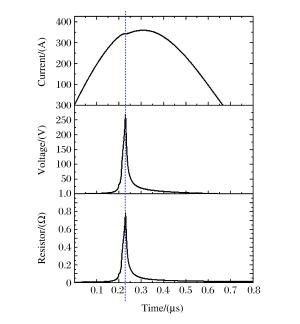

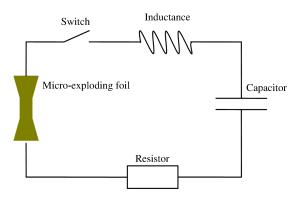

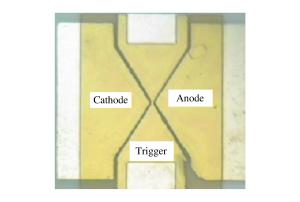

摘要: 微型爆炸箔开关的电爆炸过程进行合理简化，建立了微型金属箔电爆炸的数值模拟方法。通过自编的一维数值计算程序，对微型爆炸箔的电爆炸过程进行数值模拟，计算结果较好地再现了微型爆炸箔电爆炸过程，计算得到的爆炸电流和爆炸时间与实验结果偏差小于5%。计算结果表明，微型铜箔电爆炸产物的爆炸压力可高达2 GPa，温度超过10 000 K, 电离度超过40%，通过数值计算，给出了对开关设计有重要影响的最小起爆阈值参数，并和实验结果进行了比较，获得了较为一致的结果。Abstract: A method was established for modeling the electrical explosive process of the micro metal foil based on reasonable simplification and a 1D code was developed to simulate the electrical explosive process of the micro metal foil. The numerical results agree well with the experimental data. Compared with the experimental results, the calculated exploding current and burst time are within a difference of 5%. The calculated results show that the pressure of the exploding product can reach about 2 GPa, the temperature of the exploding product can exceed 10 000 K, and the degree of ionization is over 40%. Using this numerical method, we obtained the minimum exploding threshold of the voltage, which is important for the design of the micro-foil switch, and which was validated by the experimental results.
-
Key words:
- micro-exploding foil /
- electric explosion /
- numerical simulation
-

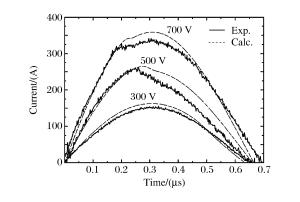

图 4 计算电流曲线与实验电流曲线的对比
Figure 4. Comparison of calculations with experimental results of current
表 1 铜材料拟合参数
Table 1. Fitted parameters of copper
C1 C2 C3 C4 C5 C6 γ0 LF -4.12×10-5 0.113 1.145 0.7 1.5 0.26 0.2 0.13 C7 C8 C9 C10 C11 C12 k Tm 2.33×10-3 0.146 7.68 0.826 1.52×10-2 3.28 0.964 0.117
下载: 导出CSV
-
[1] BAGINSKI T A, THOMAS K A.A robust one-shot switch for high-power pulse applications[J].IEEE Trans Power Electr, 2009, 24(1):253-259. doi: 10.1109/TPEL.2008.2005411 [2] BAGINSKI T A.A robust planar triggered sparkgap switch for high power pulse applications[C]//53rd Annual Fuze Conference.Lake Buena Vista, FL, 2009. [3] LOGAN J D, LEE R S, WEINGART R C, et al.Calculation of heating and burst phenomena in electrically exploded foils[J].J Appl Phys, 1977, 48(2):621-628. doi: 10.1063/1.323646 [4] LUO B Q, SUN C W, ZHAO J H, et al.Unified numerical simulation of metallic foil electrical explosion and its applications[J].IEEE Trans Plasma Sci, 2013, 41(1):49-57. doi: 10.1109/TPS.2012.2227827 [5] OSHER J, GTHERS R, CHAU H, et al.Hypervelocity acceleration and impact experiments with LLNL electric guns: UCRL-100629[R].Livermore, CA: Lawrence Livermore National Laboratory, 1990. [6] MENDES R, PLAKSIN I, RIBEIRO J, et al.Electrical explosion of an aluminium foil:behaviour of the explosion products in the process of dielectric flyer plate launch[J].Chem Phys Rep, 1998, 17(1/2):267-273. [7] 赵剑衡, 孙承纬, 唐小松, 等, 高效能电炮实验装置的研制[J].实验力学, 2006, 21(3):369-375. doi: 10.3969/j.issn.1001-4888.2006.03.018ZHAO J H, SUN C W, TANG X S, et al.Development of electric gun with high performance[J].Journal of Experimental Mechanics, 2006, 21(3):369-375. doi: 10.3969/j.issn.1001-4888.2006.03.018 [8] LOGAN J D, LEE R S, WEINGART R C, et al.Calculation of heating and burst phenomena in electrically exploded foils[J].J Appl Phys, 1977, 48(2):621-628. doi: 10.1063/1.323646 [9] OSHER J E, BARNES G, CHAU H H, et al.Operating characteristics and modeling of the LLNL 100-kV electric gun[J].IEEE Trans Plasma Sci, 1989, 17(3):392-402. doi: 10.1109/27.32247 [10] SAXENA A K, KAUSHIK T C, GUPTA S C, et al.Shock experiments and numerical simulations on low energy portable electrically exploding foil accelerators[J].Rev Sci Instrum, 2010, 81(3):033508. doi: 10.1063/1.3327818 [11] BURGESS T J.Electrical resistivity model of metals: SAND 86-1093C[R].Albuquerque, NM: Sandia National Laboratories, 1986. [12] 伍俊英, 冯长根, 陈朗, 等.金属电爆炸等离子体辐射温度测量[J].战术导弹技术, 2006(5):31-33. doi: 10.3969/j.issn.1009-1300.2006.05.007WU J Y, FENG C G, CHEN L, et al.Plasma radiation temperature measurement of metal explosion[J].Tactical Missile Technology, 2006(5):31-33. doi: 10.3969/j.issn.1009-1300.2006.05.007 -
