Comparison of System Characteristics between Current and InductionArmature in Electromagnetic Coil Launcher
-

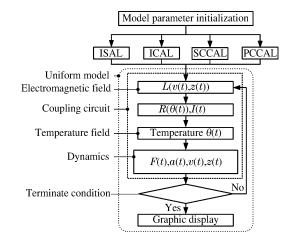

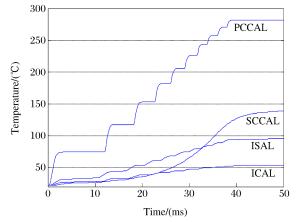

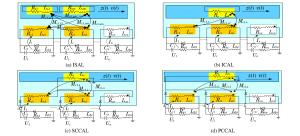

摘要: 电枢是电磁线圈发射器的关键能量转换部分，针对感应实体电枢、感应线圈电枢、串联载流线圈电枢和并联载流线圈电枢4种电磁发射器的发射原理和结构特点，推导了4种发射器的系统数学模型。根据等效电路方法，利用MATLAB建立仿真系统，对影响电磁线圈发射器系统特性的电枢尺寸、实体电枢材料、线圈电枢线径、电枢初始位置与初速度、多级发射器电枢位置序列等因素进行了仿真计算和比较分析。结果表明：感应电枢发射器在初级和末级驱动线圈电流下降阶段存在磁力拖拽效应，使得发射体速度在发射管出口处下降明显，而载流电枢发射器不存在拖拽效应; 增大感应线圈电枢和串联载流线圈电枢线径，或减小并联载流线圈电枢线径，可以有效提高发射出口速度; 载流电枢适用于低速较少级数发射系统。研究方法和结论对电磁发射器电枢结构选择和方案设计具有一定的指导意义。Abstract: An armature is the key component in the device for energy exchange in an electromagnetic coil launcher (EMCL).In this work, in view of their working principle and structural characteristics, mathematical models of the induction solid armature launcher (ISAL), induction coil armature launcher (ICAL), series current coil armature launcher (SCCAL) and parallel current coil armature launcher (PCCAL), were deduced, and their simulation system was built with MATLAB based on the equal circuit method so that their performances as an electromagnetic launcher were examined and compared.A series of parameters including the dimension and material of the solid armature, the diameter of the winding coil armature, the initial velocity and the initial position of the armature, the positions order of the armature in a multi-stage launcher were simulated and analyzed.The conclusions reached show that a pulling effect exists in the initial and the last stages of the ISAL and ICAL that leads to the decrease of the muzzle velocity of the armature and the payloads, that no pulling effect occurs in current coil armature launcher (CCAL), that the muzzle velocity can be improved when the diameter of the armature of ICAL and SCCAL increases and the diameter of the coil armature of the PCCAL decreases, and that CCAL is more suitable for accelerating the payload at a low velocity with a launcher of fewer stages.Our work is of great significance for guiding the selection and design of the armature structure.
-
Key words:
- electromagnetic launcher /
- induction armature /
- carrying current armature /
- simulation
-
图 7 单级发射器发射速度、温升与电枢线径的关系
Figure 7. Variation of muzzle veloctiy and temperature with different armature diameters in one-stage launcher

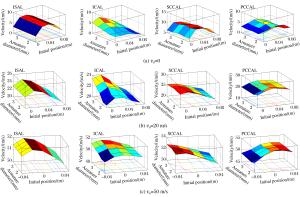

图 9 发射初速不同时单级发射速度与电枢初始位置和电枢线径的关系
Figure 9. Velocity vs.positon and armature diameter with different initial velocities

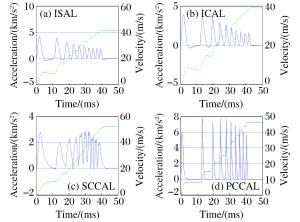

图 10 10级发射器电枢和载荷的加速度及速度曲线
Figure 10. Acceleration and velocity of the armature andlaunching payload in 10-stage launcher
-
[1] REINHARD K E.A methodology for selecting an electromagnetic gun system[D].Austin: University of Texas, 1992. http://cn.bing.com/academic/profile?id=bc6624dfac533d3919e19be1fde70203&encoded=0&v=paper_preview&mkt=zh-cn [2] 王莹, 肖峰.电炮原理[M].北京:国防工业出版社, 1995.WANG Y, XIAO F.Theory of electric gun[M].Beijing:National Defense Industry Press, 1995. [3] FAIR H D.Electromagnetic launch science and technology in the United States enters a new era[J].IEEE Trans Magn, 2005, 41(1):158-164. doi: 10.1109/TMAG.2004.838744 [4] AUBUCHON M S, LOCKNER T R, TURMAN B N.Results from sandia national laboratories/lockheed martin electromagnetic missile launcher (EMML)[C]//IEEE Pulsed Power Conference.Albuquerque, 2005: 75-78. [5] KAYE R, TURMAN B, AUBUCHON M, et al.Induction coilgun for EM mortar[C]//16th IEEE International Pulsed Power Conference.Albuquerque, New Mexico, 2007, 2: 1810-1813. [6] SKURDAL B D, GAIGLER R L.Multi-mission electromagnetic launcher[J].IEEE Trans Magn, 2009, 45(1):458-461. doi: 10.1109/TMAG.2008.2008551 [7] WU A Y.Parameter studied for traveling wave coaxial launchers[J].IEEE Trans Magn, 1991, 27(1):617-622. doi: 10.1109/20.101105 [8] 王德满, 王跃进, 谢慧才, 等.线圈炮——电磁同轴发射器及其系统分析[J].宇航学报, 1996, 17(4):80-82. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=QK199600605945WANG D M, WANG Y J, XIE H C, et al.Coilgun (electromagnetic coaxial launcher) and its sytems analysis[J].Journal of Astronautics, 1996, 17(4):80-82. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=QK199600605945 [9] MARDER B.SLINGSHOT-a coilgun design code: SAND2001-1780[R].Albuquerque: Sandia National Laboratories, 2001. [10] LIU W B, CAO Y J, ZHANG Y, et.al.Parameters optimization of synchronous induction coilgun based on ant colony algorithm[C]//IEEE Proceedings of 15th EML Symposium, 2010. [11] KAYE R J.Operational requirements and issues for coilgun electromagnetic launchers[J].IEEE Trans Magn, 2005, 41(1):194-199. doi: 10.1109/TMAG.2004.838982 [12] 孙百瑜.三级电磁发射器的建模及仿真优化[D].哈尔滨: 哈尔滨理工大学, 2006. http://cdmd.cnki.com.cn/Article/CDMD-11914-2006178789.htmSUN B Y.Model and simulated optimization of three-staged electromagnetic launcher[D].Harbin: Harbin University of Science and Technology, 2006. http://cdmd.cnki.com.cn/Article/CDMD-11914-2006178789.htm [13] 姜红军, 高俊山, 邱瑞生.电磁发射装置的结构优化及抛体受力分析[J].自动化技术与应用, 2004, 23(1):59-65. doi: 10.3969/j.issn.1003-7241.2004.01.018JIANG H J, GAO J S, QIU R S.The improvement of electromagnetic launcher and the force analysis[J].Techniques of Automation and Applications, 2004, 23(1):59-65. doi: 10.3969/j.issn.1003-7241.2004.01.018 [14] 邹本贵, 曹延杰, 刘文彪, 等.多级同步感应线圈炮驱动线圈优化研究[J].海军航空工程学院学报, 2009, 24(6):639-642. doi: 10.3969/j.issn.1673-1522.2009.06.010ZOU B G, CAO Y J, LIU W B, et al.Optimization of the drive coil in the multi-stage synchronous induction coilgun[J].Journal of Naval Aeronautical and Astronautical University, 2009, 24(6):639-642. doi: 10.3969/j.issn.1673-1522.2009.06.010 [15] 向红军, 李治源, 等.多级同步感应线圈发射器触发控制策略研究[J].电机与控制学报, 2012, 16(1):7-11. doi: 10.3969/j.issn.1007-449X.2012.01.002XIANG H J, LI Z Y, et.al.Research on the control strategy of multi-stage synchronous inductive coil launcher[J].Electric Machines and Control, 2012, 16(1):7-11. doi: 10.3969/j.issn.1007-449X.2012.01.002 [16] 张涛, 苏子舟, 国伟, 等.不同弹丸结构的单级感应线圈炮仿真研究[J].电气技术, 2010(增刊):24-26. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=QK201000043757ZHANG T, SU Z Z, GUO W, et al.Simulation of working process of single-stage induction coil-gun considering different projectile's structures[J].Electrical Technology, 2010(Suppl):24-26. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=QK201000043757 [17] 张朝伟, 邓启斌, 汤磊, 等.同步感应线圈炮电枢特性分析[J].火炮发射与控制学报, 2011(3):14-18. doi: 10.3969/j.issn.1673-6524.2011.03.004ZHANG C W, DENG Q B, TANG L, et al.Armature characteristics analysis of synchronous induction coil gun[J].Journal of Gun Launch and Control, 2011(3):14-18. doi: 10.3969/j.issn.1673-6524.2011.03.004 [18] 雷银照.轴对称线圈磁场计算[M].北京:中国计量出版社, 1991:195-213.LEI Y Z.Calculation of axisymmetric magnetic field of coil[M].Beijing:Chinese Measurement Press, 1991:195-213. [19] 宋学孟.金属物理学[M].北京:机械工业出版社, 1981:2-22.SONG X M.Metals physics[M].Beijing:China Machine Press, 1981:2-22. -
