爆炸载荷下V型泡沫铝夹芯板的动态响应

代炜; 李志强; 王志华; 赵隆茂

doi:10.11858/gywlxb.2016.06.008

爆炸载荷下V型泡沫铝夹芯板的动态响应

doi: 10.11858/gywlxb.2016.06.008

代炜^1,,
李志强^{1, 2,*, ,},
王志华^{1, 2},
赵隆茂^{1, 2}

1.
太原理工大学应用力学与生物医学工程研究所，山西太原 030024
2.
山西省材料强度与结构冲击重点实验室，山西太原 030024

基金项目:

国家自然科学基金 11072166

详细信息

作者简介:
代炜(1990—), 男，硕士研究生，主要从事冲击动力学研究.E-mail:daiwei0815@163.com

通讯作者:
李志强(1973—), 男，博士，教授，主要从事冲击动力学研究.E-mail:lizhiqiang@tyut.edu.cn

中图分类号: O347
计量
- 文章访问数: 7169
- HTML全文浏览量: 2502
- PDF下载量: 106
出版历程
- 收稿日期: 2015-06-26
- 修回日期: 2015-09-02

Dynamic Response of V-Shaped Sandwich Panel under Blast Loading

DAI Wei^1
,,
LI Zhi-Qiang^{1, 2,*
, ,},
WANG Zhi-Hua^{1, 2},
ZHAO Long-Mao^{1, 2}

1.
Institute of Applied Mechanics and Biomedical Engineering, Taiyuan University of Technology, Taiyuan 030024, China
2.
Shanxi Key Laboratory of Material Strength and Structural Impact, Taiyuan 030024, China

摘要

摘要: 基于三维非线性LS-DYNA程序，采用动态显式算法对爆炸载荷下V型夹芯板和平板的动态响应进行数值模拟，得出了不同工况下V型板和平板的面板挠度、芯层压缩量及其吸收的能量。结果表明：与平板相比，V型板具有更加优越的防爆性能。当V型板的面板厚度一定时，上面板挠度、芯层的压缩量及其吸收的能量随着V型板夹角的增大而增大；当V型板夹角一定时，上面板挠度、芯层的压缩量及其吸收的能量随着面板厚度的增大而减小。该结果可以为汽车底板防护和其他防爆设计提供参考。
- 爆炸载荷 /
- V型夹芯板 /
- 泡沫铝 /
- 数值模拟
Abstract: In the present work the dynamic response of the V-shaped aluminum foam sandwich panel and that of the flat panel under blast loading were simulated using the dynamic explicit algorithm based on the three-dimensional nonlinear program LS-DYNA. In our simulation the deflection of the panel faces, the core layer compression and the energy absorption of the core layer were examined with special consideration of different working conditions. The advantage of the V-shaped panel has been exhibited when in comparison with the simulation of the flat panel. When the thickness of the face is constant, the deflection of the top face, the core layer compression and the energy absorption of the core layer increase as the included angle of the V-shaped panel increases whereas, when the included angle of the V-shaped panel is constant, the deflection of the top face, the core layer compression and the energy absorption of the core layer decrease as the thickness of the face increases. The simulated results can serve as a reference for the protection design of motors and other devices.
- blast loading /
- V-shaped panel /
- foamed Al /
- numerical simulation

HTML全文

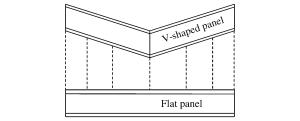

图 1 V型板和平板示意图

Figure 1. Schematic diagram of V-shaped and flat panel

下载: 全尺寸图片幻灯片

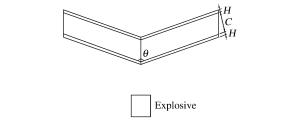

图 2 V型板模型示意图

Figure 2. Schematic diagram of V-shaped panel model

下载: 全尺寸图片幻灯片

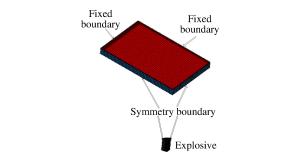

图 3 V型板的有限元模型

Figure 3. Finite element model of V-shaped panel

下载: 全尺寸图片幻灯片

图 4 泡沫铝应力-应变曲线

Figure 4. Stress-strain curve of aluminum foam

下载: 全尺寸图片幻灯片

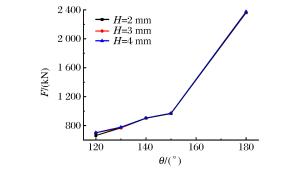

图 5 V型板的接触力

Figure 5. V-shaped panel's contact force

下载: 全尺寸图片幻灯片

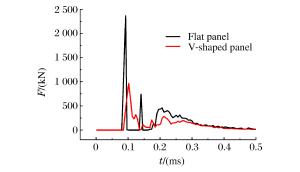

图 6 平板和V型板的接触力时程曲线

Figure 6. Contact force curves of flat and V-shaped panel

下载: 全尺寸图片幻灯片

图 7 平板的动态响应

Figure 7. Dynamic response of flat panel

下载: 全尺寸图片幻灯片

图 8 V型板的动态响应

Figure 8. Dynamic response of V-shaped panel

下载: 全尺寸图片幻灯片

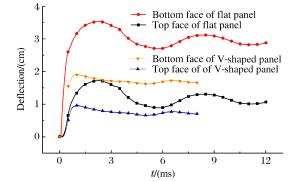

图 9 平板和V型板的挠度曲线

Figure 9. Deflection histories of flat and V-shaped panel

下载: 全尺寸图片幻灯片

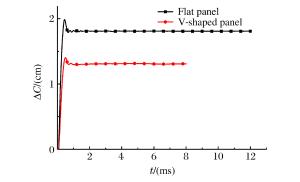

图 10 夹芯板芯层的压缩量

Figure 10. Core crushing histories of sandwich panel

下载: 全尺寸图片幻灯片

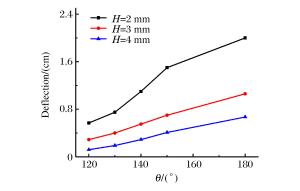

图 11 夹芯板上面板的挠度

Figure 11. Top panel deflection of sandwich panel

下载: 全尺寸图片幻灯片

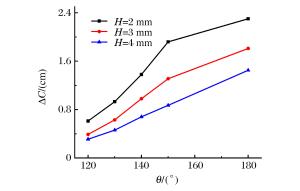

图 12 夹芯板芯层的压缩量

Figure 12. Core compression of sandwich panel

下载: 全尺寸图片幻灯片

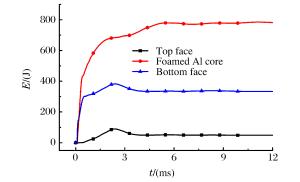

图 13 平板的吸能曲线

Figure 13. Energy absorption curves of flat panel

下载: 全尺寸图片幻灯片

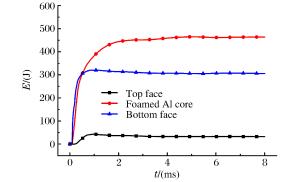

图 14 V型板的吸能曲线

Figure 14. Energy absorption curves of V-shaped panel

下载: 全尺寸图片幻灯片

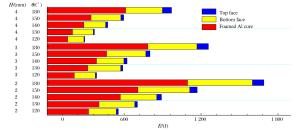

图 15 夹芯板的吸能图

Figure 15. Energy absorption of sandwich panel

下载: 全尺寸图片幻灯片
