Dynamic Pressure Bearing Capacity of a Laser Ignition Window
-

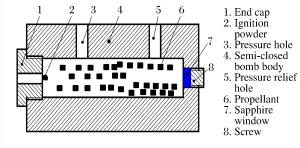

摘要: 为测试某大口径火炮发射过程中激光点火窗口承受动态压力载荷的能力，设计了一种半密闭动态加压模拟装置，建立了装置内部火药燃烧与气体压力变化的数学模型，并验证了其合理性。利用该装置对炮用激光点火窗口进行了动态压力加载试验，并将火炮膛内和半密闭加压装置中实测压力变化曲线进行了对比分析。结果表明，被试光学窗口能够满足火炮激光点火的要求。半密闭加压装置能够较好地模拟火炮内弹道过程中的动态加压环境，为炮用激光点火窗口动态承压能力的测试提供一种可行的方法。Abstract: A semi-closed pressure-loading vessel was designed to test the dynamic pressure bearing capacity of a laser ignition window.The mathematical model that describes the relationship between the propellant combustion and the pressure in the vessel was built and its validity was verified.The calculated results were fairly consistent with those achieved from tests.Then the vessel was used to test the bearing capacity of a sapphire window sample, the curves showing the pressure variation of the vessel were obtained and compared with those of the gun chamber.The results indicate that the sapphire window sample could satisfy the requirement of the gun's laser ignition.This vessel could simulate the actual dynamic pressure variation of the interior ballistic of the gun, which may provide a valid method for testing the dynamic pressure bearing capacity of the laser ignition window.
-
Key words:
- laser ignition window /
- dynamic pressure /
- semi-closed vessel /
- numerical simulation
-

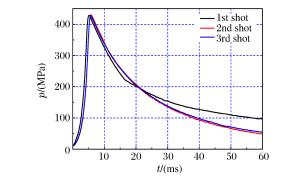

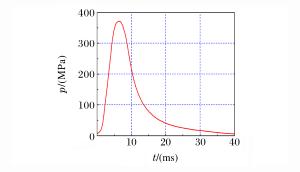

图 6 发射药量为30.1 g时膛内实测压力曲线
Figure 6. p-t curves of the semi-closed vesselwith 30.1 g propellant
图 7 试验前及试验后经清洗处理的蓝宝石窗口照片
Figure 7. Photos of sapphire window before test andsubjected to cleaning process after test
表 1 两种试验装置中试验结果的比较
Table 1. Comparison of results obtained by the gun chamber and semi-closed vessel
Test device pmax/(MPa) Sp, max/(GPa/s) $\overline {{S_p}} $ /(GPa/s) Gun chamber 371.3 90.2 47.6 Semi-closed vessel 428.7 221.8 75.5
下载: 导出CSV
-
[1] 王争论.激光点火与其他点火方式在火炮中的分析研究[J].红外与激光工程, 2008, 37(增刊):422-425. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=QK200802371785WANG Z L.Analysis on the laser and other ignition of guns[J].Infrared and Laser Engineering, 2008, 37(Suppl):422-425. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=QK200802371785 [2] 赵翔, 苏伟, 杜涛, 等.激光点火技术综述[J].红外与激光工程, 2009, 38(增刊):405-407. http://d.old.wanfangdata.com.cn/Periodical/jgjs200703003ZHAO X, SU W, DU T, et al.Review on laser ignition technique[J].Infrared and Laser Engineering, 2009, 38(Suppl):405-407. http://d.old.wanfangdata.com.cn/Periodical/jgjs200703003 [3] 刘伟, 王育维, 魏建国, 等.黑火药激光点火数值模拟与试验研究[J].火炮发射与控制学报, 2013(2):67-70. doi: 10.3969/j.issn.1673-6524.2013.02.017LIU W, WANG Y W, WEI J G, et al.Numerical modeling and experiment research of black powder laser ignition process[J].Journal of Gun Launch & Control, 2013(2):67-70. doi: 10.3969/j.issn.1673-6524.2013.02.017 [4] RITTER J J, HOUMAN B E, THAIMAN W. Dynamic pressure testing of a 155 mm howitzer ballistic window using a closed bomb vessel: ARL-TR-5266[R]. Maryland: US Army Research Laboratory, 2010. [5] HOWARD S L, CHANG L M, GROSH J. Hydrodynamic breech window design concept for laser ignition of large-caliber guns: ARL-TR-1094[R]. Maryland: US Army Research Laboratory, 1996. [6] 马昌军, 张小兵.射流干扰实现激光点火窗口防污的数值模拟及优化[J].兵工学报, 2013, 34(1):8-13. doi: 10.3969/j.issn.1673-6524.2013.01.003MA C J, ZHANG X B.Simulation and optimization of optical window contamination prevention method using jet flow in laser ignition system[J].Acta Armamentarii, 2013, 34(1):8-13. doi: 10.3969/j.issn.1673-6524.2013.01.003 [7] 金志明.枪炮内弹道学[M].北京:北京理工大学出版社, 2004:11-30.JIN Z M.Gun interior ballistics[M].Beijing:Beijing Institute of Technology Press, 2004:11-30. [8] 芮筱亭, 贠来峰, 王国平, 等.弹药发射安全性导论[M].北京:国防工业出版社, 2009:48-78.RUI X T, YUN L F, WANG G P, et al.Introduction to launch safety of ammunition[M].Beijing:National Defense Industry Press, 2009:48-78. [9] 翁春生, 王浩.计算内弹道学[M].北京:国防工业出版社, 2006:116-118.WENG C S, WANG H.Computational interior ballistics[M].Beijing:National Defense Industry Press, 2006:116-118. [10] 金志明, 翁春生.高等内弹道学[M].北京:高等教育出版社, 2003:120-121.JIN Z M, WENG C S.Advanced interior ballistics[M].Beijing:Higher Education Press, 2003:120-121. -
