PBX炸药含各向异性损伤的黏弹性统计微裂纹本构模型初步研究

张延耿; 楼建锋; 周婷婷; 洪滔; 张树道

doi:10.11858/gywlxb.2016.04.006

PBX炸药含各向异性损伤的黏弹性统计微裂纹本构模型初步研究

doi: 10.11858/gywlxb.2016.04.006

北京应用物理与计算数学研究所，北京 100094

基金项目:

国家自然科学基金 11302031

国家自然科学基金 11372053

国家自然科学基金 11402031

中国工程物理研究院安全弹药研发中心开放基金 RMC2014B02

中国工程物理研究院科学技术发展基金 2014A0201008

中国工程物理研究院科学技术发展基金 2014B0101014

详细信息

作者简介:
张延耿 (1981—), 男，博士，助理研究员，主要从事材料冲击动力学理论和数值模拟研究.E-mail: zhang_yangeng@iapcm.ac.cn

通讯作者:
楼建锋 (1980—), 男，博士，副研究员，主要从事冲击动力学和爆炸力学的数值模拟研究.E-mail: jflou@iapcm.ac.cn

中图分类号: O346.5
计量
- 文章访问数: 6891
- HTML全文浏览量: 2959
- PDF下载量: 119
出版历程
- 收稿日期: 2015-01-09
- 修回日期: 2015-11-30

Initial Study on Constitutive Model of PBXs via Viscoelastic StatisticalCrack Mechanics Including Anisotropic Damage

Institute of Applied Physics and Computational Mathematics, Beijing 100094, China

摘要

摘要: 建立含损伤本构模型是研究炸药动态力学响应规律的基础。基于PBX炸药材料的宏观黏弹性特征和细观上微裂纹面的方向性，建立了含各向异性损伤的黏弹性统计微裂纹(Aniso-Visco SCRAM)本构模型, 简化后得到单轴应力加载下的本构方程。利用数值计算程序，以PBX9501为例，分析了微裂纹扩展的各向异性、PBX炸药破坏强度及临界应变的拉压异性和应变率相关性，考察了微裂纹数密度、初始微裂纹尺寸、微裂纹面摩擦系数及断裂表面能4个主要参数的敏感性及影响规律。结果表明，它们对微裂纹的扩展演化有较大影响，进而导致材料表现出不同的力学响应。
- PBX炸药 /
- 各向异性损伤 /
- 黏弹性统计微裂纹本构模型 /
- 单轴加载
Abstract: Building constitutive models that include damage is the foundation for the research of dynamic mechanical responses of explosives.Based on the viscoelastic character on macroscale and the crack directions on mesoscale, we established a viscoelastic statistical crack mechanics including anisotropic damage, and then obtained the simplified constitutive model under uniaxial loading.By using a numerical program, and taking PBX9501 as an example, we analyzed the extension rules of cracks with various directions, and the strength-difference and strain-rate dependence of failure strength and critical strain of explosives.Furthermore, we discussed the sensitivity of 4 main parameters, the crack number density, the initial crack size, the friction coefficient between crack surfaces and the fracture surface energy.The result demonstrates that the 4 parameters greatly affect the extension and evolvement of cracks, which causes the different mechanical responses of explosives.
- PBX explosive /
- anisotropic damage /
- visco statistical crack mechanics /
- uniaxial loading

HTML全文

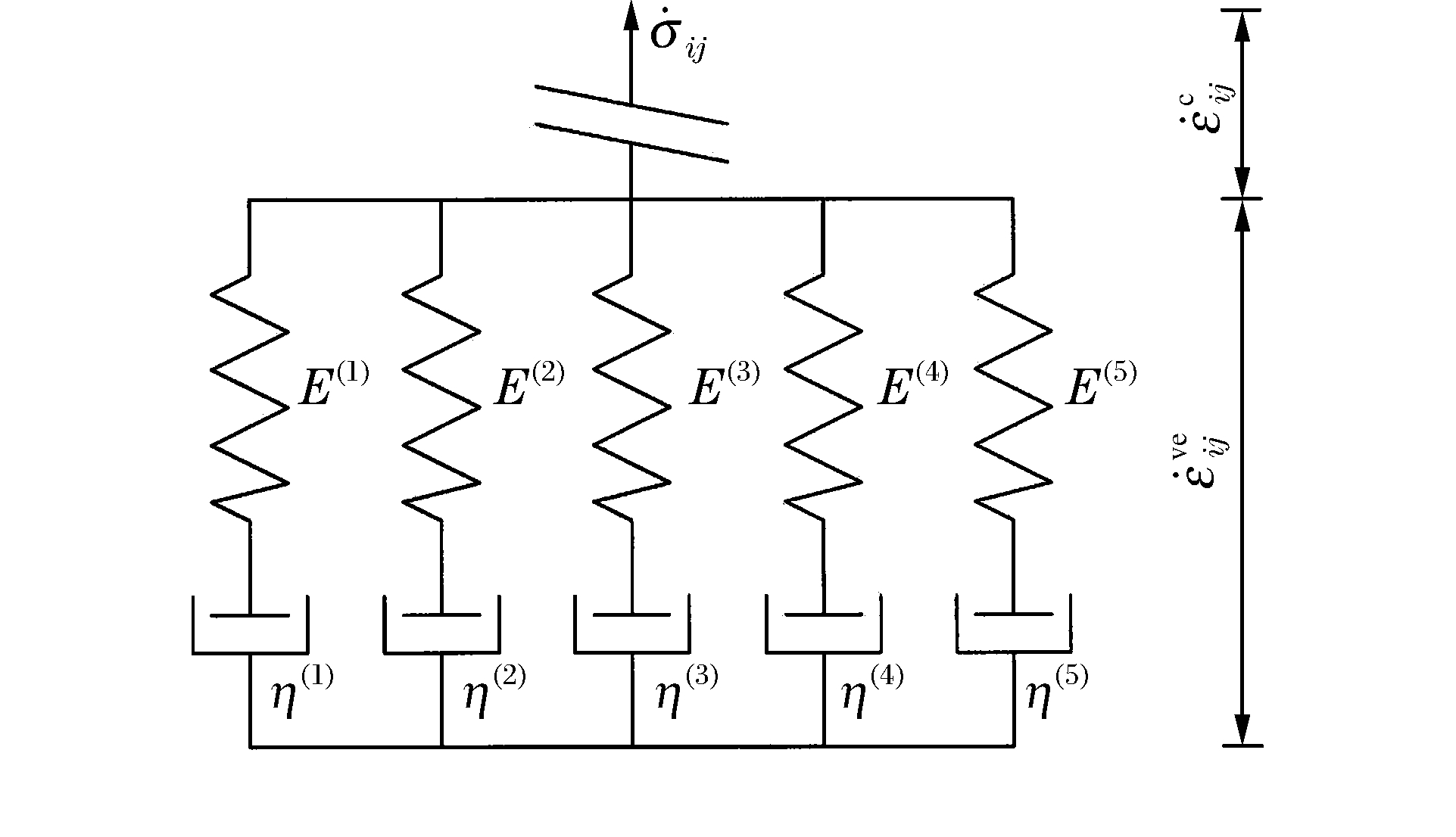

图 1 Aniso-Visco SCRAM模型示意图(E为弹性模量)

Figure 1. Schematic of Aniso-Visco SCRAM(E is the elasticity modulus)

下载: 全尺寸图片幻灯片

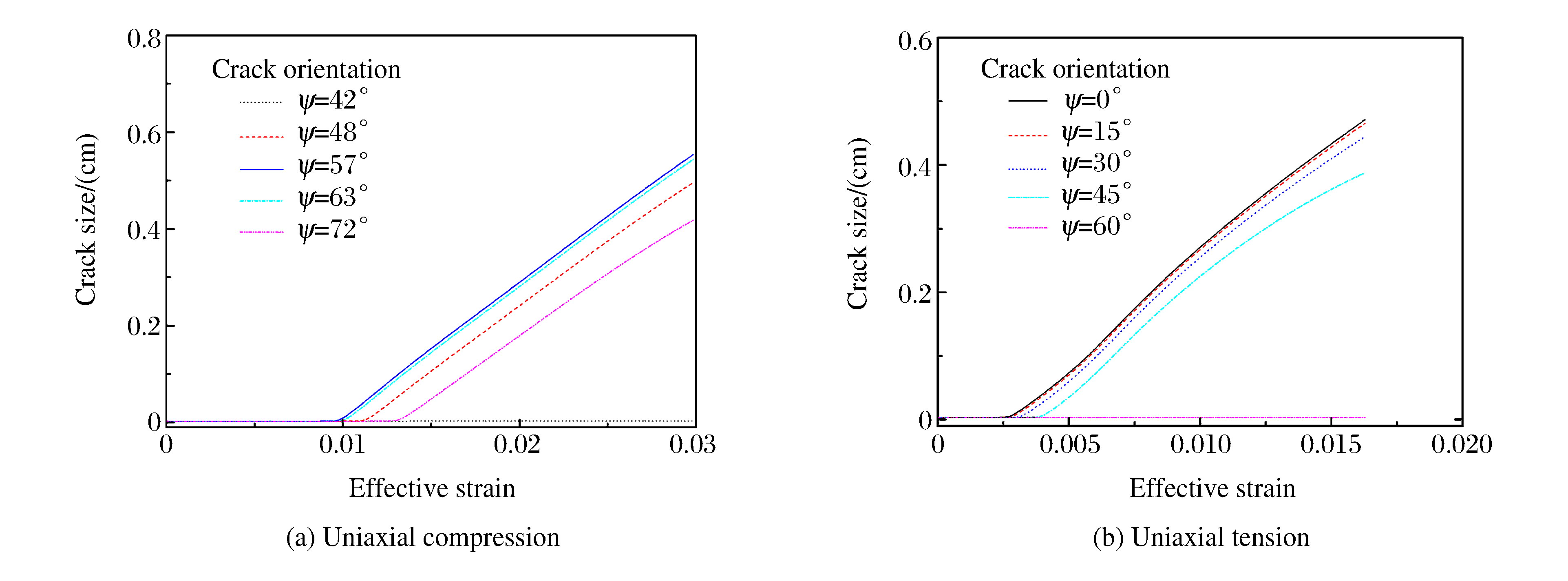

图 2 具有不同法向的微裂纹尺寸扩展曲线

Figure 2. Calculated crack extension curves of different orientations

下载: 全尺寸图片幻灯片

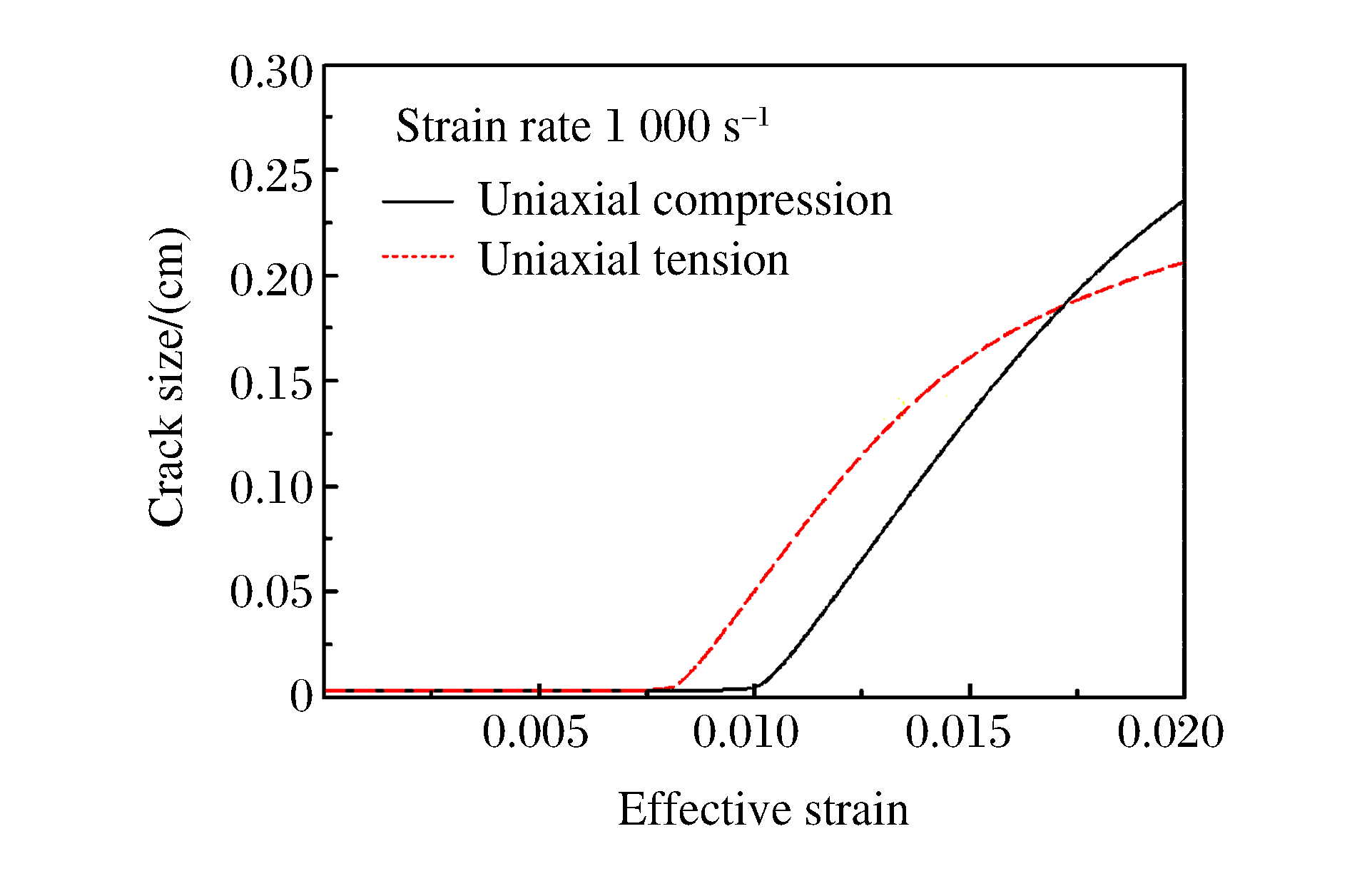

图 3 Visco SCRAM模型中微裂纹尺寸扩展曲线

Figure 3. Calculated crack extensioncurves of Visco SCRAM

下载: 全尺寸图片幻灯片

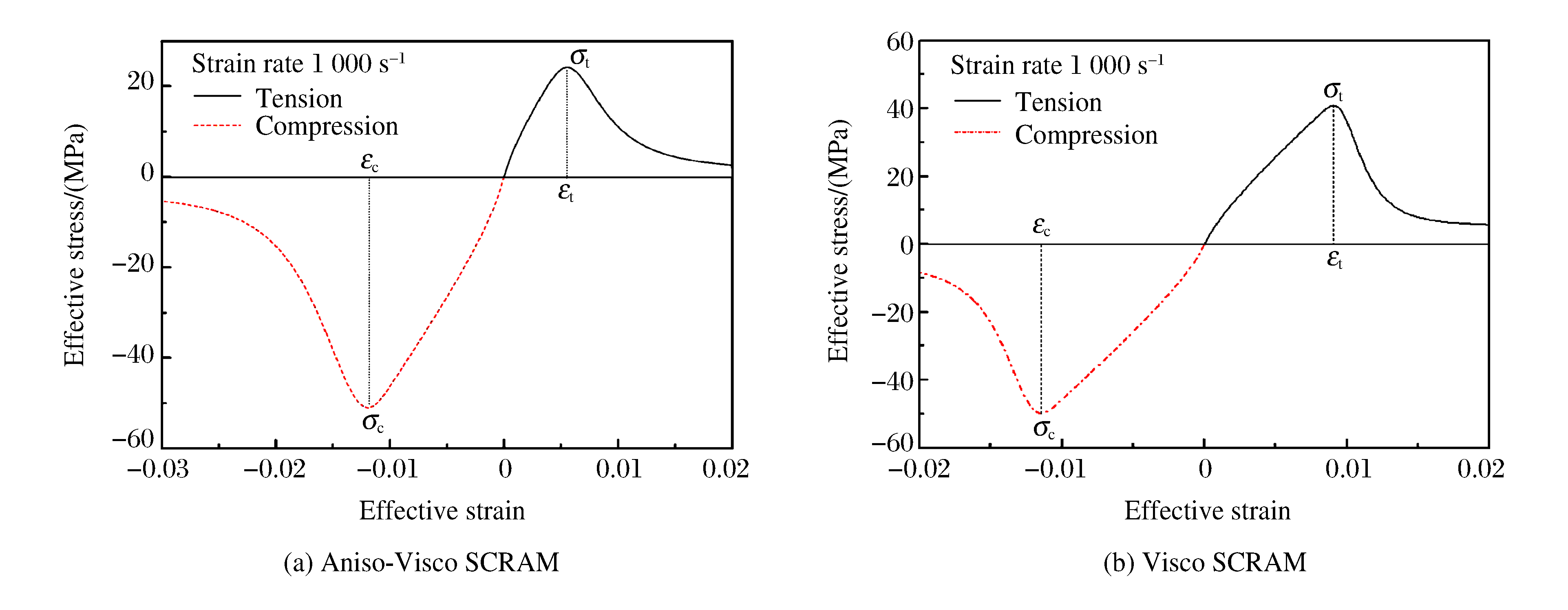

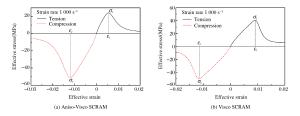

图 4 单轴拉伸和压缩作用下应力-应变曲线

Figure 4. Calculated stress-stain curves under uniaxial tension and compression

下载: 全尺寸图片幻灯片

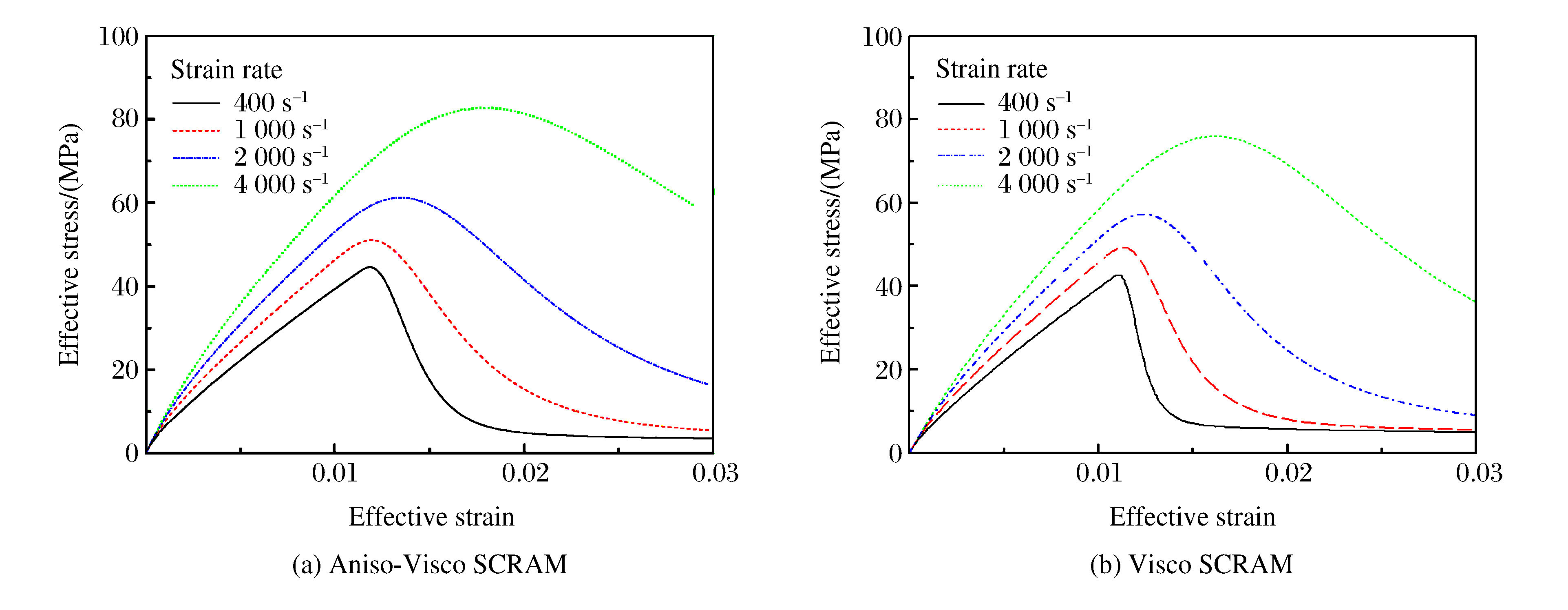

图 5 不同应变率条件下单轴压缩应力-应变曲线

Figure 5. Calculated stress-strain curves under uniaxial compression at different strain rates

下载: 全尺寸图片幻灯片

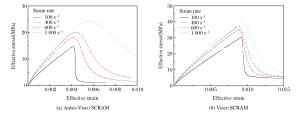

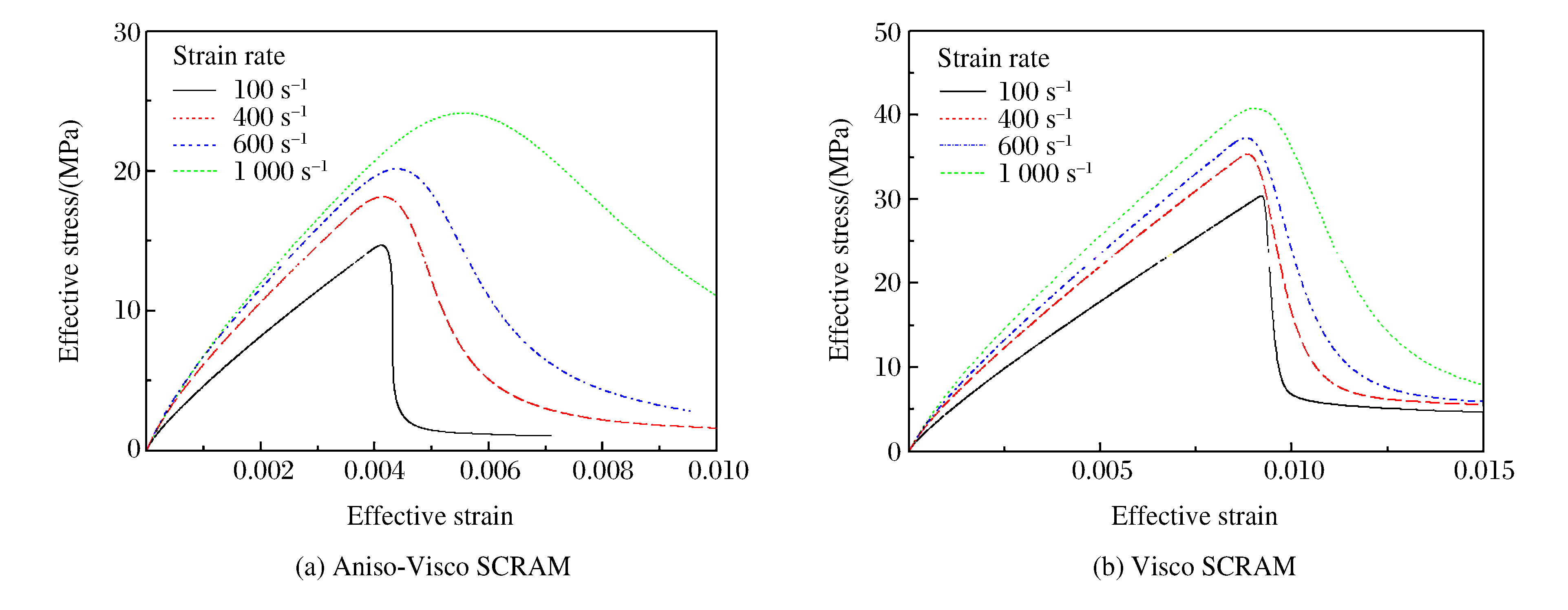

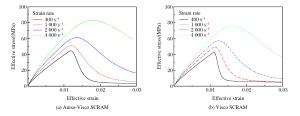

图 6 不同应变率条件下单轴拉伸应力-应变曲线

Figure 6. Calculated stress-strain curves under uniaxial tension at different strain rates

下载: 全尺寸图片幻灯片

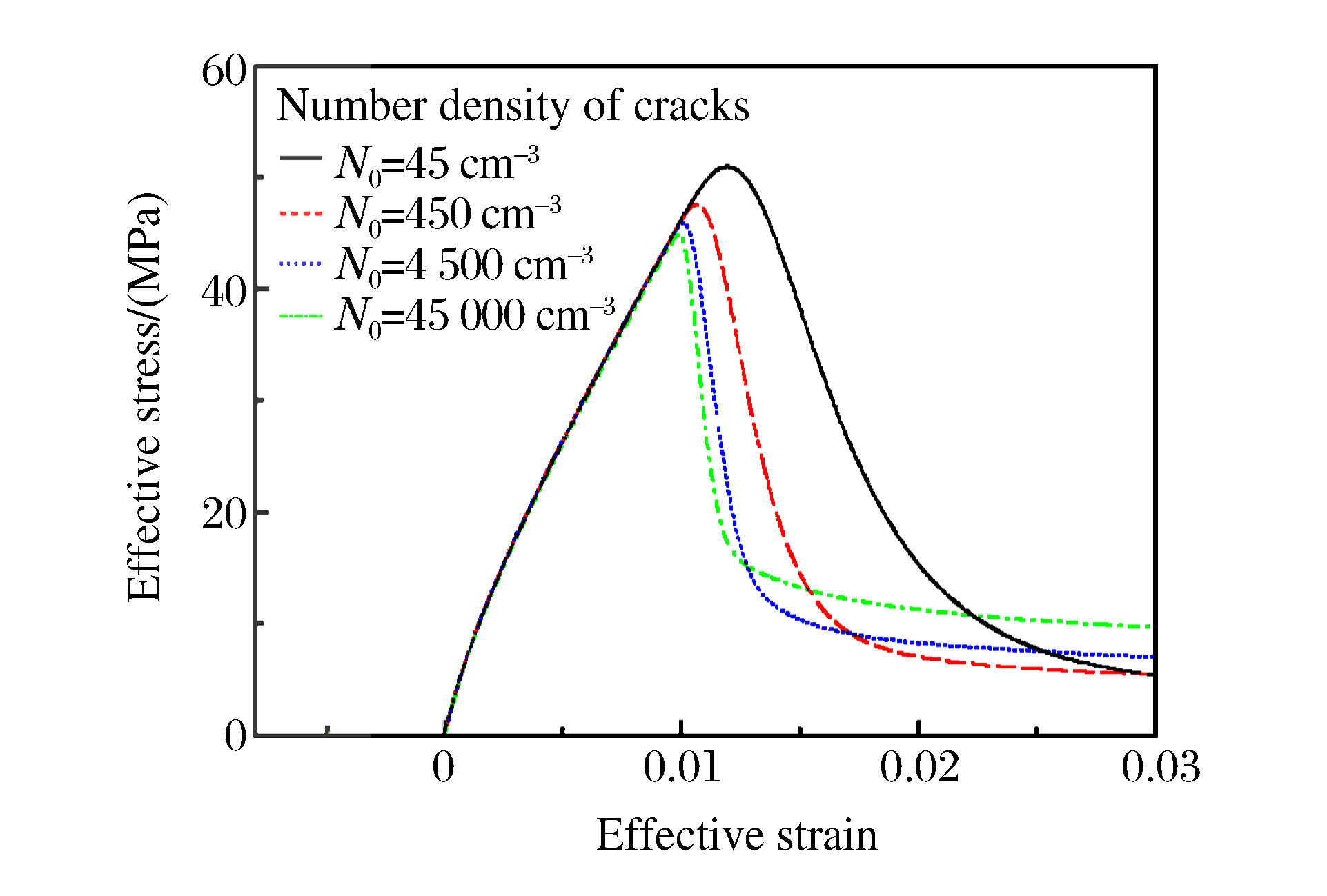

图 7 不同微裂纹数密度取值的计算结果

Figure 7. Calculated results under uniaxialcompression with different number densities

下载: 全尺寸图片幻灯片

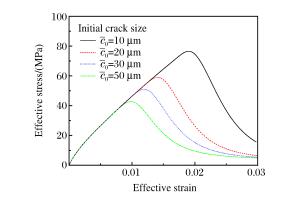

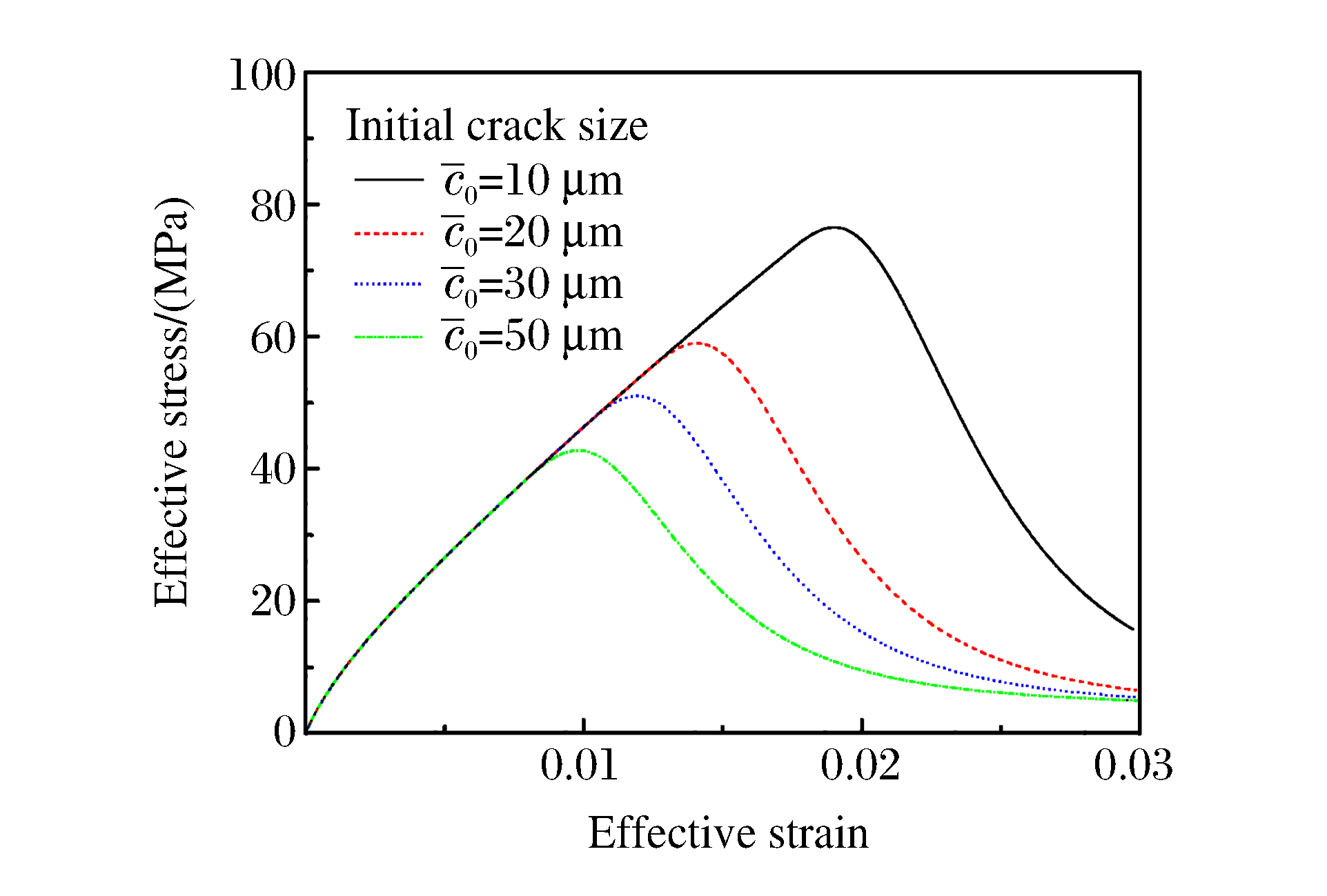

图 8 不同初始裂纹尺寸的计算结果

Figure 8. Calculated results under uniaxialcompression with different initial crack sizes

下载: 全尺寸图片幻灯片

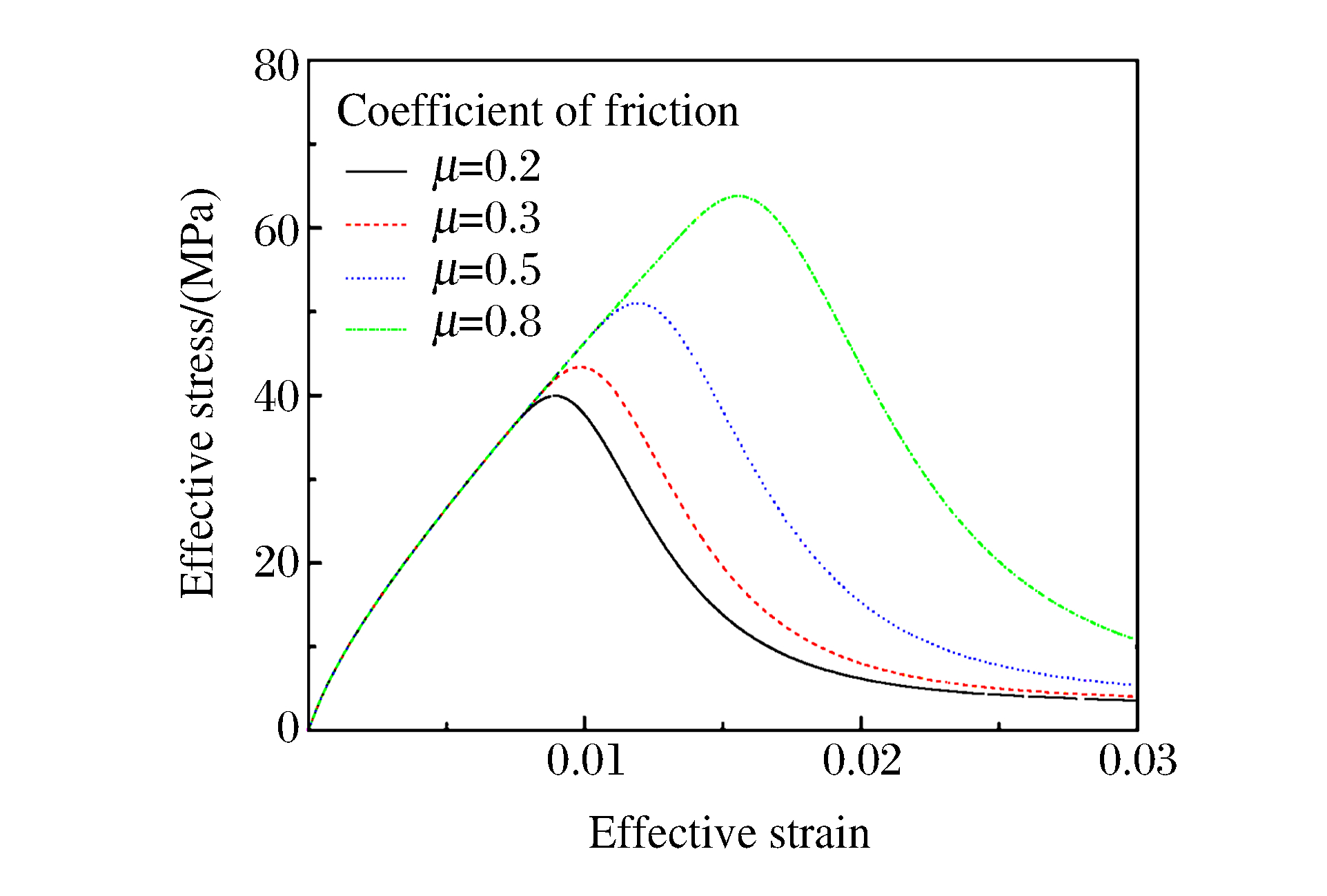

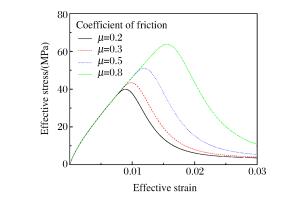

图 9 不同微裂纹面摩擦系数的计算结果

Figure 9. Calculated results under uniaxial compressionwith different frictional coefficients

下载: 全尺寸图片幻灯片

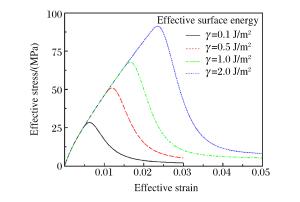

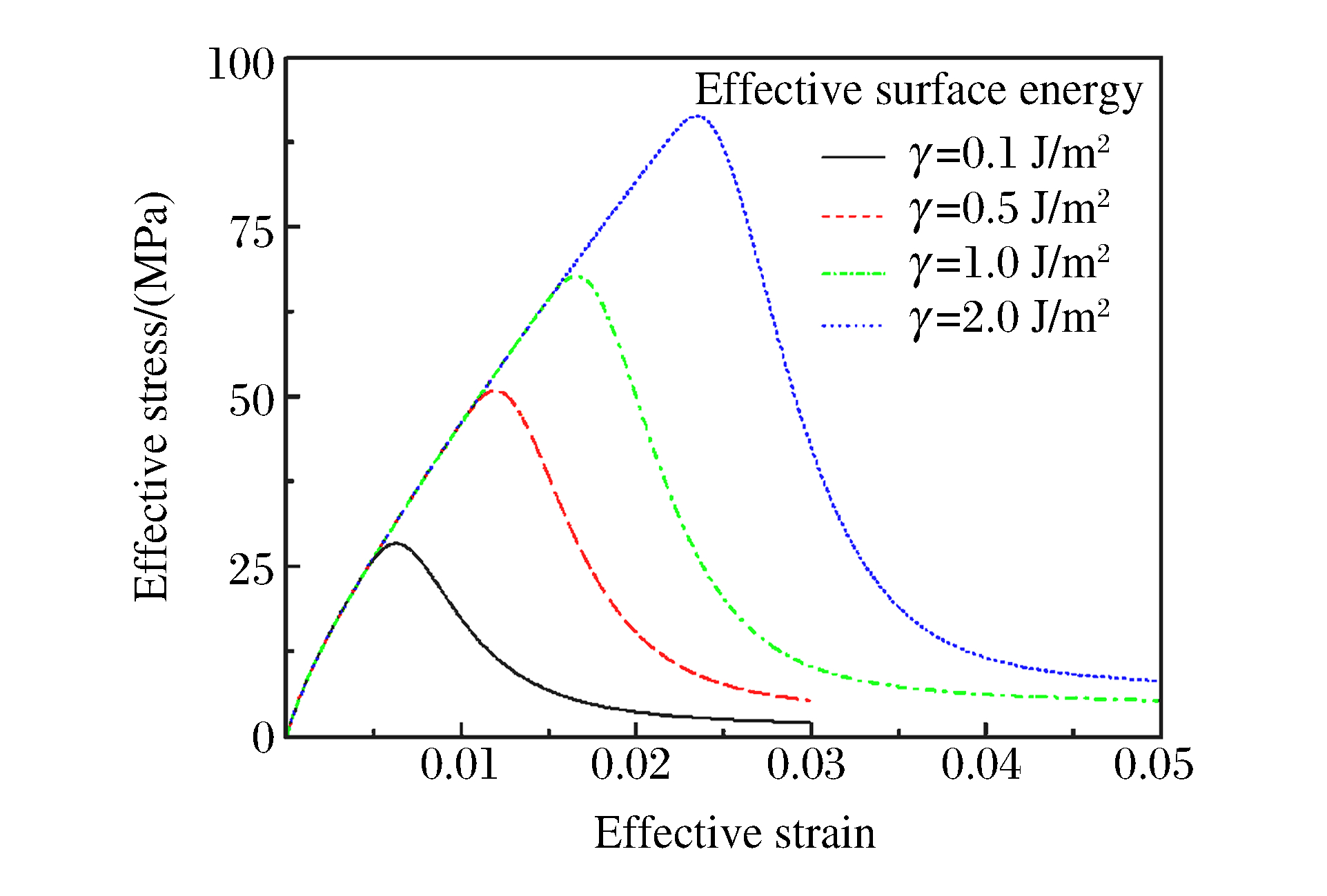

图 10 不同断裂表面能的计算结果

Figure 10. Calculated results under uniaxialcompression with different surface energies

下载: 全尺寸图片幻灯片

表 1 Aniso-Visco SCRAM模型输入参数

Table 1. Constitutive model parameters for Aniso-Visco SCRAM

Density/(g/cm³)	G/(GPa)	μ	ν	c₀/(μm)	c_R/(m/s)	N₀/(cm^-3)	m	γ/(J/m²)
1.86	3.235	0.5	0.3	30	300	45^*	10	0.5^*

G⁽¹⁾/(GPa)		G⁽²⁾/(GPa)		G⁽³⁾/(GPa)		G⁽⁴⁾/(GPa)		G⁽⁵⁾/(GPa)
0.9440		0.1738		0.5212		0.9085		0.6875

[1/τ⁽¹⁾]/(μs^-1)		[1/τ⁽²⁾]/(μs^-1)		[1/τ⁽³⁾]/(μs^-1)		[1/τ⁽⁴⁾]/(μs^-1)		[1/τ⁽⁵⁾]/(μs^-1)
0		0.00732		0.0732		0.732		2.0
Note：(1)c₀ is the initial crack size；(2)Values with subscript “*” are dedicated to this study.

下载: 导出CSV
