A Numerical Simulation of the Assembled Flyers Driven by Two Head-on Colliding Detonation Waves
-
摘要: 采用SG (Steinberg-Guinan)强度模型描述组合飞片(铅和铝)的动力学响应行为, 对两侧对称点起爆圆柱炸药、爆轰波对碰驱动组合飞片实验模型进行了数值模拟计算。得到了爆轰波对碰驱动组合飞片的计算图像, 并与实验结果进行了对比分析, 明确了SG强度模型对描述爆轰波对碰驱动下组合飞片的适用性, 为高应变率条件下材料强度模型的适应性研究奠定基础, 同时也为更好地理解材料在高应变率条件下的本构关系以及材料在对碰区的动力学行为提供参考。Abstract: A numerical calculation was carried out for the accelerated combined flyers by colliding explosive waves initiated by two symmetrical detonation initiators.In the calculation, Steinberg-Guinan (SG) strength model was used for the flyers to describe dynamic behaviors.From the calculation, the flying process and wave-propagating images were obtained.The results from our calculation are consistent with those from our actual measurements, demonstrating that the SG strength model is suitable for the combined flyers loaded with two head-on colliding explosive waves.This work lays a foundation for the study of suitability of the strength model at high strain rates and will serve as valuable reference for better understanding materials' constitutive relations and their dynamic behaviors in the colliding area.
-
Key words:
- assembled plates /
- bulging of collision /
- strength model /
- numerical simulation
-

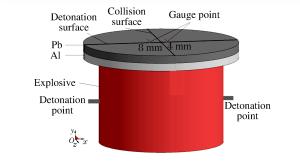

图 2 起爆后不同时刻的压力云图
Figure 2. Pressure nephograms at different time points after ignition

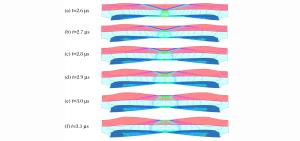

图 3 不同时刻组合飞片(铅和铝)中的压力云图
Figure 3. Pressures undergone by the combined flyers (Pb and Al) at different time points

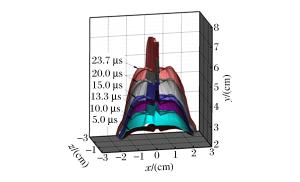

图 4 不同时刻铅飞片自由面的外形
Figure 4. 4 Outline of free surface of Pb flyer at different time points

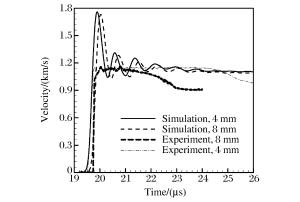

图 6 自由面粒子速度历史比较
Figure 6. Measured and calculated velocities of the free surface particle

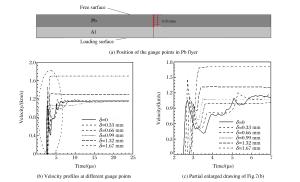

图 7 铅飞片对称轴上不同测点的速度历史
Figure 7. Profile of velocities at different gauge points on the symmetry axis of Pb flyer
表 1 铅飞片中不同时刻的马赫杆长度
Table 1. The length of Mach stem in Pb flyer at different time points
t/(μs) Length of Mach stem/(mm) 2.6 0 2.7 0.80 2.8 1.20 2.9 1.60 3.0 2.04 3.1 ─
下载: 导出CSV
-
[1] 孙承纬, 卫玉章, 周之奎.应用爆轰物理[M].北京:国防工业出版社, 2000:534-543.SUN C W, WEI Y Z, ZHOU Z K.Applied detonation physics[M].Beijing:National Defense Industry Press, 2000:534-543. [2] SINGH M, SUNEJA H R, BOLA M S, et al.Dynamic tensile deformation and fracture of metal cylinders at high strain rates[J].Int J Impact Eng, 2002, 27(9):939-954. doi: 10.1016/S0734-743X(02)00002-7 [3] 陈军, 孙承纬, 蒲正美, 等.爆轰波对碰区产物驱动金属圆管的研究[J].爆炸与冲击, 2003, 23(5):442-447. doi: 10.3321/j.issn:1001-1455.2003.05.010CHEN J, SUN C W, PU Z M, et al.Expansion of metallic tubes driven by detonation product behind two head-on colliding detonation waves[J].Explosion and Shock Waves, 2003, 23(5):442-447. doi: 10.3321/j.issn:1001-1455.2003.05.010 [4] 张崇玉, 谷岩, 张世文, 等.爆轰波对碰驱动下金属圆管膨胀变形特性研究[J].爆炸与冲击, 2005, 25(3):222-226. doi: 10.3321/j.issn:1001-1455.2005.03.005ZHANG C Y, GU Y, ZHANG S W, et al.Study on expanding characteristic of steel tube driven by two head-on colliding detonation waves[J].Explosion and Shock Waves, 2005, 25(3):222-226. doi: 10.3321/j.issn:1001-1455.2005.03.005 [5] 张崇玉.爆轰波对碰驱动下保护环对金属圆管保护的实验和数值模拟研究[D].绵阳: 中国工程物理研究院, 2005.ZHANG C Y.The experimental study and simulation on expanding characteristic of metallic cylinder protected by guard-ring under two detonation waves collided[D].Mianyang: China Academy of Engineering Physics, 2005. [6] ZHIEMBETOV A K, MIKHAYLOV A L, SMIRNOV G S.Experimental study of explosive fragmentation of metals melts[C]//FURNISH M D, THADHANI N N, HORIE Y.Shock Compression of Condensed Matter-2001.New York: American Institute of Physics, 2002: 547-550. [7] ИВАНОВ А Г, НОВИКОВ С А.Сотлкиновеие детонационных волн на поверхности материала[J].Физика Горения и Взрыва, 1976. http://cdmd.cnki.com.cn/Article/CDMD-10212-1013235760.htm [8] 张崇玉, 胡海波, 李庆忠, 等.爆轰波对碰驱动下平面铅飞层对碰区动载行为实验研究[J].高压物理学报, 2009, 23(4):283-287. doi: 10.3969/j.issn.1000-5773.2009.04.008ZHANG C Y, HU H B, LI Q Z, et al.Experimental study on dynamic behavior of lead plate driven by two head-on colliding detonation waves[J].Chinese Journal of High Pressure Physics, 2009, 23(4):283-287. doi: 10.3969/j.issn.1000-5773.2009.04.008 [9] 袁帅, 胡海波, 张崇玉, 等.应用SPH方法对平板铅飞层对碰凸起动载行为的数值模拟研究[J].高压物理学报, 2010, 24(5):383-387. http://www.gywlxb.cn/CN/abstract/abstract1314.shtmlYUAN S, HU H B, ZHANG C Y, et al.Simulation on head-on bulging dynamic behavior of lead flyer with SPH method[J].Chinese Journal of High Pressure Physics, 2010, 24(5):383-387. http://www.gywlxb.cn/CN/abstract/abstract1314.shtml [10] STEINBERG D J, COCHRAN S G, GUINAN M W.A constitutive model for metals applicable at high-strain rate[J].J Appl Phys, 1980, 51(3):1498-1504. doi: 10.1063/1.327799 -
