Chinese Journal of High Pressure Physics  > 2025  >  39(9): 091301.
CAI Yue, LIU Xueli, HE Chuan, LIU Jinxu. Effect of Metal Oxides on the Combustion Characteristics of Al-Based Thermite[J]. Chinese Journal of High Pressure Physics, 2025, 39(9): 091301. doi: 10.11858/gywlxb.20240956
Citation: CAI Yue, LIU Xueli, HE Chuan, LIU Jinxu. Effect of Metal Oxides on the Combustion Characteristics of Al-Based Thermite[J]. Chinese Journal of High Pressure Physics, 2025, 39(9): 091301. doi: 10.11858/gywlxb.20240956
shu

Effect of Metal Oxides on the Combustion Characteristics of Al-Based Thermite

doi: 10.11858/gywlxb.20240956
  • 1.

    School of Materials Science and Engineering, Beijing Institute of Technology, Beijing 100081, China

  • 2.

    National Key Laboratory of Science and Technology on Materials under Shock and Impact,Beijing Institute of Technology, Beijing 100081, China

  • Received Date: 07 Dec 2024
  • Rev Recd Date: 28 Mar 2025
    • Available Online: 01 Apr 2025
  • Issue Publish Date: 05 Sep 2025
    Abstract

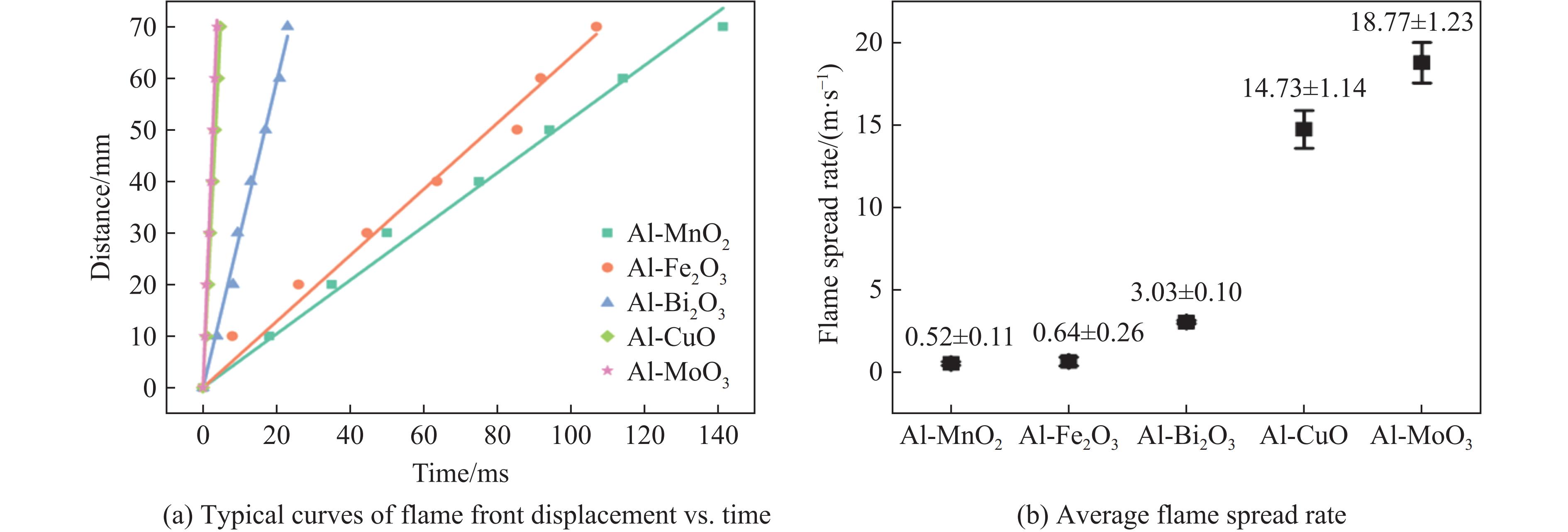

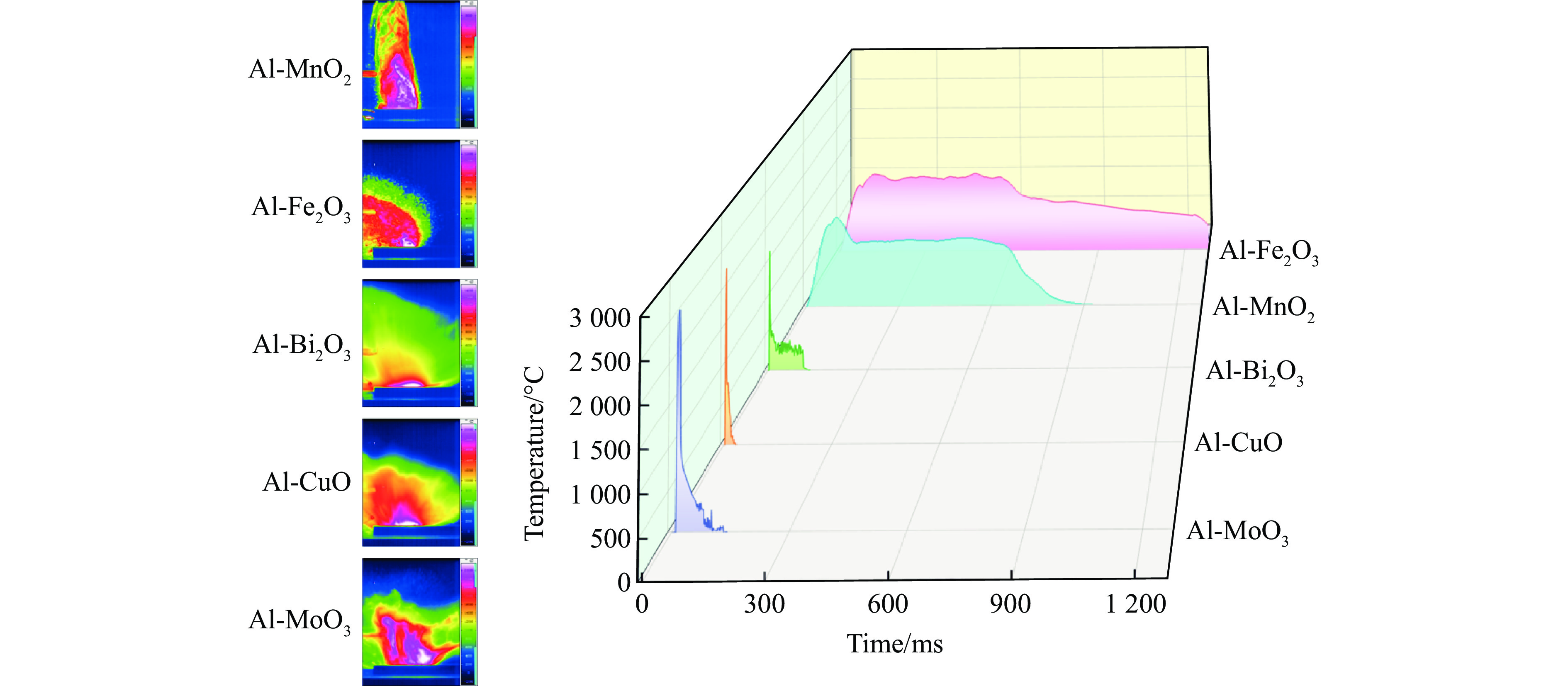

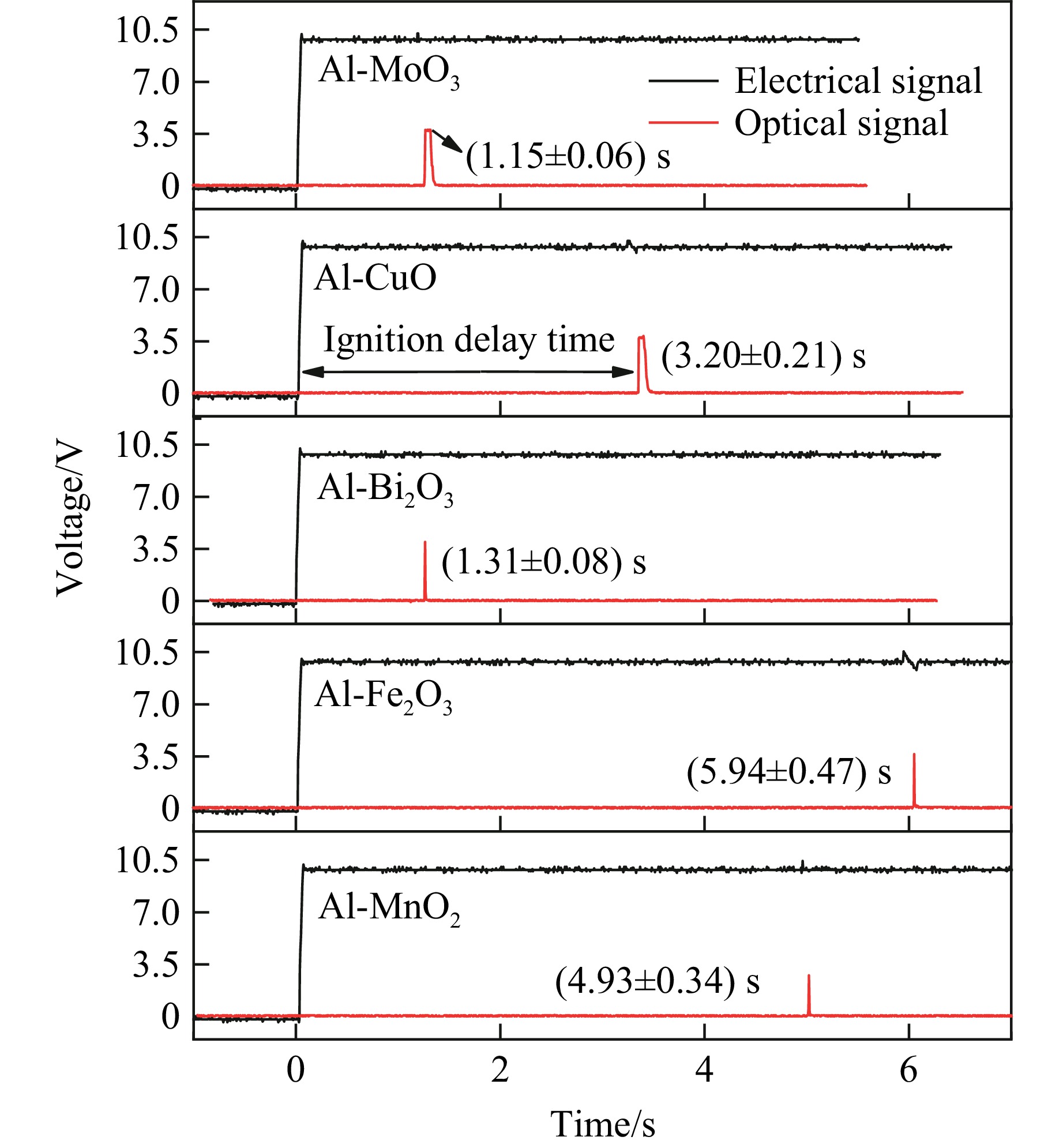

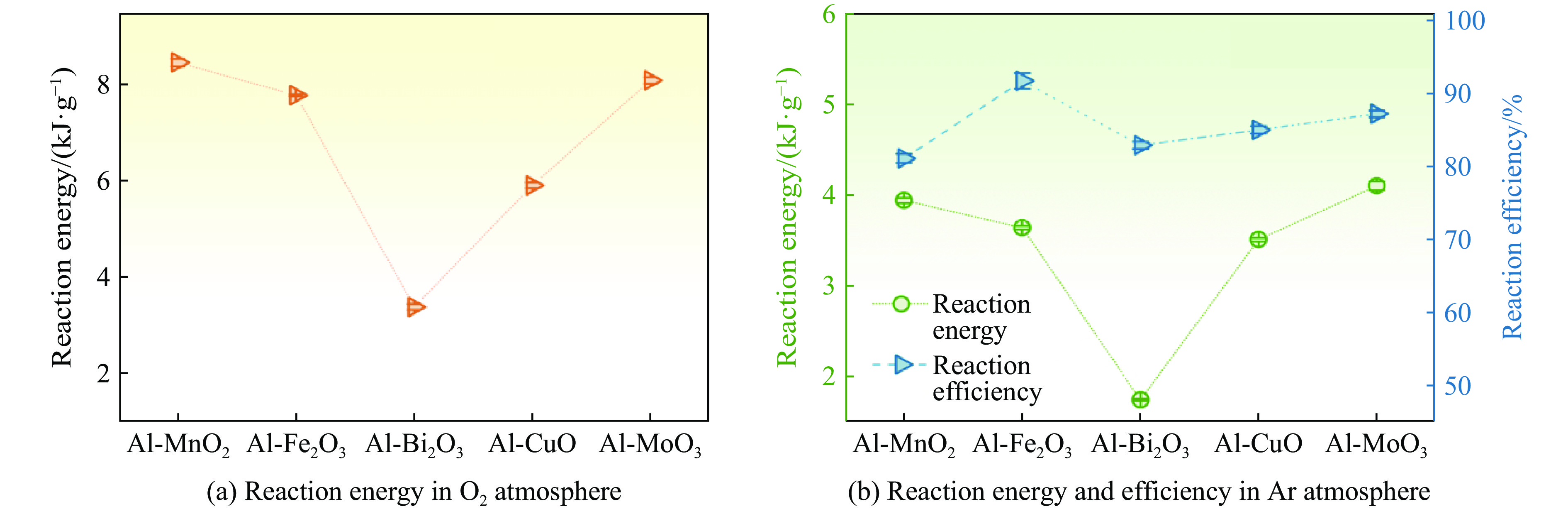

  • To explore the influence of various metal oxides on the combustion behavior of Al-based thermites, five metal oxides (Bi2O3, Fe2O3, MnO2, CuO, and MoO3), were selected and synthesized via a liquid-phase mixing method. The combustion characteristics, including reaction energy, self-propagating combustion properties, reaction pressure, and ignition delay time, were systematically investigated. The results demonstrated that the choice of metal oxide significantly impacted the combustion performance of Al-based thermites. Among them, Al-MoO3 exhibited the highest reaction energy in an Ar atmosphere ((4.10±0.05) kJ/g), the fastest flame spead rate ((18.77±1.23) m/s), the highest flame temperature, and the shortest ignition delay time ((1.15±0.06) s). Meanwhile, Al-Bi2O3 generated the highest peak pressure and pressure rise rate, with its peak pressure being 1.9, 3.5, 14.6, and 24.3 times greater than those of Al-CuO, Al-MnO2, Al-Fe2O3, and Al-MoO3, respectively. These findings highlight the potential to regulate thermite combustion properties through strategic metal oxide selection, providing a theoretical foundation for military and industrial applications.



    • FullText(HTML)
  • loading
    • References(17)
  • [1]
    HE W, LIU P J, HE G Q, et al. Highly reactive metastable intermixed composites (MICs): preparation and characterization [J]. Advanced Materials, 2018, 30(41): 1706293. doi: 10.1002/adma.201706293
    [2]
    ZHANG S, LIU J X, YANG M, et al. Effects of multi-component co-addition on reaction characteristics and impact damage properties of reactive material [J]. Materials & Design, 2018, 153: 1–8. doi: 10.1016/j.matdes.2018.04.077
    [3]
    CHEN J L, GUO T, SONG J X, et al. The characteristics of combustion reactions involving thermite under different shell materials [J]. RSC Advances, 2020, 10(56): 33762–33769. doi: 10.1039/D0RA05415A
    [4]
    BRATTON K R, HILL K J, WOODRUFF C, et al. Tailoring impact debris dispersion using intact or fragmented thermite projectiles [J]. Journal of Applied Physics, 2020, 128(15): 155108. doi: 10.1063/5.0023990
    [5]
    JOSEFSON B L, BISSCHOP R, MESSAADI M, et al. Residual stresses in thermite welded rails: significance of additional forging [J]. Welding in the World, 2020, 64(7): 1195–1212. doi: 10.1007/s40194-020-00912-4
    [6]
    MA X X, LI Y X, HUSSAIN I, et al. Core-shell structured nanoenergetic materials: preparation and fundamental properties [J]. Advanced Materials, 2020, 32(30): 2001291. doi: 10.1002/adma.202001291
    [7]
    DENG S L, JIANG Y, HUANG S D, et al. Tuning the morphological, ignition and combustion properties of micron-Al/CuO thermites through different synthesis approaches [J]. Combustion and Flame, 2018, 195: 303–310. doi: 10.1016/j.combustflame.2018.04.028
    [8]
    GLAVIER L, TATON G, DUCÉRÉ J M, et al. Nanoenergetics as pressure generator for nontoxic impact primers: comparison of Al/Bi2O3, Al/CuO, Al/MoO3 nanothermites and Al/PTFE [J]. Combustion and Flame, 2015, 162(5): 1813–1820. doi: 10.1016/j.combustflame.2014.12.002
    [9]
    SHIN M S, KIM J K, KIM J W, et al. Reaction characteristics of Al/Fe2O3 nanocomposites [J]. Journal of Industrial and Engineering Chemistry, 2012, 18(5): 1768–1773. doi: 10.1016/j.jiec.2012.04.003
    [10]
    陈嘉琳, 郭涛, 姚淼, 等. 含不同形貌MoO3的Al/MoO3铝热剂的热性能和燃烧性能 [J]. 含能材料, 2022, 30(2): 121–129. doi: 10.11943/CJEM2021105

    CHEN J L, GUO T, YAO M, et al. Thermal properties and combustion properties of Al/MoO3 thermite containing MoO3 with different morphologies [J]. Chinese Journal of Energetic Materials, 2022, 30(2): 121–129. doi: 10.11943/CJEM2021105
    [11]
    MARTIROSYAN K S, WANG L, VICENT A, et al. Synthesis and performance of bismuth trioxide nanoparticles for high energy gas generator use [J]. Nanotechnology, 2009, 20(40): 405609. doi: 10.1088/0957-4484/20/40/405609
    [12]
    HE W, LYU J Y, TANG D Y, et al. Control the combustion behavior of solid propellants by using core-shell Al-based composites [J]. Combustion and Flame, 2020, 221: 441–452. doi: 10.1016/j.combustflame.2020.07.006
    [13]
    ZHU Z Y, MA B, TANG C M, et al. Molecular dynamic simulation of thermite reaction of Al nanosphere/Fe2O3 nanotube [J]. Physics Letters A, 2016, 380(1/2): 194–199. doi: 10.1016/j.physleta.2015.09.041
    [14]
    SONG J X, GUO T, YAO M, et al. A comparative study of thermal kinetics and combustion performance of Al/CuO, Al/Fe2O3 and Al/MnO2 nanothermites [J]. Vacuum, 2020, 176: 109339. doi: 10.1016/j.vacuum.2020.109339
    [15]
    ZHUANG Z H, XU K D, LIU B Z, et al. Improved reactivity and energy release performance of core-shell structured fuel-rich Si/PTFE energetic composites [J]. Combustion and Flame, 2023, 255: 112889. doi: 10.1016/j.combustflame.2023.112889
    [16]
    LIU Z H, HE C, ZHUANG Z H, et al. Ignition and energy release performance of dual-oxidant Al/MnO2/CuO ternary thermites under rapid heating conditions [J]. Propellants, Explosives, Pyrotechnics, 2024, 49(7): e202400005. doi: 10.1002/prep.202400005
    [17]
    YANG C, WANG W Y, LI Y H, et al. Quantitative study on chemical effects of actual/simulated recirculated exhaust gases on ignition delay times of n-heptane/ethanol fuel blends at elevated temperature [J]. Fuel, 2020, 263: 116327. doi: 10.1016/j.fuel.2019.116327
