SONG Yumin, QU Shouyi, LIU Haiming. Damage Characteristics of Highway Simply Supported Steel Box Girder Bridges under Near-Field Explosive Loading[J]. Chinese Journal of High Pressure Physics, 2025, 39(8): 085304. doi: 10.11858/gywlxb.20240937
Citation: SONG Yumin, QU Shouyi, LIU Haiming. Damage Characteristics of Highway Simply Supported Steel Box Girder Bridges under Near-Field Explosive Loading[J]. Chinese Journal of High Pressure Physics, 2025, 39(8): 085304. doi: 10.11858/gywlxb.20240937
shu

Damage Characteristics of Highway Simply Supported Steel Box Girder Bridges under Near-Field Explosive Loading

doi: 10.11858/gywlxb.20240937
  • 1.

    School of Urban Rail Transportation, Shanghai University of Engineering Science, Shanghai 201620, China

  • 2.

    State Key Laboratory of Bridge Safety and Resilience, China Merchants Chongqing Communications Technology Research and Design Institute Co., Ltd., Chongqing 400064, China

  • Received Date: 11 Nov 2024
  • Rev Recd Date: 06 Dec 2024
  • Accepted Date: 06 Dec 2024
  • Issue Publish Date: 05 Aug 2025
    Abstract

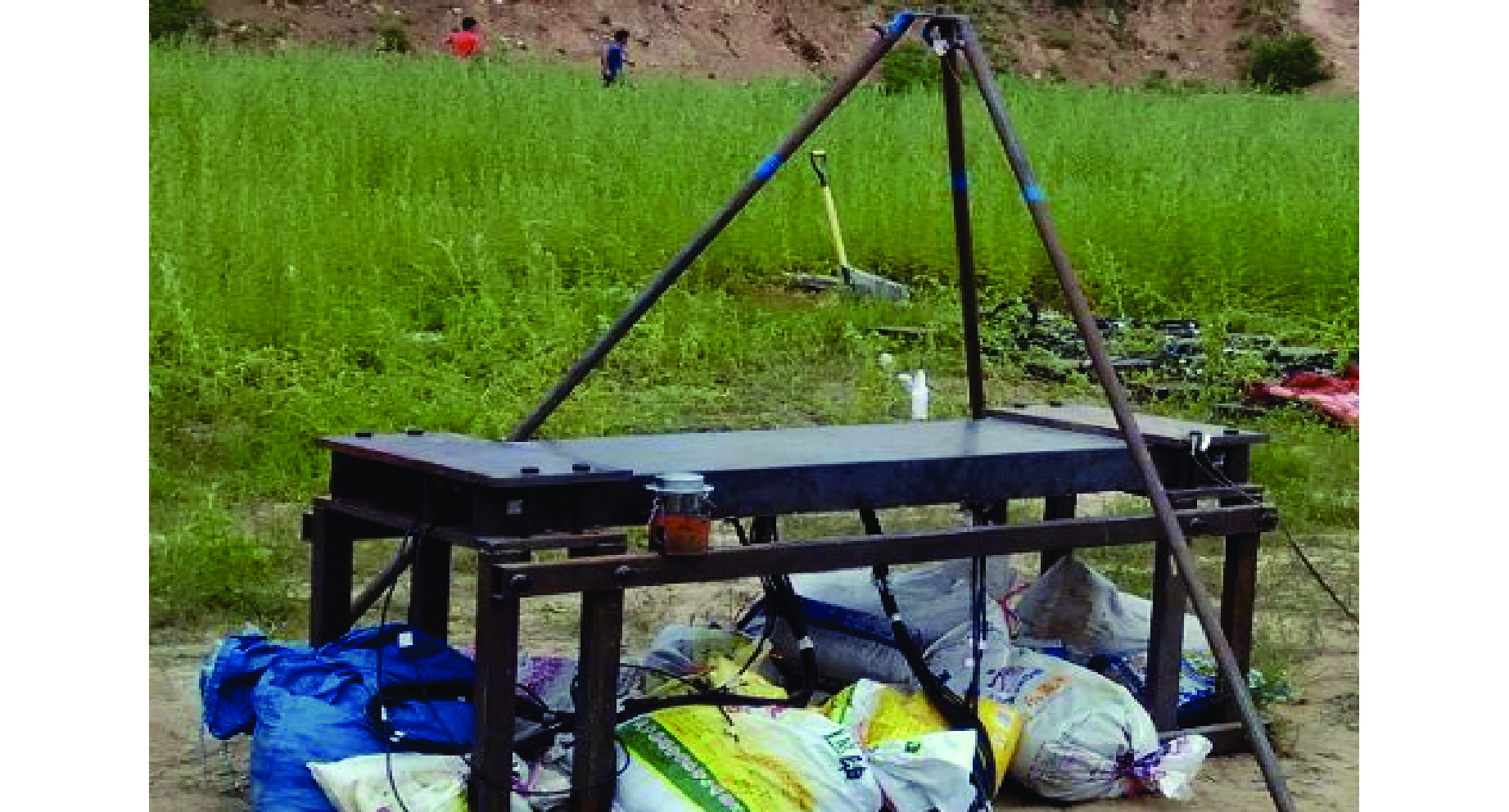

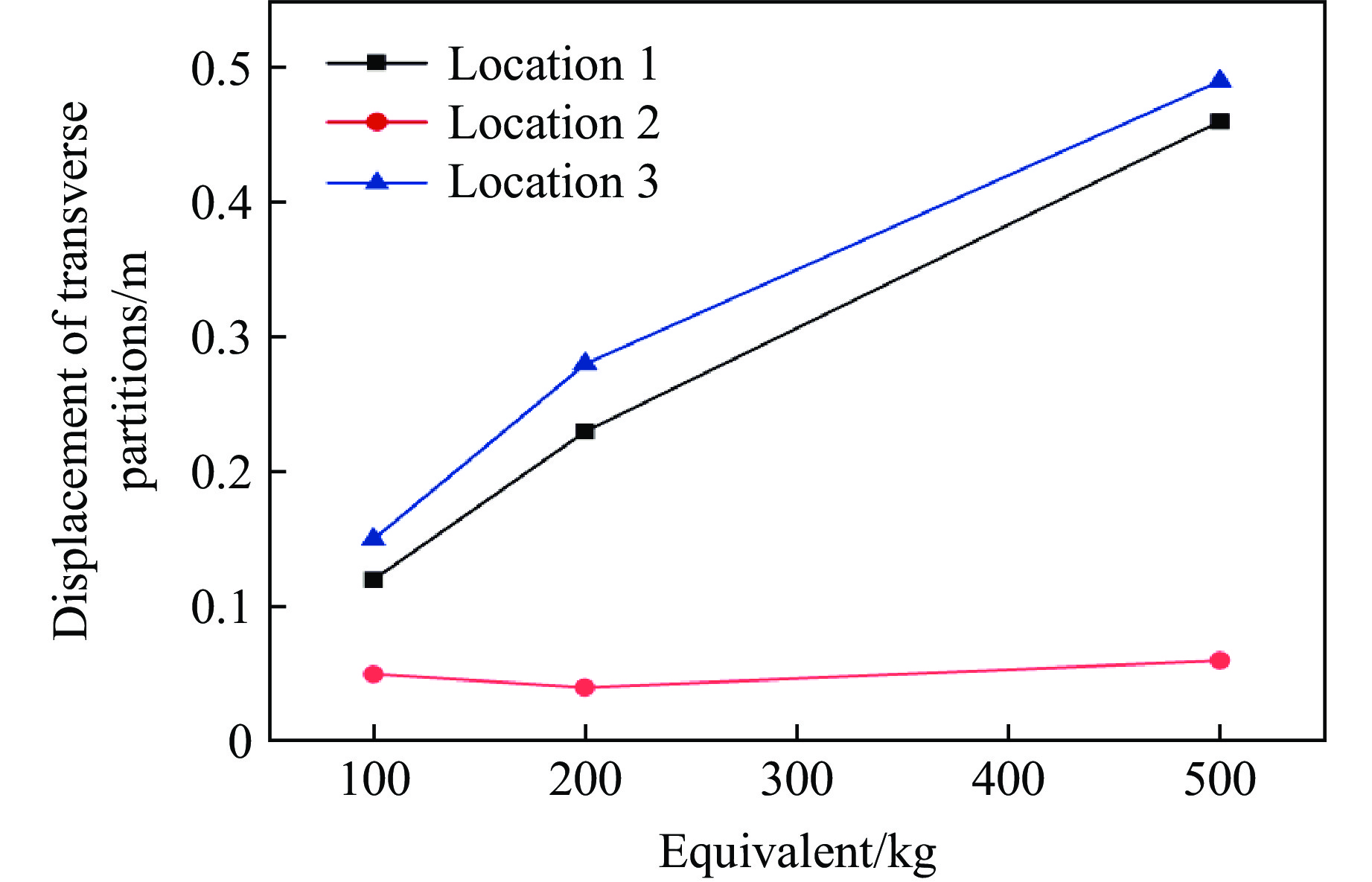

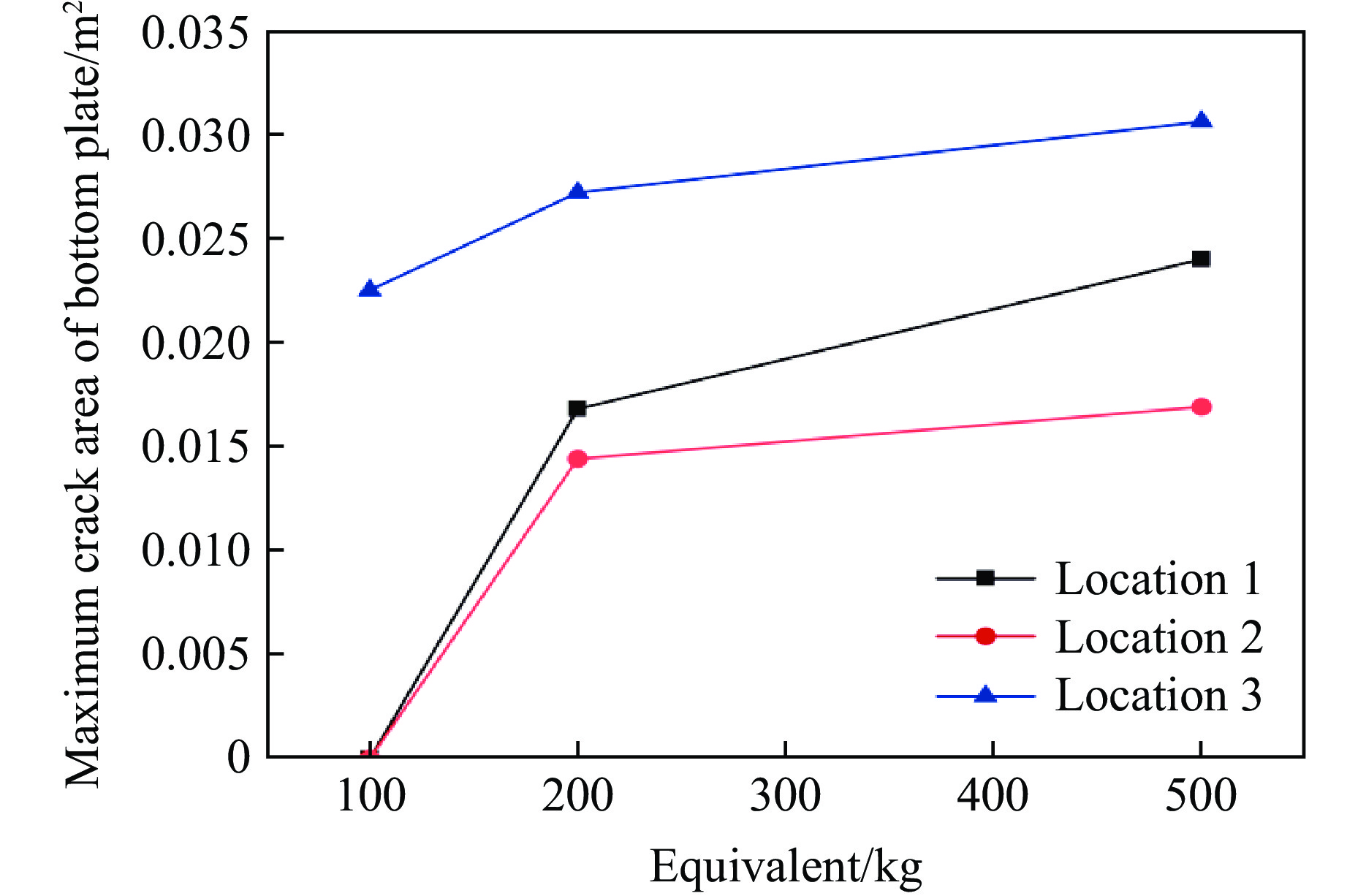

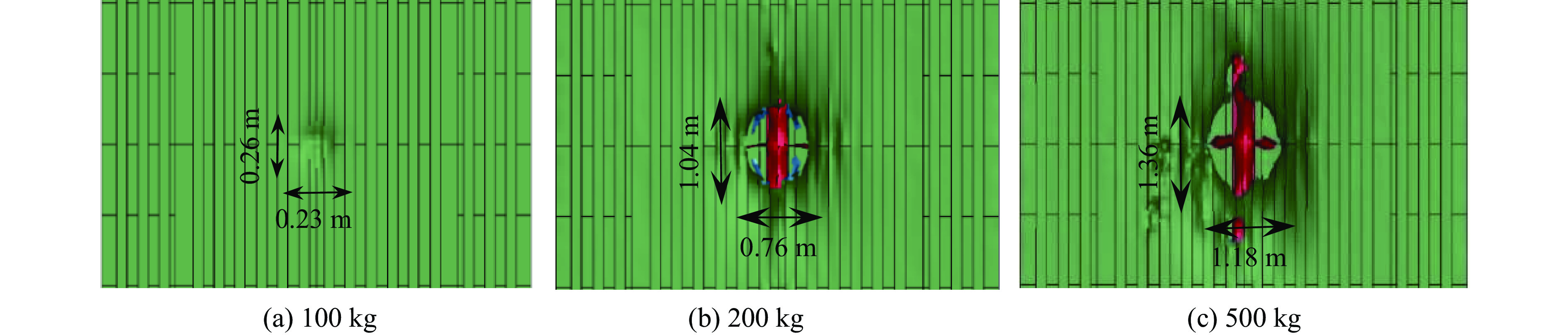

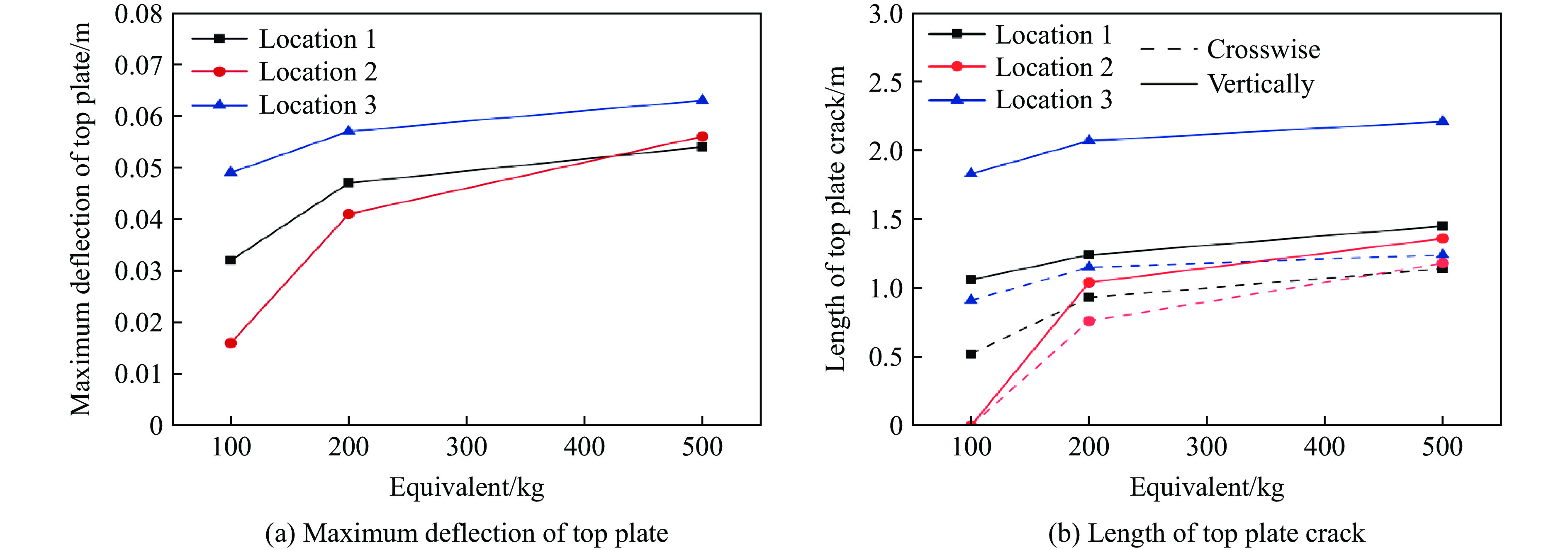

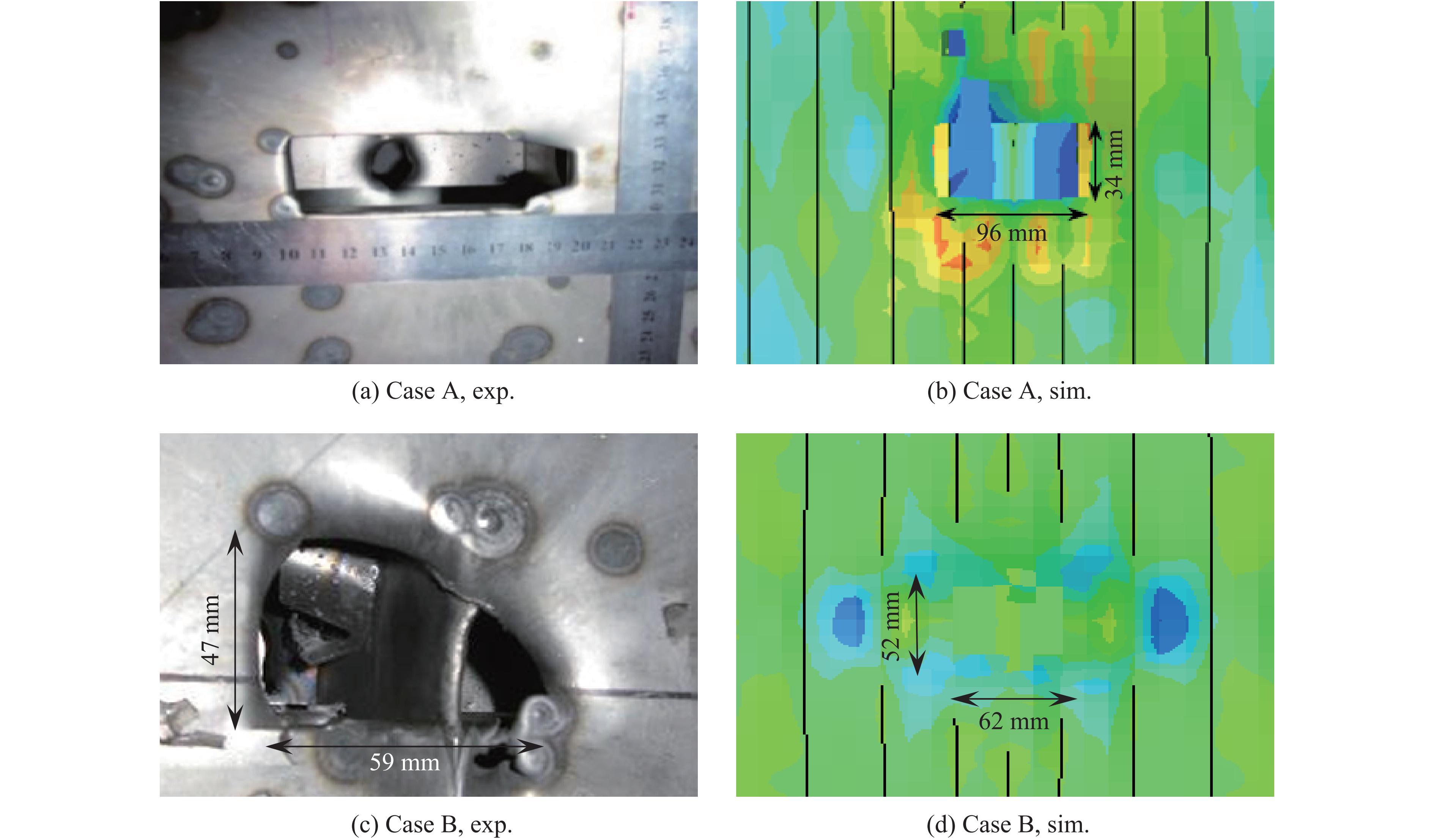

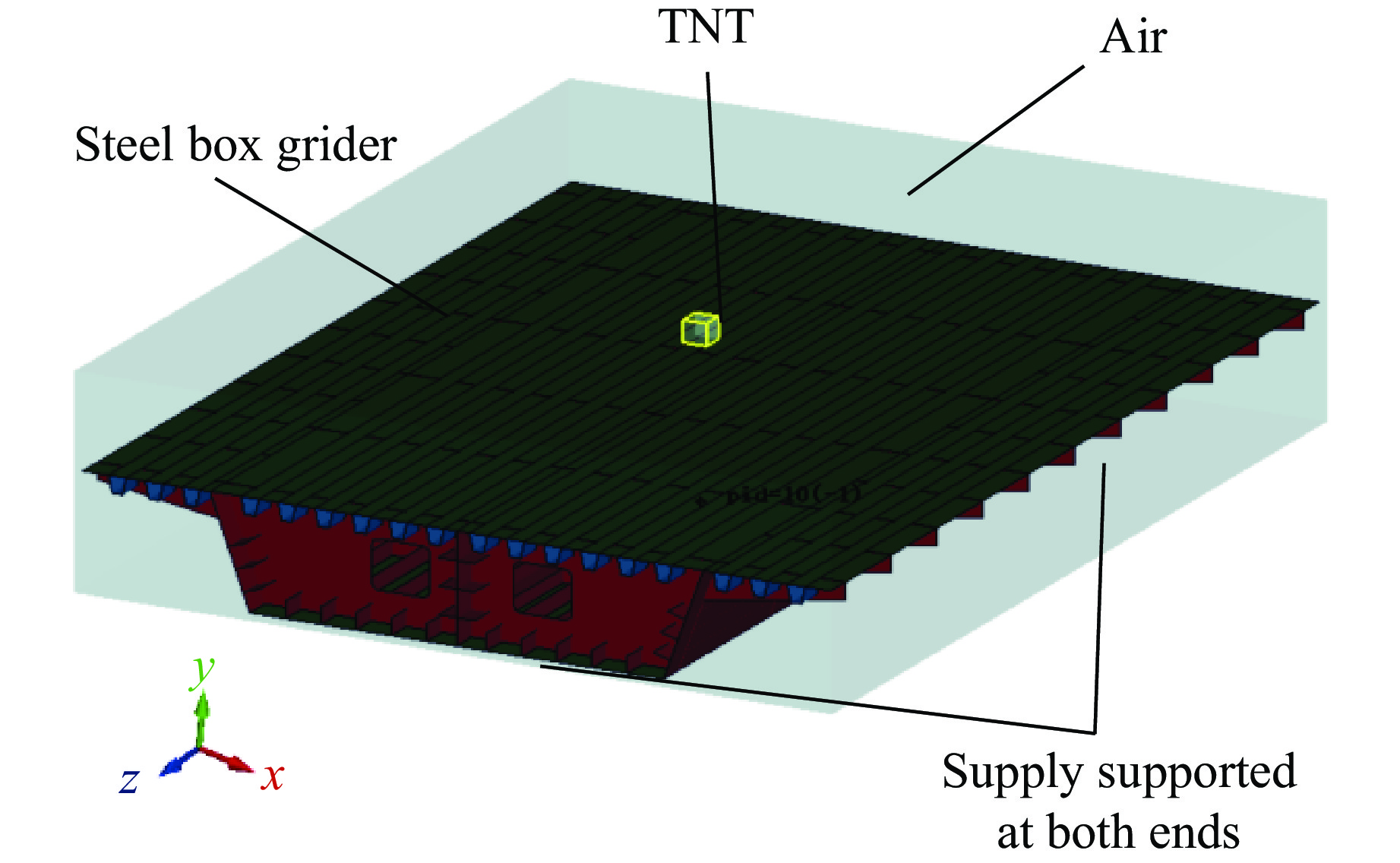

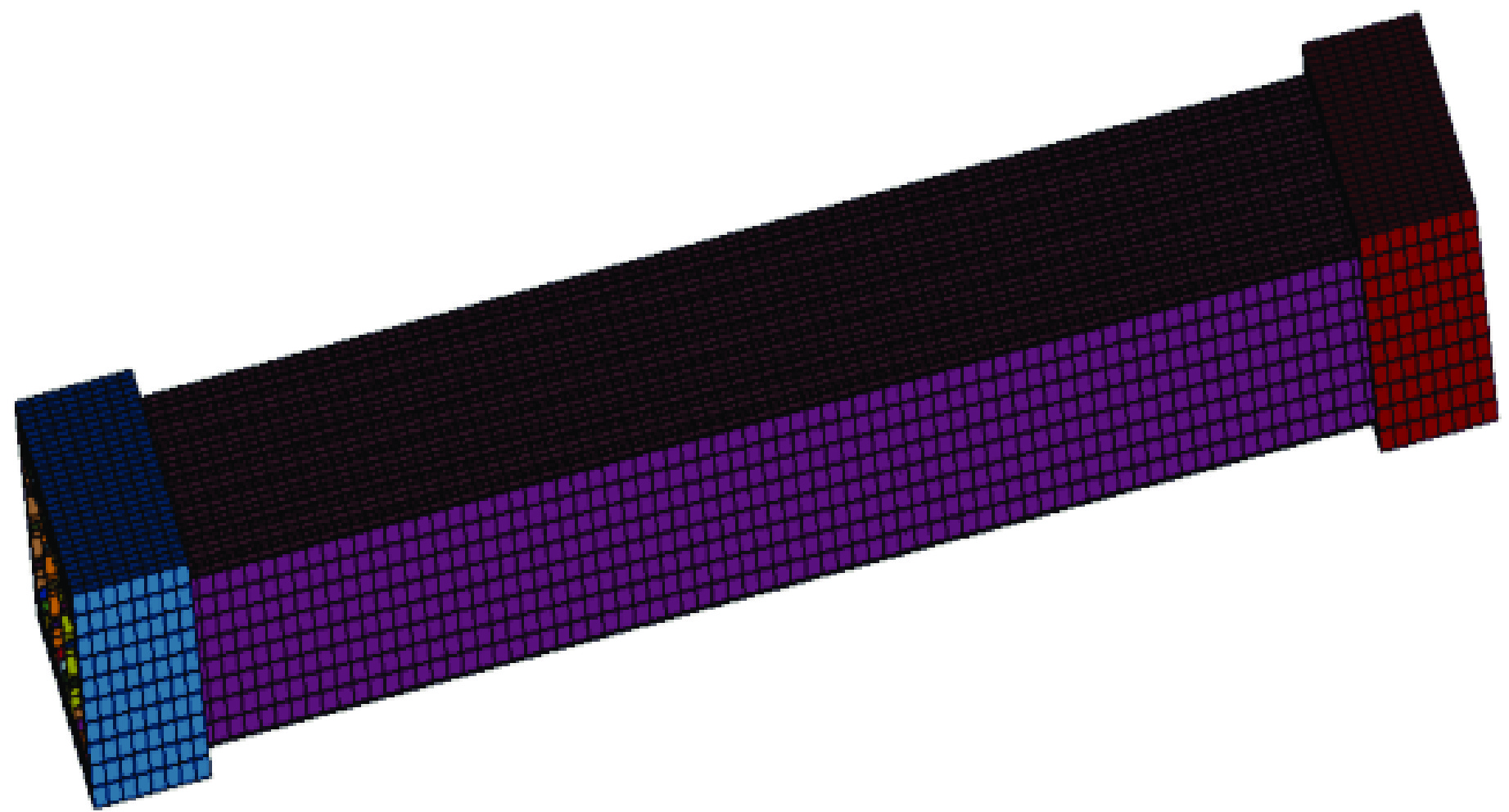

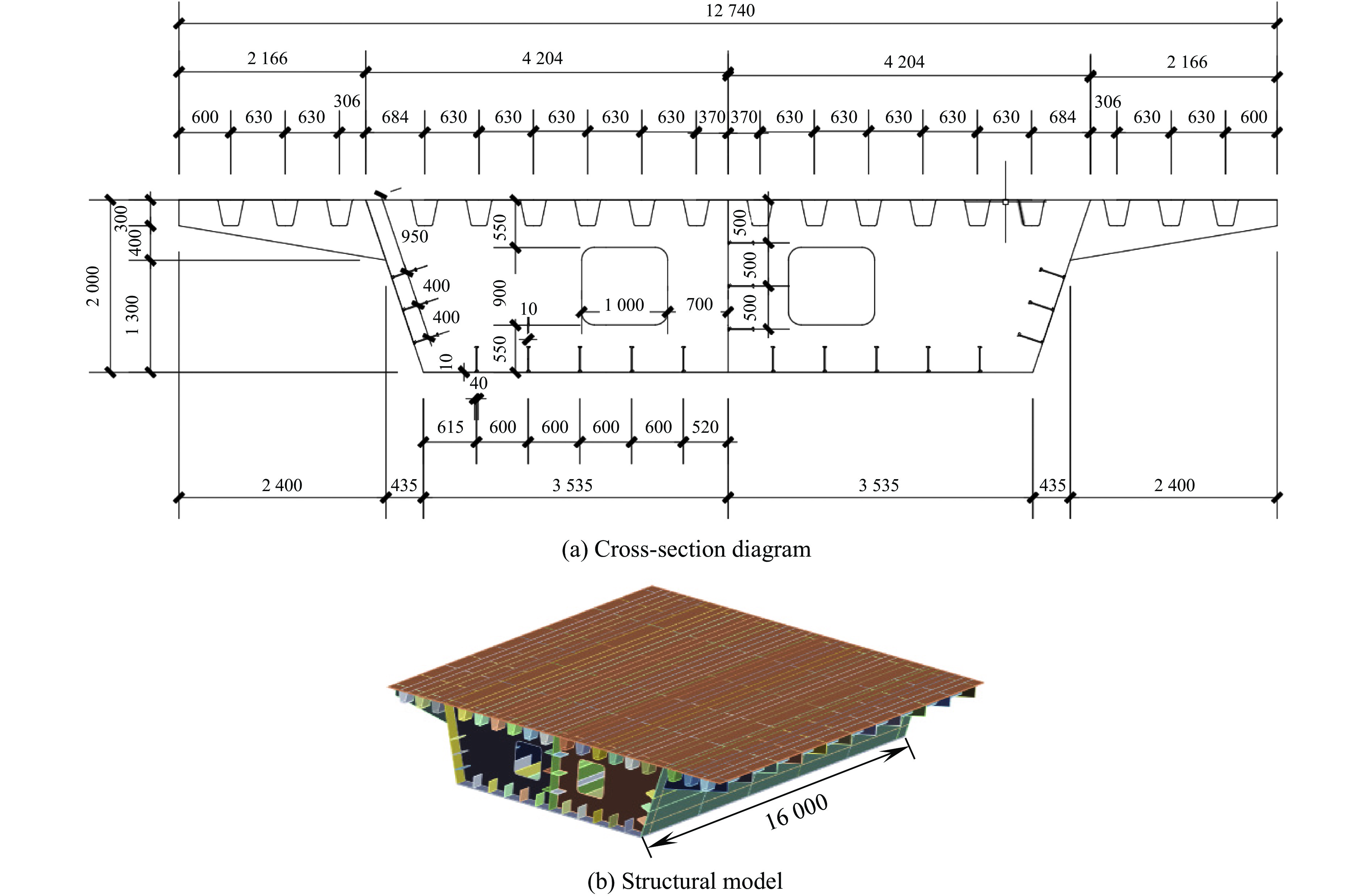

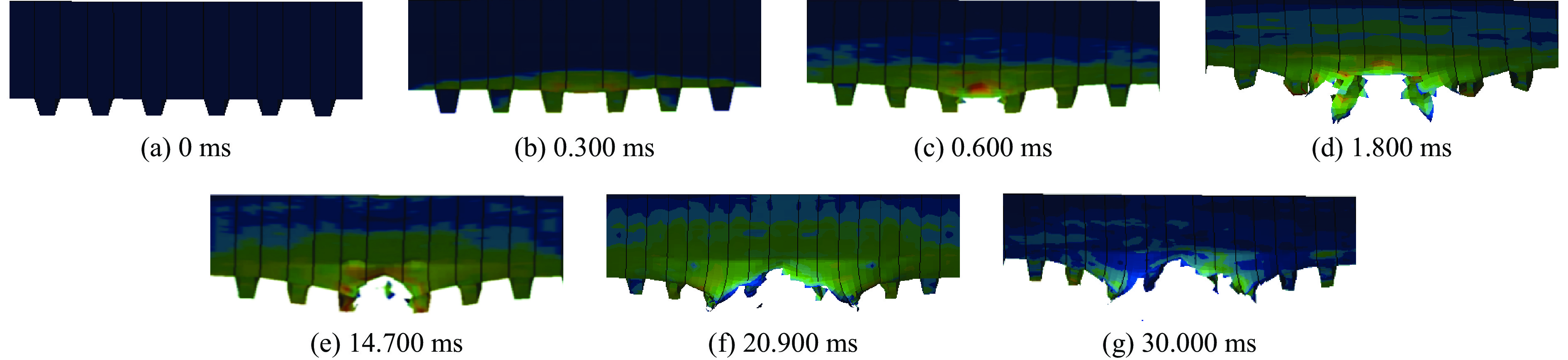

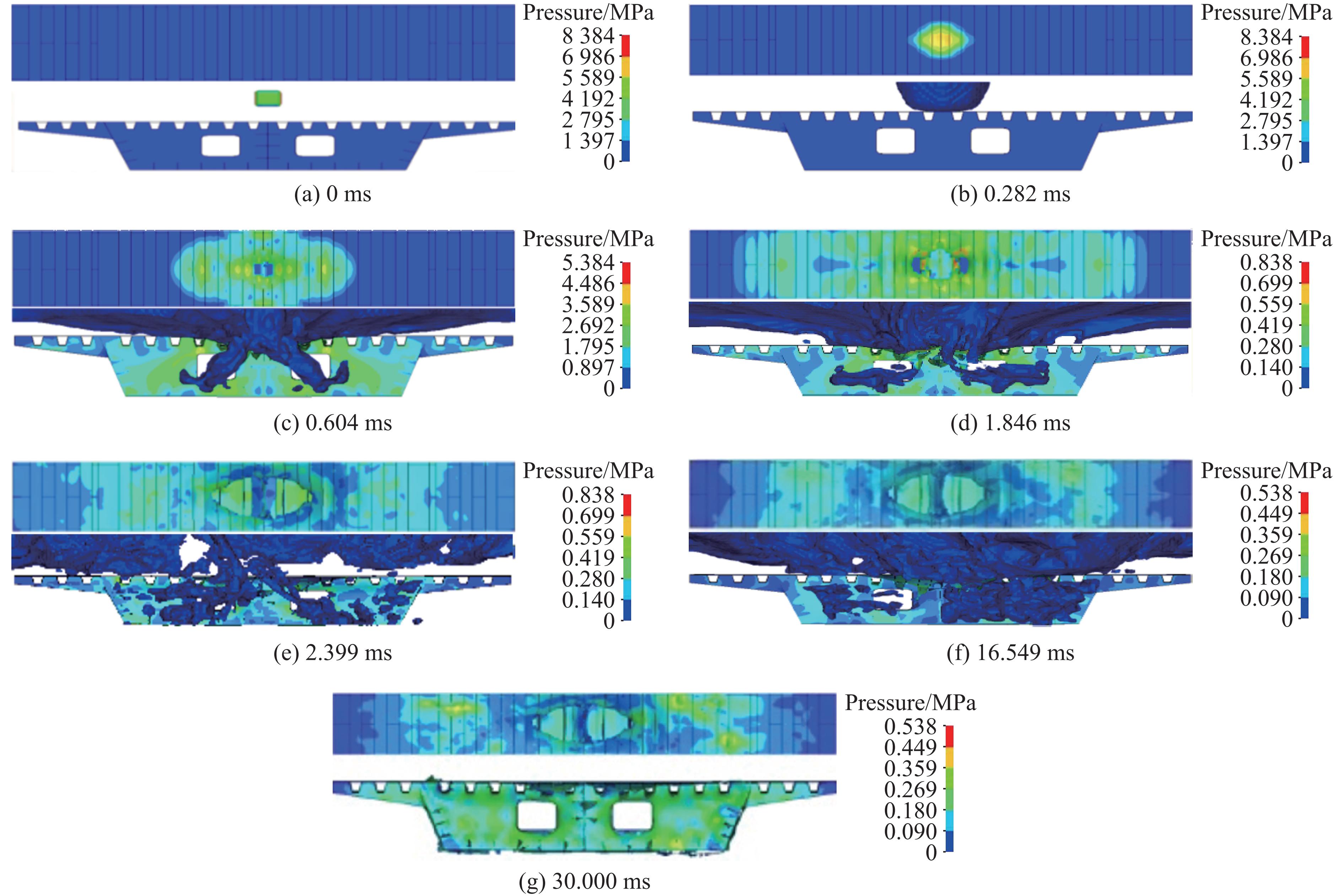

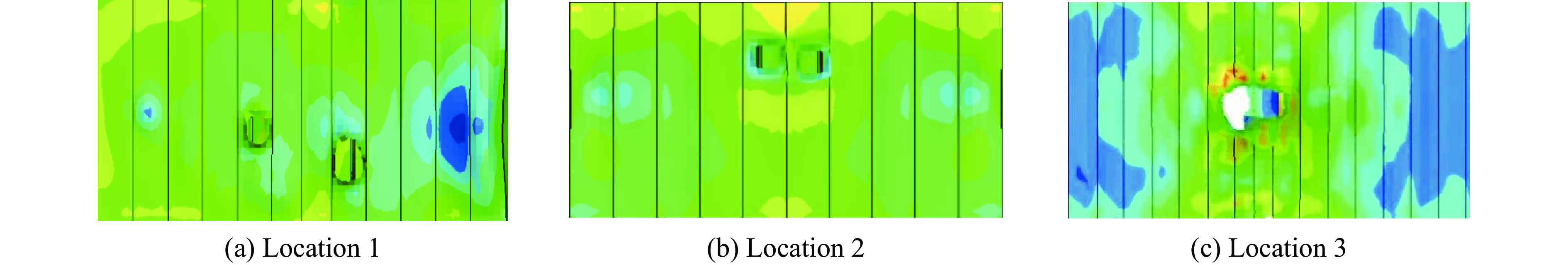

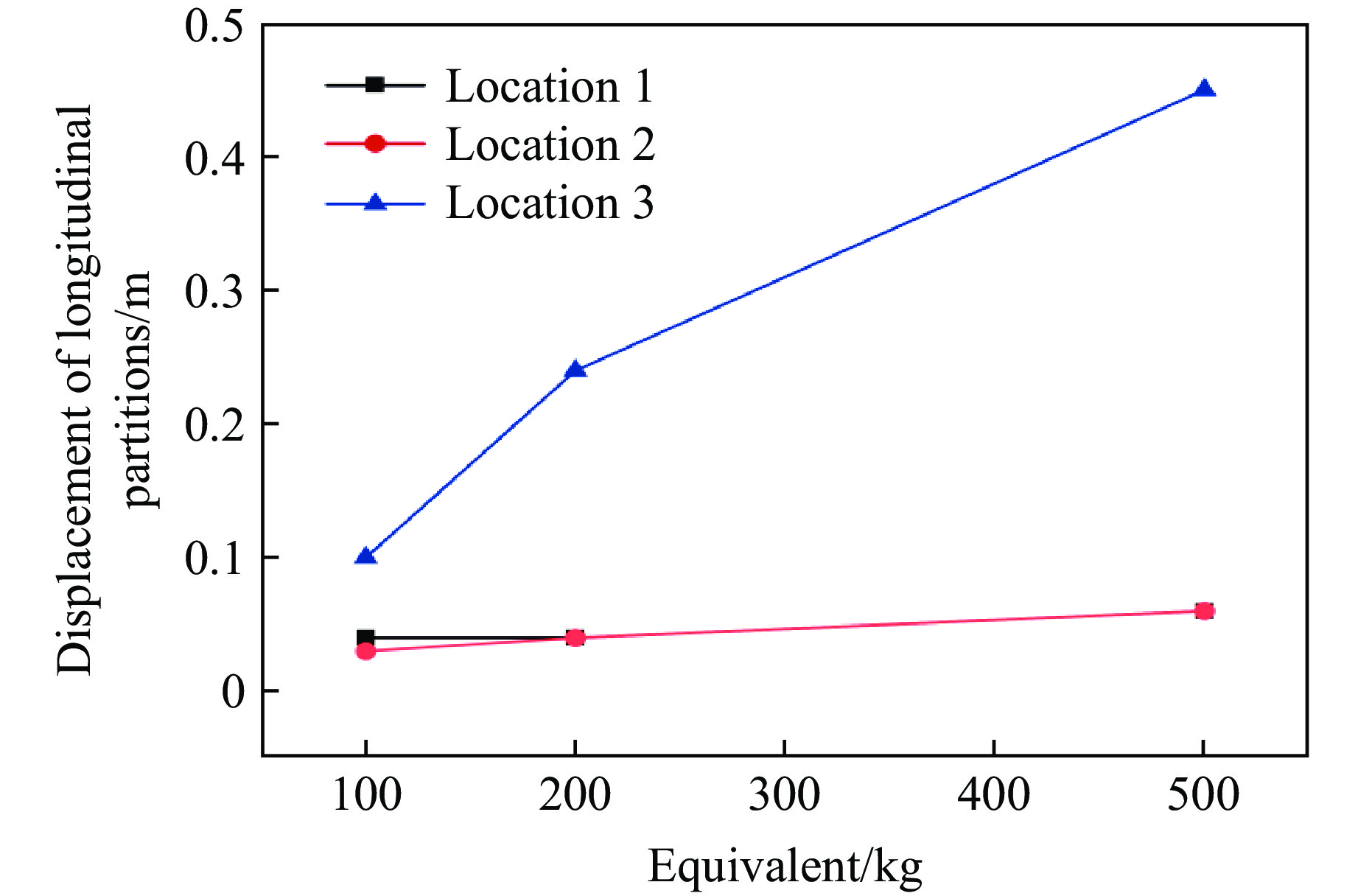

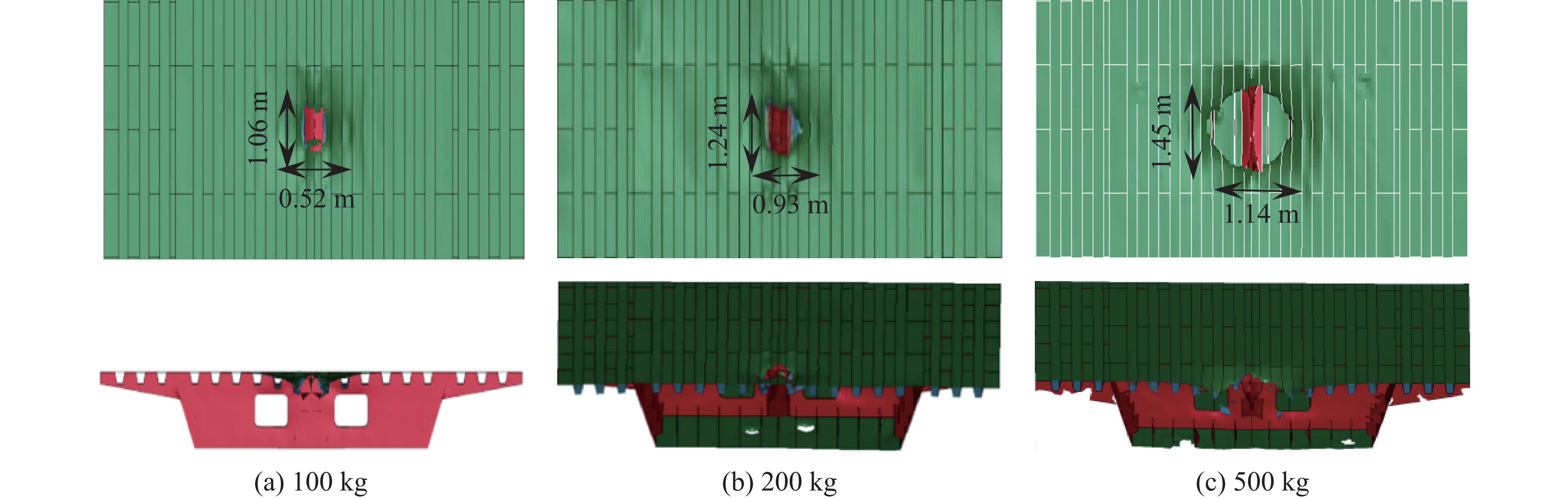

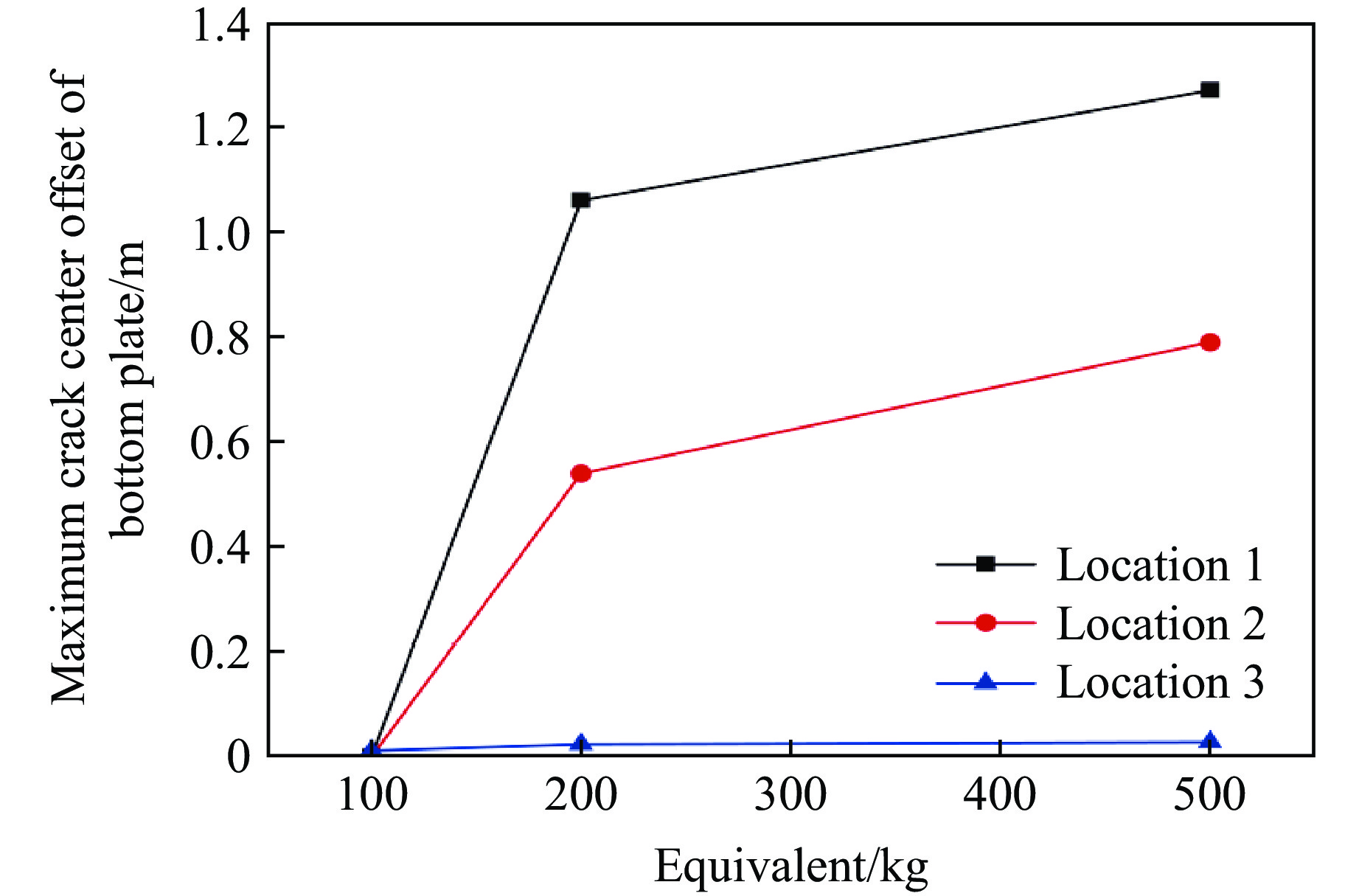

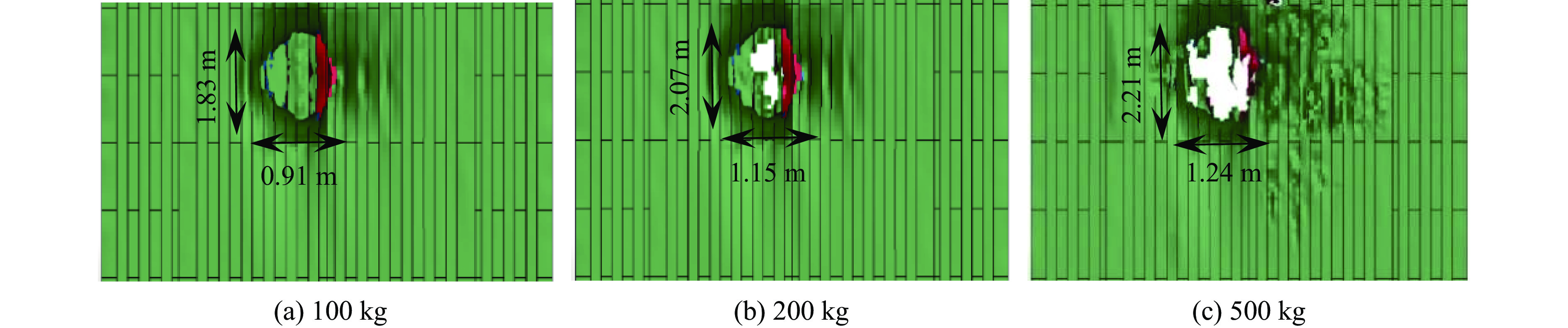

  • To study the damage characteristics of simply supported steel box girder bridges under near-field explosive loading, software LS-DYNA was used to establish the finite element model. Numerical validation was carried out for the steel box girder scale model, and the reliability of the numerical simulation method was verified. Damage simulation was carried out to explore the damage characteristics of the steel box girder bridge with different explosion loading cases and locations. The results show mainly local damage of simply supported steel box girder bridge under near-field explosive loading, and is mainly manifested as top plate failure, bottom plate failure and partitions deformation and failure. The top plate is the most serious failureis, which is affected by the direct impact of the explosion loading. The explosion location exerts a dominant effect on the failure of the bridge, and the failure area of the top plate at the location without diaphragm restraint is increased by 50%−70% compared with that at the location with single or both transverse and longitudinal diaphragm. Moreover, the stiffening ribs on the longitudinal diaphragm will reflect the shock wave, result in shift of the bottom plate crack. The maximum crack center shift is 0.5−1.5 m in 500 kg with the increase of TNT equivalent. Therefore, the protective effect of the diaphragm and the stiffening ribs is criticle for steel box grider bridges design.



    • FullText(HTML)
  • loading
    • References(15)
  • [1]
    耿少波, 刘亚玲, 薛建英. 钢箱梁缩尺模型爆炸冲击波作用下破坏实验研究 [J]. 工程力学, 2017, 34(Suppl 1): 84–88.

    GENG S B, LIU Y L, XUE J Y. Experimental studies on steel box girder scale model under blast load [J]. Engineering Mechanics, 2017, 34(Suppl 1): 84–88.
    [2]
    耿少波, 刘亚玲, 刘玉存, 等. 钢箱梁节段缩尺模型爆炸冲击波参数实验研究 [J]. 结构工程师, 2018, 34(6): 87–94.

    GENG S B, LIU Y L, LIU Y C, et al. Blast experimental parameters of steel box girder [J]. Structural Engineers, 2018, 34(6): 87–94.
    [3]
    刘亚玲, 刘玉存, 耿少波, 等. 钢箱梁结构在爆炸冲击波作用下局部破坏影响因素实验研究 [J]. 振动与冲击, 2018, 37(24): 229–236.

    LIU Y L, LIU Y C, GENG S B, et al. An experimental study on the local damage and influence factors of a steel box girder under explosive shock wave [J]. Journal of Vibration and Shock, 2018, 37(24): 229–236.
    [4]
    朱璨, 马如进, 陈艾荣. 爆炸荷载作用下缆索承重桥梁塔梁构件的破坏特征 [J]. 公路交通科技, 2016, 33(8): 92–98. doi: 10.3969/j.issn.1002-0268.2016.08.014

    ZHU C, MA R J, CHEN A R. Damage characteristics of steel girder and RC pylon of cable-supported bridge suffered from blast loading [J]. Journal of Highway and Transportation Research and Development, 2016, 33(8): 92–98. doi: 10.3969/j.issn.1002-0268.2016.08.014
    [5]
    李豪凯, 王党雄, 赵嘉敏, 等. 爆炸荷载下钢箱梁桥动力响应机理与关键参数研究 [J]. 防灾减灾工程学报, 2023, 43(5): 1112–1121.

    LI H K, WANG D X, ZHAO J M, et al. Dynamic response mechanism and key parametric study of steel box girder bridge under explosion load [J]. Journal of Disaster Prevention and Mitigation Engineering, 2023, 43(5): 1112–1121.
    [6]
    朱劲松, 邢扬. 爆炸荷载作用下城市桥梁动态响应及其损伤过程分析 [J]. 天津大学学报(自然科学与工程技术版), 2015, 48(6): 510–519.

    ZHU J S, XING Y. Dynamic response and damage process analysis of urban bridge subjected to blast load [J]. Journal of Tianjin University (Science and Technology), 2015, 48(6): 510–519.
    [7]
    蒋志刚, 白志海, 严波, 等. 钢箱梁桥面板爆炸冲击响应数值模拟研究 [J]. 振动与冲击, 2012, 31(5): 77–81.

    JIANG Z G, BAI Z H, YAN B, et al. Numerical simulation for response of a steel box girder deck to blast loading [J]. Journal of Vibration and Shock, 2012, 31(5): 77–81.
    [8]
    姚术健, 蒋志刚, 卢芳云, 等. 汽车炸弹钢箱梁内部爆炸局部破坏效应分析 [J]. 振动与冲击, 2015, 34(7): 222–227.

    YAO S J, JIANG Z G, LU F Y, et al. Analysis on local damage of steel box girder under internal blast loading of vehicle bomb [J]. Journal of Vibration and Shock, 2015, 34(7): 222–227.
    [9]
    HAO H, TANG E K C. Numerical simulation of a cable-stayed bridge response to blast loads, part Ⅱ: damage prediction and FRP strengthening [J]. Engineering Structures, 2010, 32(10): 3193–3205. doi: 10.1016/j.engstruct.2010.06.006
    [10]
    李源, 侯炜, 贺拴海. 近爆荷载作用下的桥梁受力及破坏特征分析 [J]. 公路, 2020, 65(9): 73–77.

    LI Y, HOU W, HE S H. Analysis of stress and damage characteristics for concrete bridge under close blast loading [J]. Highway, 2020, 65(9): 73–77.
    [11]
    马亮亮, 吴昊. 爆炸作用下预应力RC梁桥的损伤评估 [J/OL]. 工程力学 (2023-10-07)[2024-11-11]. https://engineering-mechanics.cn/cn/article/doi/10.6052/j.issn.1000-4750.2023.05.0378.

    MA L L, WU H. Damage assessment of prestressed RC girder bridge under explosion [J/OL]. Engineering Mechanics (2023-10-07)[2024-11-11]. https://engineeringmechanics.cn/cn/article/doi/10.6052/j.issn.1000-4750.2023.05.0378.
    [12]
    崔雨晨, 易华辉, 黄金香, 等. 爆炸冲击作用下不同材料箱型梁桥损伤分析 [J]. 火箭军工程大学学报, 2024, 38(1): 24–33.

    CUI Y C, YI H H, HUANG J X, et al. Damage analysis of box girder bridge with different materials under explosion impact [J]. Journal of Rocket Force University of Engineering, 2024, 38(1): 24–33.
    [13]
    孙启鑫, 刘超. 预应力混凝土箱梁爆炸荷载模型实验及有限元分析 [J]. 振动与冲击, 2024, 43(14): 37–46.

    SUN Q X, LIU C. Experimental and finite element analysis of the explosion load model for prestressed concrete box girders [J]. Journal of Vibration and Shock, 2024, 43(14): 37–46.
    [14]
    闫秋实, 吕辰旭. VBIED爆炸场景下连续箱梁桥损伤破坏数值模拟研究 [J]. 防护工程, 2023, 45(5): 22–27. doi: 10.3969/j.issn.1674-1854.2023.05.004

    YAN Q S, LYU C X. Numerical simulation study of damage and failure in continuous box girder bridges under VBIED explosion scenarios [J]. Protective Engineering, 2023, 45(5): 22–27. doi: 10.3969/j.issn.1674-1854.2023.05.004
    [15]
    朱新明. 钢箱梁爆炸冲击局部破坏数值模拟研究 [D]. 长沙: 国防科学技术大学, 2011.

    ZHU X M. Numerical simulation investigation of local failure of steel box girders under blast loading [D]. Changsha: National University of Defense Technology, 2011.
