Phase Diagram and Dynamic Transformation Pathways of Carbon under Extreme Compression
-
摘要: 碳在极端压缩条件下表现出复杂的结构转变、熔化行为和电子性质演化。这些过程与富碳行星内部物态、惯性约束聚变中高密度碳烧蚀层响应以及后金刚石相形成密切相关。为此，以平衡压力-温度（p-T）相图为热力学参照，综述了石墨、金刚石、液态碳和 BC8 等结构，比较了单冲击、斜波压缩、双冲击或多冲击等加载路径及其原位诊断方法，重点讨论了石墨向立方金刚石和六方堆垛相关结构的转变、金刚石熔化与液态碳结构，以及BC8碳的动力学稳定性。已有研究表明，动态压缩中的可观测结构不仅取决于压力和温度，还受到加载路径、应力状态、初始结构和诊断窗口的共同影响。因此，理解碳的动态相变需要把平衡相界放回具体的加载路径中，形成p-T-path框架，该分析框架可为极端条件下碳材料的实验路径设计、原位结构诊断和状态方程约束提供参考。Abstract: Carbon exhibits complex structural transformations, melting behavior, and electronic-property evolution under extreme compression. This behavior is relevant to carbon-rich planetary interiors, the dynamic response of high-density carbon ablators in inertial confinement fusion, and the formation of post-diamond phases. This review focuses on the dynamic phase diagram of carbon. We summarize the equilibrium reference states of graphite, diamond, liquid carbon, and BC8 carbon, and discuss typical dynamic loading paths under shock, ramp, and multiple-shock compression together with their corresponding in situ diagnostics. We focus on the graphite-to-diamond/lonsdaleite-like transformation, diamond melting and liquid-carbon structure, and the kinetic accessibility of BC8 carbon. Existing studies show that the phases observed under dynamic compression are governed not only by pressure and temperature, but also by loading time, stress state, initial structure, and diagnostic window. Therefore, a dynamic phase diagram of carbon should extend the conventional pressure-temperature (p-T) description by incorporating loading path, leading to a p-T-path representation. This perspective may provide guidance for experimental design, in situ structural diagnostics, and equation-of-state model constraints for carbon under extreme conditions.
-
Key words:
- carbon /
- dynamic phase transition /
- shock compression /
- ramp compression /
- diamond melting /
- BC8 carbon /
- liquid carbon
-

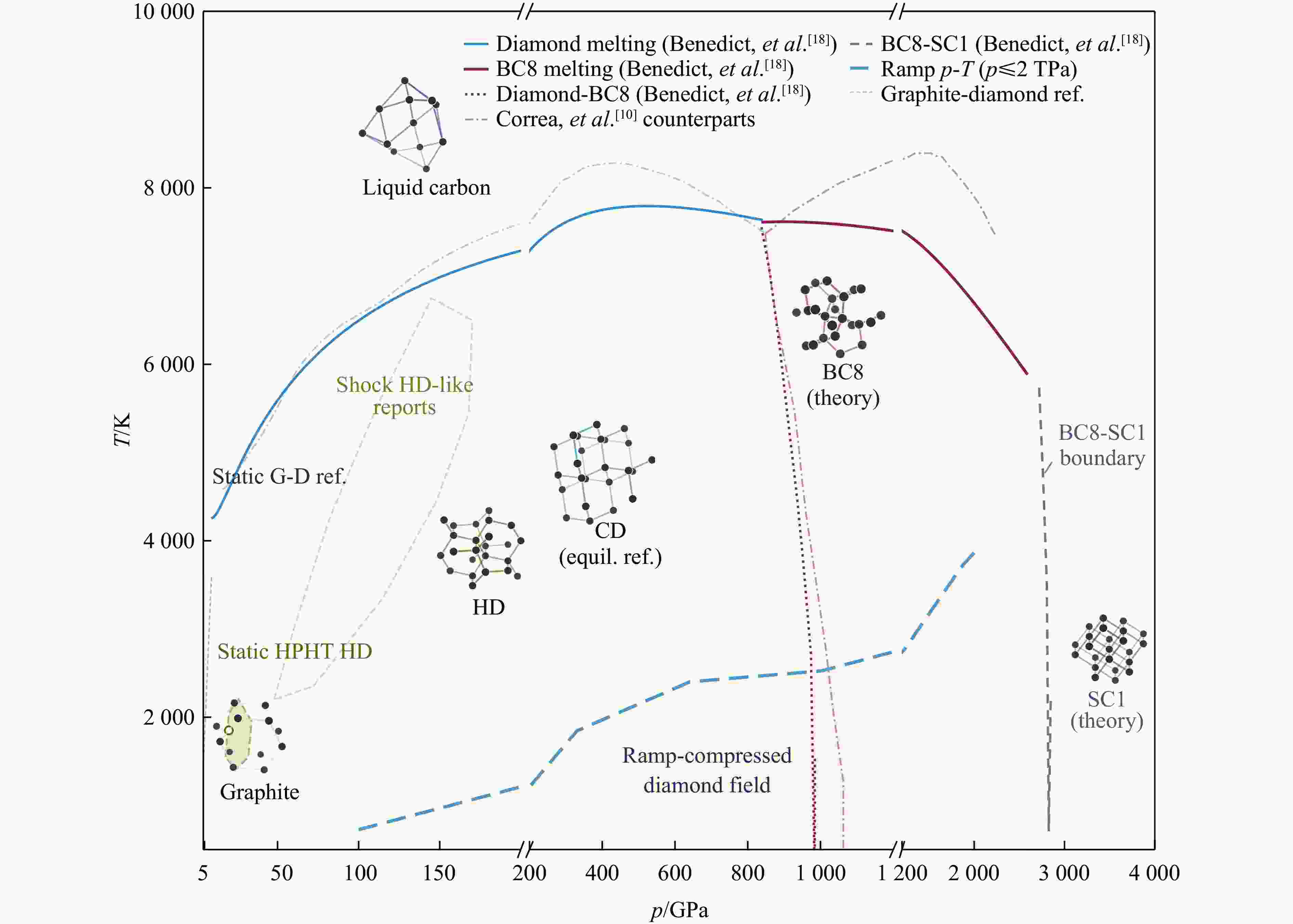

图 1 动态压缩下碳的p-T 相图（相界和路径均为示意。Benedict 等[18]和 Correa 等[10]的结果用于展示理论相界差异。斜波路径及阴影区表示金刚石在 BC8 理论稳定区内的亚稳保持；HD/lonsdaleite 窗口表示静态高温高压和冲击实验中与路径相关的转变结果。液态碳位于熔化线以上；BC8 和 SC1 为理论候选后金刚石相，仍需原位结构诊断验证。）
Figure 1. Schematic p-T phase diagram of carbon under dynamic compression (The phase boundaries and loading paths are schematic. Results from Benedict, et al.[18] and Correa, et al.[10] are shown to compare theoretical phase-boundary differences. The ramp-compression path and shaded region indicate metastable retention of diamond within the theoretical BC8 stability field. The HD/lonsdaleite window marks path-dependent transformation products observed in static high-pressure high-temperature (HPHT) and shock experiments. Liquid carbon lies above the melting curves. BC8 and SC1 are candidate post-diamond phases that still require in situ structural verification.)

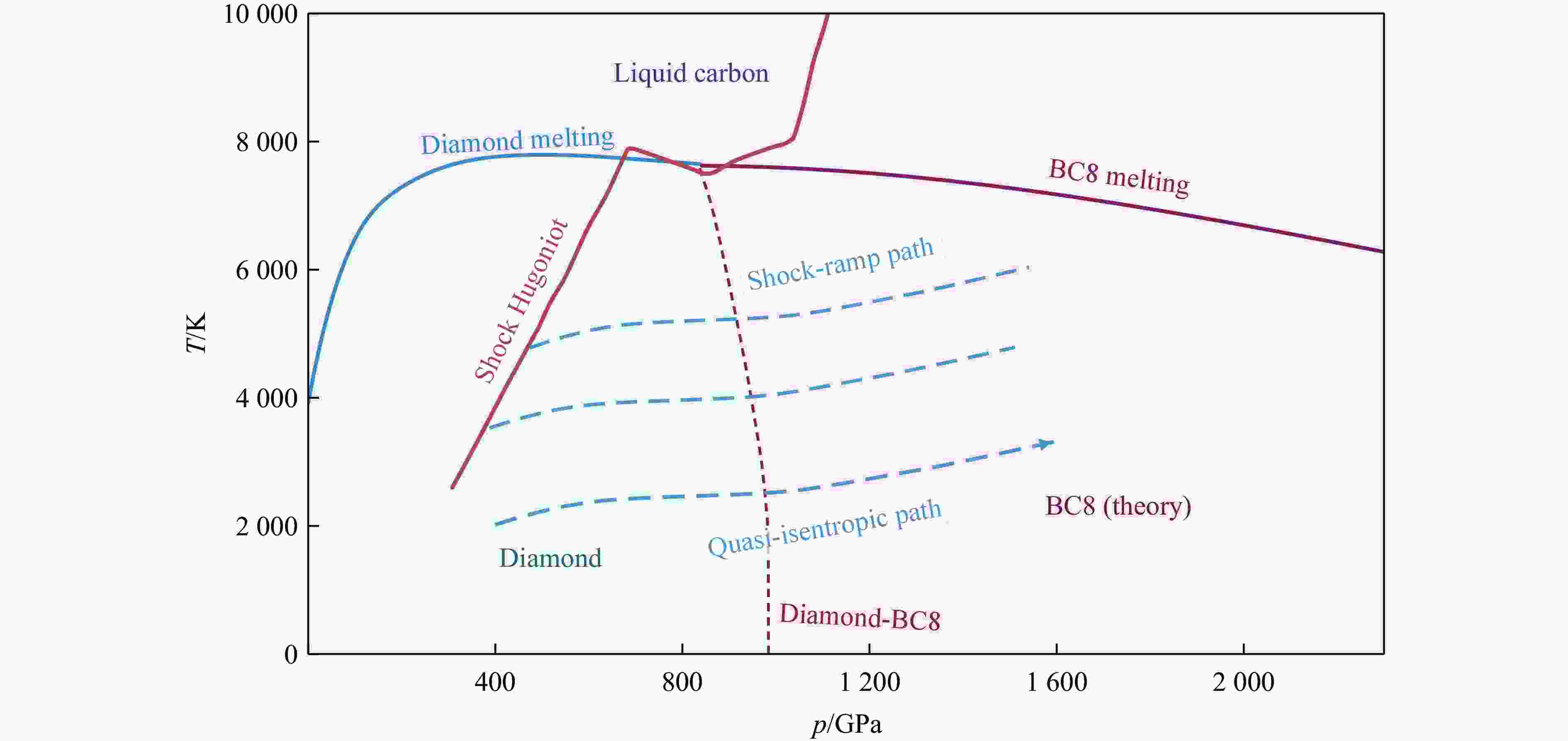

图 2 金刚石高压p-T区域中的动态加载路径示意图（冲击 Hugoniot 和近等熵斜波路径分别表示高温冲击与低温高压加载的典型方向；双冲击或多冲击可由中间状态出发，进一步进入液态碳或 BC8 理论稳定区。）
Figure 2. Schematic diagram of dynamic loading paths in the high-pressure p-T region of diamond (The shock Hugoniot and quasi-isentropic ramp path represent typical directions of high-temperature shock loading and lower-temperature compression, respectively. Double- or multiple-shock loading may proceed from an intermediate state toward liquid carbon or the theoretical BC8 stability field.)

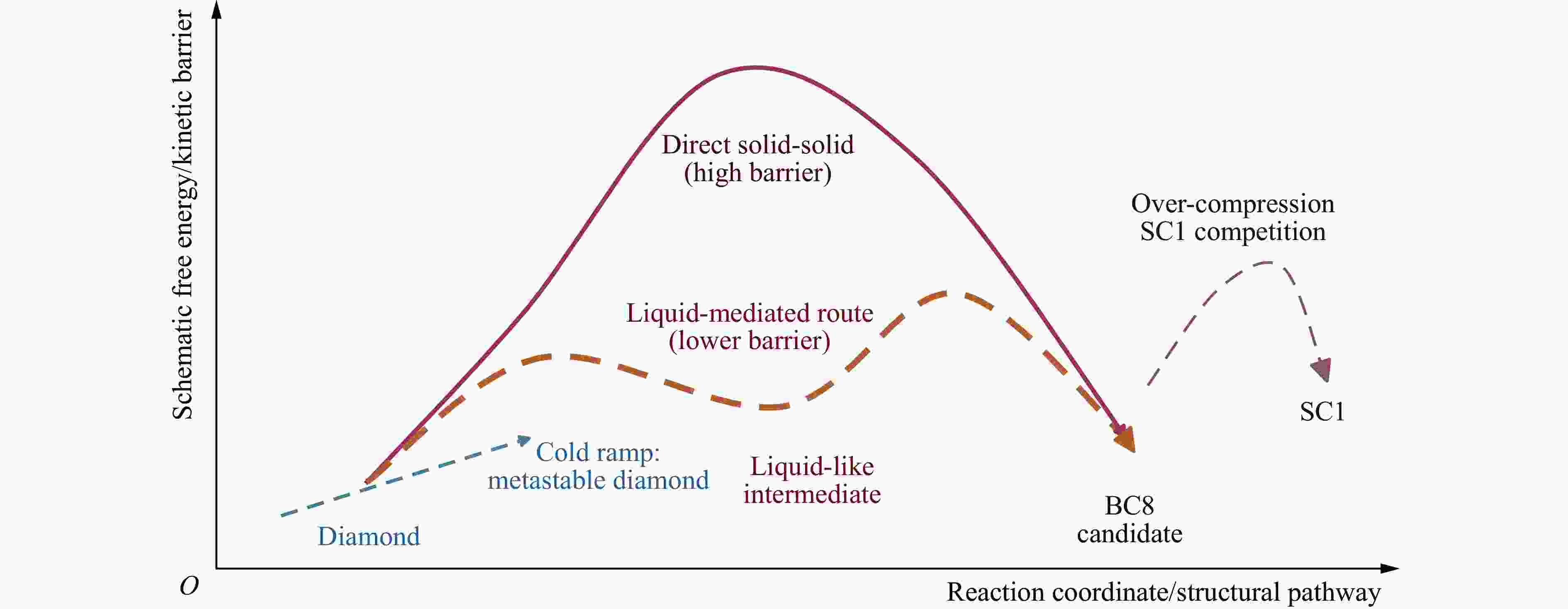

图 3 后金刚石碳形成的定性动力学能垒示意图（金刚石-BC8 的直接固-固重构具有较高的势垒，类液体中间态可能提供通向 BC8 的较低势垒路径；过度压缩则会增强SC1 竞争。坐标轴为示意，BC8 和 SC1 仍需动态原位结构证据确认。）
Figure 3. Schematic diagram of qualitative kinetic-barrier landscape for post-diamond carbon (Direct diamond-BC8 solid-solid reconstruction crosses a high barrier, whereas a liquid-like intermediate may provide a lower-barrier route to BC8; over-compression favors SC1 competition. The axes are schematic, and BC8/SC1 remain candidate endpoints requiring direct in situ structural confirmation.)
-
[1] SUNDQVIST B. Carbon under pressure [J]. Physics Reports, 2021, 909: 1–73. doi: 10.1016/j.physrep.2020.12.007 [2] SHANG Y C, LIU Z D, DONG J J, et al. Ultrahard bulk amorphous carbon from collapsed fullerene [J]. Nature, 2021, 599(7886): 599–604. doi: 10.1038/s41586-021-03882-9 [3] HU Q Y, LI B S, GAO X, et al. Ultrasound elasticity of diamond at gigapascal pressures [J]. Proceedings of the National Academy of Sciences of the United States of America, 2021, 118(51): e2118490118. doi: 10.1073/pnas.2118490118 [4] ROSS M. The ice layer in Uranus and Neptune—diamonds in the sky? [J]. Nature, 1981, 292(5822): 435–436. doi: 10.1038/292435a0 [5] ABU-SHAWAREB H, ACREE R, ADAMS P, et al. Achievement of target gain larger than unity in an inertial fusion experiment [J]. Physical Review Letters, 2024, 132(6): 065102. doi: 10.1103/PhysRevLett.132.065102 [6] YANG L X, LAU K C, ZENG Z D, et al. Synthesis of bulk hexagonal diamond [J]. Nature, 2025, 644(8076): 370–375. doi: 10.1038/s41586-025-09343-x [7] EGGERT J H, HICKS D G, CELLIERS P M, et al. Melting temperature of diamond at ultrahigh pressure [J]. Nature Physics, 2010, 6(1): 40–43. doi: 10.1038/nphys1438 [8] FROST M, MCWILLIAMS R S, BYKOVA E, et al. Diamond precipitation dynamics from hydrocarbons at icy planet interior conditions [J]. Nature Astronomy, 2024, 8(2): 174–181. doi: 10.1038/s41550-023-02147-x [9] LAZICKI A, MCGONEGLE D, RYGG J R, et al. Metastability of diamond ramp-compressed to 2 terapascals [J]. Nature, 2021, 589(7843): 532–535. doi: 10.1038/s41586-020-03140-4 [10] CORREA A A, BONEV S A, GALLI G. Carbon under extreme conditions: phase boundaries and electronic properties from first-principles theory [J]. Proceedings of the National Academy of Sciences of the United States of America, 2006, 103(5): 1204–1208. doi: 10.1073/pnas.0510489103 [11] KRAUS D, RAVASIO A, GAUTHIER M, et al. Nanosecond formation of diamond and lonsdaleite by shock compression of graphite [J]. Nature Communications, 2016, 7(1): 10970. doi: 10.1038/ncomms10970 [12] KRAUS D, VORBERGER J, PAK A, et al. Formation of diamonds in laser-compressed hydrocarbons at planetary interior conditions [J]. Nature Astronomy, 2017, 1(9): 606–611. doi: 10.1038/s41550-017-0219-9 [13] HUBBARD W B, NELLIS W J, MITCHELL A C, et al. Interior structure of Neptune: comparison with Uranus [J]. Science, 1991, 253(5020): 648–651. doi: 10.1126/science.253.5020.648 [14] MILLOT M, STERNE P A, EGGERT J H, et al. High-precision shock equation of state measurements for metallic fluid carbon between 15 and 20 Mbar [J]. Physics of Plasmas, 2020, 27(10): 102711. doi: 10.1063/5.0007304 [15] BOEHLY T R, GONCHAROV V N, SEKA W, et al. Velocity and timing of multiple spherically converging shock waves in liquid deuterium [J]. Physical Review Letters, 2011, 106(19): 195005. doi: 10.1103/PhysRevLett.106.195005 [16] GAFFNEY J A, HU S X, ARNAULT P, et al. A review of equation-of-state models for inertial confinement fusion materials [J]. High Energy Density Physics, 2018, 28: 7–24. doi: 10.1016/j.hedp.2018.08.001 [17] CORREA A A, BENEDICT L X, YOUNG D A, et al. First-principles multiphase equation of state of carbon under extreme conditions [J]. Physical Review B, 2008, 78(2): 024101. doi: 10.1103/PhysRevB.78.024101 [18] BENEDICT L X, DRIVER K P, HAMEL S, et al. Multiphase equation of state for carbon addressing high pressures and temperatures [J]. Physical Review B, 2014, 89(22): 224109. doi: 10.1103/PhysRevB.89.224109 [19] MAO H K, CHEN X J, DING Y, et al. Solids, liquids, and gases under high pressure [J]. Reviews of Modern Physics, 2018, 90(1): 015007. doi: 10.1103/RevModPhys.90.015007 [20] DUFFY T S, SMITH R F. Ultra-high pressure dynamic compression of geological materials [J]. Frontiers in Earth Science, 2019, 7: 23. doi: 10.3389/feart.2019.00023 [21] SUN L, CHEN B, CHEN Z J, et al. Investigating phase dynamics of materials under laser-induced extreme conditions [J]. Matter and Radiation at Extremes, 2025, 10(6): 063002. doi: 10.1063/5.0274747 [22] MA G C, ZHANG G M, SONG H Z, et al. The high pressure multiphase equation of state of carbon [J]. Journal of Physical Science and Application, 2018, 8(2): 11–16. doi: 10.17265/2159-5348/2018.02.002 [23] BUNDY F P. Melting of graphite at very high pressure [J]. Journal of Chemical Physics, 1963, 38(3): 618–630. doi: 10.1063/1.1733715 [24] AO T, KALITA P, BLADA C, et al. Exploring the high-pressure phases of carbon through X-ray diffraction of dynamic compression experiments on Sandia’s Z pulsed power facility [J]. Minerals, 2023, 13(9): 1203. doi: 10.3390/min13091203 [25] KNUDSON M D, DESJARLAIS M P, DOLAN D H. Shock-wave exploration of the high-pressure phases of carbon [J]. Science, 2008, 322(5909): 1822–1825. doi: 10.1126/science.1165278 [26] SUN L, LIU H, DUAN X X, et al. In situ XRD measurement for high-pressure iron in laser-driven off-Hugoniot state [J]. Minerals, 2024, 14(7): 715. doi: 10.3390/min14070715 [27] CELLIERS P M, BRADLEY D K, COLLINS G W, et al. Line-imaging velocimeter for shock diagnostics at the OMEGA laser facility [J]. Review of Scientific Instruments, 2004, 75(11): 4916–4929. doi: 10.1063/1.1807008 [28] CELLIERS P M, MILLOT M. Imaging velocity interferometer system for any reflector (VISAR) diagnostics for high energy density sciences [J]. Review of Scientific Instruments, 2023, 94(1): 011101. doi: 10.1063/5.0123439 [29] BRYGOO S, MILLOT M, LOUBEYRE P, et al. Analysis of laser shock experiments on precompressed samples using a quartz reference and application to warm dense hydrogen and helium [J]. Journal of Applied Physics, 2015, 118(19): 195901. doi: 10.1063/1.4935295 [30] WADAS M, BRYGOO S, LOUBEYRE P, et al. Shock compression of liquid helium to 360 GPa [J]. Physical Review Research, 2026, 8(1): 013335. doi: 10.1103/87r3-tgy1 [31] MILLER J E, BOEHLY T R, MELCHIOR A, et al. Streaked optical pyrometer system for laser-driven shock-wave experiments on OMEGA [J]. Review of Scientific Instruments, 2007, 78(3): 034903. doi: 10.1063/1.2712189 [32] YE Z X, SMITH R F, MILLOT M, et al. Shock equation of state experiments in MgO up to 1.5 TPa and the effects of optical depth on temperature determination [J]. Journal of Applied Physics, 2024, 136(10): 105904. doi: 10.1063/5.0226765 [33] WICKS J K, SINGH S, MILLOT M, et al. B1-B2 transition in shock-compressed MgO [J]. Science Advances, 2024, 10(23): eadk0306. doi: 10.1126/sciadv.adk0306 [34] PALEARI S, BATANI D, VINCI T, et al. A new target design for laser shock-compression studies of carbon reflectivity in the megabar regime [J]. The European Physical Journal D, 2013, 67(7): 136. doi: 10.1140/epjd/e2013-30630-8 [35] RYGG J R, SMITH R F, LAZICKI A E, et al. X-ray diffraction at the National Ignition Facility [J]. Review of Scientific Instruments, 2020, 91(4): 043902. doi: 10.1063/1.5129698 [36] LAZICKI A, RYGG J R, COPPARI F, et al. X-ray diffraction of solid tin to 1.2 TPa [J]. Physical Review Letters, 2015, 115(7): 075502. doi: 10.1103/PhysRevLett.115.075502 [37] POLSIN D N, RYGG J R, BISHEL D T, et al. Multiframe X-ray diffraction on the OMEGA EP laser [J]. Review of Scientific Instruments, 2025, 96(6): 063510. doi: 10.1063/5.0260046 [38] WERELLAPATHA K, PALMER N E, GORMAN M G, et al. Time-resolved X-ray diffraction diagnostic development for the National Ignition Facility [J]. Review of Scientific Instruments, 2024, 95(1): 013903. doi: 10.1063/5.0161343 [39] PASCARELLI S, MCMAHON M, PÉPIN C, et al. Materials under extreme conditions using large X-ray facilities [J]. Nature Reviews Methods Primers, 2023, 3(1): 82. doi: 10.1038/s43586-023-00264-5 [40] TURNEAURE S J, SHARMA S M, VOLZ T J, et al. Transformation of shock-compressed graphite to hexagonal diamond in nanoseconds [J]. Science Advances, 2017, 3(10): eaao3561. doi: 10.1126/sciadv.aao3561 [41] ARMSTRONG M R, RADOUSKY H B, AUSTIN R A, et al. Highly ordered graphite (HOPG) to hexagonal diamond (lonsdaleite) phase transition observed on picosecond time scales using ultrafast X-ray diffraction [J]. Journal of Applied Physics, 2022, 132(5): 055901. doi: 10.1063/5.0085297 [42] VOLZ T J, TURNEAURE S J, SHARMA S M, et al. Role of graphite crystal structure on the shock-induced formation of cubic and hexagonal diamond [J]. Physical Review B, 2020, 101(22): 224109. doi: 10.1103/PhysRevB.101.224109 [43] CHEN G W, ZHU S C, XU L, et al. The transformation mechanism of graphite to hexagonal diamond under shock conditions [J]. JACS Au, 2024, 4(9): 3413–3420. doi: 10.1021/jacsau.4c00523 [44] NÉMETH P, GARVIE L A J, AOKI T, et al. Lonsdaleite is faulted and twinned cubic diamond and does not exist as a discrete material [J]. Nature Communications, 2014, 5(1): 5447. doi: 10.1038/ncomms6447 [45] NÉMETH P, LANCASTER H J, SALZMANN C G, et al. Shock-formed carbon materials with intergrown sp3- and sp2-bonded nanostructured units [J]. Proceedings of the National Academy of Sciences of the United States of America, 2022, 119(30): e2203672119. doi: 10.1073/pnas.2203672119 [46] LAI S L, YANG X G, SHI J Y, et al. Bulk hexagonal diamond [J]. Nature, 2026, 651(8106): 621–625. doi: 10.1038/s41586-026-10212-4 [47] TIAN Y J. Diamond: cubic to hexagonal [J]. Science China Materials, 2025, 68(8): 2988–2989. doi: 10.1007/s40843-025-3328-5 [48] CHEN D S, CHEN G W, LV L, et al. General approach for synthesizing hexagonal diamond by heating post-graphite phases [J]. Nature Materials, 2025, 24(4): 513–518. doi: 10.1038/s41563-025-02126-9 [49] HICKS D G, BOEHLY T R, CELLIERS P M, et al. High-precision measurements of the diamond Hugoniot in and above the melt region [J]. Physical Review B, 2008, 78(17): 174102. doi: 10.1103/PhysRevB.78.174102 [50] KRAUS D, RIPS J, SCHÖRNER M, et al. The structure of liquid carbon elucidated by in situ X-ray diffraction [J]. Nature, 2025, 642(8067): 351–355. doi: 10.1038/s41586-025-09035-6 [51] SHI J Y, LIANG Z X, WANG J J, et al. Double-shock compression pathways from diamond to BC8 carbon [J]. Physical Review Letters, 2023, 131(14): 146101. doi: 10.1103/PhysRevLett.131.146101 [52] NGUYEN-CONG K, WILLMAN J T, GONZALEZ J M, et al. Extreme metastability of diamond and its transformation to BC8 post-diamond phase of carbon [J]. The Journal of Physical Chemistry Letters, 2024, 15(4): 1152–1160. doi: 10.1021/acs.jpclett.3c03044 [53] MARTOŇÁK R, GALITSKIY S, TIPEEV A, et al. From diamond to BC8 to simple cubic and back: kinetic pathways to post-diamond carbon phases from metadynamics [J]. Physical Review B, 2026, 113(22): L220101. doi: 10.1103/djft-jvvn [54] CHEN B, ZENG Q Y, YU X X, et al. Three-step formation of diamonds in shock-compressed hydrocarbons: dissociation, species separation, and nucleation [J]. Matter and Radiation at Extremes, 2026, 11(1): 017603. doi: 10.1063/5.0273729 [55] WANG Z Y, LUO X S, WANG Q C, et al. Advances in high-pressure materials discovery enabled by machine learning [J]. Matter and Radiation at Extremes, 2025, 10(3): 033801. doi: 10.1063/5.0255385 [56] ZHANG H, YANG Y T, YANG W M, et al. Equation of state for boron nitride along the principal Hugoniot to 16 Mbar [J]. Matter and Radiation at Extremes, 2024, 9(5): 057403. doi: 10.1063/5.0206889 -
