立方萤石结构CeO<sub>2</sub>Cl<sub>0.07</sub>的高压复分解反应合成与物性表征

寇行健; 刘静仪; 王扬斌; 雷力

doi:10.11858/gywlxb.20251286

立方萤石结构CeO₂Cl_0.07的高压复分解反应合成与物性表征

doi: 10.11858/gywlxb.20251286

四川大学原子与分子物理研究所, 四川成都　610065

基金项目: 国家自然科学基金（12374013）；中央高校基本科研业务费（2020SCUNL107）

详细信息

作者简介:
寇行健（2000－），男，硕士研究生，主要从事高压新材料合成与表征研究. E-mail：1245402119@qq.com

通讯作者:
雷　力（1980－），男，博士，研究员，主要从事高压物理与化学研究. E-mail：lei@scu.edu.cn

中图分类号: O521.2
计量
- 文章访问数: 687
- HTML全文浏览量: 179
- PDF下载量: 73
出版历程
- 收稿日期: 2025-12-29
- 修回日期: 2026-02-03
- 网络出版日期: 2026-02-05

High-Pressure Metathesis Synthesis and Physical Property Characterization of Cubic Fluorite-Structured CeO₂Cl_0.07

Institute of Atomic and Molecular Physics, Sichuan University, Chengdu 610065, Sichuan, China

摘要

摘要: Ce的4f电子长久以来就因其独特的离域机制，以及对原子结构、相变行为、磁性结构的影响而受到广泛的关注。通过改变前驱体（CeCl₃、MgO粉末）化学配比，在大腔体压机提供的高温高压（1873 K、5 GPa）环境下，通过调控高压固相复分解反应（high-pressure solid-state metathesis, HSM），合成了立方萤石结构的CeO₂Cl_0.07。利用金刚石对顶砧（diamond anvil cell，DAC），结合高压原位同步辐射X射线衍射、扫描电子显微镜、能谱仪、高压拉曼光谱等表征手段，获得了样品的压力-比容曲线，并与CeO₂进行比较，发现CeO₂Cl_0.07更易被压缩，获得了高压拉曼声子谱（F_2g），结果显示，非静水压下在0～2 GPa区间以及15 GPa附近CeO₂Cl_0.07的拉曼峰随压力的变化存在异常。分析认为，Cl元素的掺入带来氧空位，使得Ce³⁺浓度升高，进而引起4f电子离域。研究结果揭示了CeO₂Cl_0.07在高压条件下的行为，提供了一种新型铈基化合物的高压合成途径。
- 高压固相复分解反应 /
- CeO₂ /
- 同步辐射 /
- 拉曼散射 /
- 高温高压 /
- 4f电子
Abstract: The 4f electron of Ce has long attracted extensive attention due to their unique delocalization mechanism and their influence on atomic structure, phase transformation behavior, and magnetic structure. In this paper, CeO₂Cl_0.07 was synthesized with a cubic fluorite structure by changing the stoichiometry of the precursors (CeCl₃, MgO powder) and regulating the high-pressure solid-state metathesis (HSM) reaction under high temperature and high pressure conditions (1873 K, 5 GPa) provided by a large volume press. Then pressure was provided by a diamond anvil cell (DAC), and the sample was characterized by high-pressure in-situ synchrotron X-ray diffraction (XRD), scanning electron microscope (SEM), energy dispersive spectrometer (EDS), and high-pressure Raman spectroscopy. By comparing the obtained pressure-volume (p-V) curve with CeO₂, it is found that CeO₂Cl_0.07 is more compressible. The high-pressure Raman phonon spectrum (F_2g) is obtained, indicating that the pressure-dependent behavior of CeO₂Cl_0.07 exhibits anomalous changes at 0–2 GPa and near 15 GPa under non-hydrostatic pressure. We believe that the doping of Cl elements introduces oxygen vacancies, which increases the concentration of Ce³⁺, thereby causing the delocalization of 4f electron and resulting in the observed phenomenon. This study developed a new high-pressure synthesis pathway for cerium-based compounds and revealed their behavior under high-pressure conditions.
- high-pressure solid-state metathesis reaction /
- CeO₂ /
- synchrotron radiation /
- Raman scattering /
- high-temperature and high-pressure /
- 4f electron

HTML全文

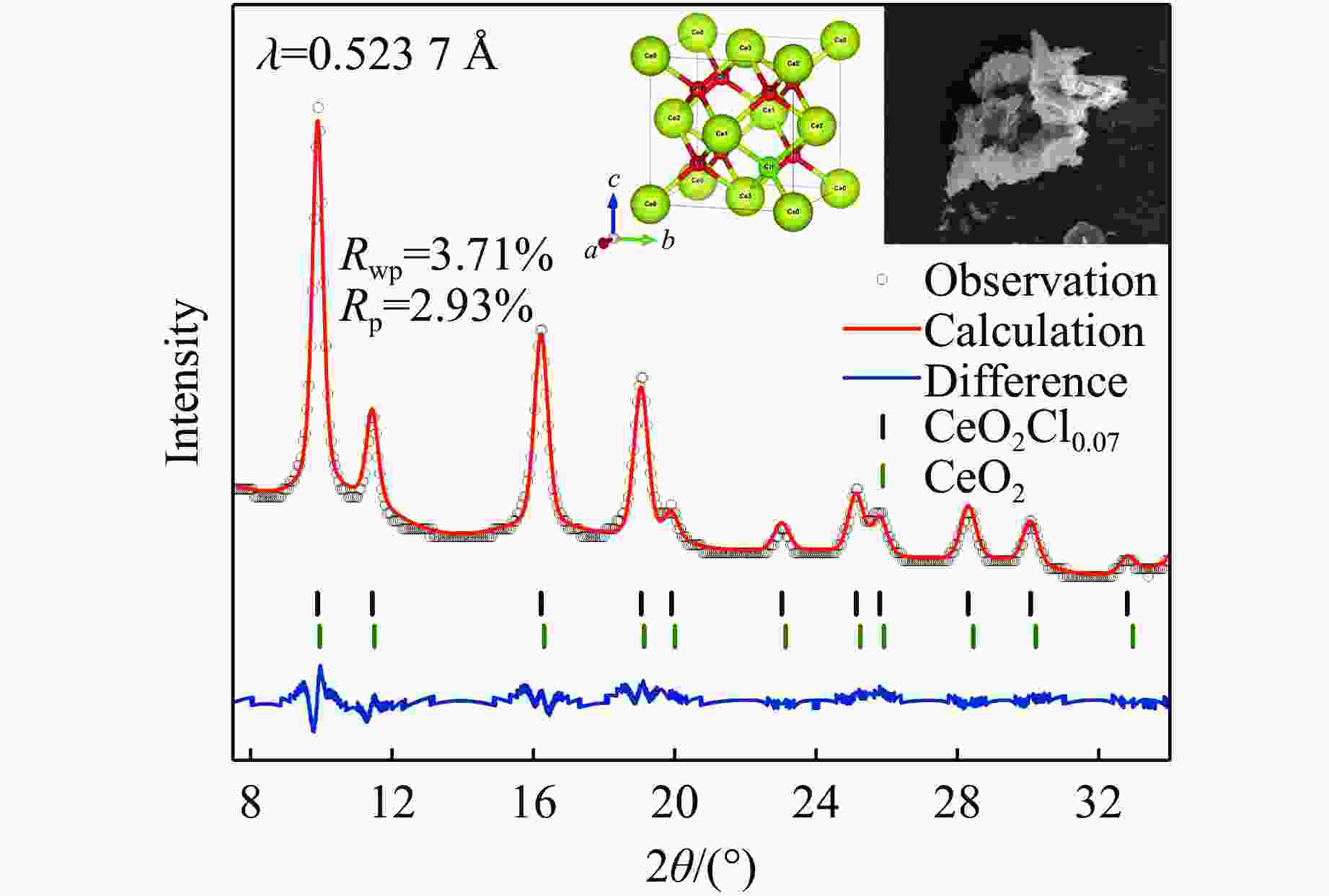

图 1 0 GPa 下同步辐射实验测得的合成样品的XRD 谱（左侧插图为样品晶体结构示意图，右侧插图为样品的SEM 图像）

Figure 1. XRD pattern of samples obtained from synchrotron radiation experiments at 0 GPa (The left inset is the schematic diagram of the crystal structure, and the right inset shows a SEM image of the sample.)

下载: 全尺寸图片幻灯片

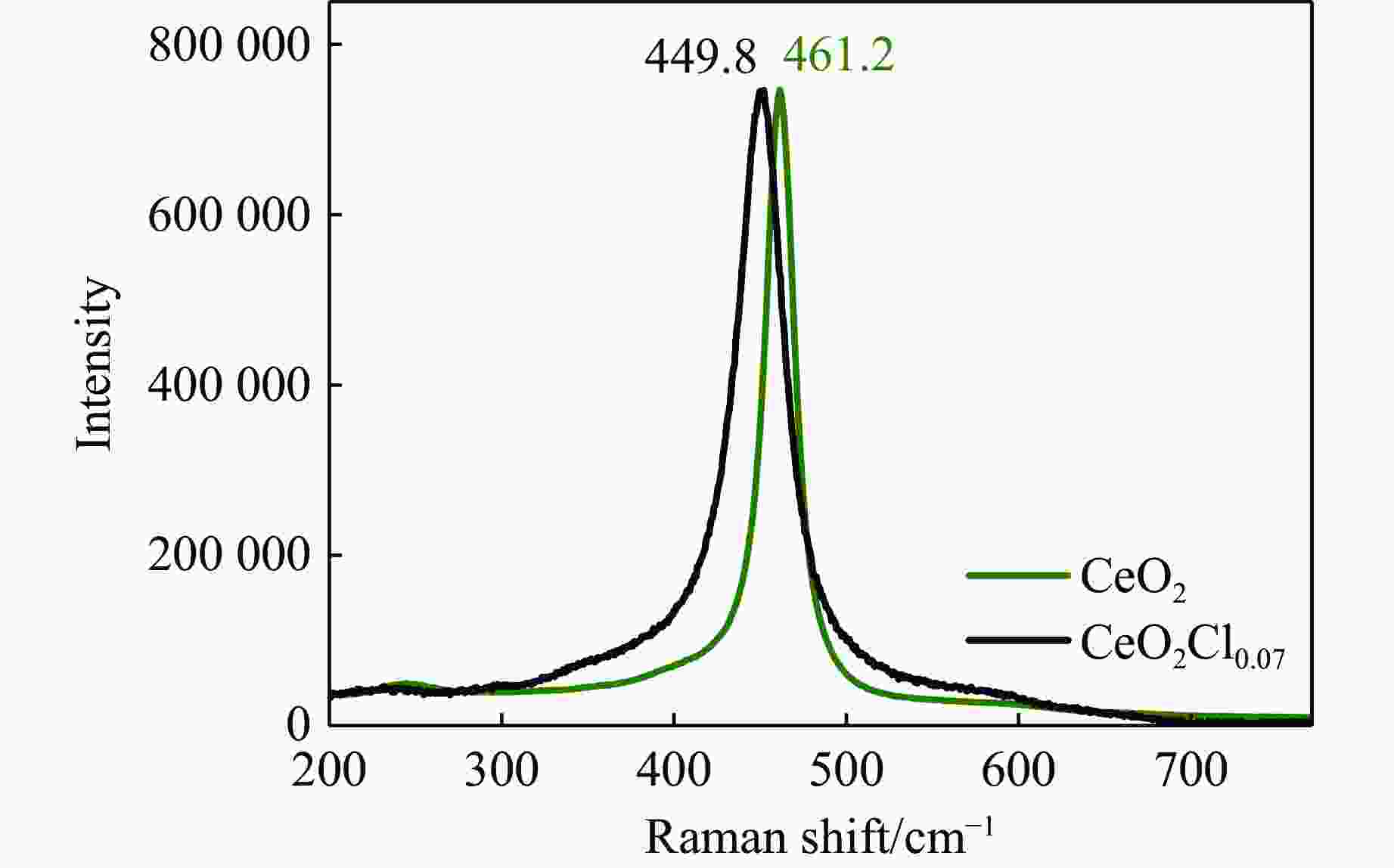

图 2 0 GPa 下 CeO₂Cl_0.07与CeO₂的拉曼峰

Figure 2. Raman peaks of CeO₂Cl_0.07 and CeO₂ at 0 GPa

下载: 全尺寸图片幻灯片

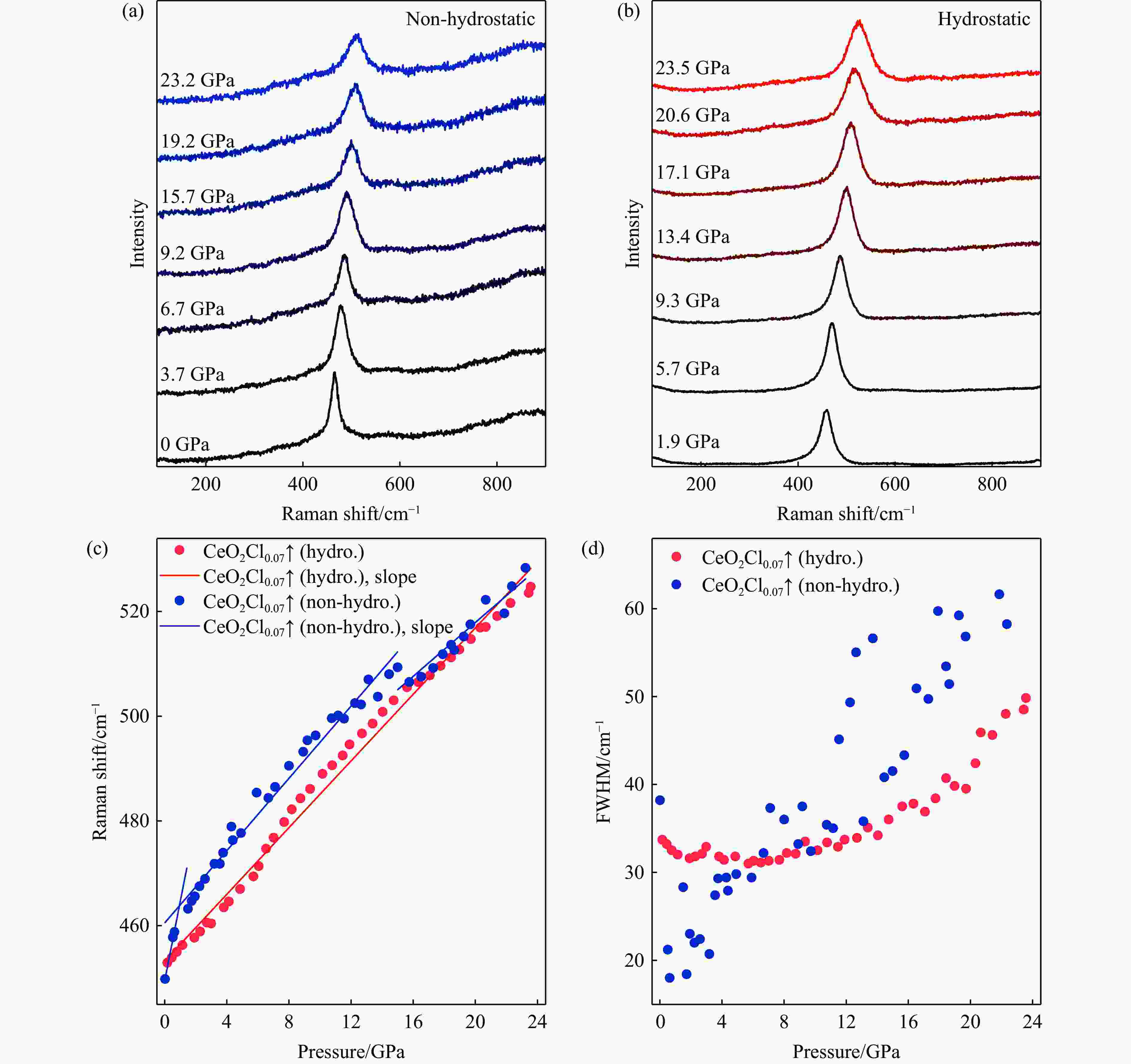

图 3 CeO₂Cl_0.07的非静水压升压拉曼谱(a)、静水压升压拉曼谱(b)、非静水压和静水压升压拉曼峰的峰位散点图(c)和半峰宽散点图(d)

Figure 3. Non-hydrostatic pressure boost Raman spectra (a), hydrostatic pressure boost Raman spectra (b), scatter plot of Raman peak positions for non-hydrostatic pressure boost and hydrostatic pressure boost (c), and scatter plot of full width at half maximum (FWHM) (d) of CeO₂Cl_0.07

下载: 全尺寸图片幻灯片

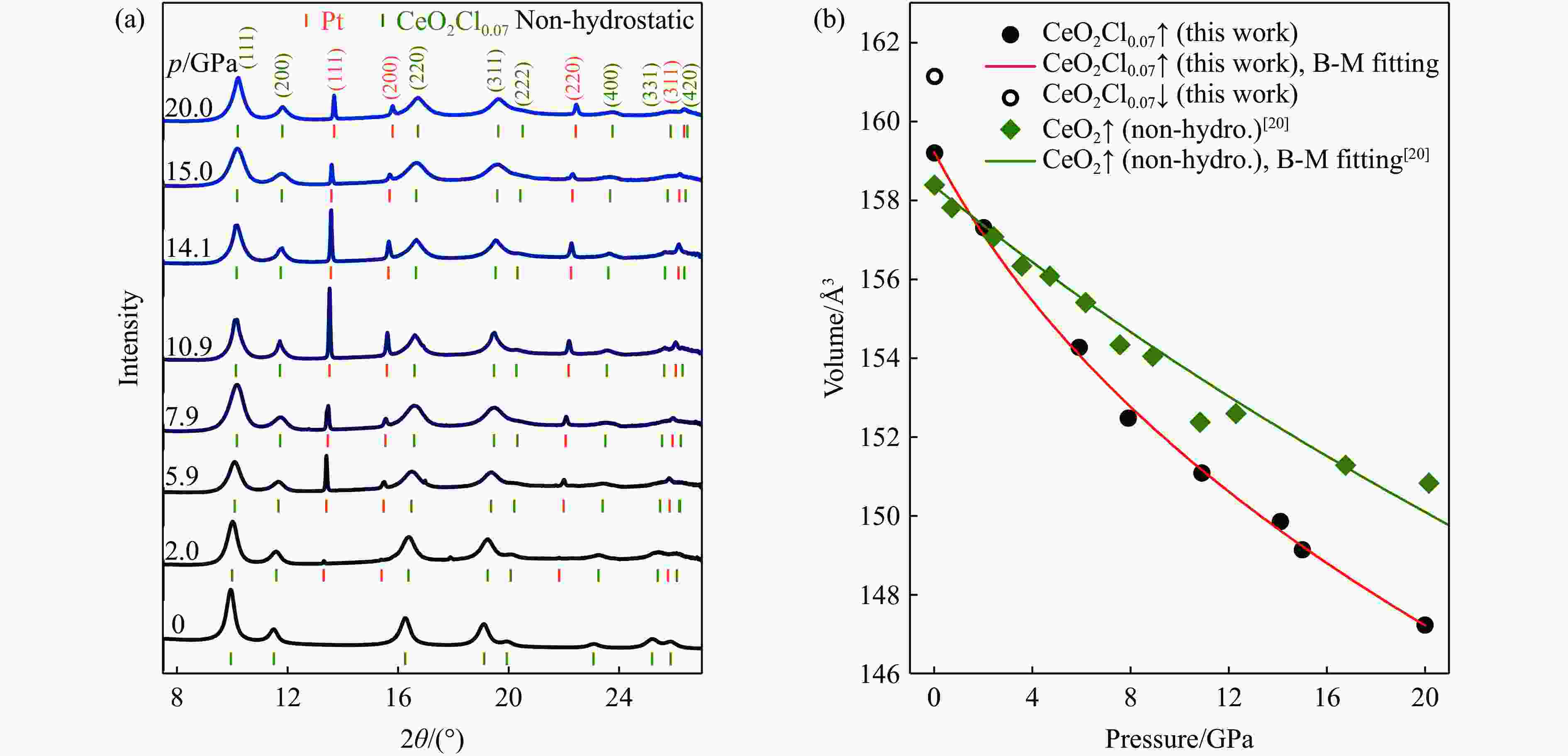

图 4 (a) CeO₂Cl_0.07样品的非静水压升压 XRD 谱瀑布图，(b) CeO₂Cl_0.07样品和 CeO₂^[20]的 p-V 曲线

Figure 4. (a) Waterfall plot of XRD patterns of CeO₂Cl_0.07 sample under non-hydrostatic pressure; (b) p-V curves of CeO₂Cl_0.07 sample and CeO₂^[20]

下载: 全尺寸图片幻灯片

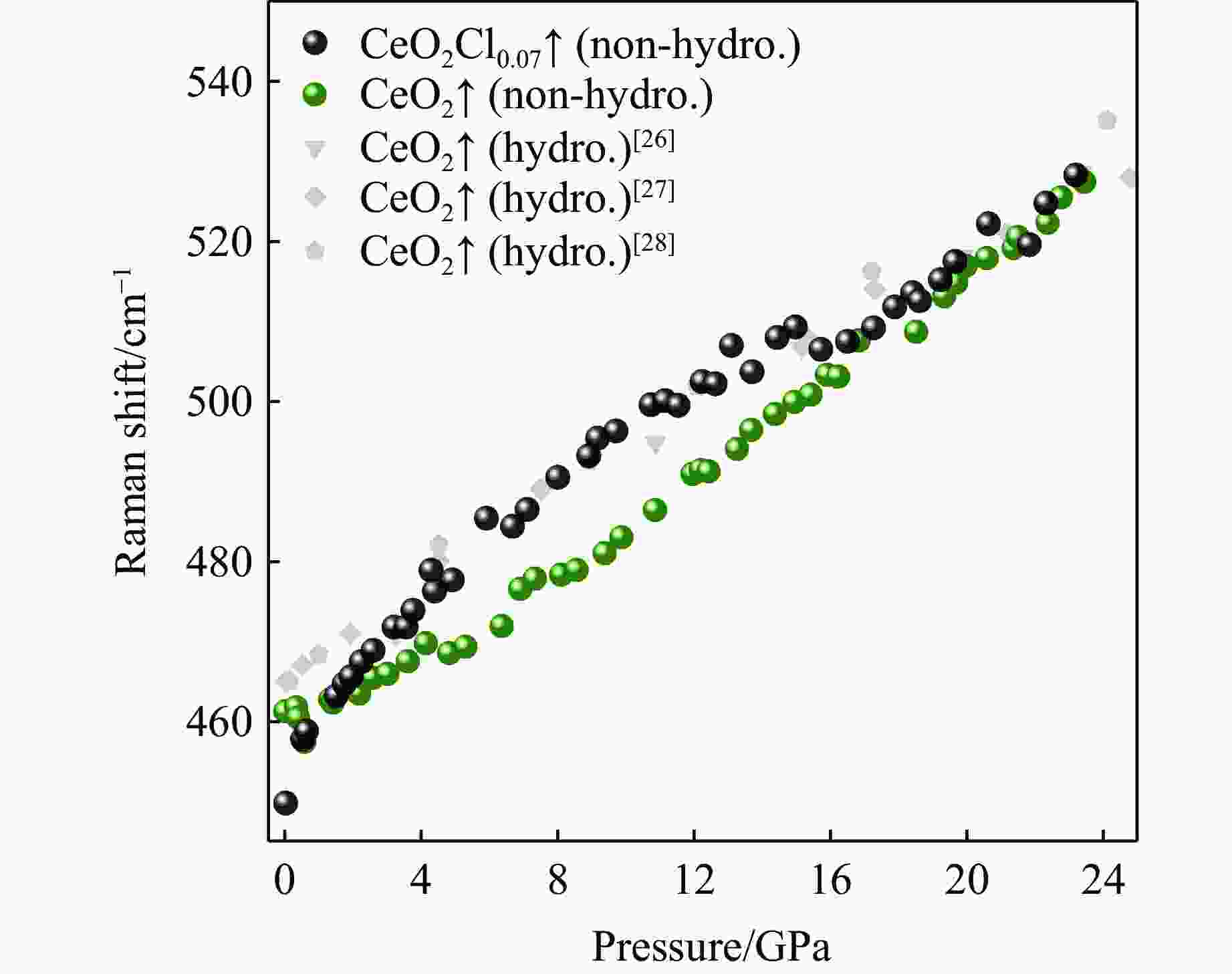

图 5 CeO₂Cl_0.07（非静水压升压）与 CeO₂（静水压^[26–28]、非静水压升压）的拉曼峰对比

Figure 5. Comparison of Raman shift between CeO₂Cl_0.07 (non-hydrostatic pressure) and CeO₂ (hydrostatic^[26–28] and non-hydrostatic pressure)

下载: 全尺寸图片幻灯片

参考文献(28)

[1]	IQBAL J, JAN T, AWAN M S, et al. Mg doping induced effects on structural, optical, and electrical properties as well as cytotoxicity of CeO₂ nanostructures [J]. Metallurgical and Materials Transactions B, 2016, 47(2): 1363–1368. doi: 10.1007/s11663-015-0560-2
[2]	ISHII H, MIYAHARA T, TAKAYAMA Y, et al. Resonant photoemission study of CeRu₄Sb₁₂ [J]. Journal of Electron Spectroscopy and Related Phenomena, 2005, 144: 643−645.
[3]	MIMURA K, WATANABE Y, MIZOHATA H, et al. High-resolution resonant photoemission study of CeSi [J]. Physica B: Condensed Matter, 2004, 351(3/4): 295–297. doi: 10.1016/j.physb.2004.06.031
[4]	张恒源. 高压耦联反应合成Fe₃N/Re_xN复合材料及其物性表征 [D]. 成都: 四川大学, 2023: 7−10. ZHANG H Y. High-pressure coupling reactions to produce Fe₃N/Re_xN composite and study on the physical properties [D]. Chengdu: Sichuan University, 2023: 7−10.
[5]	GILLAN E G, KANER R B. Synthesis of refractory ceramics via rapid metathesis reactions between solid-state precursors [J]. Chemistry of Materials, 1996, 8(2): 333–343. doi: 10.1021/cm950232a
[6]	PARKIN I P. Solid state metathesis reaction for metal borides, silicides, pnictides and chalcogenides: ionic or elemental pathways [J]. Chemical Society Reviews, 1996, 25(3): 199–207. doi: 10.1039/cs9962500199
[7]	O’LOUGHLIN J L, WALLACE C H, KNOX M S, et al. Rapid solid-state synthesis of tantalum, chromium, and molybdenum nitrides [J]. Inorganic Chemistry, 2001, 40(10): 2240–2245. doi: 10.1021/ic001265h
[8]	ZHAO H Z, LEI M, YANG X A, et al. Route to GaN and VN assisted by carbothermal reduction process [J]. Journal of the American Chemical Society, 2005, 127(45): 15722–15723. doi: 10.1021/ja055877i
[9]	SONG B, JIAN J K, WANG G, et al. Facile and general route to nitrides by a modified solid-state metathesis pathway [J]. Chemistry of Materials, 2007, 19(6): 1497–1502. doi: 10.1021/cm062796s
[10]	SONG B, CHEN X L, HAN J C, et al. Facile route to nitrides: transformation from single element to binary and ternary nitrides at moderate temperature through a new modified solid-state metathesis [J]. Inorganic Chemistry, 2009, 48(22): 10519–10527. doi: 10.1021/ic901861c
[11]	LEI L, ZHANG L L. Recent advance in high-pressure solid-state metathesis reactions [J]. Matter and Radiation at Extremes, 2018, 3(3): 95–103. doi: 10.1016/j.mre.2017.12.003
[12]	LEI L, HE D W. Synthesis of GaN crystals through solid-state metathesis reaction under high pressure [J]. Crystal Growth & Design, 2009, 9(3): 1264–1266. doi: 10.1021/cg801017h
[13]	LEI L, YIN W W, JIANG X D, et al. Synthetic route to metal nitrides: high-pressure solid-state metathesis reaction [J]. Inorganic Chemistry, 2013, 52(23): 13356–13362. doi: 10.1021/ic4014834
[14]	刘德璞, 张恒源, 陶雨, 等. 高压偶联反应合成铂族金属氮化物OsN_x [J]. 高压物理学报, 2025, 39(6): 060101. doi: 10.11858/gywlxb.20251020 LIU D P, ZHANG H Y, TAO Y, et al. Synthesis of platinum-group metal nitride OsN_x through high-pressure coupling reaction [J]. Chinese Journal of High Pressure Physics, 2025, 39(6): 060101. doi: 10.11858/gywlxb.20251020
[15]	ZHANG L L, CHENG Y, LEI L, et al. High-pressure synthesis of CeOCl crystals and investigation of their photoluminescence and compressibility properties [J]. Crystal Growth & Design, 2018, 18(3): 1843–1847. doi: 10.1021/acs.cgd.7b01712
[16]	ZHANG L L, CHENG Y, WANG X L, et al. High-pressure Raman spectroscopy of CeOCl: observation of the isostructural phase transition [J]. Journal of Raman Spectroscopy, 2019, 50(12): 1962–1968. doi: 10.1002/jrs.5717
[17]	JIA X, ZHANG L L, TIAN Y, et al. Synthesis of large-sized spherical Co-C alloys with soft magnetic properties though a high-pressure solid-state metathesis reaction [J]. RSC Advances, 2024, 14(11): 7490–7498. doi: 10.1039/D3RA08967C
[18]	龙海东, 陈杰, 肖雄, 等. 高熵过渡金属二硼化物的高温高压合成 [J]. 高压物理学报, 2024, 38(6): 063101. doi: 10.11858/gywlxb.20240790 LONG H D, CHEN J, XIAO X, et al. High-temperature and high-pressure synthesis of high-entropy transition metal diborides [J]. Chinese Journal of High Pressure Physics, 2024, 38(6): 063101. doi: 10.11858/gywlxb.20240790
[19]	陈春华, 郭睿昂, 贺端威, 等. WC-5Co硬质合金的高温高压烧结及性能表征 [J]. 高压物理学报, 2025, 39(12): 123101. doi: 10.11858/gywlxb.20251067 CHEN C H, GUO R A, HE D W, et al. Sintering and characterizing of WC-5Co cemented carbide under high temperature and high pressure [J]. Chinese Journal of High Pressure Physics, 2025, 39(12): 123101. doi: 10.11858/gywlxb.20251067
[20]	张雷雷, 雷力, 胡启威, 等. 高压下Al_0.86Ga_0.14N半导体合金“双模”拉曼声子行为研究 [J]. 高压物理学报, 2017, 31(5): 521–528. doi: 10.11858/gywlxb.2017.05.003 ZHANG L L, LEI L, HU Q W, et al. Two-mode behavior in Raman spectra of Al_0.86Ga_0.14N alloy under high pressure [J]. Chinese Journal of High Pressure Physics, 2017, 31(5): 521–528. doi: 10.11858/gywlxb.2017.05.003
[21]	刘静仪, 张雷雷, 吴彬彬, 等. 锇在高压下发生电子拓扑转变的拉曼谱学证据 [J]. 光散射学报, 2023, 35(1): 1–7. doi: 10.13883/j.issn1004-5929.202301001 LIU J Y, ZHANG L L, WU B B, et al. Raman spectroscopic evidence of an electron topological transition in osmium at high pressure [J]. The Journal of Light Scattering, 2023, 35(1): 1–7. doi: 10.13883/j.issn1004-5929.202301001
[22]	陶雨, 刘静仪, 吴彬彬, 等. 固态氨的极端条件光散射谱学研究进展 [J]. 光散射学报, 2022, 34(4): 261–272. doi: 10.13883/j.issn1004-5929.202204001 TAO Y, LIU J Y, WU B B, et al. Recent progress in extreme condition light scattering spectroscopy of solid ammonia [J]. The Journal of Light Scattering, 2022, 34(4): 261–272. doi: 10.13883/j.issn1004-5929.202204001
[23]	张峰, 陶雨, 唐琦琪, 等. 三氧化二镓的高压拉曼光谱研究 [J]. 光散射学报, 2021, 33(1): 40–44. doi: 10.13883/j.issn1004-5929.202101005 ZHANG F, TAO Y, TANG Q Q, et al. High-pressure Raman spectroscopy of Ga₂O₃ [J]. The Journal of Light Scattering, 2021, 33(1): 40–44. doi: 10.13883/j.issn1004-5929.202101005
[24]	刘静仪, 吴彬彬, 陶雨, 等. 关于层状结构聚合氮存在性的探讨 [J]. 高压物理学报, 2024, 38(4): 040105. doi: 10.11858/gywlxb.20240821 LIU J Y, WU B B, TAO Y, et al. On the existence of layered polymeric nitrogen [J]. Chinese Journal of High Pressure Physics, 2024, 38(4): 040105. doi: 10.11858/gywlxb.20240821
[25]	WANG Q M, HE D W, PENG F, et al. Unusual compression behavior of nanocrystalline CeO₂ [J]. Scientific Reports, 2014, 4(1): 4441. doi: 10.1038/srep04441
[26]	LIU B, LIU B B, LI Q J, et al. High-pressure Raman study on CeO₂ nanospheres self-assembled by 5 nm CeO₂ nanoparticles [J]. Physica Status Solidi (B), 2011, 248(5): 1154–1157. doi: 10.1002/pssb.201000807
[27]	DOGRA S, SHARMA D N, SINGH J, et al. High pressure behavior of nano-crystalline CeO₂ up to 35 GPa: a Raman investigation [J]. High Pressure Research, 2011, 31(2): 292–303. doi: 10.1080/08957959.2011.576674
[28]	KOUROUKLIS G A, JAYARAMAN A, ESPINOSA G P. High-pressure Raman study of CeO₂ to 35 GPa and pressure-induced phase transformation from the fluorite structure [J]. Physical Review B, 1988, 37(8): 4250–4253. doi: 10.1103/PhysRevB.37.4250
