Equivalent Bird-Strike Test Method and Fixture Design for the Trailing Edge of Aero-Engine Composite Fan Blades
-

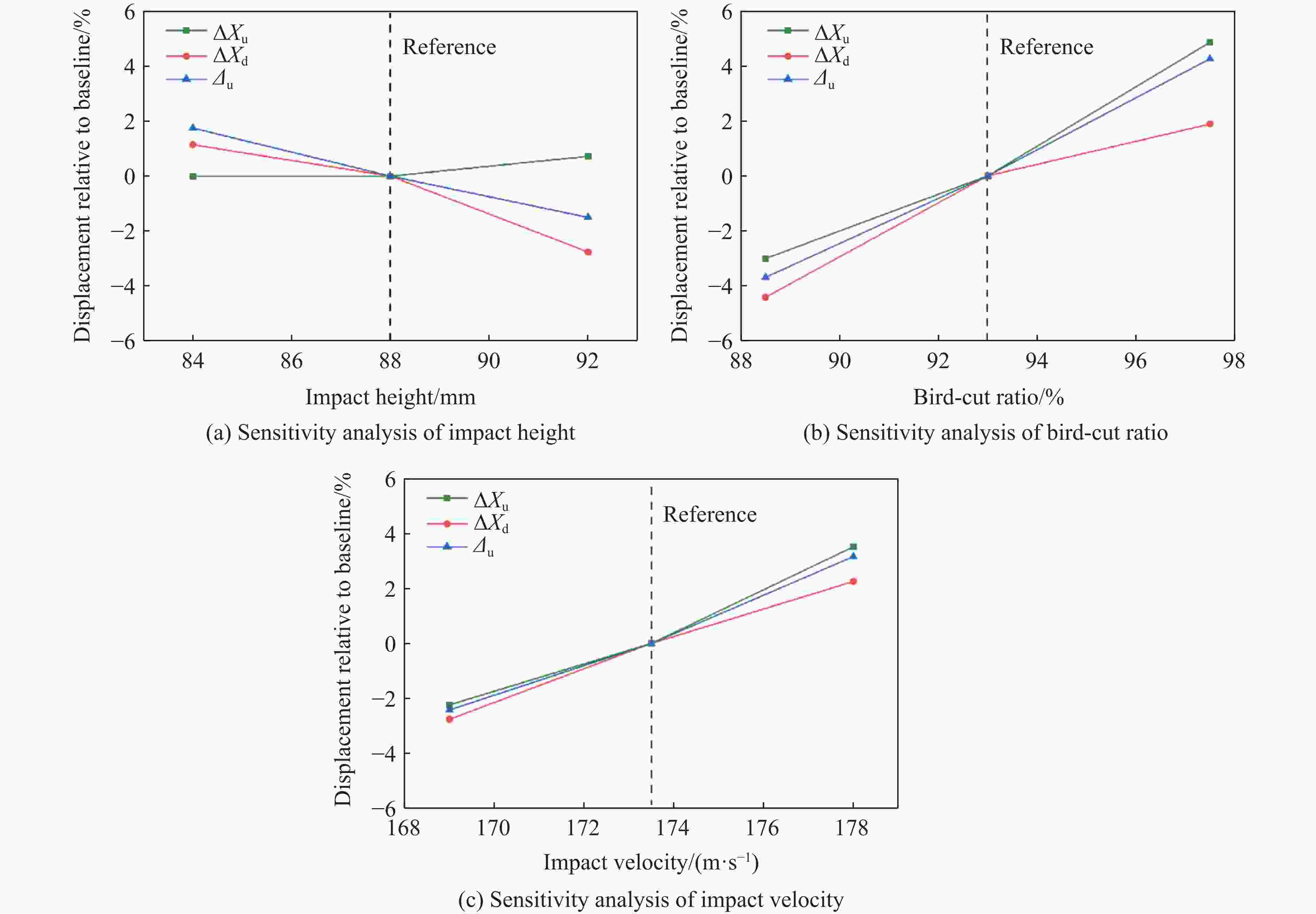

摘要: 为了研究航空发动机复合材料叶片在鸟撞事件中的响应与损伤行为，提出了一种使用元件级平板试样替代全尺寸风扇叶片的等效鸟撞试验方法，旨在通过元件级平板试验再现全尺寸叶片在鸟撞过程中出现的尾缘分层损伤。通过开展不同夹持方案下平板试样的鸟撞试验和数值仿真，系统分析了不同方案下平板试样的冲击响应特点及分层损伤的起始和扩展过程，进而提出了一种能够有效模拟叶片鸟撞过程中尾缘分层损伤的元件级等效试验方法，并确定了可诱导典型复合材料层合板产生单侧尾缘分层的基准冲击工况，包括冲击高度、冲击速度以及切鸟量（鸟弹撞击试件时有效撞击体积占鸟弹总体积的百分比）。此外，通过对比不同冲击工况下的试验与仿真结果，验证了数值模型的准确性。基于已验证的数值模型，针对冲击高度、冲击速度及切鸟量等试验参数分别开展了敏感性分析，得出在试验可控的参数波动范围内，3个参数引起的复合材料平板关键冲击响应指标（平板上侧尾缘峰值位移、平板下侧尾缘峰值位移及平板上沿位移差）相对基准工况的变化幅度均小于5%。研究表明，所提出的等效试验方法可以通过复合材料平板试验模拟全尺寸叶片鸟撞时的局部位移响应和分层损伤模式，且试验结果具有良好的鲁棒性。Abstract: To investigate the response and damage behavior of composite aero-engine blades under bird-strike events, an equivalent bird-strike testing method was proposed in which a component-level flat plate specimen was used to replace a full-scale fan blade. The method aims to reproduce the trailing-edge delamination damage observed in full-scale blades during bird strike. Bird-strike tests and corresponding numerical simulations on the plate specimens under different clamping configurations were conducted, and the impact response characteristics as well as the initiation and propagation processes of delamination were systematically analyzed for each configuration. Based on these results, a component-level equivalent test methodology capable of effectively simulating trailing-edge delamination in blade bird-strike scenarios is proposed. A baseline impact condition that induces single-side trailing-edge delamination in a representative composite laminate is identified, including impact height, impact velocity, and the bird-cut ratio (defined as the percentage of the effective impacting volume of the bird projectile relative to its total volume at the instant of impact). In addition, by comparing test and numerical results under various impact conditions, the accuracy of the numerical model is validated. Using the experimentally validated model, sensitivity analyses were performed with respect to the test parameters (impact height, impact velocity, and bird-cut ratio). The results show that, within the controllable ranges of parameter variation in the tests, the changes in key impact response metrics of the composite plate—namely the peak displacement at the upper trailing edge, the peak displacement at the lower trailing edge, and the displacement difference along the upper edge—are all less than 5% relative to the baseline condition. This study demonstrates that the proposed equivalent testing method enables a composite plate test to replicate the local displacement response and delamination pattern of a full-scale blade under bird strike, and the test outcomes exhibit good robustness.
-
Key words:
- composite fan blade /
- bird strike /
- equivalent test /
- fixture design /
- interlaminar delamination
-

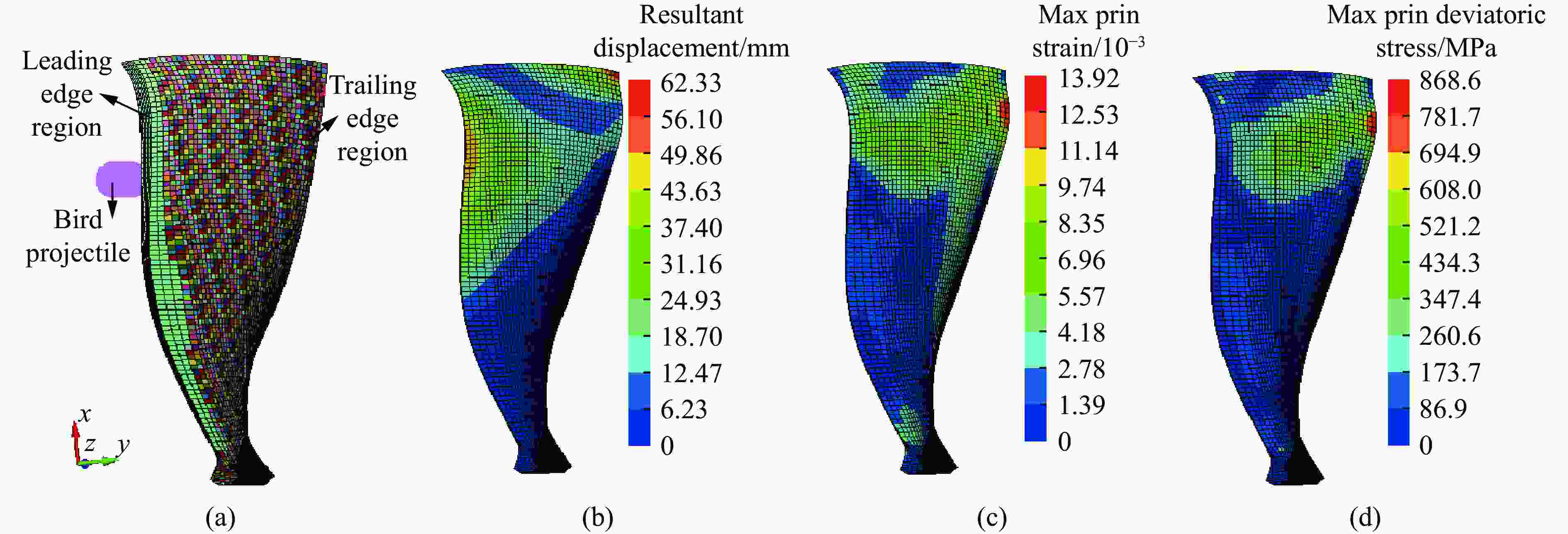

图 1 真实叶片鸟撞模型的仿真结果(a)、位移分布(b)、应变分布(c)和应力分布(d)
Figure 1. Simulation result (a), displacement distribution (b), strain distribution (c), and stress distribution (d) of actual blade bird strike model

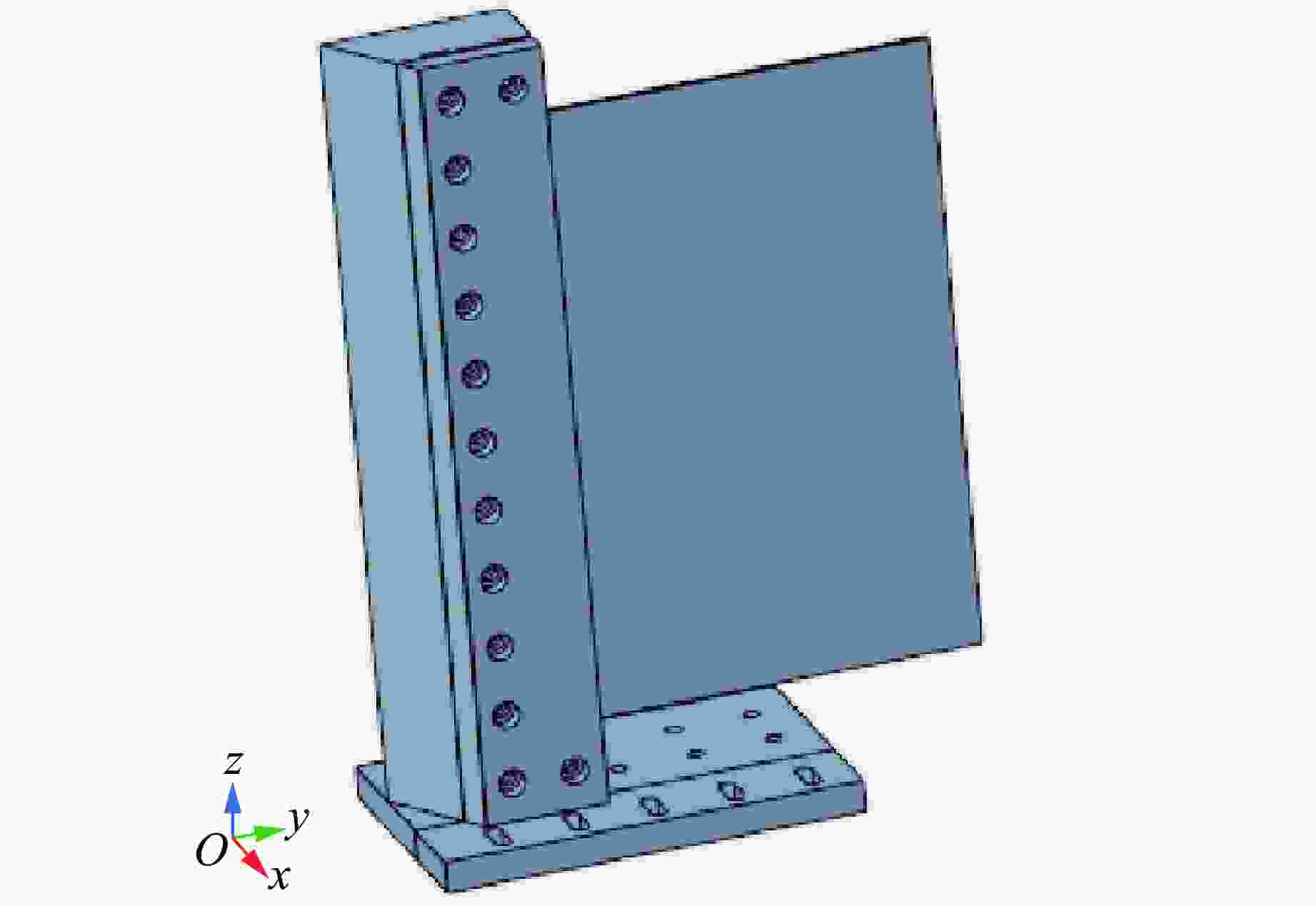

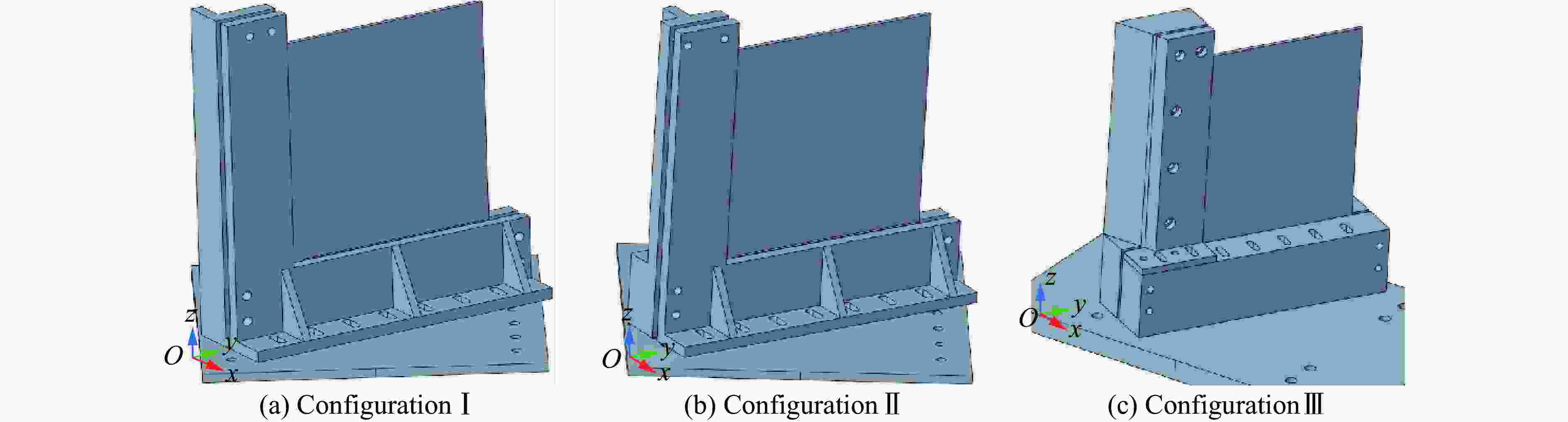

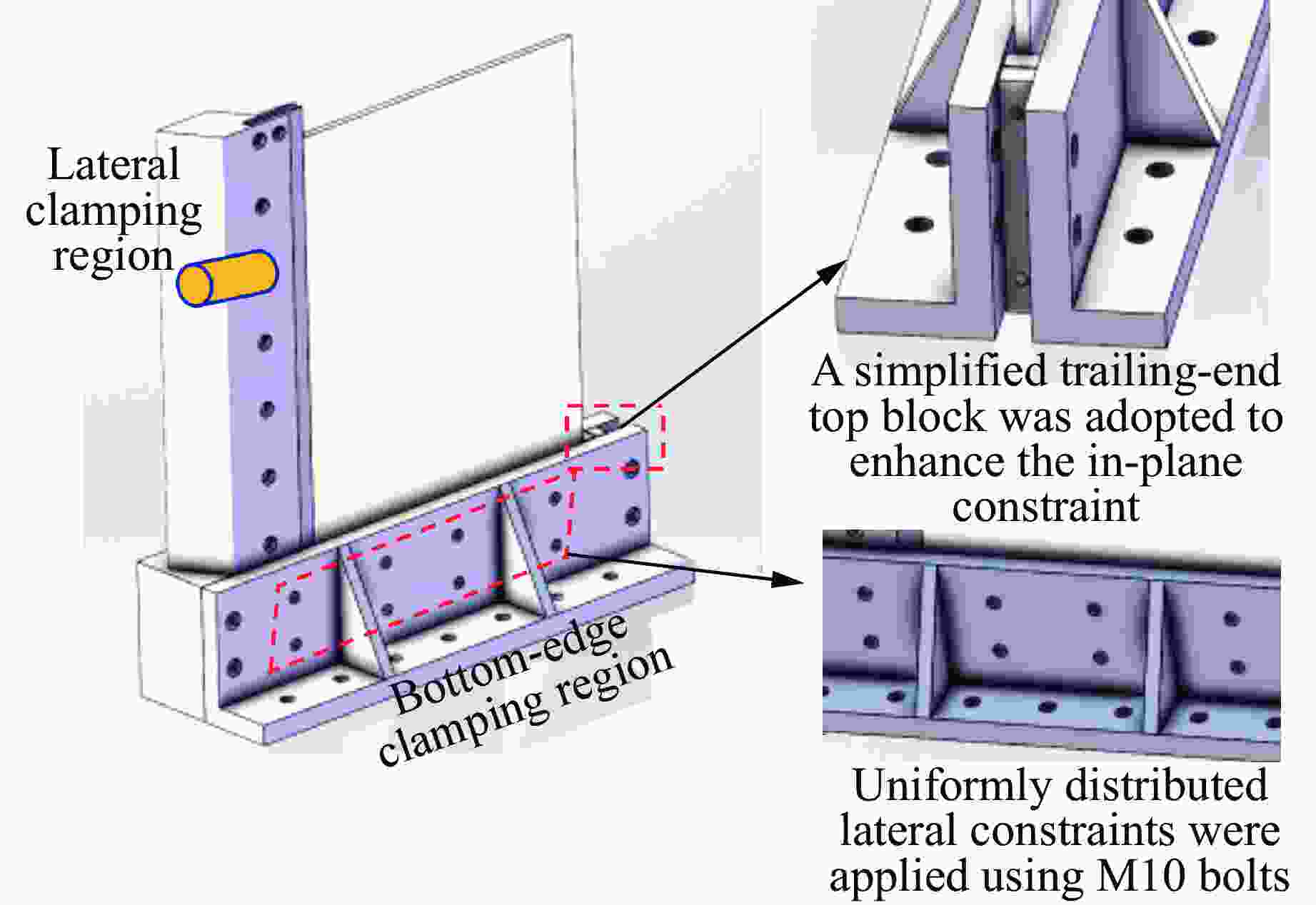

图 4 单边夹持刚性夹具鸟撞模型
Figure 4. Bird-strike model with a single-sided rigid clamping fixture

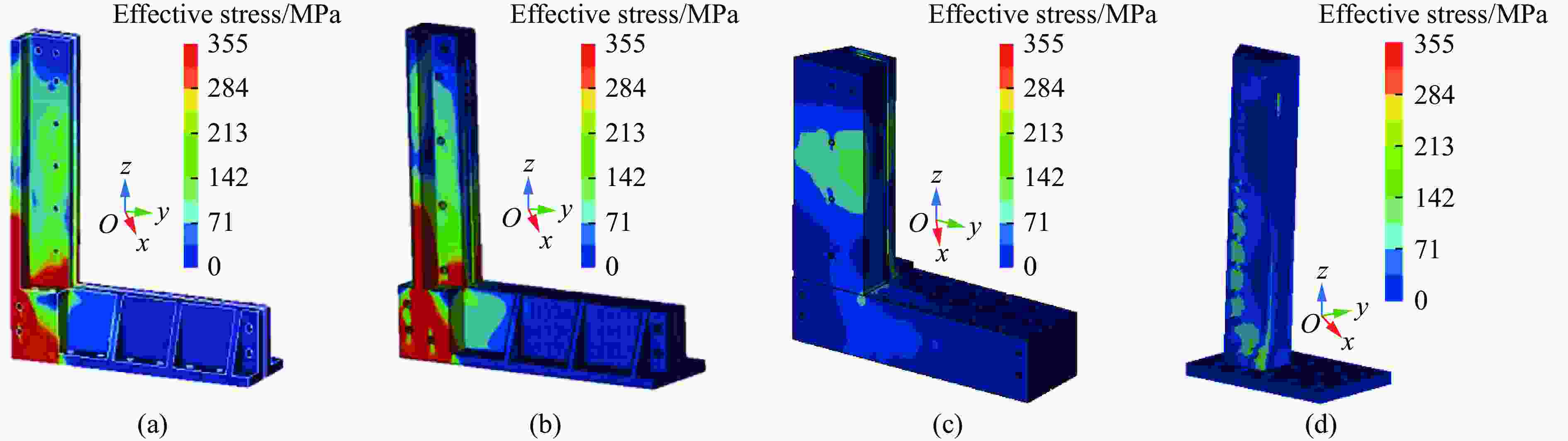

图 5 双边夹持夹具构型Ⅰ(a)、Ⅱ(b)、Ⅲ(c)及单边夹持夹具(d)的应力云图
Figure 5. Stress contours of the double-sided clamping fixture configurations Ⅰ (a), Ⅱ (b), and Ⅲ (c), and the single-sided clamping fixture (d)

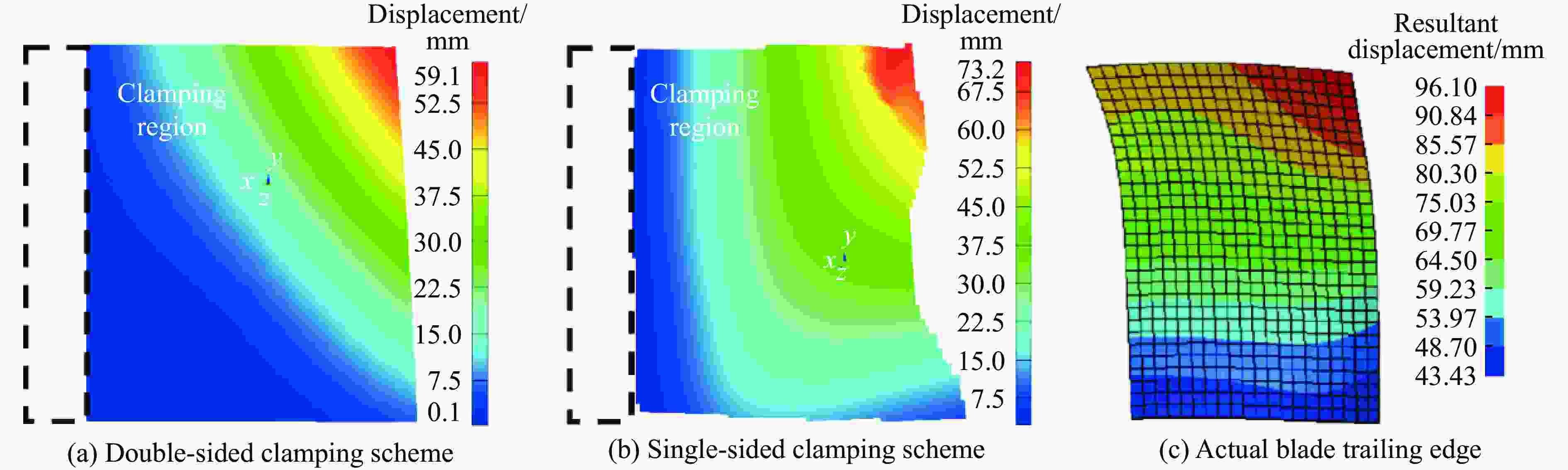

图 6 2种方案的DIC计算结果与叶片尾缘处局部位移云图
Figure 6. DIC results of the two test configurations and the local displacement contour at the blade trailing edge

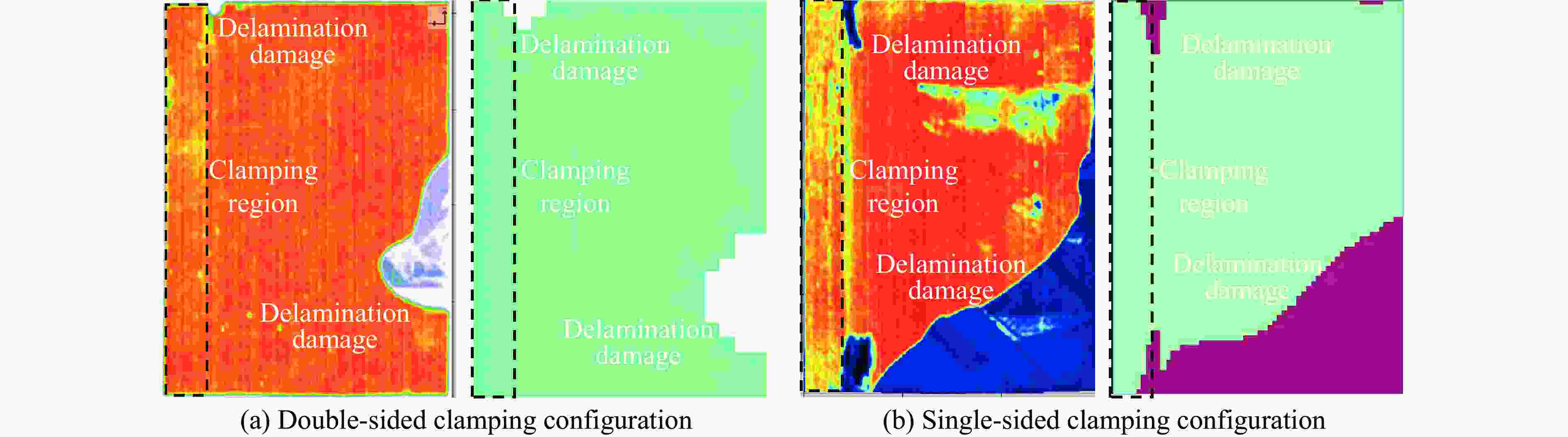

图 7 采用2种方案时试验及仿真分层损伤云图
Figure 7. Test and numerical damage contours for the two configurations

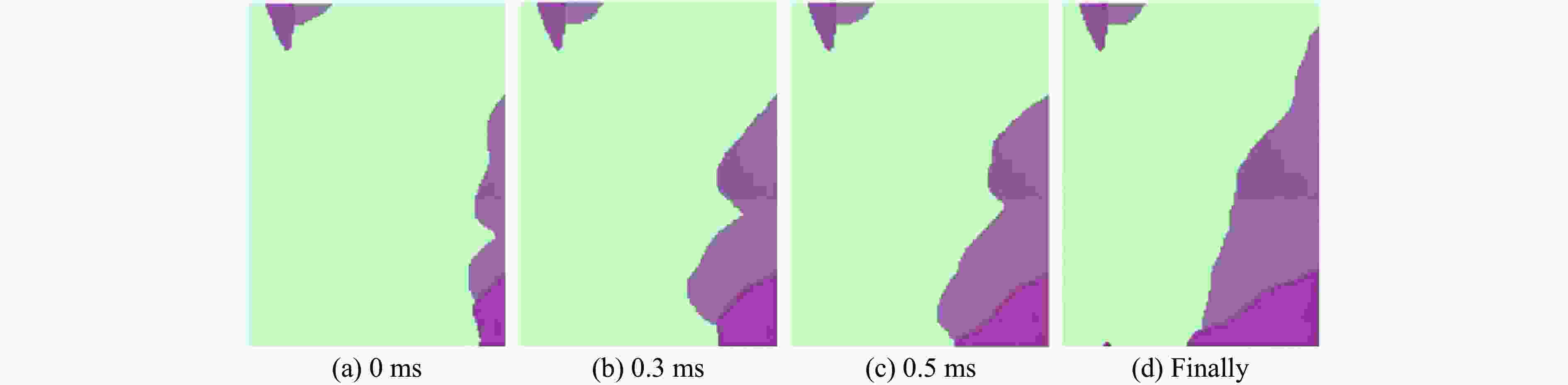

图 8 单边夹持方案的分层损伤发展过程
Figure 8. Evolution of delamination damage in the single-sided clamping configuration

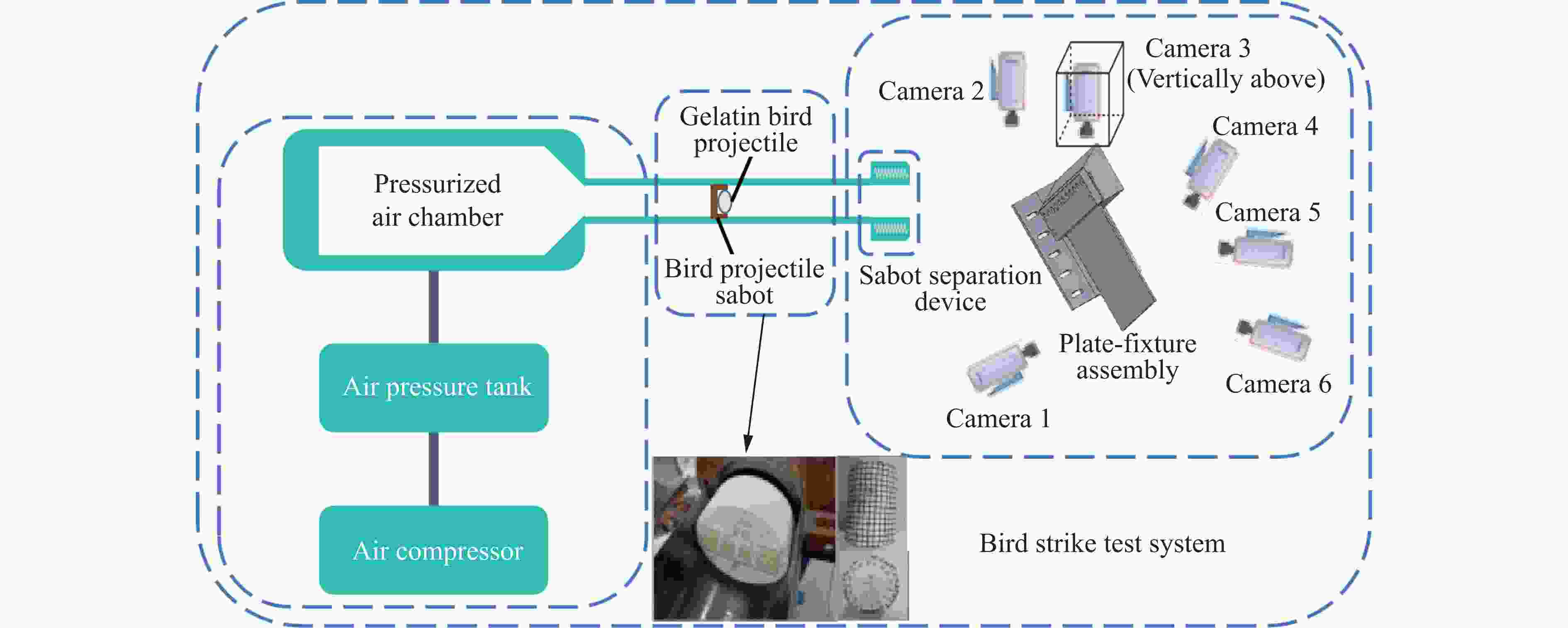

图 9 复合材料典型件鸟撞冲击测试系统
Figure 9. Bird strike impact test system for a representative composite component

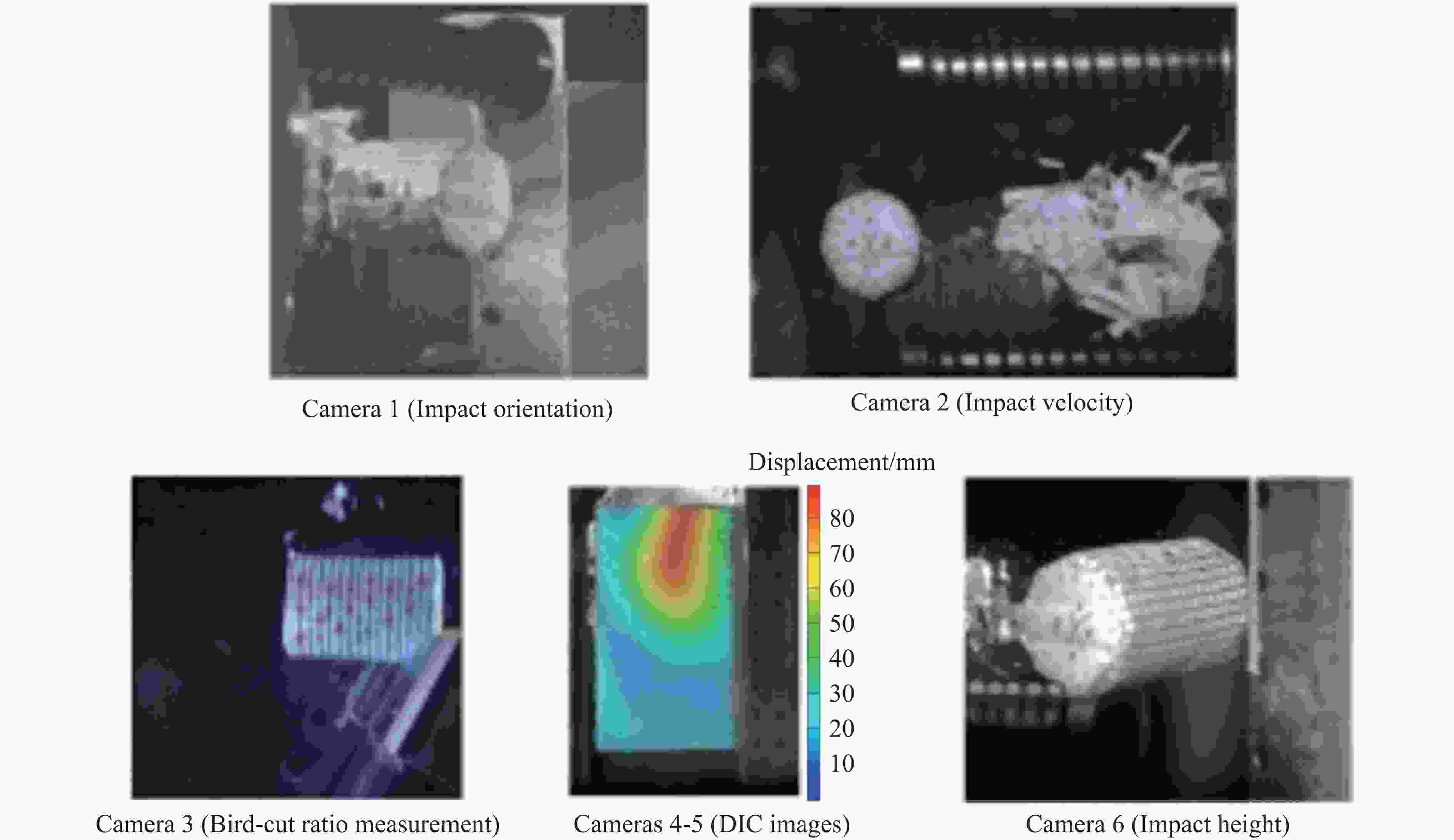

图 10 数据采集系统中各相机的功能
Figure 10. Roles of individual cameras in the data acquisition system

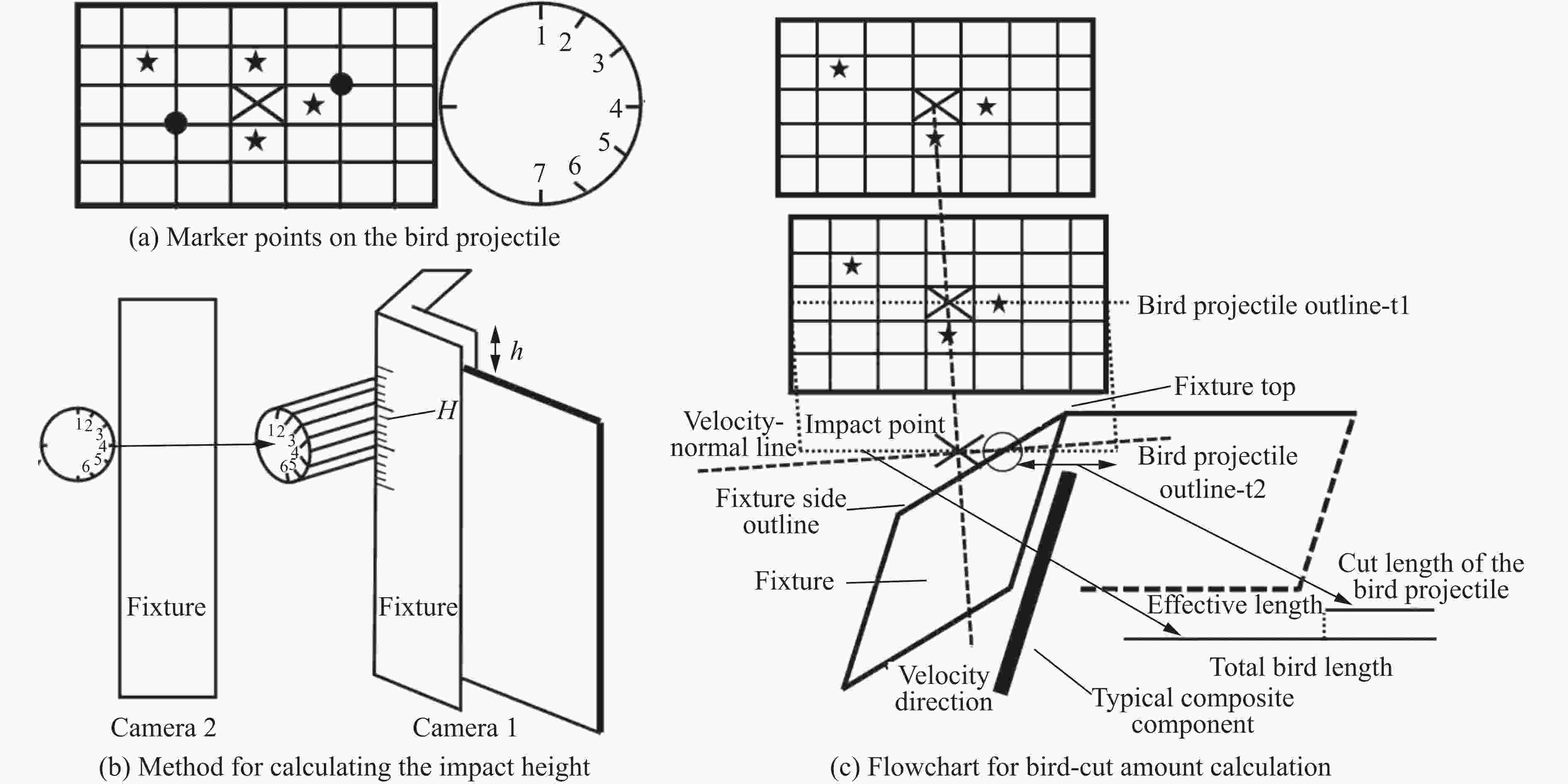

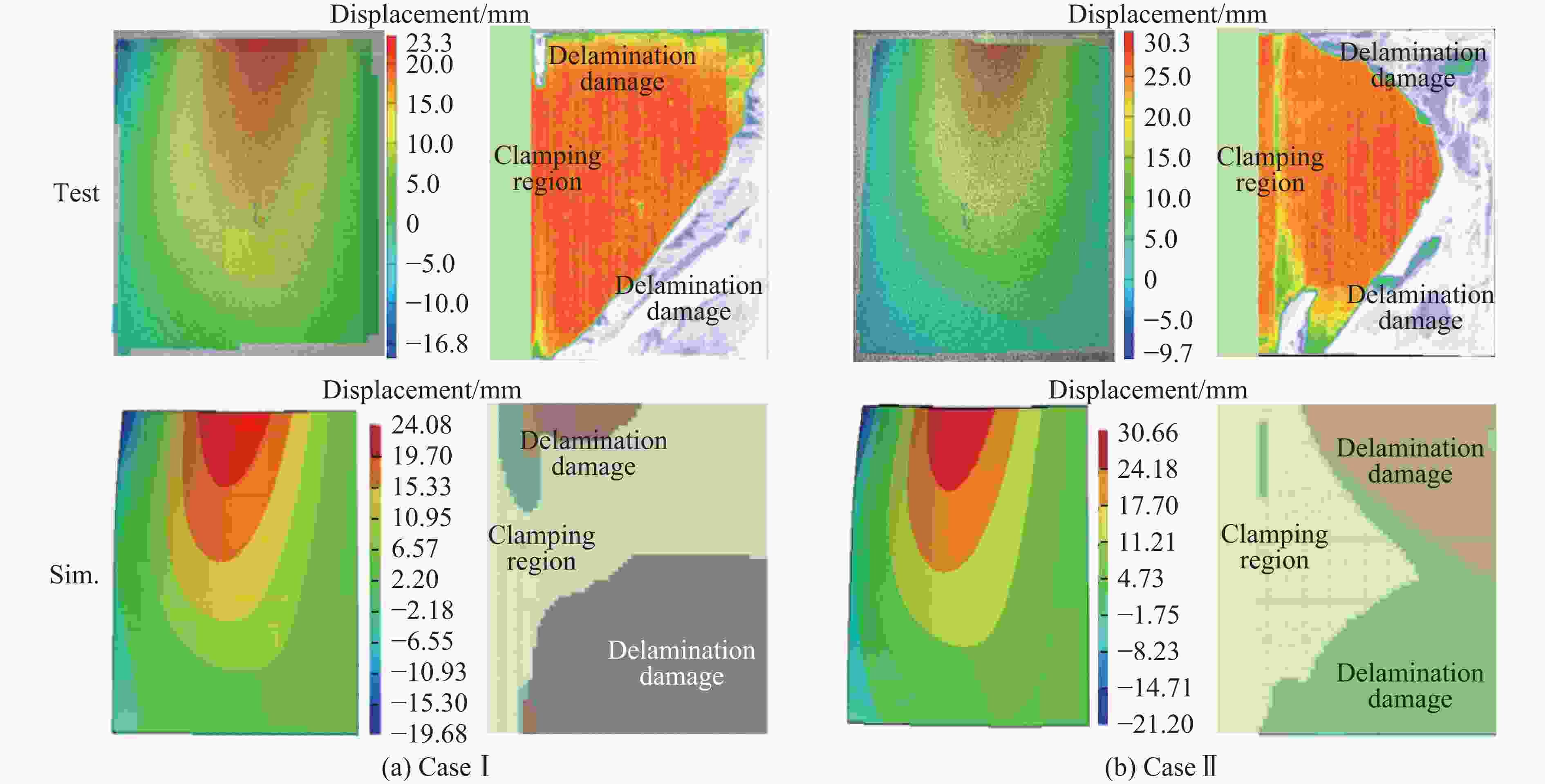

图 12 试验及仿真的面外位移云图（左）及分层损伤分布（右）
Figure 12. Out-of-plane displacement contours (left) and delamination damage distributions (right) from tests and simulations
表 1 试验工况参数
Table 1. Parameters of test conditions
Case Impact velocity/(m·s−1) Impact height/mm Bird-cut ratio/% Ⅰ 173.5 88 93.0 Ⅱ 195.4 88 94.1
下载: 导出CSV
表 2 各冲击参数的归一化斜率
Table 2. Normalized slopes of various impact parameters
Impact parameter ${S}_{ p} $ $\Delta$Xu $\Delta$Xd $\varDelta $u Impact height 0.08 −0.42 −0.36 Bird-cut ratio 0.83 0.64 0.83 Impact velocity 1.13 0.96 1.09
下载: 导出CSV
-
[1] BANHART D, MONIR S, DURIEUX O, et al. A review of experimental and numerical methodologies for impact testing of composite materials [J]. Sensing Technology, 2024, 2(1): 2304886. doi: 10.1080/28361466.2024.2304886 [2] 张超, 曹勇, 赵振强, 等. 树脂基复合材料在民用航空发动机中的应用与关键技术研究进展 [J]. 航空学报, 2024, 45(2): 28556. doi: 10.7527/S1000-6893.2023.28556ZHANG C, CAO Y, ZHAO Z Q, et al. Applications and key challenges of polymer composites in civil aero-engines: state-of-art review [J]. Acta Aeronautica et Astronautica Sinica, 2024, 45(2): 28556. doi: 10.7527/S1000-6893.2023.28556 [3] 刘鹏, 蔡应龙, 顾佳辉, 等. 基于红外热成像的编织复合材料低速冲击和冲击后压缩试验研究 [J]. 爆炸与冲击, 2022, 42(6): 063101. doi: 10.11883/bzycj-2021-0369LIU P, CAI Y L, GU J H, et al. Experimental research on low-velocity impact and compression after impact of braided composites based on infrared thermal imaging [J]. Explosion and Shock Waves, 2022, 42(6): 063101. doi: 10.11883/bzycj-2021-0369 [4] HEIMBS S. Computational methods for bird strike simulations: a review [J]. Computers & Structures, 2011, 89(23/24): 2093–2112. doi: 10.1016/j.compstruc.2011.08.007 [5] LIU L L, SHAO H Y, ZHU X Y, et al. Bird impact response and damage mechanism of 3D orthogonal woven composite aeroengine blades [J]. Composite Structures, 2023, 304: 116311. doi: 10.1016/j.compstruct.2022.116311 [6] 曹勇, 张超. 薄层复合材料冲击损伤行为研究进展 [J]. 航空学报, 2022, 43(6): 525323. doi: 10.7527/S1000-6893.2021.25323CAO Y, ZHANG C. Impact damage behavior of thin-ply composites: a review [J]. Acta Aeronautica et Astronautica Sinica, 2022, 43(6): 525323. doi: 10.7527/S1000-6893.2021.25323 [7] 曹俊超, 孙建波, 曹勇, 等. 混杂纤维增强环氧树脂复合材料高速冲击损伤行为 [J]. 复合材料学报, 2022, 39(10): 4935–4948. doi: 10.13801/j.cnki.fhclxb.20211103.003CAO J C, SUN J B, CAO Y, et al. High-velocity impact damage behavior of hybrid fiber reinforced epoxy composites [J]. Acta Materiae Compositae Sinica, 2022, 39(10): 4935–4948. doi: 10.13801/j.cnki.fhclxb.20211103.003 [8] WU B, HEDAYATI R, LI Z H, et al. Effect of impact and bearing parameters on bird strike with aero-engine fan blades [J]. Applied Sciences, 2021, 12(1): 7. doi: 10.3390/app12010007 [9] MILLER S G, ROBERTS G D, KOHLMAN L W, et al. Impact behavior of composite fan blade leading edge subcomponent with thermoplastic polyurethane interleave [C]//Proceedings of International Conference on Composite Materials. Copenhagen: Aalborg University, Technical University of Denmark, 2015: GRC-E-DAA-TN22397. [10] WU B, LIN J W, XIE A S, et al. Flocking bird strikes on engine fan blades and their effect on rotor system: a numerical simulation [J]. Aerospace, 2022, 9(2): 90. doi: 10.3390/aerospace9020090 [11] KAJIHARA S, HIGUCHI R, AOKI T, et al. Whipping motion of airplane composite fan blades due to bird strike [J]. Advanced Composite Materials, 2024, 33(4): 581–602. doi: 10.1080/09243046.2023.2280347 [12] OKUMURA H, MIYACHI T, FUKUDA M, et al. Finite elements analysis of flexural edge wave for composite fan blades: SAE Technical Paper 912048 [R]. Warrendale, PA: SAE International, 1991. [13] YELLA G, JADHAV P, LANDE C. Bird-strike analysis on hybrid composite fan blade: blade-level validation [J]. Aerospace, 2023, 10(5): 435. doi: 10.3390/aerospace10050435 [14] JADHAV P. Damage due to stress wave propagation in composite fan blades of aircraft engine subjected to bird strike loading [M]//TIWARI R, RAM MOHAN Y S, DARPE A K, et al. Vibration Engineering and Technology of Machinery, Volume Ⅱ. Singapore: Springer, 2021: 541−553. [15] HU D Y, SONG B, WANG D F, et al. Experiment and numerical simulation of a full-scale helicopter composite cockpit structure subject to a bird strike [J]. Composite Structures, 2016, 149: 385–397. [16] ZHOU Y D, SUN Y C, HUANG T L. Impact responses of slender composite plates for bird-strike testing of fan blades [J]. Latin American Journal of Solids and Structures, 2019, 16(9): e232. doi: 10.1590/1679-78255809 [17] SUN Y C, ZHANG Y M, ZHOU Y D, et al. Evaluating impact damage of flat composite plate for surrogate bird-strike testing of aeroengine fan blade [J]. Journal of Composites Science, 2021, 5(7): 171. doi: 10.3390/jcs5070171 [18] ZHOU Y D, SUN Y C, HUANG T L. Bird-strike resistance of composite laminates with different materials [J]. Materials, 2019, 13(1): 129. doi: 10.3390/ma13010129 [19] LIU L L, LUO G, CHEN W, et al. Dynamic behavior and damage mechanism of 3D braided composite fan blade under bird impact [J]. International Journal of Aerospace Engineering, 2018(1): 5906078. doi: 10.1155/2018/5906078 [20] GARG A, SHUKLA N K, BELARBI M O, et al. Bird strike-induced damage studies on bio-inspired laminated plates with holes [J]. Aerospace Science and Technology, 2025, 162: 110200. doi: 10.1016/j.ast.2025.110200 [21] WANG S Q, JIANG C Y, WANG C F, et al. Bird strike resistance analysis for engine fan blade filled with triply periodic minimal surface [J]. Aerospace Science and Technology, 2025, 161: 110109. doi: 10.1016/j.ast.2025.110109 [22] REZAEI M, AREZOO B, ZIAEI-RAD S. New design of materials, order and thicknesses of an aircraft windshield behaviour layers to increase its resistance against repeated bird impacts [J]. The Aeronautical Journal, 2024, 128(1328): 2235–2260. doi: 10.1017/aer.2024.33 [23] 罗刚, 陈伟, 赵振华, 等. 航空发动机吸鸟适航验证关键参数分析方法 [J]. 机械科学与技术, 2016, 35(11): 1774–1779. doi: 10.13433/j.cnki.1003-8728.2016.1123LUO G, CHEN W, ZHAO Z H, et al. Analysis method of critical parameters on aircraft engines bird ingestion airworthiness certification [J]. Mechanical Science and Technology for Aerospace Engineering, 2016, 35(11): 1774–1779. doi: 10.13433/j.cnki.1003-8728.2016.1123 [24] 中国民用航空局. 航空发动机适航规定 [S/OL]. 北京: 中国民用航空局, (2016-03-17)[2025-11-24]. https://xxgk.mot.gov.cn/2020/gz/202112/t20211227_3633414.html.Civil Aviation Administration of China. Airworthiness requirements for aero-engines [S/OL]. Beijing: Civil Aviation Administration of China, (2016-03-17)[2025-11-24]. https://xxgk.mot.gov.cn/2020/gz/202112/t20211227_3633414.html. [25] WILBECK J S. Impact behavior of low strength projectiles [D]. College Station: Texas A&M University, 1977. [26] MILLER S G, HANDSCHUH K, SINNOTT M J, et al. Materials, manufacturing, and test development of a composite fan blade leading edge subcomponent for improved impact resistance: NASA/TM—2015-218340 [R]. Cleveland, OH: National Aeronautics and Space Administration, Glenn Research Center, 2015. [27] CAMANHO P P, DÁVILA C G. Mixed-mode decohesion finite elements for the simulation of delamination in composite materials: NASA/TM—2002-211737 [R]. Hampton, VA, 2002. [28] BENZEGGAGH M L, KENANE M. Measurement of mixed-mode delamination fracture toughness of unidirectional glass/epoxy composites with mixed-mode bending apparatus [J]. Composites Science and Technology, 1996, 56(4): 439–449. doi: 10.1016/0266-3538(96)00005-X [29] SCHREIER H, ORTEU J J, SUTTON M A. Image correlation for shape, motion and deformation measurements: basic concepts, theory and applications [M]. New York: Springer, 2009. [30] EUROPEAN AVIATION SAFETY AGENCY. Certification specifications for engines: CS-E amendment 4, CS-E 800 bird strike and ingestion [S/OL]. Cologne: European Aviation Safety Agency, (2016-03-17)[2025-11-24]. https://www.easa.europa.eu/sites/default/files/dfu/CS-E%20Amendment%204.pdf. [31] ASTM International. Standard practice for ultrasonic testing of flat panel composites and sandwich core materials used in aerospace applications: ASTM E2580-12 [S]. West Conshohocken: ASTM International, 2012. [32] CHU T C, RANSON W F, SUTTON M A. Applications of digital-image-correlation techniques to experimental mechanics [J]. Experimental Mechanics, 1985, 25(3): 232–244. doi: 10.1007/BF02325092 [33] FLORES M, MOLLENHAUER D, RUNATUNGA V, et al. High-speed 3D digital image correlation of low-velocity impacts on composite plates [J]. Composites Part B: Engineering, 2017, 131: 153–164. doi: 10.1016/j.compositesb.2017.07.078 [34] 赵振强, 张超, 白杨, 等. 基于光学图像分析的鸟体高速冲击切鸟量计算方法及系统: CN119579654A [P]. 2025-03-07.ZHAO Z Q, ZHANG C, BAI Y, et al. Bird body high-speed impact bird cutting amount calculation method and system based on optical image analysis: CN119579654A [P]. 2025-03-07. -
