Experimental Study on the Impact Dynamics Behavior of Ultrathin Carbon Fiber Composites
-
摘要: 碳纤维增强聚合物（carbon fiber reinforced polymer，CFRP）作为一种先进复合材料，在工程领域应用广泛。然而，针对超薄CFRP层压复合材料动态力学行为的研究较为有限。采用单向超薄预浸料和热压成型工艺，制备了单层厚度仅为0.1 mm的超薄CFRP层压复合材料，探究了5种铺层角度（0°、90°、0°/90°、45°、±45°）下试件的应变率效应。准静态压缩实验结果表明：45°铺层增强了塑性行为，但削弱了材料强度与模量；而90°铺层有助于提高模量与强度，并减少塑性变形。动态冲击结果表明：90°铺层能够提升动态模量与动态强度，并降低动态屈服应变；45°铺层虽降低了动态屈服强度，但显著增强了动态模量与动态屈服应变对应变率的敏感性。相较于0°/90°铺层的传统CFRP层压复合材料（层厚为0.295 mm，动态强度和动态模量分别为900 MPa和10.12 GPa），所制备的超薄CFRP复合材料在单位厚度内的纤维含量提升了66%，动态强度和动态模量分别提高了123%和926%。基于实验数据，进一步建立了超薄CFRP复合材料的本构模型，并给出了相应的本构参数，为预测材料在不同铺层方式和应变率下的力学行为提供了依据。Abstract: Carbon fiber reinforced polymer (CFRP), as an advanced composite material, are widely used in engineering applications. However, research on the dynamic mechanical behavior of ultrathin CFRP laminates remains relatively limited. In this study, unidirectional ultrathin prepreg and hot-pressing molding processes were employed to fabricate ultrathin CFRP laminates with a single ply thickness of only 0.1 mm. The strain rate effects on specimens with five different ply orientations—0°, 90°, 0°/90°, 45°, and ±45°—were systematically investigated. Quasi-static compression experiments indicated that the 45° ply orientation enhanced plastic behavior but reduced material strength and modulus, whereas the 90° ply orientation contributed to increased modulus and strength while reducing plastic deformation. Dynamic impact tests revealed that the 90° ply orientation improved both dynamic modulus and strength while decreasing yield strain. Although the 45° ply orientation reduced dynamic yield strength, it significantly increased the sensitivity of dynamic modulus and yield strain to strain rate. Compared with conventional CFRP laminates with a 0°/90° ply layup (ply thickness is 0.295 mm, and dynamic strength and modulus are 900 MPa and 10.12 GPa, respectively), the ultrathin CFRP composites developed in this study exhibited a 66% increase in fiber content per unit thickness; under the 0°/90° ply configuration, dynamic strength and modulus were enhanced by 123% and 926%, respectively. Based on the experimental data, a constitutive model for the ultrathin CFRP composites was established, and corresponding constitutive parameters were provided, offering a basis for predicting the mechanical behavior of CFRPs under different ply orientations and strain rates.
-

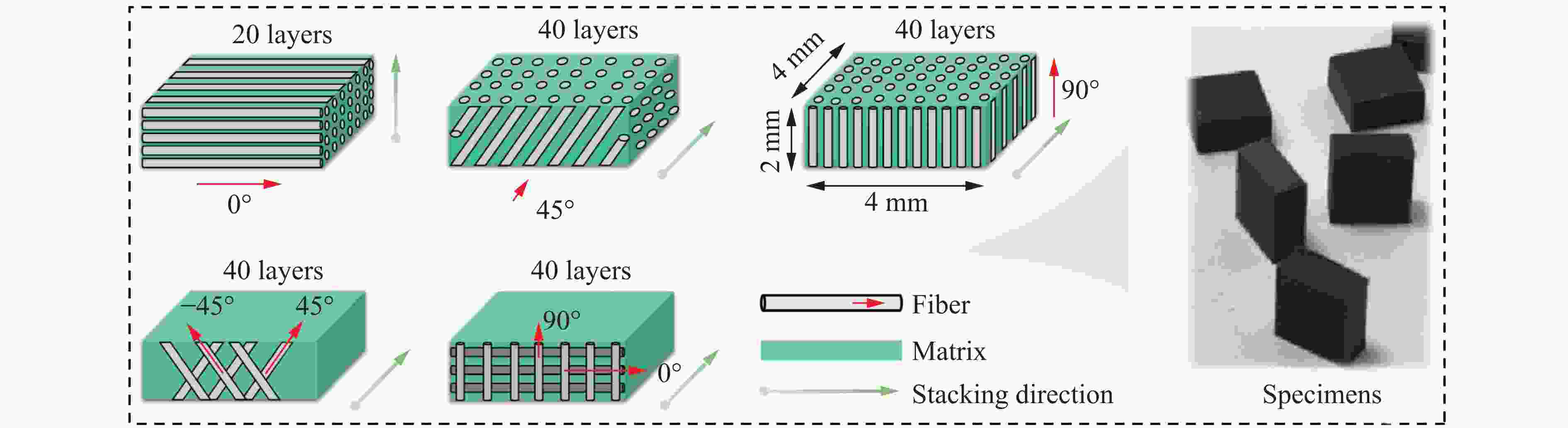

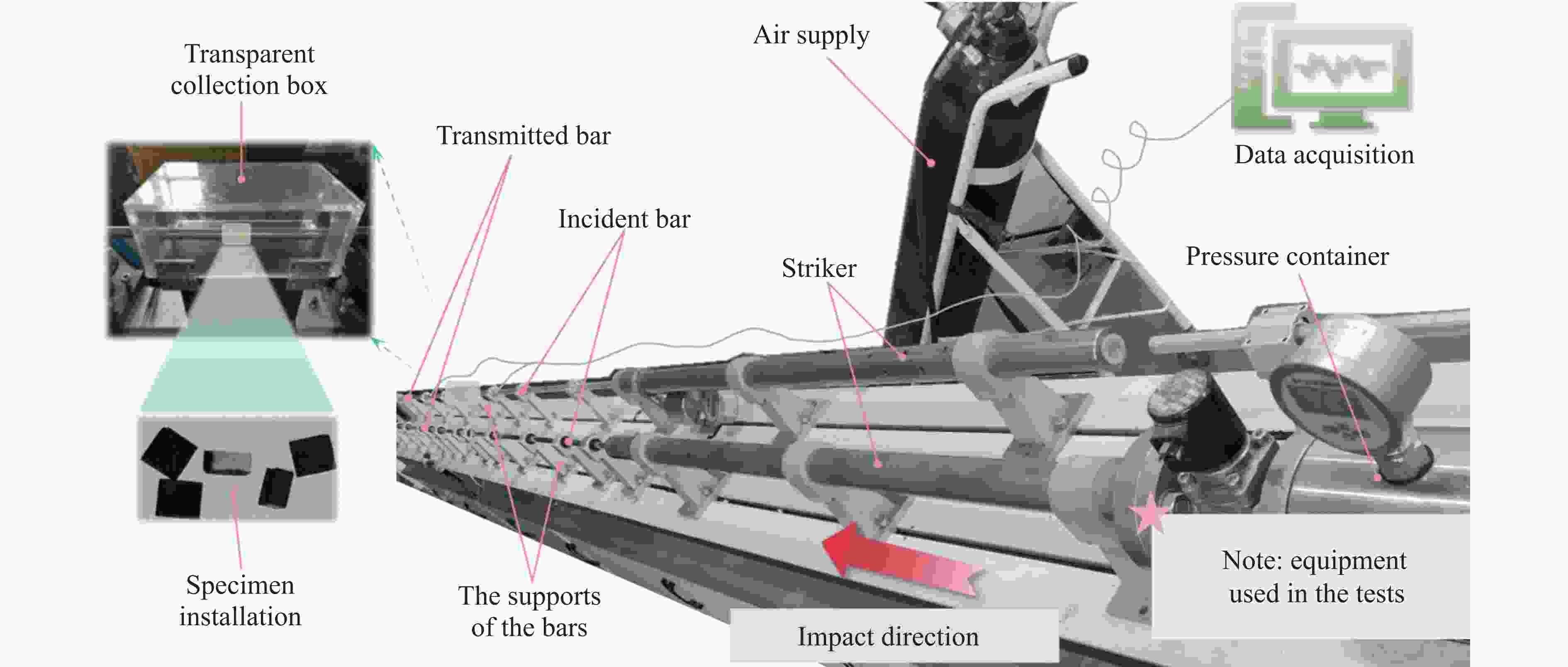

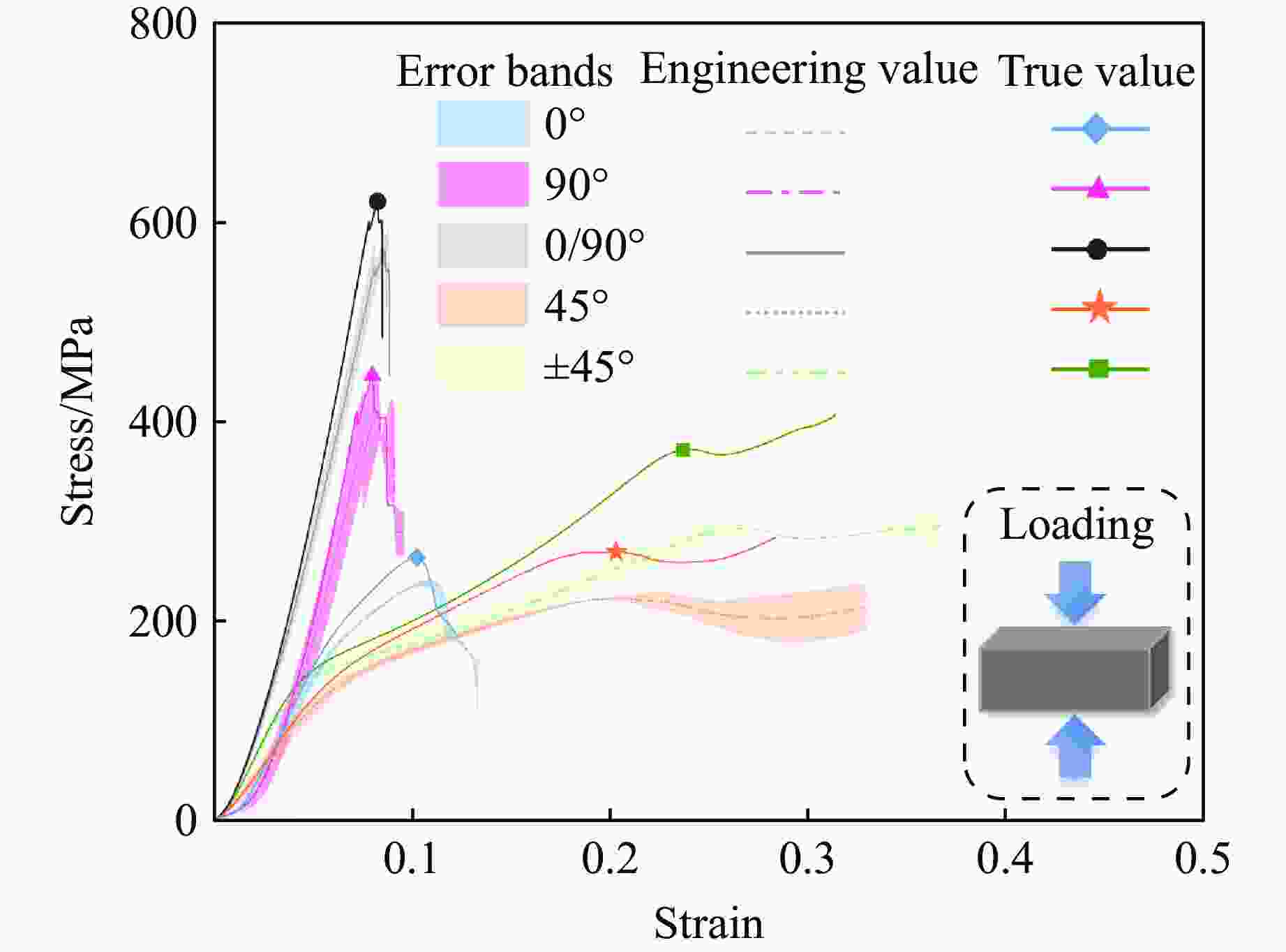

图 3 超薄CFRP复合材料的准静态实验结果
Figure 3. Quasi-static experimental results of ultrathin CFRP composites

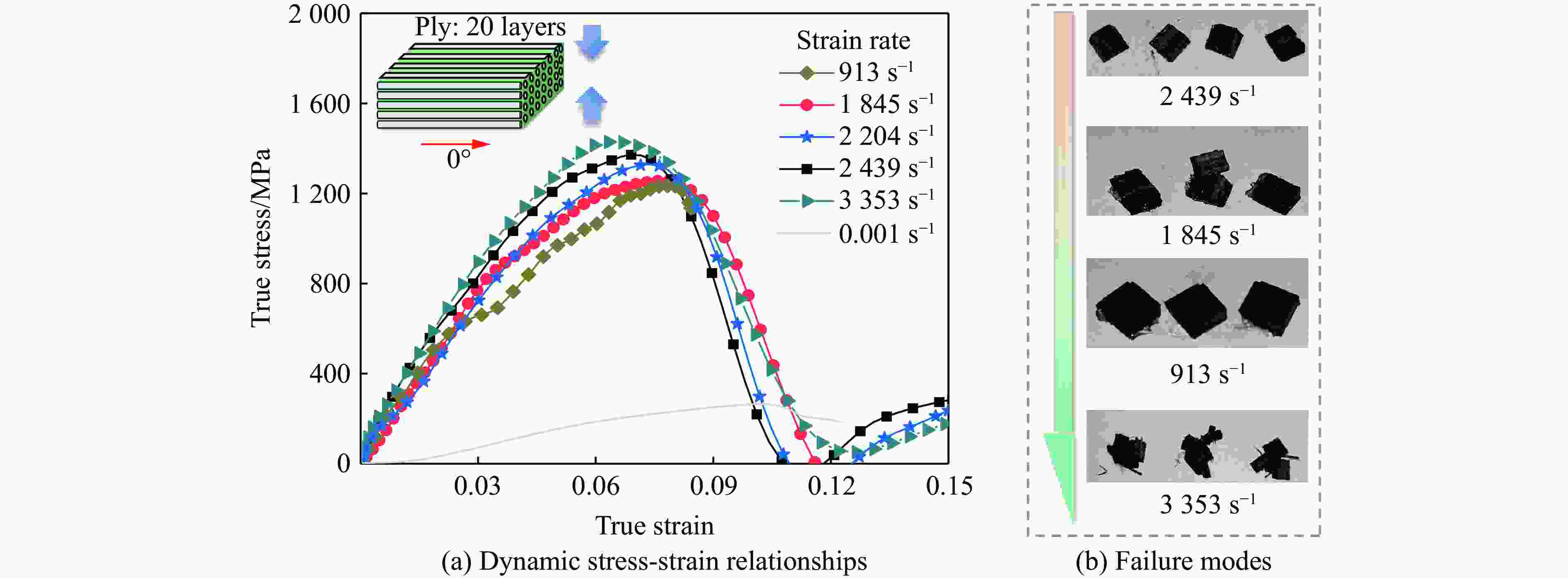

图 4 不同应变率下0°铺层CFRP复合材料的动态冲击应力-应变关系及失效情况（0.001 s−1为准静态实验数据）
Figure 4. Dynamic stress-strain relationships and failure modes of CFRP composites with 0° ply law under different strain rates (0.001 s−1 is regarded as quasi-static experimental data.)

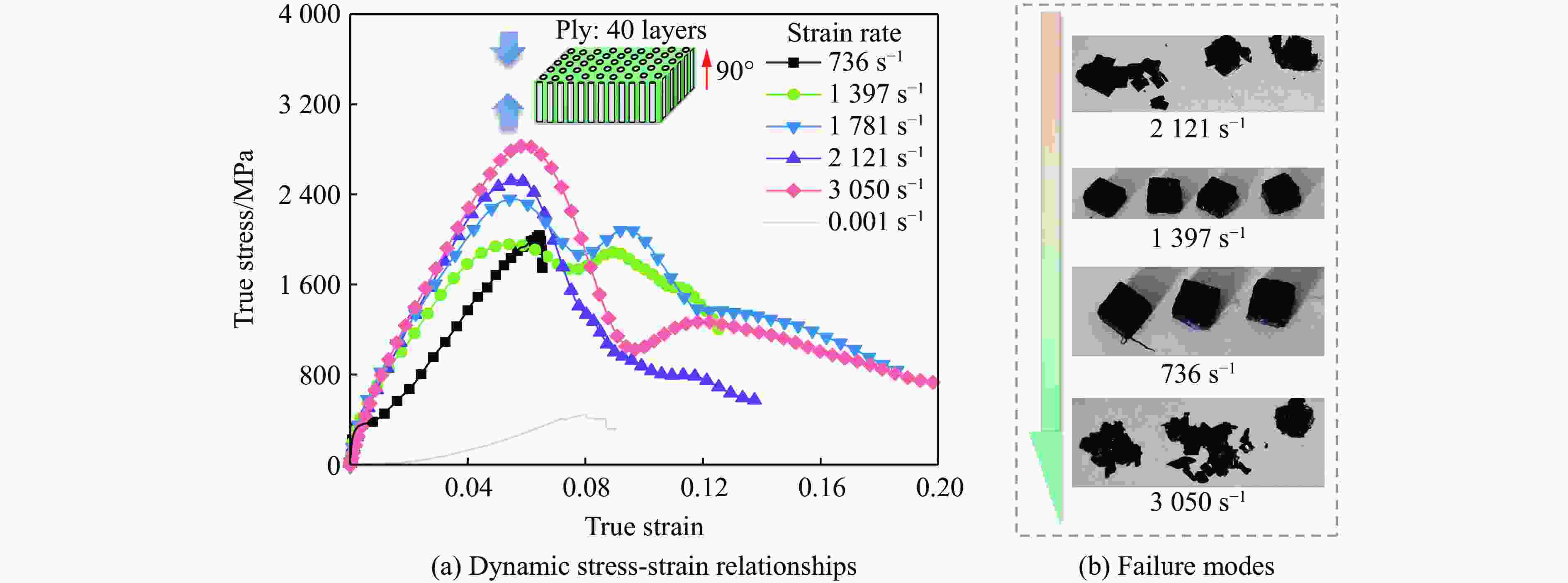

图 5 不同应变率下90°铺层CFRP复合材料的动态冲击应力-应变关系及失效情况（0.001 s−1为准静态实验数据）
Figure 5. Dynamic stress-strain relationships and failure modes of CFRP composites with 90° ply law under different strain rates (0.001 s−1 is regarded as quasi-static experimental data.)

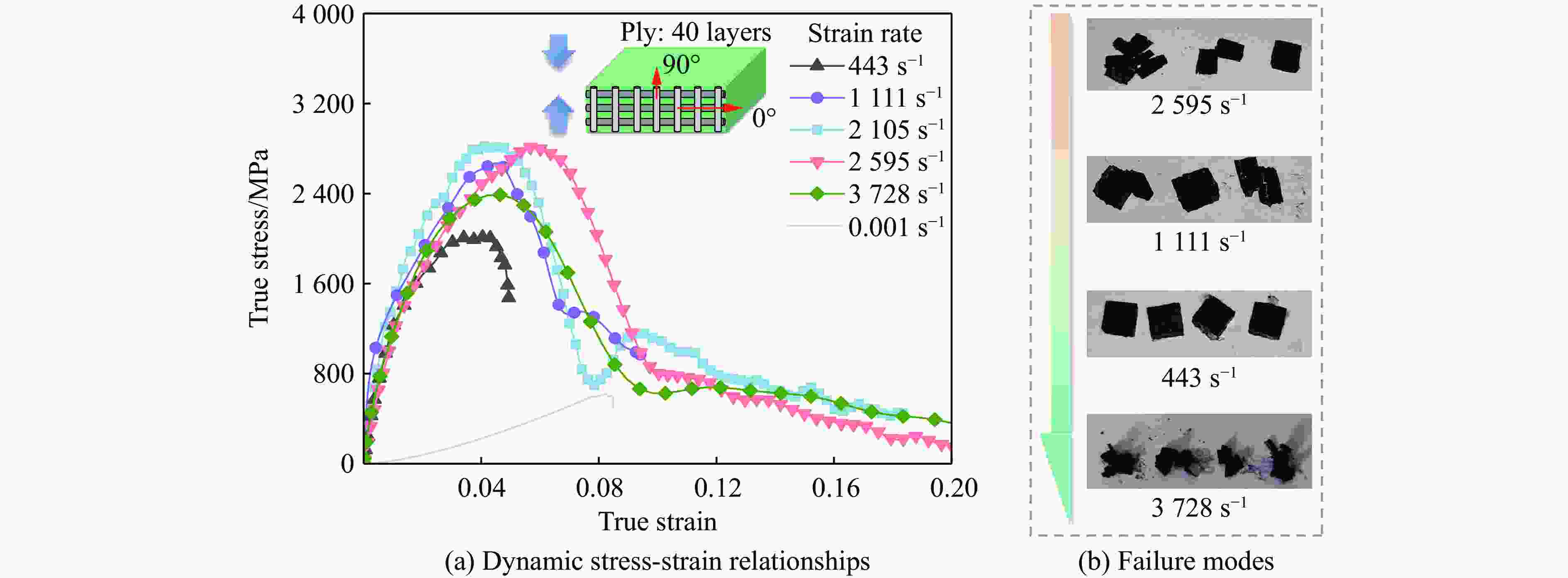

图 6 不同应变率下0°/90°铺层CFRP复合材料的动态冲击应力-应变关系及失效情况（0.001 s−1为准静态实验数据）
Figure 6. Dynamic stress-strain relationships and failure modes of CFRP composites with 0°/90° ply law under different strain rates (0.001 s−1 is regarded as quasi-static experimental data.)

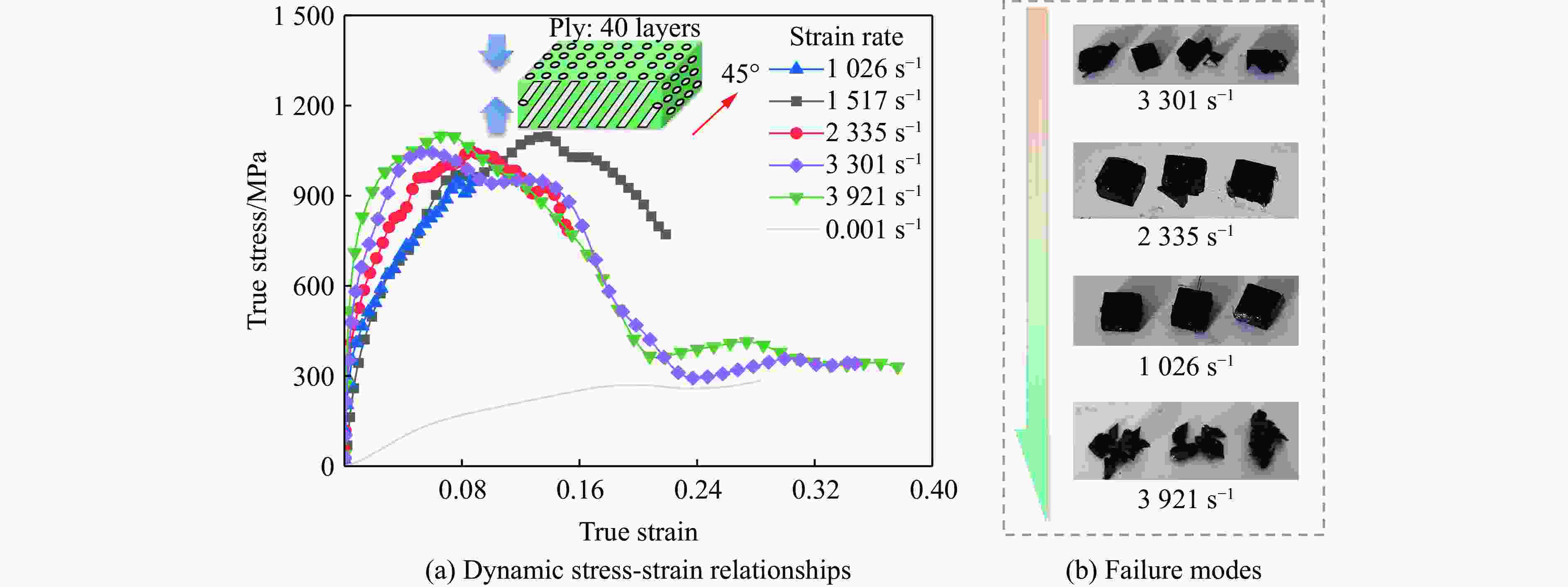

图 7 不同应变率下45°铺层CFRP复合材料的动态冲击应力-应变关系及失效情况（0.001 s−1为准静态实验数据）
Figure 7. Dynamic stress-strain relationships and failure modes of CFRP composites with 45° ply law under different strain rates (0.001 s−1 is regarded as quasi-static experimental data.)

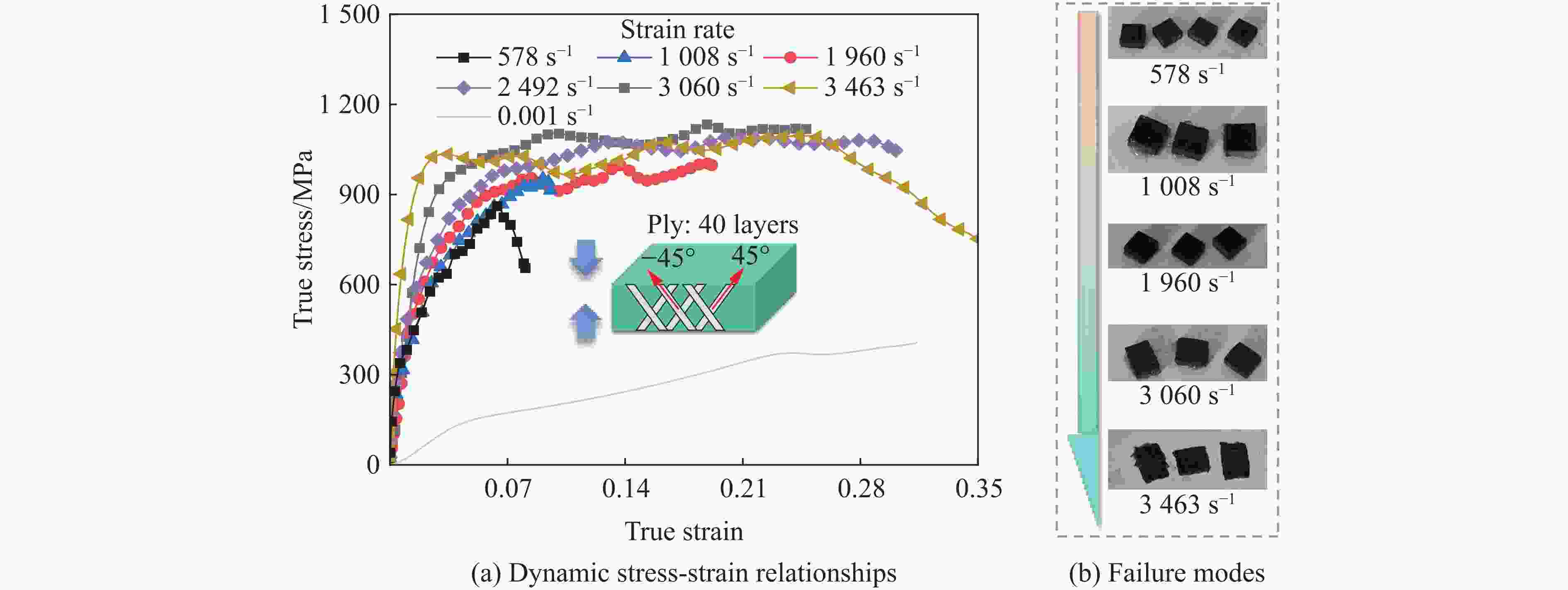

图 8 不同应变率下±45°铺层CFRP复合材料的动态冲击应力-应变关系及失效情况（0.001 s−1为准静态实验数据）
Figure 8. Dynamic stress-strain relationships and failure modes of CFRP composites with ±45° ply law under different strain rates (0.001 s−1 is regarded as quasi-static experimental data.)
表 1 单向单层CFRP复合材料的基本力学参数
Table 1. Basic mechanical parameters of unidirectional single-layer CFRP composites
Direction Tensile
strength/MPaTensile
modulus/GPaPoisson’s
ratioCompressive
strength/MPaCompressive
modulus/GPaShear
strength/MPa0° 2 397.0 122.1 0.31 936.8 109.9 60 90° 67.8 9.0 0.02 165.0 9.3 40
下载: 导出CSV
表 2 力学参数
Table 2. Mechanical parameters
Items Young’s modulus/GPa Tangent modulus/GPa Strength/MPa Failure strain 0° 3.94 1.99 263.9 0.10 90° 8.55 446.4 0.08 0°/90° 8.93 620.1 0.08 45° 2.69 1.01 269.5 0.20 ±45° 3.68 1.17 371.8 0.24
下载: 导出CSV

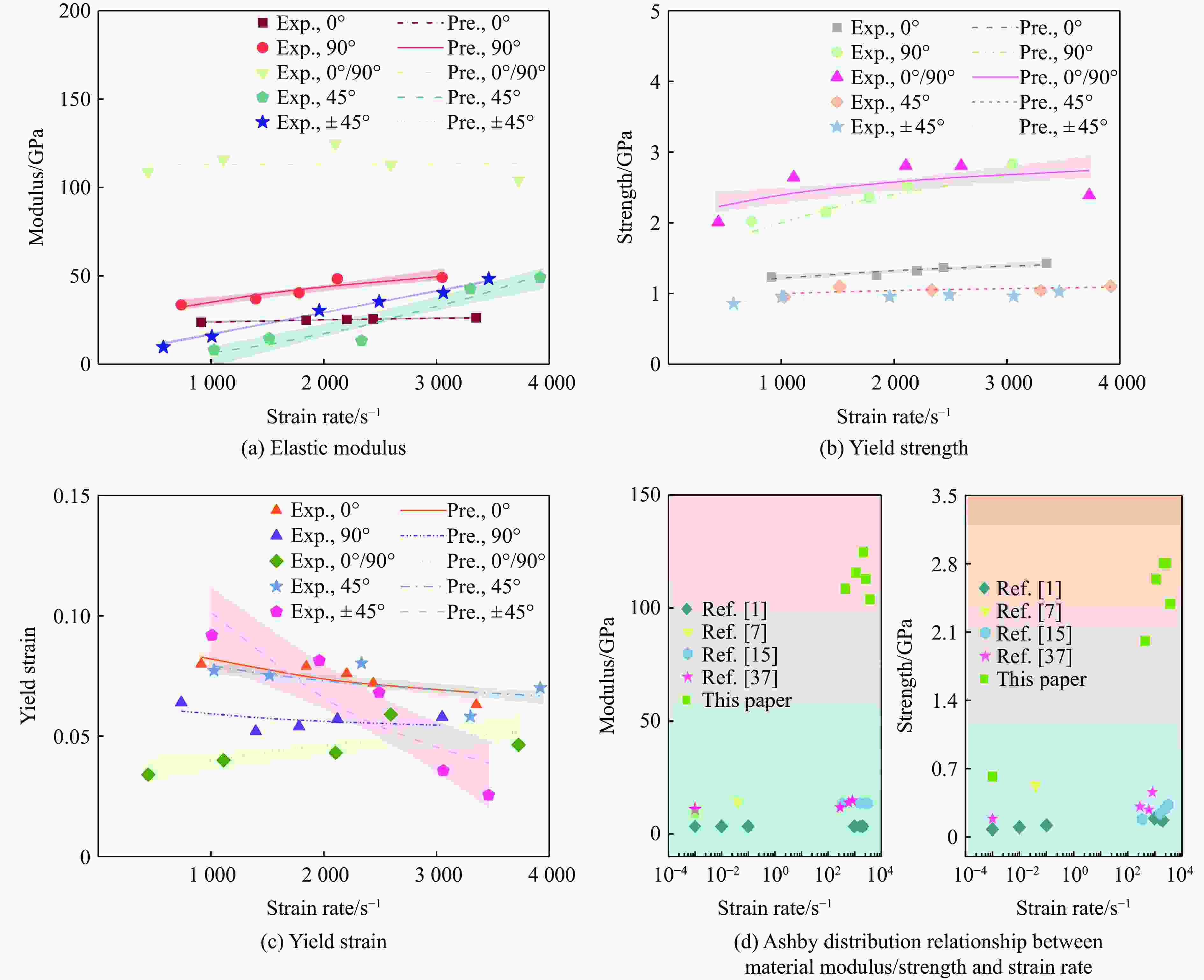

表 3 不同铺层角度下超薄CFRP复合材料的本构参数
Table 3. Constitutive parameters of ultrathin CFRP composites with different ply laws
$\mathit{\Phi }_{\text{d}}^{i} $ $ \mathit{\Phi }_{\text{s}}^{i} $/GPa $ \kappa $ $ {m}_{\mathit{\Phi }} $ $ {n}_{\mathit{\Phi }} $ $\mathit{\Phi }_{\text{d}}^{i} $ $ \mathit{\Phi }_{\text{s}}^{i} $/GPa $ \kappa $ $ {m}_{\mathit{\Phi }} $ $ {n}_{\mathit{\Phi }} $ $ E_{\text{d}}^{0\text{°}} $ 3.94 1 0.460 1.337 $ \sigma _{\text{d}}^{45\text{°}} $ 0.270 1 0.271 1.280 $ E_{\text{d}}^{90\text{°}} $ 8.55 1 1.682×10−4 5.491 $ \sigma _{\text{d}}^{\pm 45\text{°}} $ 0.372 1 0.074 1.664 $ E_{\text{d}}^{0\text{°}/90\text{°}} $ 8.93 1 11.074 0.029 $ \varepsilon _{\text{d}}^{0\text{°}} $ 0.10 −1 9.602 −0.929 $ E_{\text{d}}^{45\text{°}} $ 2.69 1 2.904×10−21 26.594 $ \varepsilon_{\text{d}}^{90\text{°}} $ 0.08 −1 3.742 −0.428 $ E_{\text{d}}^{\pm 45\text{°}} $ 3.68 1 9.392×10−11 13.604 $ \varepsilon _{\text{d}}^{0\text{°}/90\text{°}} $ 0.08 −1 0.274 0.952 $ \sigma _{\text{d}}^{0\text{°}} $ 0.264 1 0.081 2.121 $ \varepsilon _{\text{d}}^{45\text{°}} $ 0.20 −1 3.355 −0.489 $ \sigma _{\text{d}}^{90\text{°}} $ 0.446 1 0.001 4.505 $ \varepsilon _{\text{d}}^{\pm 45\text{°}} $ 0.24 −1 97.129 −2.357 $ \sigma _{\text{d}}^{0\text{°}/90\text{°}} $ 0.620 1 0.112 1.816
下载: 导出CSV
-
[1] YANG S P, WANG T T, ZHANG J N, et al. Characteristics of lamb wave dispersion in carbon fiber reinforced polymer laminates with arbitrary layup configurations [J]. Engineered Science, 2025, 39: 1944. doi: 10.30919/es1944 [2] SUN G Y, CHEN D D, ZHU G H, et al. Lightweight hybrid materials and structures for energy absorption: a state-of-the-art review and outlook [J]. Thin-Walled Structures, 2022, 172: 108760. doi: 10.1016/j.tws.2021.108760 [3] 赵昌方, FEDULOV B N, 刘浩. 层合碳纤维复合材料拉胀超结构的力学行为研究 [J]. 材料导报, 2026, 40(2): 25020163. doi: 10.11896/cldb.25020163ZHAO C F, FEDULOV B N, LIU H. Study on the mechanical behaviour of auxetic meta-structures made from laminated CFRP [J]. Materials Reports, 2026, 40(2): 25020163. doi: 10.11896/cldb.25020163 [4] ZHAO C F. Mechanical constitutive models of fiber reinforced plastics for finite element analysis [M]//VIZUREANU P. Composite Materials-Science and Engineering. London: IntechOpen Limited, 2024: 6-1–6-31. [5] FERREIRA J A M, OLIVEIRA S, SILVA J, et al. Effect of machining parameters on the mechanical properties of high dosage short—carbon-fiber reinforced composites [J]. Fracture and Structural Integrity, 2019, 13(48): 249–256. doi: 10.3221/IGF-ESIS.48.26 [6] ZHAO C F, ZHOU Z T, ZHAO C X, et al. Research on compression properties of unidirectional carbon fiber reinforced epoxy resin composite (UCFREP) [J]. Journal of Composite Materials, 2021, 55(11): 1447–1458. doi: 10.1177/0021998320972176 [7] ZHAO C F, REN R, SUN C B, et al. Compression mechanics for carbon-fiber reinforced epoxy resin composites under inplane and out-of-plane quasi-static and dynamic loadings [J]. Mechanics of Composite Materials, 2023, 59(3): 507–520. doi: 10.1007/s11029-023-10112-y [8] EKŞI S, GENEL K. Comparison of mechanical properties of unidirectional and woven carbon, glass and aramid fiber reinforced epoxy composites [J]. Acta Physica Polonica A, 2017, 132(3-Ⅱ): 879–882. doi: 10.12693/APhysPolA.132.879 [9] CHEN X M, CHEN L, ZHANG C Y, et al. Three-dimensional needle-punching for composites—a review [J]. Composites Part A: Applied Science and Manufacturing, 2016, 85: 12–30. doi: 10.1016/j.compositesa.2016.03.004 [10] REN J, LIU S J, WANG J H, et al. Energy absorption characteristics of CFRP-aluminum foam composite structure under high-velocity impact: focusing on varying aspect ratios and relative densities [J]. Polymers, 2025, 17(15): 2162. doi: 10.3390/polym17152162 [11] ZHAO C F, ZHONG J L, WANG H X, et al. Impact behaviour and protection performance of a CFRP NPR skeleton filled with aluminum foam [J]. Materials & Design, 2024, 246: 113295. doi: 10.1016/j.matdes.2024.113295 [12] ZHANG J, LIN G, VAIDYA U, et al. Past, present and future prospective of global carbon fibre composite developments and applications [J]. Composites Part B: Engineering, 2023, 250: 110463. doi: 10.1016/j.compositesb.2022.110463 [13] MAMALIS A G, MANOLAKOS D E, IOANNIDIS M B, et al. On the response of thin-walled CFRP composite tubular components subjected to static and dynamic axial compressive loading: experimental [J]. Composite Structures, 2005, 69(4): 407–420. doi: 10.1016/j.compstruct.2004.07.021 [14] KARGER-KOCSIS J, MAHMOOD H, PEGORETTI A. Recent advances in fiber/matrix interphase engineering for polymer composites [J]. Progress in Materials Science, 2015, 73: 1–43. doi: 10.1016/j.pmatsci.2015.02.003 [15] ZHAO C F, ZHONG J L, WANG H X, et al. Complete constitutive model of CFRP including continuous damage in low strain rate compression and temperature generation in high strain rate impact [J]. Polymer Composites, 2024, 45(5): 3965–3989. doi: 10.1002/pc.28037 [16] ZHONG J L, ZHAO C F, REN J, et al. A constitutive model for carbon fiber reinforced epoxy resin laminate under compression load: considering the initial non-linearity [J]. Applied Composite Materials, 2022, 29(2): 629–649. doi: 10.1007/s10443-021-09979-8 [17] ZHANG M H, YU Y L, LI L, et al. A molecular dynamics assisted insight on damping enhancement in carbon fiber reinforced polymer composites with oriented multilayer graphene oxide coatings [J]. Microstructures, 2024, 4: 2024051. doi: 10.20517/microstructures.2024.29 [18] DAEI-SORKHABI A H, HOSSEINZADEH-NODEHI S F. Numerical study of the effect of carbon fiber/epoxy resin adhesive thickness on the creep behaviour of carbon steel plate joints [J]. Journal of Adhesion Science and Technology, 2019, 33(16): 1790–1805. doi: 10.1080/01694243.2019.1613946 [19] BUI T Q, HU X F. A review of phase-field models, fundamentals and their applications to composite laminates [J]. Engineering Fracture Mechanics, 2021, 248: 107705. doi: 10.1016/j.engfracmech.2021.107705 [20] HARLE S M. Durability and long-term performance of fiber reinforced polymer (FRP) composites: a review [J]. Structures, 2024, 60: 105881. doi: 10.1016/j.istruc.2024.105881 [21] ZHANG K B, LI W B, ZHENG Y, et al. Dynamic constitutive model of ultra-high molecular weight polyethylene (UHMWPE): considering the temperature and strain rate effects [J]. Polymers, 2020, 12(7): 1561. doi: 10.3390/polym12071561 [22] OCHOLA R O, MARCUS K, NURICK G N, et al. Mechanical behaviour of glass and carbon fibre reinforced composites at varying strain rates [J]. Composite Structures, 2004, 63(3/4): 455–467. doi: 10.1016/S0263-8223(03)00194-6 [23] SONG Z H, WANG Z H, MA H W, et al. Mechanical behavior and failure mode of woven carbon/epoxy laminate composites under dynamic compressive loading [J]. Composites Part B: Engineering, 2014, 60: 531–536. doi: 10.1016/j.compositesb.2013.12.060 [24] SCHMACK T, FILIPE T, DEINZER G, et al. Experimental and numerical investigation of the strain rate-dependent compression behaviour of a carbon-epoxy structure [J]. Composite Structures, 2018, 189: 256–262. doi: 10.1016/j.compstruct.2017.11.025 [25] CHOCRON S, CARPENTER A J, SCOTT N L, et al. Impact on carbon fiber composite: ballistic tests, material tests, and computer simulations [J]. International Journal of Impact Engineering, 2019, 131: 39–56. doi: 10.1016/j.ijimpeng.2019.05.002 [26] 赵昌林, 何永明. 平纹碳纤维复合材料拉伸及环氧树脂压缩力学实验研究 [J]. 兵器装备工程学报, 2022, 43(6): 309–316. doi: 10.11809/bqzbgcxb2022.06.047ZHAO C L, HE Y M. Tensile properties of plain woven carbon fiber reinforced composite and compressive behaviors of epoxy resin: an experimental investigation [J]. Journal of Ordnance Equipment Engineering, 2022, 43(6): 309–316. doi: 10.11809/bqzbgcxb2022.06.047 [27] YAMAZAKI Y, KOYANAGI J, SAWAMURA Y, et al. Numerical simulation of dynamic failure behavior for cylindrical carbon fiber reinforced polymer [J]. Composite Structures, 2018, 203: 934–942. doi: 10.1016/j.compstruct.2018.06.075 [28] IVANČEVIĆ D, RATKOVIĆ J, GIANNAROS E. Strain rate-dependent failure modelling of impact damage in laminated CFRP structures [J]. Composite Structures, 2024, 330: 117817. doi: 10.1016/j.compstruct.2023.117817 [29] MASSAQ A, RUSINEK A, KLOSAK M, et al. Strain rate effect on the mechanical behavior of polyamide composites under compression loading [J]. Composite Structures, 2019, 214: 114–122. doi: 10.1016/j.compstruct.2019.01.101 [30] REDDY S B K, JAGADEESH G V, KRISHNA T S. Effect of fiber orientation and ply thickness on mechanical behavior of laminated composites [M]//RAJKUMAR K, JAYAMANI E, RAMKUMAR P. Recent Advances in Materials Technologies. Singapore: Springer, 2023: 259−265. [31] REN M F, LIU Y P, HAN Y Z, et al. Study on tensile properties of ultra-thin-ply carbon fiber-reinforced composite laminates under static load [J]. Polymer Composites, 2024, 45(10): 9079–9087. doi: 10.1002/pc.28395 [32] LIU H L, MA X Q, JIANG L, et al. Effect of ply thickness on tensile and bending performances of carbon fiber reinforced thermoplastic unidirectional laminate [J]. Polymer Composites, 2023, 44(3): 1889–1901. doi: 10.1002/pc.27212 [33] LAUX T, GAN K W, DULIEU-BARTON J M, et al. Ply thickness and fibre orientation effects in multidirectional composite laminates subjected to combined tension/compression and shear [J]. Composites Part A: Applied Science and Manufacturing, 2020, 133: 105864. doi: 10.1016/j.compositesa.2020.105864 [34] UNGER R, EXNER W, ARASH B, et al. Non-linear viscoelasticity of epoxy resins: molecular simulation-based prediction and experimental validation [J]. Polymer, 2019, 180: 121722. doi: 10.1016/j.polymer.2019.121722 [35] 赵昌方. 一种碳纤维复合材料拉胀超结构的冲击动力学行为研究 [J]. 航空制造技术, 2025, 68(12): 24–31. doi: 10.16080/j.issn1671-833x.2025.12.024ZHAO C F. Study on impact dynamics behavior of an auxetic meta-structure made from carbon fiber reinforced composites [J]. Aeronautical Manufacturing Technology, 2025, 68(12): 24–31. doi: 10.16080/j.issn1671-833x.2025.12.024 [36] 邹凯, 刘峥, 赵昌方, 等. 不同温度下环氧树脂的高应变率冲击行为研究 [J]. 复合材料科学与工程, 2025(8): 1–7. doi: 10.19936/j.cnki.2096-8000.20250828.001ZOU K, LIU Z, ZHAO C F, et al. High strain rate impact behaviour of epoxy resins at different temperatures [J]. Composites Science and Engineering, 2025(8): 1–7. doi: 10.19936/j.cnki.2096-8000.20250828.001 [37] 林作泓, 高玉波, 卢涛. 碳纤维复合材料层合板的动态力学性能及失效机制 [J]. 中北大学学报(自然科学版), 2024, 45(4): 550–556. doi: 10.3969/j.issn.1673-3193.2024.04.017LIN Z H, GAO Y B, LU T. Dynamic mechanical property and failure mechanism of carbon fiber composite laminates [J]. Journal of North University of China (Natural Science Edition), 2024, 45(4): 550–556. doi: 10.3969/j.issn.1673-3193.2024.04.017 -
