高纯菱方相C<sub>60</sub>聚合物的高温高压合成

来守龙; 杨西贵

doi:10.11858/gywlxb.20251255

高纯菱方相C₆₀聚合物的高温高压合成

doi: 10.11858/gywlxb.20251255

来守龙,
杨西贵^*, ,

郑州大学物理学院河南省金刚石材料与器件重点实验室, 河南郑州　450001

基金项目: 国家自然科学基金（62422408，12374016）

详细信息

作者简介:
来守龙（1998－），男，博士研究生，主要从事高压科学与金刚石材料研究. E-mail：laisl@gs.zzu.edu.cn

通讯作者:
杨西贵（1990－），男，博士，教授，主要从事金刚石材料与器件研究. E-mail：yangxg@zzu.edu.cn

中图分类号: O521.2
计量
- 文章访问数: 1448
- HTML全文浏览量: 577
- PDF下载量: 105
出版历程
- 收稿日期: 2025-11-10
- 修回日期: 2026-01-19
- 网络出版日期: 2026-01-21
- 刊出日期: 2026-09-05

High-Temperature and High-Pressure Synthesis of High-Purity Rhombohedral C₆₀ Polymer

LAI Shoulong,
YANG Xigui^{*
, ,}

Henan Key Laboratory of Diamond Materials and Devices, School of Physics, Zhengzhou University, Zhengzhou 450001, Henan, China

摘要

摘要: 菱方相C₆₀聚合物在二维材料及催化等领域有着重要的应用潜力，然而，高纯度、高质量的菱方相C₆₀聚合物制备仍然难以实现。在650 ℃、6 GPa的温压条件下成功合成了菱方相C₆₀聚合物，利用X射线衍射、拉曼光谱、X射线光电子能谱及球差校正透射电子显微镜等分析手段，确认所合成样品为高纯二维菱方相结构。探究了压力和温度（6～10 GPa、650～800 ℃）对C₆₀聚合的影响，明确了菱方相与无序非晶碳簇之间的相变边界。变温拉曼光谱测试结果表明：该菱方相C₆₀聚合物在约350 ℃以下保持稳定，超出此温度将发生解聚，恢复为原始面心立方结构C₆₀分子。本研究为高质量菱方相C₆₀聚合物的合成提供了明确的工艺窗口，为其在功能材料领域的进一步应用奠定了实验基础。
- C₆₀ /
- 高温高压 /
- 菱方相 /
- 聚合 /
- 相变
Abstract: Rhombohedral C₆₀ polymer holds significant potential for applications in two-dimensional materials and catalysis, yet the synthesis of high-purity, high-quality rhombohedral C₆₀ remains challenging. In this study, rhombohedral C₆₀ polymer was successfully synthesized under conditions of 6 GPa and 650 ℃. The obtained sample was confirmed to be a high-purity two-dimensional rhombohedral phase through characterization techniques including X-ray diffraction, Raman spectroscopy, X-ray photoelectron spectroscopy, and aberration-corrected transmission electron microscopy. The effects of pressure and temperature (6–10 GPa, 650–800 ℃) on the polymerization of C₆₀ were investigated, clarifying the phase boundary between the rhombohedral phase and disordered amorphous carbon clusters. Variable-temperature Raman spectroscopy revealed that the rhombohedral C₆₀ polymer remains stable up to about 350 ℃, beyond which it depolymerizes and reverts to the original face-centered cubic C₆₀ molecules. This work provides a clear processing window for the synthesis of high-quality rhombohedral C₆₀ polymer, laying an experimental foundation for its further application in functional materials.
- C₆₀ /
- high-temperature and high-pressure /
- rhombohedral phase /
- polymerization /
- phase transition

HTML全文

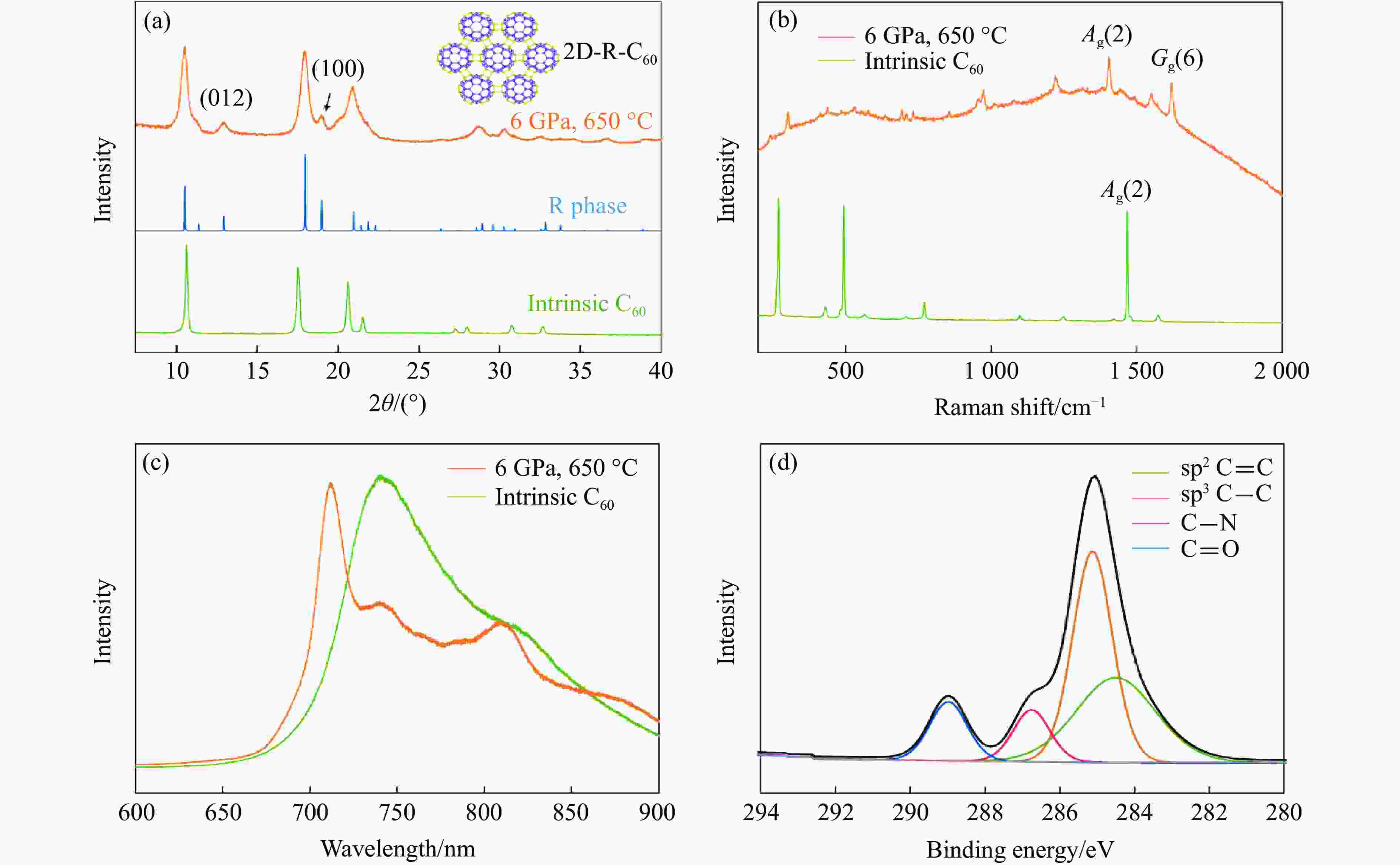

图 1 R-C₆₀聚合物表征：(a) XRD谱图（插图：原子结构示意图），理论图谱出自参考文献[14]；(b) 室温下532 nm激光激发的Raman光谱；(c) 室温下532 nm激光激发的PL光谱；(d) C1s XPS谱图

Figure 1. Characterization of R-C₆₀ polymer: (a) XRD pattern (Inset: schematic diagram of the atomic structure), the theoretical pattern is from Ref. [14]; (b) Raman spectrum excited by a 532 nm laser at room temperature; (c) PL spectrum excited by a 532 nm laser at room temperature; (d) C1s XPS spectrum

下载: 全尺寸图片幻灯片

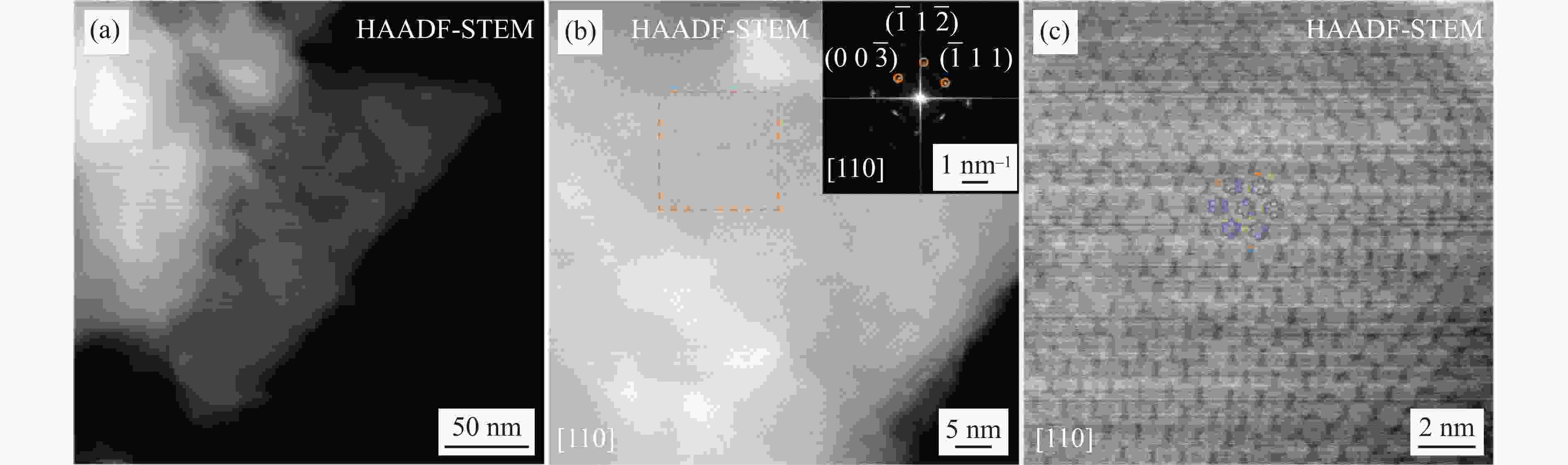

图 2 R-C₆₀聚合物的结构表征：(a) 用于STEM观测的R-C₆₀的典型薄片图像；(b) 薄片放大倍率的HAADF-STEM图像及其FFT（插图）图谱；(c)原子分辨的HAADF-STEM图像（对应图2(b)橙色框区域，插图为R-C₆₀聚合物的晶体结构模型）

Figure 2. Structural characterization of R-C₆₀ polymer: (a) typical flake of R-C₆₀ used for STEM observation; (b) magnified HAADF-STEM image of the flake and its corresponding FFT pattern (inset); (c) atomically resolved HAADF-STEM image (Corresponding to the orange box in Fig. 2(b); the inset shows the crystal structure model of R-C₆₀ polymer.)

下载: 全尺寸图片幻灯片

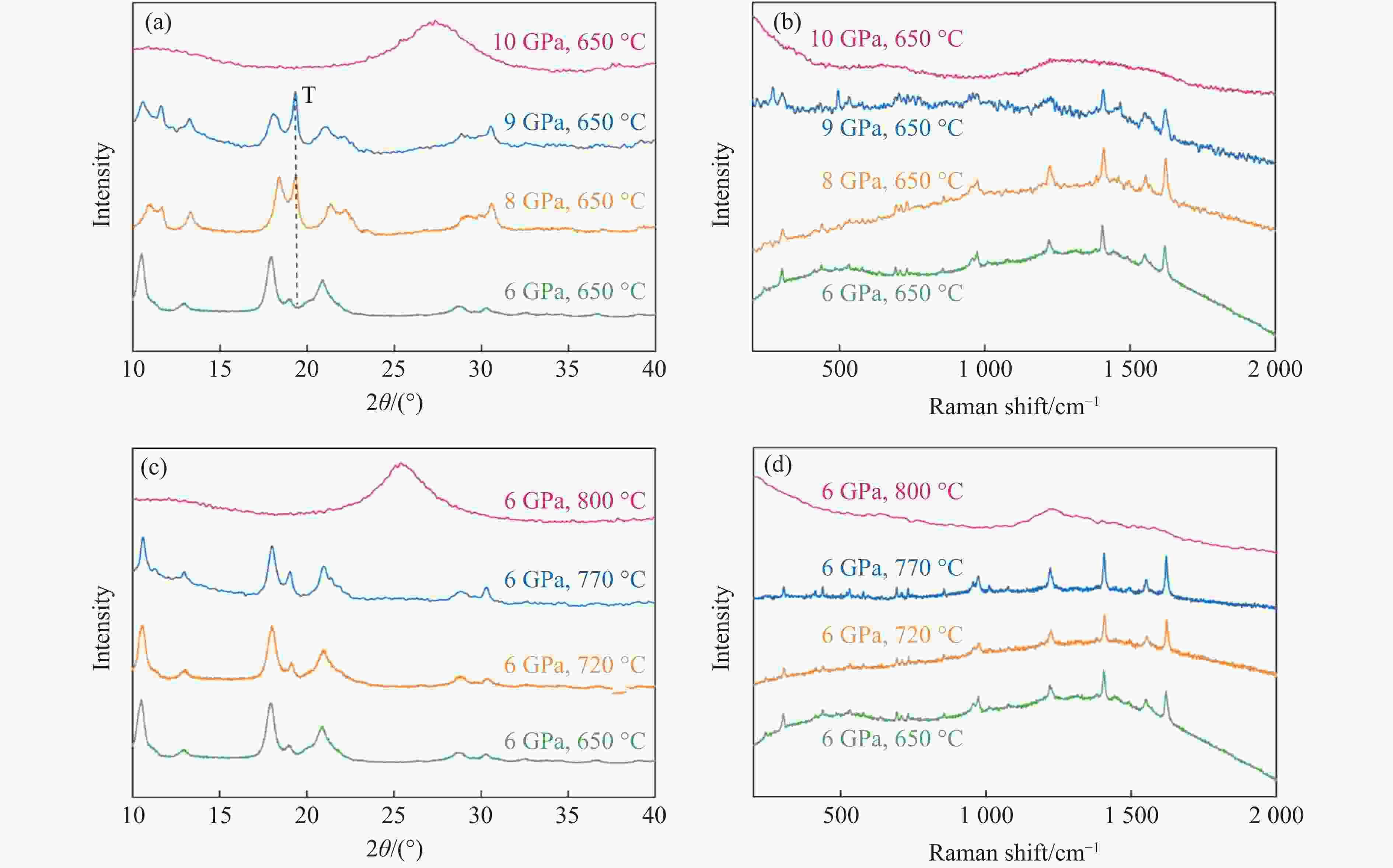

图 3 不同温压条件合成R-C₆₀聚合物的表征：(a) 650 ℃、不同压力下的XRD谱；(b) 650 ℃、不同压力下的Raman光谱；(c) 6 GPa、不同温度下的XRD谱；(d) 6 GPa、不同温度下的Raman光谱

Figure 3. Characterization of R-C₆₀ polymer synthesized under varying p-T conditions: (a) XRD patterns at 650 ℃ under different pressures; (b) Raman spectra at 650 ℃ under different pressures; (c) XRD patterns at 6 GPa under different temperatures; (d) Raman spectra at 6 GPa under different temperature

下载: 全尺寸图片幻灯片

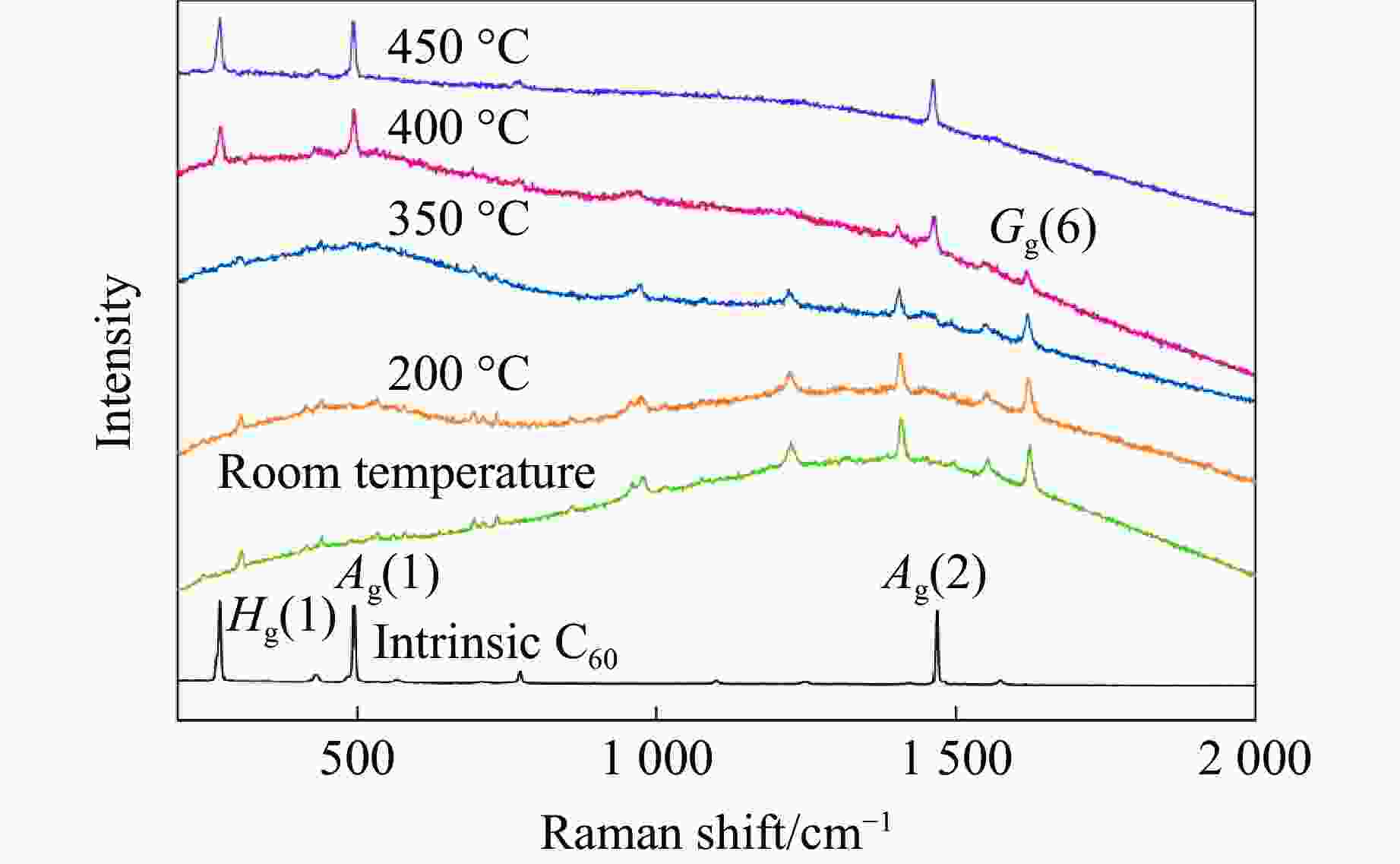

图 4 532 nm激光激发下R-C₆₀聚合物的变温Raman光谱

Figure 4. Temperature-dependent Raman spectra of R-C₆₀ polymer excited by 532 nm laser

下载: 全尺寸图片幻灯片

参考文献(22)

[1]	SUNDQVIST B. Carbon under pressure [J]. Physics Reports, 2021, 909(2021): 1–73. doi: 10.1038/s41586-021-04122-w
[2]	MEIRZADEH E, EVANS A M, REZAEE M, et al. A few-layer covalent network of fullerenes [J]. Nature, 2023, 613(7942): 71–76. doi: 10.1038/s41586-022-05401-w
[3]	WANG T T, ZHANG L, WU J B, et al. Few-layer fullerene network for photocatalytic pure water splitting into H₂ and H₂O₂ [J]. Angewandte Chemie International Edition, 2023, 62(40): e202311352. doi: 10.1002/anie.202311352
[4]	PAN F, NI K, XU T, et al. Long-range ordered porous carbons produced from C₆₀ [J]. Nature, 2023, 614(7946): 95–101. doi: 10.1038/s41586-022-05532-0
[5]	HOU L X, CUI X P, GUAN B, et al. Synthesis of a monolayer fullerene network [J]. Nature, 2022, 606(7914): 507–510. doi: 10.1038/s41586-022-04771-5
[6]	PEI C Y, WANG L. Recent progress on high-pressure and high-temperature studies of fullerenes and related materials [J]. Matter and Radiation at Extremes, 2019, 4(2): 028201. doi: 10.1063/1.5086310
[7]	BORISOVA P A, BLANTER M S, BRAZHKIN V V, et al. Phase transformations in amorphous fullerite C₆₀ under high pressure and high temperature [J]. Journal of Physics and Chemistry of Solids, 2015, 83: 104–108. doi: 10.1016/j.jpcs.2015.04.001
[8]	ZHANG S S, WU Y J, LUO K, et al. Narrow-gap, semiconducting, superhard amorphous carbon with high toughness, derived from C₆₀ fullerene [J]. Cell Reports Physical Science, 2021, 2(9): 100575. doi: 10.1016/j.xcrp.2021.100575
[9]	IWASA Y, ARIMA T, ROTHBERG L J, et al. Pressure-induced cross-linking of C₆₀ [J]. Synthetic Metals, 1995, 70(1/2/3): 1407–1408. doi: 10.1016/0379-6779(94)02898-9
[10]	BLANK V D, BUGA S G, SEREBRYANAYA N R, et al. Phase transformations in solid C₆₀ at high-pressure-high-temperature treatment and the structure of 3D polymerized fullerites [J]. Physics Letters A, 1996, 220(1/2/3): 149–157. doi: 10.1016/0375-9601(96)00483-5
[11]	BRAZHKIN V V, LYAPIN A G. Hard and superhard carbon phases synthesized from fullerites under pressure [J]. Journal of Superhard Materials, 2012, 34(6): 400–423. doi: 10.3103/S1063457612060135
[12]	ÁLVAREZ-MURGA M, HODEAU J L. Structural phase transitions of C₆₀ under high-pressure and high-temperature [J]. Carbon, 2015, 82: 381–407. doi: 10.1016/j.carbon.2014.10.083
[13]	MORET R, LAUNOIS P, WÅGBERG T, et al. High-pressure synthesis, structural and Raman studies of a two-dimensional polymer crystal of C₆₀ [J]. The European Physical Journal B, 2000, 15(2): 253–263. doi: 10.1007/s100510051123
[14]	NÚÑEZ-REGUEIRO M, MARQUES L, HODEAU J L, et al. Polymerized fullerite structures [J]. Physical Review Letters, 1995, 74(2): 278–281. doi: 10.1103/PhysRevLett.74.278
[15]	MARQUES L, HODEAU J L, NÚÑEZ-REGUEIRO M, et al. Pressure and temperature diagram of polymerized fullerite [J]. Physical Review B, 1996, 54(18): R12633–R12636. doi: 10.1103/PhysRevB.54.R12633
[16]	DAVYDOV V A, KASHEVAROVA L S, RAKHMANINA A V, et al. Spectroscopic study of pressure-polymerized phases of C₆₀ [J]. Physical Review B-Condensed Matter and Complex Systems, 2000, 61(18): 11936–11945. doi: 10.1007/PL00011040
[17]	MELETOV K P, KOUROUKLIS G A. Photoluminescence study of the planar polymers of C₆₀ at high pressure [J]. Chemical Physics Letters, 2005, 403(4/5/6): 338–342. doi: 10.1016/j.cplett.2005.01.029
[18]	YANNONI C S, JOHNSON R D, MEIJER G, et al. Carbon-13 NMR study of the C₆₀ cluster in the solid state: molecular motion and carbon chemical shift anisotropy [J]. The Journal of Physical Chemistry, 1991, 95(1): 9–10. doi: 10.1021/j100154a005
[19]	HEINEY P A, FISCHER J E, MCGHIE A R, et al. Orientational ordering transition in solid C₆₀ [J]. Physical Review Letters, 1991, 66(22): 2911–2914. doi: 10.1103/PhysRevLett.66.2911
[20]	DZWILEWSKI A, TALYZIN A, BROMILEY G, et al. Characterization of phases synthesized close to the boundary of C₆₀ collapse at high temperature high pressure conditions [J]. Diamond and Related Materials, 2007, 16(8): 1550–1556. doi: 10.1016/j.diamond.2006.12.040
[21]	MELETOV K P, ARVANITIDIS J, CHRISTOFILOS D, et al. Raman study of the temperature-induced decomposition of the two-dimensional rhombohedral polymer of C₆₀ and the intermediate states formed [J]. Carbon, 2010, 48(10): 2974–2979. doi: 10.1016/j.carbon.2010.04.039
[22]	NAGEL P, PASLER V, LEBEDKIN S, et al. C₆₀ one- and two-dimensional polymers, dimers, and hard fullerite: thermal expansion, anharmonicity, and kinetics of depolymerization [J]. Physical Review B, 1999, 60(24): 16920–16927. doi: 10.1103/PhysRevB.60.16920
