金属射流冲击传爆用聚能罩结构和稳定传爆距离仿真计算研究

王馨悦; 王晨龙; 李志强

doi:10.11858/gywlxb.20251230

金属射流冲击传爆用聚能罩结构和稳定传爆距离仿真计算研究

doi: 10.11858/gywlxb.20251230

王馨悦^1,,
王晨龙^{1, 2, 3, 4,*, ,},
李志强^{1, 2, 3, 4}

1.
太原理工大学航空航天学院, 山西太原　030024
2.
太原理工大学材料强度与结构冲击山西省重点实验室, 山西太原　030024
3.
太原理工大学山西省力学基础学科研究中心, 山西太原　030024
4.
太原理工大学力学国家级实验教学示范中心, 山西太原　030024

基金项目: 国家自然科学基金（11972244）

详细信息

作者简介:
王馨悦（2000－），女，硕士研究生，主要从事爆炸力学及其应用研究. E-mail：1209012780@qq.com

通讯作者:
王晨龙（1988－），男，博士，讲师，主要从事冲击动力学及爆炸力学研究. E-mail：wangchenlong@tyut.edu.cn

中图分类号: O358; O521.9
计量
- 文章访问数: 874
- HTML全文浏览量: 246
- PDF下载量: 80
出版历程
- 收稿日期: 2025-10-20
- 修回日期: 2025-12-05
- 网络出版日期: 2025-12-16

Simulation and Calculation Study on Shaped Charge Liner Structure for Metal Jet Impact Detonation Propagation and Stable Detonation Propagation Distance

WANG Xinyue^1
,,
WANG Chenlong^{1, 2, 3, 4,*
, ,},
LI Zhiqiang^{1, 2, 3, 4}

1.
School of Aeronautics and Astronautics, Taiyuan University of Technology, Taiyuan 030024, Shanxi, China
2.
Shanxi Provincial Key Laboratory of Material Strength and Structural Impact, Taiyuan University of Technology, Taiyuan 030024, Shanxi, China
3.
Shanxi Provincial Research Center for Basic Disciplines of Mechanics, Taiyuan University of Technology, Taiyuan 030024, Shanxi, China
4.
National Experimental Teaching Demonstration Center of Mechanics, Taiyuan University of Technology, Taiyuan 030024, Shanxi, China

摘要

摘要: 切顶卸压沿空留巷技术在煤矿开采中广泛应用，其预裂爆破采用分段空气间隔装药结构，每段药柱需配备单独雷管起爆，存在单孔雷管用量大、成本高、操作复杂及安全风险突出等问题。为解决此瓶颈，提出将金属聚能射流冲击传爆技术应用于复合顶板预裂爆破。通过 LS-DYNA 系统开展了药型罩结构优化、金属射流冲击传爆影响因素分析以及稳定传爆距离研究。结果表明：铝制药型罩的综合性能最优，当锥角为60°、壁厚为1 mm 时，可形成速度高、长度长且连续性良好的聚能射流；铜制药型罩因强度高、压垮能量阈值大，在低威力装药条件下难以形成有效射流；铅制药型罩虽易驱动，但射流稳定性差、易断裂；当装药长径比大于3时，有效装药量达到饱和，新增装药的能量多通过径向膨胀和热耗散损失，射流的最高速度和稳定速度均趋于稳定；在空气自由场中，锥角为60°、壁厚为1 mm的铝制药型罩射流的冲击传爆可靠距离上限为 90 cm，超过此距离，射流拉伸衰减导致压力不足，无法起爆乳化炸药；钢管等密闭约束可显著抑制爆轰产物的径向膨胀，提升能量利用率，进而延长药型罩金属射流冲击传爆距离。
- 金属射流 /
- 冲击传爆 /
- 药型罩结构 /
- 分段装药 /
- 稳定传爆 /
- 乳化炸药
Abstract: Gob-side entry retaining by roof cutting and pressure relief is widely employed in coal mining. However, the multi-segment air-decked charge structure used in its pre-splitting blasting requires a separate detonator for each charge segment, leading to problems such as high detonator consumption per borehole, elevated costs, operational complexity, and significant safety risks. To address this engineering challenge, the application of shaped metal jet impact-induced initiation technology in composite roof pre-splitting blasting has been proposed. Using LS-DYNA numerical simulation, a systematic investigation was conducted on liner structure optimization, factors affecting metal jet impact initiation, and the stable initiation distance. The findings demonstrate that the aluminum liner exhibits the optimal overall performance. With a cone angle of 60° and a wall thickness of 1 mm, it generates a shaped jet with high velocity, considerable length, and good continuity. In contrast, the copper liner, due to its high strength and high collapse energy threshold, fails to form an effective jet under low-power explosive charge conditions. Although the lead liner is readily accelerated, it produces jets with poor stability that are susceptible to necking and fragmentation. When the charge length-to-diameter ratio exceeds 3, the effective charge mass reaches saturation. Additional explosive energy is primarily dissipated through radial expansion and heat loss, resulting in the stabilization of both the maximum jet velocity and stable jet velocity. In an unconfined air environment, the maximum reliable initiation distance for a shaped jet from an aluminum liner (1 mm wall thickness, 60° cone angle) is 90 cm. Beyond this distance, jet stretching and attenuation lead to insufficient pressure to initiate the emulsion explosive. Confinement provided by steel pipes can significantly suppress the radial expansion of detonation products, enhancing energy utilization efficiency and consequently extending the initiation distance of the metal jet.
- metal jet /
- impact initiation /
- liner structure /
- decked charge /
- stable initiation /
- emulsion explosive

HTML全文

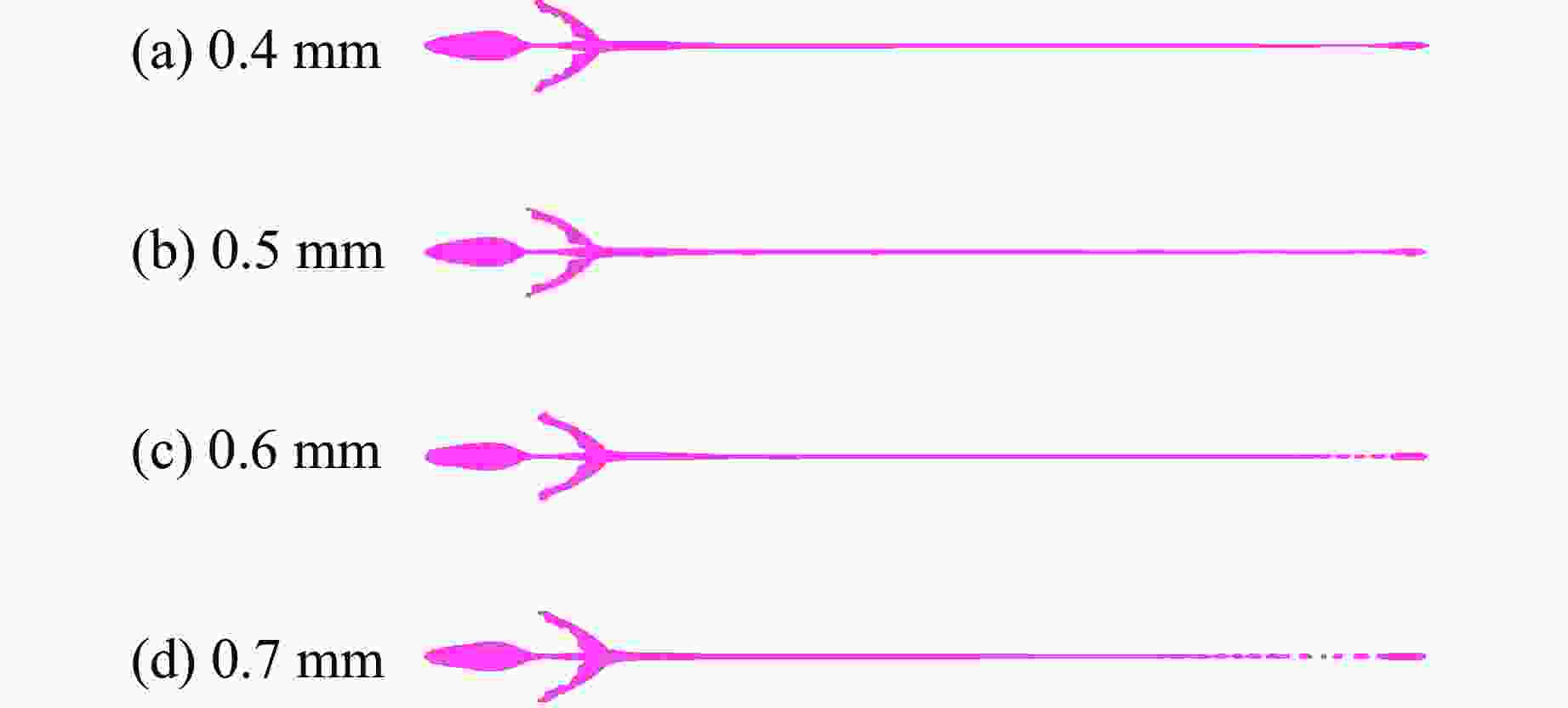

图 1 不同网格尺寸下同一时刻的射流形态

Figure 1. Jet morphologies at the same time under different element sizes

下载: 全尺寸图片幻灯片

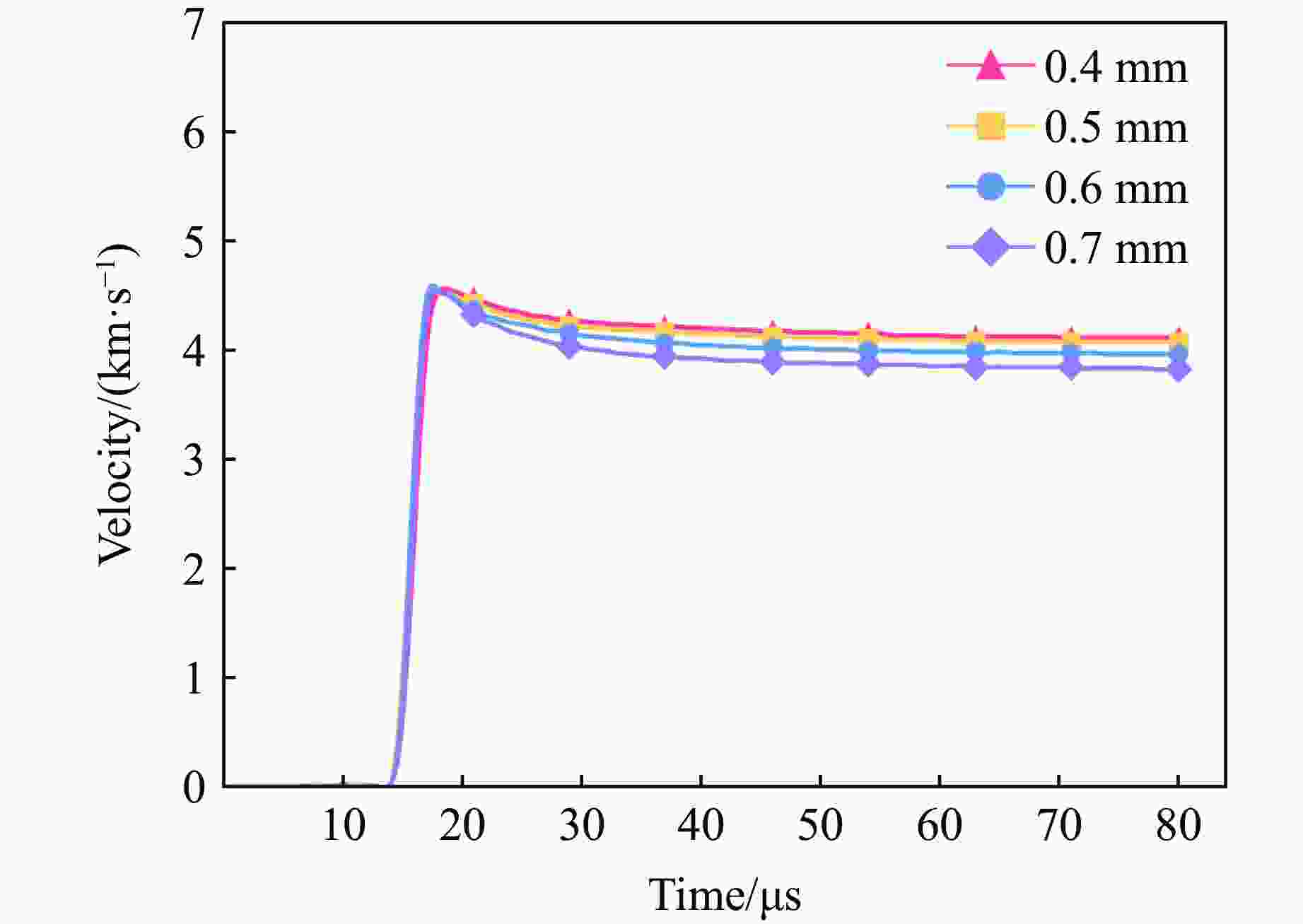

图 2 不同网格尺寸下射流头部速度曲线

Figure 2. Jet tip velocity curves under different element sizes

下载: 全尺寸图片幻灯片

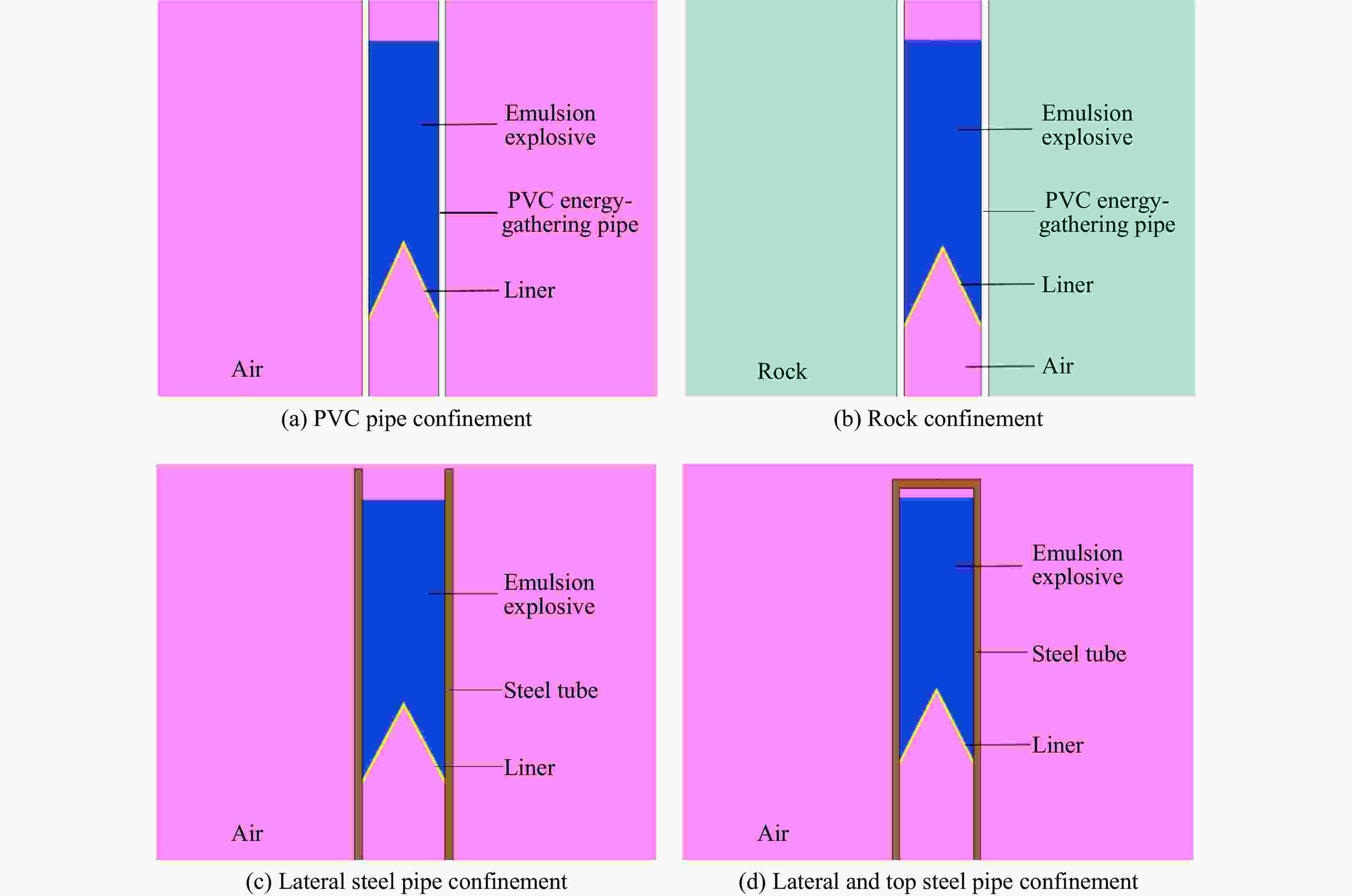

图 3 不同约束条件下模型示意图

Figure 3. Schematic diagram of the models under different constraint environments

下载: 全尺寸图片幻灯片

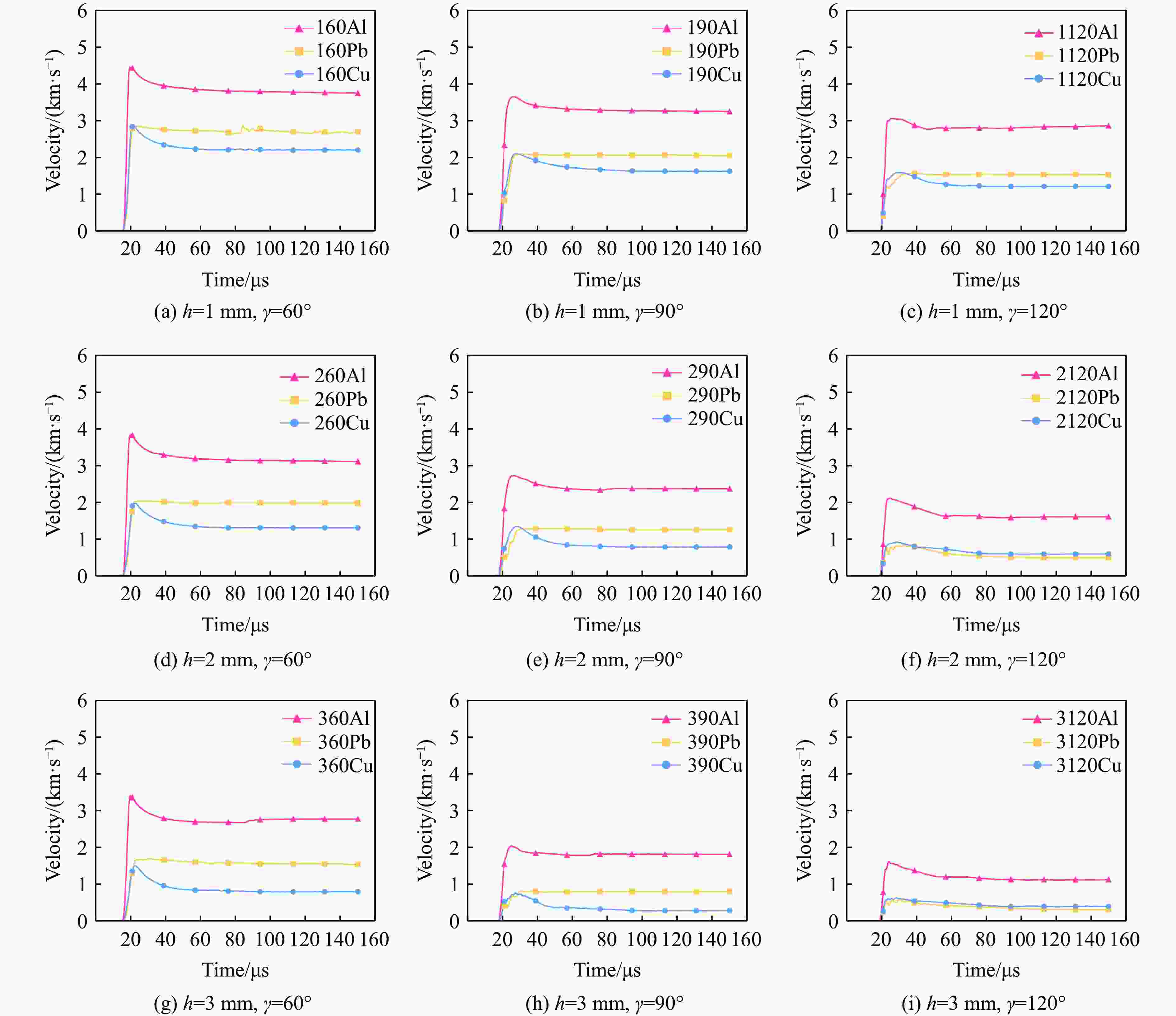

图 4 不同结构下射流在同一时刻的长度和形态

Figure 4. Length and morphology of the jet at the same time under different working conditions

下载: 全尺寸图片幻灯片

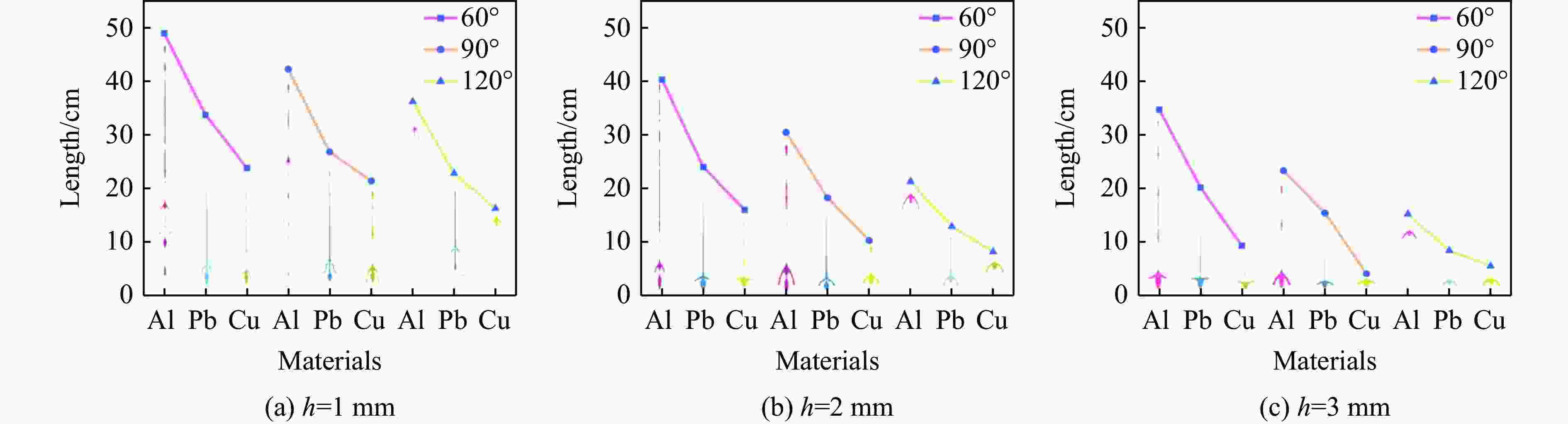

图 5 同一时刻不同药型罩形成的射流长度

Figure 5. Lengths of jet formed by different liners at the same time

下载: 全尺寸图片幻灯片

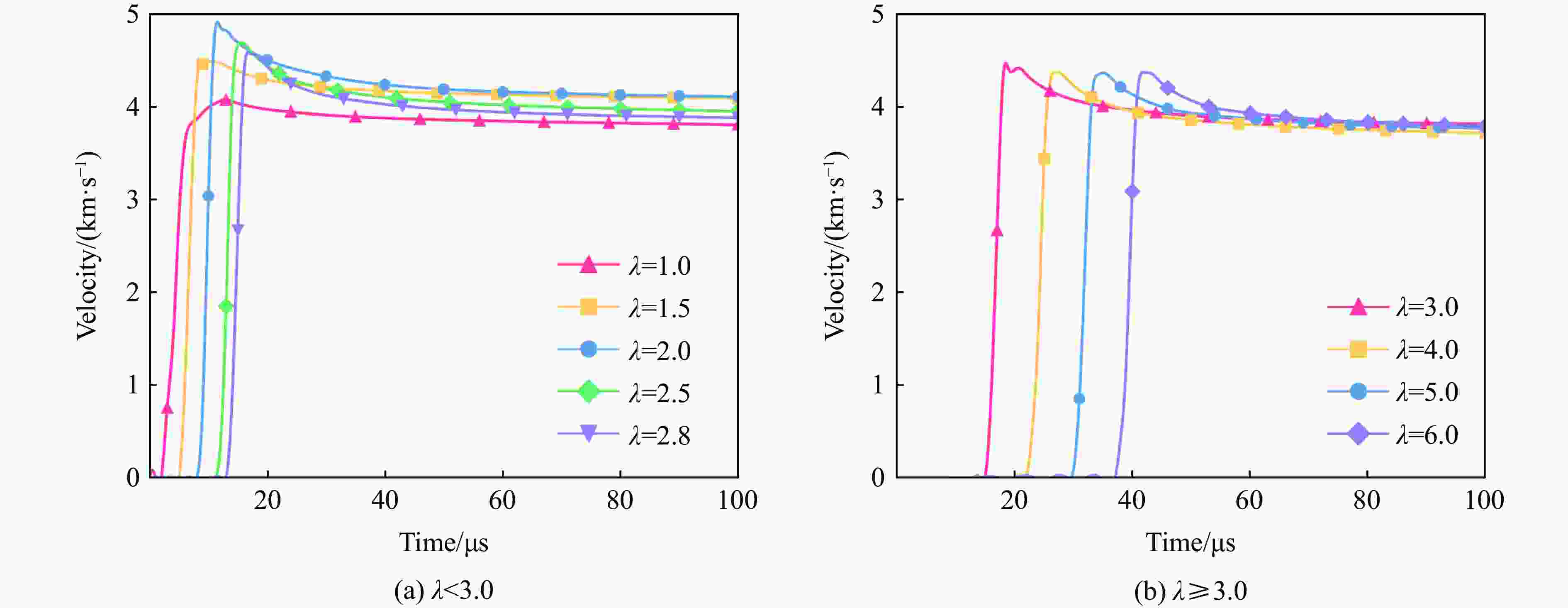

图 6 不同长径下射流头部速度曲线

Figure 6. Velocity curves of the jet tip under different length-to-diameter ratios

下载: 全尺寸图片幻灯片

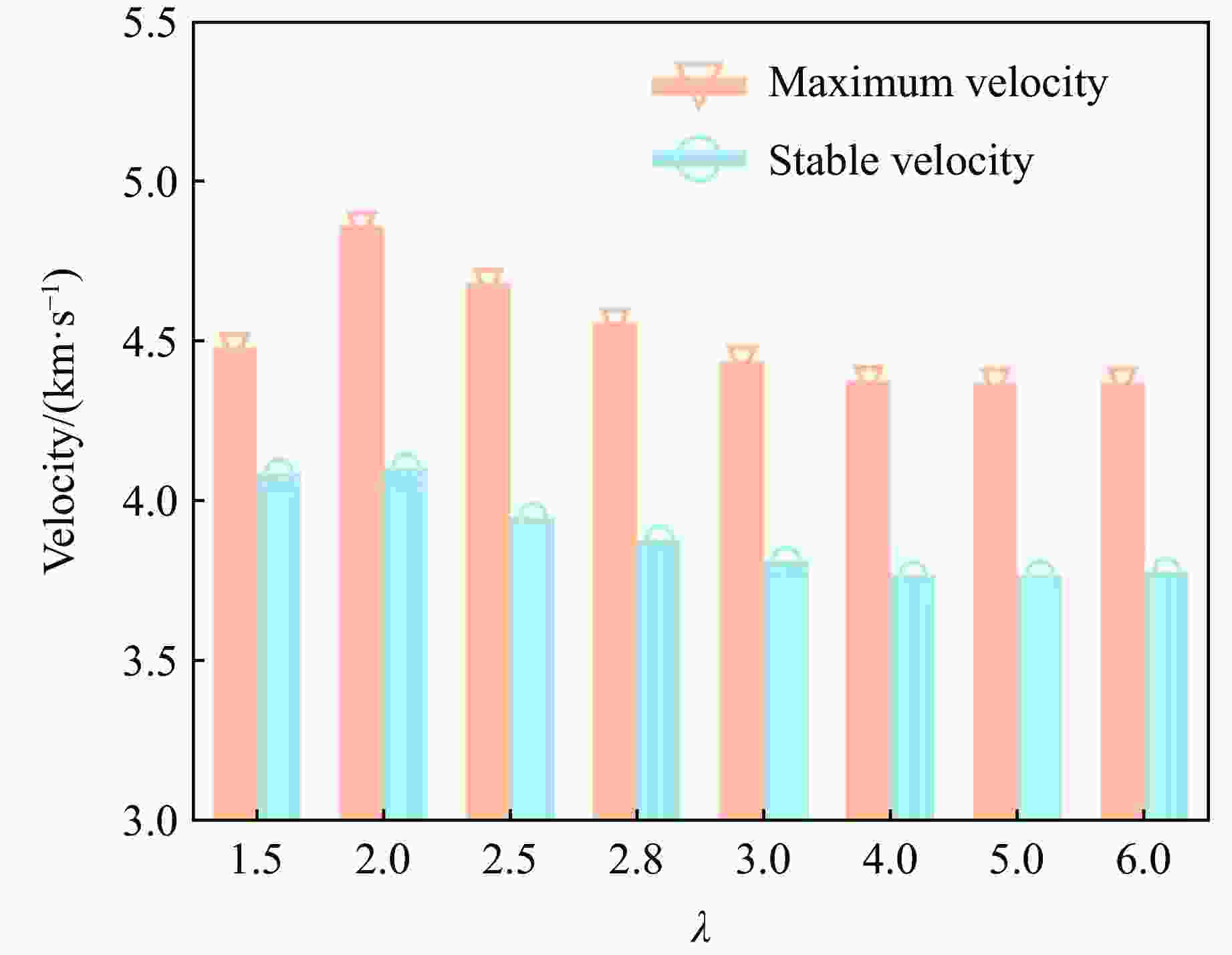

图 7 射流最高速度和稳定速度随长径比的变化

Figure 7. Variations of the maximum velocity and stable velocity of jet with length-to-diameter ratios

下载: 全尺寸图片幻灯片

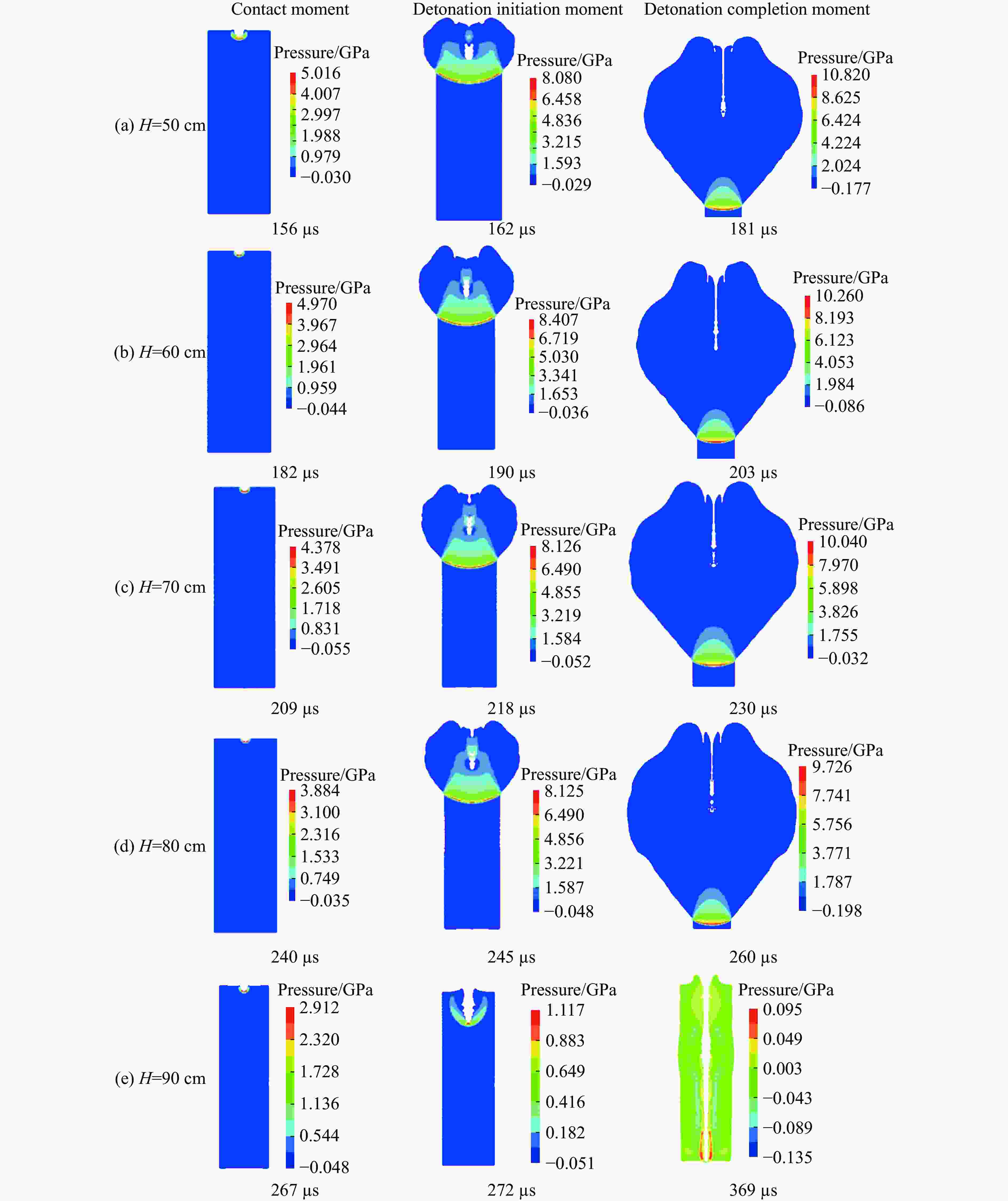

图 8 不同炸高下乳化炸药冲击起爆压力云图

Figure 8. Pressure contour maps of emulsion explosives initiated by impact at different standoff heights

下载: 全尺寸图片幻灯片

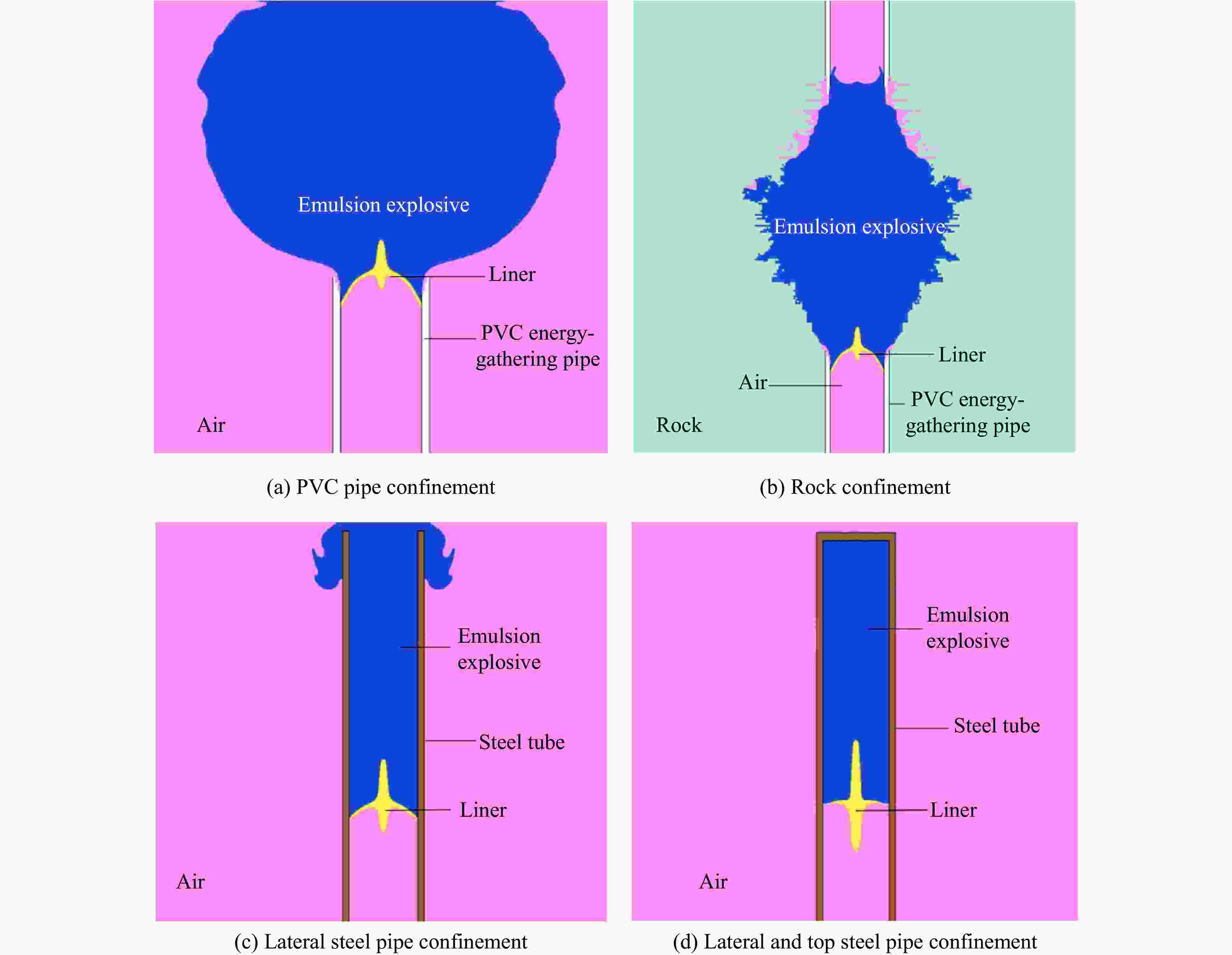

图 9 不同约束条件下药型罩压垮阶段示意图

Figure 9. Schematic diagram of the collapse stage of liner under different confinement conditions

下载: 全尺寸图片幻灯片

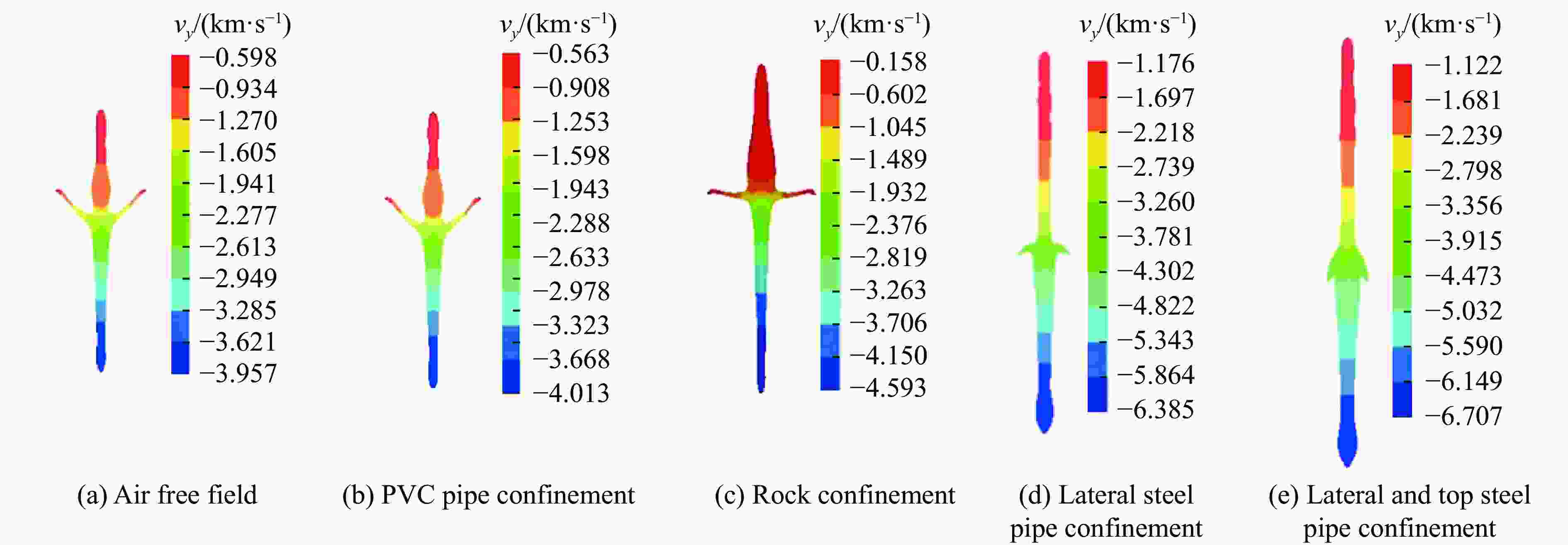

图 10 35 µs时不同约束条件下射流速度云图

Figure 10. Jet velocity contour maps under different confinement conditions at 35 µs

下载: 全尺寸图片幻灯片

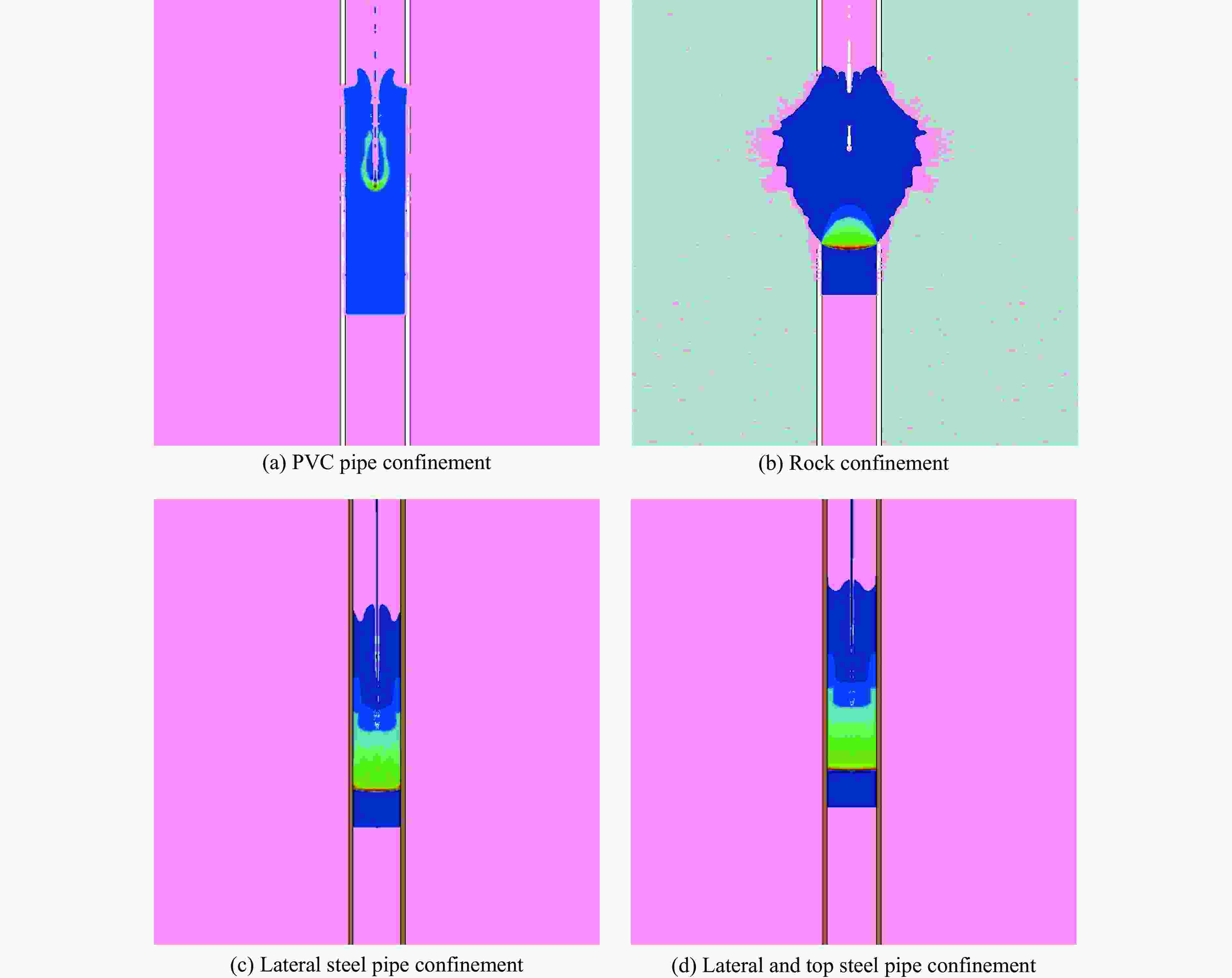

图 11 不同约束条件下被发乳化炸药爆轰示意图

Figure 11. Schematic diagram of detonation of cartridge emulsion explosives under different confinement conditions

下载: 全尺寸图片幻灯片

表 1 正交试验的各因素水平

Table 1. Levels of each factor in the orthogonal test

Level Factor
Material h/mm $ \gamma $/(°)

1 Aluminum 1 60
2 Copper 2 90
3 Lead 3 120

下载: 导出CSV

表 2 乳化炸药的材料参数和JWL状态方程参数^[23]

Table 2. Emulsion explosive material parameters and JWL state equation parameters^[23]

ρ/(g·cm⁻³) D_CJ/(km·s⁻¹) p_CJ/GPa A_JWL/GPa B_JWL/GPa R₁ R₂ ω E₀/GPa

1.1 4.5 970 214 0.182 4.2 0.9 0.15 4.192

下载: 导出CSV

表 3 金属药型罩材料模型参数和状态方程参数^[23]

Table 3. Material model and equation of state parameters for metal shaped charge liner^[23]

Material ρ/(g·cm⁻³) C₀/(km·s⁻¹) S Γ n c m

Aluminum 2.71 5.35 1.34 1.97 0.28 0.02 1.34
Copper 8.93 3.94 1.49 2.02 0.31 0.025 1.09
Lead 11.20 1.98 1.58 2.77 1 0.1 1

下载: 导出CSV

表 4 乳化炸药的点火增长模型参数^[24]

Table 4. Ignition and growth reactive model of emulsion explosives^[24]

I b a x G₁ c

40 0.667 0.09 7 41.7 0.667
d y G₂ e g z
0.333 1.12 200 0.667 1.00 2.00

下载: 导出CSV

表 5 PVC聚能管的模型参数^[23]

Table 5. Parameters of PVC energy gathering tube^[23]

ρ/(g·cm⁻³) E/MPa μ σ_y/MPa T/MPa ε_f LCSS

0.83 3057.78 0.45 6.895 344.75 0.25 3451

下载: 导出CSV

表 6 岩石的本构模型参数^[23]

Table 6. Parameters of rock constitutive model^[23]

ρ/(g·cm⁻³) E/GPa A B C M N D₁ D₂

3.47 32 0.7 0.23 0.005 0.61 0.61 0.005 0.7

下载: 导出CSV

参考文献(26)

[1]	WANG Y J, WANG Q, TIAN X C, et al. Stress and deformation evolution characteristics of gob-side entry retained by roof cutting and pressure relief [J]. Tunnelling and Underground Space Technology, 2022, 123: 104419. doi: 10.1016/j.tust.2022.104419
[2]	YANG J, HE M C, CAO C. Design principles and key technologies of gob side entry retaining by roof pre-fracturing [J]. Tunnelling and Underground Space Technology, 2019, 90: 309–318. doi: 10.1016/j.tust.2019.05.013
[3]	CAO C, XIE Z Z, ZHANG N, et al. Differential roof cutting for roadway support in dual gob-side entry retention on a single working face—multilevel continuous anchor-grouting control technology: a case study [J]. Engineering Failure Analysis, 2024, 163: 108475. doi: 10.1016/j.engfailanal.2024.108475
[4]	汪旭光. 爆破设计与施工 [M]. 北京: 冶金工业出版社, 2011: 322, 360–363. WANG X G. Blasting design and construction [M]. Beijing: Metallurgical Industry Press, 2011: 322, 360–363.
[5]	孙磊, 贺海强, 沈国华. 电子雷管在某露天铜矿使用问题探究 [J]. 煤矿爆破, 2019, 37(2): 14–17. doi: 10.3969/j.issn.1674-3970.2019.02.004 SUN L, HE H Q, SHEN G H. Study on the use of electronic detonators in an open pit copper mine [J]. Coal Mine Blasting, 2019, 37(2): 14–17. doi: 10.3969/j.issn.1674-3970.2019.02.004
[6]	张英豪, 张泽楠. 数码电子雷管应用问题的探讨 [J]. 火工品, 2018(4): 54–57. doi: 10.3969/j.issn.1003-1480.2018.04.0014 ZHANG Y H, ZHANG Z N. Discuss on the application of digital electronic detonator [J]. Initiators & Pyrotechnics, 2018(4): 54–57. doi: 10.3969/j.issn.1003-1480.2018.04.0014
[7]	FREY R, LAWRENCE W, CHICK M. Shock evolution after shaped charge jet impact and its relevance to explosive initiation [J]. International Journal of Impact Engineering, 1995, 16(4): 563–570. doi: 10.1016/0734-743X(94)00064-4
[8]	ARNOLD W, ROTTENKOLBER E. High explosive initiation behavior by shaped charge jet impacts [J]. Procedia Engineering, 2013, 58: 184–193. doi: 10.1016/j.proeng.2013.05.022
[9]	MEHMANNAVAZ H, RAMEZANI A, NABAKHTEH M A, et al. A practical review study on shaped charge in the last two decades (2000–2020) [J]. International Journal of Protective Structures, 2021, 12(4): 665–693. doi: 10.1177/20414196211017923
[10]	王清标, 王涛, 田成林, 等. 周边孔聚能装置间隔装药在光面爆破中的应用研究 [J]爆破, 2024, 41(1): 77–84. WANG Q B, WANG T, TIAN C L, et al. Application of shaped charge device and decked charge in perimeter holes of smooth blasting [J]. Blasting, 2024, 41(1): 77–84.
[11]	CLUTTER J K, BELK D. Simulation of detonation wave interaction using an ignition and growth model [J]. Shock Waves, 2002, 12(3): 251–263. doi: 10.1007/s00193-002-0153-2
[12]	张雪梅, 谢兴博, 钟明寿, 等. 不同聚能装药水中冲击引爆靶后B炸药特性研究 [J]. 兵工学报, 2025, 46(9): 241046. doi: 10.12382/bgxb.2024.1046 ZHANG X M, XIE X B, ZHONG M S, et al. Study on the characteristics of explosive B after impact detonation of different shaped charges on target in water [J]. Acta Armamentarii, 2025, 46(9): 241046. doi: 10.12382/bgxb.2024.1046
[13]	刘忠磊, 王旭华, 王应魁, 等. 约束条件下聚能装置对乳化炸药引爆距离影响的研究 [J]. 爆破, 2024, 41(3): 171–178. doi: 10.3963/j.issn.1001-487X.2024.03.021 LIU Z L, WANG X H, WANG Y K, et al. Study on influence of fusion device on detonation distance of emulsion explosives under constraint conditions [J]. Blasting, 2024, 41(3): 171–178. doi: 10.3963/j.issn.1001-487X.2024.03.021
[14]	李启月, 曾海登, 赵新浩, 等. 炮孔约束下双槽聚能管对乳化炸药殉爆距离影响的研究 [J]. 矿冶工程, 2020, 40(6): 1–4, 12. doi: 10.3969/j.issn.0253-6099.2020.06.001 LI Q Y, ZENG H D, ZHAO X H, et al. Influence of double groove energy gathering tubes on the denotation distance of emulsion explosives under constraint of blast hole [J]. Mining and Metallurgical Engineering, 2020, 40(6): 1–4, 12. doi: 10.3969/j.issn.0253-6099.2020.06.001
[15]	陈思敏. 射流对运动带壳装药冲击起爆机理研究 [D]. 南京: 南京理工大学, 2022. CHEN S M. Research on the initiation mechanism of moving shelled charge under jet impact [D]. Nanjing: Nanjing University of Science & Technology, 2022.
[16]	黄正祥. 聚能装药理论与实践 [M]. 北京: 北京理工大学出版社, 2014. HUANG Z X. Theory and practice of shaped charge [M]. Beijing: Beijing Institute of Technology Press, 2014.
[17]	CHOU P C, FLIS W J. Recent developments in shaped charge technology [J]. Propellants, Explosives, Pyrotechnics, 1986, 11(4): 99–114. doi: 10.1002/prep.19860110402
[18]	WANG C, DING J X, ZHAO H T. Numerical simulation on jet formation of shaped charge with different liner materials [J]. Defence Science Journal, 2015, 65(4): 279–286. doi: 10.14429/dsj.65.8648
[19]	SARAN S, AYISIT O, YAVUZ M S. Experimental investigations on aluminum shaped charge liners [J]. Procedia Engineering, 2013, 58: 479–486. doi: 10.1016/j.proeng.2013.05.055
[20]	黄正祥. 聚能杆式侵彻体成型机理研究 [D]. 南京: 南京理工大学, 2003. HUANG Z X. Mechanism study on jetting projectile charge formation [D]. Nanjing: Nanjing University of Science & Technology, 2003.
[21]	王成, 王万军, 宁建国. 聚能装药对混凝土靶板的侵彻研究 [J]. 力学学报, 2015, 47(4): 672–686. doi: 10.6052/0459-1879-14-336 WANG C, WANG W J, NING J G. Investigation on shaped charge penetrating into concrete targets [J]. Chinese Journal of Theoretical and Applied Mechanics, 2015, 47(4): 672–686. doi: 10.6052/0459-1879-14-336
[22]	李伟兵, 王晓鸣, 李文彬, 等. 装药长径比对聚能杆式侵彻体成型的影响 [J]. 弹道学报, 2011, 23(4): 61–65. LI W B, WANG X M, LI W B, et al. Effect of length-diameter ratio of charge on jetting projectile charge forming [J]. Journal of Ballistics, 2011, 23(4): 61–65.
[23]	辛春亮, 薛再清, 涂建, 等. 有限元分析常用材料参数手册 [M]. 北京: 机械工业出版社, 2020. XIN C L, XUE Z Q, TU J, et al. Handbook of common material parameters for finite element analysis [M]. Beijing: China Machine Press, 2020.
[24]	YI C, NYBERG U, JOHANSSON D, et al. Ignition and growth reactive flow model for aluminized emulsion explosive [C]//46th Annual Conference on Explosives and Blasting Technique. Denver, Colorado, USA, 2020: 26–29.
[25]	PUGH E M, EICHELBERGER R J, ROSTOKER N. Theory of jet formation by charges with lined conical cavities [J]. Journal of Applied Physics, 1952, 23(5): 532–536. doi: 10.1063/1.1702246
[26]	宋锦泉. 乳化炸药爆轰特性研究 [D]. 北京: 北京科技大学, 2000. SONG J Q. Research on detonation characteristics of emulsion explosives [D]. Beijing: University of Science and Technology Beijing, 2000.
