棉籽油含量对现场混装乳胶基质流变特性和抗振动性能的影响

岳幸; 何志伟; 黄振祎; 岳嘉伟; 胡前浩; 李沅隆

doi:10.11858/gywlxb.20251226

棉籽油含量对现场混装乳胶基质流变特性和抗振动性能的影响

doi: 10.11858/gywlxb.20251226

岳幸^1,,
何志伟^1,*, ,,
黄振祎²,
岳嘉伟³,
胡前浩⁴,
李沅隆¹

1.
安徽理工大学化工与爆破学院, 安徽淮南　232001
2.
江西萍乡国泰六六一科技有限公司, 江西萍乡　337000
3.
河南华通化工有限公司, 河南信阳　465200
4.
江西宜丰国泰化工有限责任公司, 江西宜春　336300

基金项目: 国家自然科学基金（51404006，52274017）

详细信息

作者简介:
岳　幸（2002－），男，硕士研究生，主要从事耐热炸药机理和乳化炸药配方设计研究. E-mail：2328726206@qq.com

通讯作者:
何志伟（1979－），男，博士，教授，主要从事含能材料配方研究. E-mail：751601138@qq.com

中图分类号: TJ55; O521.2; TQ560.1
计量
- 文章访问数: 1467
- HTML全文浏览量: 504
- PDF下载量: 146
出版历程
- 收稿日期: 2025-10-15
- 修回日期: 2025-12-05
- 网络出版日期: 2025-12-11
- 刊出日期: 2026-10-22

Influence of Cottonseed Oil Content on the Rheological Properties and Anti-Vibration Performance of Site-Mixed Emulsion Matrix

1.
School of Chemical and Blasting Engineering, Anhui University of Science and Technology, Huainan 232001, Anhui, China
2.
Jiangxi Pingxiang Guotai 661 Technology Co., Ltd., Pingxiang 337000, Jiangxi, China
3.
Huatong Chemical Co., Ltd. of Henan Province, Xinyang 465200, Henan, China
4.
Jiangxi Yifeng Guotai Chemical Co., Ltd., Yichun 336300, Jiangxi, China

摘要

摘要: 为了探究棉籽油质量分数对现场混装乳胶基质的流变特性及抗振动性能的影响，制备了不同质量分数棉籽油的现场混装乳胶基质样品。采用旋转流变仪、HY-5A型回旋调速振动器、水溶法研究了现场混装乳胶基质的流变特性以及抗振动性能。结果表明：当棉籽油的质量分数不大于2.5%时，随着棉籽油质量分数的增大，现场混装乳胶基质的黏度逐渐增大，在现场混装车管道的温度环境下，乳胶基质的黏度均能满足泵送要求，弹性模量和内聚力逐渐变大后基本不变，抗振动性能先增大后变小；当棉籽油的质量分数为2.0%时，抗振动性能最佳。
- 棉籽油 /
- 现场混装乳胶基质 /
- 流变特性 /
- 抗振动性能
Abstract: To investigate the influence of cottonseed oil mass fraction on the rheological properties and anti-vibration performance of site-mixed emulsion explosive matrix, samples of site-mixed emulsion explosive matrix with different cottonseed oil mass fractions were prepared. A rotational rheometer, HY-5A rotary speed-regulating vibrator, and water dissolution method were used to study the rheological properties and anti-vibration performance of the site-mixed emulsion matrix. The results show that when the mass fraction of cottonseed oil is not more than 2.5%, the viscosity of the site-mixed emulsion matrix increases gradually. In terms of the temperature environment of the pipeline of on-site mixing trucks, the viscosity of the emulsion matrix can meet the pumping requirements. The elastic modulus and cohesion increase gradually and then remain nearly stable. The anti-vibration performance first increases and then decreases, and when the cottonseed oil mass fraction is 2.0%, the anti-vibration performance is the best.
- cottonseed oil /
- site-mixed emulsion explosive matrix /
- rheological properties /
- anti-vibration performance

HTML全文

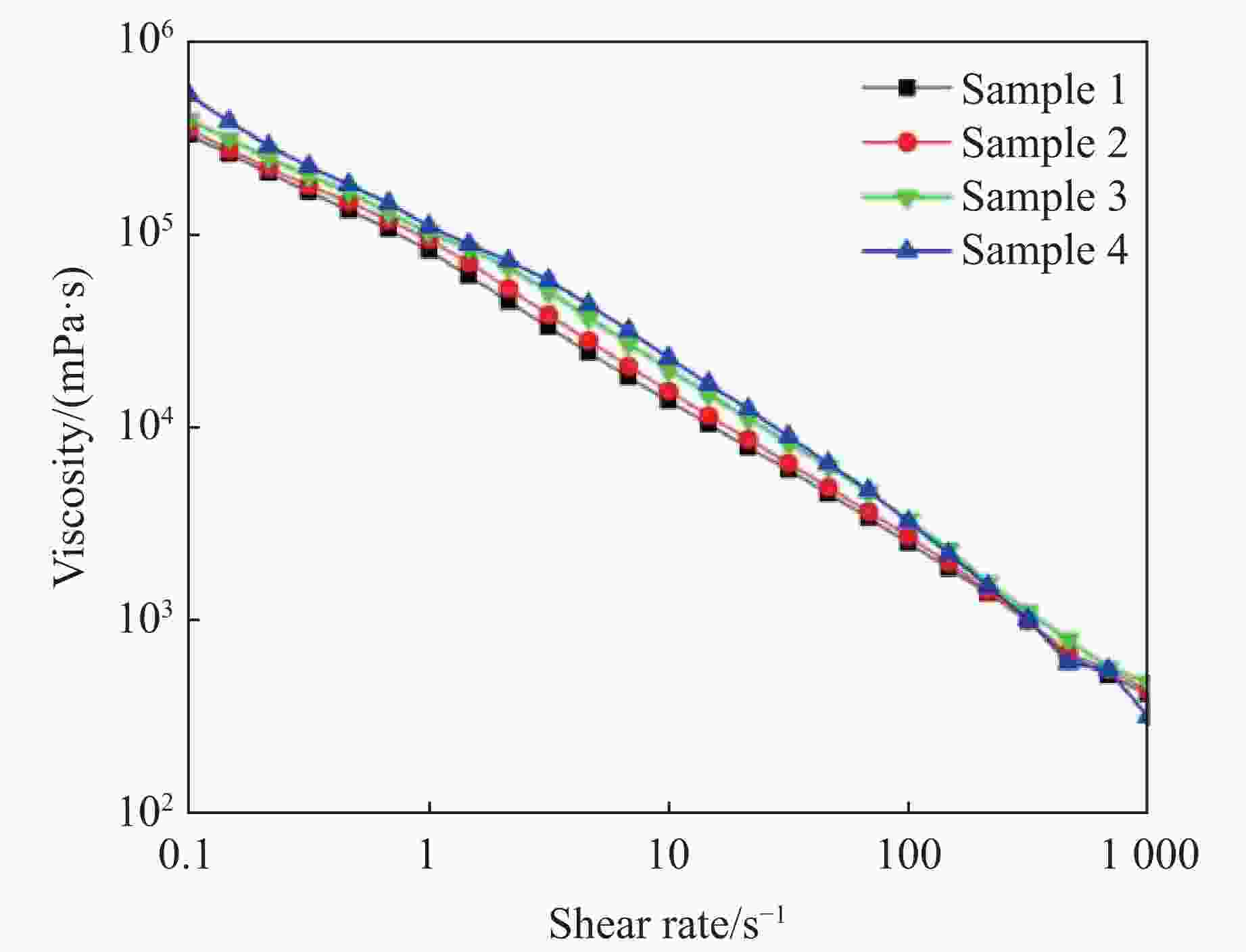

图 1 4种样品的流动性曲线

Figure 1. Flowability curves of four samples

下载: 全尺寸图片幻灯片

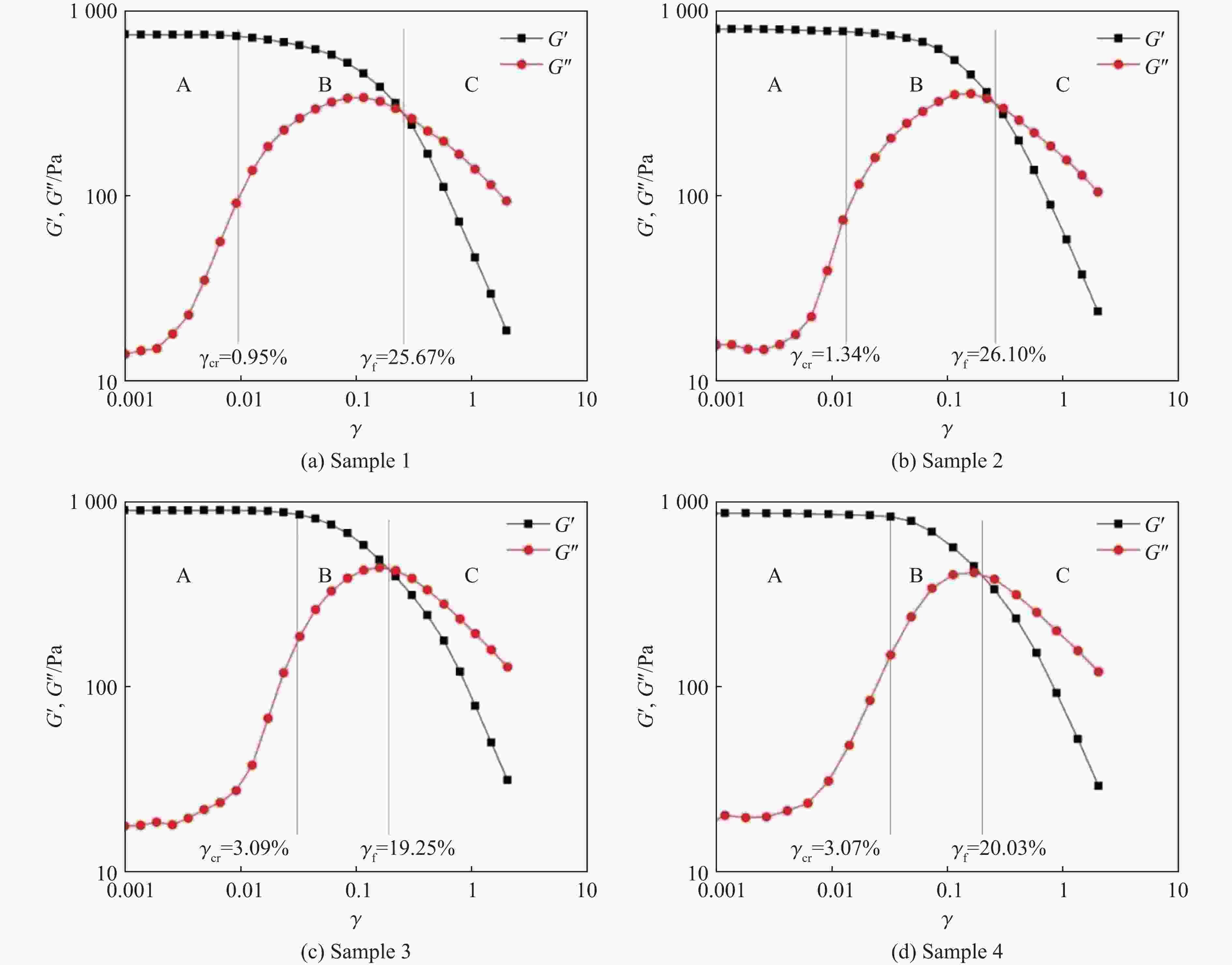

图 2 4种样品的黏弹性曲线

Figure 2. Viscoelastic curves of four samples

下载: 全尺寸图片幻灯片

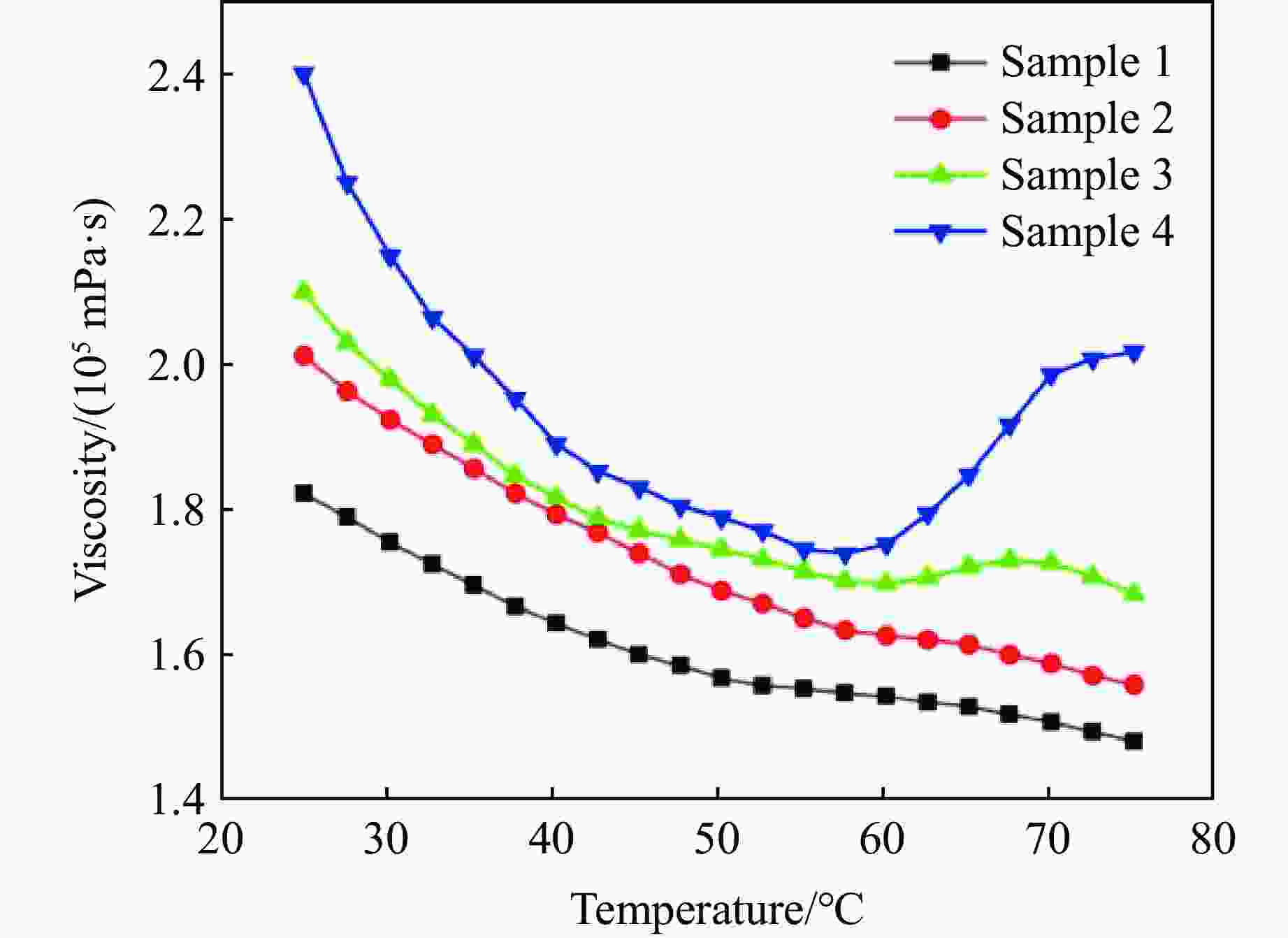

图 3 4种样品的黏温曲线

Figure 3. Viscosity-temperature curves of four samples

下载: 全尺寸图片幻灯片

图 4 4种样品经振动后的外观变化

Figure 4. Appearance changes of four samples after vibration

下载: 全尺寸图片幻灯片

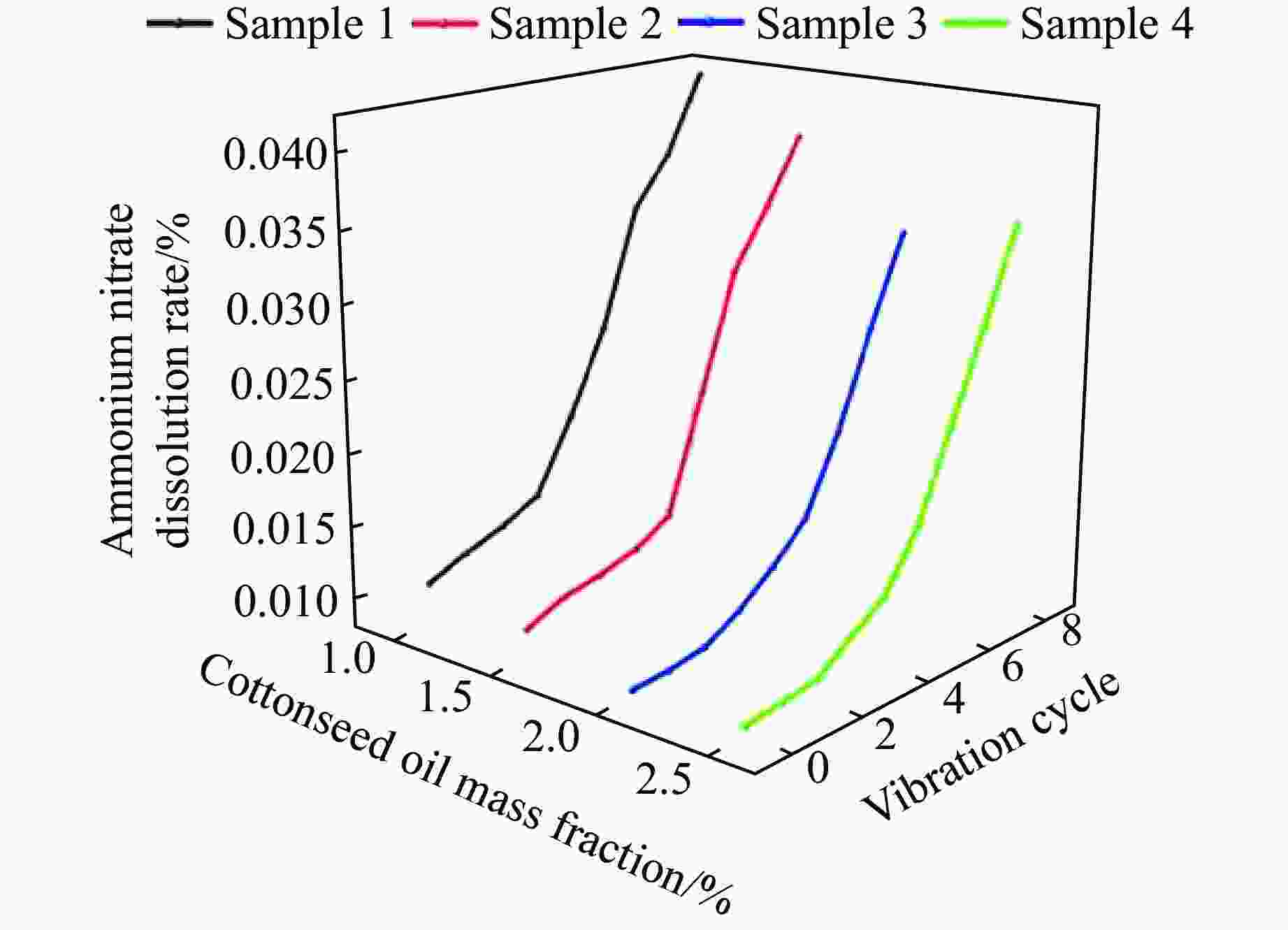

图 5 4种样品随振动周期硝酸铵溶失率的变化

Figure 5. Variation of ammonium nitrate dissolution rate of four samples with vibration cycles

下载: 全尺寸图片幻灯片

表 1 现场混装乳胶基质配方

Table 1. On-site mixed emulsion explosive matrix formulation %

Samples	AN	SN	Water	Span-80	Diesel	Cottonseed oil
1	72	5	16	2	4.0	1.0
2	72	5	16	2	3.5	1.5
3	72	5	16	2	3.0	2.0
4	72	5	16	2	2.5	2.5

下载: 导出CSV

表 2 乳胶基质的$G'_{\mathrm{m}} $、$\gamma_{{\mathrm{cr}}} $和内聚力

Table 2. $G'_{\mathrm{m}} $, $\gamma_{{\mathrm{cr}}} $ and cohesion of emulsion matrix

Sample	G'_m/Pa	γ_cr/%	Cohesion/Pa
1	724	0.95	6.88
2	777	1.34	10.41
3	852	3.09	26.32
4	848	3.07	26.03

下载: 导出CSV

表 3 消耗氢氧化钠的平均体积

Table 3. Average volume of consumed sodium hydroxide

Vibration period	Volume of consumed sodium hydroxide/mL
Vibration period	Sample 1	Sample 2	Sample 3	Sample 4
0	0.330	0.304	0.256	0.263
1	0.365	0.340	0.261	0.274
2	0.395	0.355	0.275	0.285
3	0.434	0.380	0.319	0.338
4	0.583	0.425	0.380	0.386
5	0.752	0.665	0.453	0.500
6	0.995	0.900	0.612	0.675
7	1.095	1.020	0.806	0.856
8	1.254	1.150	0.985	1.040

下载: 导出CSV
