Impact-Induced Fracture Process and Energy Dissipation Characteristics of Copper-Bearing Albite Rock Based on FDEM
-

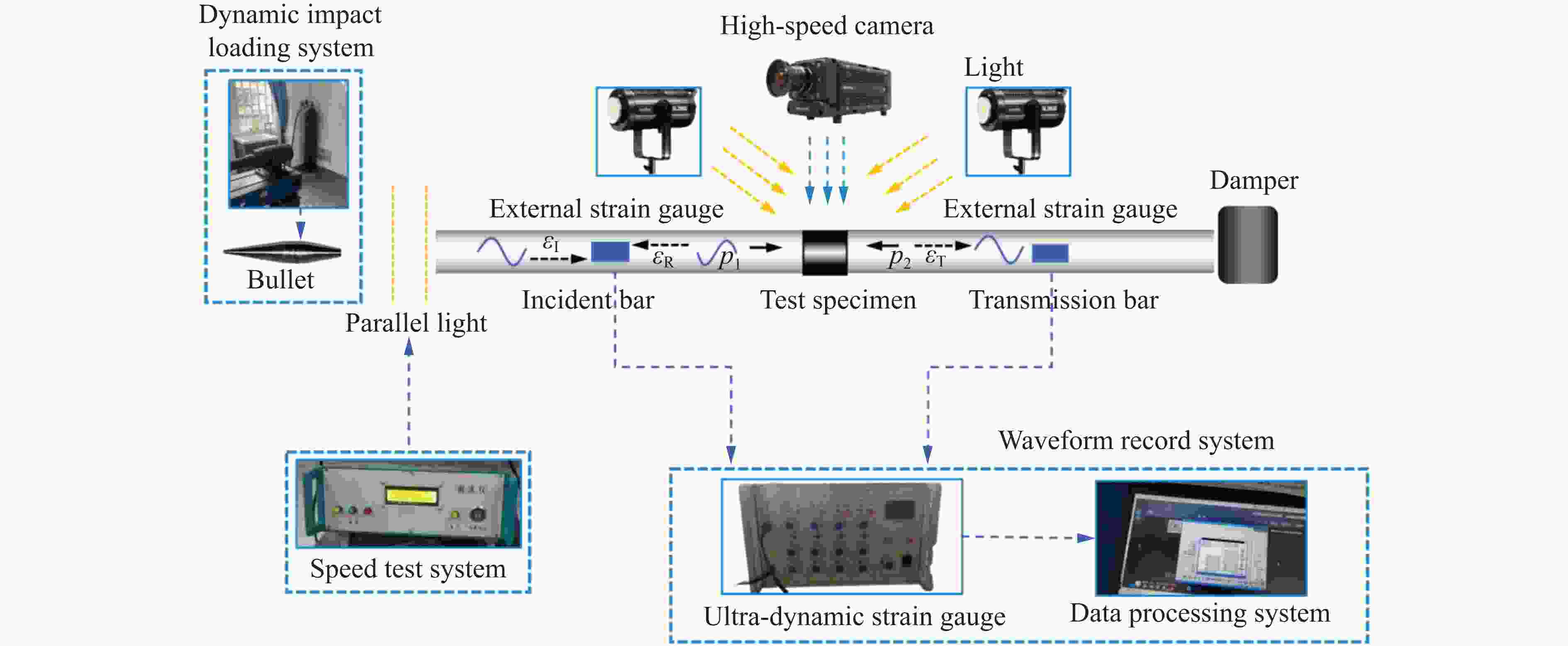

摘要: 为了保证铜矿资源的高效回采，以含铜钠长岩试样为研究对象，使用分离式霍普金森压杆施加不同强度的冲击荷载，利用高速摄像系统记录裂纹扩展过程，并结合一维应力波传播理论和能量守恒定律，分析试样在不同冲击气压下的能量耗散规律；同时，基于有限-离散元耦合算法，建立含铜钠长岩冲击过程的数值模型。结果表明：入射能和应力峰值随着冲击气压的增大而增大，试样破碎程度也随之加剧；当入射能小于140 J时，随着入射能的增大，能量耗散率逐渐增大；当入射能大于140 J时，能量耗散率随入射能的增加逐渐减小，能量耗散率在冲击气压为0.35 MPa时最大；在冲击过程中，拉伸破坏占主导作用，并在水平方向形成主优势区。新增裂纹面积和冲击总能量随着冲击荷载的增加而增大；冲击气压为0.30 MPa时，应变能比能量最小，在此气压下，剪切裂纹占比最小，说明0.30 MPa冲击气压的破岩效率最高；基于有限-离散元构建的数值模型可以有效预测在不同冲击荷载下含铜钠长岩的损伤破裂过程。Abstract: In order to ensure the efficient recovery of copper resources, the copper-bearing albite rock samples were taken as the research object, and the impact loads with different strengths were applied by the split Hopkinson pressure bar (SHPB). The crack propagation process was recorded by a high-speed camera system, and the energy dissipation law of the samples under different impact pressures was analyzed by combining the one-dimensional stress wave propagation theory and the law of conservation of energy. At the same time, a numerical model of the impact process of copper-bearing albite is established based on the finite-discrete element coupling algorithm. The results show that the incident energy and the peak stress increase with the increase of the impact gas pressure, and the degree of sample breakage also increases. When the incident energy is less than 140 J, the energy dissipation rate increases with the increase of the incident energy. When the incident energy is greater than 140 J, the energy dissipation rate decreases with the increase of the incident energy, and the energy dissipation rate reaches the maximum when the impact gas pressure is 0.35 MPa. In the process of impact, tensile failure plays a dominant role and forms the main dominant area in the horizontal direction. The new crack area and the total impact energy increase with the increase of impact load. When the impact gas pressure is 0.30 MPa, the strain energy ratio is the smallest. Under this pressure, the proportion of shear cracks is the smallest, indicating that the rock breaking efficiency of 0.30 MPa impact gas pressure is the highest. The numerical model based on finite-discrete element method can effectively predict the damage and fracture process of copper-bearing albite under different impact loads.
-

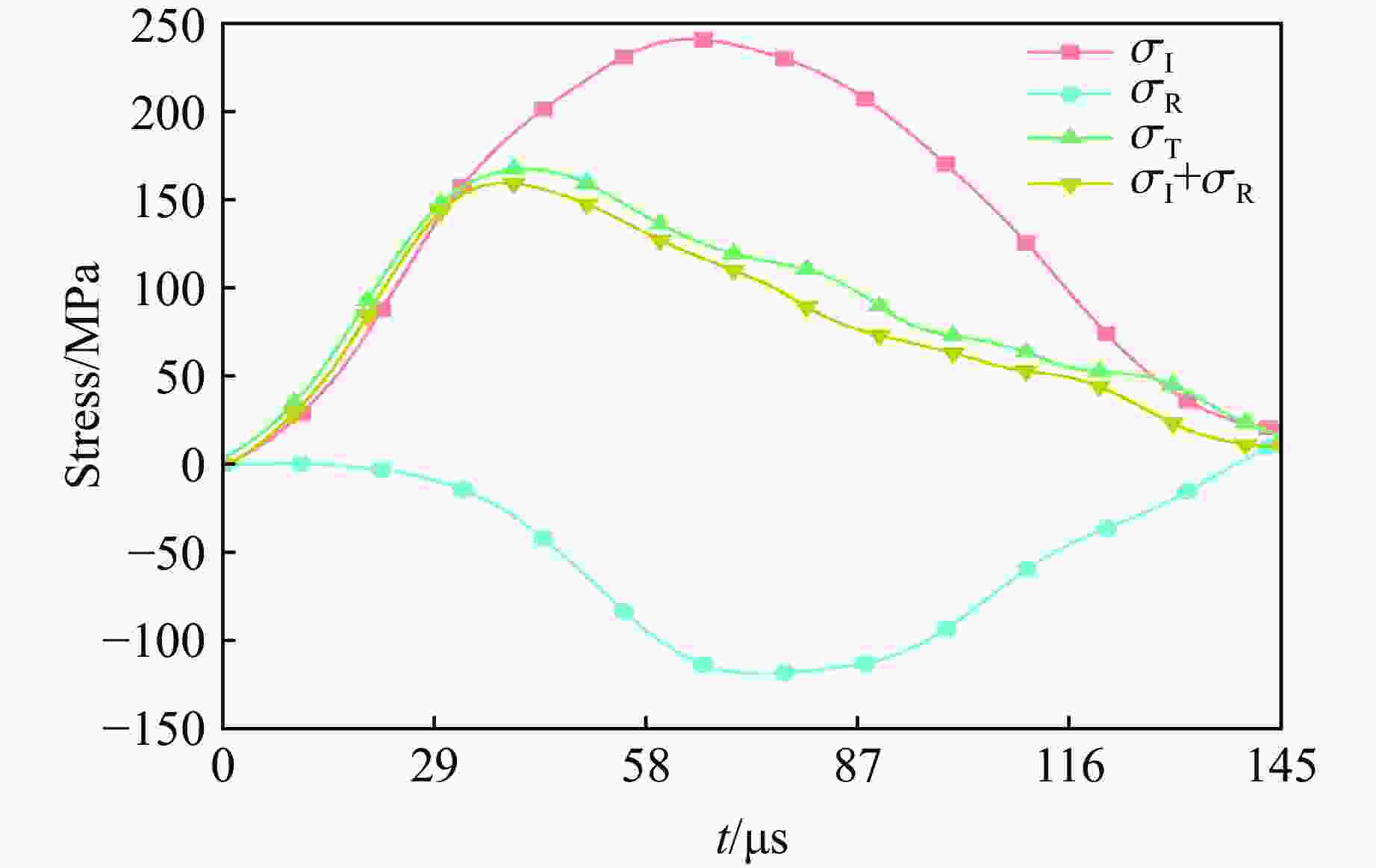

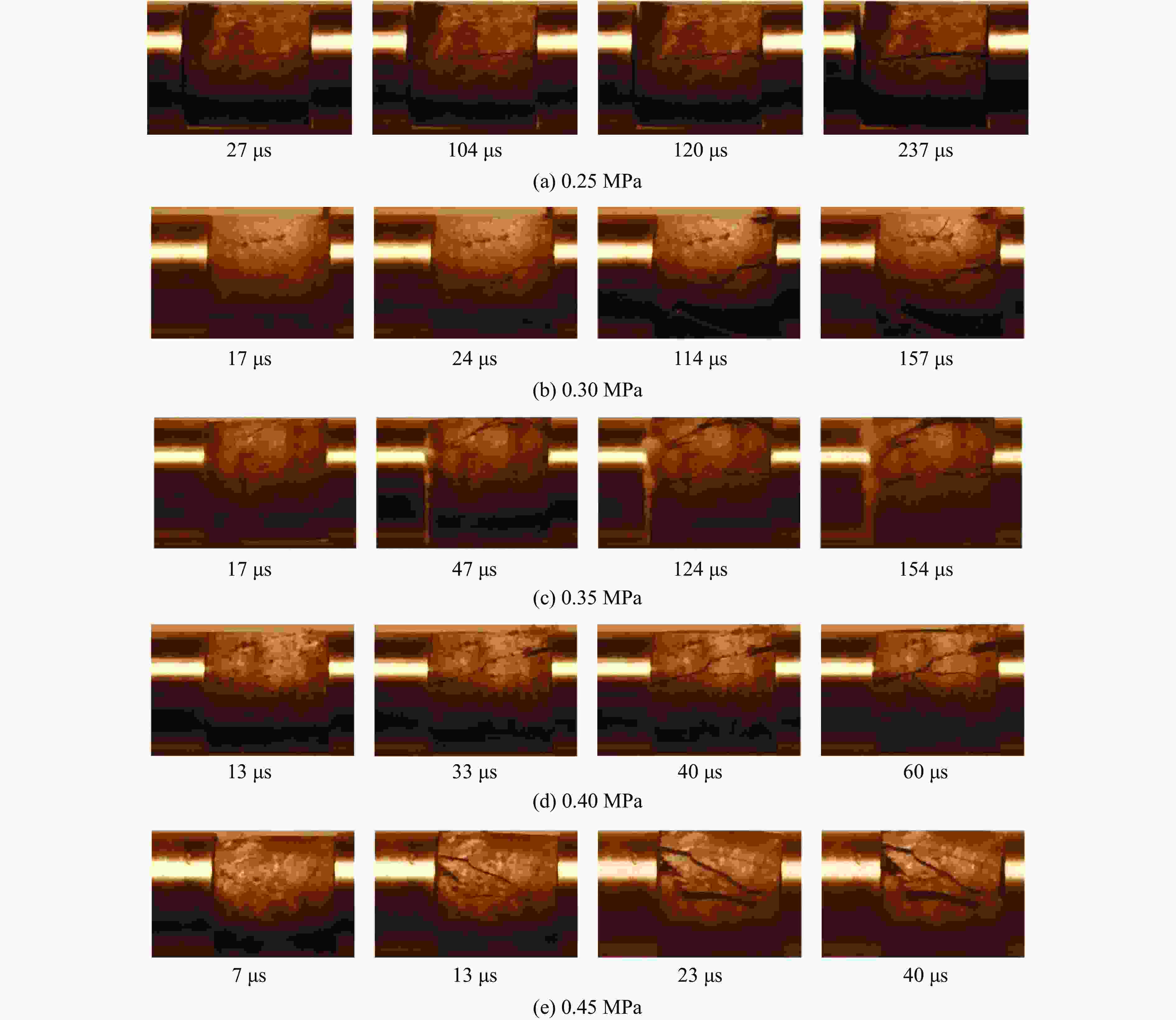

图 5 不同冲击气压下含铜钠长岩的裂纹演化过程
Figure 5. Crack evolution process of copper-bearing albite under different impact gas pressures

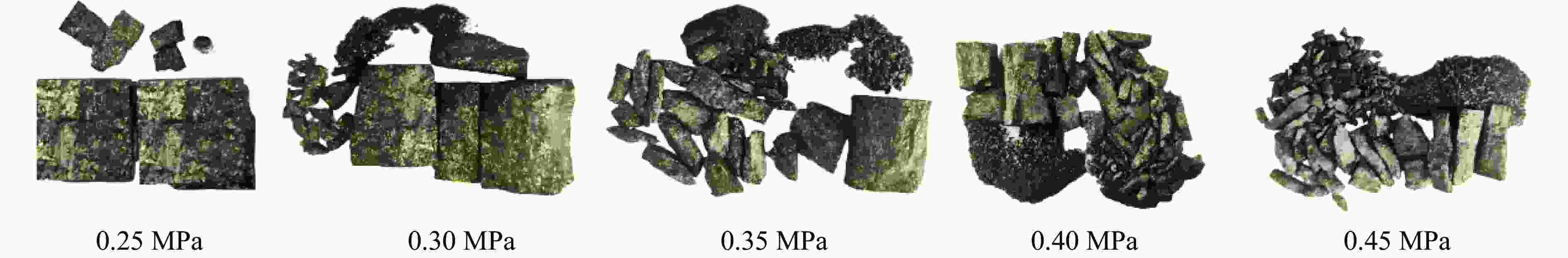

图 6 不同冲击气压下含铜钠长岩的破碎形态
Figure 6. Fracture morphology of copper-bearing albite under different impact gas pressures

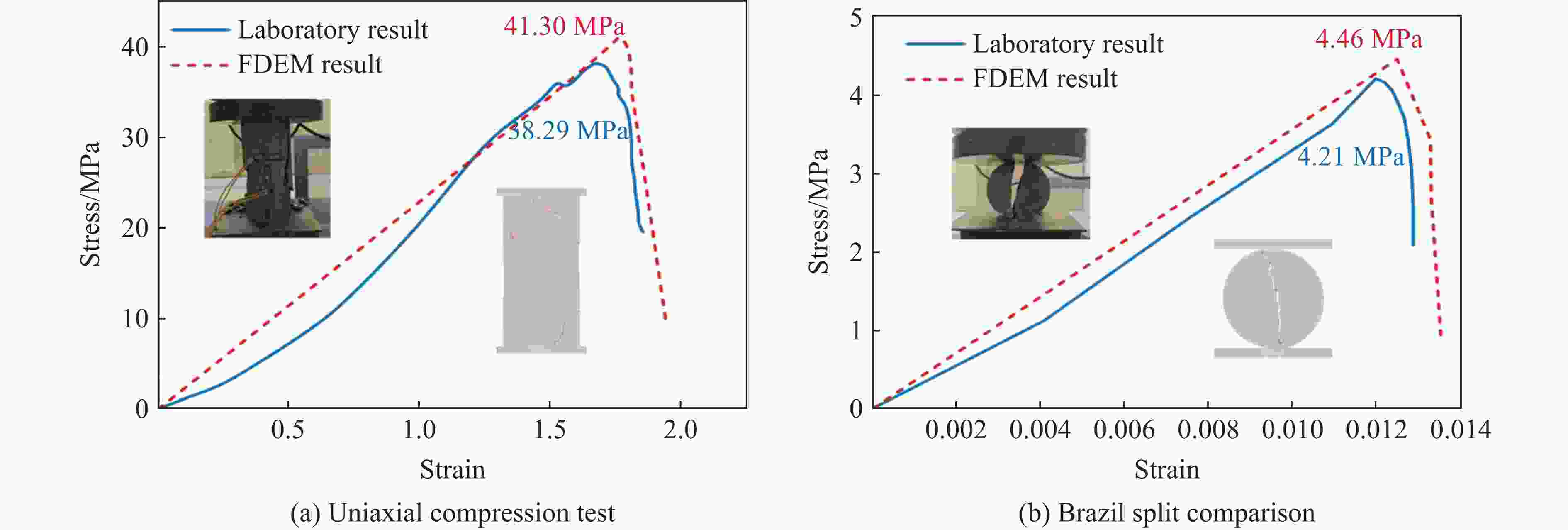

图 9 实验室测试与模拟结果对比
Figure 9. Comparison between laboratory tests and numerical simulation results

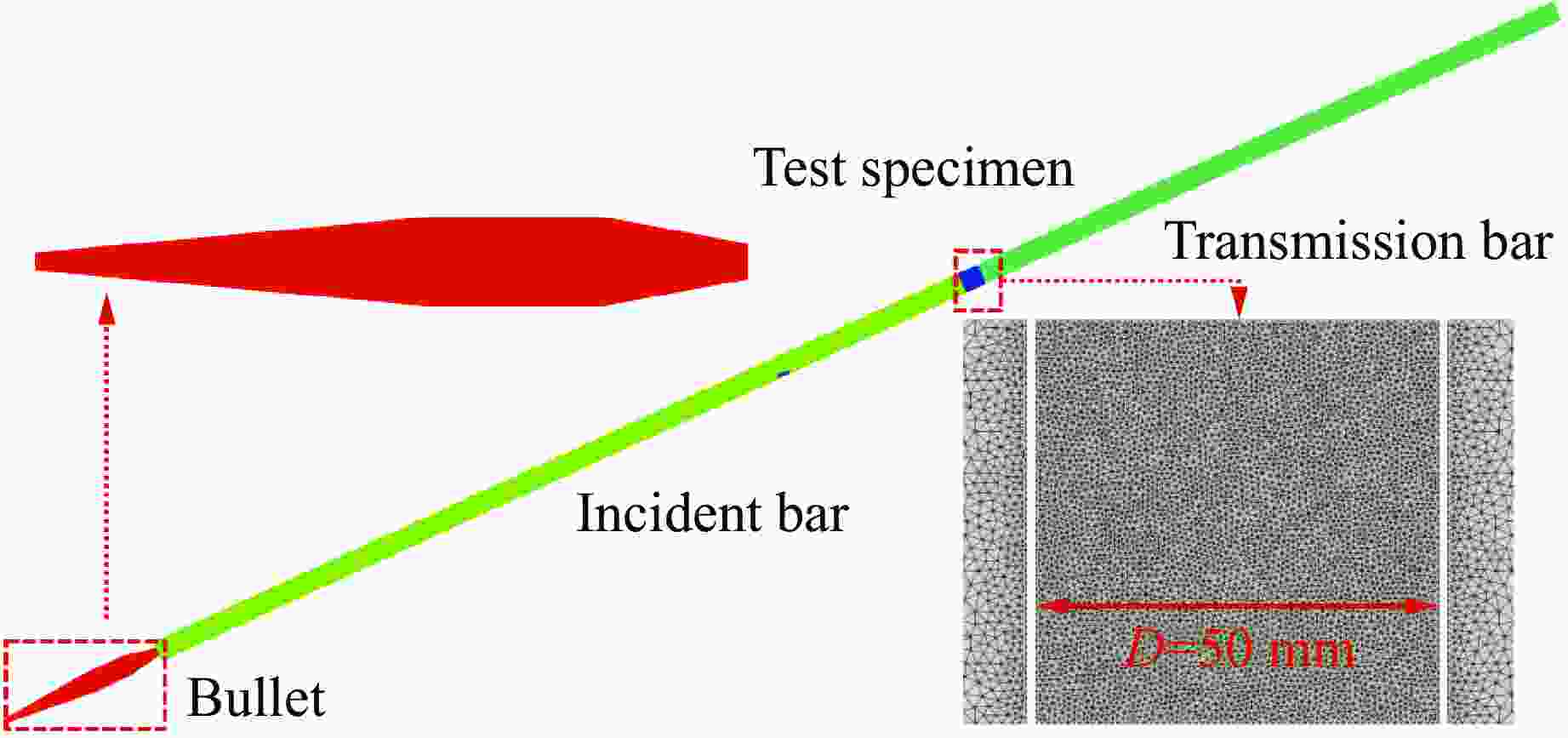

图 10 含铜钠长岩试样数值计算模型
Figure 10. Numerical model for the copper-bearing albite rock sample

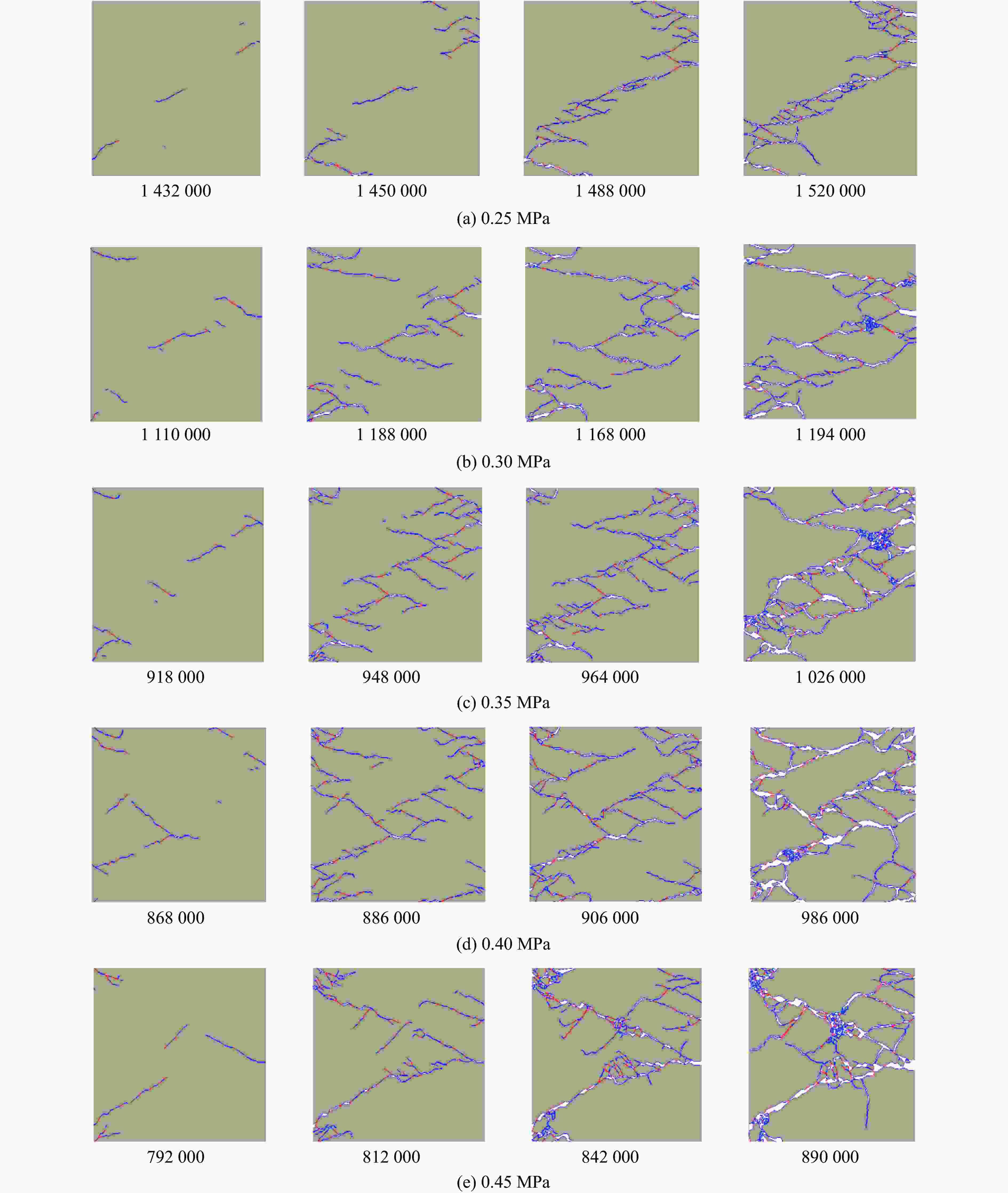

图 11 不同冲击气压下模型的裂纹演化（蓝色代表拉伸裂纹，红色代表剪切裂纹）
Figure 11. Crack propagation in the model under different impact gas pressures (Blue denotes tensile cracks, red denotes shear cracks.)

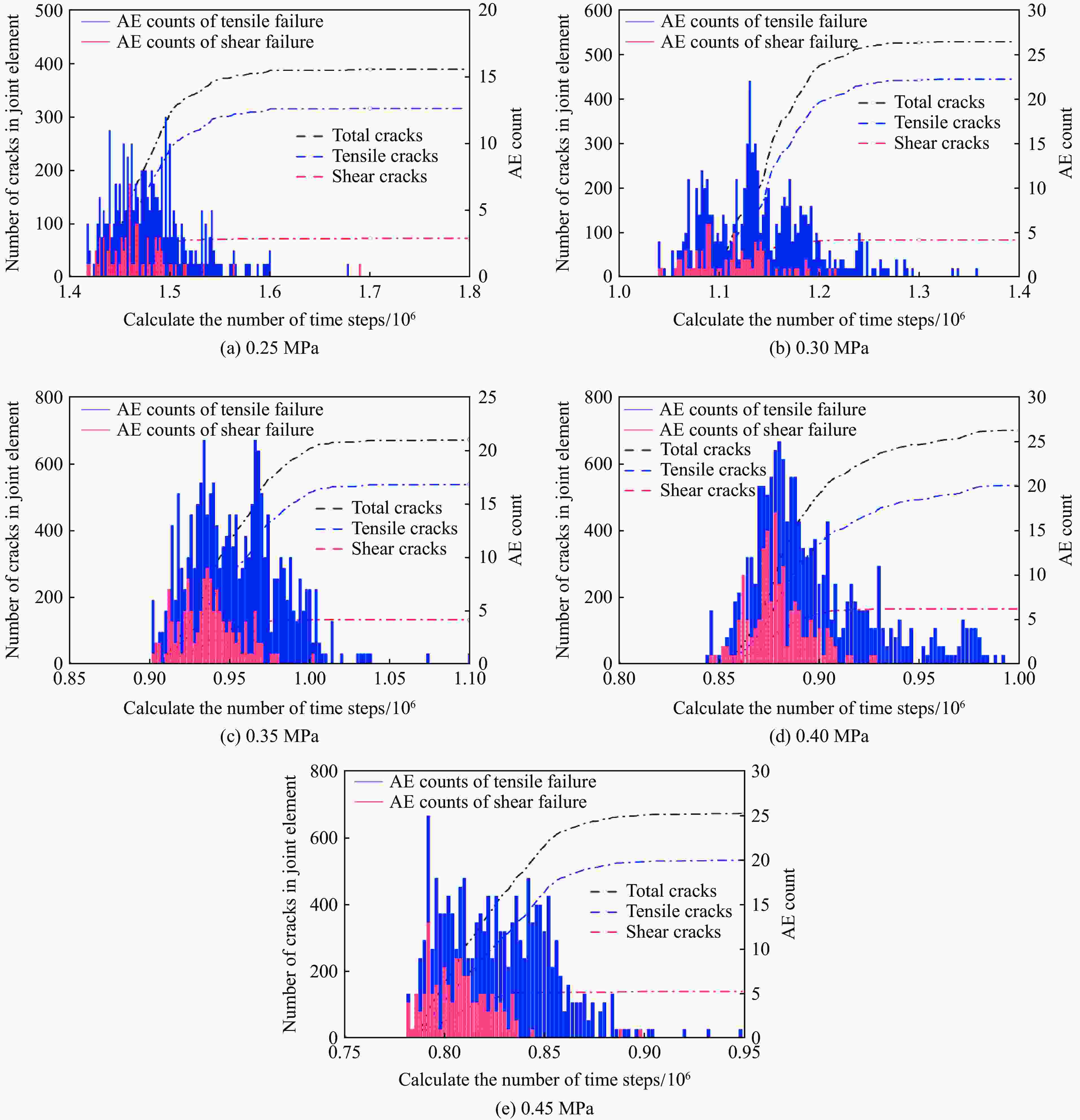

图 12 不同冲击气压下含铜钠长岩试样的裂纹数和AE计数（蓝色代表拉伸裂纹，红色代表剪切裂纹）
Figure 12. Crack number and AE count of copper-bearing albite rock samples under different impact gas pressures (Blue denotes tensile cracks, red denotes shear cracks.)

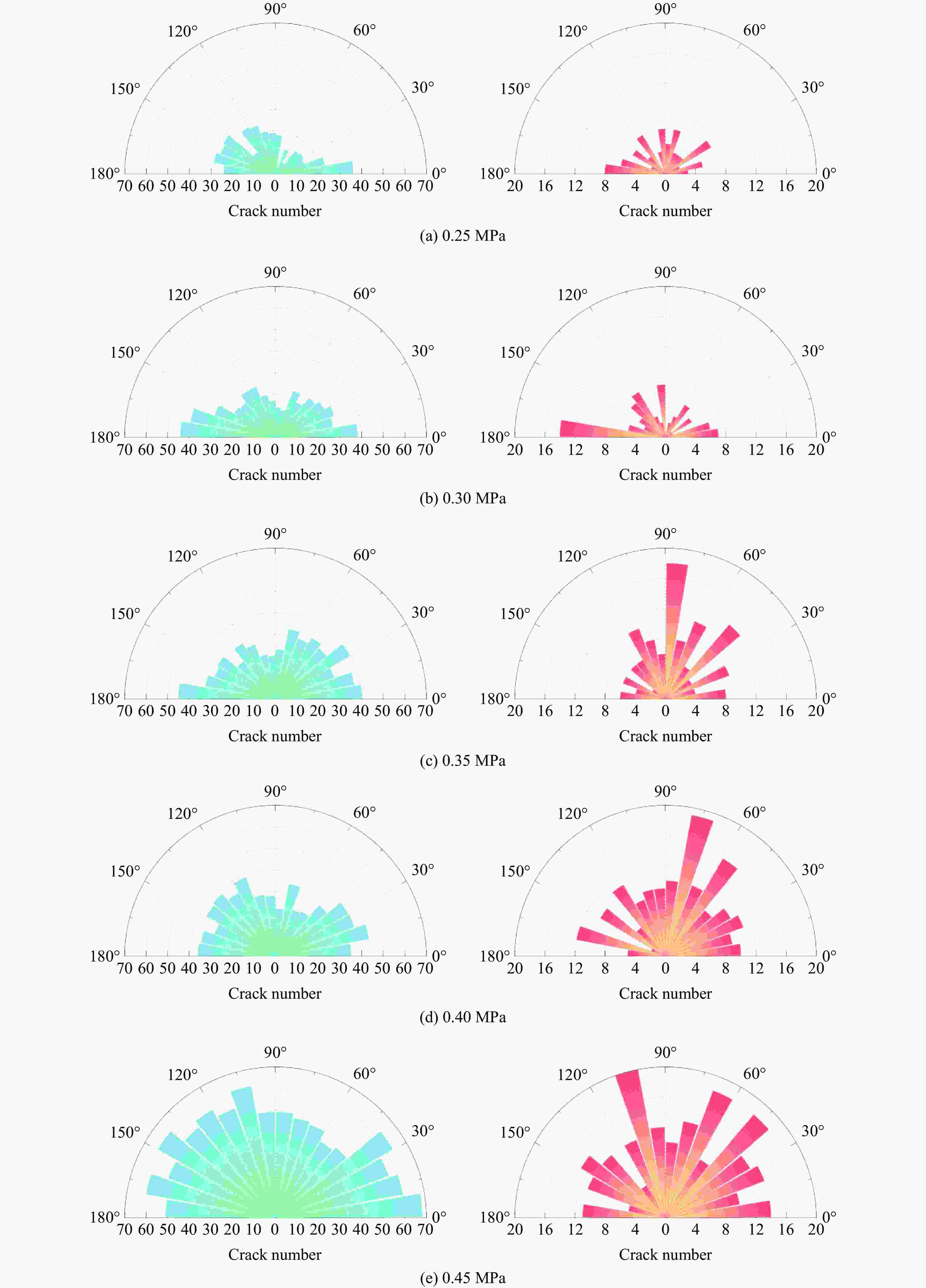

图 13 不同冲击气压下含铜钠长岩裂纹走向玫瑰图（蓝色代表拉伸裂纹，红色代表剪切裂纹）
Figure 13. Rose diagrams showing fracture orientation distributions under different impact gas pressures (Blue denotes tensile cracks, red denotes shear cracks.)

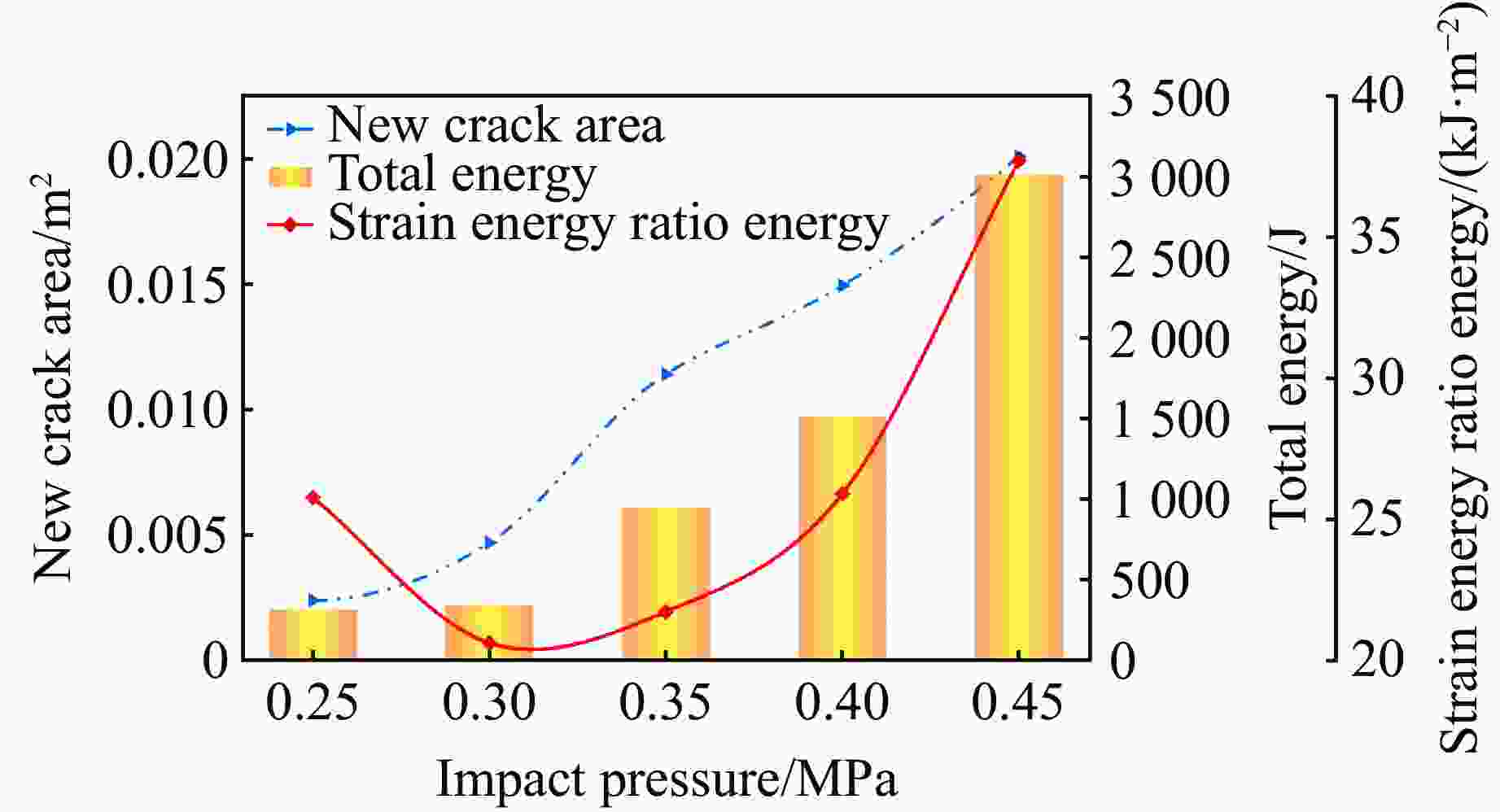

图 14 冲击气压、比能量、新增裂隙面积的关系
Figure 14. Relationships among impact gas pressure, specific energy, and newly created fracture area

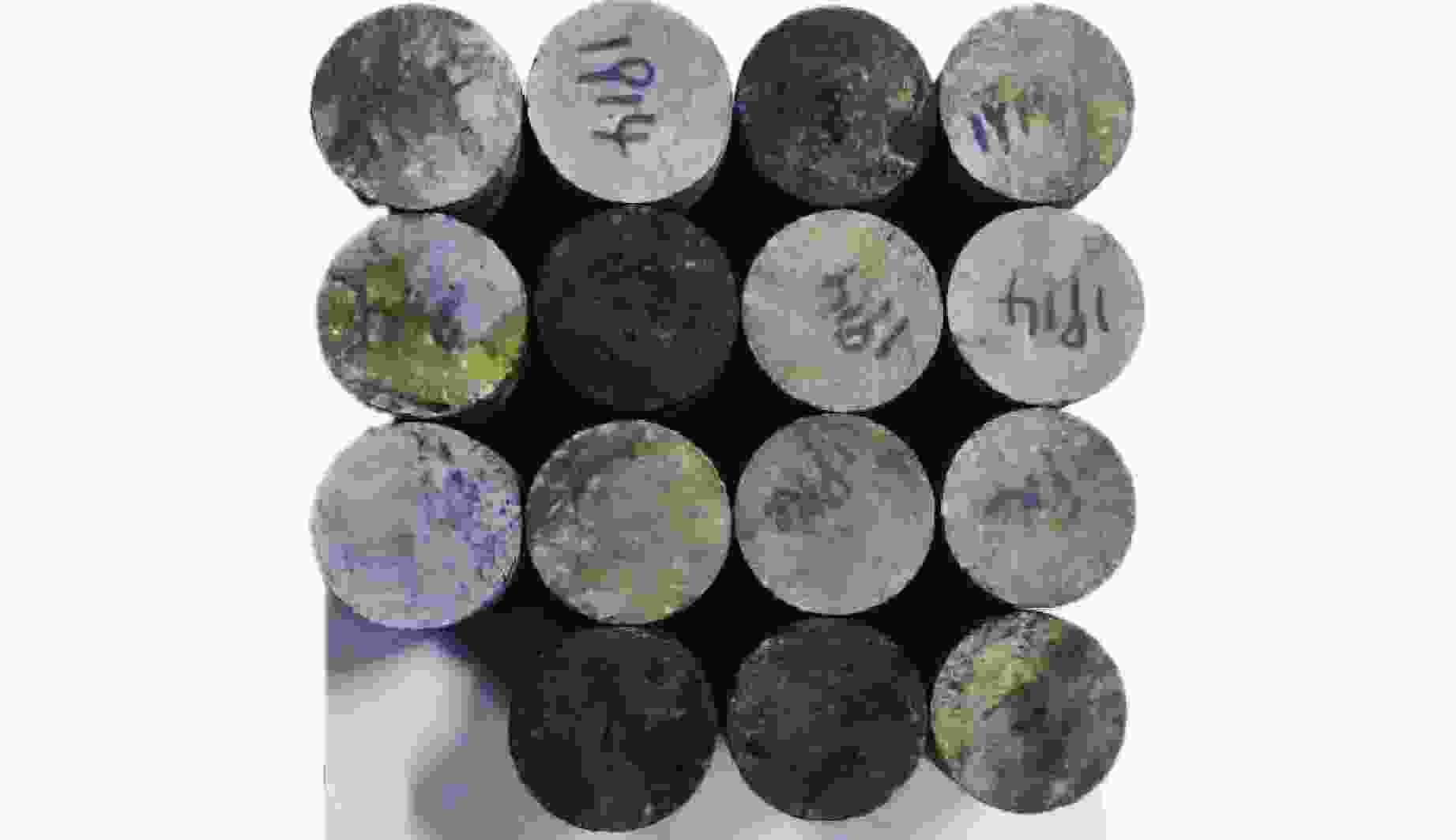

表 1 含铜钠长岩基本物理力学参数
Table 1. Basic physical and mechanical properties of copper-bearing albite rock
ρ/(g·cm−3) Longitudinal wave velocity/(m·s–1) E/GPa $\nu $ Compressive strength/MPa 2.857 3384 76.25 0.46 37.61
下载: 导出CSV

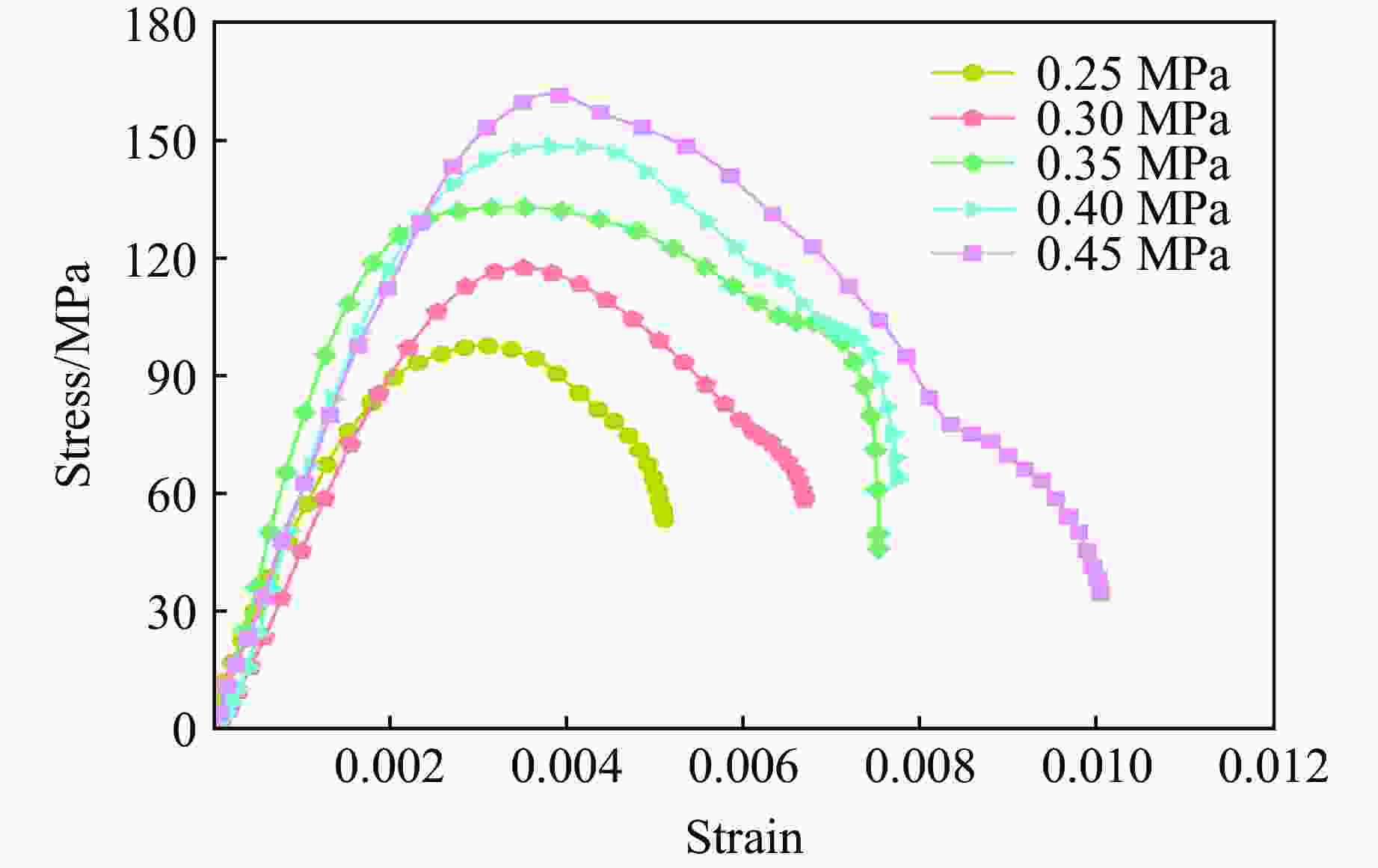

表 2 含铜钠长岩的冲击试验数据
Table 2. Impact test results on copper-bearing albite rock
Test No. Impact pressure/MPa Impact velocity/(m·s–1) Average strain rate/s−1 Peak stress/MPa HT-1 0.25 5.34 41.55 97.76 HT-2 0.30 6.76 56.23 117.59 HT-3 0.35 8.32 61.14 133.15 HT-4 0.40 10.27 71.16 136.93 HT-5 0.45 12.81 81.39 161.88
下载: 导出CSV

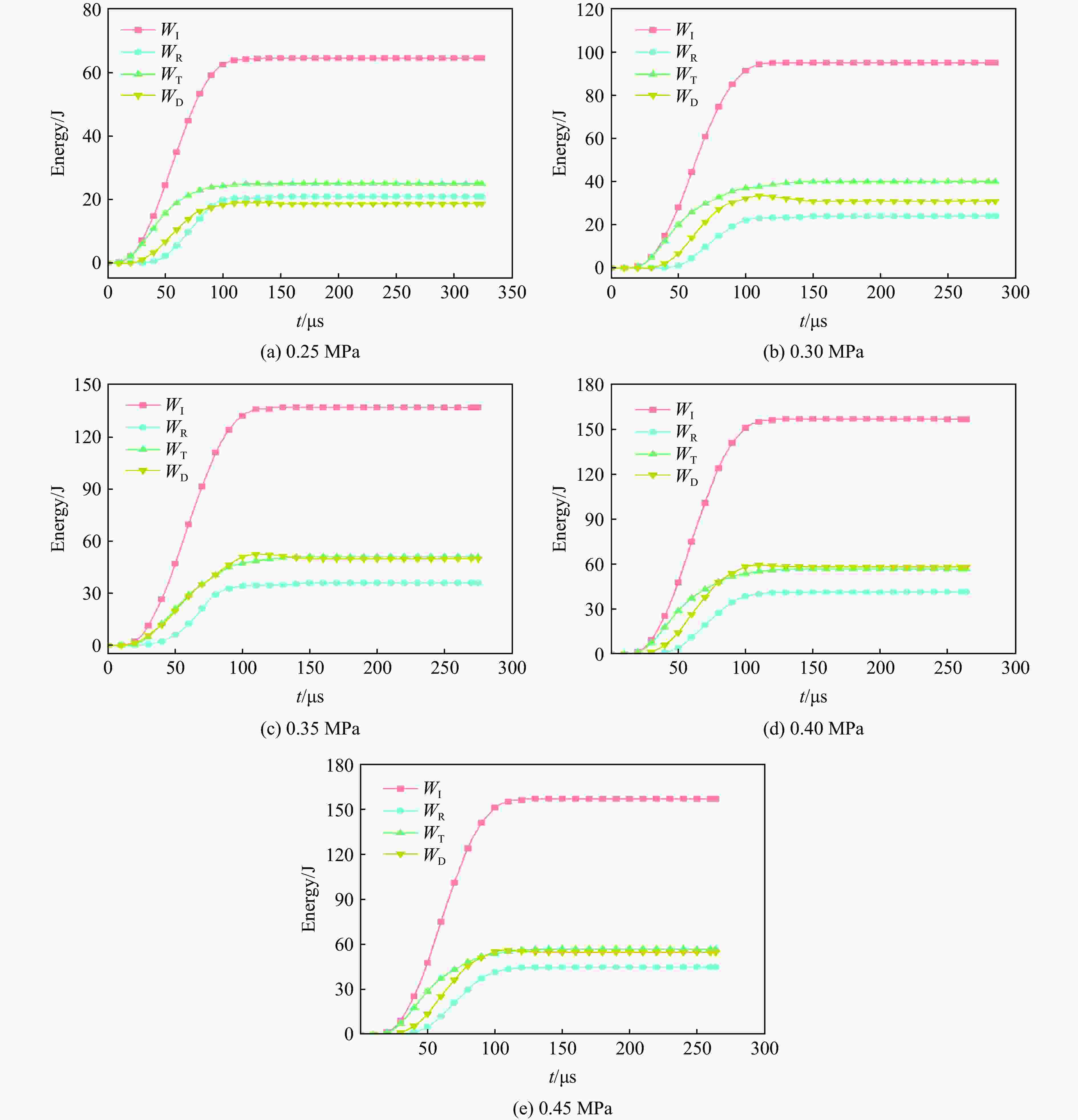

表 3 不同冲击气压下含铜钠长岩能量计算
Table 3. Energy analysis of copper-bearing albite during impact under different gas pressures
Test No. Average strain rate/s−1 Impact gas pressure/MPa WI/J WR/J WT/J WD/J HT-1 41.55 0.25 64.52 20.92 24.95 18.64 HT-2 56.23 0.30 94.97 24.03 40.05 30.89 HT-3 61.14 0.35 136.95 36.02 51.10 49.83 HT-4 71.16 0.40 156.82 45.00 56.96 54.85 HT-5 81.39 0.45 196.28 59.74 58.75 61.47
下载: 导出CSV

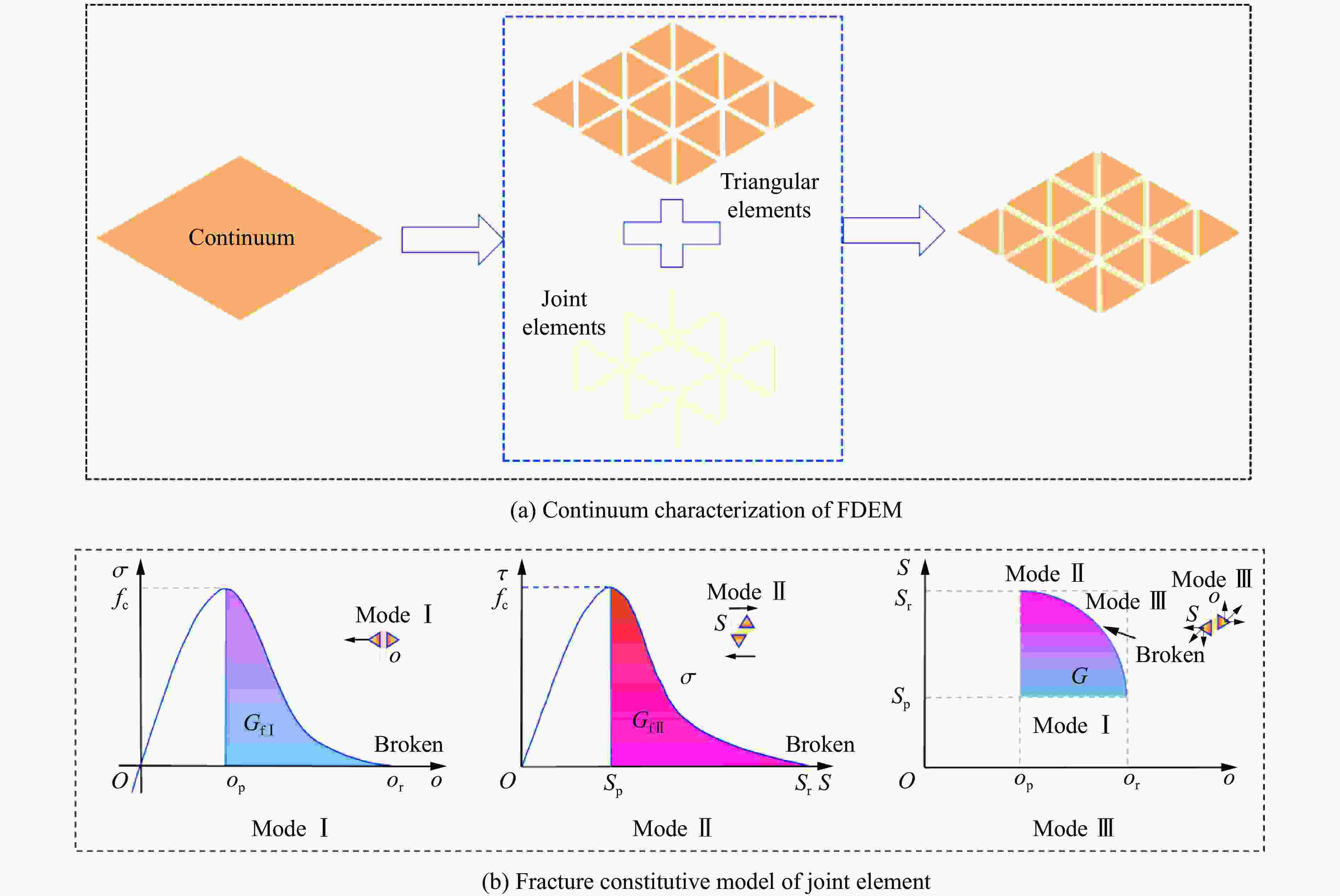

表 4 FDEM微观参数
Table 4. Calibrated micro-mechanical parameters for the FDEM model
r/(kg·m–3) E/GPa $\nu $ pn/GPa pt/GPa c/MPa j/(°) ft/MPa GfⅠ/(J·m–2) GfⅡ/(J·m–2) pfn/GPa pft/GPa 2857 76.25 0.46 76.25 76.25 6.29 53.03 4.21 1000 2000 7625 7625
下载: 导出CSV
-
[1] 工业和信息化部, 国家发展改革委, 教育部, 等. 工信部等十一部门联合印发《铜产业高质量发展实施方案(2025—2027年)》 [J]. 资源再生, 2025(2): 48–51. doi: 10.3969/j.issn.1673-7776.2025.02.026Ministry of Industry and Information Technology of the People’s Republic of China, National Development and Reform Commission, Ministry of Education of the People’s Republic of China, et al. Eleven departments including the Ministry of Industry and Information Technology jointly issued the Implementation Plan for High Quality Development of the Copper Industry (2025−2027) [J]. Resource Recycling, 2025(2): 48–51. doi: 10.3969/j.issn.1673-7776.2025.02.026 [2] GRADY D E, HOLLENBACH R E, SCHULER K W, et al. Strain rate dependence in dolomite inferred from impact and static compression studies [J]. Journal of Geophysical Research, 1977, 82(8): 1325–1333. doi: 10.1029/JB082i008p01325 [3] 左庭, 李祥龙, 王建国, 等. 冲击荷载下含铜矿岩能量耗散的数值模拟 [J]. 爆炸与冲击, 2025, 45(5): 053202. doi: 10.11883/bzycj-2024-0214ZUO T, LI X L, WANG J G, et al. Numerical modeling of the energy dissipation and fragmentation of copper-bearing rock under impact load [J]. Explosion and Shock Waves, 2025, 45(5): 053202. doi: 10.11883/bzycj-2024-0214 [4] 张慧梅, 王丹, 陈世官. 不同冲击荷载作用下风积砂混凝土动力学特性及能量耗散规律研究 [J]. 哈尔滨工程大学学报, 2025, 46(2): 210–218. doi: 10.11990/jheu.202209044ZHANG H M, WANG D, CHEN S G. Dynamic characteristics and energy dissipation law of aeolian sand concrete under different impact loads [J]. Journal of Harbin Engineering University, 2025, 46(2): 210–218. doi: 10.11990/jheu.202209044 [5] 牛俊超, 李吉民, 梅林芳, 等. 冲击荷载下磁铁矿动力学特性及破坏特征研究 [J]. 爆破, 2025, 42(2): 52–59. doi: 10.3963/j.issn.1001-487X.2025.02.006NIU J C, LI J M, MEI L F, et al. Study on dynamic characteristics and failure characteristics of magnetite under impact load [J]. Blasting, 2025, 42(2): 52–59. doi: 10.3963/j.issn.1001-487X.2025.02.006 [6] 平琦, 刘子训, 孔德龙, 等. 含孔砂岩试件冲击动力学特性和耗能分析 [J/OL]. 地下空间与工程学报, (2025-04-14)[2025-07-04]. https://link.cnki.net/urlid/50.1169.TU.20250413.0156.002.PING Q, LIU Z X, KONG D L, et al. Impact kinetic characterization and energy dissipation analysis of porous sandstone specimens [J/OL]. Chinese Journal of Underground Space and Engineering, (2025-04-14)[2025-07-04]. https://link.cnki.net/urlid/50.1169.TU.20250413.0156.002. [7] 段继超, 宗琦, 高朋飞, 等. 冲击荷载作用下干湿循环石灰岩拉伸破坏特性试验研究 [J]. 振动与冲击, 2024, 43(24): 204–215, 233. doi: 10.13465/j.cnki.jvs.2024.24.022DUAN J C, ZONG Q, GAO P F, et al. A study on dynamic tensile dynamic response and deformation failure characteristics of dry and wet cycles limestone [J]. Journal of Vibration and Shock, 2024, 43(24): 204–215, 233. doi: 10.13465/j.cnki.jvs.2024.24.022 [8] 戴兵, 赵桂锋, 张雷, 等. 不同加载速率作用下含平行裂隙岩石的试验研究: 能量耗散与损伤演化 [J]. 岩石力学与工程学报, 2024, 43(Suppl 1): 3397–3412. doi: 10.13722/j.cnki.jrme.2023.0283DAI B, ZHAO G F, ZHANG L, et al. Experimental study of rock with parallel cracks under different loading rates: energy dissipation and damage evolution [J]. Chinese Journal of Rock Mechanics and Engineering, 2024, 43(Suppl 1): 3397–3412. doi: 10.13722/j.cnki.jrme.2023.0283 [9] 焦振华, 姜耀东, 赵毅鑫, 等. 侧限约束冲击载荷下煤样能量耗散与损伤特征 [J]. 中国矿业大学学报, 2023, 52(3): 492–501. doi: 10.13247/j.cnki.jcumt.20220185JIAO Z H, JIANG Y D, ZHAO Y X, et al. Energy dissipation and damage characteristics of lateral-restraint coal under impact load [J]. Journal of China University of Mining & Technology, 2023, 52(3): 492–501. doi: 10.13247/j.cnki.jcumt.20220185 [10] 王雁冰, 付代睿. 层理角度对天然岩石材料动态断裂行为的影响研究 [J]. 岩石力学与工程学报, 2023, 42(4): 849–867. doi: 10.13722/j.cnki.jrme.2022.0236WANG Y B, FU D R. Effect of bedding angle on dynamic fracture behavior of natural rock materials [J]. Chinese Journal of Rock Mechanics and Engineering, 2023, 42(4): 849–867. doi: 10.13722/j.cnki.jrme.2022.0236 [11] 周俊, 赵光明, 孟祥瑞, 等. 高径比差异条件下花岗岩动态冲击能量耗散及破碎特征 [J]. 采矿与安全工程学报, 2023, 40(2): 379–386. doi: 10.13545/j.cnki.jmse.2022.0060ZHOU J, ZHAO G M, MENG X R, et al. Dynamic impact energy dissipation characteristics of granite with different height-diameter ratios [J]. Journal of Mining & Safety Engineering, 2023, 40(2): 379–386. doi: 10.13545/j.cnki.jmse.2022.0060 [12] 孙卓越, 吴拥政, 李军臣, 等. 考虑长径比与应变率耦合效应的砂质泥岩动态损伤本构模型 [J]. 煤炭科学技术, 2025, 53(12): 86–99. doi: 10.12438/cst.2025-0152SUN Z Y, WU Y Z, LI J C, et al. Dynamic damage constitutive model of sandy mudstone considering the coupling effect of length-to-diameter ratio and strain rate [J]. Coal Science and Technology, 2025, 53(12): 86–99. doi: 10.12438/cst.2025-0152 [13] LI J C, RONG L F, LI H B, et al. An SHPB test study on stress wave energy attenuation in jointed rock masses [J]. Rock Mechanics and Rock Engineering, 2019, 52(2): 403–420. doi: 10.1007/s00603-018-1586-y [14] LI D Y, HAN Z Y, SUN X L, et al. Dynamic mechanical properties and fracturing behavior of marble specimens containing single and double flaws in SHPB tests [J]. Rock Mechanics and Rock Engineering, 2019, 52(6): 1623–1643. doi: 10.1007/s00603-018-1652-5 [15] 王江波, 李汶峰, 任文科, 等. SHPB入射波相似律与整形技术的试验与数值研究 [J]. 振动与冲击, 2022, 41(6): 169–176, 221. doi: 10.13465/j.cnki.jvs.2022.06.022WANG J B, LI W F, REN W K, et al. Experimental and numerical study on the incident pulse similarity law and pulse shaping technique in SHPB test [J]. Journal of Vibration and Shock, 2022, 41(6): 169–176, 221. doi: 10.13465/j.cnki.jvs.2022.06.022 [16] 张旭, 刘晓辉, 刘楚佳, 等. 高温大理岩的动态能量耗散机理及破坏特征 [J]. 爆炸与冲击, 2025, 45(6): 061413. doi: 10.11883/bzycj-2024-0405ZHANG X, LIU X H, LIU C J, et al. Study on dynamic energy dissipation mechanism and damage characteristics of high-temperature marble [J]. Explosion and Shock Waves, 2025, 45(6): 061413. doi: 10.11883/bzycj-2024-0405 [17] 吉东亮, 高新强, 董北毅, 等. 动载作用下复合岩体力学失稳机制与损伤本构模型研究 [J]. 振动与冲击, 2024, 43(19): 103–116. doi: 10.13465/j.cnki.jvs.2024.19.013JI D L, GAO X Q, DONG B Y, et al. Instability mechanism and damage constitutive model of composite rock mechanics under dynamic load [J]. Journal of Vibration and Shock, 2024, 43(19): 103–116. doi: 10.13465/j.cnki.jvs.2024.19.013 [18] LI X B, ZOU Y, ZHOU Z L. Numerical simulation of the rock SHPB test with a special shape striker based on the discrete element method [J]. Rock Mechanics and Rock Engineering, 2014, 47(5): 1693–1709. doi: 10.1007/s00603-013-0484-6 [19] ZHU W C, BAI Y, LI X B, et al. Numerical simulation on rock failure under combined static and dynamic loading during SHPB tests [J]. International Journal of Impact Engineering, 2012, 49: 142–157. doi: 10.1016/j.ijimpeng.2012.04.002 [20] ZHOU Z L, ZHAO Y, JIANG Y H, et al. Dynamic behavior of rock during its post failure stage in SHPB tests [J]. Transactions of Nonferrous Metals Society of China, 2017, 27(1): 184–196. doi: 10.1016/S1003-6326(17)60021-9 [21] ZUO T, LI X L, WANG J G, et al. Insights into natural tuff as a building material: effects of natural joints on fracture fractal characteristics and energy evolution of rocks under impact load [J]. Engineering Failure Analysis, 2024, 163: 108584. doi: 10.1016/j.engfailanal.2024.108584 [22] 柴少波, 王昊, 井彦林, 等. 充填节理岩石累积损伤动力压缩特性试验研究 [J]. 岩石力学与工程学报, 2020, 39(10): 2025–2037. doi: 10.13722/j.cnki.jrme.2020.0310CHAI S B, WANG H, JING Y L, et al. Experimental study on dynamic compression characteristics of rock with filled joints after cumulative damage [J]. Chinese Journal of Rock Mechanics and Engineering, 2020, 39(10): 2025–2037. doi: 10.13722/j.cnki.jrme.2020.0310 [23] 滕骁, 卢玉斌, 陈兴, 等. 再生混凝土动态直接拉伸的试验研究 [J]. 振动与冲击, 2016, 35(9): 43–51. doi: 10.13465/j.cnki.jvs.2016.09.008TENG X, LU Y B, CHEN X, et al. Experimental study on dynamic direct tensile of recycled aggregate concrete [J]. Journal of Vibration and Shock, 2016, 35(9): 43–51. doi: 10.13465/j.cnki.jvs.2016.09.008 [24] 魏威. 冲击载荷作用下活性材料的响应特性研究 [D]. 北京: 北京理工大学, 2016: 35−39.WEI W. Study on the dynamic responses of the active materials under impact loadings [D]. Beijing: Beijing Institute of Technology, 2016: 35−39. [25] 王建国, 雷振, 杨阳, 等. 饱水冻结花岗岩动态力学性状的应变率效应 [J]. 地下空间与工程学报, 2018, 14(5): 1292–1297. doi: 10.20174/j.juse.2018.05.019WANG J G, LEI Z, YANG Y, et al. Strain rate effect of dynamic mechanical characteristics of saturated freezing granite [J]. Chinese Journal of Underground Space and Engineering, 2018, 14(5): 1292–1297. doi: 10.20174/j.juse.2018.05.019 [26] 李夕兵, 宫凤强, 周子龙, 等. 岩石类材料SHPB实验中的几个关键问题 [C]//第六届全国爆炸力学实验技术学术会议论文集. 长沙: 中国力学学会爆炸力学实验技术专业组, 2010: 6−19.LI X B, GONG F Q, ZHOU Z L, et al. Several key problems in the SHPB experiment of rock-like materials [C]//Proceedings of the 6th National Explosive Mechanics Experimental Technology Conference. Changsha: Explosion Mechanics Experimental Technology Group of Chinese Society of Mechanics, 2010: 6−19. [27] 翟越, 马国伟, 赵均海, 等. 花岗岩在单轴冲击压缩荷载下的动态断裂分析 [J]. 岩土工程学报, 2007, 29(3): 385–390. doi: 10.3321/j.issn:1000-4548.2007.03.012ZHAI Y, MA G W, ZHAO J H, et al. Dynamic failure analysis on granite under uniaxial impact compressive load [J]. Journal of Geotechnical Engineering, 2007, 29(3): 385–390. doi: 10.3321/j.issn:1000-4548.2007.03.012 [28] WANG Z X, HUANG J H, CHEN Y L, et al. Dynamic mechanical properties of different types of rocks under impact loading [J]. Scientific Reports, 2023, 13(1): 19147. doi: 10.1038/s41598-023-46444-x [29] 杨辉. 单轴冲击荷载下花岗岩力学特性与数值模拟研究 [D]. 合肥: 合肥工业大学, 2020.YANG H. Study on mechanical properties and numerical simulation of granite under uniaxial impact load [D]. Hefei: Hefei University of Technology, 2020. [30] 温森, 吴斐, 李胜, 等. 冲击荷载下强度比对类复合岩样能量耗散影响的研究 [J]. 振动与冲击, 2023, 42(13): 111–118. doi: 10.13465/j.cnki.jvs.2023.13.013WEN S, WU F, LI S, et al. Effects of strength ratio on energy dissipation of quasi-composite rock samples under impact load [J]. Journal of Vibration and Shock, 2023, 42(13): 111–118. doi: 10.13465/j.cnki.jvs.2023.13.013 [31] GONG F Q, JIA H Y, ZHANG Z X, et al. Energy dissipation and particle size distribution of granite under different incident energies in SHPB compression tests [J]. Shock and Vibration, 2020, 2020: 8899355. doi: 10.1155/2020/8899355 [32] 于水生, 卢玉斌, 朱万成, 等. SHPB试验中花岗岩破坏程度与能量耗散关系分析 [J]. 东北大学学报(自然科学版), 2015, 36(12): 1733–1737. doi: 10.3969/j.issn.1005-3026.2015.12.014YU S S, LU Y B, ZHU W C, et al. Analysis on relationship between degree of damage and energy dissipation of granite in SHPB tests [J]. Journal of Northeastern University (Natural Science), 2015, 36(12): 1733–1737. doi: 10.3969/j.issn.1005-3026.2015.12.014 [33] 王德荣, 刘昭言, 刘家贵, 等. 砂岩和花岗岩的动态性能与能量耗散分析 [J]. 北京理工大学学报, 2017, 37(12): 1217–1223. doi: 10.15918/j.tbit1001-0645.2017.12.002WANG D R, LIU Z Y, LIU J G, et al. Analysis of dynamic properties and energy dissipation of sandstone and granite [J]. Transactions of Beijing Institute of Technology, 2017, 37(12): 1217–1223. doi: 10.15918/j.tbit1001-0645.2017.12.002 [34] MUNJIZA A A, KNIGHT E E, ROUGIER E. Large strain finite element method: a practical course [M]. Chichester: John Wiley & Sons, 2015. [35] MUNJIZA A A, KNIGHT E E, ROUGIER E. Computational mechanics of discontinua [M]. Chichester: John Wiley & Sons, 2012. [36] YAN C Z, ZHENG H, SUN G H, et al. Combined finite-discrete element method for simulation of hydraulic fracturing [J]. Rock Mechanics and Rock Engineering, 2016, 49(4): 1389–1410. doi: 10.1007/s00603-015-0816-9 [37] FUKUDA D, MOHAMMADNEJAD M, LIU H Y, et al. Development of a GPGPU-parallelized hybrid finite-discrete element method for modeling rock fracture [J]. International Journal for Numerical and Analytical Methods in Geomechanics, 2019, 43(10): 1797–1824. doi: 10.1002/nag.2934 [38] LEI Z, ROUGIER E, MUNJIZA A, et al. Simulation of discrete cracks driven by nearly incompressible fluid via 2D combined finite-discrete element method [J]. International Journal for Numerical and Analytical Methods in Geomechanics, 2019, 43(9): 1724–1743. doi: 10.1002/nag.2929 [39] YAN C Z, ZHENG H. FDEM-flow3D: a 3D hydro-mechanical coupled model considering the pore seepage of rock matrix for simulating three-dimensional hydraulic fracturing [J]. Computers and Geotechnics, 2017, 81: 212–228. doi: 10.1016/j.compgeo.2016.08.014 [40] YAN C Z, ZHENG Y C, WANG G. A 2D adaptive finite-discrete element method for simulating fracture and fragmentation in geomaterials [J]. International Journal of Rock Mechanics and Mining Sciences, 2023, 169: 105439. doi: 10.1016/j.ijrmms.2023.105439 [41] YAN C Z, XIE X, REN Y H, et al. A FDEM-based 2D coupled thermal-hydro-mechanical model for multiphysical simulation of rock fracturing [J]. International Journal of Rock Mechanics and Mining Sciences, 2022, 149: 104964. doi: 10.1016/j.ijrmms.2021.104964 [42] YAN C Z, ZHAO Z H, YANG Y, et al. A three-dimensional thermal-hydro-mechanical coupling model for simulation of fracturing driven by multiphysics [J]. Computers and Geotechnics, 2023, 155: 105162. doi: 10.1016/j.compgeo.2022.105162 [43] YAN C Z, HAN D, ZHENG H, et al. A linear fracture constitutive model for the two-dimensional finite-discrete element method (FDEM) and its parameters calibration procedure [J]. Engineering Analysis with Boundary Elements, 2025, 176: 106228. doi: 10.1016/j.enganabound.2025.106228 [44] YAN C Z, TONG Y. Calibration of microscopic penalty parameters in the combined finite-discrete-element method [J]. International Journal of Geomechanics, 2020, 20(7): 04020092. doi: 10.1061/(ASCE)GM.1943-5622.0001686 [45] TATONE B S A, GRASSELLI G. A calibration procedure for two-dimensional laboratory-scale hybrid finite-discrete element simulations [J]. International Journal of Rock Mechanics and Mining Sciences, 2015, 75: 56–72. doi: 10.1016/j.ijrmms.2015.01.011 [46] BAHRAMI B, NEJATI M, AYATOLLAHI M R, et al. Theory and experiment on true mode Ⅱ fracturing of rocks [J]. Engineering Fracture Mechanics, 2020, 240: 107314. doi: 10.1016/j.engfracmech.2020.107314 -
