基于离散元的岩体节理对掏槽爆破影响及参数优化

宋永康; 刘浩杉; 张智宇

doi:10.11858/gywlxb.20251186

基于离散元的岩体节理对掏槽爆破影响及参数优化

doi: 10.11858/gywlxb.20251186

昆明理工大学国土资源工程学院, 云南昆明　650093

基金项目: 国家自然科学基金（52064025）

详细信息

作者简介:
宋永康（1999－），男，硕士研究生，主要从事工程爆破研究. E-mail：2762591640@qq.com

通讯作者:
张智宇（1973－），男，教授，主要从事采矿工程及工程爆破研究. E-mail：924221851@qq.com

中图分类号: TD235; O521.9
计量
- 文章访问数: 1074
- HTML全文浏览量: 609
- PDF下载量: 56
出版历程
- 收稿日期: 2025-09-05
- 修回日期: 2025-10-27
- 网络出版日期: 2025-11-11
- 刊出日期: 2026-06-05

Influence of Rock Mass Joints on Slot Blasting and Parameter Optimization Based on Discrete Element Method

Faculty of Land Resources Engineering, Kunming University of Science and Technology, Kunming 650093, Yunnan, China

摘要

摘要: 巷道掘进中钻爆法的掏槽爆破效果直接影响爆破循环效率，而现有研究大多忽略了岩体内部节理等细观缺陷的影响。基于PFC（particle flow code） 2D离散元方法，通过引入离散裂隙网络（discrete fracture network，DFN）构建了含不同密度节理的岩体模型，采用粒子膨胀法模拟掏槽爆破过程，系统分析DFN对裂纹扩展、能量耗散及爆后块度的影响。在此基础上，优化炮孔布置方案，将原6孔布置简化为4孔菱形布置，并采用15 ms微差起爆，提高了炸药的能量利用率，爆后效果与原方案相近。现场试验表明，优化方案有效节省了实际生产成本，减少了钻孔工作量。研究结果强调了考虑岩体节理缺陷对爆破参数优化的重要性，为岩巷高效掘进提供了理论依据和参考实践。
- 掏槽爆破 /
- 离散元 /
- 参数优化 /
- 离散裂隙网络
Abstract: The grooving and blasting effect of the drilling and blasting method in roadway tunneling directly affects the blasting cycle efficiency, while the existing studies mostly ignore the influence of mesoscopic defects such as internal joints of rock mass. Based on the PFC (particle flow code) 2D discrete element method, a discrete fracture network (DFN) is introduced to construct a rock mass model with different densities of joints, and the particle expansion method is used to simulate the groove blasting process, and the effects of joint density on crack propagation, energy dissipation and post-explosion block size are systematically analyzed. On this basis, the blast hole layout scheme is optimized, the original 6-hole layout is simplified to a 4-hole diamond-shaped layout, and the 15 ms differential detonation is used to improve the explosive energy utilization rate, and the post-detonation effect is similar to the original scheme. Field tests show that the optimization scheme effectively saves the actual production cost and reduces the drilling workload. The research results emphasize the importance of considering the joint defects of rock mass for the optimization of blasting parameters, and provide a theoretical basis and practical reference for efficient tunneling of rock roadways.
- groove blasting /
- discrete elements /
- parameter optimization /
- discrete fracture network (DFN)

HTML全文

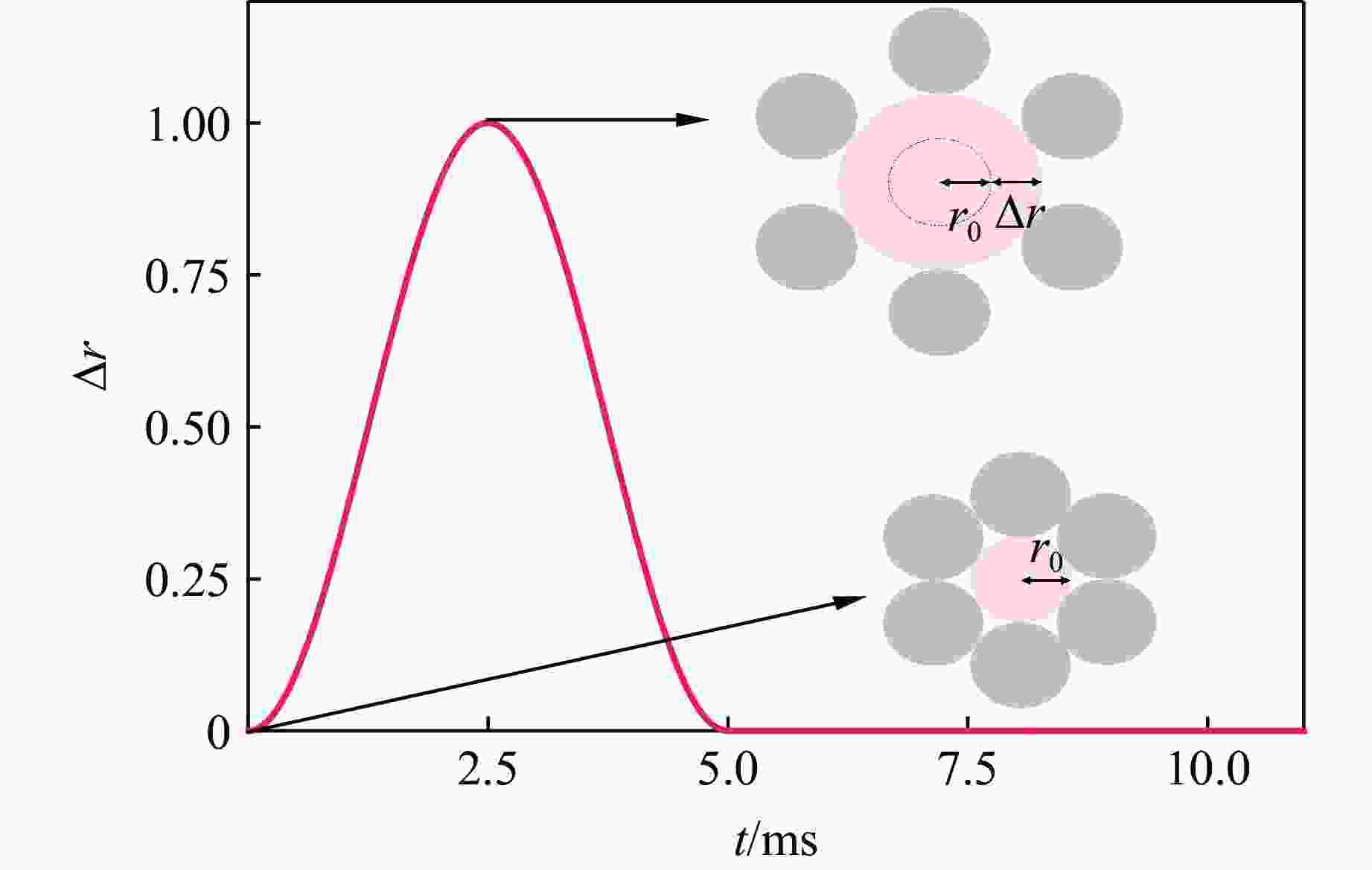

图 1 应力波加载示意图

Figure 1. Schematic diagram of stress wave loading

下载: 全尺寸图片幻灯片

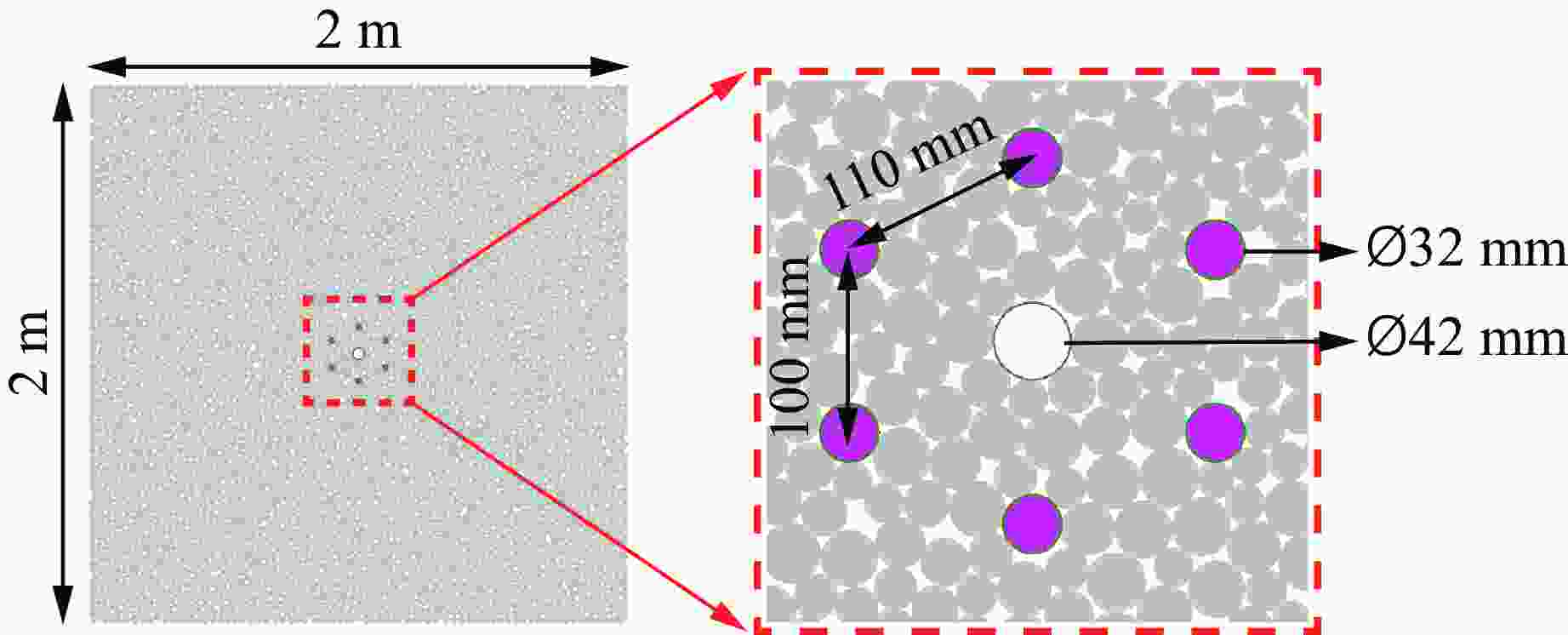

图 2 模型炮孔示意图

Figure 2. Schematic diagram of the model blast hole

下载: 全尺寸图片幻灯片

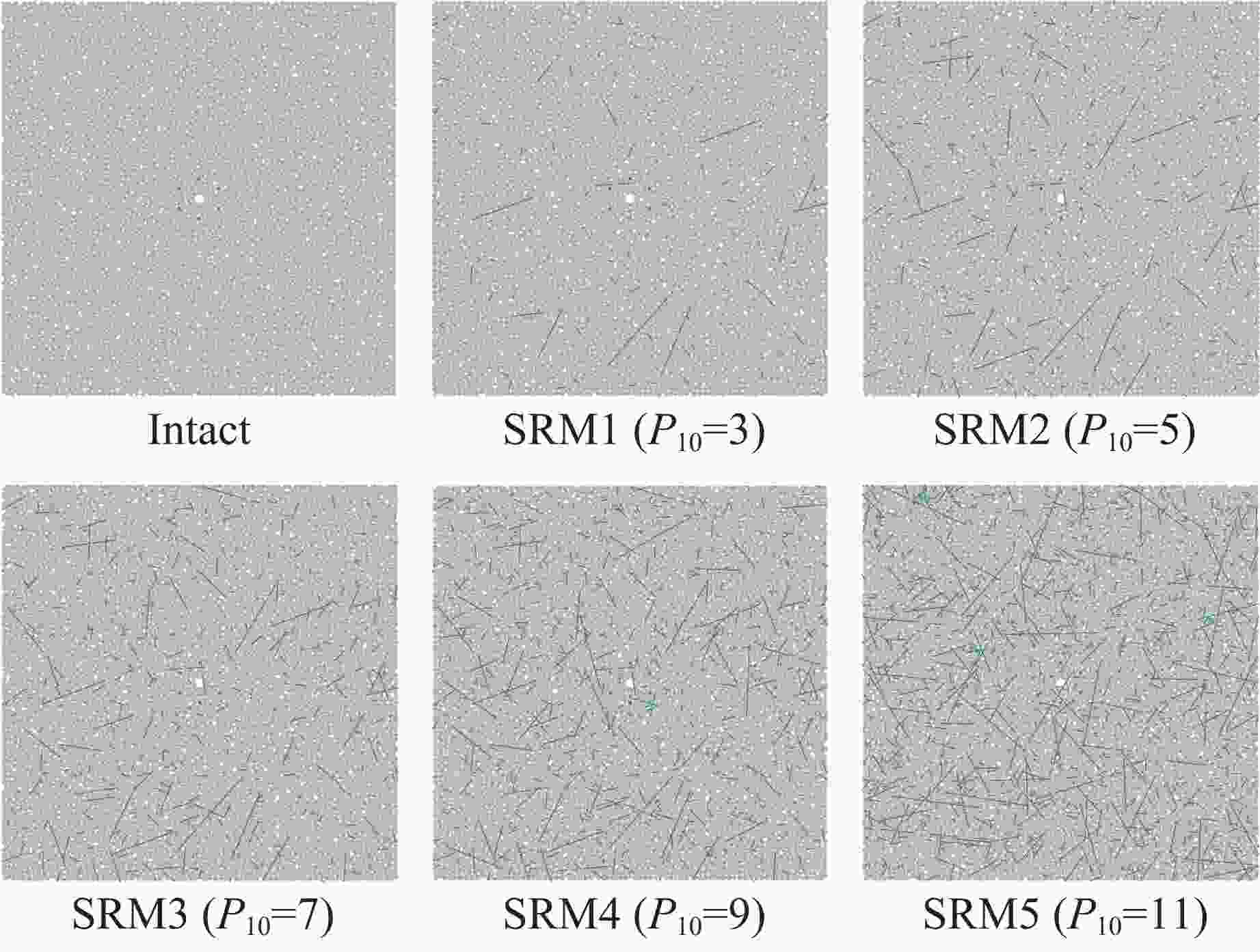

图 3 6组工况模型

Figure 3. Models of six working conditions

下载: 全尺寸图片幻灯片

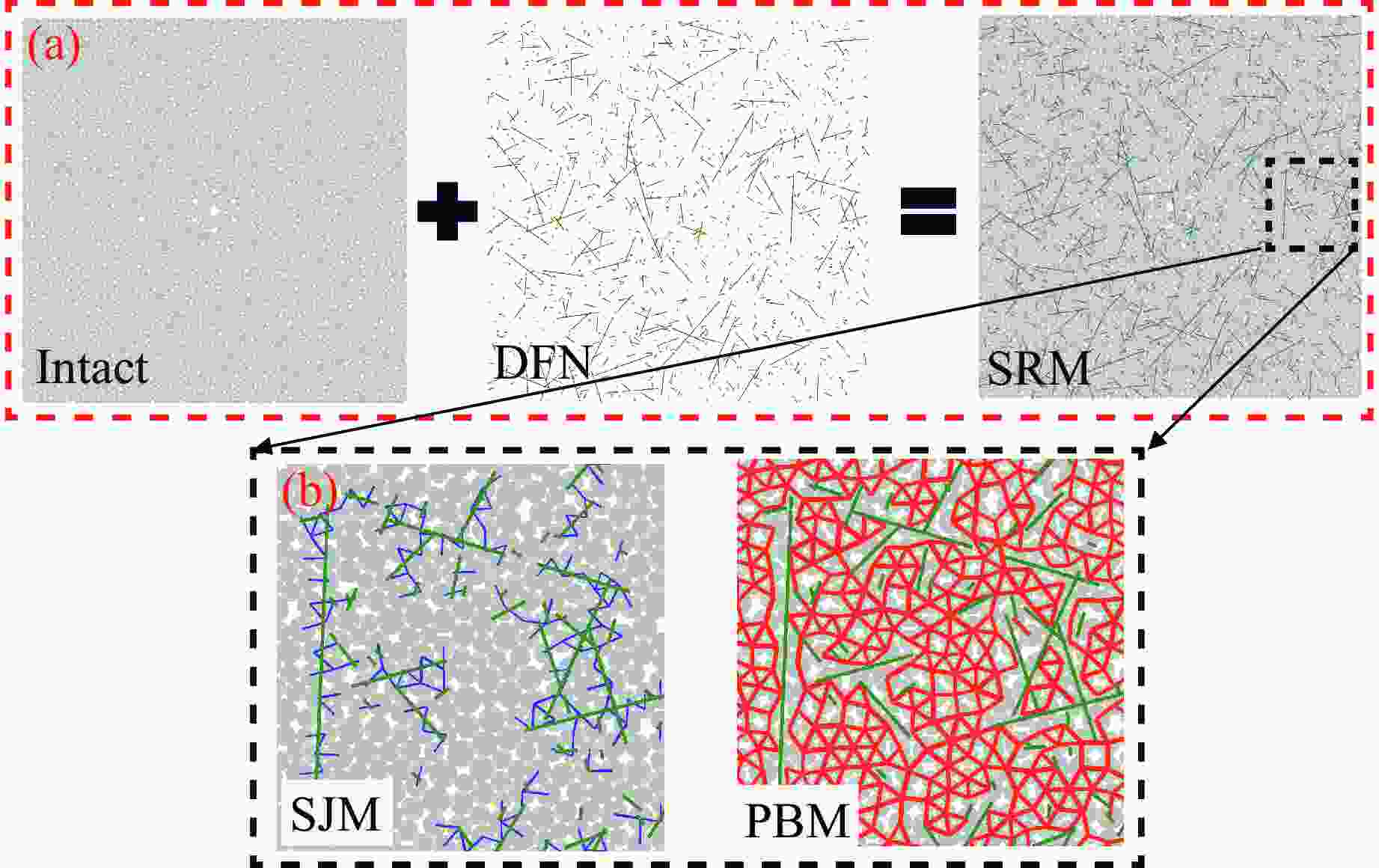

图 4 SRM模型合成过程及接触作用

Figure 4. Synthesis process and contact effect of SRM model

下载: 全尺寸图片幻灯片

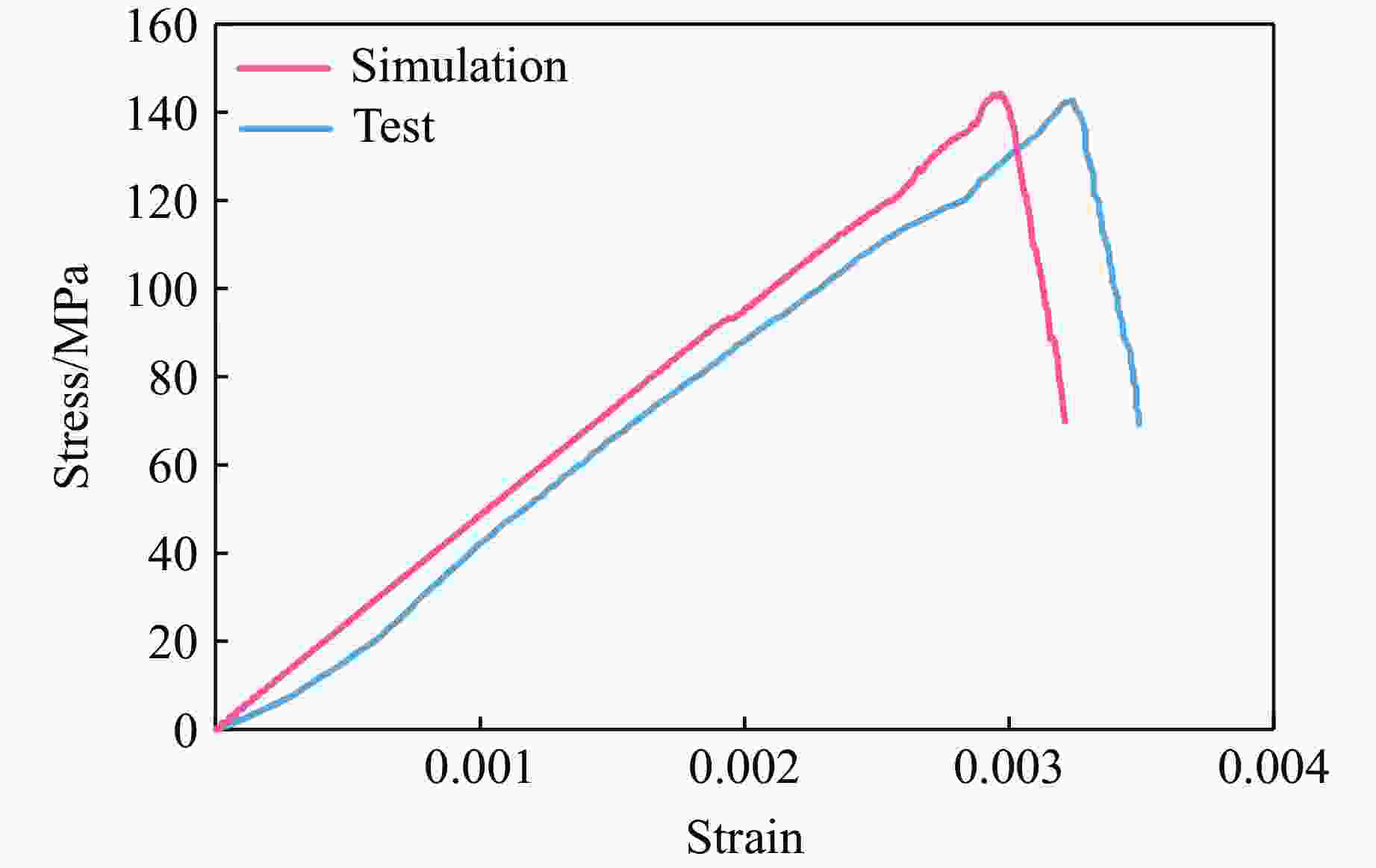

图 5 试验与模拟得到的应力-应变曲线对比

Figure 5. Comparison of stress-strain curves between test and simulation

下载: 全尺寸图片幻灯片

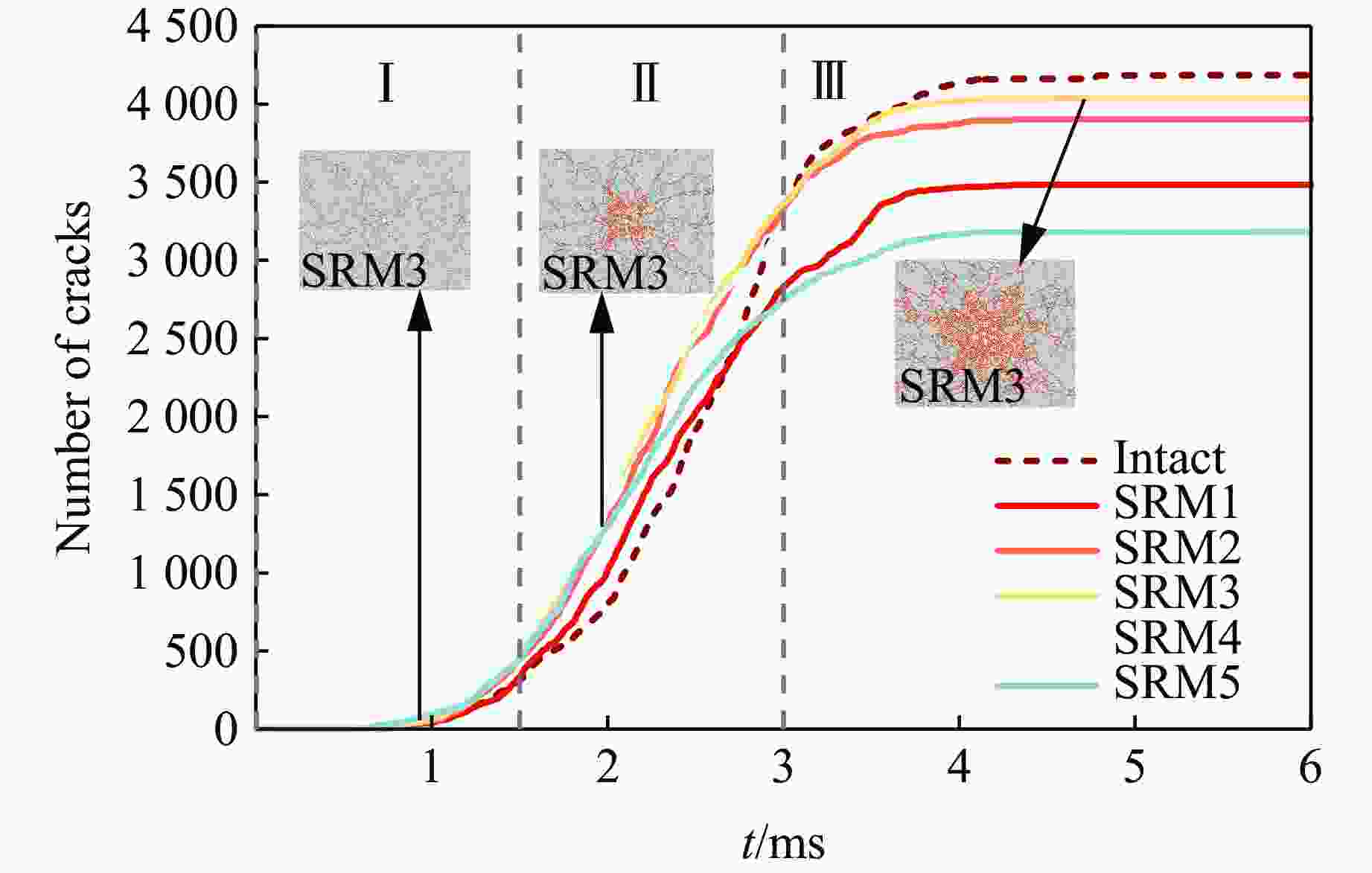

图 6 裂纹发育时程曲线

Figure 6. Crack propagation time-history curves

下载: 全尺寸图片幻灯片

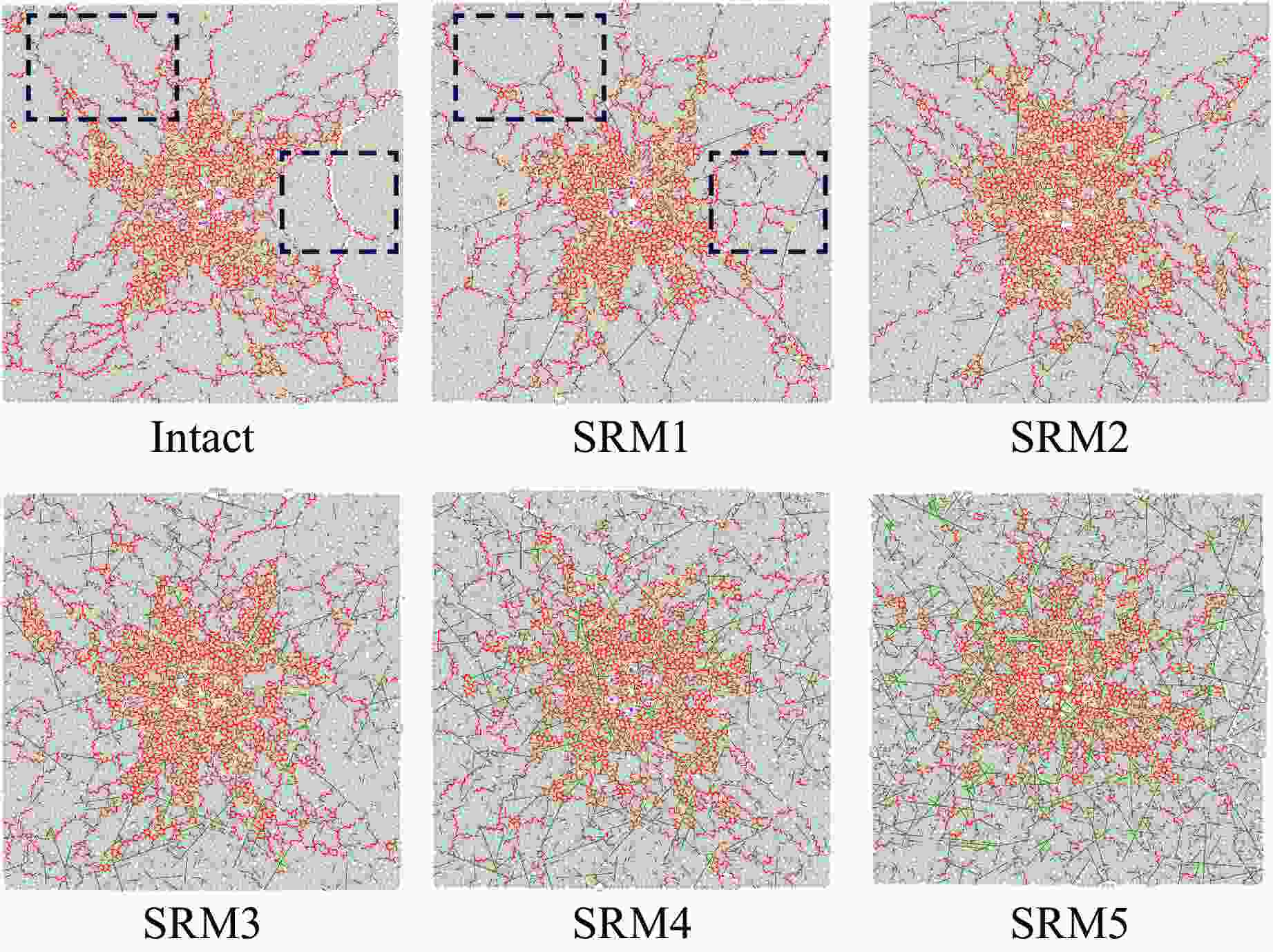

图 7 微裂纹分布

Figure 7. Microcrack distribution

下载: 全尺寸图片幻灯片

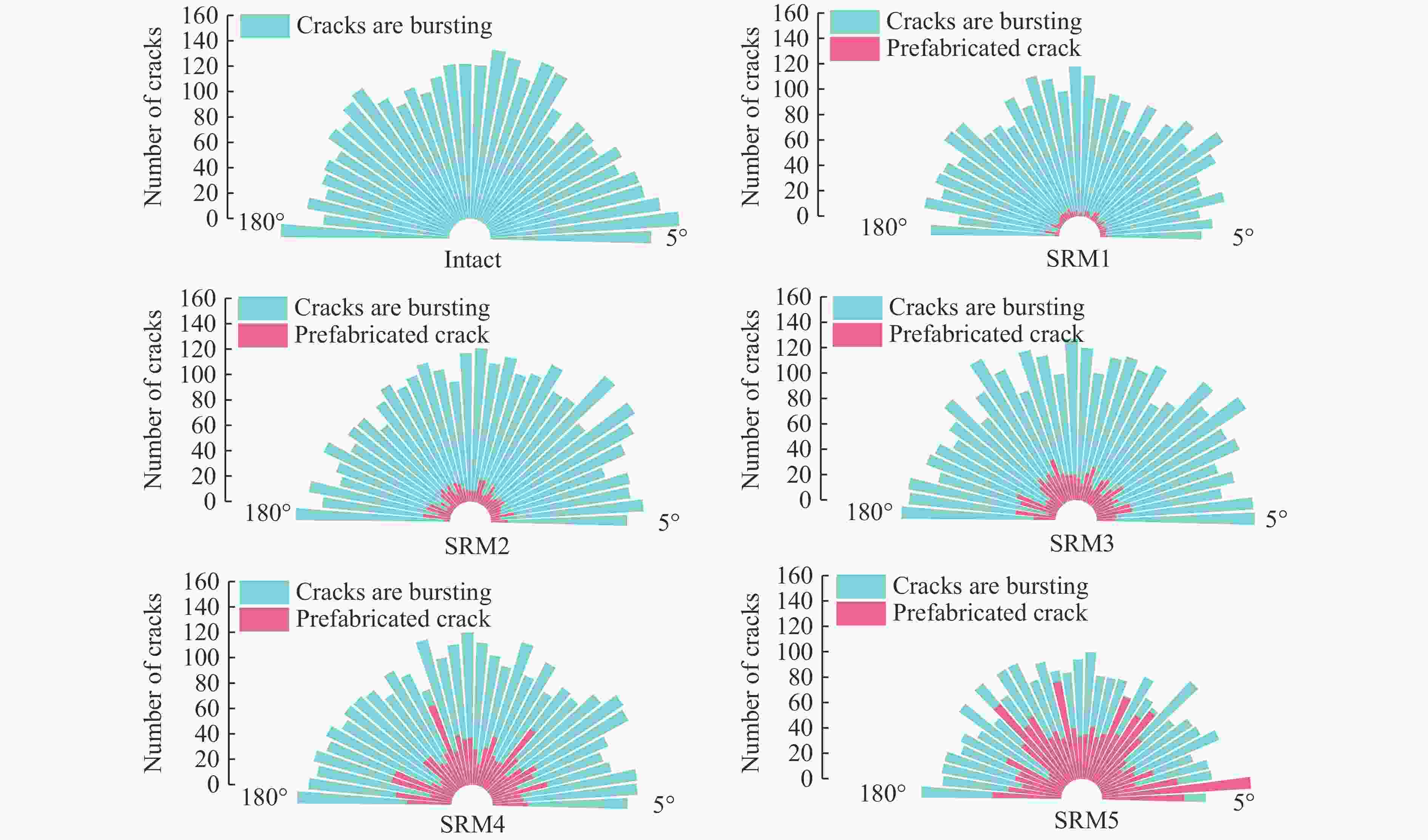

图 8 裂纹倾角玫瑰图

Figure 8. Crack inclination rose diagram

下载: 全尺寸图片幻灯片

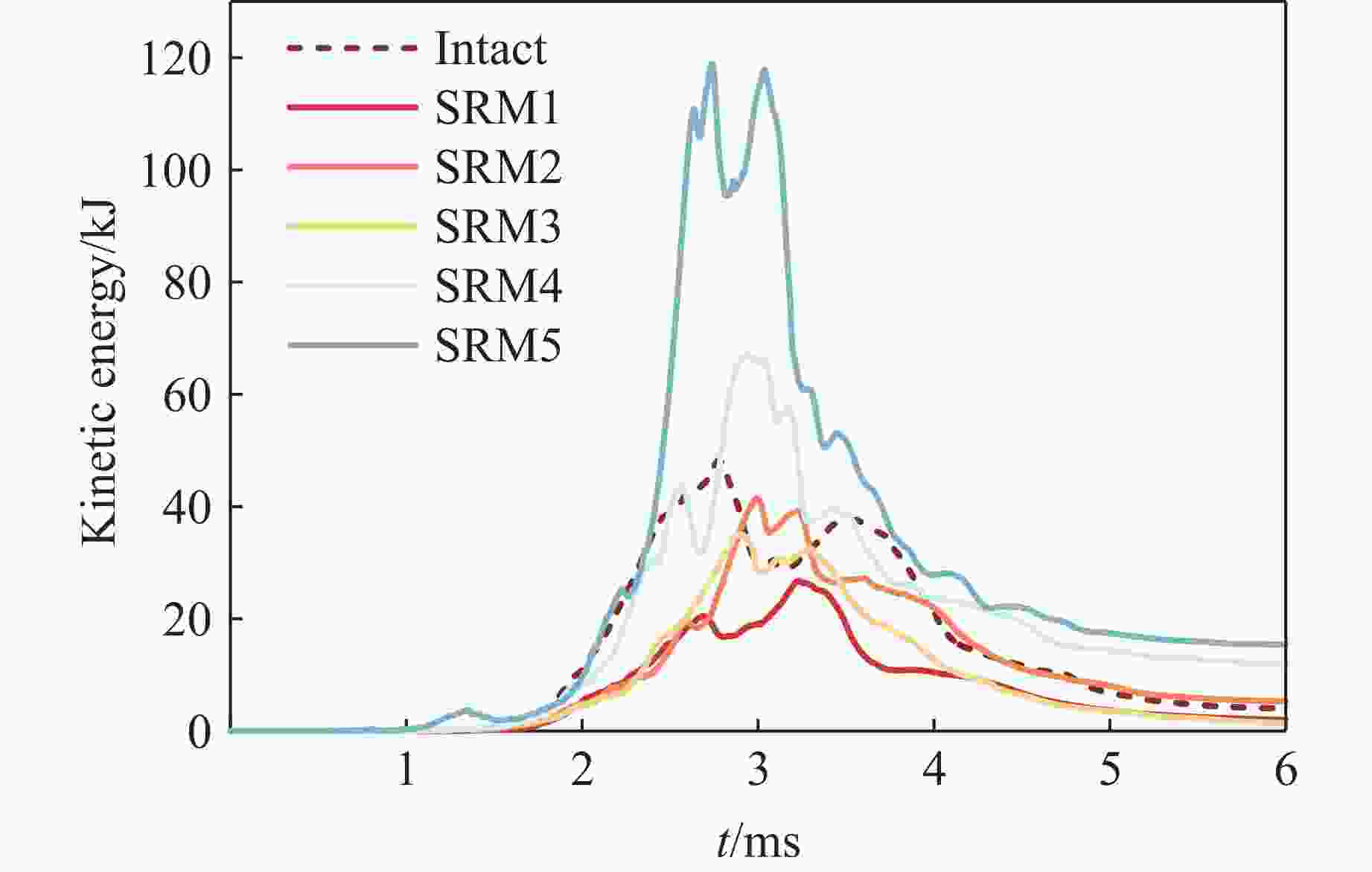

图 9 动能变化

Figure 9. Changes in kinetic energy

下载: 全尺寸图片幻灯片

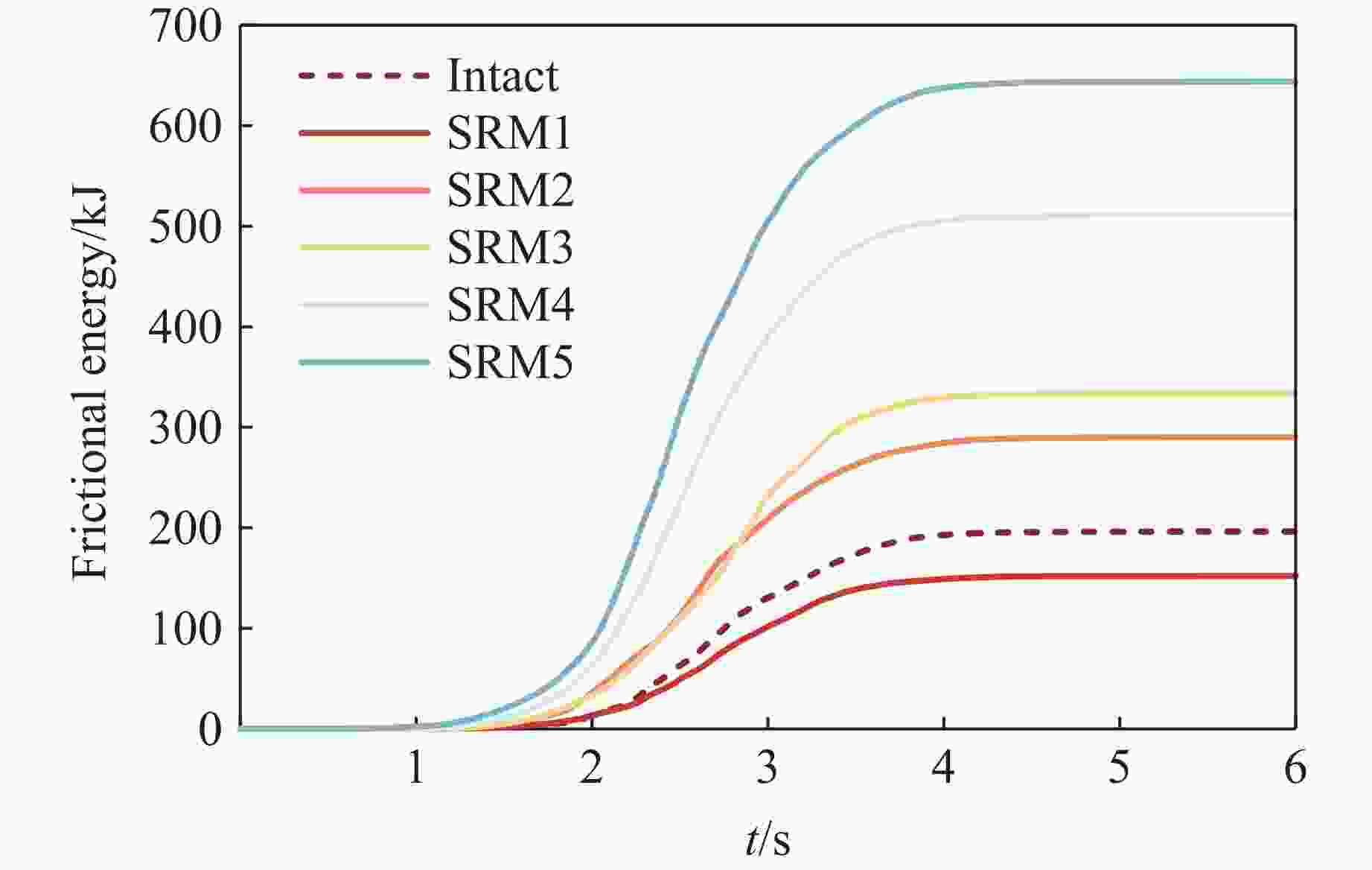

图 10 摩擦能变化

Figure 10. Changes in frictional energy

下载: 全尺寸图片幻灯片

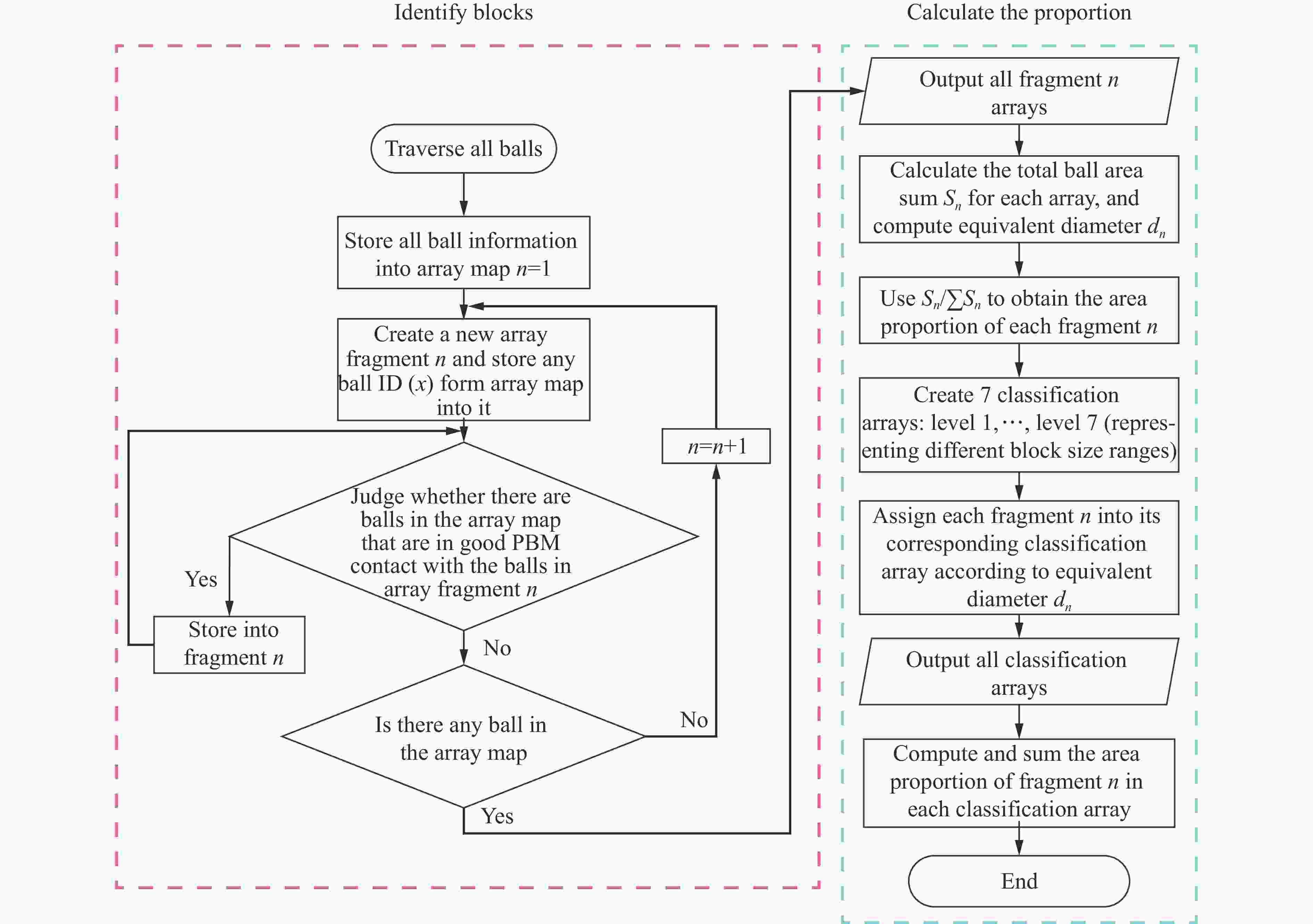

图 11 识别和计算块体占比程序

Figure 11. Program for identifying and calculating the proportion of blocks

下载: 全尺寸图片幻灯片

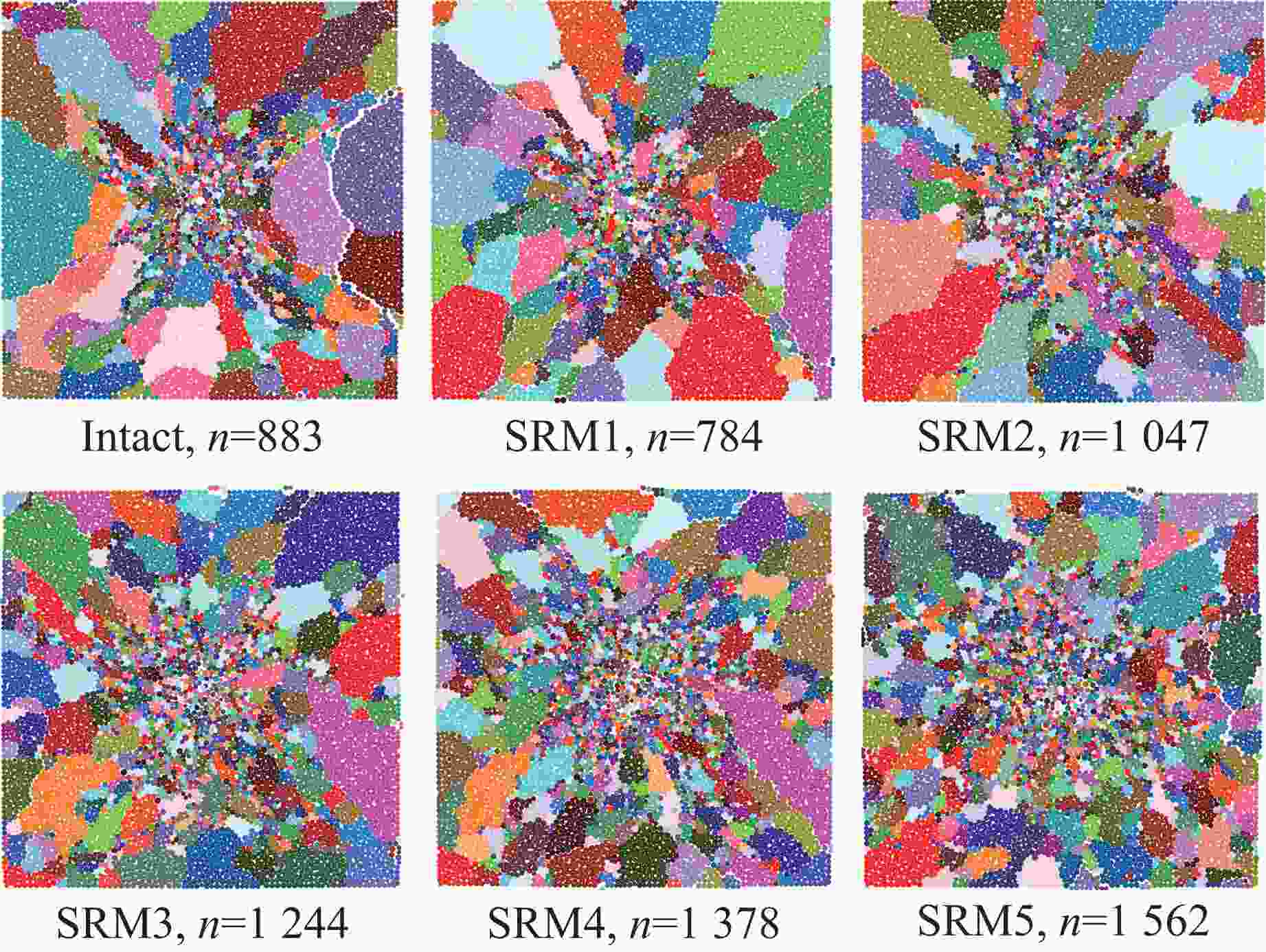

图 12 爆后模型破碎情况

Figure 12. Broken model after explosion

下载: 全尺寸图片幻灯片

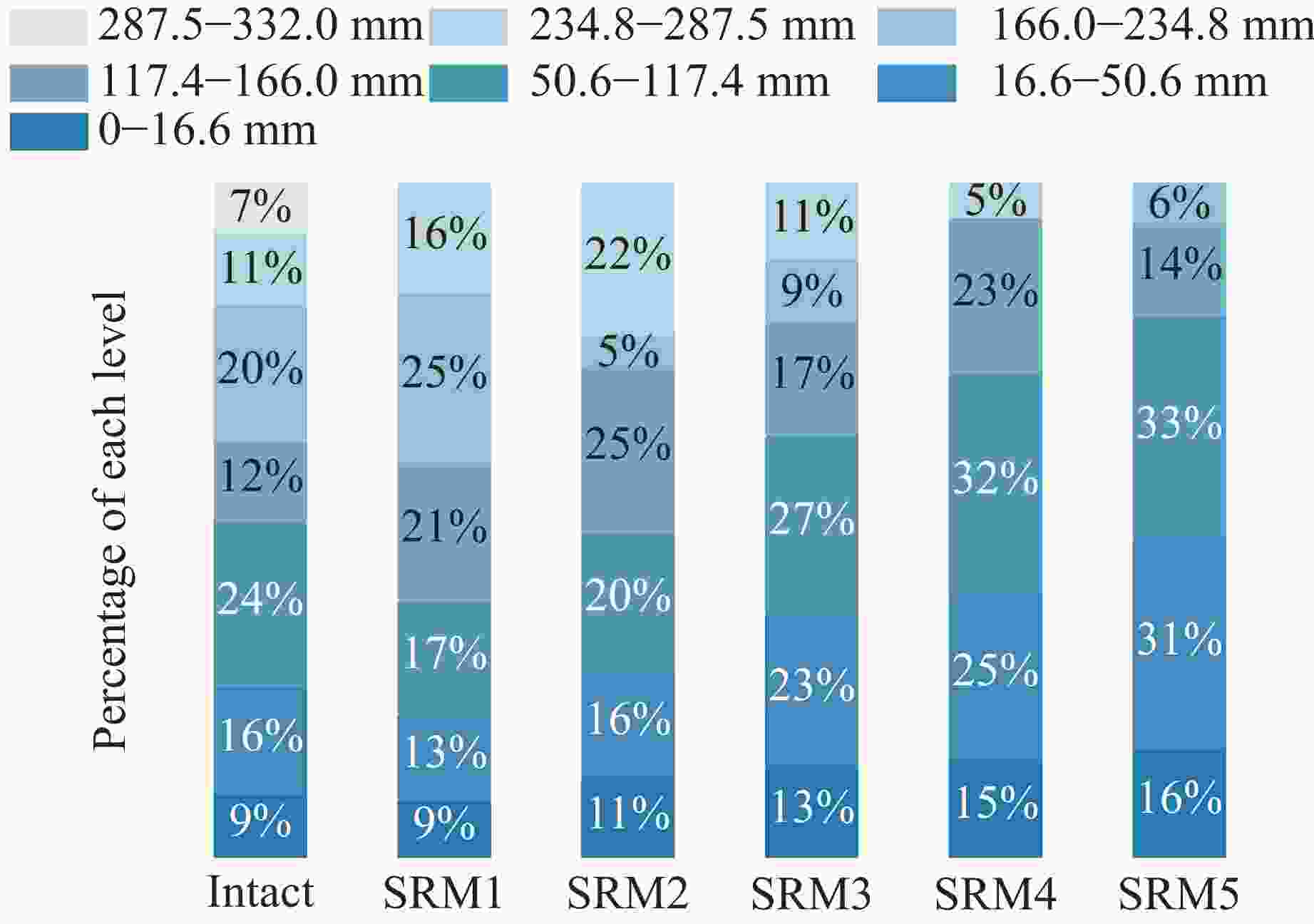

图 13 6组工况各级配块度所占百分比

Figure 13. Percentage of block degrees at each level of the six working conditions

下载: 全尺寸图片幻灯片

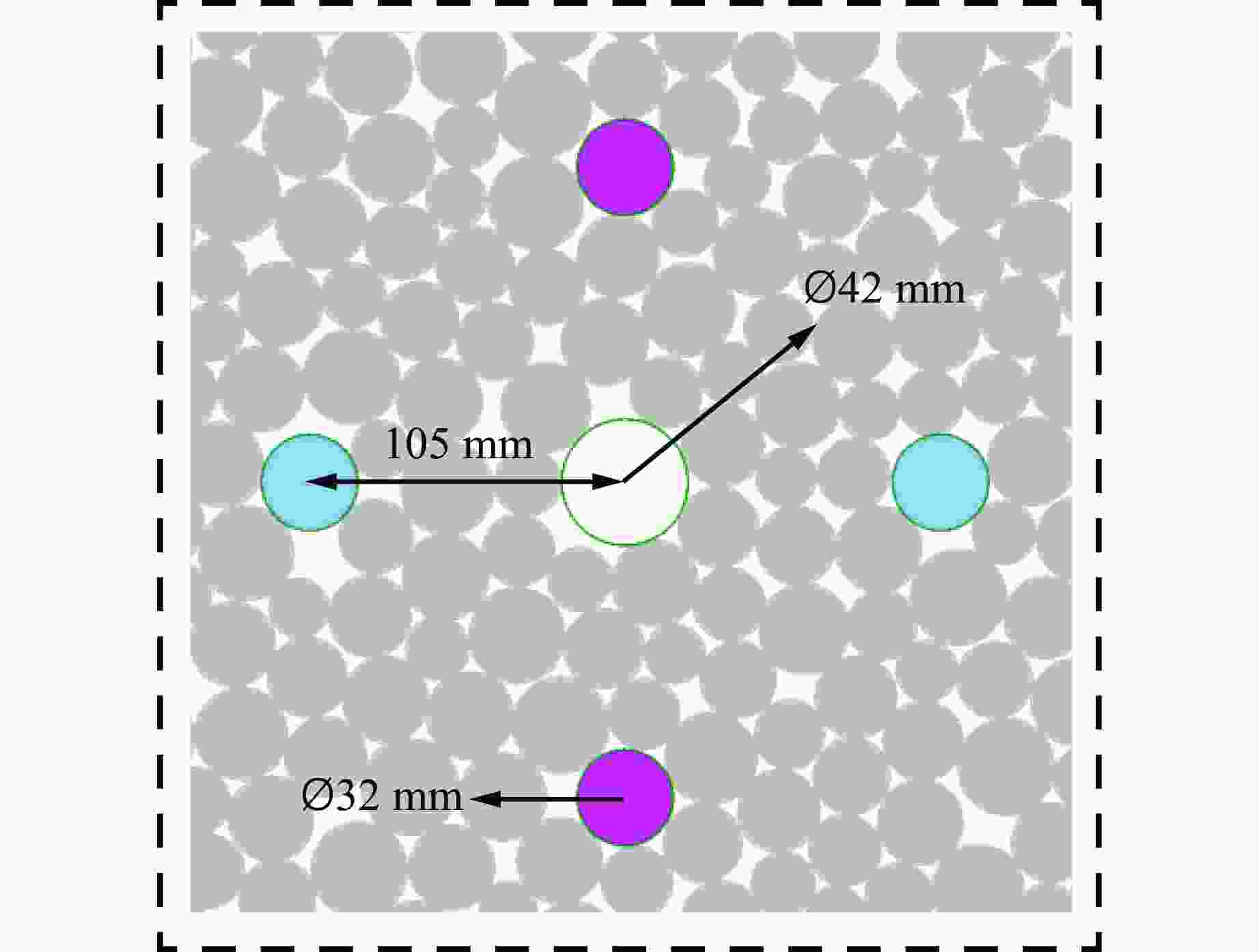

图 14 优化炮孔布置

Figure 14. Optimize the arrangement of blast holes

下载: 全尺寸图片幻灯片

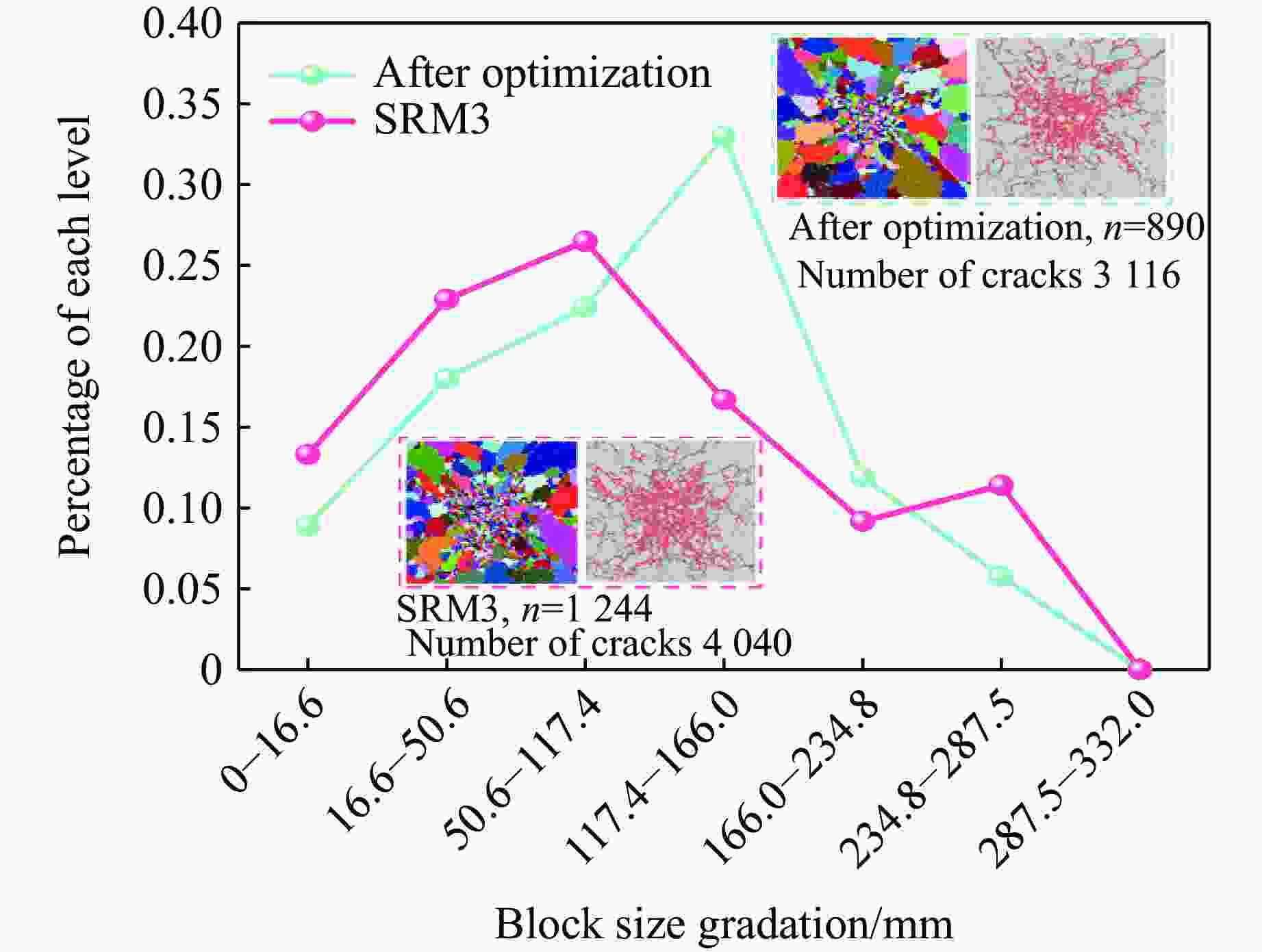

图 15 优化前后模拟块度级配占比及爆后模型

Figure 15. Proportion of simulated block gradation before and after optimization and the post-explosion model

下载: 全尺寸图片幻灯片

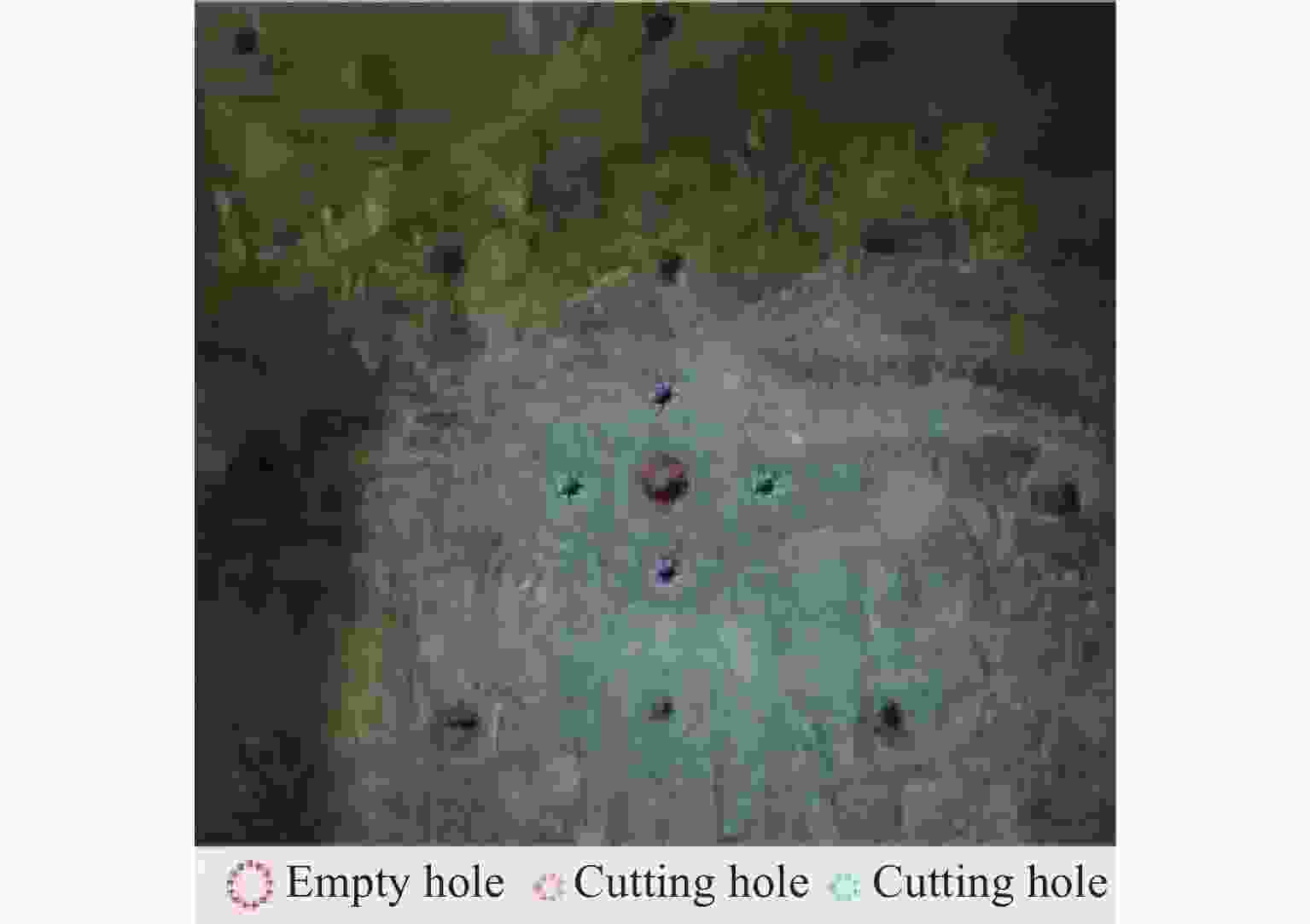

图 16 炮孔布置

Figure 16. Blast hole layout

下载: 全尺寸图片幻灯片

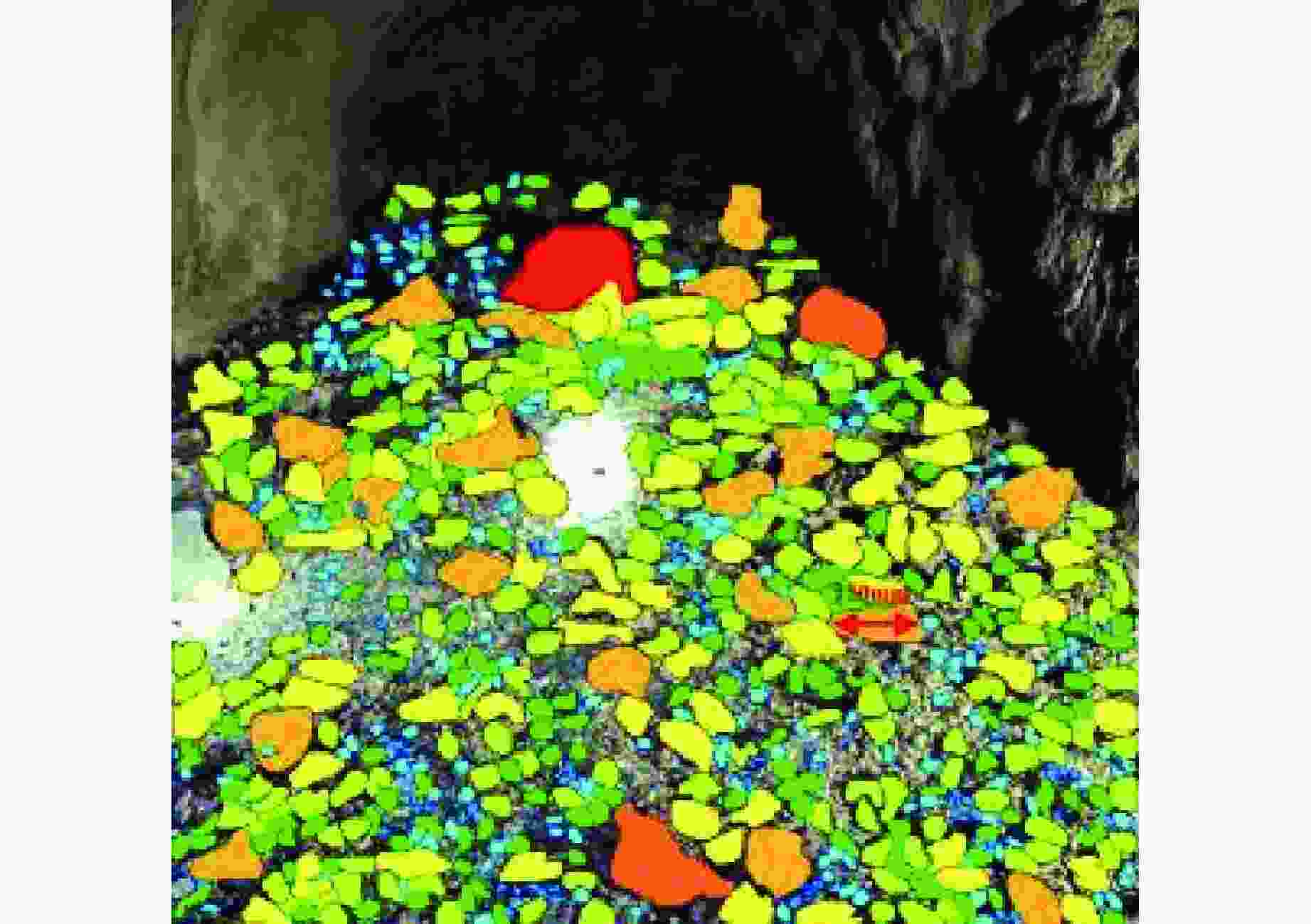

图 17 现场试验爆后效果

Figure 17. Post-blast effect of the field test

下载: 全尺寸图片幻灯片

表 1 模型参数

Table 1. Parameters of the model

Ball mesoscopic parameters					LPB mesoscopic parameters
R_min/m	R_max/R_min	μ	ρ/(kg·m⁻³)	E_c/Pa	p_bt/Pa	p_bc/Pa	k_pb	δ_F	p_bde/Pa	f_pb
0.01	1.66	0.5	2 720	25×10⁹	30×10⁶	40×10⁶	2.0	0.5	15×10⁹	50

下载: 导出CSV
