Phase Transformation, Sintering Mechanism and Dynamics of Singlet-Doublet Al Nanosphere Collisions with Initial Ⅰ-Shaped Configuration
-
摘要: 利用分子动力学模拟研究了单个铝纳米球（单重态）与初始呈I型构型的2个铝纳米球聚集体（双重态）碰撞的动力学过程。根据初始撞击速度的不同，纳米球体会产生反弹、黏附、聚集和熔融4种碰撞结果。当撞击速度极低时，纳米球体间的排斥力使其无接触反弹，且反弹临界速度随纳米球体直径的增大而降低。随着撞击速度增大，纳米球体因相互黏附形成新键而发生烧结。通过共邻分析、位错分析和均方位移等方法，定量表征了单重态-双重态碰撞过程中的相变和原子扩散现象，从而揭示了烧结机制的本质。通过监测不同直径单重态的温度变化，最终确定了单重态熔融的临界撞击速度。Abstract: Molecular dynamics simulations are used to study the dynamics of a single Al nanosphere (singlet) colliding with an aggregate of two Al nanospheres (doublet) with initial Ⅰ-shaped configuration. Depending on the initial impact velocity, there are four collision outcomes, namely bounce, adhesion, aggregation and melting. At a very low velocity, the repulsive force between the nanospheres leads the nanospheres to rebound without contact, and the critical velocity of bounce decreases with the increase of the diameter of the nanosphere. As the velocity increases, the nanospheres are sintered together due to adhesion between them and the formation of new bonds. The phase transformation and atomic diffusion during singlet-doublet collisions are quantitatively characterized by common neighbor analysis, dislocation analysis and mean square displacement to explore the underlying sintering mechanism. The critical impact velocity of singlet melting is obtained by monitoring the temperature of singlet with different diameters.
-

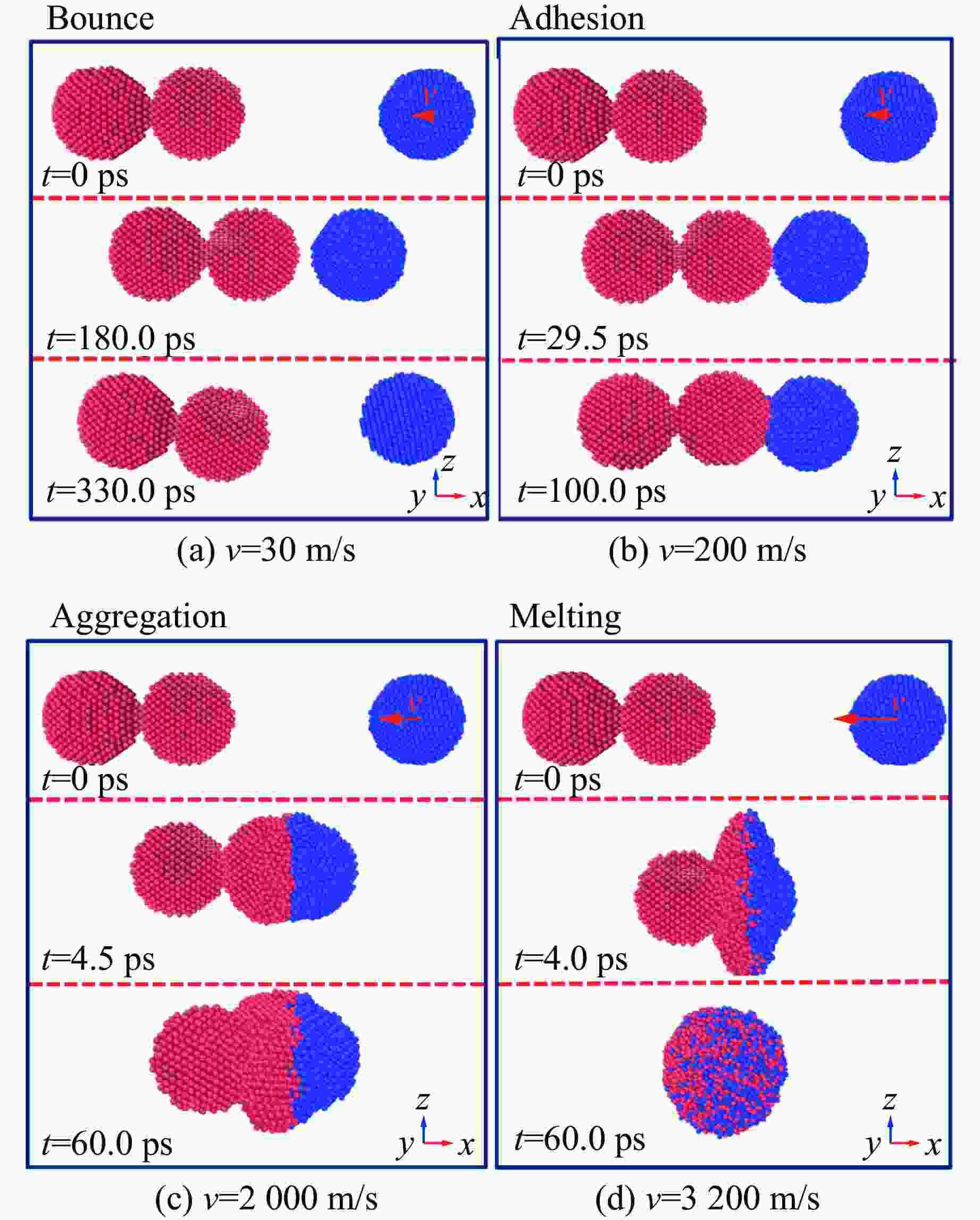

图 2 不同撞击速度下单重态与双重态在碰撞过程中的快照
Figure 2. Snapshots of singlet and doublet during collision at different impact velocities

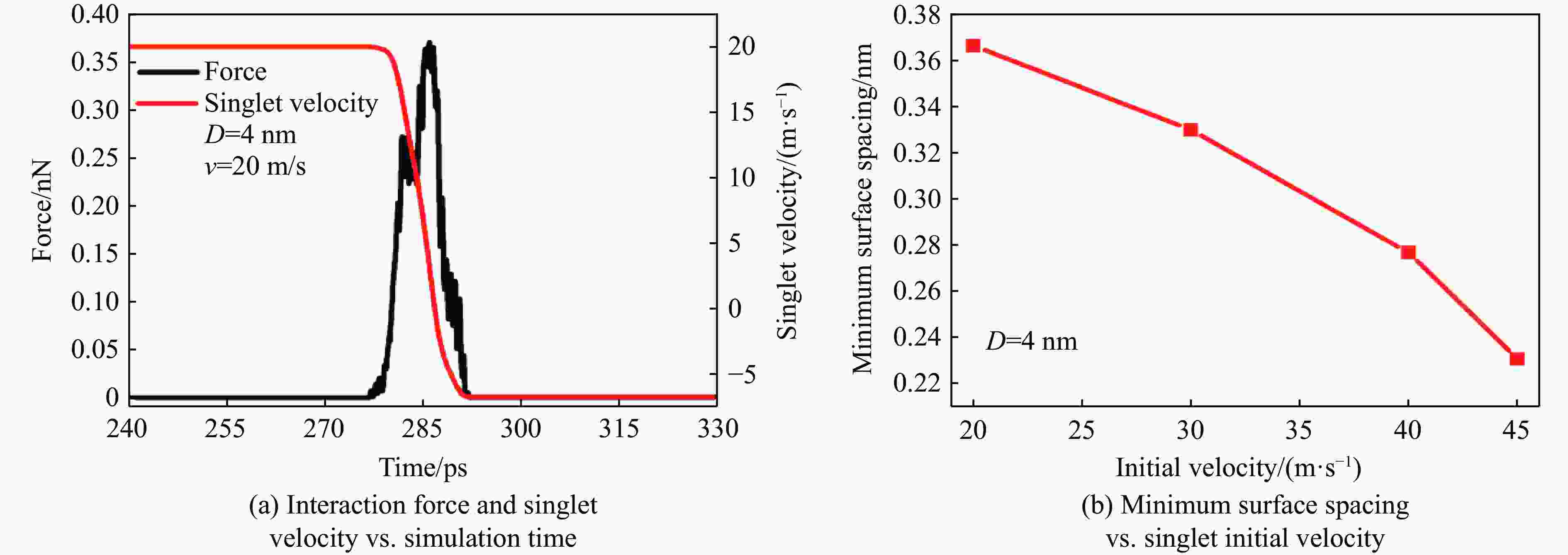

图 3 碰撞过程中的相互作用力和表面间距
Figure 3. Interaction forces and surface spacing during the collision process

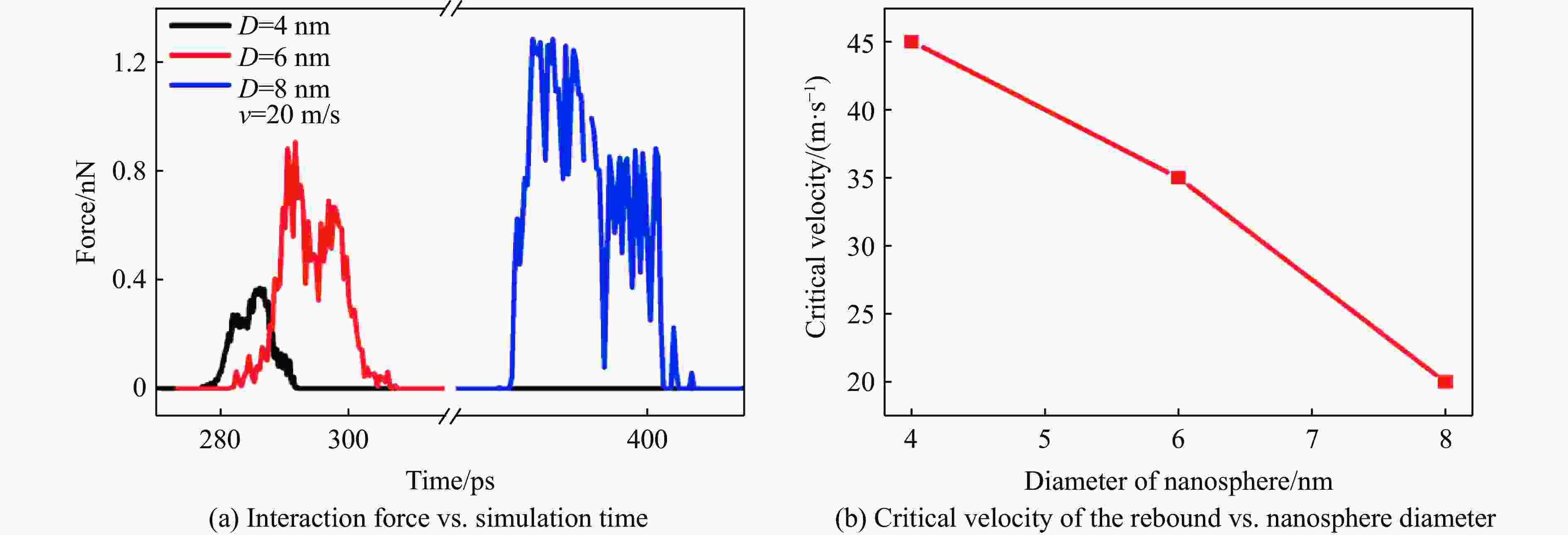

图 4 碰撞过程中的相互作用力和临界反弹速度
Figure 4. Interaction force during the collision process and the critical velocity of the rebound

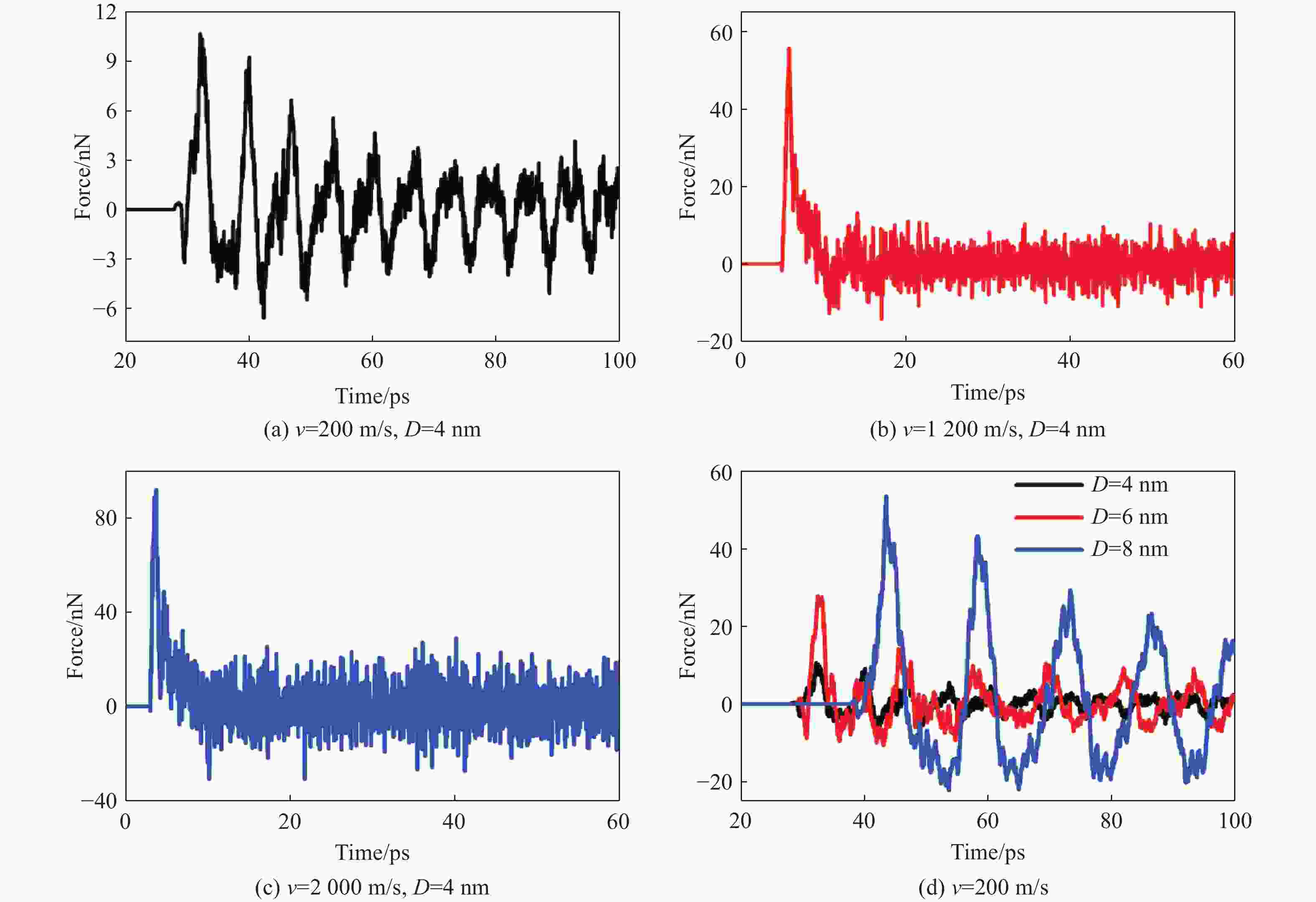

图 5 单重态与双重态之间的相互作用力随时间的变化
Figure 5. Variations of the interaction force between singlet and doublet with time

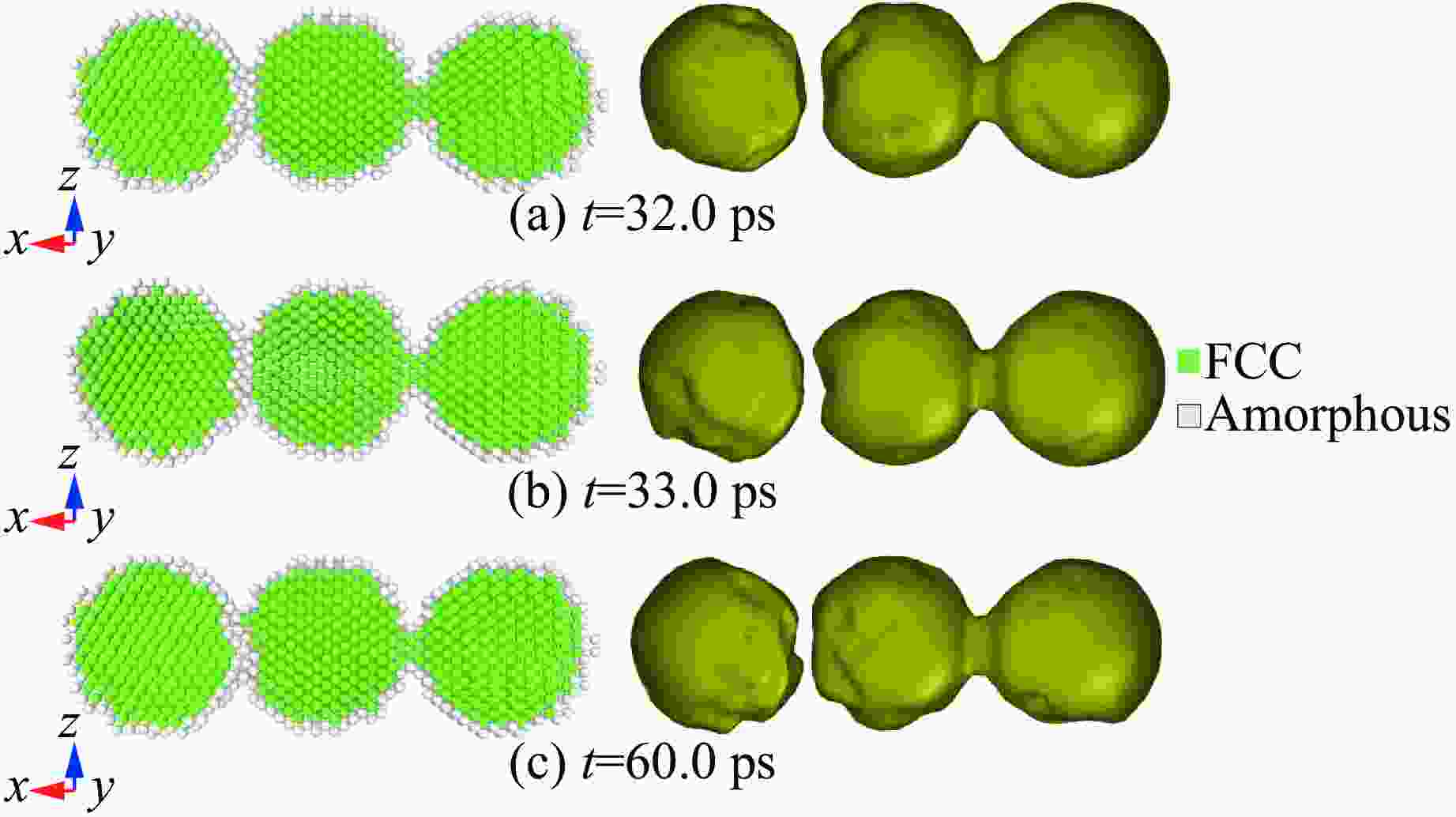

图 6 初始速度为200 m/s时不同时刻的单重态-双重态碰撞的CNA和DXA分析结果
Figure 6. Analysis results of CNA and DXA for singlet-doublet collisions at different times and initial velocity of 200 m/s

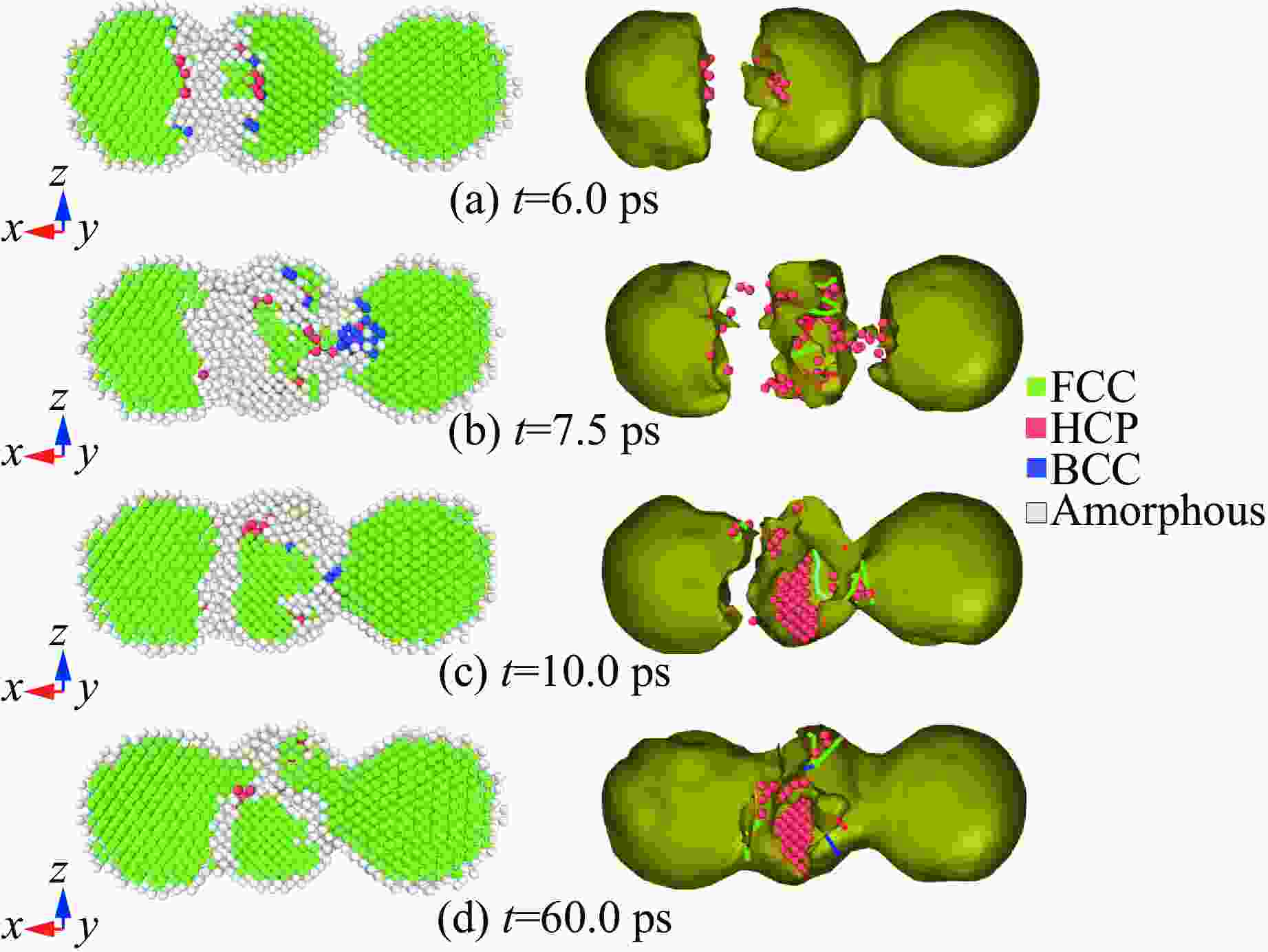

图 7 初始速度为
1200 m/s时不同时刻单重态-双重态碰撞的CNA和DXA分析结果Figure 7. Analysis results of CNA and DXA for singlet-doublet collisions at different times and initial velocity of
1200 m/s

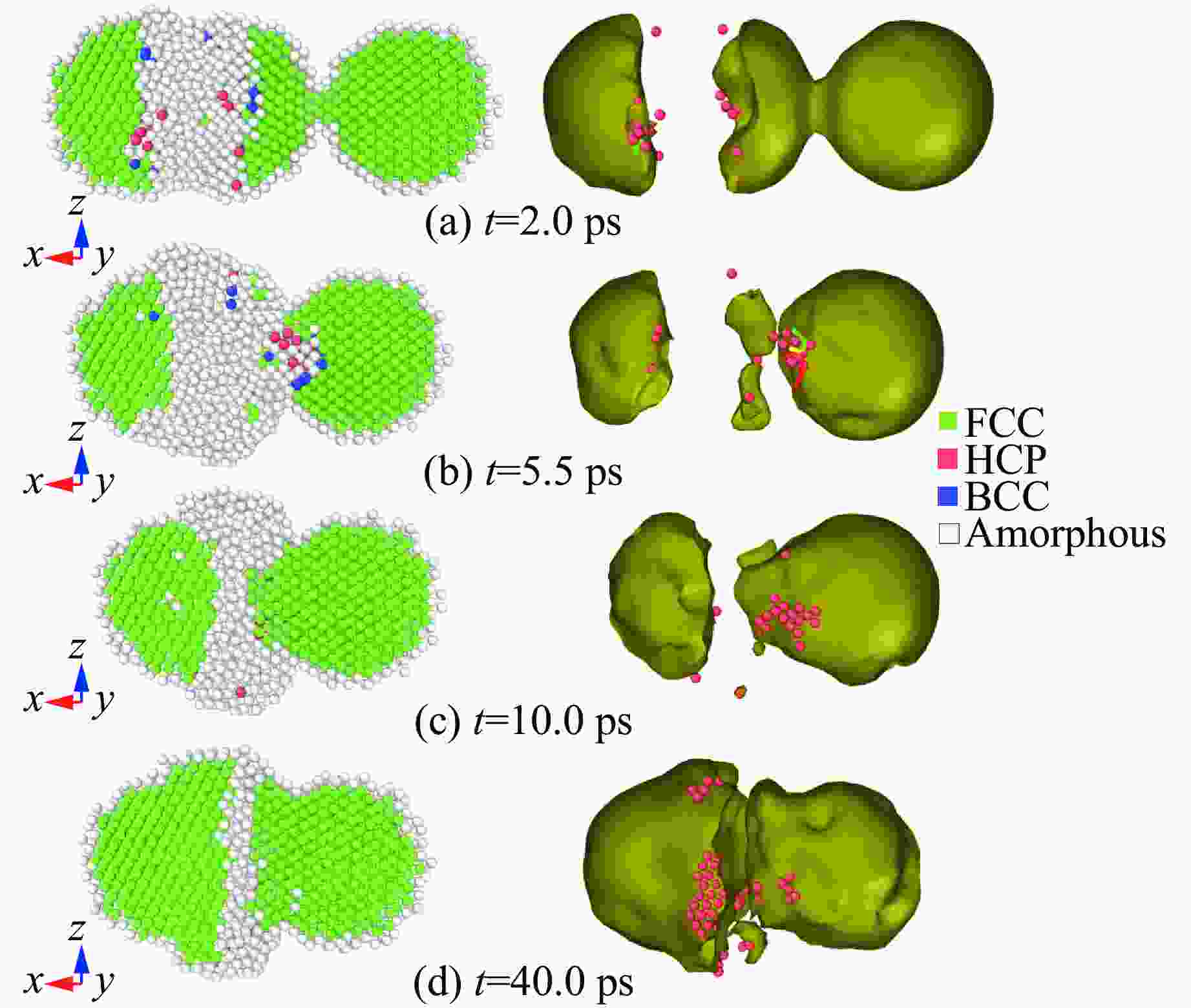

图 8 初始速度为
2000 m/s时不同时刻单重态-双重态碰撞的CNA和DXA分析结果Figure 8. Analysis results of CNA and DXA for singlet-doublet collisions at different times and initial velocity of
2000 m/s

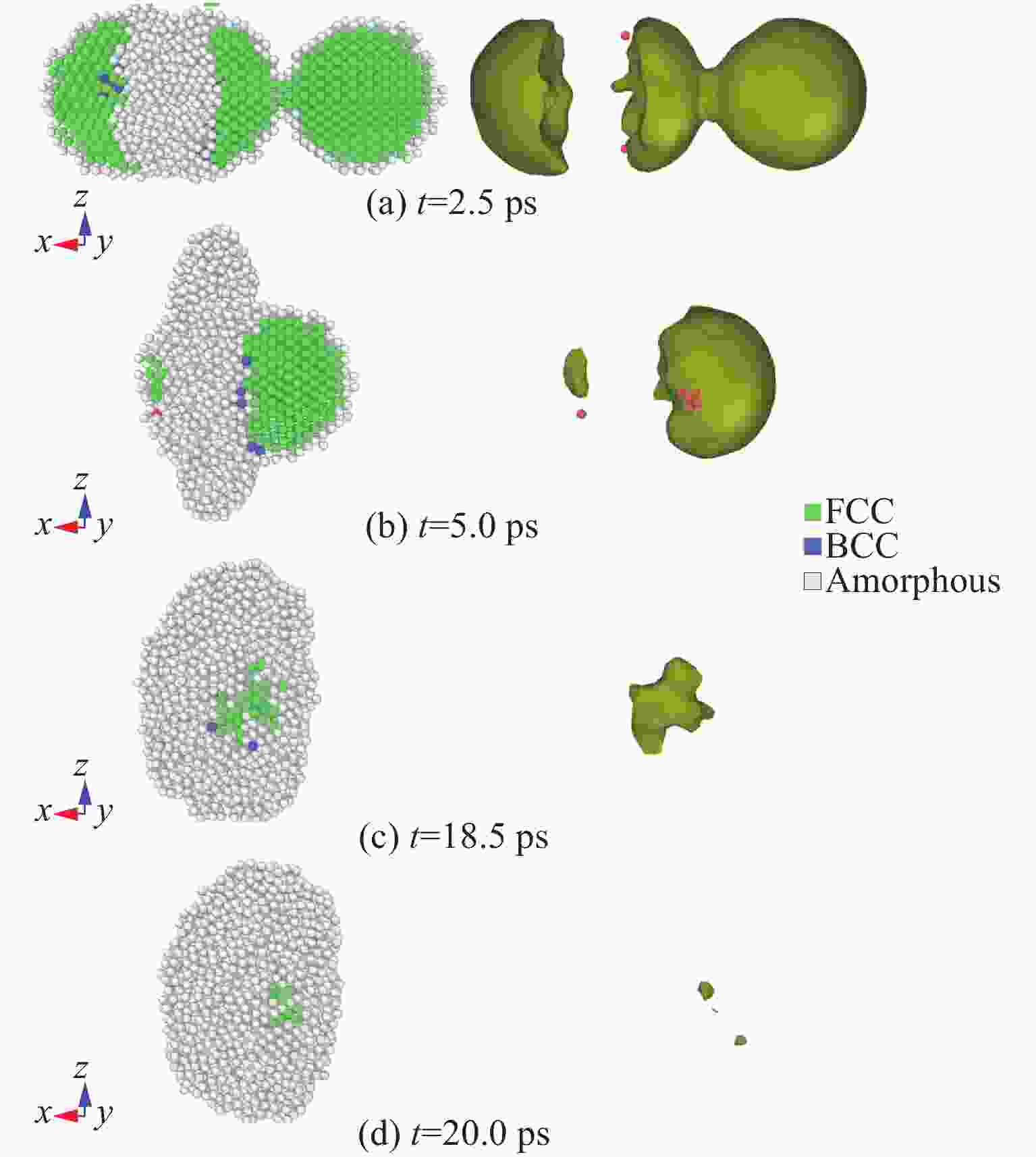

图 9 初始速度为
3200 m/s时不同时刻单重态-双重态碰撞的CNA和DXA分析结果Figure 9. Analysis results of CNA and DXA for singlet-doublet collisions at different times and initial velocity of
3200 m/s -
[1] AUMANN C E, SKOFRONICK G L, MARTIN J A. Oxidation behavior of aluminum nanopowders [J]. Journal of Vacuum Science & Technology B, 1995, 13(3): 1178–1183. doi: 10.1116/1.588232 [2] DREIZIN E L. Metal-based reactive nanomaterials [J]. Progress in Energy and Combustion Science, 2009, 35(2): 141–167. doi: 10.1016/j.pecs.2008.09.001 [3] LI X W, LIANG J S, SHI T, et al. Tribological behaviors of vacuum hot-pressed ceramic composites with enhanced cyclic oxidation and corrosion resistance [J]. Ceramics International, 2020, 46(9): 12911–12920. doi: 10.1016/j.ceramint.2020.02.057 [4] LI X W, SHI T, LI B, et al. Subtractive manufacturing of stable hierarchical micro-nano structures on AA5052 sheet with enhanced water repellence and durable corrosion resistance [J]. Materials & Design, 2019, 183: 108152. doi: 10.1016/j.matdes.2019.108152 [5] YETTER R A, RISHA G A, SON S F. Metal particle combustion and nanotechnology [J]. Proceedings of the Combustion Institute, 2009, 32(2): 1819–1838. doi: 10.1016/j.proci.2008.08.013 [6] REDDY M P, SHAKOOR R A, PARANDE G, et al. Enhanced performance of nano-sized SiC reinforced Al metal matrix nanocomposites synthesized through microwave sintering and hot extrusion techniques [J]. Progress in Natural Science: Materials International, 2017, 27(5): 606–614. doi: 10.1016/j.pnsc.2017.08.015 [7] MAGGI F, BANDERA A, GALFETTI L, et al. Efficient solid rocket propulsion for access to space [J]. Acta Astronautica, 2010, 66(11/12): 1563–1573. doi: 10.1016/j.actaastro.2009.10.012 [8] SUNDARAM D, YANG V, YETTER R A. Metal-based nanoenergetic materials: synthesis, properties, and applications [J]. Progress in Energy and Combustion Science, 2017, 61: 293–365. doi: 10.1016/j.pecs.2017.02.002 [9] LI Q F, BJERRUM N J. Aluminum as anode for energy storage and conversion: a review [J]. Journal of Power Sources, 2002, 110(1): 1–10. doi: 10.1016/S0378-7753(01)01014-X [10] GENNARI S, TAMBURINI U A, MAGLIA F, et al. A new approach to the modeling of SHS reactions: combustion synthesis of transition metal aluminides [J]. Acta Materialia, 2006, 54(9): 2343–2351. doi: 10.1016/j.actamat.2006.01.009 [11] NOMURA K I, KALIA R K, NAKANO A, et al. Dynamic transition in the structure of an energetic crystal during chemical reactions at shock front prior to detonation [J]. Physical Review Letters, 2007, 99(14): 148303. doi: 10.1103/PhysRevLett.99.148303 [12] LI Y, KALIA R K, MISAWA M, et al. Anisotropic mechanoresponse of energetic crystallites: a quantum molecular dynamics study of nano-collision [J]. Nanoscale, 2016, 8(18): 9714–9720. doi: 10.1039/C5NR08769D [13] THADHANI N N. Shock-induced and shock-assisted solid-state chemical reactions in powder mixtures [J]. Journal of Applied Physics, 1994, 76(4): 2129–2138. doi: 10.1063/1.357624 [14] JIANG Q, SHI F G. Size-dependent initial sintering temperature of ultrafine particles [J]. Journal of Materials Science & Technology, 1998, 14(2): 171–172. [15] CROSSIN E, YAO J Y, SCHAFFER G B. Swelling during liquid phase sintering of Al-Mg-Si-Cu alloys [J]. Powder Metallurgy, 2007, 50(4): 354–358. doi: 10.1179/174329007X223947 [16] KITA K, KONDO N. Sintering of porous alumina using an alumina slurry containing aluminum and polysiloxane [J]. International Journal of Applied Ceramic Technology, 2020, 17(1): 311–319. doi: 10.1111/ijac.13362 [17] KIM Y I, LEE W, JANG J M, et al. Effects of aluminum content and particle size on volume expansion during the sintering of Fe-Al mixed powders [J]. Journal of Alloys and Compounds, 2018, 747: 211–216. doi: 10.1016/j.jallcom.2018.02.299 [18] JIANG J, CHEN P W, QIU J L, et al. The effect of heating rate on the sintering of aluminum nanospheres [J]. Physical Chemistry Chemical Physics, 2021, 23(20): 11684–11697. doi: 10.1039/D0CP06669A [19] JIANG J, CHEN P W, SUN W F. Monitoring micro-structural evolution during aluminum sintering and understanding the sintering mechanism of aluminum nanoparticles: a molecular dynamics study [J]. Journal of Materials Science & Technology, 2020, 57: 92–100. doi: 10.1016/j.jmst.2020.03.068 [20] CHAKRABORTY P, ZACHARIAH M R. Do nanoenergetic particles remain nano-sized during combustion? [J]. Combustion and Flame, 2014, 161(5): 1408–1416. doi: 10.1016/j.combustflame.2013.10.017 [21] EL KORAYCHY E, MEDDAD M, BADAWI M, et al. Sintering and deposition of homo- and heteronanoparticles of aluminum and nickel on aluminum (100) substrate [J]. Chemical Physics, 2021, 541: 111037. doi: 10.1016/j.chemphys.2020.111037 [22] MA B, ZHAO F, CHENG X L, et al. The mechanical and thermal responses of colliding oxide-coated aluminum nanoparticles [J]. Journal of Applied Physics, 2017, 121(14): 145108. doi: 10.1063/1.4980118 [23] NIETIADI M L, ROSANDI Y, URBASSEK H M. Collisions between ice-covered silica grains: an atomistic study [J]. Icarus, 2020, 352: 113996. doi: 10.1016/j.icarus.2020.113996 [24] NIETIADI M L, UMSTÄTTER P, TJONG T, et al. The bouncing threshold in silica nanograin collisions [J]. Physical Chemistry Chemical Physics, 2017, 19(25): 16555–16562. doi: 10.1039/C7CP02106B [25] SUN W F, ZENG Q H, YU A B. Computational studies on interparticle forces between nanoellipsoids [J]. RSC Advances, 2014, 4(73): 38505–38516. doi: 10.1039/C4RA06809B [26] SUN W F, ZENG Q H, YU A B. Calculation of noncontact forces between silica nanospheres [J]. Langmuir, 2013, 29(7): 2175–2184. doi: 10.1021/la305156s [27] SUN W F. The dynamic effect on mechanical contacts between nanoparticles [J]. Nanoscale, 2013, 5(24): 12658–12669. doi: 10.1039/c3nr04354a [28] SUN W F, ZENG Q H, YU A B, et al. Calculation of normal contact forces between silica nanospheres [J]. Langmuir, 2013, 29(25): 7825–7837. doi: 10.1021/la401087j [29] SUN W F, JIANG J, CHEN P W. Dynamic mechanical contact behaviours of amorphous nanoparticles subjected to high-speed impact [J]. Powder Technology, 2020, 364: 689–697. doi: 10.1016/j.powtec.2020.02.030 [30] NGUYEN D, RASMUSON A, THALBERG K, et al. A breakage and adhesion regime map for the normal impact of loose agglomerates with a spherical target [J]. AIChE Journal, 2015, 61(12): 4059–4068. doi: 10.1002/aic.1492 [31] DOMINIK C, TIELENS A G G M. The physics of dust coagulation and the structure of dust aggregates in space [J]. The Astrophysical Journal, 1997, 480(2): 647–673. doi: 10.1086/303996 [32] PASZUN D, DOMINIK C. Collisional evolution of dust aggregates. from compaction to catastrophic destruction [J]. Astronomy & Astrophysics, 2009, 507(2): 1023–1040. doi: 10.1051/0004-6361/200810682 [33] RINGL C, BRINGA E M, BERTOLDI D S, et al. Collisions of porous clusters: a granular-mechanics study of compaction and fragmentation [J]. The Astrophysical Journal, 2012, 752(2): 151. doi: 10.1088/0004-637x/752/2/151 [34] DUTRO G M, YETTER R A, RISHA G A, et al. The effect of stoichiometry on the combustion behavior of a nanoscale Al/MoO3 thermite [J]. Proceedings of the Combustion Institute, 2009, 32(2): 1921–1928. doi: 10.1016/j.proci.2008.07.028 [35] WATSON K W, PANTOYA M L, LEVITAS V I. Fast reactions with nano- and micrometer aluminum: a study on oxidation versus fluorination [J]. Combustion and Flame, 2008, 155(4): 619–634. doi: 10.1016/j.combustflame.2008.06.003 [36] SANDERS V E, ASAY B W, FOLEY T J, et al. Reaction propagation of four nanoscale energetic composites (Al/MoO3, Al/WO3, Al/CuO, and Bi2O3) [J]. Journal of Propulsion and Power, 2007, 23(4): 707–714. doi: 10.2514/1.26089 [37] PLIMPTON S. Fast parallel algorithms for short-range molecular dynamics [J]. Journal of Computational Physics, 1995, 117(1): 1–19. doi: 10.1006/jcph.1995.1039 [38] STUKOWSKI A. Visualization and analysis of atomistic simulation data with OVITO—the open visualization tool [J]. Modelling and Simulation in Materials Science and Engineering, 2010, 18(1): 015012. doi: 10.1088/0965-0393/18/1/015012 [39] HONEYCUTT J D, ANDERSEN H C. Molecular dynamics study of melting and freezing of small Lennard-Jones clusters [J]. Journal of Physical Chemistry, 1987, 91(19): 4950–4963. doi: 10.1021/j100303a014 [40] STUKOWSKI A, ALBE K. Extracting dislocations and non-dislocation crystal defects from atomistic simulation data [J]. Modelling and Simulation in Materials Science and Engineering, 2010, 18(8): 085001. doi: 10.1088/0965-0393/18/8/085001 [41] SUTTON A P, CHEN J. Long-range Finnis-Sinclair potentials [J]. Philosophical Magazine Letters, 1990, 61(3): 139–146. doi: 10.1080/09500839008206493 [42] JIANG J, CHEN P W, QIU J L, et al. Dynamic mechanical contact behaviors and sintering mechanism of Al nanoparticles subjected to high-speed impact [J]. Materials Chemistry and Physics, 2021, 273: 125111. doi: 10.1016/j.matchemphys.2021.125111 [43] KANG J W, HWANG H J. Molecular-dynamics study of the interaction between energetic Al clusters and an Al surface [J]. Physical Review B, 2001, 64(1): 014108. doi: 10.1103/PhysRevB.64.014108 [44] MORTAZAVI B, KHATIBI A A, POLITIS C. Molecular dynamics investigation of loading rate effects on mechanical-failure behaviour of FCC metals [J]. Journal of Computational and Theoretical Nanoscience, 2009, 6(3): 644–652. doi: 10.1166/jctn.2009.1087 [45] GURLER Y, OZGEN S. The calculations of p-T diagrams of Ni and Al using molecular dynamics simulation [J]. Materials Letters, 2003, 57(26/27): 4336–4343. doi: 10.1016/S0167-577X(03)00324-0 [46] HUNT E M, PANTOYA M L. Impact sensitivity of intermetallic nanocomposites: a study on compositional and bulk density [J]. Intermetallics, 2010, 18(8): 1612–1616. doi: 10.1016/j.intermet.2010.04.015 [47] CHOWDHURY S, SULLIVAN K, PIEKIEL N, et al. Diffusive vs explosive reaction at the nanoscale [J]. The Journal of Physical Chemistry C, 2010, 114(20): 9191–9195. doi: 10.1021/jp906613p [48] RAI A, PARK K, ZHOU L, et al. Understanding the mechanism of aluminium nanoparticle oxidation [J]. Combustion Theory and Modelling, 2006, 10(5): 843–859. doi: 10.1080/13647830600800686 [49] JIANG J, SUN W F, LUO N. Molecular dynamics study of microscopic deformation mechanism and tensile properties in AlxCoCrFeNi amorphous high-entropy alloys [J]. Materials Today Communications, 2022, 31: 103861. doi: 10.1016/j.mtcomm.2022.103861 [50] MA B, ZENG H D, CHENG X L, et al. New insights into the microstructures and mechanical responses of large-scale colliding aluminum nanospheres [J]. Computational Materials Science, 2019, 163: 167–175. doi: 10.1016/j.commatsci.2019.03.031 [51] JIANG J, SUN W F, LUO N. Atomic insights into effects of temperature and grain diameter on the micro-deformation mechanism, mechanical properties and sluggish diffusion of nanocrystalline high-entropy alloys [J]. Materials Today Communications, 2022, 33: 104224. doi: 10.1016/j.mtcomm.2022.104224 [52] SONG P X, WEN D S. Molecular dynamics simulation of the sintering of metallic nanoparticles [J]. Journal of Nanoparticle Research, 2010, 12(3): 823–829. doi: 10.1007/s11051-009-9718-7 [53] LIU Z L, ZHANG X L, CAI L C. Shock melting method to determine melting curve by molecular dynamics: Cu, Pd, and Al [J]. The Journal of Chemical Physics, 2015, 143(11): 114101. doi: 10.1063/1.4930974 [54] XIANG M Z, CUI J Z, YANG Y T, et al. Shock responses of nanoporous aluminum by molecular dynamics simulations [J]. International Journal of Plasticity, 2017, 97: 24–45. doi: 10.1016/j.ijplas.2017.05.008 -
