Numerical Investigation on Cavity Evolution and Motion Characteristics of High Speed Water Entry Ogival Projectiles with Different Headforms
-
摘要: 跨介质武器是目前军事领域的研究热点之一。基于雷诺时均N-S（Navier-Stokes）方程、流体体积（volume of fluid, VOF）多相流模型、修正Realizable k-ε湍流模型，构建了三维数值模拟方法，对不同头型的卵形弹高速垂直入水过程中的空泡演化及运动特性开展研究，分析了头型对空泡演化及运动特征的影响规律。研究表明：数值模拟与实验观测数据在空泡形态及运动速度的演化规律上呈现出良好的一致性。卵形弹头部的几何形状显著影响了入水空泡的形成机理及弹体运动特性。普通卵形弹和双锥卵形弹的空泡形成于弹体肩部区域，而锥柱卵形弹的空泡形成于头部并快速包裹整个弹体。结合压力场分析发现：双锥卵形弹头部出现了低压区，导致弹体的速度衰减变慢；锥柱卵形弹的头部形成典型高压区，导致弹体速度的衰减加快。此外，相比普通卵形弹和双锥卵形弹，锥柱卵形弹的轴向载荷增大了一倍以上。Abstract: At present, the trans-media weapon is one of research hotspot in the military field. Based on the Reynolds time-averaged Navier-Stokes (N-S) equation, volume of fluid (VOF) multiphase flow model and modified Realizable k-ε turbulence model, a three-dimensional numerical simulation method is constructed to study the cavity evolution and motion characteristics of ogival projectiles with different headforms during high-speed vertical water entry. The influence of headforms on the cavitation evolution and motion characteristics is also analyzed. The results show that the numerical simulation and experimental data have good consistency in the evolution of cavity shape and motion velocity. The geometry of the projectile headform significantly affects the formation mechanism of the cavity and the motion characteristics of the projectiles. The cavity of ogival projectile and double-cone ogival projectile initially appears in the shoulder of the projectile, while that of cone-cylinder ogival nose projectiles starts in the head and quickly wraps the entire projectile body. Combined with the analysis of the fluid pressure field, it is shown that a low-pressure area appears on the double-cone ogival projectile, which leads to the slowdown of the projectile velocity attenuation. The head of the cone-cylinder ogival projectile forms a typical high-pressure area, which leads to the acceleration of the projectile velocity attenuation. In addition, the axial acceleration of the cone-cylinder ogival projectile is more than twice that of the other two projectiles.
-
Key words:
- headform /
- ogival projectile /
- cavity evolution /
- high speed water entry /
- motion characteristic
-

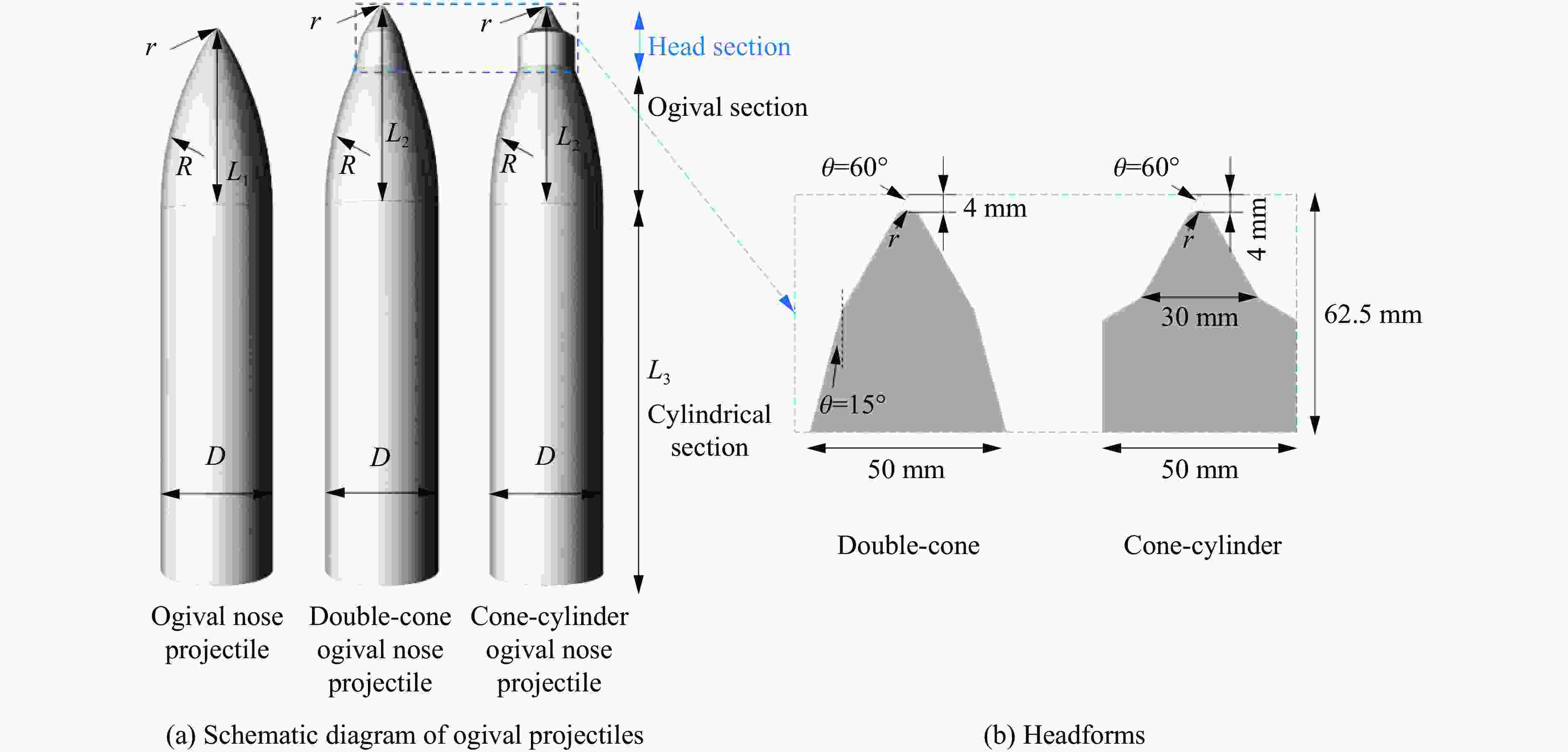

图 1 不同头型的卵形弹示意图
Figure 1. Schematic diagram of ogival projectiles with different headforms

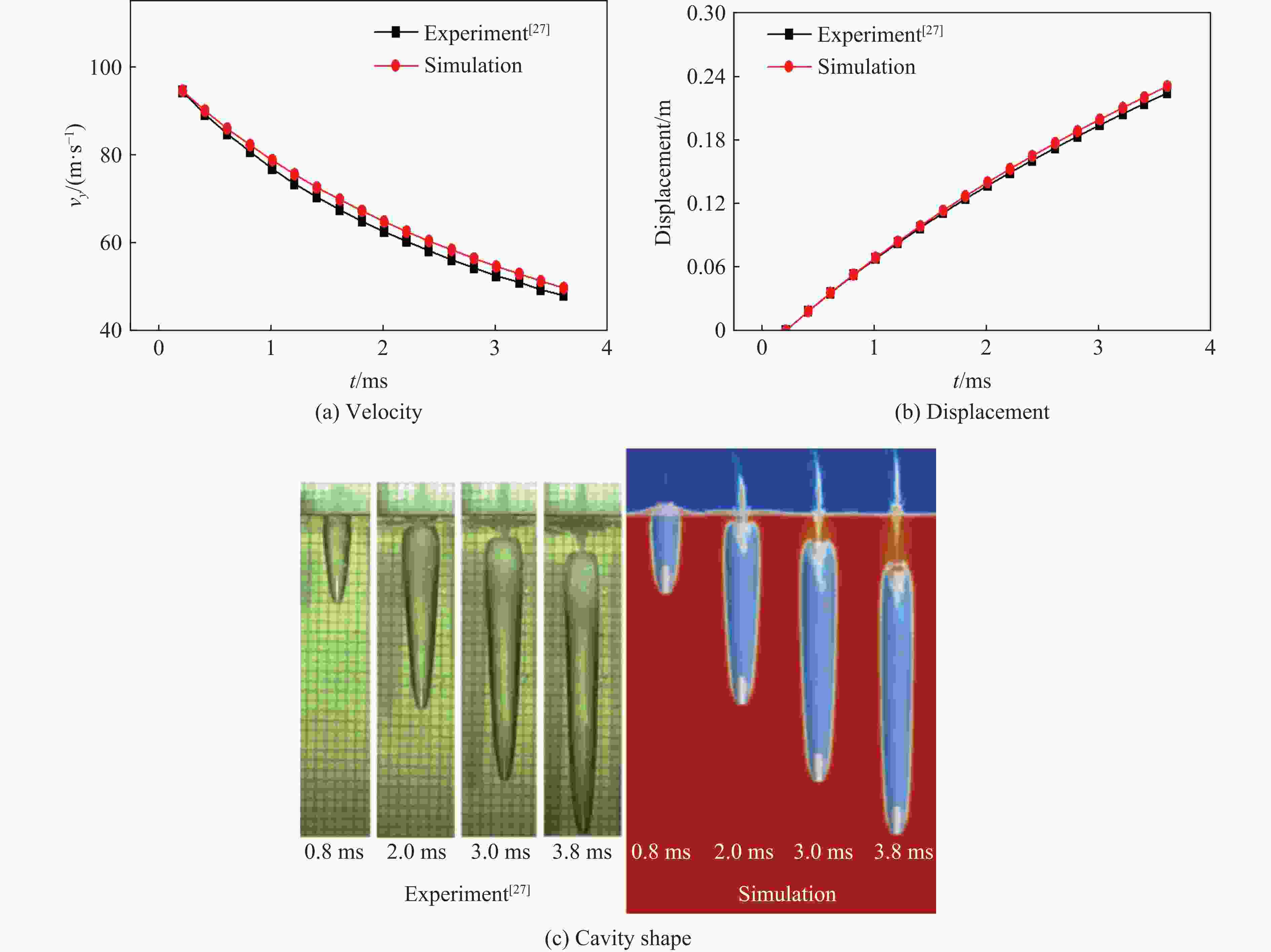

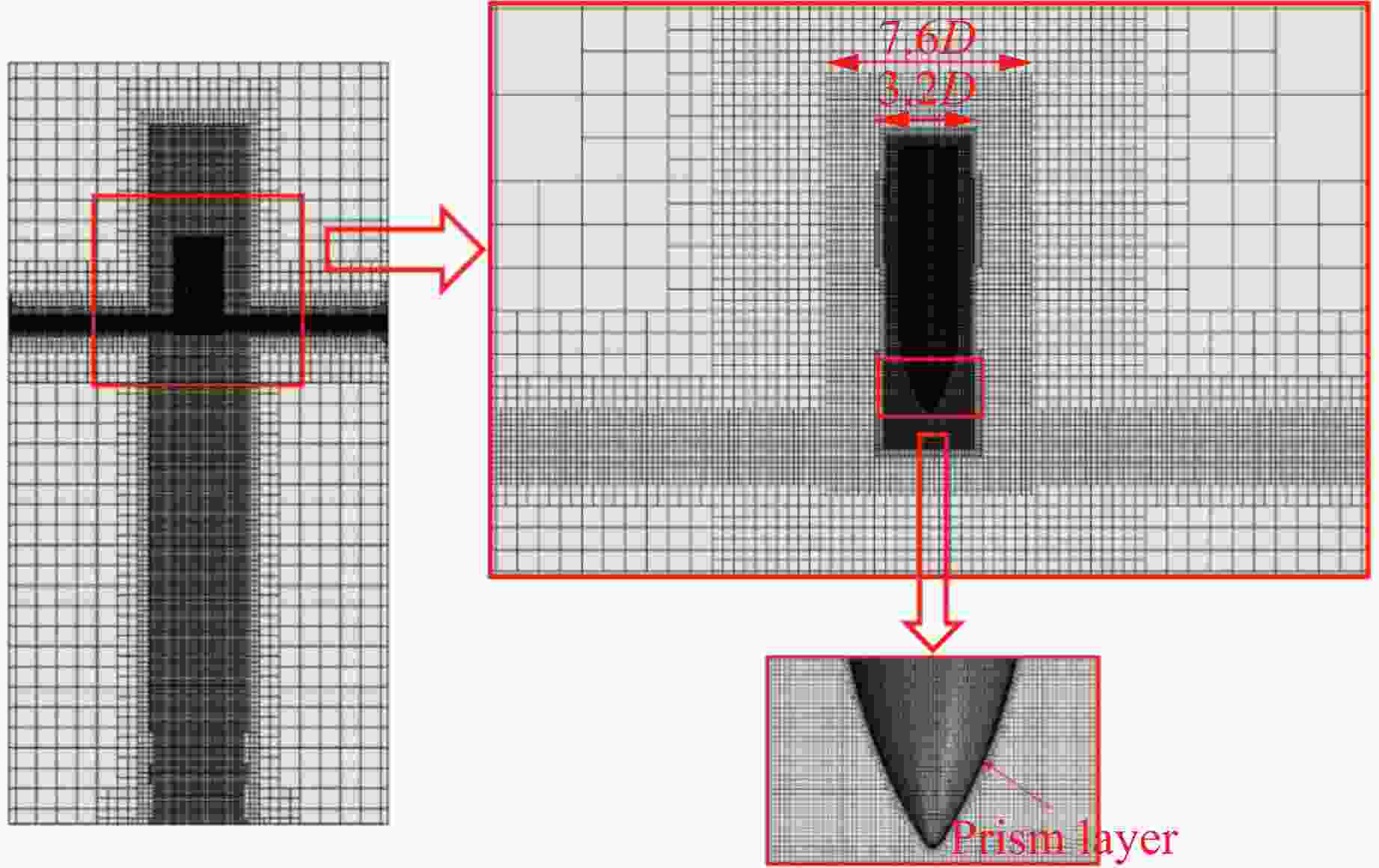

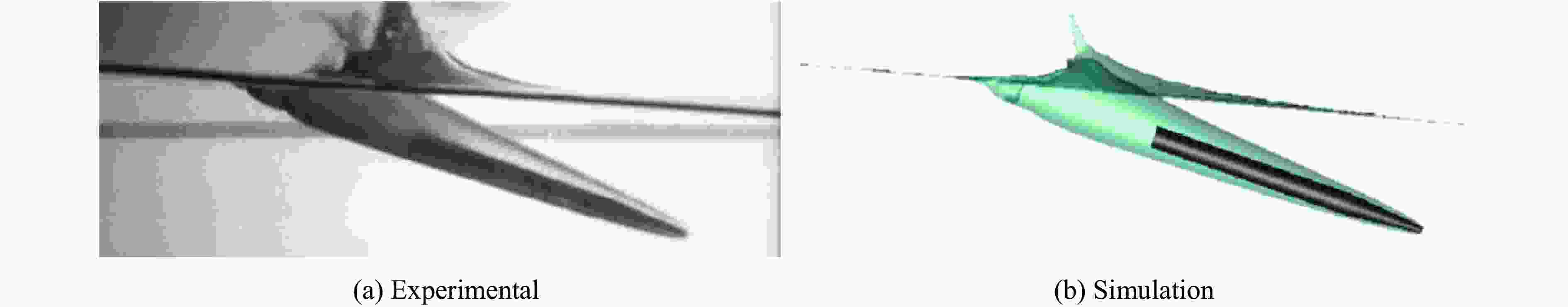

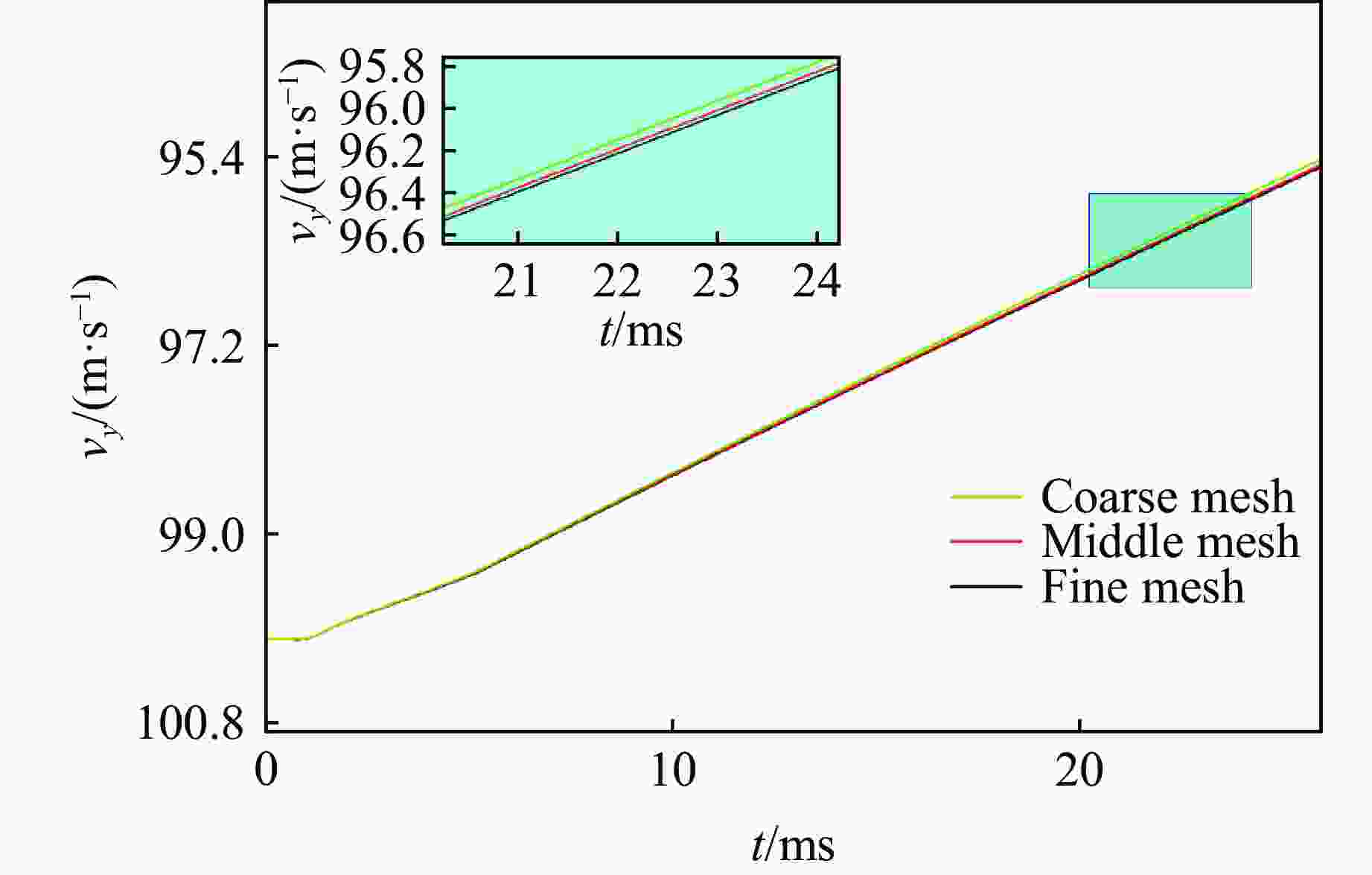

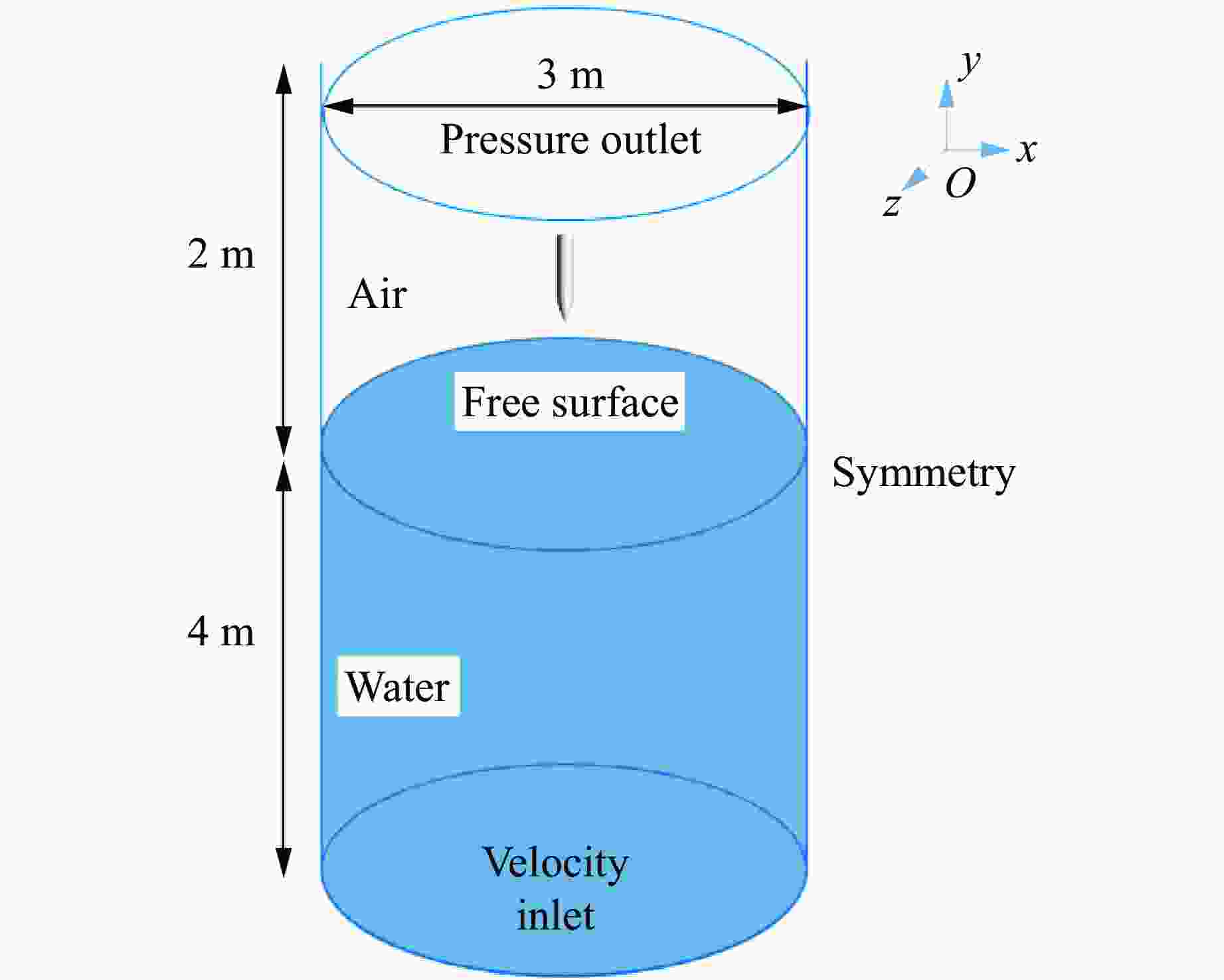

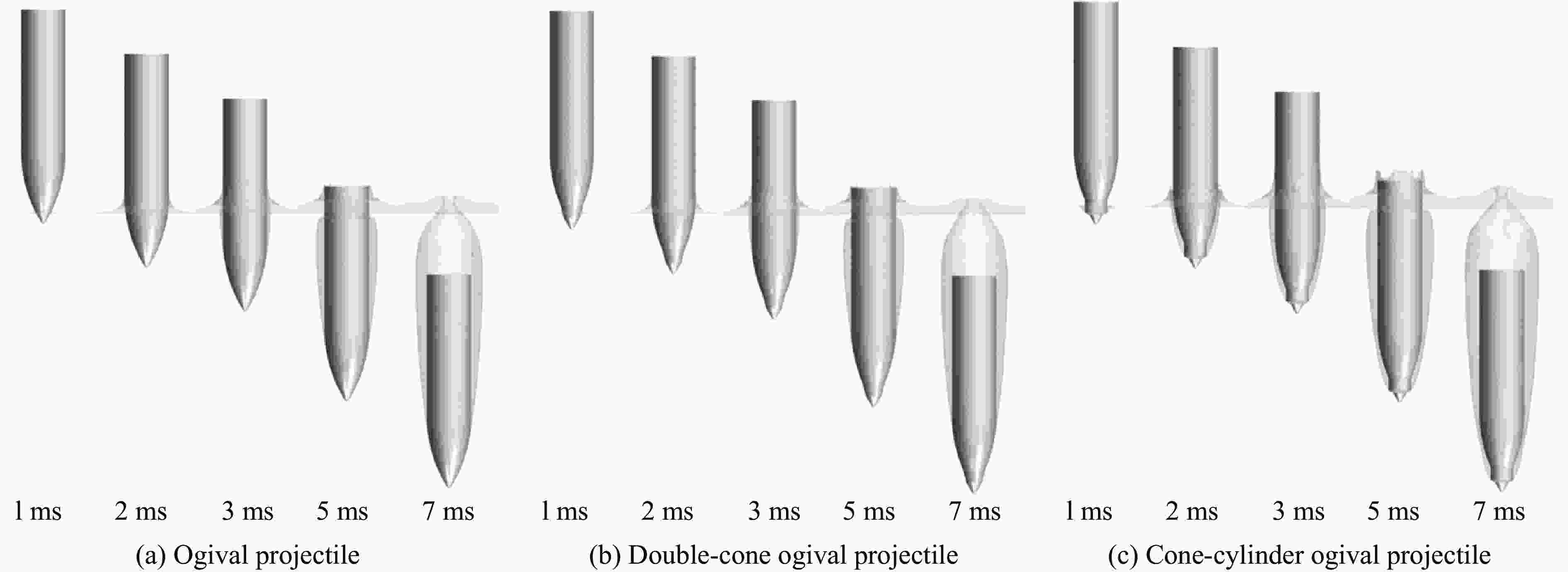

图 7 不同头型弹体入水空泡早期演化过程
Figure 7. Early cavity evolution process of the projectiles with different headforms

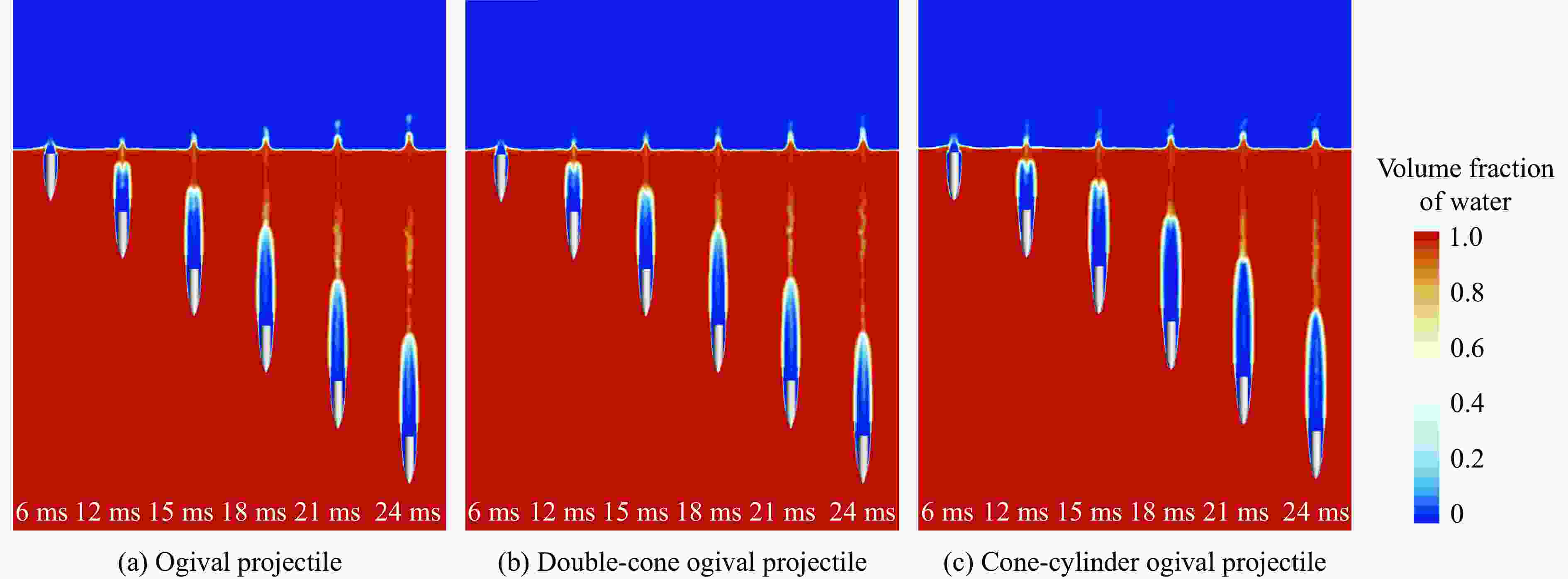

图 8 不同头型弹体入水空泡后期演化过程
Figure 8. Later cavity evolution process of the projectiles with different headforms

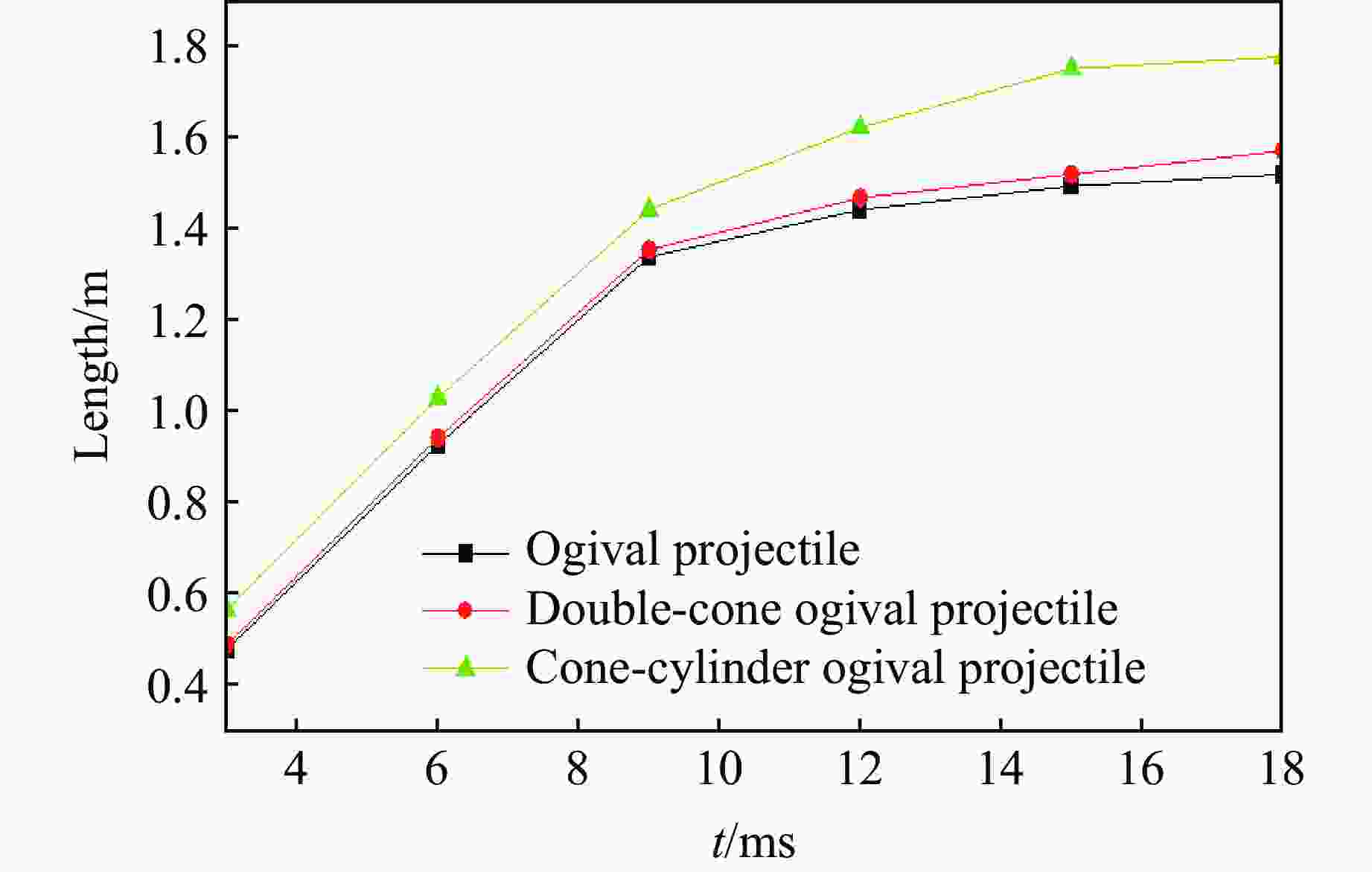

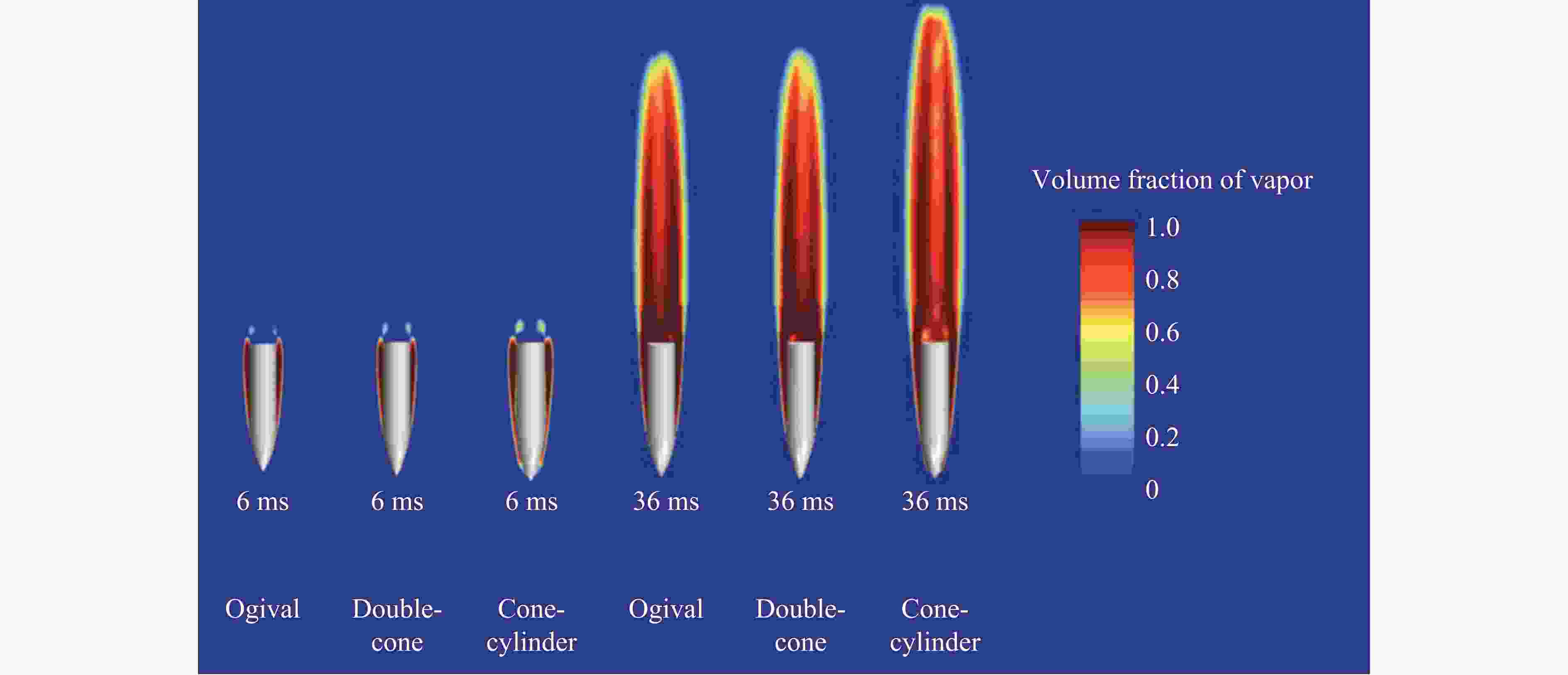

图 10 不同头型弹体空泡内部蒸气相分布示意图
Figure 10. Schematic diagram of vapor phase distribution in cavity of different head shape projectiles

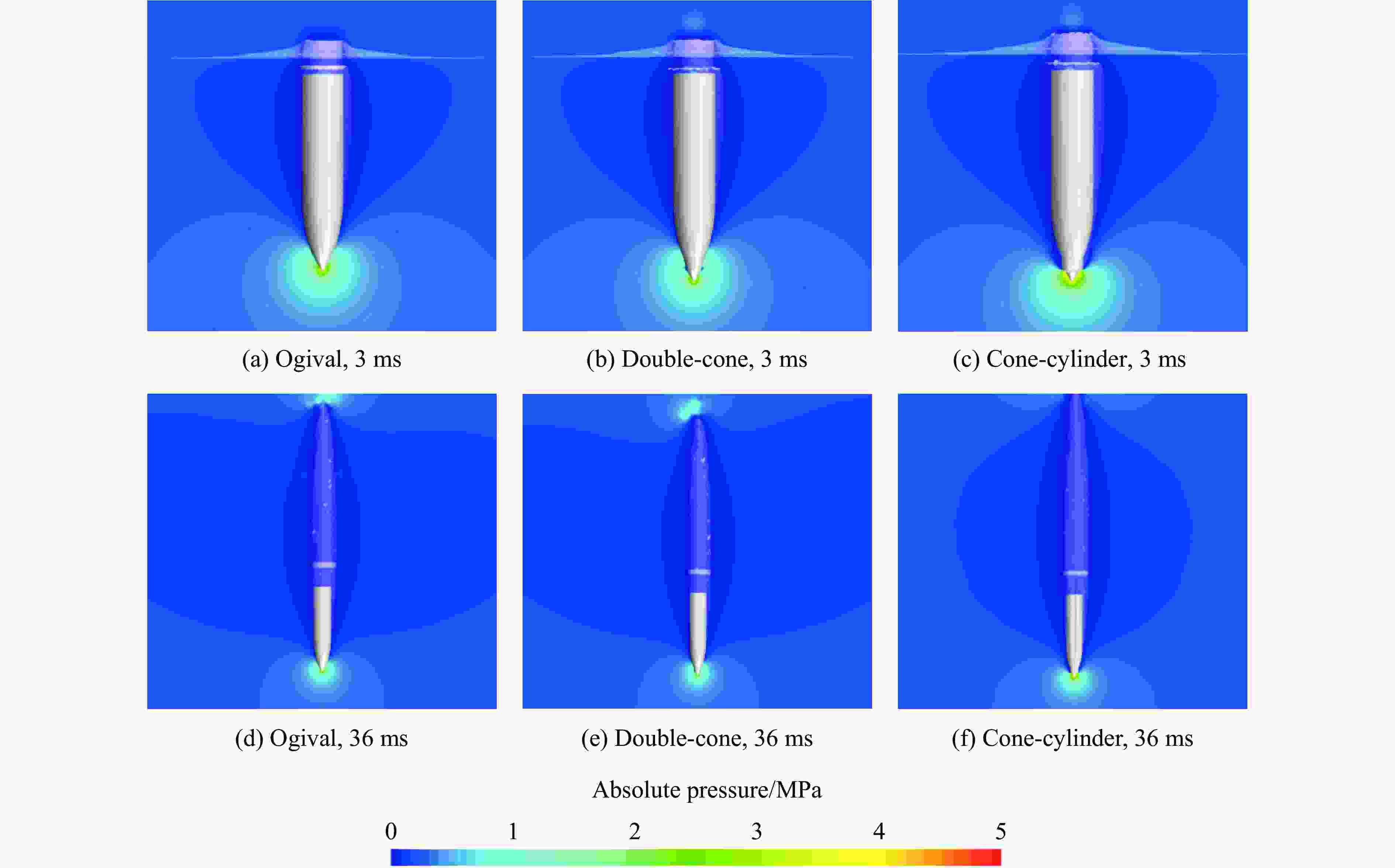

图 11 不同头型弹体压力场分布示意图
Figure 11. Schematic diagram of pressure field distribution of different head shape projectiles

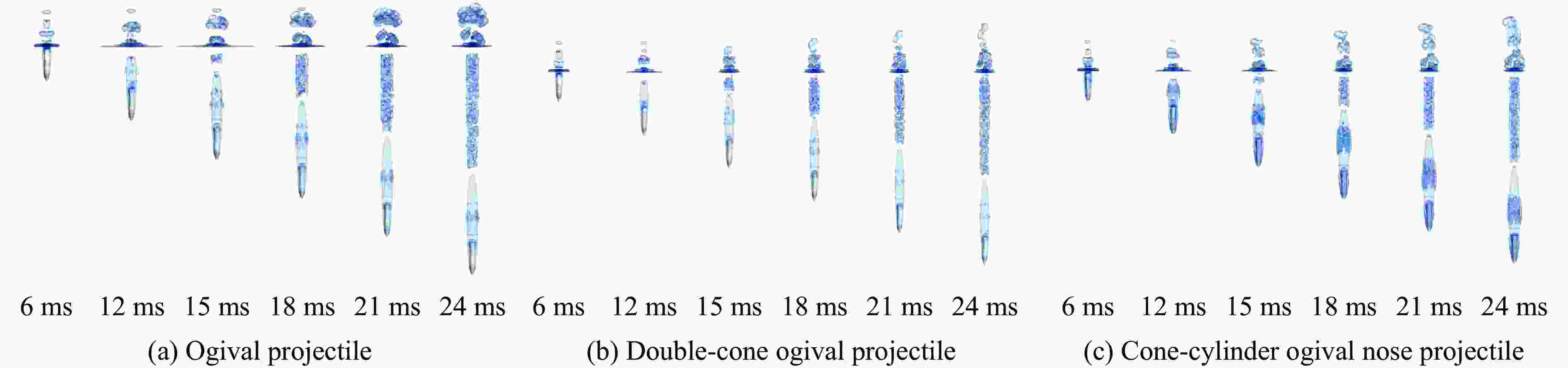

图 12 不同头型弹体涡结构演化示意图
Figure 12. Schematic diagram of vortex structure evolution of different head shape projectiles
-

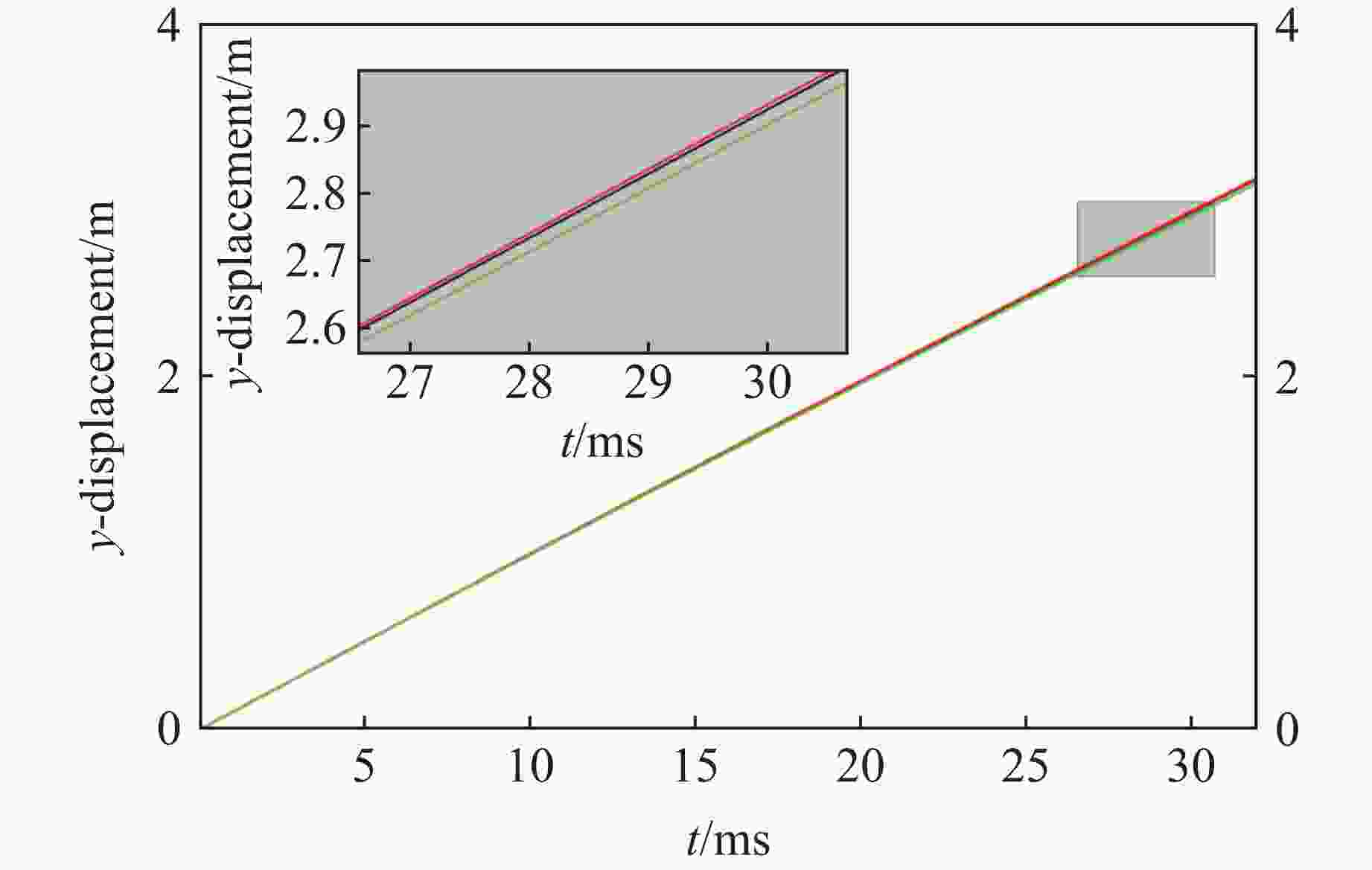

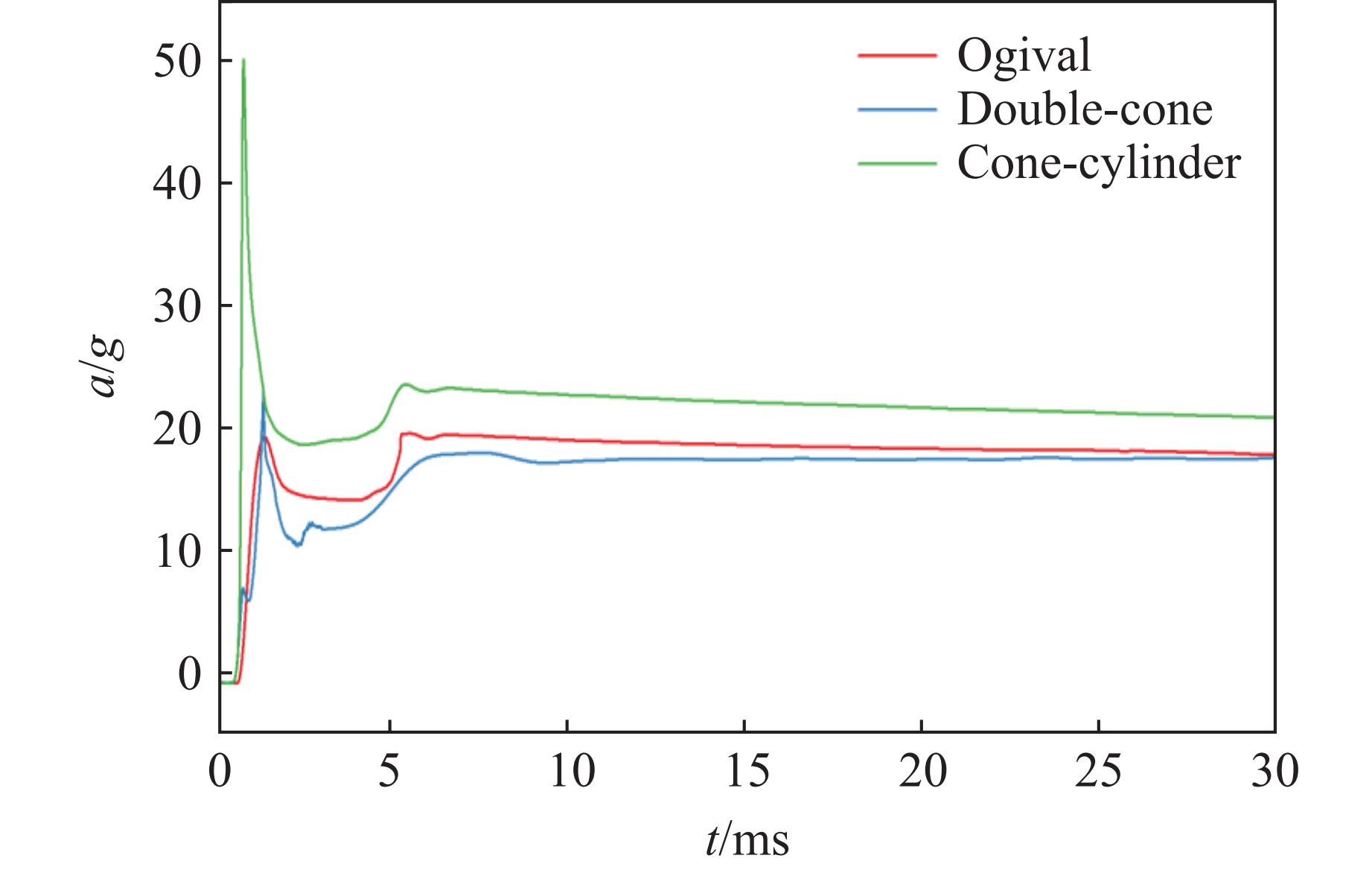

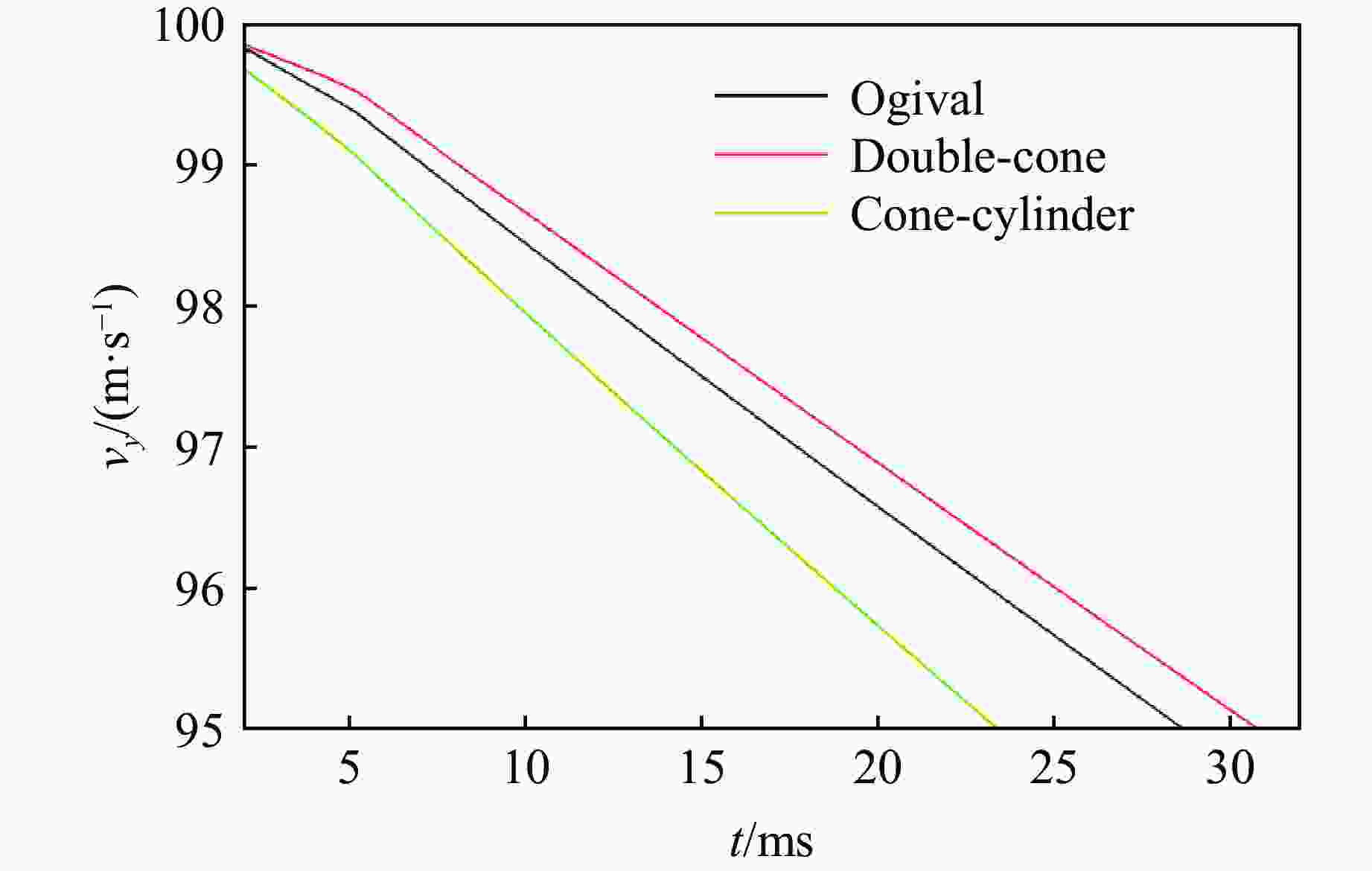

[1] 栗夫园, 党建军, 张宇文. 带锥形空化器超空泡航行体的空泡与力学特性 [J]. 江苏大学学报(自然科学版), 2017, 38(2): 161–167. doi: 10.3969/j.issn.1671-7775.2017.02.007LI F Y, DANG J J, ZHANG Y W. Cavity and hydrodynamic features of supercavitating vehicle with conical cavitator [J]. Journal of Jiangsu University (Natural Science Edition), 2017, 38(2): 161–167. doi: 10.3969/j.issn.1671-7775.2017.02.007 [2] 施红辉, 胡青青, 陈波, 等. 钝体倾斜和垂直冲击入水时引起的超空泡流动特性实验研究 [J]. 爆炸与冲击, 2015, 35(5): 617–624. doi: 10.11883/1001-1455(2015)05-0617-08SHI H H, HU Q Q, CHEN B, et al. Experimental study of supercavitating flows induced by oblique and vertical water entry of blunt bodies [J]. Explosion and Shock Waves, 2015, 35(5): 617–624. doi: 10.11883/1001-1455(2015)05-0617-08 [3] 侯宇, 黄振贵, 郭则庆, 等. 超空泡射弹小入水角高速斜入水试验研究 [J]. 兵工学报, 2020, 41(2): 332–341. doi: 10.3969/j.issn.1000-1093.2020.02.015HOU Y, HUANG Z G, GUO Z Q, et al. Experimental investigation on shallow-angle oblique water-entry of a high-speed supercavitating projectile [J]. Acta Armamentarii, 2020, 41(2): 332–341. doi: 10.3969/j.issn.1000-1093.2020.02.015 [4] TRUSCOTT T T, EPPS B P, BELDEN J. Water entry of projectiles [J]. Annual Review of Fluid Mechanics, 2014, 46: 355–378. doi: 10.1146/annurev-fluid-011212-140753 [5] SONG Z J, DUAN W Y, XU G D, et al. Experimental and numerical study of the water entry of projectiles at high oblique entry speed [J]. Ocean Engineering, 2020, 211: 107574. doi: 10.1016/j.oceaneng.2020.107574 [6] 郭子涛, 张伟, 郭钊, 等. 截卵形弹水平入水的速度衰减及空泡扩展特性 [J]. 爆炸与冲击, 2017, 37(4): 727–733. doi: 10.11883/1001-1455(2017)04-0727-07GUO Z T, ZHANG W, GUO Z, et al. Characteristics of velocity attenuation and cavity expansion induced by horizontal water-entry of truncated-ogive nosed projectiles [J]. Explosion and Shock Waves, 2017, 37(4): 727–733. doi: 10.11883/1001-1455(2017)04-0727-07 [7] HAO C L, DANG J J, HUANG C, et al. Investigation of oblique water entry of high-speed supercavitating projectiles using transient fluid-structure interaction simulation [J]. Ocean Engineering, 2024, 303: 117702. doi: 10.1016/j.oceaneng.2024.117702 [8] 马庆鹏, 何春涛, 王聪, 等. 球体垂直入水空泡实验研究 [J]. 爆炸与冲击, 2014, 34(2): 174–180. doi: 10.11883/1001-1455(2014)02-0174-07MA Q P, HE C T, WANG C, et al. Experimental investigation on vertical water-entry cavity of sphere [J]. Explosion and Shock Waves, 2014, 34(2): 174–180. doi: 10.11883/1001-1455(2014)02-0174-07 [9] 王恒, 孙铁志, 路中磊, 等. 球体入水空泡演变和运动特性影响试验研究 [J]. 爆炸与冲击, 2019, 39(12): 123901. doi: 10.11883/bzycj-2018-0415WANG H, SUN T Z, LU Z L, et al. Experimental study on the cavity evolution and motion characteristics of spheres into water [J]. Explosion and Shock Waves, 2019, 39(12): 123901. doi: 10.11883/bzycj-2018-0415 [10] CHEN J C, XIAO T H, WU B, et al. Numerical study of wave effect on water entry of a three-dimensional symmetric wedge [J]. Ocean Engineering, 2022, 250: 110800. doi: 10.1016/j.oceaneng.2022.110800 [11] WANG Y F, WANG Z Y, DU Y, et al. On the airflow in a cavity during water entry [J]. International Journal of Multiphase Flow, 2022, 151: 104073. doi: 10.1016/j.ijmultiphaseflow.2022.104073 [12] LIU H, ZHOU B, HAN X S, et al. Numerical simulation of water entry of an inclined cylinder [J]. Ocean Engineering, 2020, 215: 107908. doi: 10.1016/j.oceaneng.2020.107908 [13] SUI Y T, LI S, MING F R, et al. An experimental study of the water entry trajectories of truncated cone projectiles: the influence of nose parameters [J]. Physics of Fluids, 2022, 34(5): 052102. doi: 10.1063/5.0089366 [14] HUANG Y H, MENG Q C, XIA W X, et al. Impact of centroid position on dynamic behavior of cavitating projectiles in water [J]. Physics of Fluids, 2025, 37(3): 035181. doi: 10.1063/5.0256918 [15] SUN T Z, SHEN J, JIANG Q, et al. Dynamics analysis of high-speed water entry of axisymmetric body using fluid-structure-acoustic coupling method [J]. Journal of Fluids and Structures, 2022, 111: 103551. doi: 10.1016/j.jfluidstructs.2022.103551 [16] 张伟, 郭子涛, 肖新科, 等. 弹体高速入水特性实验研究 [J]. 爆炸与冲击, 2011, 31(6): 579–584. doi: 10.11883/1001-1455(2011)06-0579-06ZHANG W, GUO Z T, XIAO X K, et al. Experimental investigations on behaviors of projectile high-speed water entry [J]. Explosion and Shock Waves, 2011, 31(6): 579–584. doi: 10.11883/1001-1455(2011)06-0579-06 [17] GUO Z Q, YAN X P, SUN S, et al. Experimental study on the high-speed water entry of cylinders at shallow angles [J]. Physics of Fluids, 2024, 36(10): 104123. doi: 10.1063/5.0229767 [18] 鲁春佳, 侯健, 魏平. 全浸水带间隙发射高速射弹的入水冲击载荷分析 [J]. 高压物理学报, 2021, 35(2): 025102. doi: 10.11858/gywlxb.20200603LU C J, HOU J, WEI P. Analysis on the impact load of high velocity projectile launched by water immersion gap-exist launch mode [J]. Chinese Journal of High Pressure Physics, 2021, 35(2): 025102. doi: 10.11858/gywlxb.20200603 [19] 祁晓斌, 施瑶, 刘喜燕, 等. 阶梯式圆柱射弹小角度入水弹道特性研究 [J]. 力学学报, 2023, 55(11): 2468–2479. doi: 10.6052/0459-1879-23-212QI X B, SHI Y, LIU X Y, et al. Study on trajectory characteristics of stepped cylindrical projectile entering water at small angle [J]. Chinese Journal of Theoretical and Applied Mechanics, 2023, 55(11): 2468–2479. doi: 10.6052/0459-1879-23-212 [20] 周杰, 徐胜利, 彭杰. 弹丸高速斜侵彻入水流场显示的初步研究 [J]. 高压物理学报, 2018, 32(1): 015102. doi: 10.11858/gywlxb.20170509ZHOU J, XU S L, PENG J. Water entry flow-field visualization of the oblique penetration of a high-speed projectile [J]. Chinese Journal of High Pressure Physics, 2018, 32(1): 015102. doi: 10.11858/gywlxb.20170509 [21] CHE P Q, SHI Y, ZHAO H R, et al. Study on the cavity evolution and load characteristics of large projectile during high-speed water entry [J]. Ocean Engineering, 2024, 303: 117673. doi: 10.1016/j.oceaneng.2024.117673 [22] CHEN J L, YANG P, LI J C, et al. Deflection law in trajectory of large caliber conical-nosed projectile at high-speed oblique water entry [J]. Physics of Fluids, 2025, 37(3): 034126. doi: 10.1063/5.0259854 [23] 陈建良, 杨璞, 李继承, 等. 大口径锥头弹体高速倾斜入水偏转规律数值模拟 [J]. 爆炸与冲击, 2024, 44(7): 073301. doi: 10.11883/bzycj-2023-0398CHEN J L, YANG P, LI J C, et al. Numerical simulation on the deflection behavior of large caliber conical nose projectile at oblique high-speed water entry [J]. Explosion and Shock Waves, 2024, 44(7): 073301. doi: 10.11883/bzycj-2023-0398 [24] 黄振贵, 范浩伟, 陈志华, 等. 空心弹高速入水机理及特性数值模拟研究 [J]. 爆炸与冲击, 2024, 44(1): 013301. doi: 10.11883/bzycj-2023-0156HUANG Z G, FAN H W, CHEN Z H, et al. Numerical simulation study on the mechanism and characteristics of high-speed water entry of hollow projectiles [J]. Explosion and Shock Waves, 2024, 44(1): 013301. doi: 10.11883/bzycj-2023-0156 [25] 马庆鹏, 魏英杰, 王聪, 等. 不同头型运动体高速入水空泡数值模拟 [J]. 哈尔滨工业大学学报, 2014, 46(11): 24–29. doi: 10.11918/j.issn.0367-6234.2014.11.004MA Q P, WEI Y J, WANG C, et al. Numerical simulation of high-speed water entry cavity of cylinders [J]. Journal of Harbin Institute of Technology, 2014, 46(11): 24–29. doi: 10.11918/j.issn.0367-6234.2014.11.004 [26] GAO J G, CHEN Z H, HUANG Z G, et al. Numerical investigations on the oblique water entry of high-speed projectiles [J]. Applied Mathematics and Computation, 2019, 362: 124547. doi: 10.1016/j.amc.2019.06.061 [27] CHEN T, HUANG W, ZHANG W, et al. Experimental investigation on trajectory stability of high-speed water entry projectiles [J]. Ocean Engineering, 2019, 175: 16–24. doi: 10.1016/j.oceaneng.2019.02.021 [28] ZHOU B J, ZHAO Z J, DAI Q, et al. Numerical study on the cavity dynamics of water entry and exit for a high-speed projectile crossing a wave [J]. Physics of Fluids, 2024, 36(6): 063321. doi: 10.1063/5.0212804 -
