高压偶联反应合成铂族金属氮化物OsN<sub><i>x</i></sub>

刘德璞; 张恒源; 陶雨; 贾旭; 张瑞柯; 贺端威; 雷力

doi:10.11858/gywlxb.20251020

高压偶联反应合成铂族金属氮化物OsN_x

doi: 10.11858/gywlxb.20251020

四川大学原子与分子物理研究所, 四川成都　610065

基金项目: 国家自然科学基金（U2030107）；中央高校基本科研业务费专项资金（2020SCUNL107）

详细信息

作者简介:
刘德璞（1993－），男，硕士研究生，主要从事过渡金属氮化物高压合成研究. E-mail：1041561733@qq.com

通讯作者:
雷　力（1980－），男，博士，研究员，主要从事高压物理与化学研究. E-mail：lei@scu.edu.cn

中图分类号: O521.2
计量
- 文章访问数: 154
- HTML全文浏览量: 34
- PDF下载量: 27
出版历程
- 收稿日期: 2025-01-23
- 修回日期: 2025-03-31
- 网络出版日期: 2025-04-01
- 刊出日期: 2025-06-05

Synthesis of Platinum-Group Metal Nitride OsN_x through High-Pressure Coupling Reaction

Institute of Atomic and Molecular Physics, Sichuan University, Chengdu 610065, Sichuan, China

摘要

摘要: 铂族金属氮化物是一类新型超不可压缩超硬材料，通常借助激光加热金刚石压砧（laser-heated diamond anvil cell，LHDAC）技术，通过单质元素化合反应法（A+B=AB）在高温高压下（2000 K、高于45 GPa）合成，探索有效降低合成压力的非常规化学合成方法对于开发和利用铂族金属（platinum-group metals，PGM）氮化物具有重要意义。以Fe₂O₃/Co₂O₃、h-BN、Os粉为反应前驱体，在大腔体压机提供的高温高压（1800～2100 K、15 GPa）条件下，首次通过新型高压偶联（high-pressure coupling，HPC）反应合成了OsN_x（0.16≤x≤0.38）。HPC反应合成出的金属块状产物一般为OsN_x与铁基氮化物复合的块体合金，利用微区X射线衍射、扫描电子显微镜对块状合金产物进行物相和结构表征，结果显示，HPC反应可以在远低于高压单质元素化合反应所需50 GPa压力阈值的条件下合成理论预测的六方OsN₂结构的OsN_x（空间群为P6₃/mmc），N原子在Os晶体内部分占据晶格的间隙位。HPC反应能够有效降低金属Os氮化的能量势垒，形成非化学计量比的OsN_x化合物，为在低压条件下制备铂族金属氮化物块体材料开辟了一条新的合成途径。
- 高压偶联反应 /
- 铂族金属氮化物 /
- 氮化锇 /
- 大腔体压机 /
- 高温高压
Abstract: Platinum-group metals (PGMs) nitrides represent a new class of super incompressible superhard materials, typically synthesized under extreme conditions (above 45 GPa, 2000 K) using laser-heated diamond anvil cell (LHDAC) technology via monatomic elemental chemosynthesis (A+B=AB). Exploring non-conventional synthesis methods that significantly reduce the required pressures is crucial for advancing the development and application of PGMs nitrides. In this work, OsN_x (0.16≤x≤0.38) was synthesized for the first time via a novel high-pressure coupling (HPC) reaction, using Fe₂O₃/Co₂O₃, h-BN, and Os powders as precursors under high-temperature and high-pressure conditions (15 GPa, 1800−2100 K) in a large-volume press. The HPC-synthesized metal bulk products primarily consist of OsN_x alloyed with iron-based nitrides. Phase composition and structural characterization via X-ray powder diffraction (XRD) and scanning electron microscope (SEM) confirm the formation of hexagonal OsN₂ (space group P6₃/mmc), as theoretically predicted, at pressures well below the 50 GPa threshold typically required for high-pressure monatomic elemental combination reactions. The nitrogen atoms partially occupy interstitial sites within the Os crystal structure. This study demonstrates that the HPC reaction effectively lowers the energy barrier for Os nitration, facilitating the formation of non-stoichiometric OsN_x compounds. These findings open a new synthetic route for bulk PGM nitride materials under significantly reduced pressure conditions.
- high-pressure coupling reaction /
- platinum-group metals nitrides /
- osmium nitrides /
- large-volume press /
- high-temperature and high-pressure

HTML全文

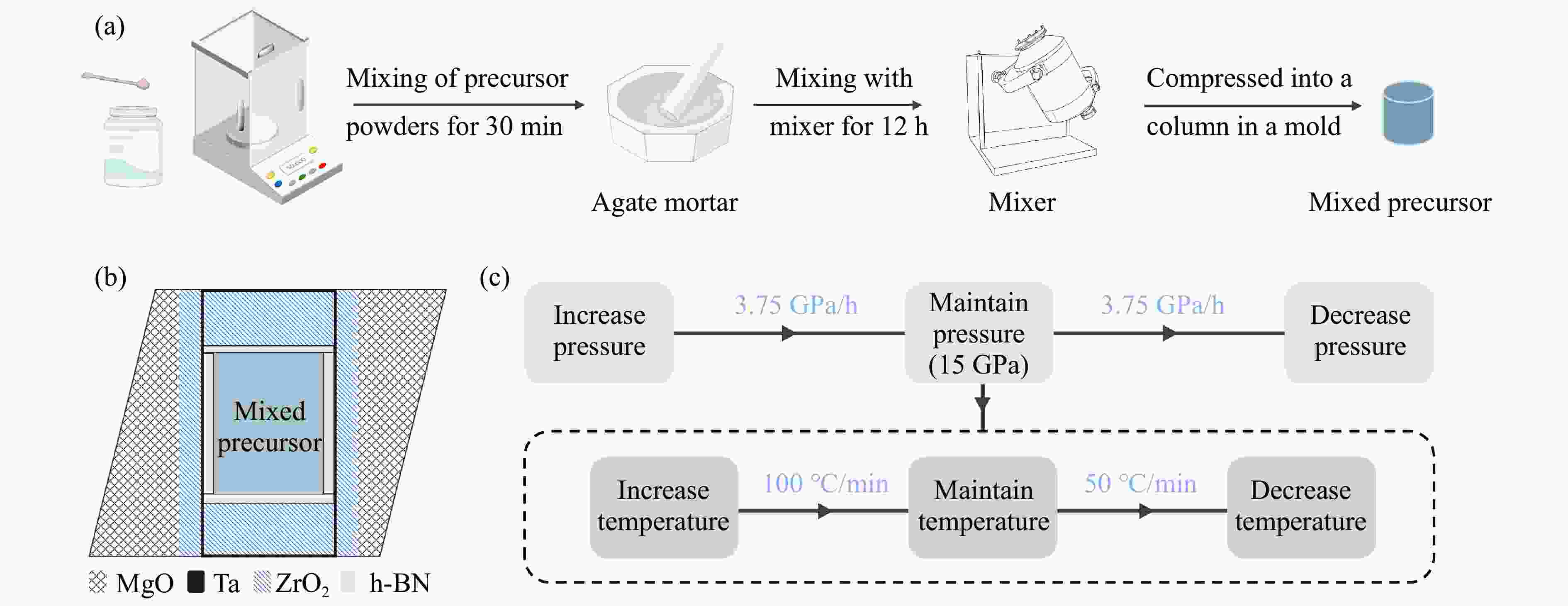

图 1 (a) 混合前驱体的制备流程，(b) 实验组装，(c) 高温高压实验流程

Figure 1. (a) Preparation process of the mixed precursor; (b) experimental assembly; (c) high-temperature and high-pressure experimental procedure

下载: 全尺寸图片幻灯片

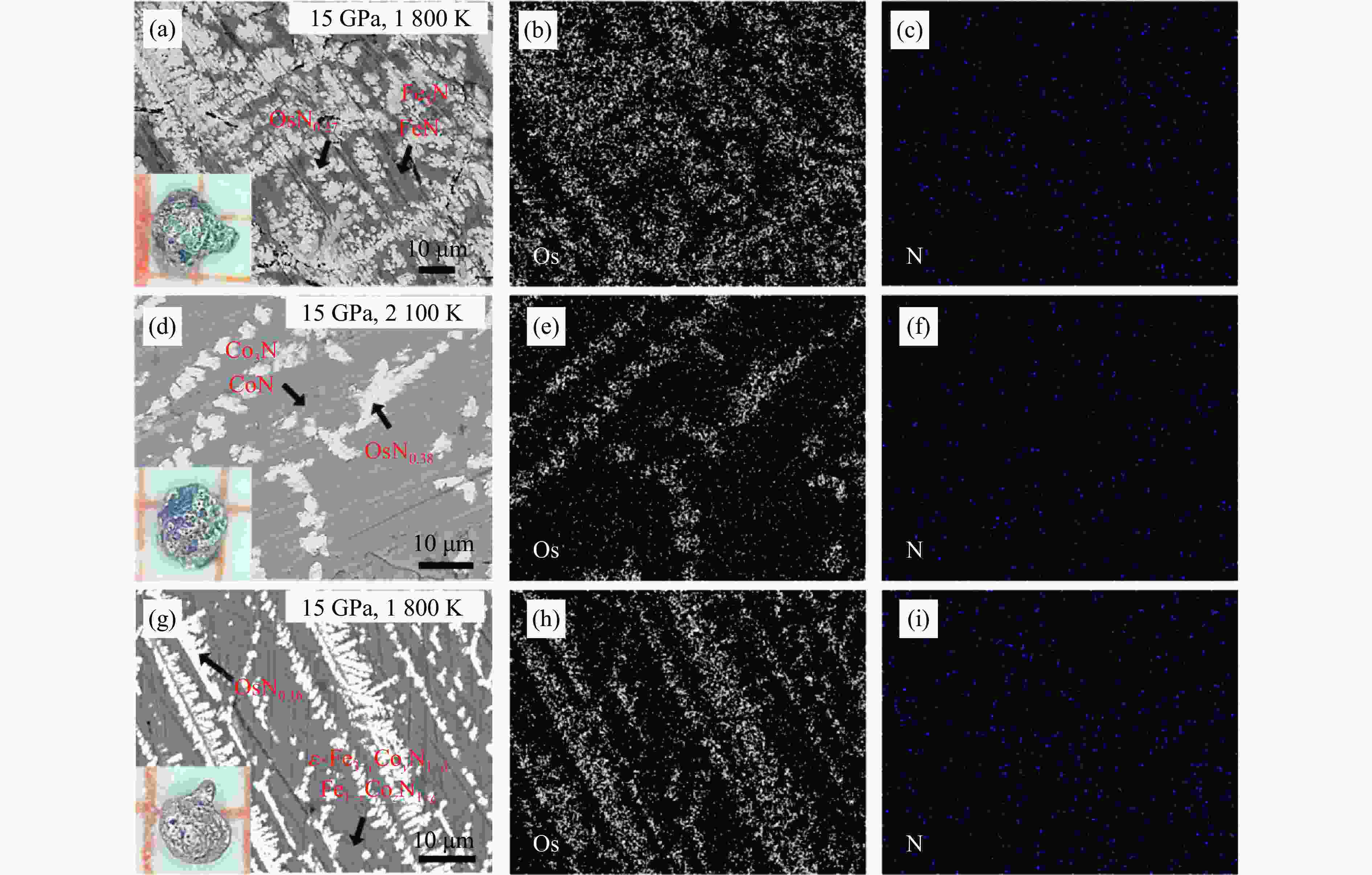

图 2 实验1 (a～c)、实验2 (d～f)、实验3 (g～i)所获得的合金块体的SEM图像及EDX面扫描元素分布图像（插图为块体合金产物的光学照片）

Figure 2. SEM images and EDX elemental mapping of bulk alloy products obtained in Exp. 1 (a−c), Exp. 2 (d−f), and Exp. 3 (g−i) (The insets are optical photographs of the bulk alloy products)

下载: 全尺寸图片幻灯片

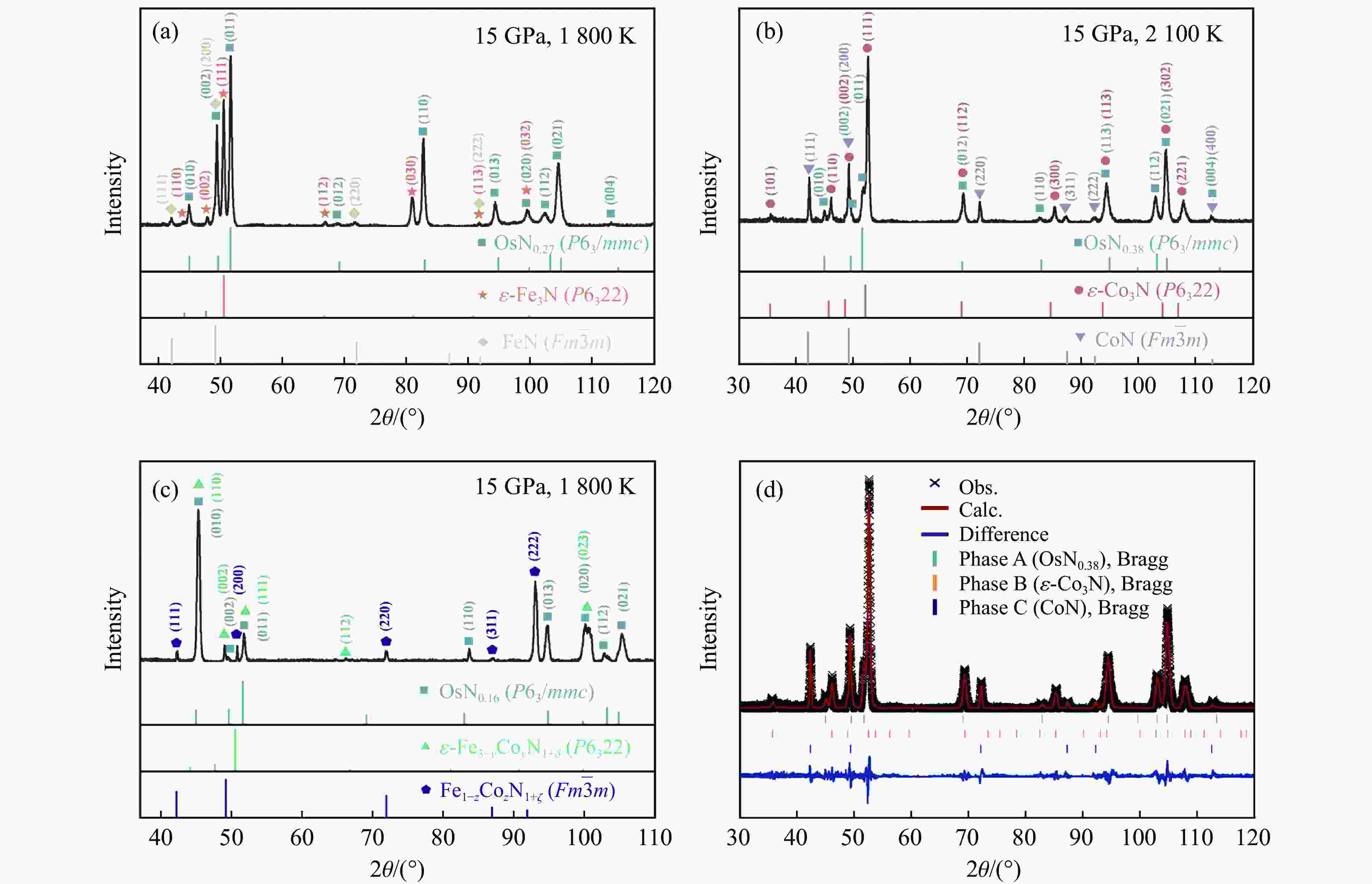

图 3 实验1 (a)、实验2 (b)、实验3 (c)中块状合金产物的XRD谱及实验2中块状合金产物的XRD精修谱(d)

Figure 3. XRD patterns of the bulk alloy products obtained from Exp. 1 (a), Exp. 2 (b) and Exp. 3 (c); the refined XRD pattern of the bulk alloy product obtained from Exp. 2 (d)

下载: 全尺寸图片幻灯片

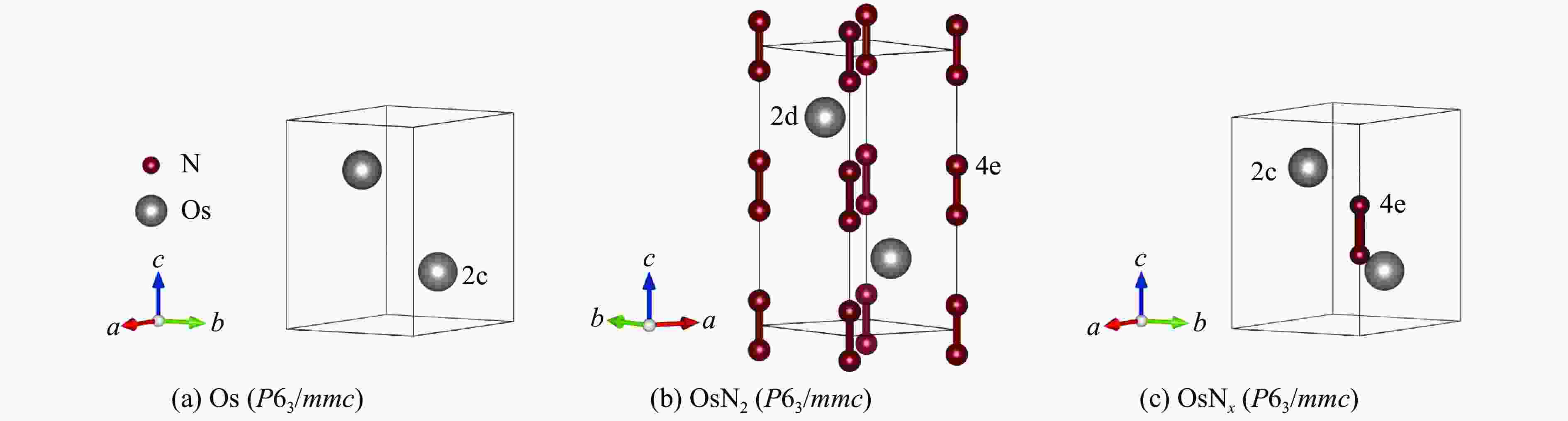

图 4 Os^[21]、OsN₂（计算结构）^[14]、N原子非化学计量比OsN_x的晶体结构示意图

Figure 4. Schematic crystal structures of Os^[21], OsN₂ (computational structure)^[14], and OsN_x of non-stoichiometric ratio with N atoms

下载: 全尺寸图片幻灯片

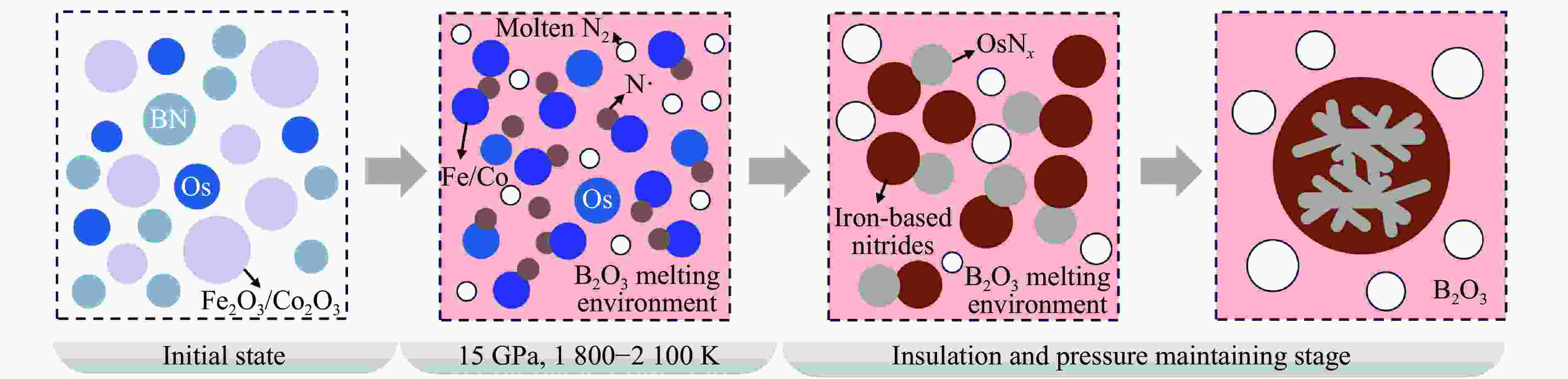

图 5 HPC反应合成OsN_x的原理示意图

Figure 5. Schematic diagram illustrating the principle of OsN_x synthesis via the HPC reaction

下载: 全尺寸图片幻灯片

表 1 典型实验的前驱体、温度压力条件及块体合金产物的能谱元素分析结果

Table 1. Precursors, temperature-pressure conditions, and EDX analysis results of bulk alloy products in typical experiments

Exp. No.	Precursors	p/GPa	T/K	Atom fraction in the light area/%		Atom fraction in the gray area/%
Exp. No.	Precursors	p/GPa	T/K	Os	N	Fe	Co	N
1	3Fe₂O₃, 6BN, Os	15	1800	78.61	21.39	65.49		34.61
2	3Co₂O₃, 6BN, Os	15	2100	72.41	27.59		74.71	25.29
3	3Fe₂O₃, 3Co₂O₃, 12BN, Os	15	1800	77.34	12.66	26.81	45.81	27.38

下载: 导出CSV

表 2 Os、OsN₂和OsN_0.38的晶胞参数对比

Table 2. Comparison of unit cell parameters for Os, OsN₂, and OsN_0.38

Os/Os nitrides	Space group	a/Å	c/Å	V/Å³	Method	Ref.
Os	P6₃/mmc	2.7013(7)	4.2726(4)	27.0002(1)	XRD	[21]
OsN₂	P6₃/mmc	3.03087	7.44002	59.1887	FPLAPW	[14]
OsN_0.38	P6₃/mmc	2.7082	4.2862	27.2247(2)	XRD	This work
Note: FPLAPW means full potential linearized augmented plane wave.

下载: 导出CSV
