非均质炸药冲击起爆数值模拟研究现状综述

姚天子; 王硕; 田占东; 陈荣

doi:10.11858/gywlxb.20240948

非均质炸药冲击起爆数值模拟研究现状综述

doi: 10.11858/gywlxb.20240948

国防科技大学理学院, 湖南长沙　410073

基金项目: 国家自然科学基金（12072369）

详细信息

作者简介:
姚天子（2000－），男，博士研究生，主要从事非均质炸药冲击起爆数值模拟研究. E-mail：yaotianzi18@nudt.edu.cn

通讯作者:
陈　荣（1981－），男，博士，教授，主要从事装药安全性研究. E-mail：r_chen@nudt.edu.cn

中图分类号: TJ55; O521.9
计量
- 文章访问数: 243
- HTML全文浏览量: 110
- PDF下载量: 60
出版历程
- 收稿日期: 2024-11-26
- 修回日期: 2025-01-16
- 刊出日期: 2025-08-05

Review of Numerical Simulation on Shock Initiation of Heterogeneous Explosives

College of Science, National University of Defense Technology, Changsha 410073, Hunan, China

摘要

摘要: 综述了非均质炸药冲击起爆的微/细观数值模拟和宏观数值模拟的研究现状，分析了非均质炸药冲击起爆数值模拟的未来发展趋势，旨在对数值模拟方法以及冲击起爆机理有更深入的理解。现有用于冲击起爆的细观数值模拟手段都具有各自的局限性，需要发展一种能够兼顾边界识别、大变形计算和高计算效率的全新计算框架，捕捉冲击起爆过程中的各种机制。目前已发现的热点机制包括结构缺陷引起的热点机制和无损伤热点机制，2类热点在冲击下都会产生能量局域化效应。冲击下不同类型热点之间的耦合机制尚不明确，需要深入研究各种类型和各个尺度热点之间的耦合作用，以全面揭示热点在冲击起爆中的作用机理，从而为冲击起爆各个阶段的数值模拟提供支撑。现有冲击起爆宏观反应速率模型考虑的物理机制不足且普适性不强，需要进一步发展能够考虑多热点耦合作用和热点统计分布的反应速率模型，从而提高反应速率模型的通用性和预测能力。在模拟冲击起爆全过程时使用宏观模拟会忽略较多细节，使用微/细观数值模拟则计算量巨大，因此，需要结合2种方法的优势发展跨尺度计算方法，从而在宏观模拟中减小计算量并引入小尺度信息。
- 非均质炸药 /
- 冲击起爆 /
- 细观模拟 /
- 热点 /
- 宏观模拟
Abstract: This paper reviews the state of art on microscopic/mesoscopic numerical simulation and macroscopic numerical simulation for the shock initiation process of heterogeneous explosives, summarizes the development trends of numerical simulation of shock initiation in heterogeneous explosives, and enables readers to have a deeper understanding of numerical simulation methods and the mechanism of shock initiation. Both the microscopic and mesoscopic methods have their own limitations, therefore, it is necessary to develop a new computational framework that can capture various mechanisms in the shock initiation process while considering boundary identification, large deformation calculation, and computational efficiency. Hot spots in heterogeneous explosives can be classified into defect-induced and defect-free hot spots based on the presence of structural defects, and both types of hotspots exhibit energy localization effects under shock. The coupling mechanisms between different types of hotspots under shock are not yet clear, and it is necessary to conduct research on the coupling interactions among various types and scales of hotspots to comprehensively reveal the mechanism of hotspots in shock initiation, thereby providing support for numerical simulations of various stages of shock initiation. The physical mechanisms considered in the existing macroscopic reaction rate models for shock initiation are not comprehensive and have weak universality. It is necessary to develop models that account for the coupled effects of multiple hotspots and their statistical distributions which will enhance the universality and predictive capability of macroscope simulation. In the simulation of the entire shock initiation process, macro simulation may overlook many details, while micro/meso numerical simulation requires huge computational complexity. Consequently, it is essential to combine the advantages of both methods to develop multiscale simulation methods to reduce computational consumption and introduce some necessary microscopic information in macro simulation.
- heterogeneous explosives /
- shock initiation /
- mesoscopic simulation /
- hot spot /
- macroscopic simulation

HTML全文

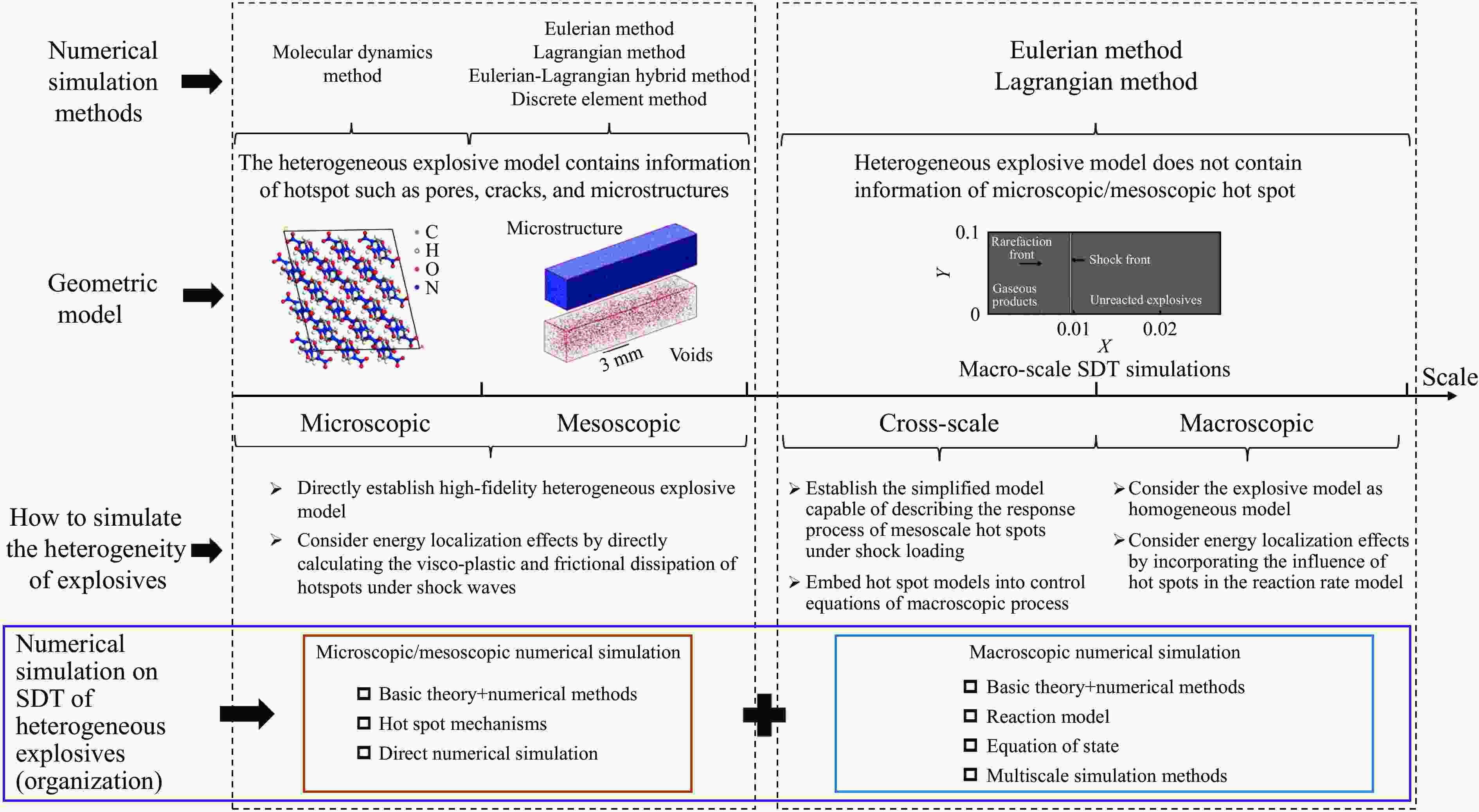

图 1 冲击起爆各尺度数值模拟的特点

Figure 1. Characteristics of multi-scale numerical simulations for shock initiation

下载: 全尺寸图片幻灯片

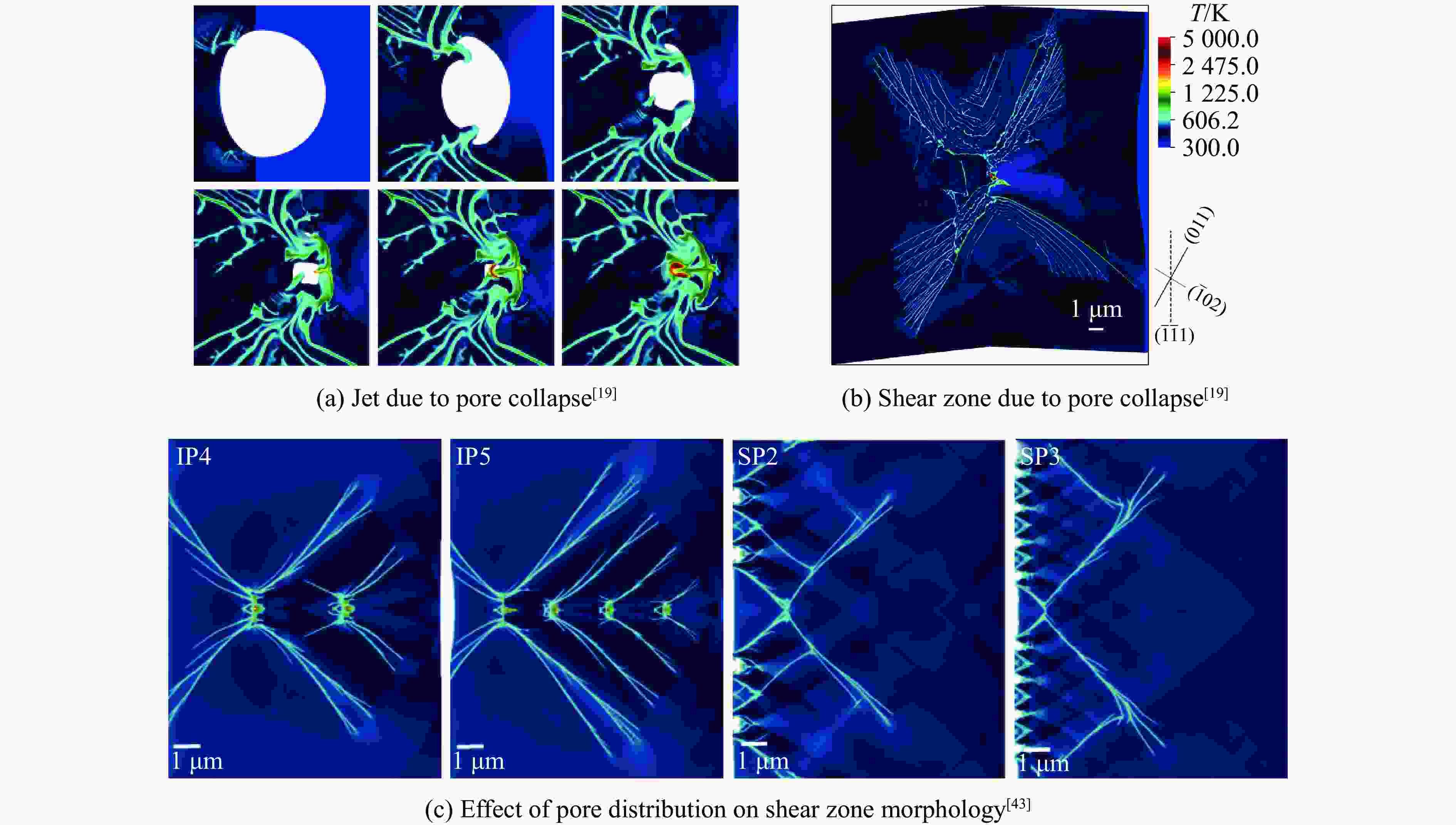

图 2 单个和多个孔隙的坍缩过程

Figure 2. Collapse processes of single pore and multi pores

下载: 全尺寸图片幻灯片

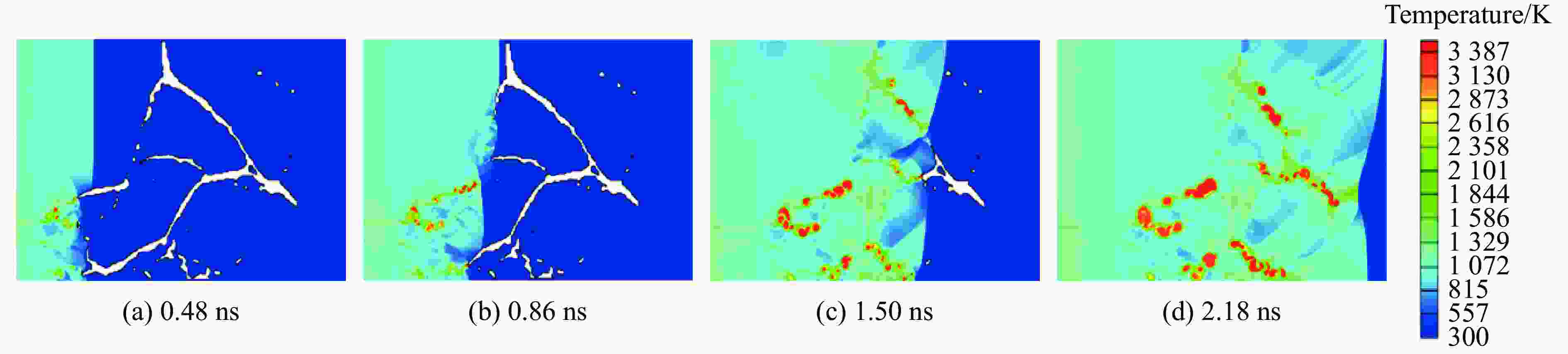

图 3 非均质炸药中裂纹在冲击作用下的温度场^[51]

Figure 3. Temperature field of cracks in heterogeneous explosives under shock load^[51]

下载: 全尺寸图片幻灯片

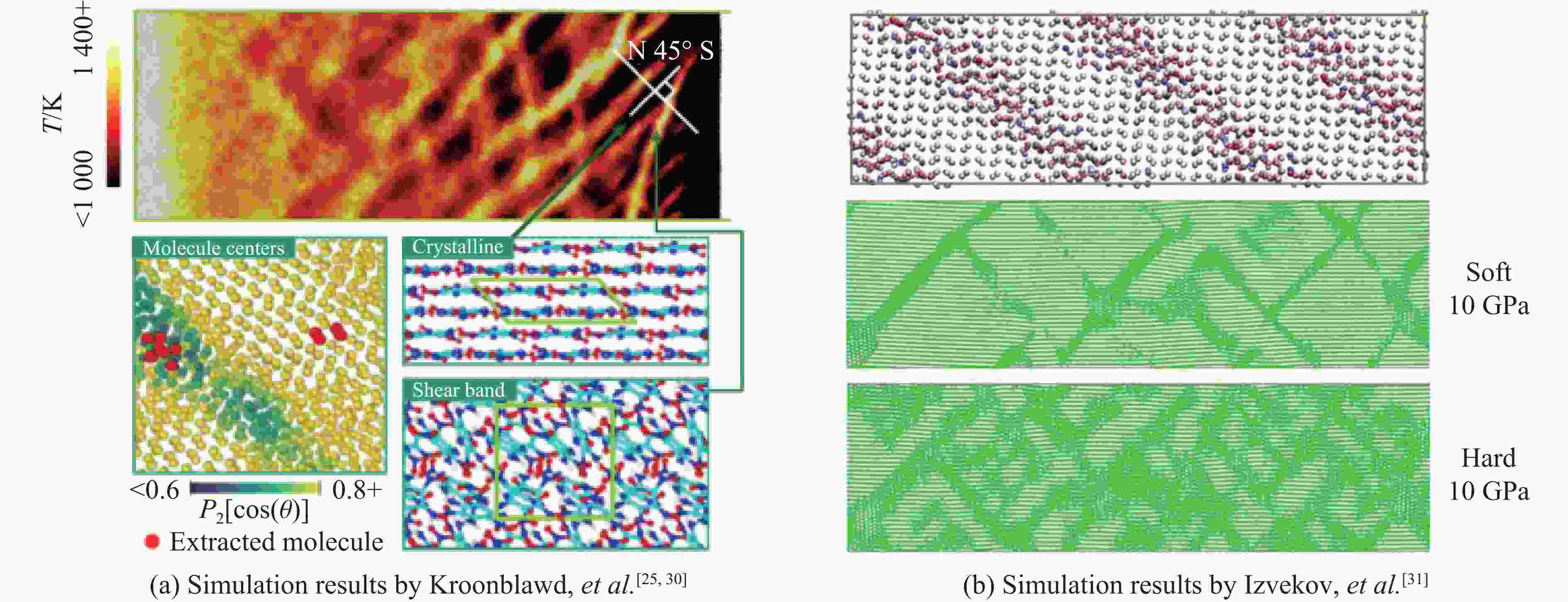

图 4 冲击起爆过程中形成的剪切网络示意图

Figure 4. Schematic diagram of the shear network formed during shock initiation

下载: 全尺寸图片幻灯片

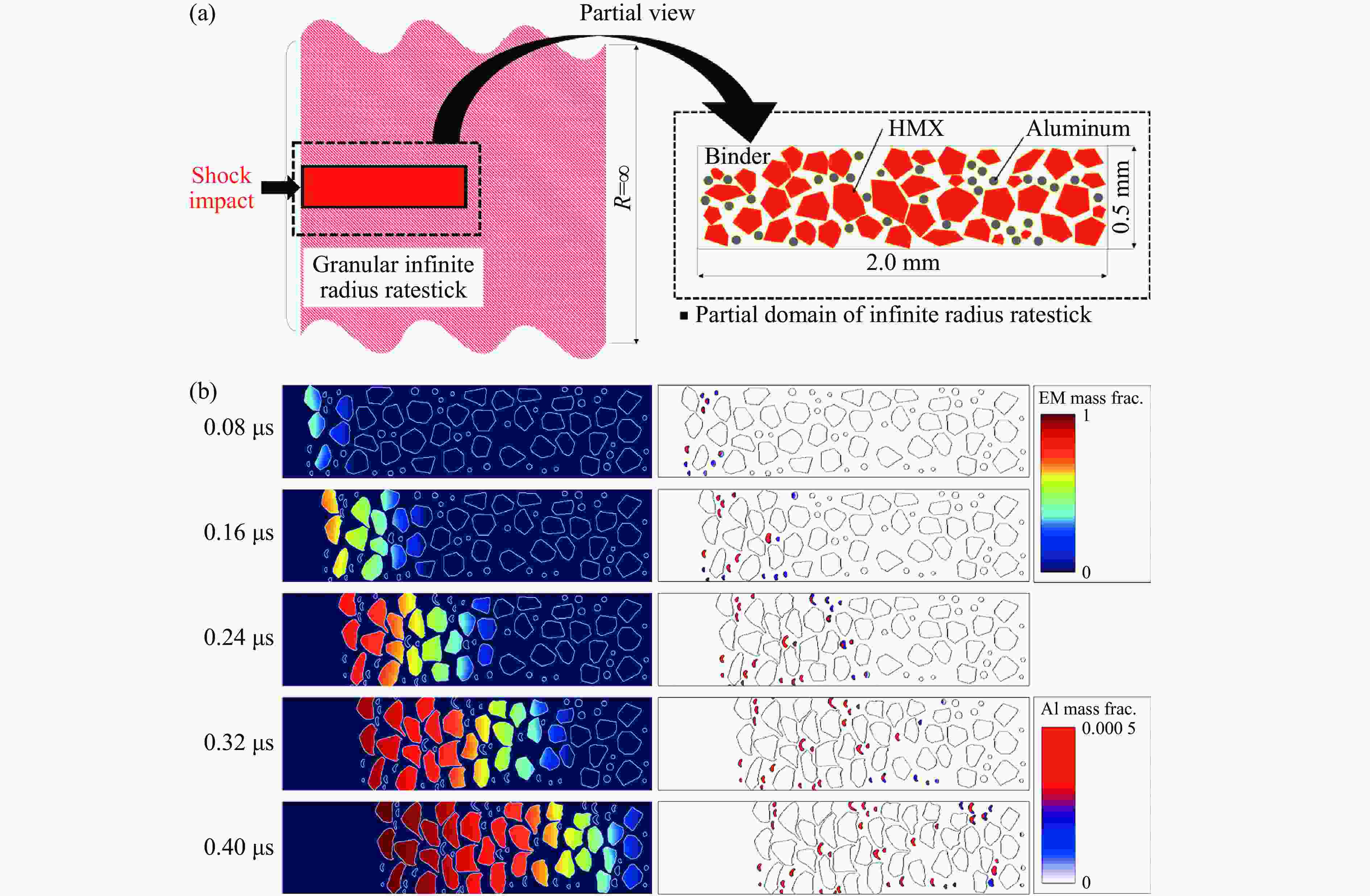

图 5 含铝炸药的计算模型(a)以及炸药中各组分在冲击起爆不同阶段的反应程度(b)^[9]

Figure 5. Computational model of aluminium-containing explosives (a) and degree of reaction of the explosive components at different stages of shock initiation (b)^[9]

下载: 全尺寸图片幻灯片

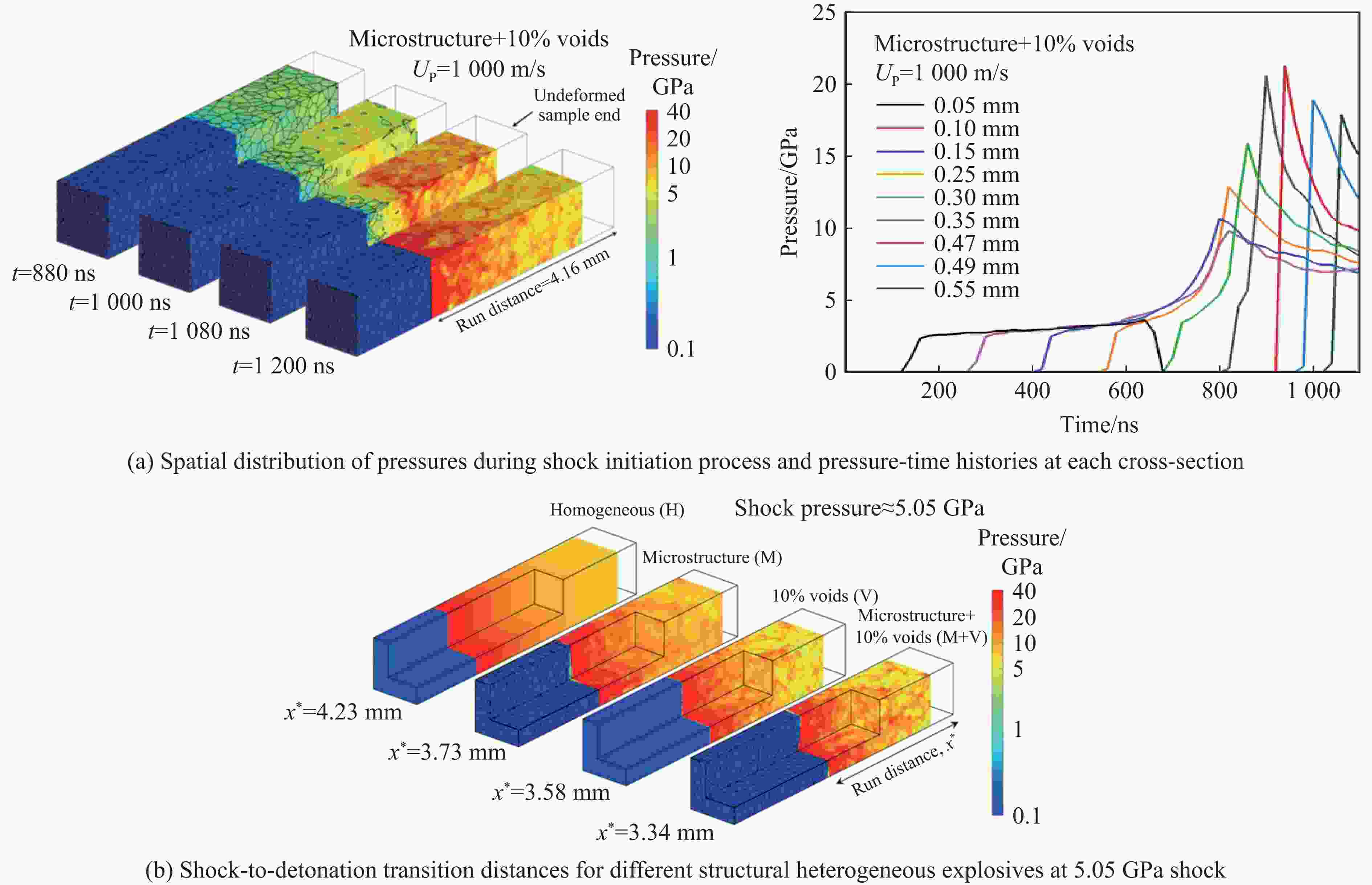

图 6 非均质炸药的三维细观数值模拟^[10]

Figure 6. Three-dimensional mesoscopic numerical simulation of heterogeneous explosives^[10]

下载: 全尺寸图片幻灯片

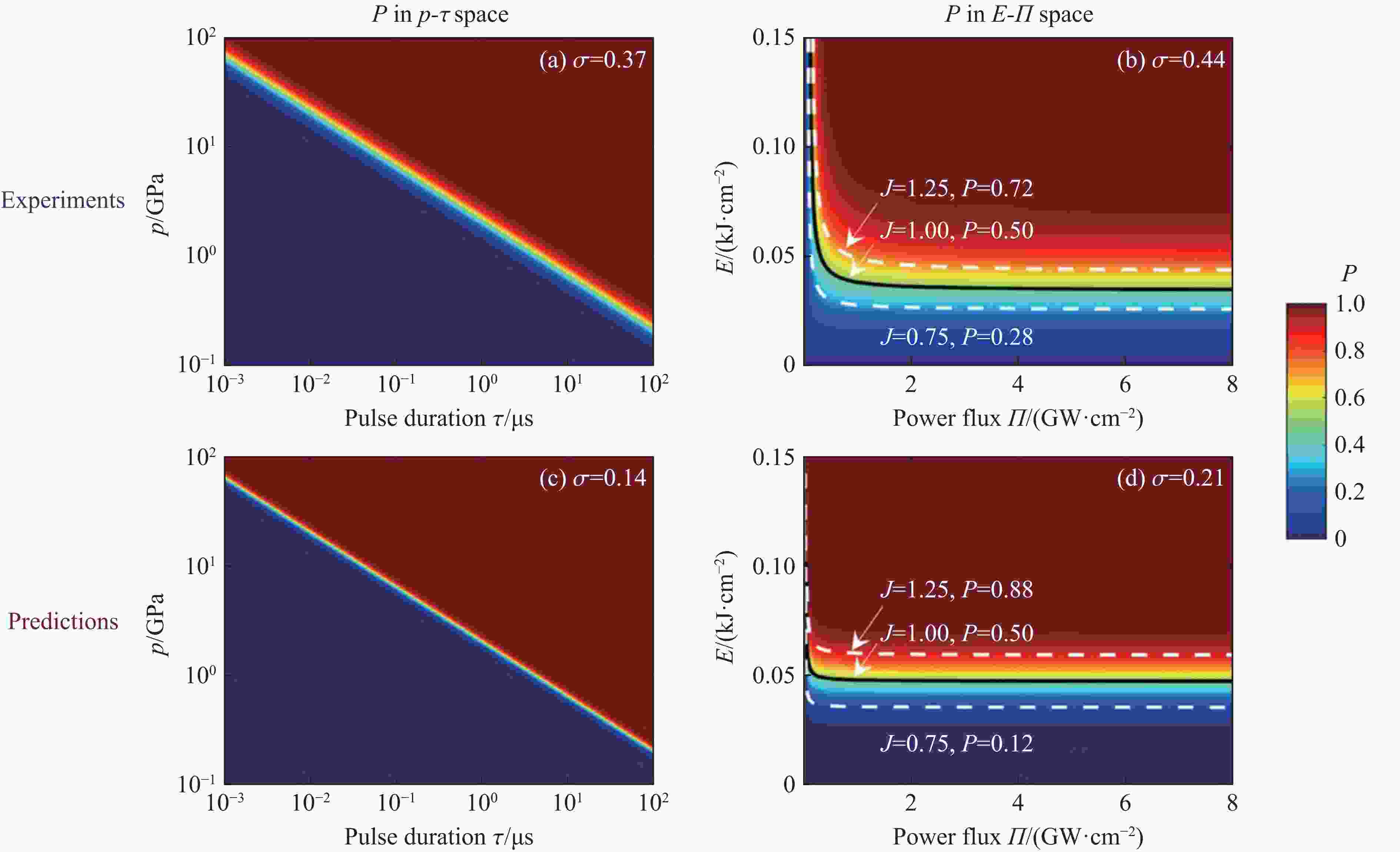

图 7 不同能量密度（E）和功率密度（Π）加载下HMX 炸药发生点火的概率（P）分布^[13]

Figure 7. Probability (P) distribution of ignition of HMX explosives loaded with different energy fluence （E） and power flux（Π）^[13]

下载: 全尺寸图片幻灯片

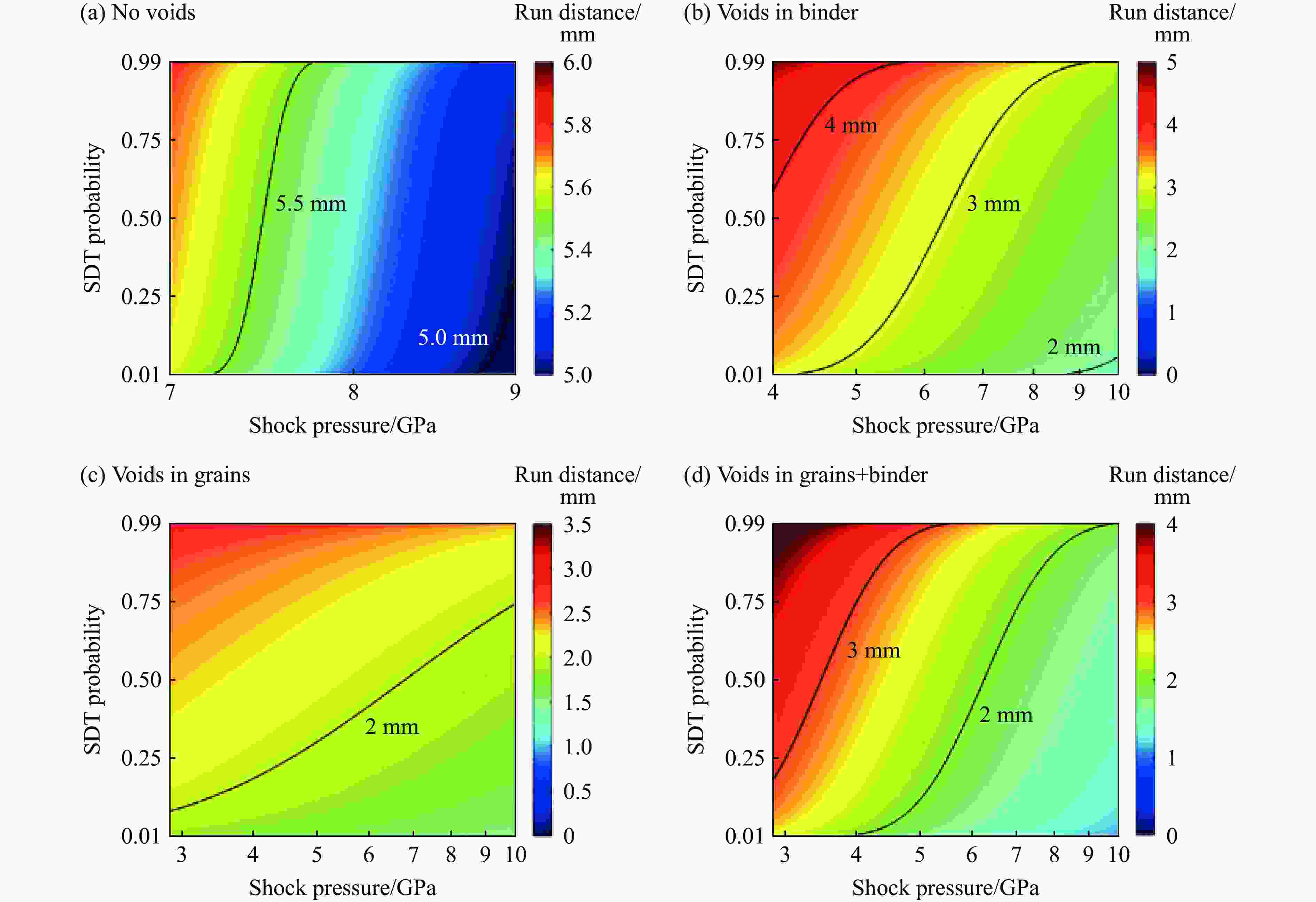

图 8 4种孔隙分布对爆轰概率的影响^[7]

Figure 8. Effect of four kinds of pore distributions on the probability of detonation^[7]

下载: 全尺寸图片幻灯片

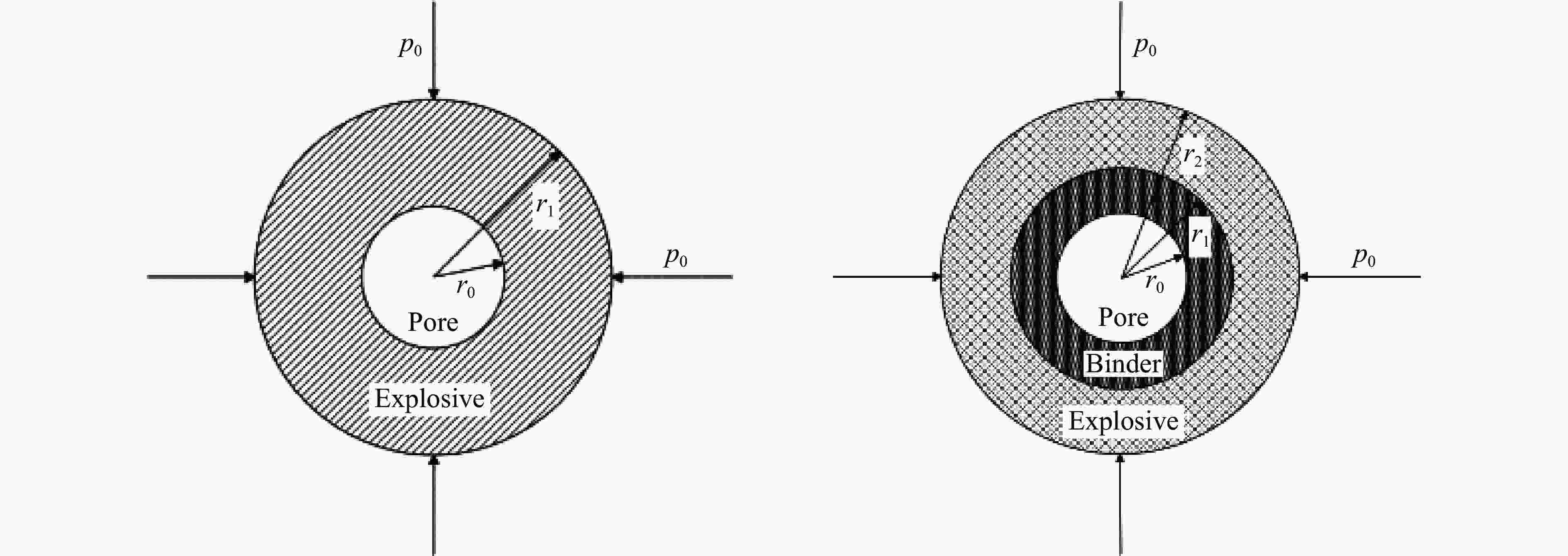

图 9 单球壳模型（左）和双球壳模型（右）示意图

Figure 9. Schematic diagrams of single-sphere shell model (left) and double-sphere shell model (right)

下载: 全尺寸图片幻灯片

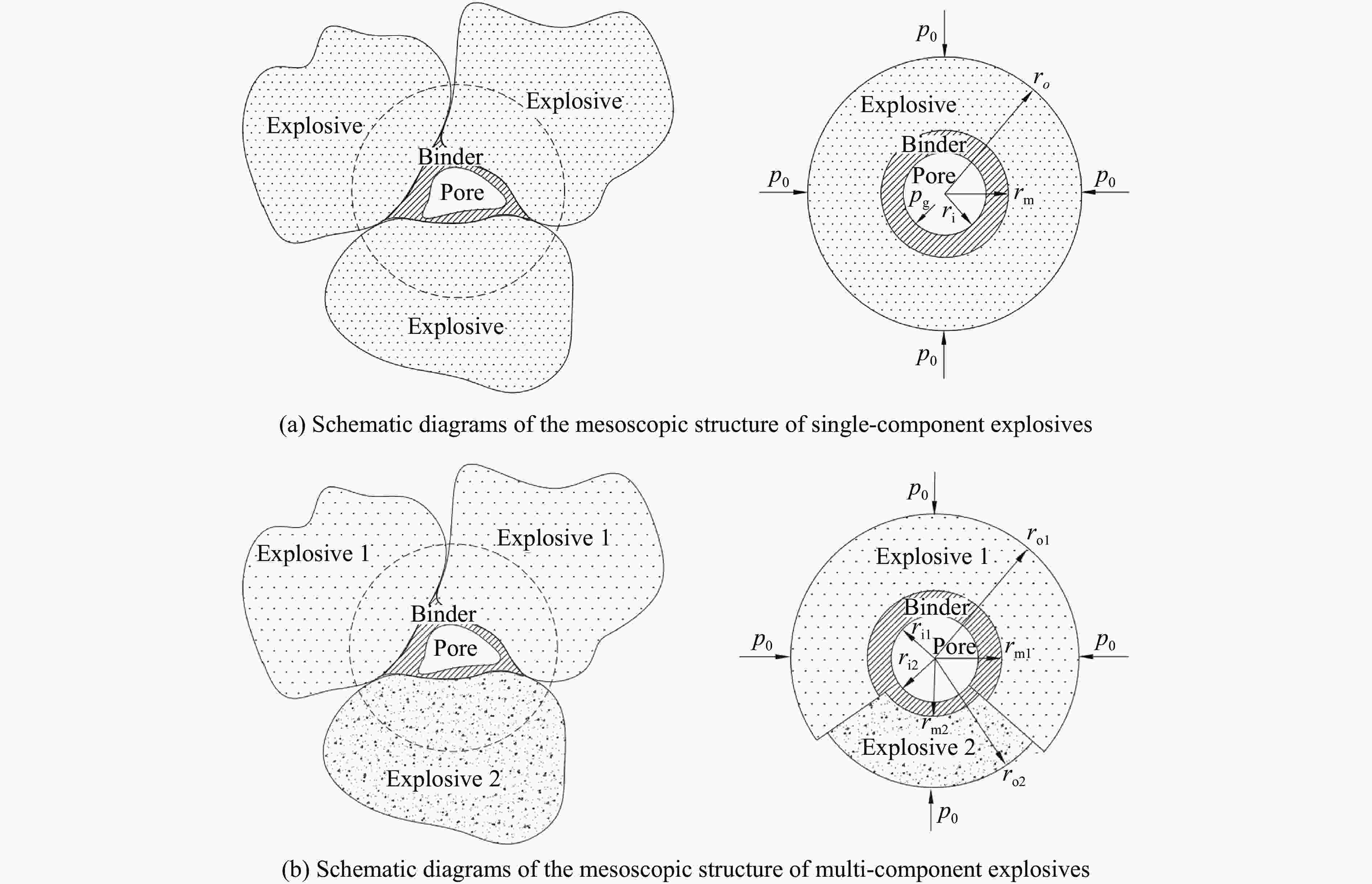

图 10 PBX炸药细观结构示意图^[87]

Figure 10. Schematic diagrams of the mesoscopic structure of PBX explosives^[87]

下载: 全尺寸图片幻灯片

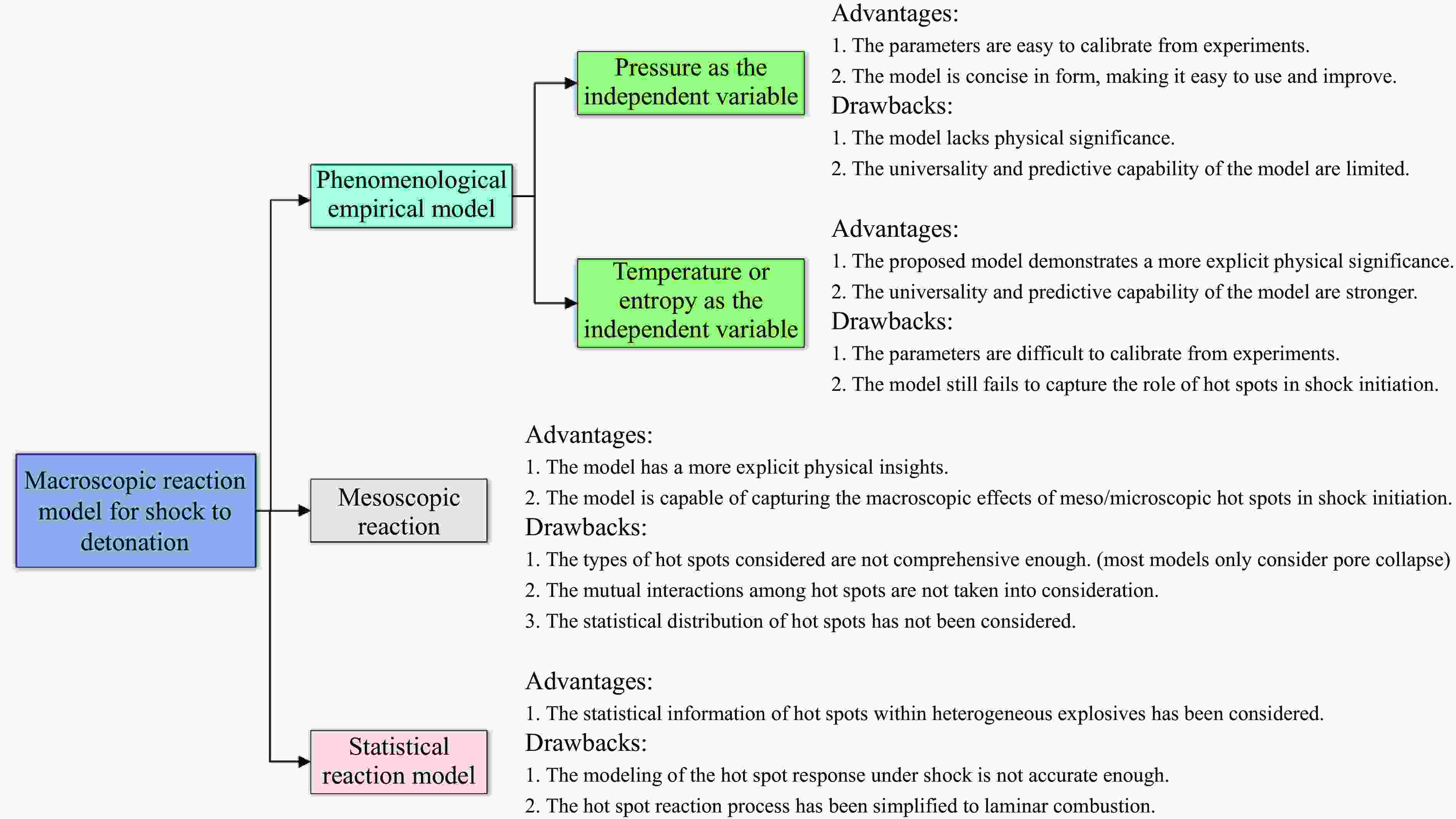

图 11 反应速率模型对比

Figure 11. Comparison of reaction rate models

下载: 全尺寸图片幻灯片

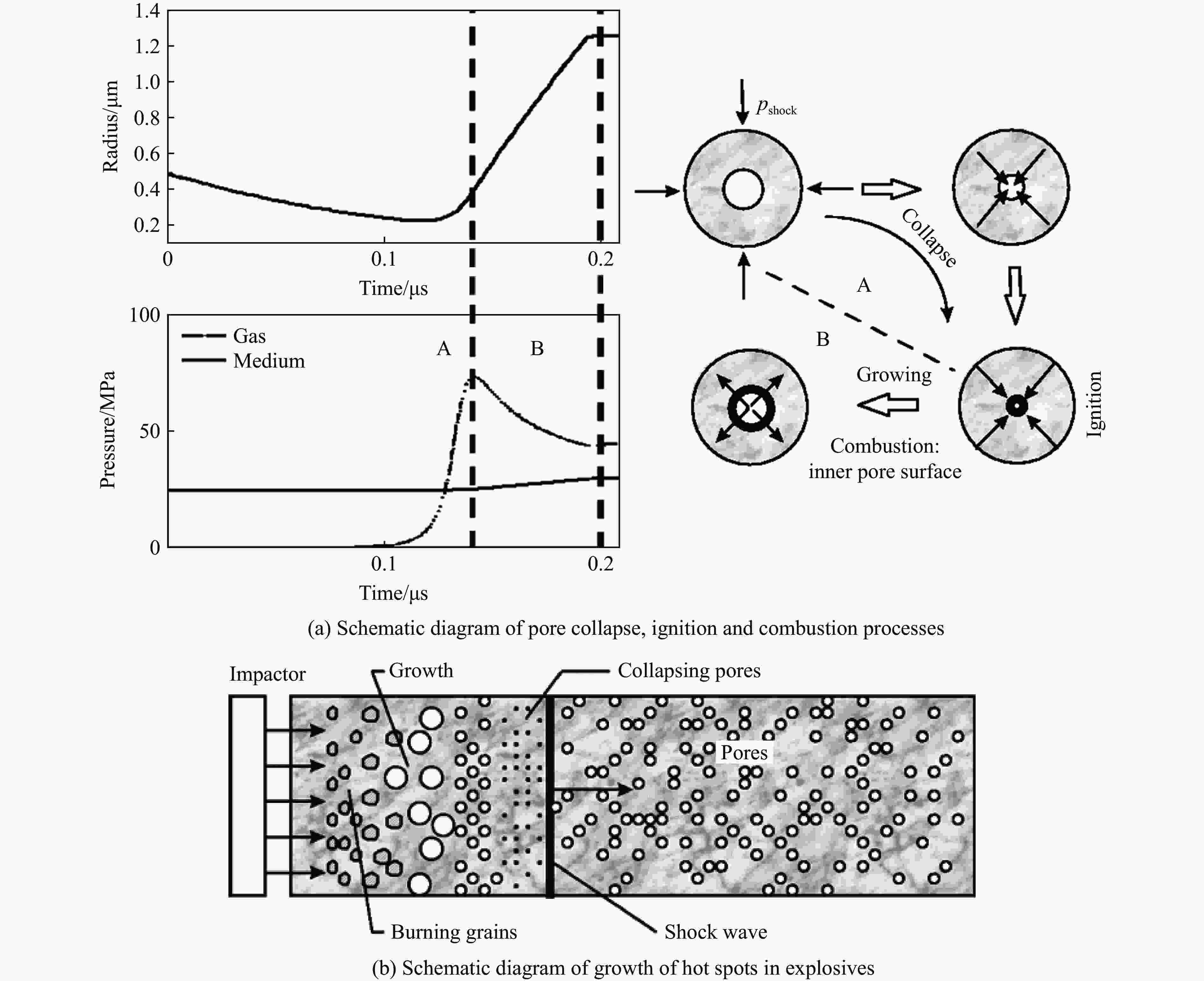

图 12 细观孔隙坍缩模型示意图^[136]

Figure 12. Schematic diagram of the mesoscale pore collapse model^[136]

下载: 全尺寸图片幻灯片

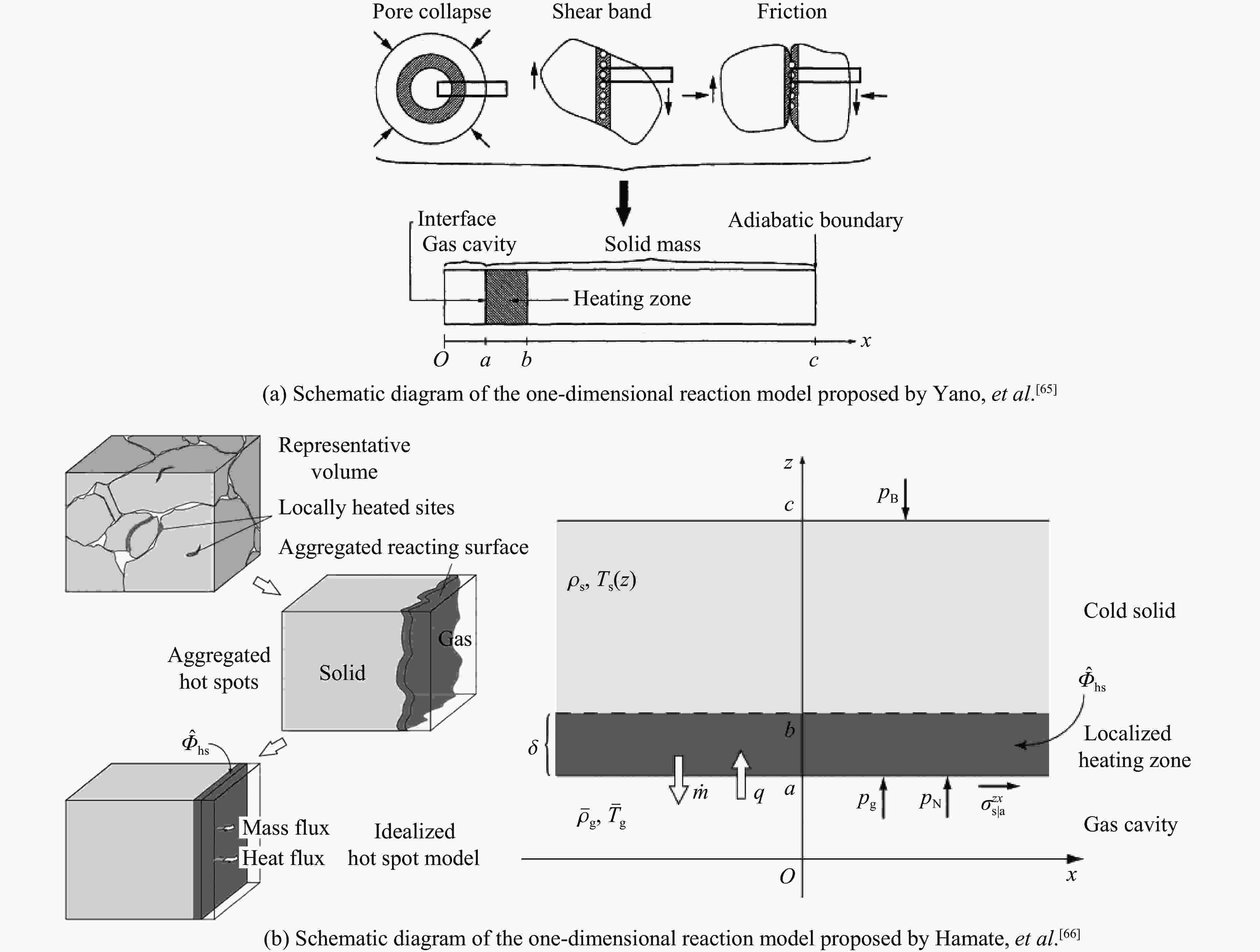

图 13 统一热点模型示意图^[65–66]

Figure 13. Schematic diagram of the unified hotspot model^[65–66]

下载: 全尺寸图片幻灯片

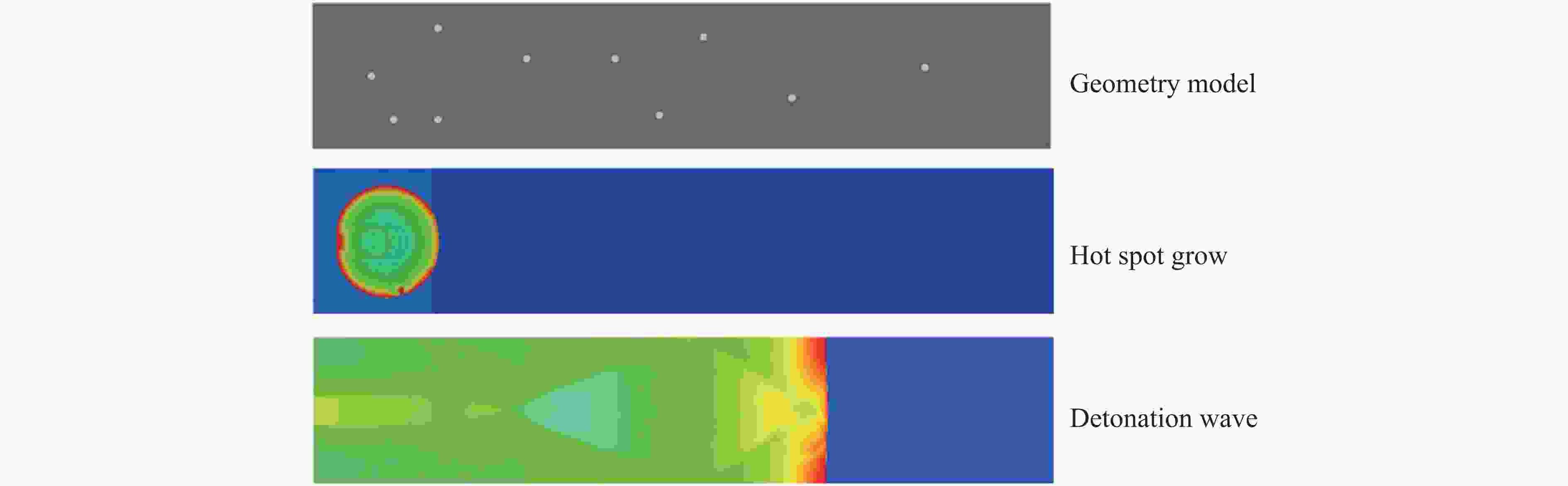

图 14 Akiki等^[56]进行的冲击起爆细观数值模拟

Figure 14. Mesoscopic numerical simulation of shock initiation by Akiki, et al.^[56]

下载: 全尺寸图片幻灯片
