喷射压力对内燃机中汽油燃爆特性的影响

李润; 程扬帆; 张蓓蓓; 李世周; 李梦

doi:10.11858/gywlxb.20240857

喷射压力对内燃机中汽油燃爆特性的影响

doi: 10.11858/gywlxb.20240857

李润^1,,
程扬帆^{1, 2,*, ,},
张蓓蓓²,
李世周¹,
李梦¹

1.
安徽理工大学安全科学与工程学院, 安徽淮南　232001
2.
安徽理工大学土木建筑学院, 安徽淮南　232001

基金项目: 国家自然科学基金（12272001）；安徽省高校自然科学基金杰青项目（2023AH020026）

详细信息

作者简介:
李　润（2000－），男，硕士研究生，主要从事爆炸安全与防护研究. E-mail：1989657216@qq.com

通讯作者:
程扬帆（1987－），男，博士，教授，博士生导师，主要从事爆炸力学和爆炸安全研究. E-mail：cyf518@mail.ustc.edu.cn

中图分类号: O389; O521.9
计量
- 文章访问数: 43
- HTML全文浏览量: 13
- PDF下载量: 6
出版历程
- 收稿日期: 2024-07-17
- 修回日期: 2024-08-11
- 录用日期: 2024-10-18
- 网络出版日期: 2024-12-09

Effect of Injection Pressure on Gasoline Deflagration Characteristics in Internal Combustion Engine

LI Run^1
,,
CHENG Yangfan^{1, 2,*
, ,},
ZHANG Beibei²,
LI Shizhou¹,
LI Meng¹

1.
School of Safety Science and Engineering, Anhui University of Science and Technology, Huainan 232001, Anhui, China
2.
School of Civil Engineering and Architecture, Anhui University of Science and Technology, Huainan 232001, Anhui, China

摘要

摘要: 为了探究不同喷射压力对受限空间内汽油的燃爆特性的影响，运用20 L球形爆炸测试装置，对不同喷射压力下汽油云雾燃爆的特征参数变化、火焰传播、温度变化进行了测试。结果表明：最佳喷料时间为100 ms，最大燃爆压力和最大燃爆压力上升速率随喷射压力的增加呈线性上升趋势，燃爆持续时间则呈线性下降趋势。喷射压力的变化对燃爆持续时间的影响更为显著，汽油的燃爆效率随着喷射压力的增加而显著提高。基于比色测温方法对火焰温度场进行重构，发现最高平均温度与喷射压力呈线性关系，最高平均温度随喷射压力的增加而升高。通过火焰传播过程中云雾形态和火焰温度的变化情况，就喷射压力对汽油云雾燃爆的影响进行了分析。研究结果可为增压直喷式内燃机的设计以及汽油内燃机燃烧效率和经济性的提升提供理论参考。
- 汽油内燃机 /
- 喷射压力 /
- 燃爆特性 /
- 蒸发速率
Abstract: In order to explore the influence of injection pressure on the deflagration characteristics of gasoline in the confined space, a 20 L spherical explosion test device was used to examine the changes of characteristic parameters, i.e., the transient flame propagation and temperature of gasoline mist deflagration under different injection pressures. The results showed that the optimum spraying time was 100 ms, and the maximum explosion pressure and maximum explosion pressure rise rate increased linearly with the increase of injection pressure, while explosion duration decreased linearly. The change of injection pressure had a more significant effect on explosion duration, and the combustion efficiency of gasoline increased significantly with the increase of injection pressure. Based on the colorimetric temperature measurement method, the flame temperature field was reconstructed. It was found that the maximum average temperature had a linear relationship with injection pressure, and the maximum average temperature increased with injection pressure. The influence of injection pressure on the deflagration characteristics of gasoline mist was analyzed through the changes of mist morphology and flame temperature during flame propagation. The outcome of this research can provide theoretical reference for the design of turbocharged direct injection internal combustion engine and the improvement of combustion efficiency and economy of gasoline internal combustion engine.
- gasoline internal combustion engine /
- injection pressure /
- deflagration characteristics /
- evaporation rate

HTML全文

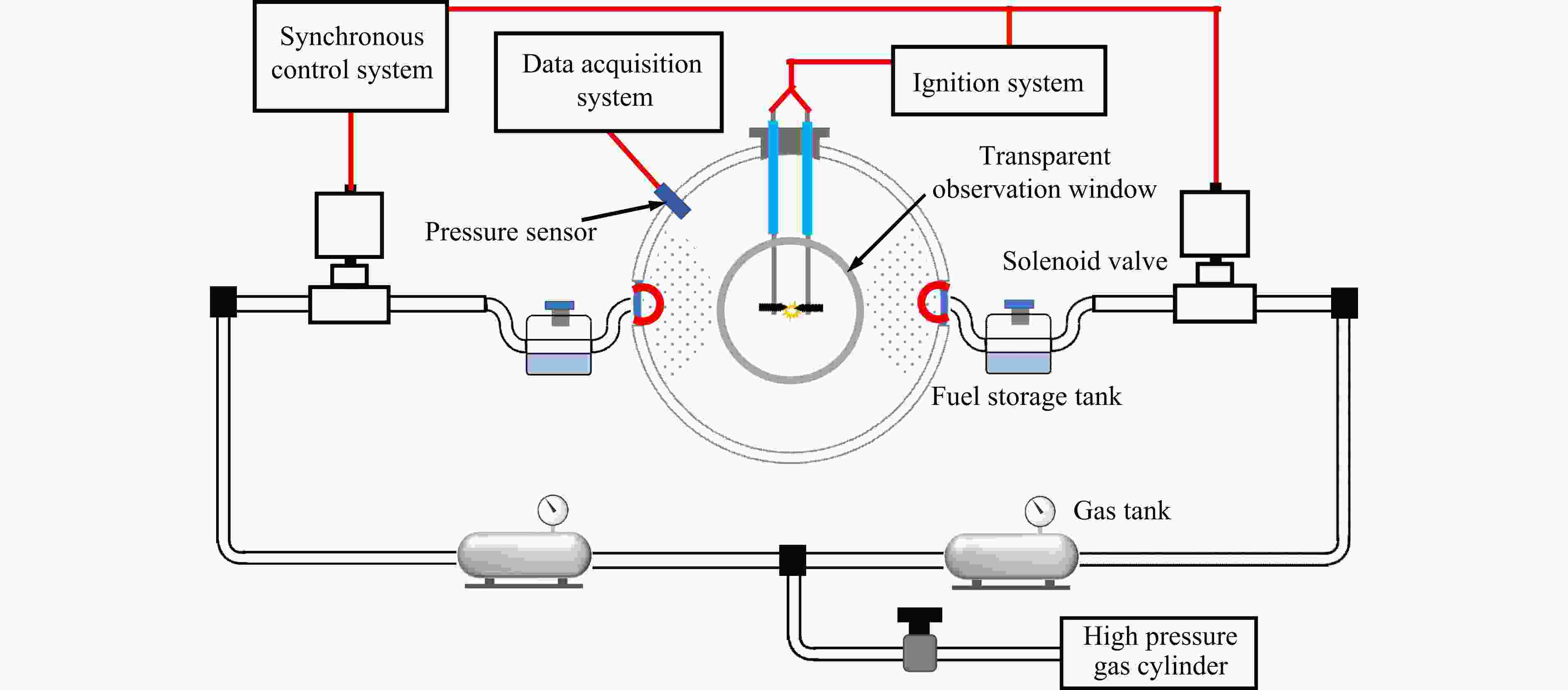

图 1 20 L球形测试装置示意图

Figure 1. Schematic diagram of 20 L spherical test device

下载: 全尺寸图片幻灯片

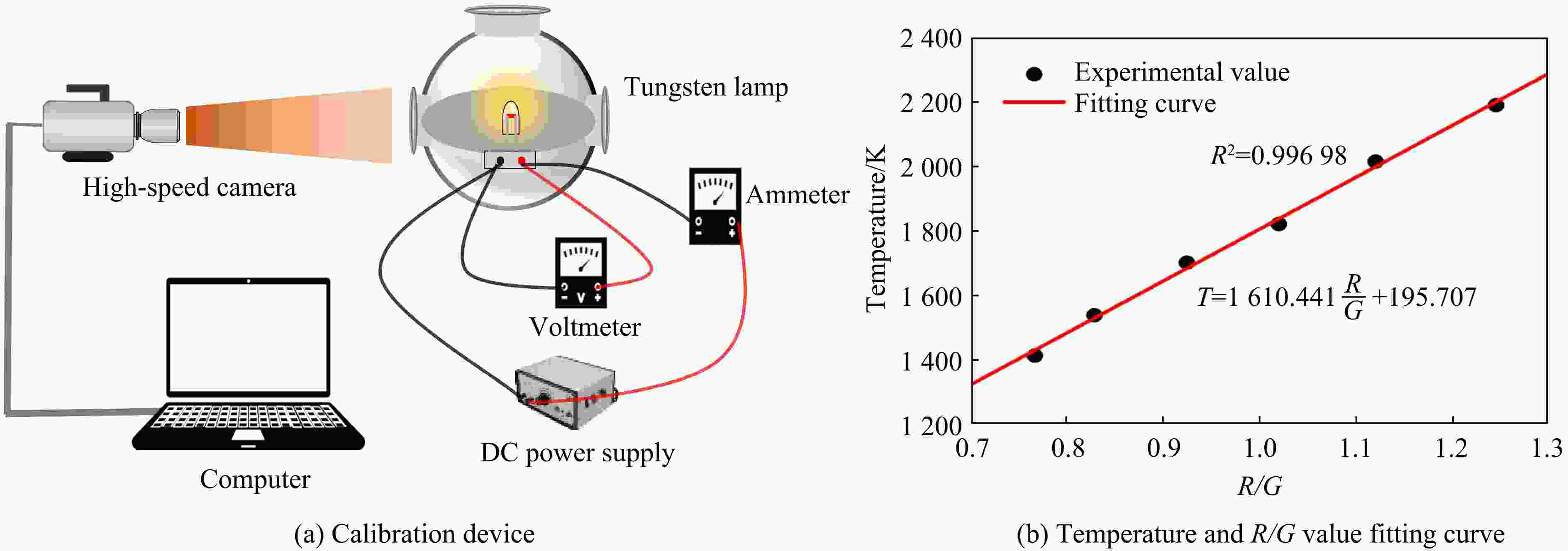

图 2 比色测温标定

Figure 2. Calibration for colorimetric temperature measurement

下载: 全尺寸图片幻灯片

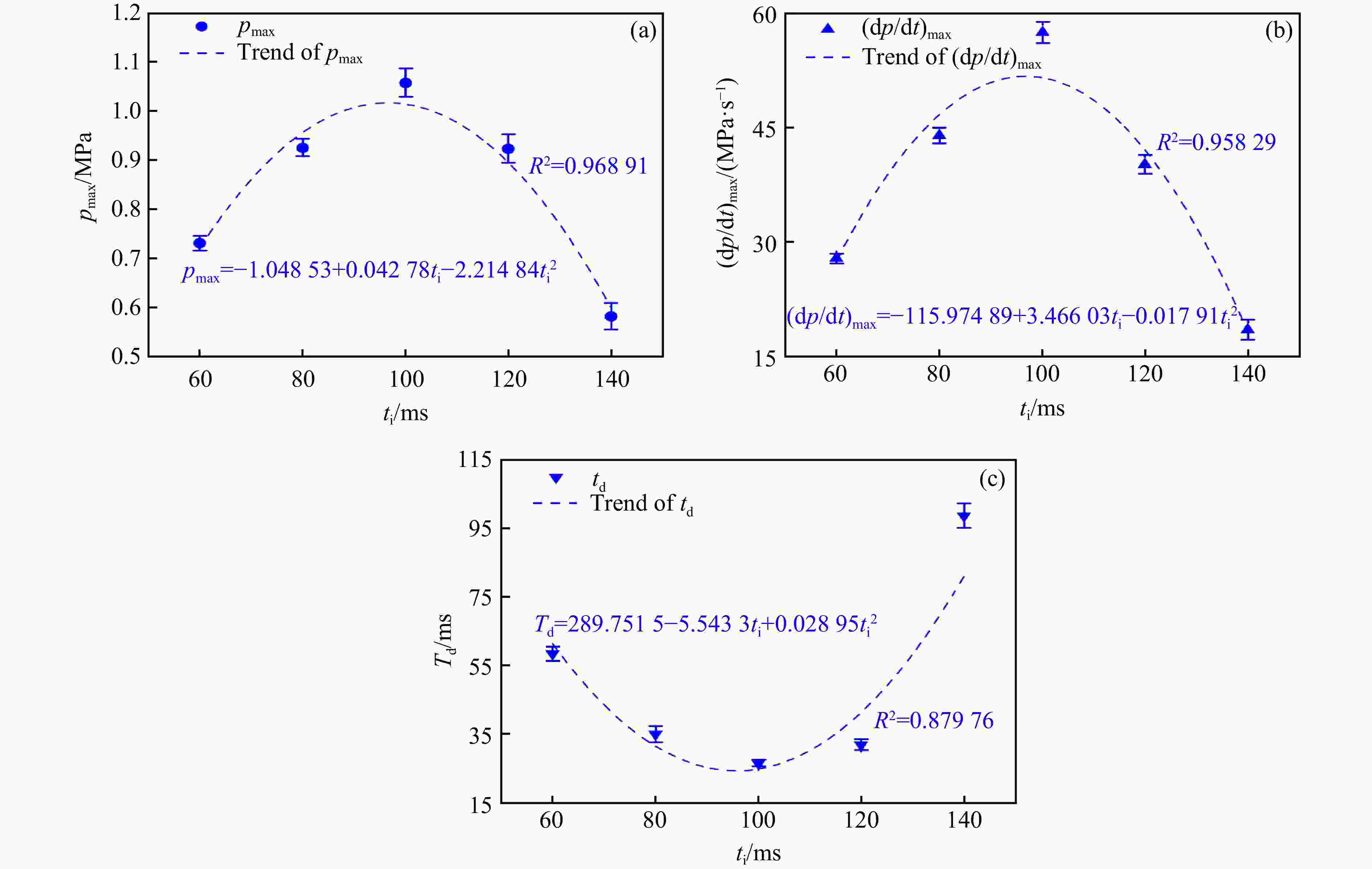

图 3 喷料时间对p_max、(dp/dt)_max和t_d的影响

Figure 3. Influence of fuel spray time on p_max, (dp/dt) _max and t_d

下载: 全尺寸图片幻灯片

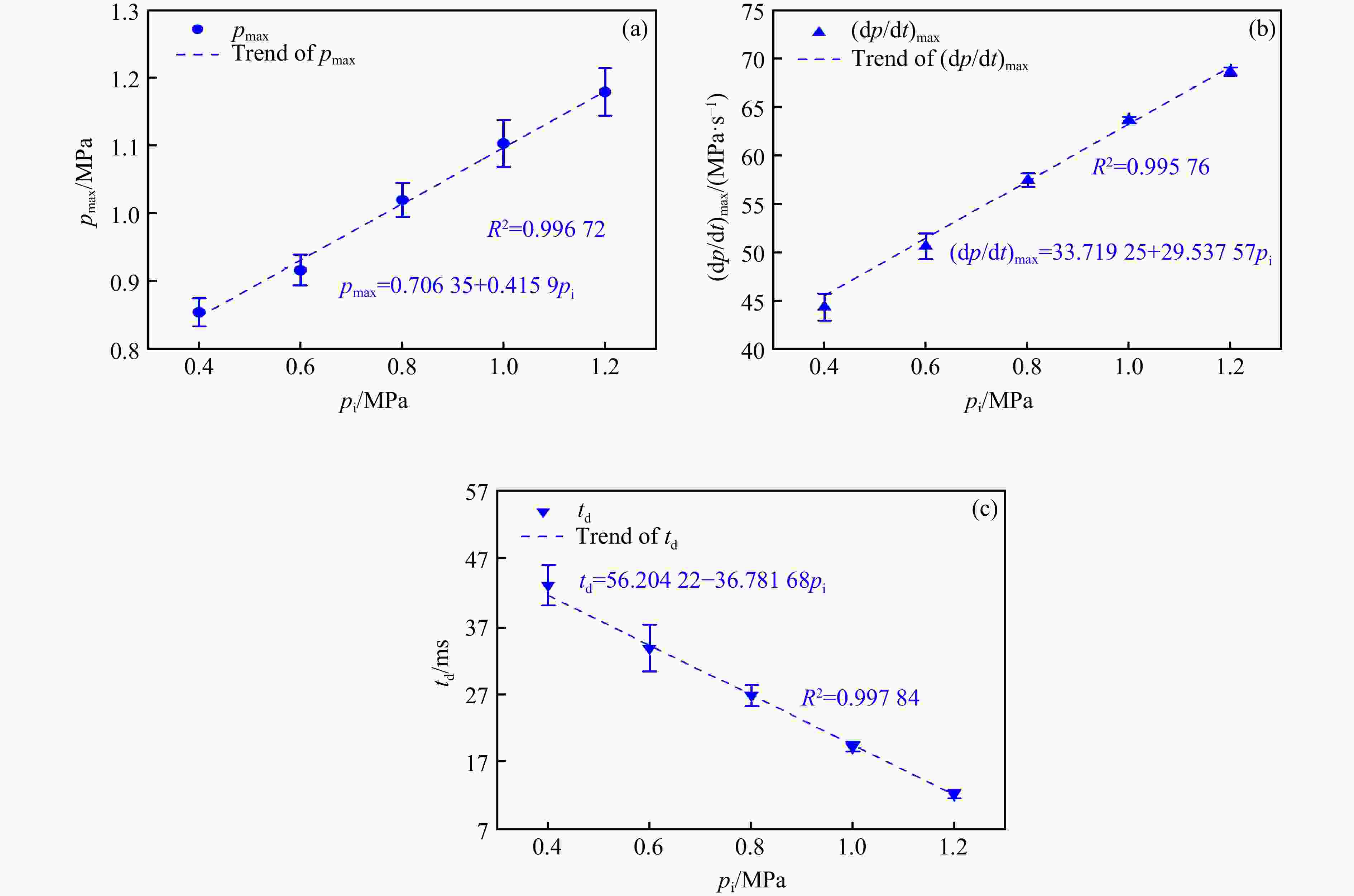

图 4 喷射压力对p_max、(dp/dt)_max和t_d的影响

Figure 4. Influence of injection pressure on p_max, (dp/dt) _max and t_d

下载: 全尺寸图片幻灯片

图 5 不同喷射压力下汽油爆炸的火焰传播过程

Figure 5. Flame propagation process of gasoline explosion under different injection pressures

下载: 全尺寸图片幻灯片

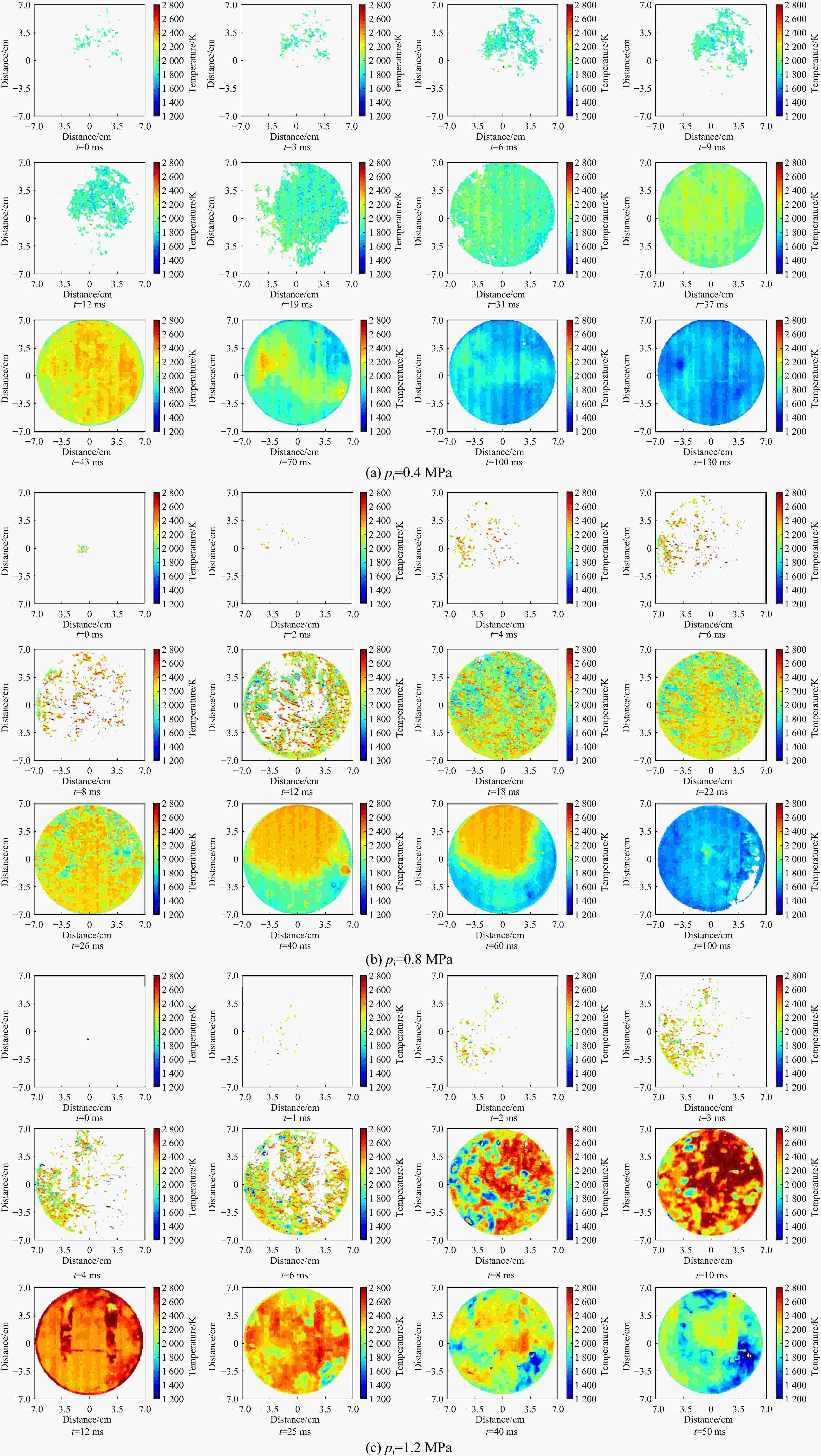

图 6 不同喷射压力下汽油爆炸的火焰温度场

Figure 6. Flame temperature field of gasoline explosion under different injection pressures

下载: 全尺寸图片幻灯片

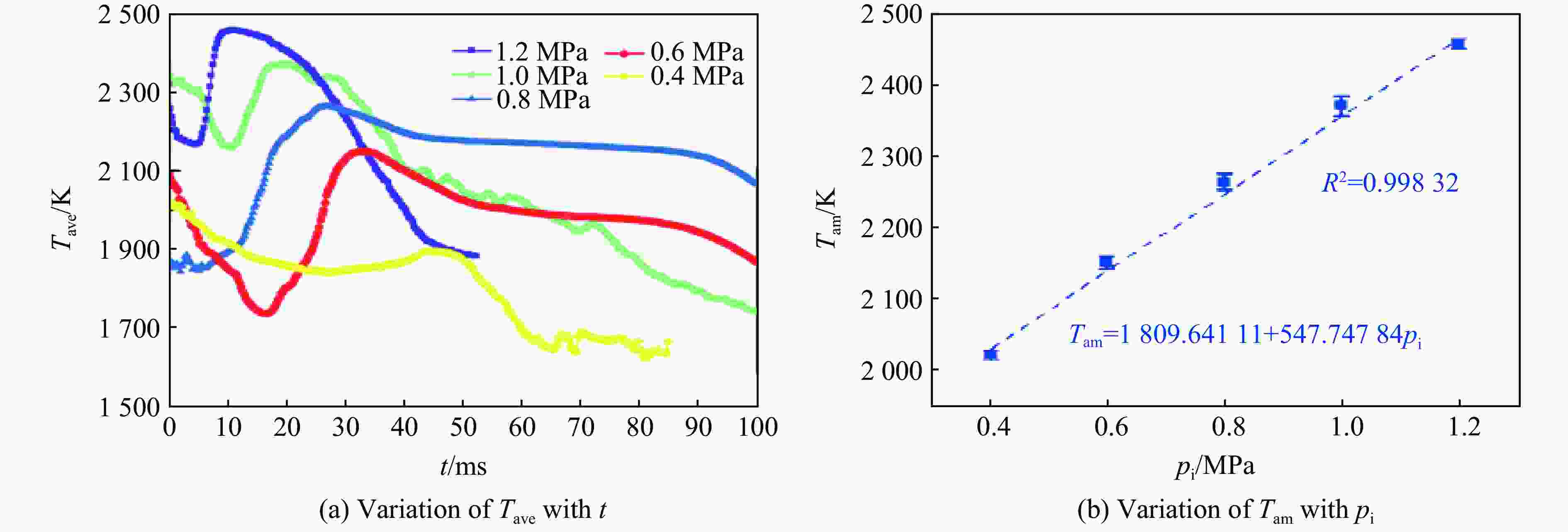

图 7 不同喷射压力下火焰传播过程中温度的演化曲线

Figure 7. Temperature evolution curves of flame propagation under different injection pressures

下载: 全尺寸图片幻灯片

参考文献(21)

[1]	包凌志, 孙柏刚, 罗庆贺. 高效增压直喷氢内燃机近零NO_x排放试验优化 [J]. 内燃机学报, 2023, 41(5): 412–419. BAO L Z, SUN B G, LUO Q H. Optimization of a turbocharged direct injection hydrogen engine to achieve high efficiency and near-zero NO_x emissions [J]. Transactions of CSICE, 2023, 41(5): 412–419.
[2]	李玉兰, 王谦, 芮璐, 等. 喷射压力对直喷天然气发动机燃烧特性的影响 [J]. 舰船科学技术, 2021, 43(19): 89–94. LI Y L, WANG Q, RUI L, et al. Effect of injection pressure on combustion characteristics of direct injection NG engine [J]. Ship Science and Technology, 2021, 43(19): 89–94.
[3]	刘海峰, 王冠月, 文铭升, 等. 喷油压力和进气温度对氨/正十二烷双燃料发动机燃烧稳定性影响研究 [J]. 燃烧科学与技术, 2024, 30(1): 1–8. LIU H F, WANG G Y, WEN M S, et al. Influence of injection pressure and intake temperature on combustion stability of ammonia/n-dodecane dual-fuel engine [J]. Journal of Combustion Science and Technology, 2024, 30(1): 1–8.
[4]	张丹, 裴毅强, 王琨, 等. 超高喷射压力下GDI喷油器喷雾宏观特性 [J]. 中南大学学报(自然科学版), 2018, 49(5): 1272–1280. ZHANG D, PEI Y Q, WANG K, et al. Spray macroscopic characteristics of GDI injector under ultra-high injection pressure [J]. Journal of Central South University (Science and Technology), 2018, 49(5): 1272–1280.
[5]	秦超群, 吴家正, 吴继盛, 等. 喷射压力对电热塞引燃甲醇发动机的影响研究 [J]. 车用发动机, 2019(4): 8–15. QIN C Q, WU J Z, WU J S, et al. Effects of injection pressure on methanol engine ignited by glow plug [J]. Vehicle Engine, 2019(4): 8–15.
[6]	晏飞, 杜雨辰, 张建, 等. 喷射压力对船用柴油机燃油喷雾特性的影响 [J]. 舰船科学技术, 2016, 38(15): 67–71, 75. YAN F, DU Y C, ZHANG J, et al. Effects of injection pressure on fuel spray in marine diesel engine [J]. Ship Science and Technology, 2016, 38(15): 67–71, 75.
[7]	蒋八运, 程扬帆, 李世周, 等. 环氧丙烷/空气混合物气-液两相燃爆特性 [J]. 含能材料, 2023, 31(7): 699–706. JIANG B Y, CHENG Y F, LI S Z, et al. Vapor-liquid two-phase combustion and explosion characteristics of propylene oxide/air mixtures [J]. Chinese Journal of Energetic Materials, 2023, 31(7): 699–706.
[8]	程扬帆, 王中华, 胡芳芳, 等. TiH₂粉尘火焰传播速度及温度分布的高速二维测量 [J]. 兵工学报, 2023, 44(4): 1181–1192. CHENG Y F, WANG Z H, HU F F, et al. High-speed two-dimensional measurements of flame propagation velocity and temperature distribution of TiH₂ dust flame [J]. Acta Armamentarii, 2023, 44(4): 1181–1192.
[9]	马春丽, 武晓鑫, 黄凤仙, 等. 小分子液体的高温布里渊散射研究 [J]. 高压物理学报, 2015, 29(1): 35–41. MA C L, WU X X, HUANG F X, et al. Brillouin scattering study on molecular liquid under high pressure and high temperature conditions [J]. Chinese Journal of High Pressure Physics, 2015, 29(1): 35–41.
[10]	LI H T, CHEN X K, SHU C M, et al. Experimental and numerical investigation of the influence of laterally sprayed water mist on a methane-air jet flame [J]. Chemical Engineering Journal, 2019, 356: 554–569.
[11]	齐文亮, 明平剑, 张文平, 等. 喷嘴内湍流运动对火焰浮起长度影响的数值模拟 [J]. 航空动力学报, 2018, 33(12): 2859–2865. QI W L, MING P J, ZHANG W P, et al. Numerical simulation of effect of turbulence flow in nozzle on flame lift-off length [J]. Journal of Aerospace Power, 2018, 33(12): 2859–2865.
[12]	MENG S, HAN Z Y, FAN B Z, et al. Impacts of fuelling methods on knock-limited combustion and emissions of a dedicated hybrid spark-ignition engine [J]. Applied Thermal Engineering, 2024, 254: 123898.
[13]	赵洪祥, 袁景. 蒸气云爆炸荷载计算方法比选研究 [J]. 安全与环境学报, 2023, 23(11): 3944–3950. ZHAO H X, YUAN J. Research on calculation method selection of vapor cloud explosion load [J]. Journal of Safety and Environment, 2023, 23(11): 3944–3950.
[14]	姚干兵, 解立峰, 刘家骢. 激波管内燃料两相云雾爆轰的实验研究 [J]. 高压物理学报, 2007, 21(1): 77–82. YAO G B, XIE L F, LIU J C. Experimental study on detonation characterics of several liquid fuel-air clouds in shock tube [J]. Chinese Journal of High Pressure Physics, 2007, 21(1): 77–82.
[15]	谭汝媚, 张奇, 黄莹. 环境湿度对环氧丙烷蒸气爆炸参数的影响 [J]. 高压物理学报, 2013, 27(3): 325–330. TAN R M, ZHANG Q, HUANG Y. Ambient humidty influence on explosion characteristics parameters of gaseous epoxypropane [J]. Chinese Journal of High Pressure Physics, 2013, 27(3): 325–330.
[16]	KOLMOGOROV A N. On the disintegration of drops in turbulent flow [J]. Doklady Akademi Nauk SSSR, 1949, 66: 825–28.
[17]	辛娟娟, 周致富, 辛慧, 等. 单个液滴蒸发模型中不同质量传递公式的有效性分析 [J]. 化工学报, 2012, 63(6): 1704–1708. XIN J J, ZHOU Z F, XIN H, et al. Validation analysis of different mass transfer formula in single droplet evaporation model [J]. CIESC Journal, 2012, 63(6): 1704–1708.
[18]	EL-ZAHLANIEH S, SANTOS I S D, SIVABALAN S, et al. Finding a way through the “misty” evaluation of the flammability and explosivity of kerosene aerosols [J]. Fuel, 2022, 328: 125275.
[19]	蒋勇, 朱宁, 陈军, 等. 喷雾过程液滴蒸发计算研究 [J]. 火灾科学, 2001(1): 20–23. JIANG Y, ZHU N, CHEN J, et al. Numerical calculation on droplet vaporization in spray process [J]. Fire Safety Science, 2001(1): 20–23.
[20]	SHEN S Q, SUN K, CHE Z Z, et al, Puffing and micro-explosion of heated droplets for homogeneous ethanol-propanol-hexadecane fuel and micro-emulsified ethanol-biodiesel-hexadecane fuel [J]. Applied Thermal Engineering, 2020, 165: 114537.
[21]	王海鸥, 罗坤, 白云, 等. 不同湍流强度下液雾燃烧的直接数值模拟 [J]. 燃烧科学与技术, 2014, 20(3): 222–226. WANG H O, LUO K, BAI Y, et al. Direct numerical simulation of spray combustion with various turbulent intensities [J]. Journal of Combustion Science and Technology, 2014, 20(3): 222–226.
