高温高压对三元预混燃料爆炸特性的影响

朱源 姜根柱 王筱蓉 郭宏展 苏傲成

朱源, 姜根柱, 王筱蓉, 郭宏展, 苏傲成. 高温高压对三元预混燃料爆炸特性的影响[J]. 高压物理学报. doi: 10.11858/gywlxb.20240818
引用本文: 朱源, 姜根柱, 王筱蓉, 郭宏展, 苏傲成. 高温高压对三元预混燃料爆炸特性的影响[J]. 高压物理学报. doi: 10.11858/gywlxb.20240818
ZHU Yuan, JIANG Genzhu, WANG Xiaorong, GUO Hongzhan, SU Aocheng. Effect of High Temperature and High Pressure on the Explosion Characteristics of Ternary Premixed Fuel[J]. Chinese Journal of High Pressure Physics. doi: 10.11858/gywlxb.20240818
Citation: ZHU Yuan, JIANG Genzhu, WANG Xiaorong, GUO Hongzhan, SU Aocheng. Effect of High Temperature and High Pressure on the Explosion Characteristics of Ternary Premixed Fuel[J]. Chinese Journal of High Pressure Physics. doi: 10.11858/gywlxb.20240818

高温高压对三元预混燃料爆炸特性的影响

doi: 10.11858/gywlxb.20240818
基金项目: 国家自然科学基金(52350410458)
详细信息
    作者简介:

    朱 源(1999-),男,硕士研究生,主要从事清洁燃料爆炸特性研究. E-mail:1165130610@qq.com

    通讯作者:

    姜根柱(1979-),男,硕士,副教授,主要从事绿色替代燃料燃烧特性研究. E-mail:jianggenzhu2just@163.com

  • 中图分类号: O389; O521.9; X932

Effect of High Temperature and High Pressure on the Explosion Characteristics of Ternary Premixed Fuel

  • 摘要: 乙醇/甲烷/氢气(C2H5OH/CH4/H2)作为一种新型的替代燃料,研究其爆炸特性对于我国新能源的可持续发展具有重要意义。在不同的当量比(0.8~1.4)、初始压力(0.1、0.2和0.4 MPa)和初始温度(370、400和450 K)下,从实验和化学动力学角度分析了其对关键爆炸特性参数,如峰值爆炸压力、峰值爆炸压力上升速率、爆炸时间以及爆燃指数的影响。结果表明,爆炸特性参数在当量比为1.2~1.3之间时出现极值。峰值爆炸压力与初始压力呈线性正相关,而与初始温度呈线性负相关。增大初始压力,火焰锋面裂纹、胞化程度加深,峰值爆炸压力增大。此外,实验工况下评估的最大爆燃指数为20.83 MPa·m/s,表明预混燃料的燃烧处于相对安全水平。基元反应敏感性分析表明:爆燃反应与H和OH自由基密切相关,而R1、R8、R24、R96是影响爆炸反应强度最重要的4个基元反应。研究成果可为C2H5OH/CH4/H2三元混合燃料在实际燃烧装置中的应用、燃料安全性评估以及爆炸事故预防提供参考。

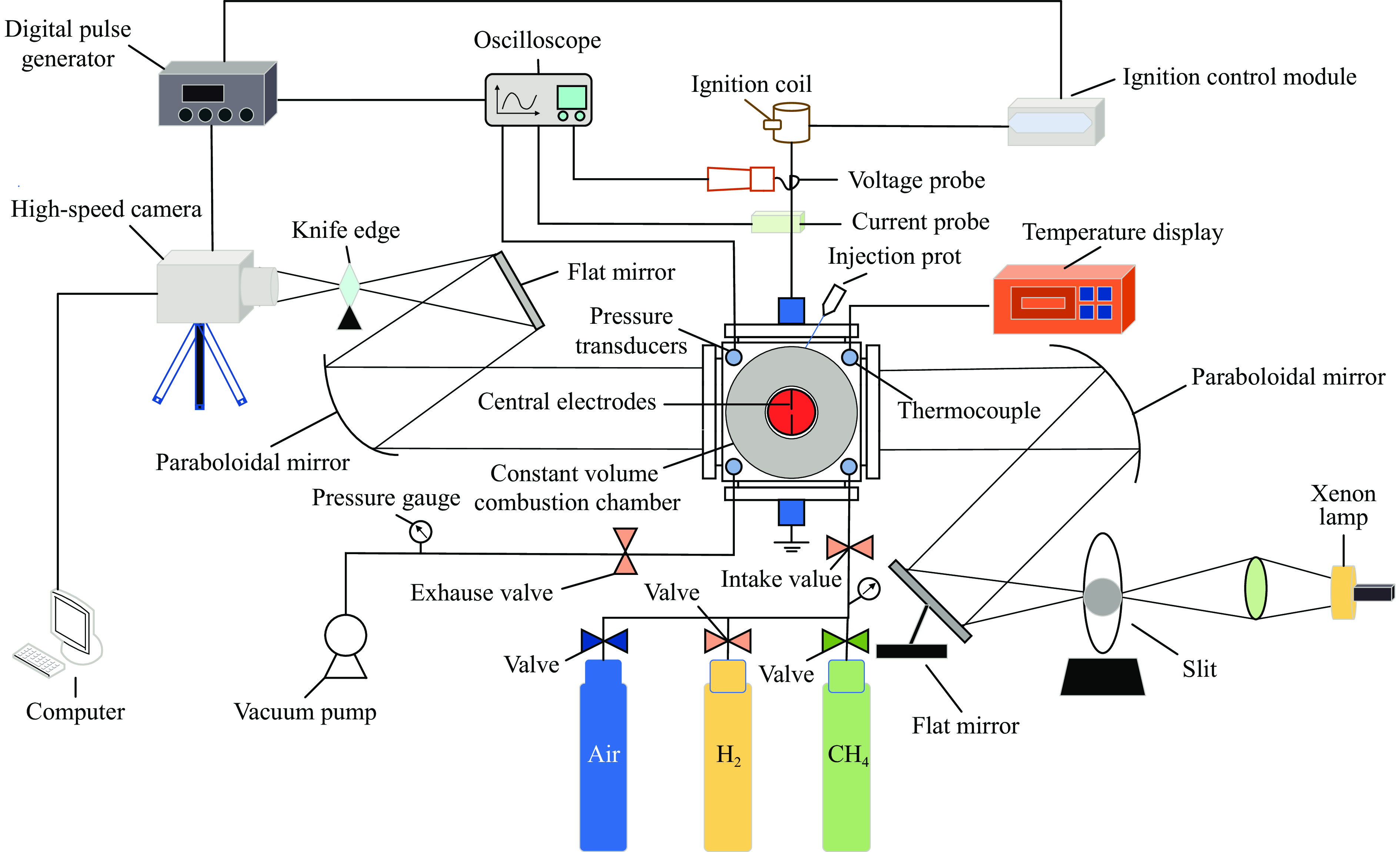

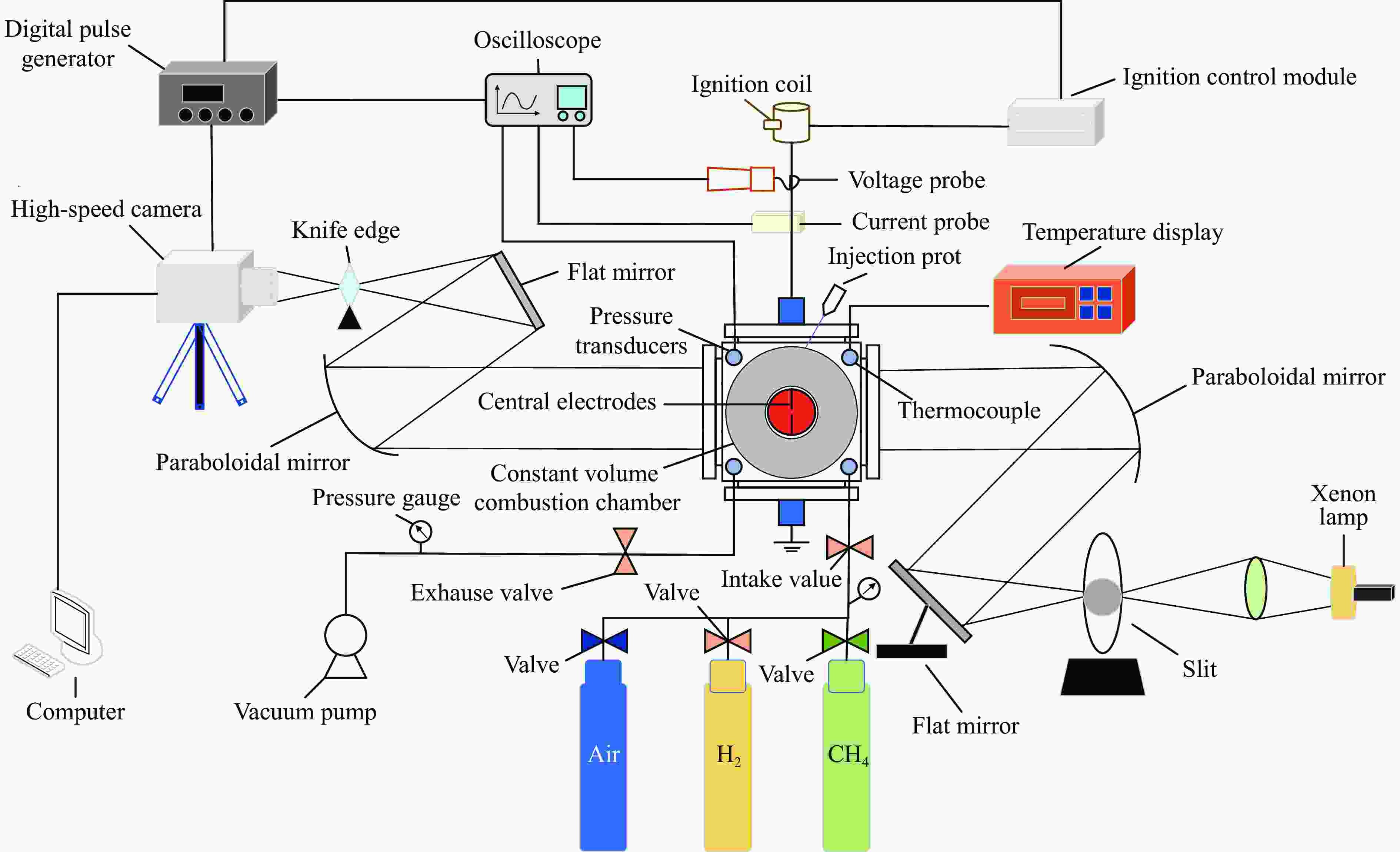

  • 图  实验装置示意图

    Figure  1.  Schematic diagram of the experimental device

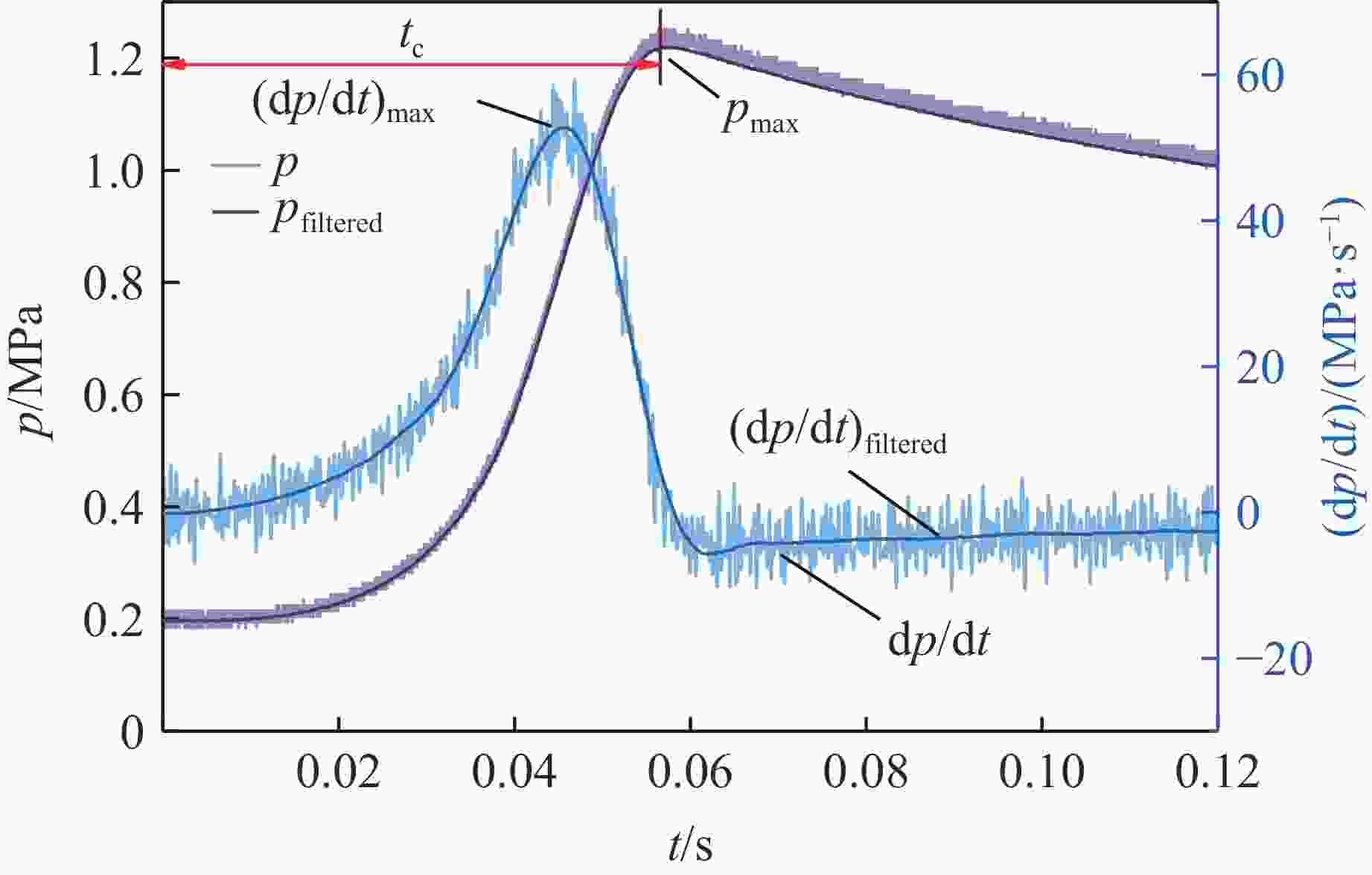

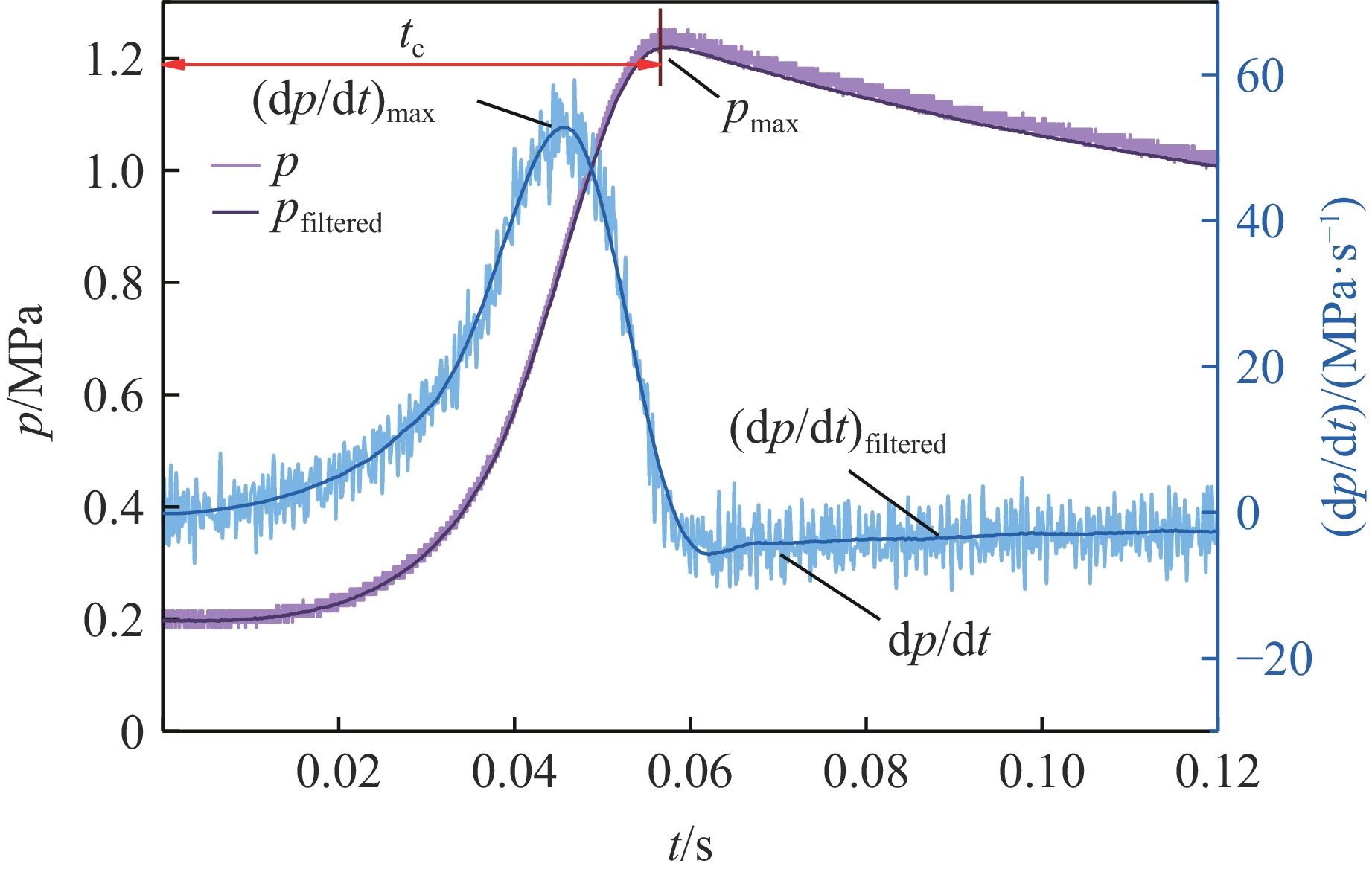

    图  T0=400 K、p0=0.2 MPa、Ф=1.0时的pmax、(dp/dt)maxtc

    Figure  2.  Values of pmax, (dp/dt)max, and tc obtained at T0=400 K, p0=0.2 MPa, and Φ=1.0

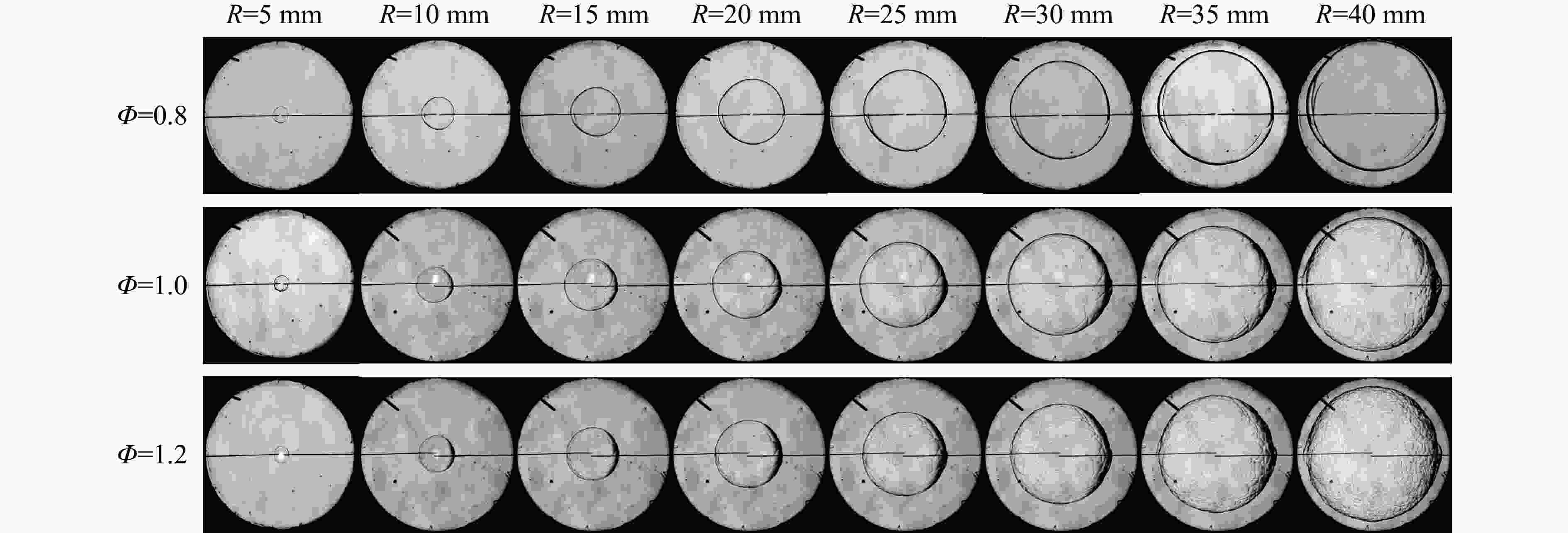

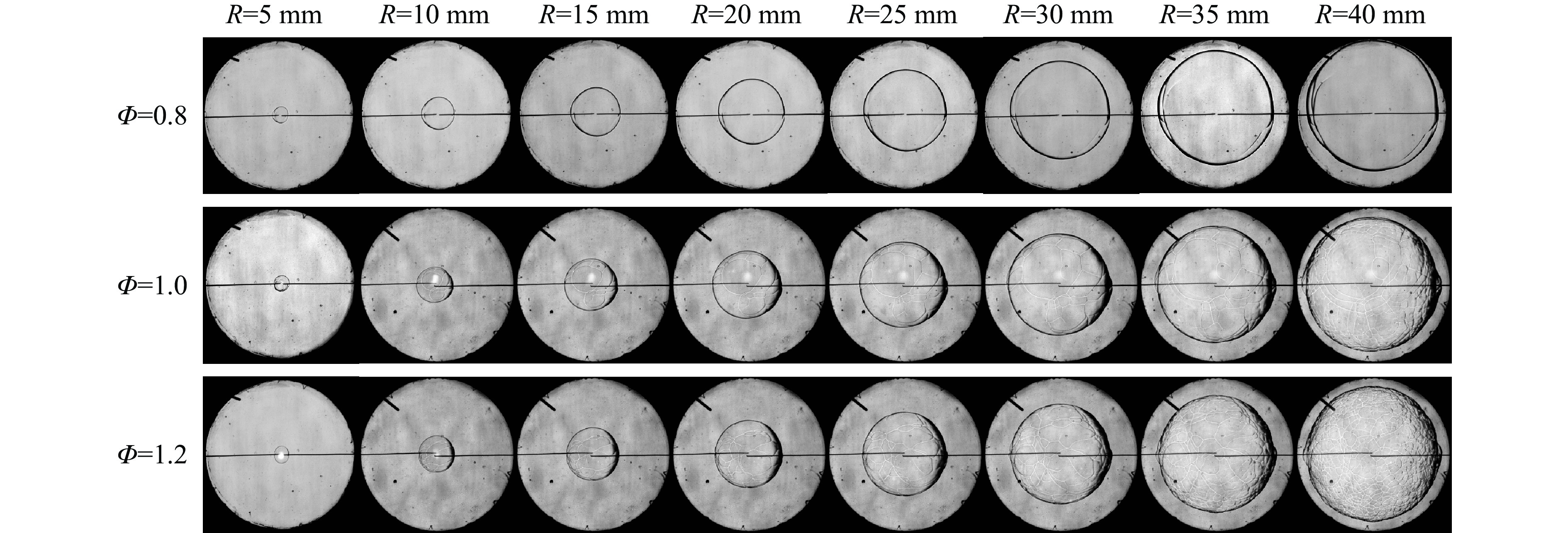

    图  T0=450 K、p0=0.4 MPa时不同Φ下的C2H5OH/CH4/H2火焰图像

    Figure  3.  C2H5OH/CH4/H2 flame images at different Φ when T0=450 K and p0=0.4 MPa

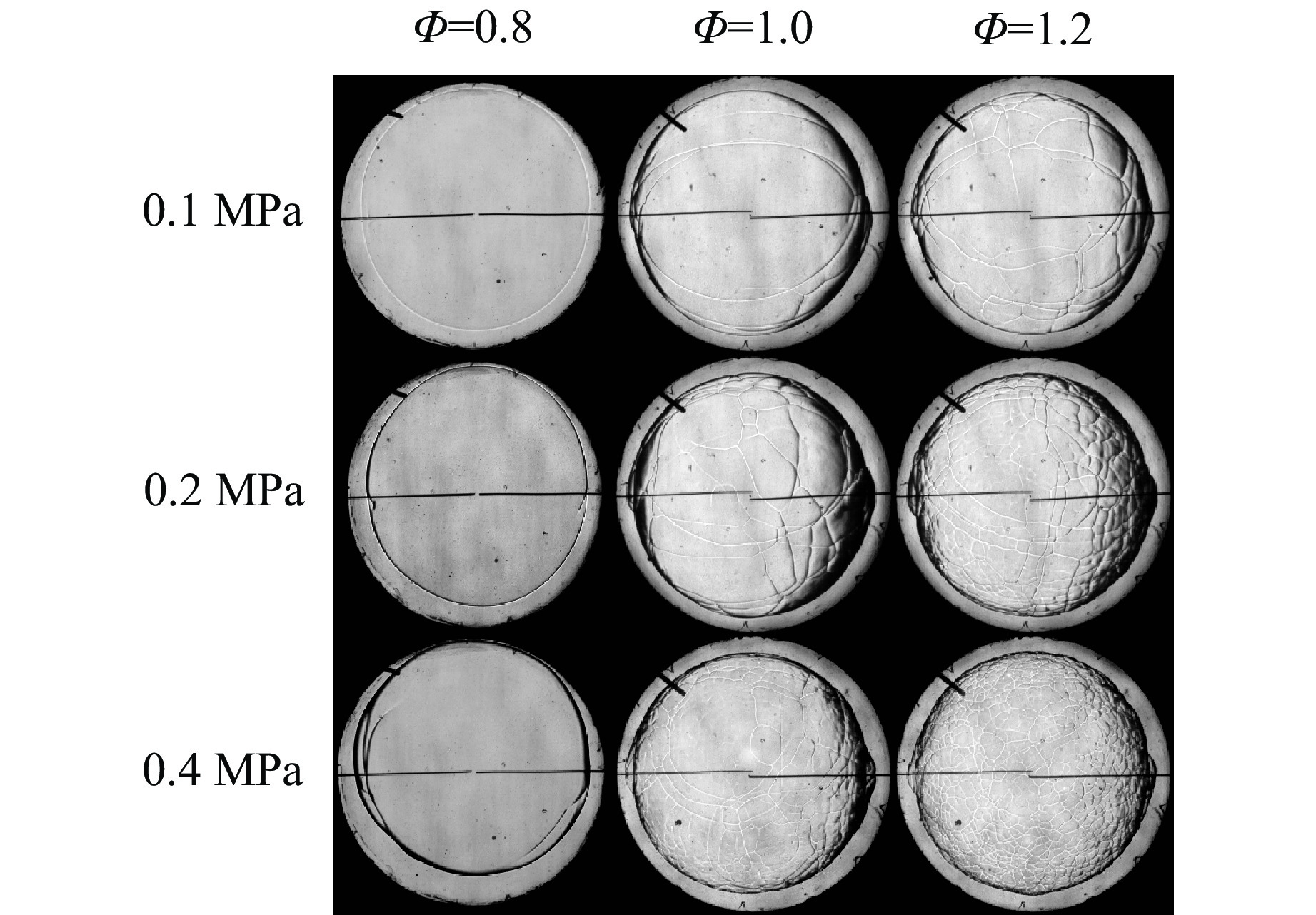

    图  T0=450 K时不同p0Φ下的C2H5OH/CH4/H2火焰图像

    Figure  4.  C2H5OH/CH4/H2 flame images at different p0 and Φ when T0=450 K

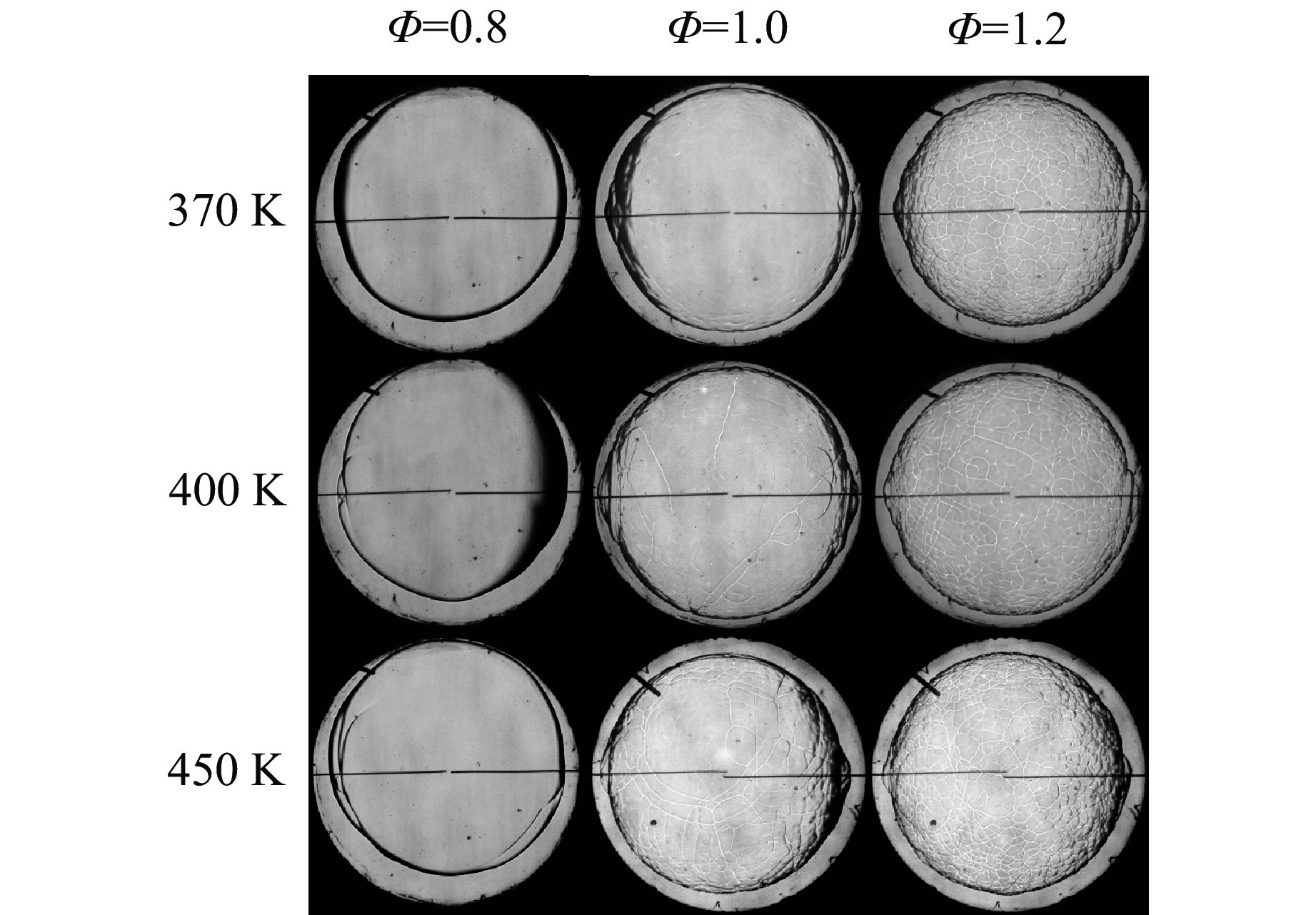

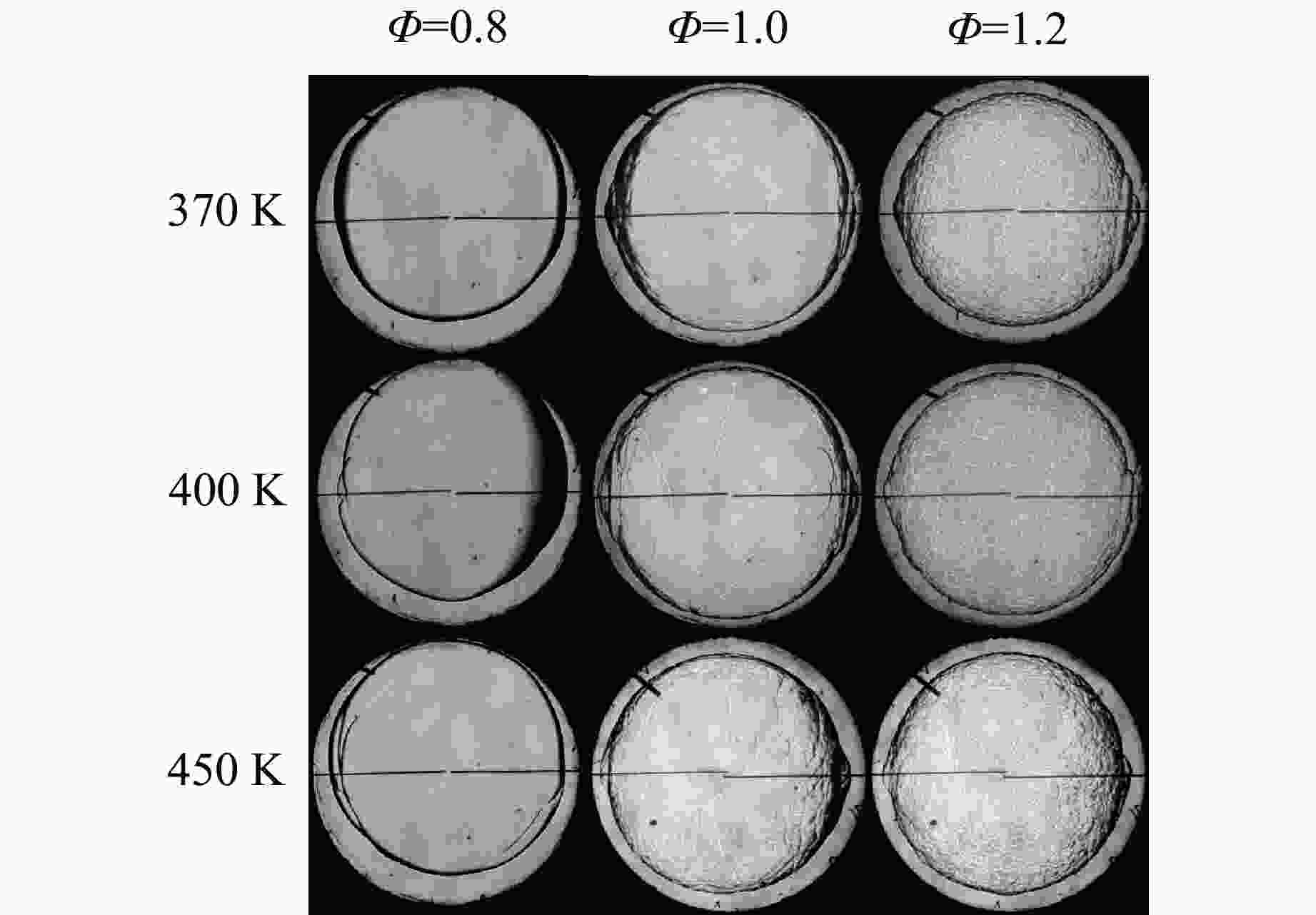

    图  p0=0.4 MPa时不同T0Φ的C2H5OH/CH4/H2火焰图像

    Figure  5.  C2H5OH/CH4/H2 flame images at different T0 and Φ when p0=0.4 MPa

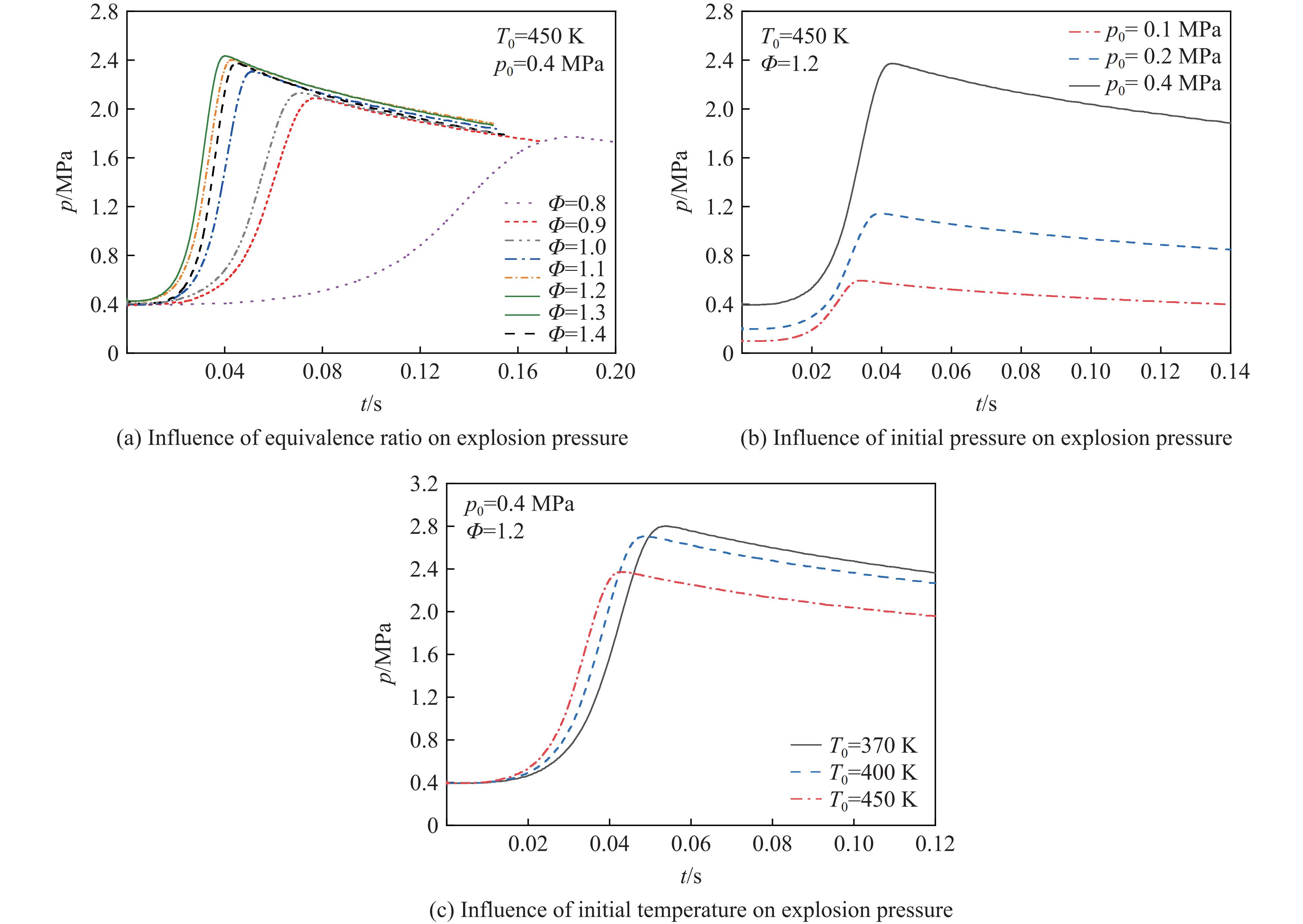

    图  当量比、初始压力和温度对爆炸压力的影响

    Figure  6.  Influence of equivalence ratio, initial pressure and temperature on explosion pressure

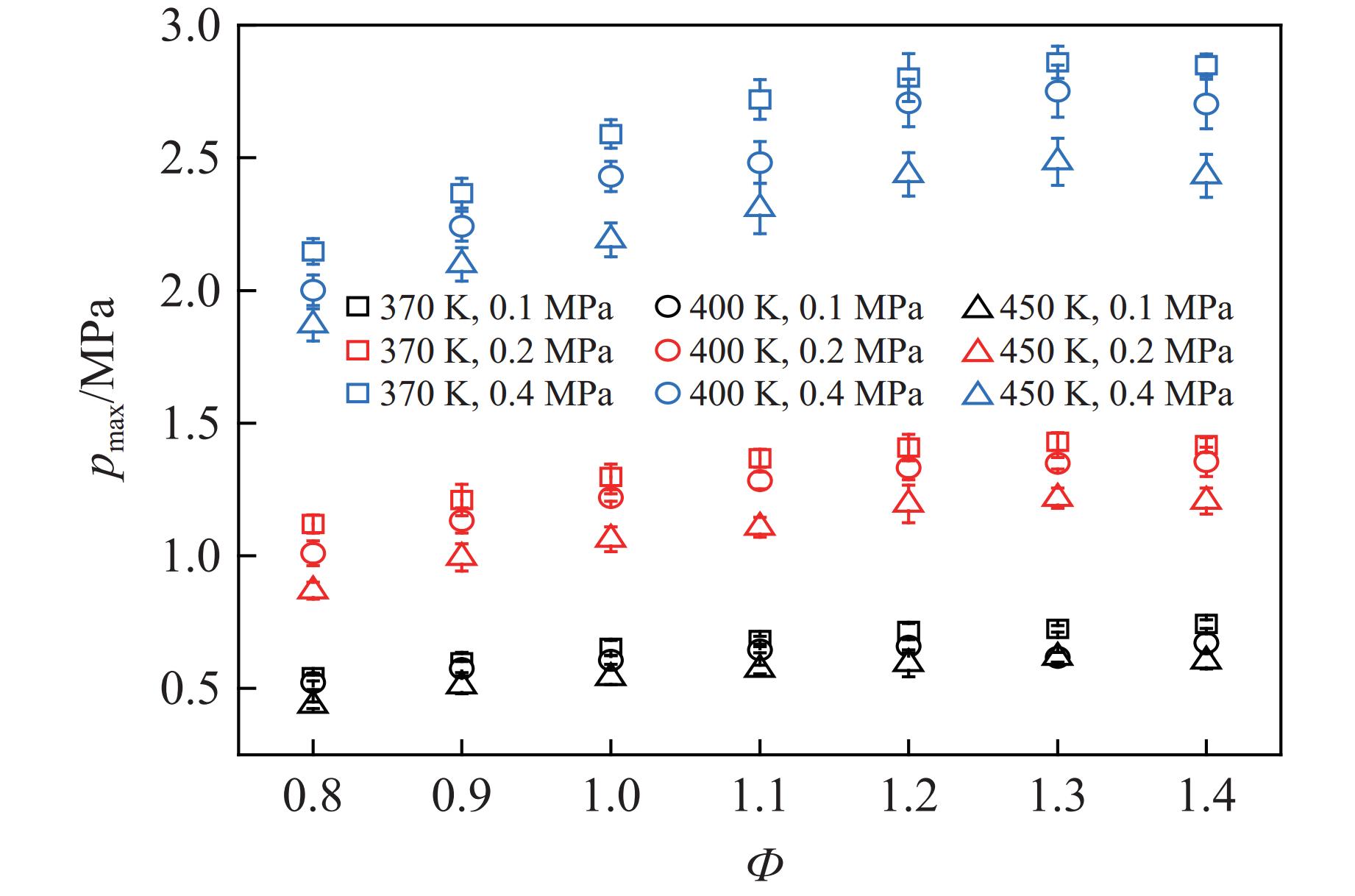

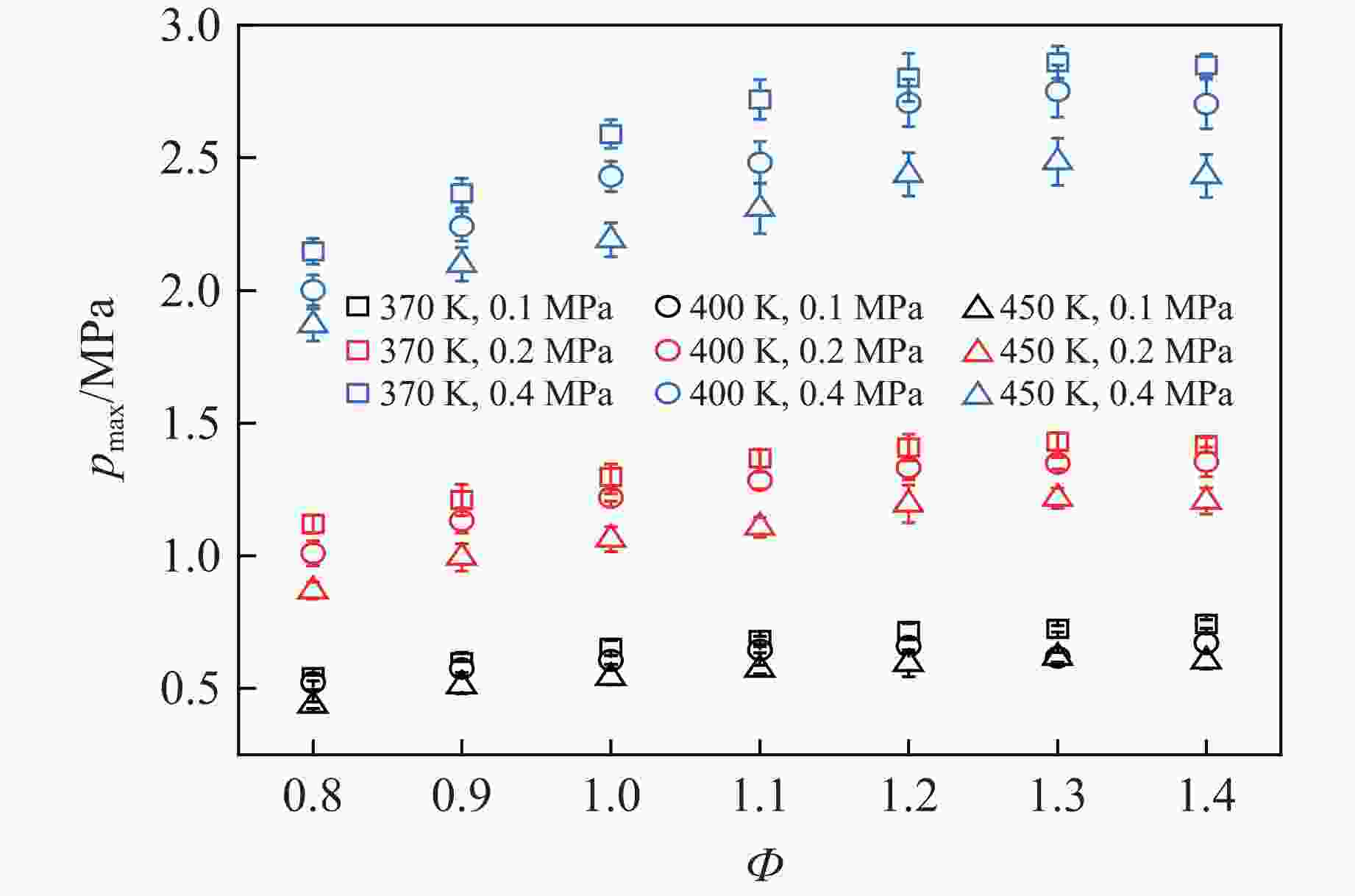

    图  不同初始工况下C2H5OH/CH4/H2预混燃料的峰值爆炸压力

    Figure  7.  Peak explosion pressure of C2H5OH/CH4/H2 premixed fuel under different initial conditions

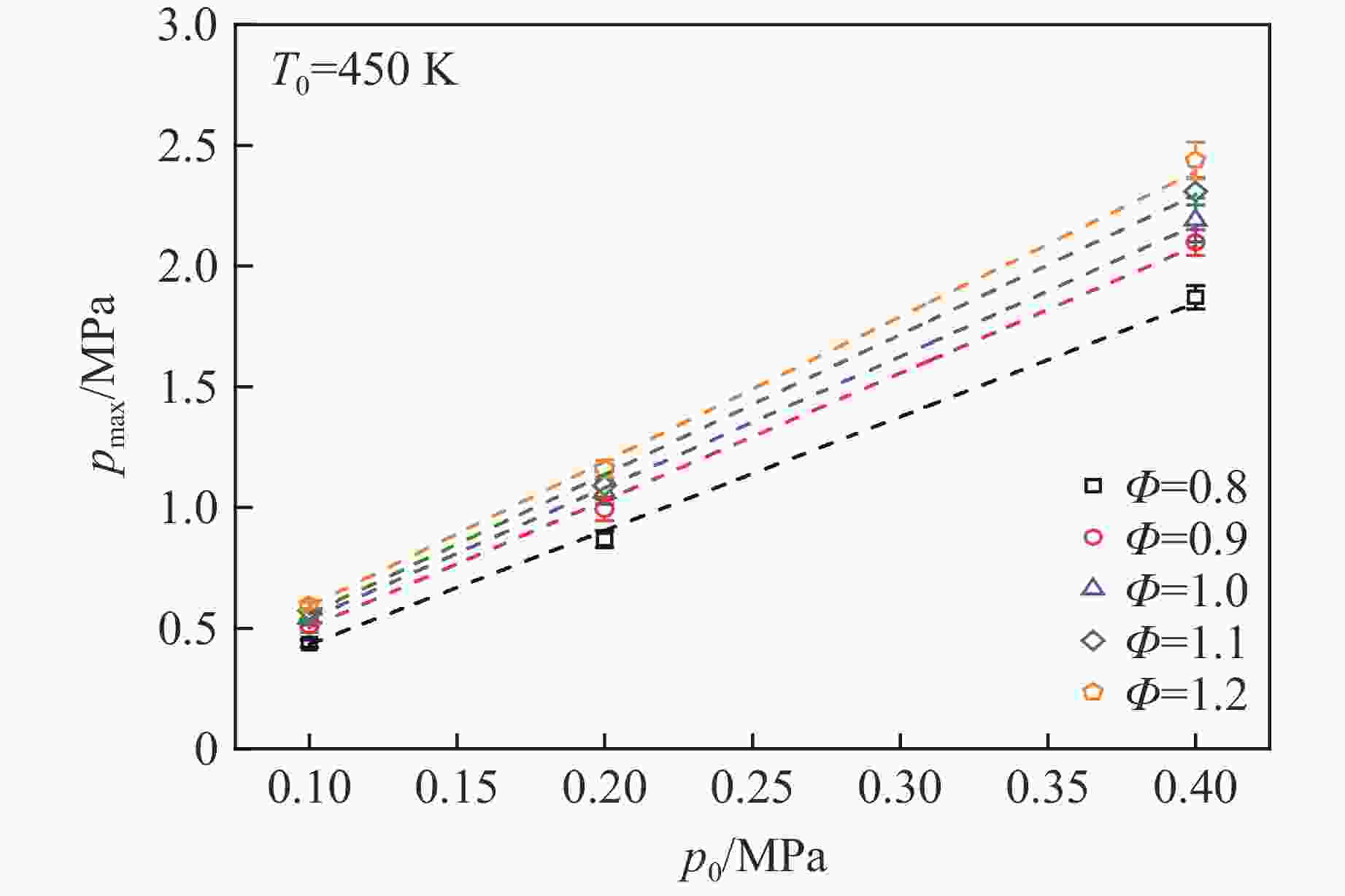

    图  峰值爆炸压力随初始压力的变化规律

    Figure  8.  Relationship between peak explosion pressure and initial pressure

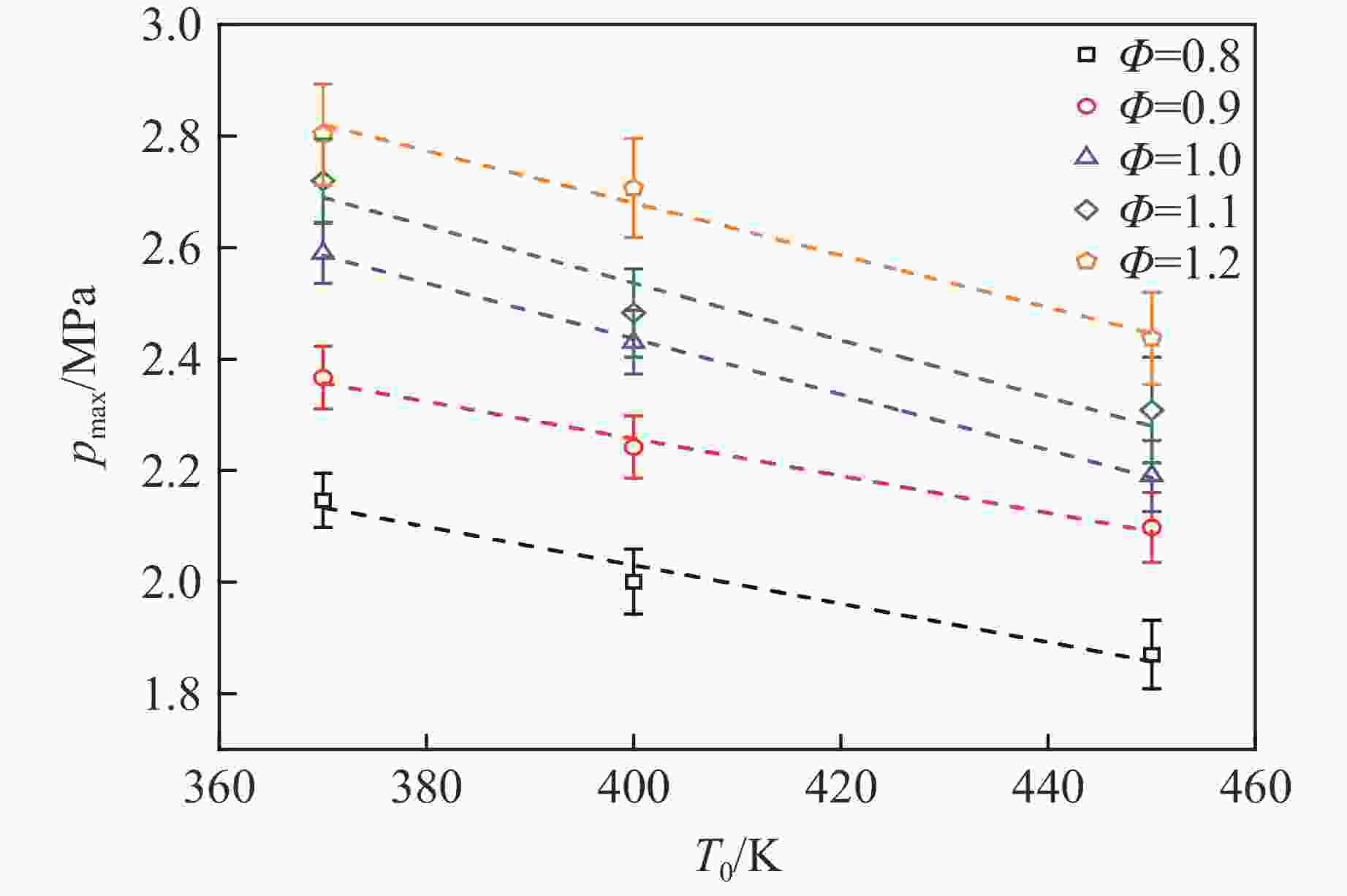

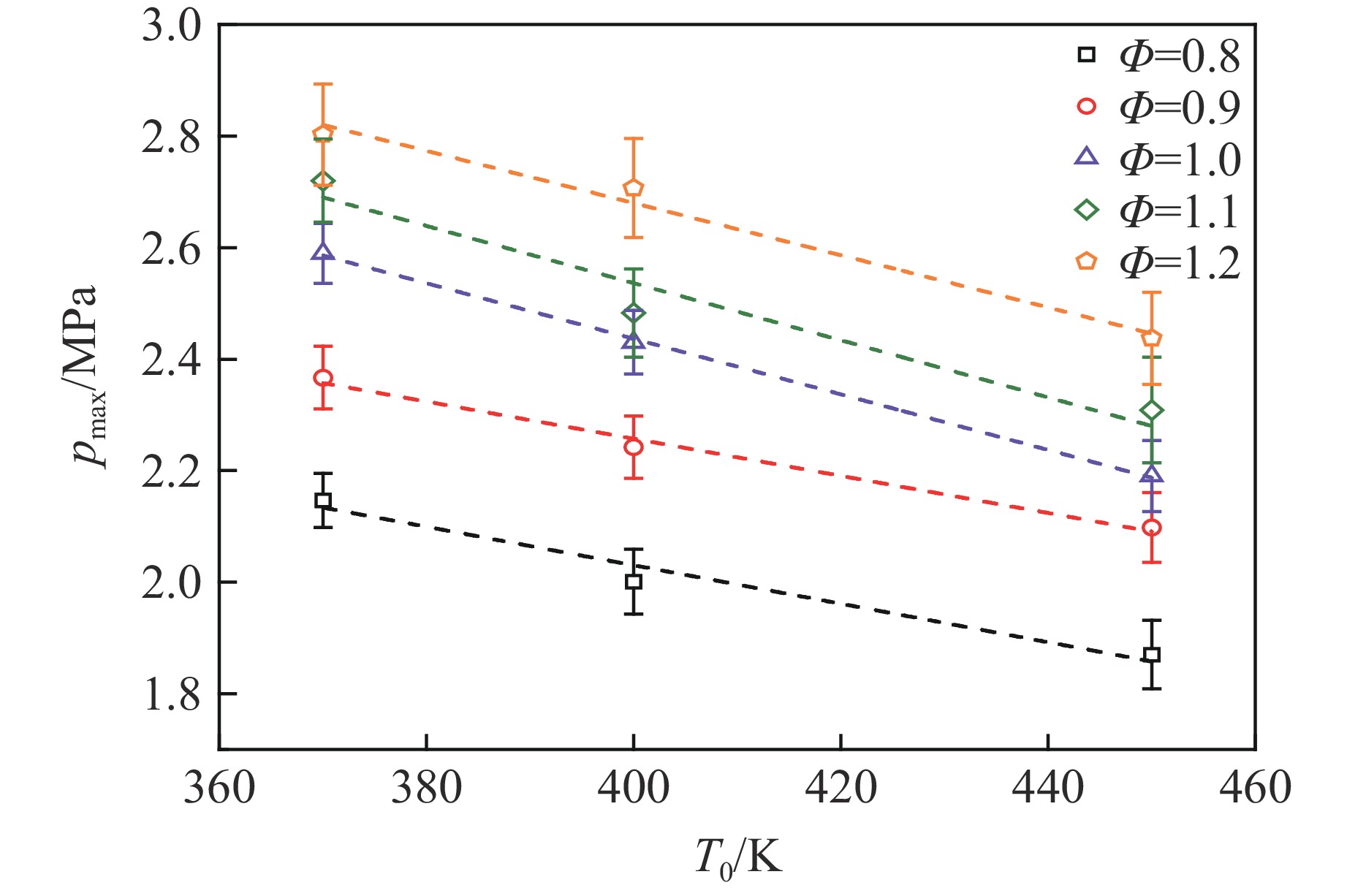

    图  峰值爆炸压力随初始温度的变化规律

    Figure  9.  Relationship between peak explosion pressure and initial temperature

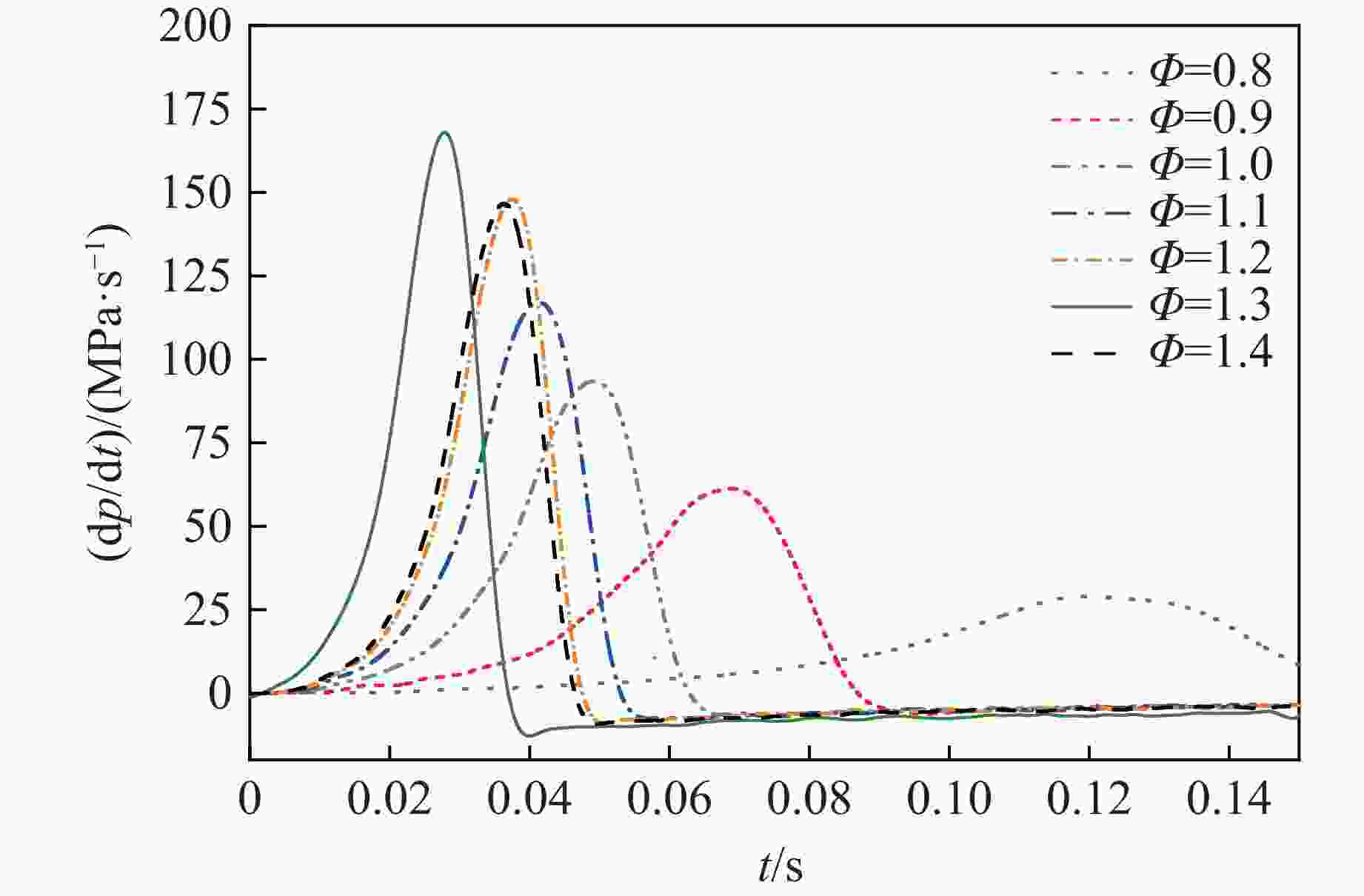

    图  10  T0 = 450 K、p0=0.4 MPa时不同当量比下爆炸压力上升率的变化曲线

    Figure  10.  Time curves of explosion pressure rise rate under different equivalence ratio at T0=450 K, p0=0.4 MPa

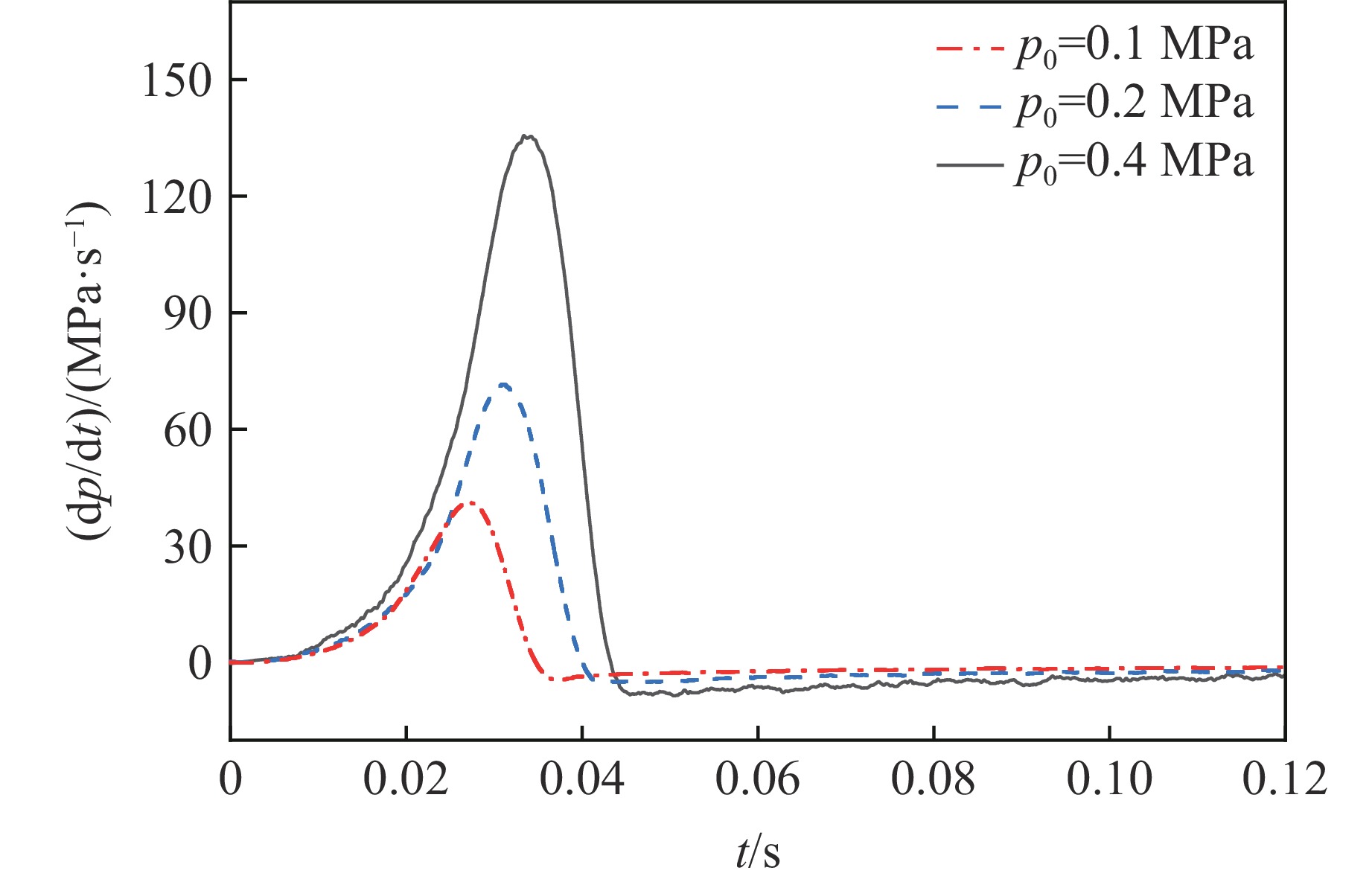

    图  11  T0=450 K、Ф=1.2时不同初始压力下的爆炸压力上升率的变化曲线

    Figure  11.  Time curves of explosion pressure rise rate under different initial pressures when T0=450 K and Ф=1.2

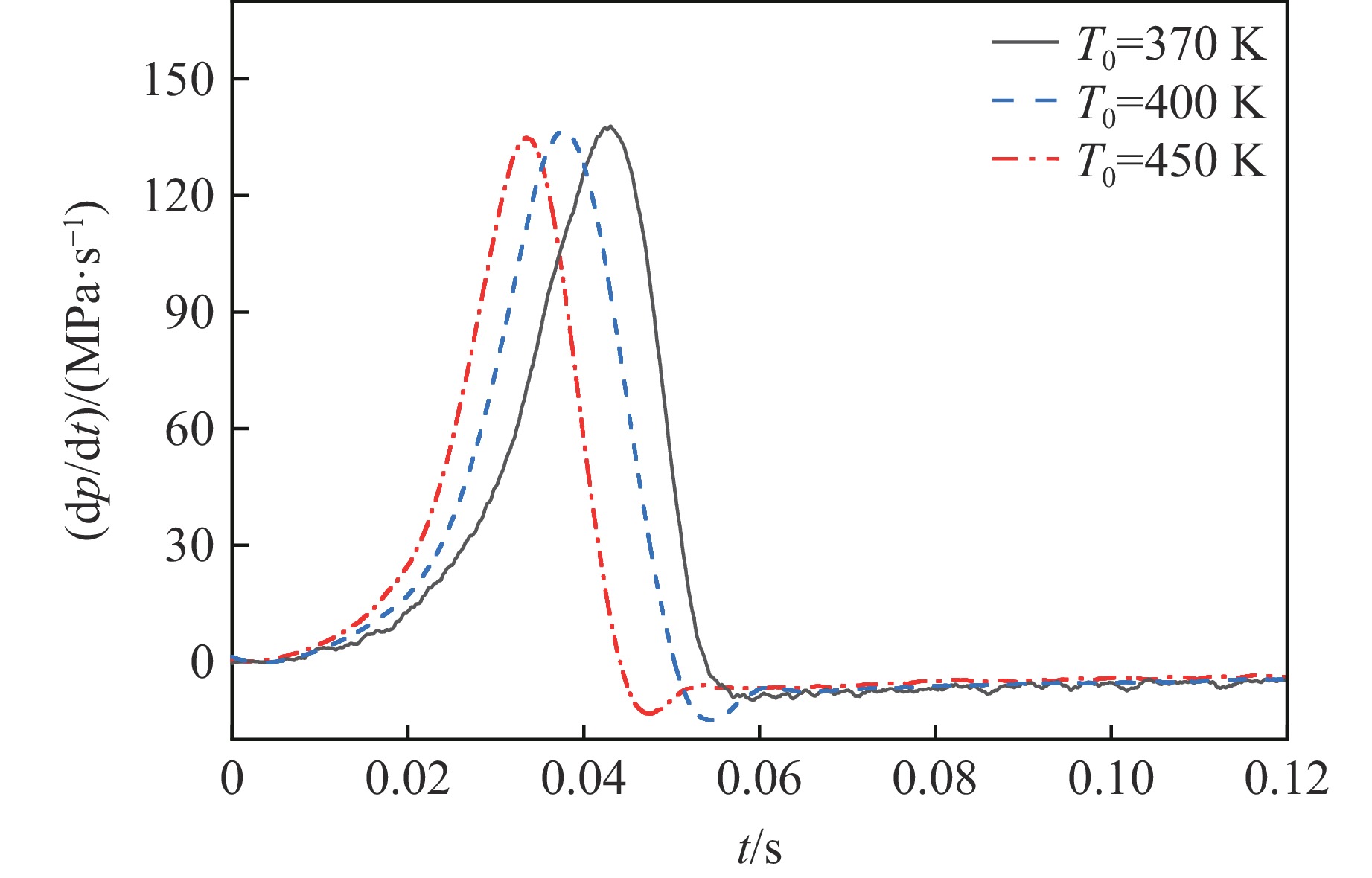

    图  12  p0=0.4 MPa、Ф=1.2时不同初始温度下的爆炸压力上升率变化曲线

    Figure  12.  Time curves of explosion pressure rise rate under different initial temperatures when p0=0.4 MPa and Ф=1.2

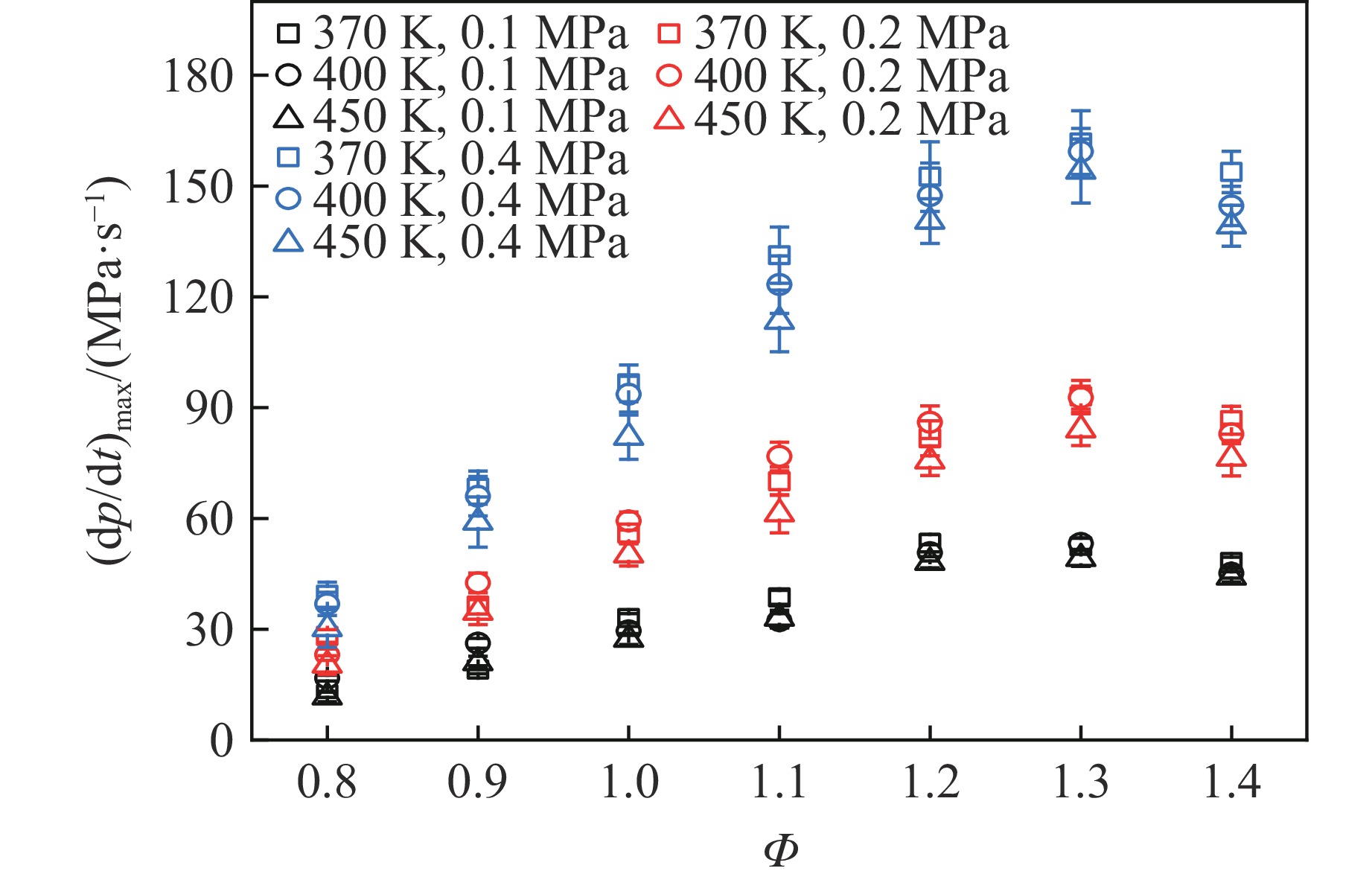

    图  13  峰值爆炸压力上升率汇总

    Figure  13.  Summary of peak explosion pressure rise rate

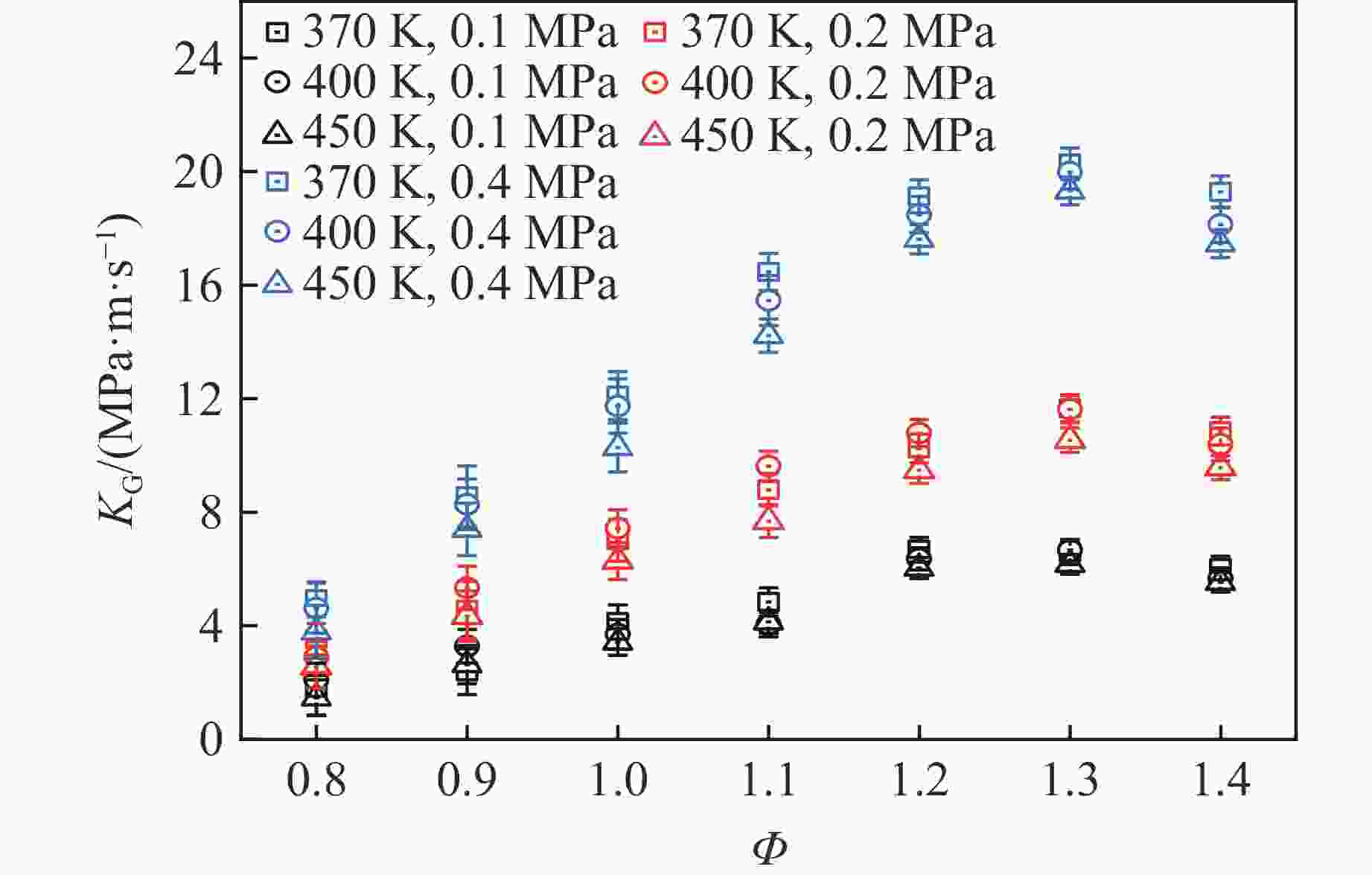

    图  14  爆燃指数汇总

    Figure  14.  Summary of deflagration index

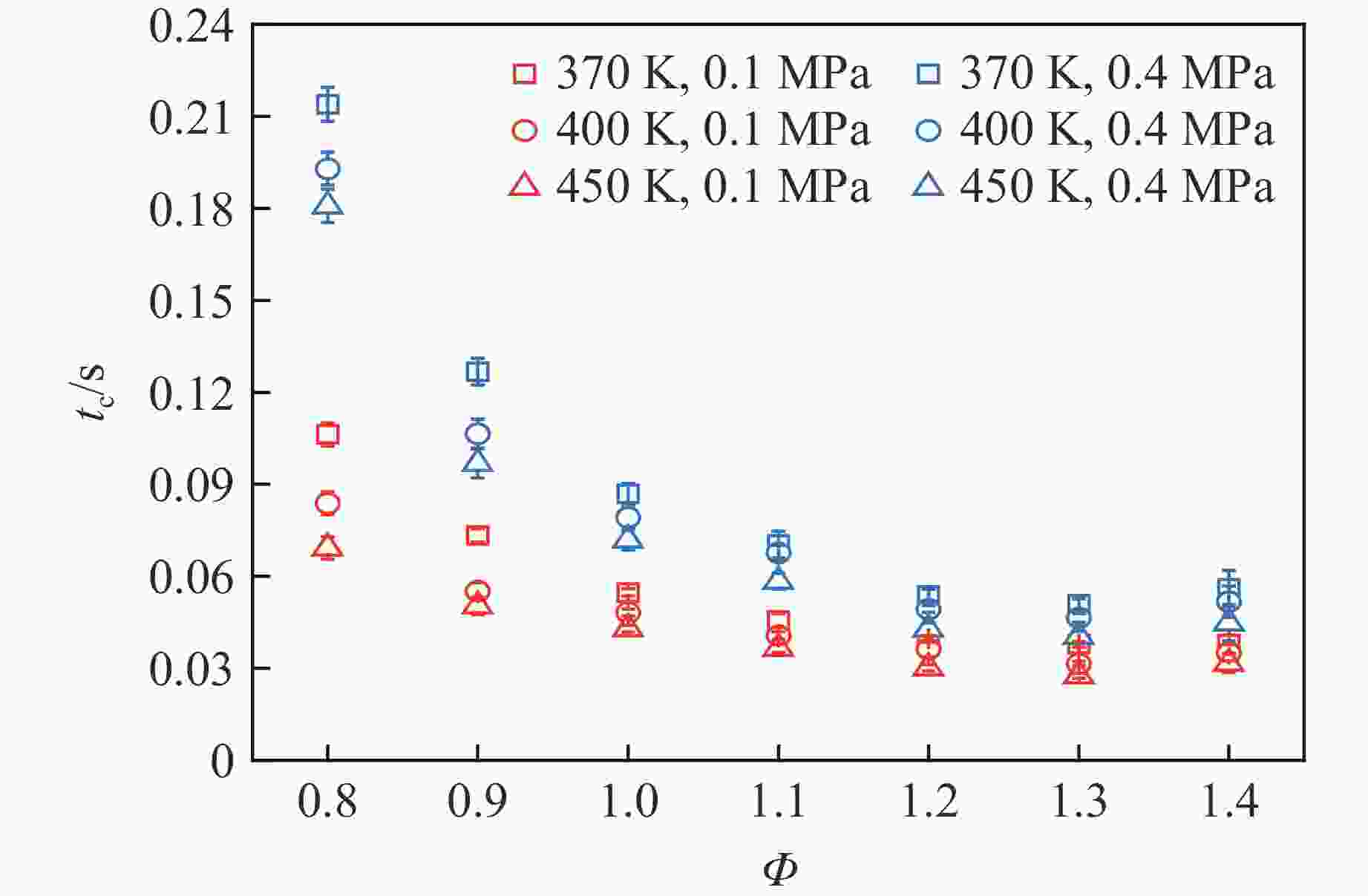

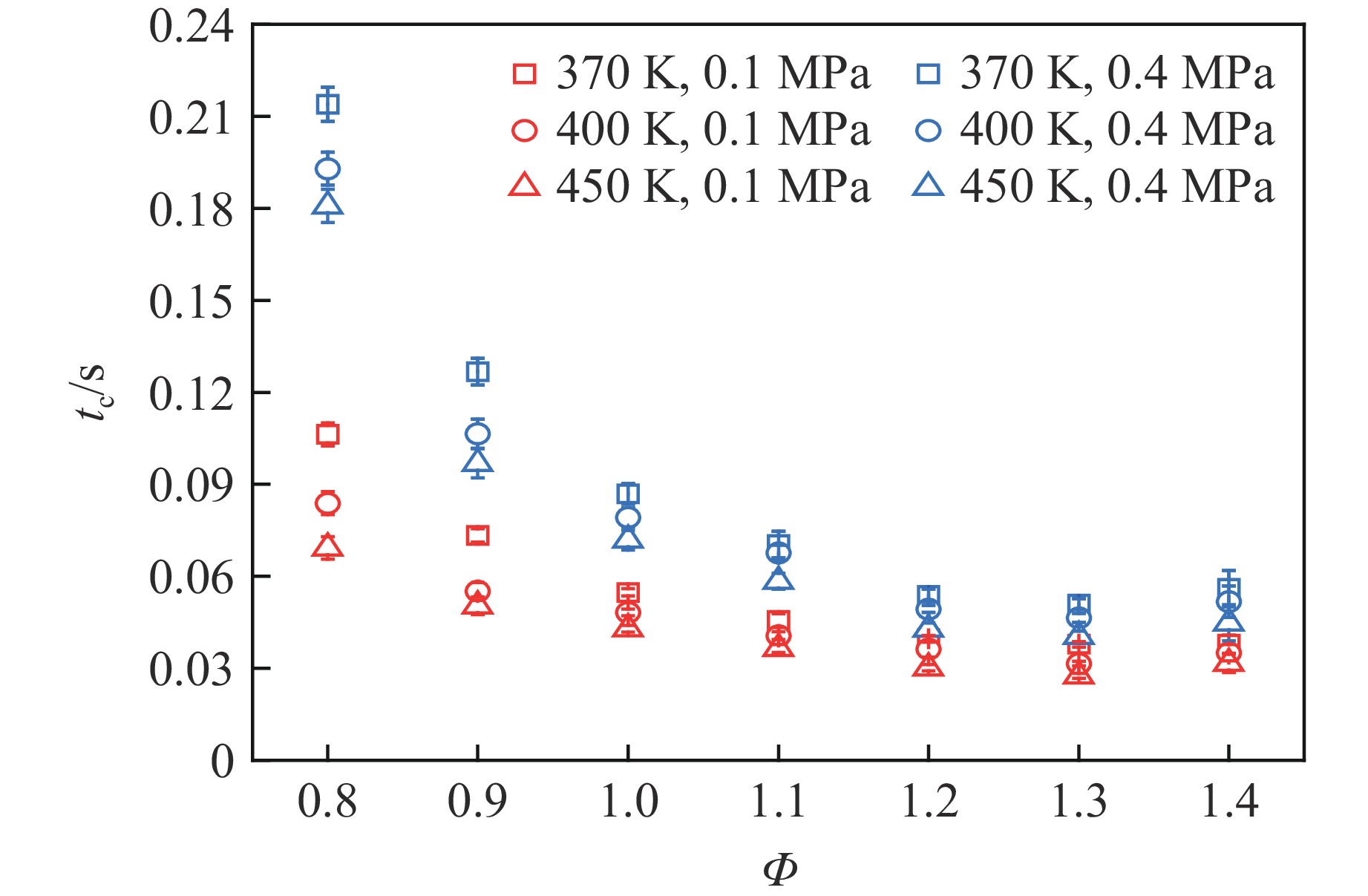

    图  15  爆炸时间与初始温度、初始压力的关系

    Figure  15.  Relationship between explosion time, initial temperature and initial pressure

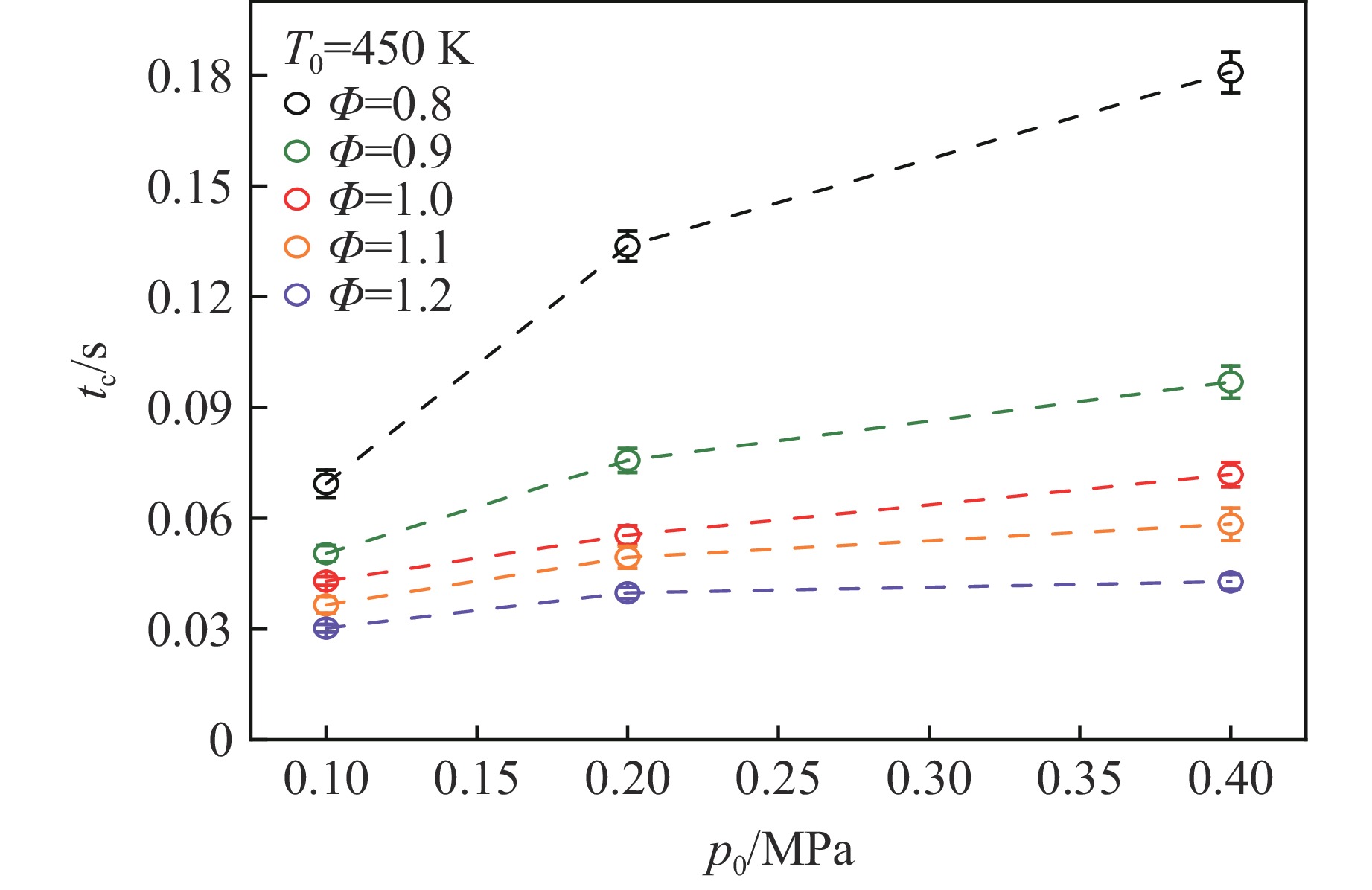

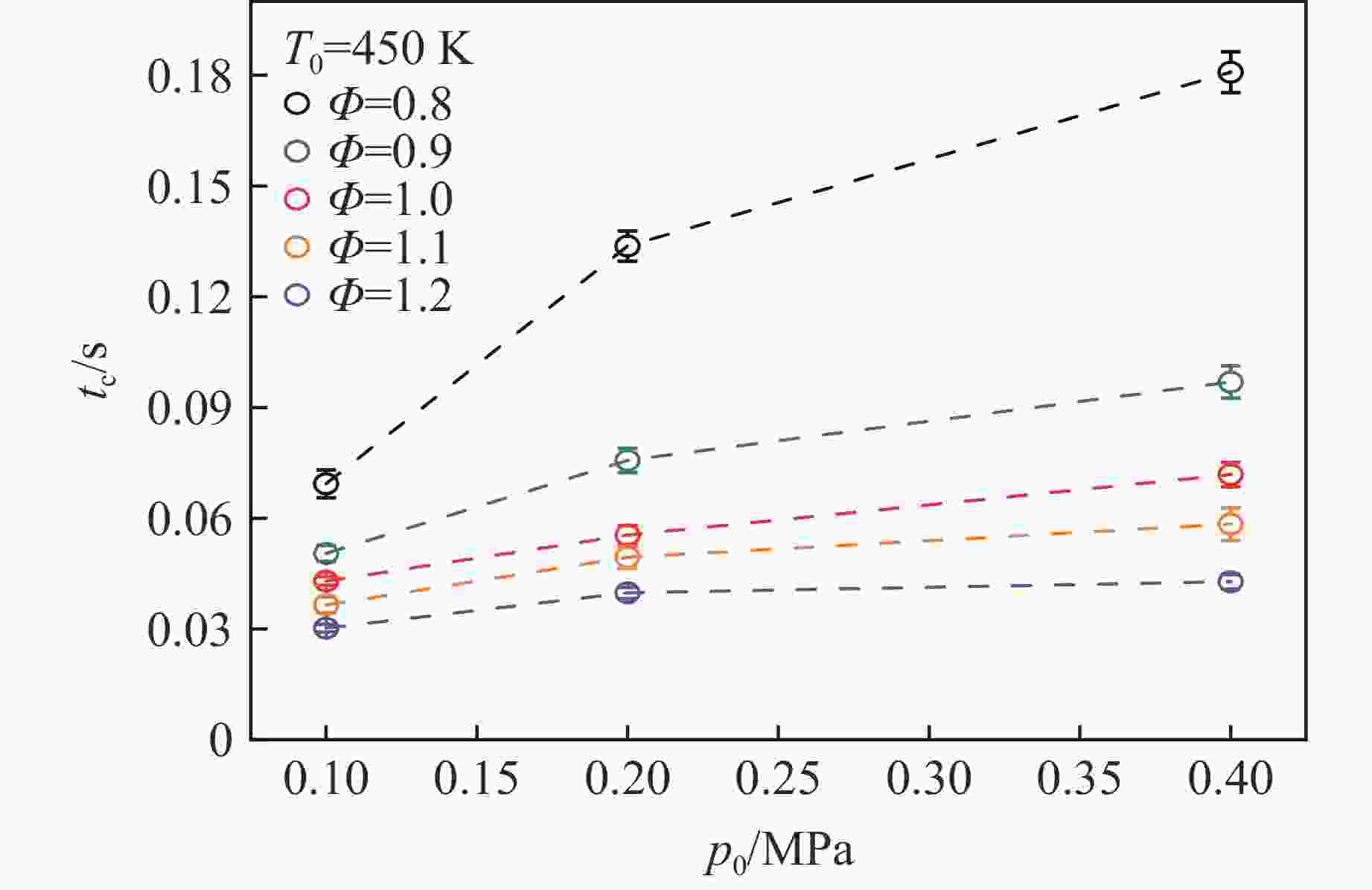

    图  16  爆炸时间随初始压力的变化规律

    Figure  16.  Explosion time varies with the initial pressure

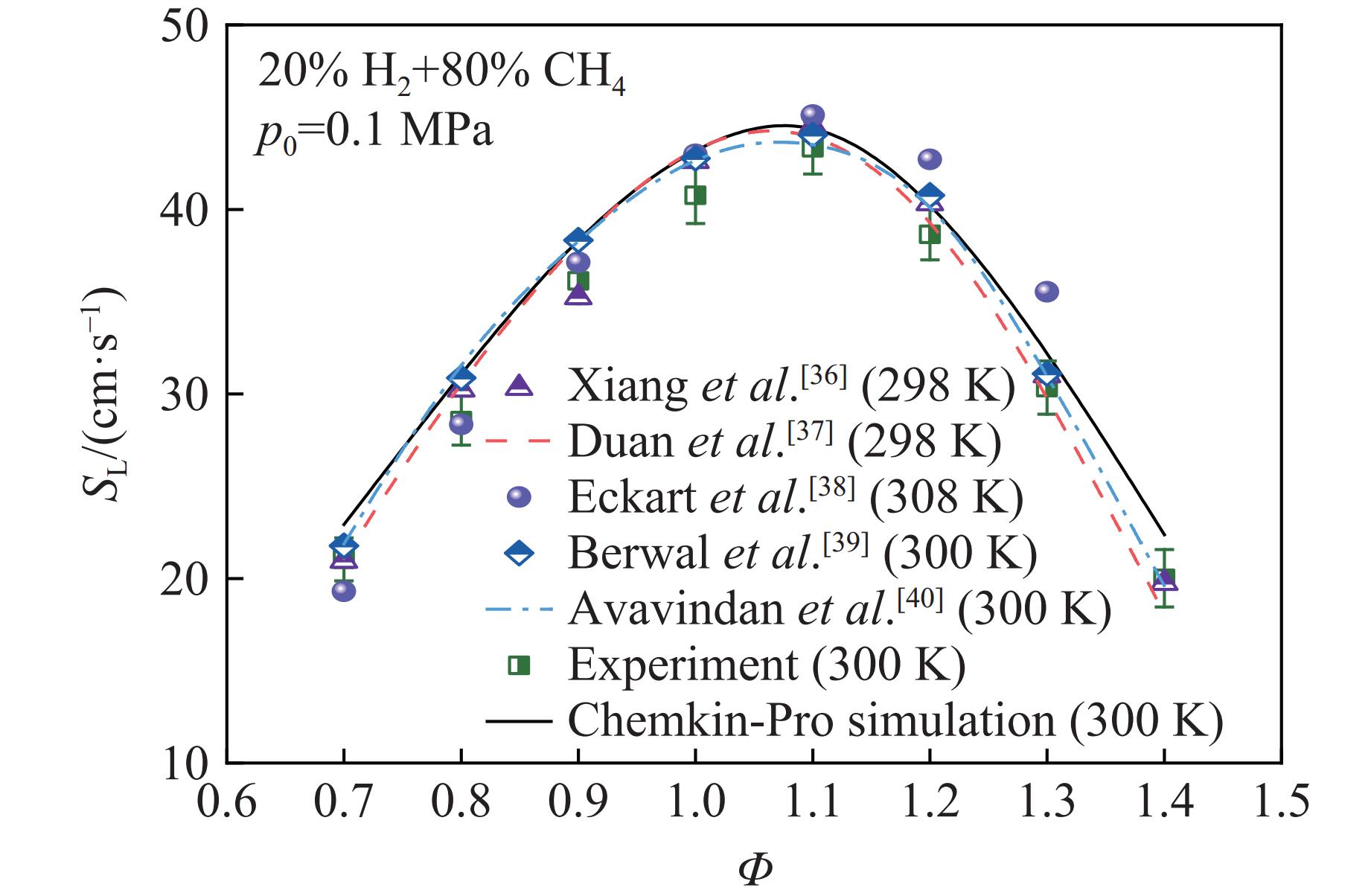

    图  17  以往研究中H2/CH4预混燃料层流燃烧速度的对比(H2与CH4体积分数之比为1∶4)

    Figure  17.  Comparison of laminar burning velocity of H2/CH4 premixed fuels from previous studies (The ratio of H2 and CH4 volume fraction is 1∶4)

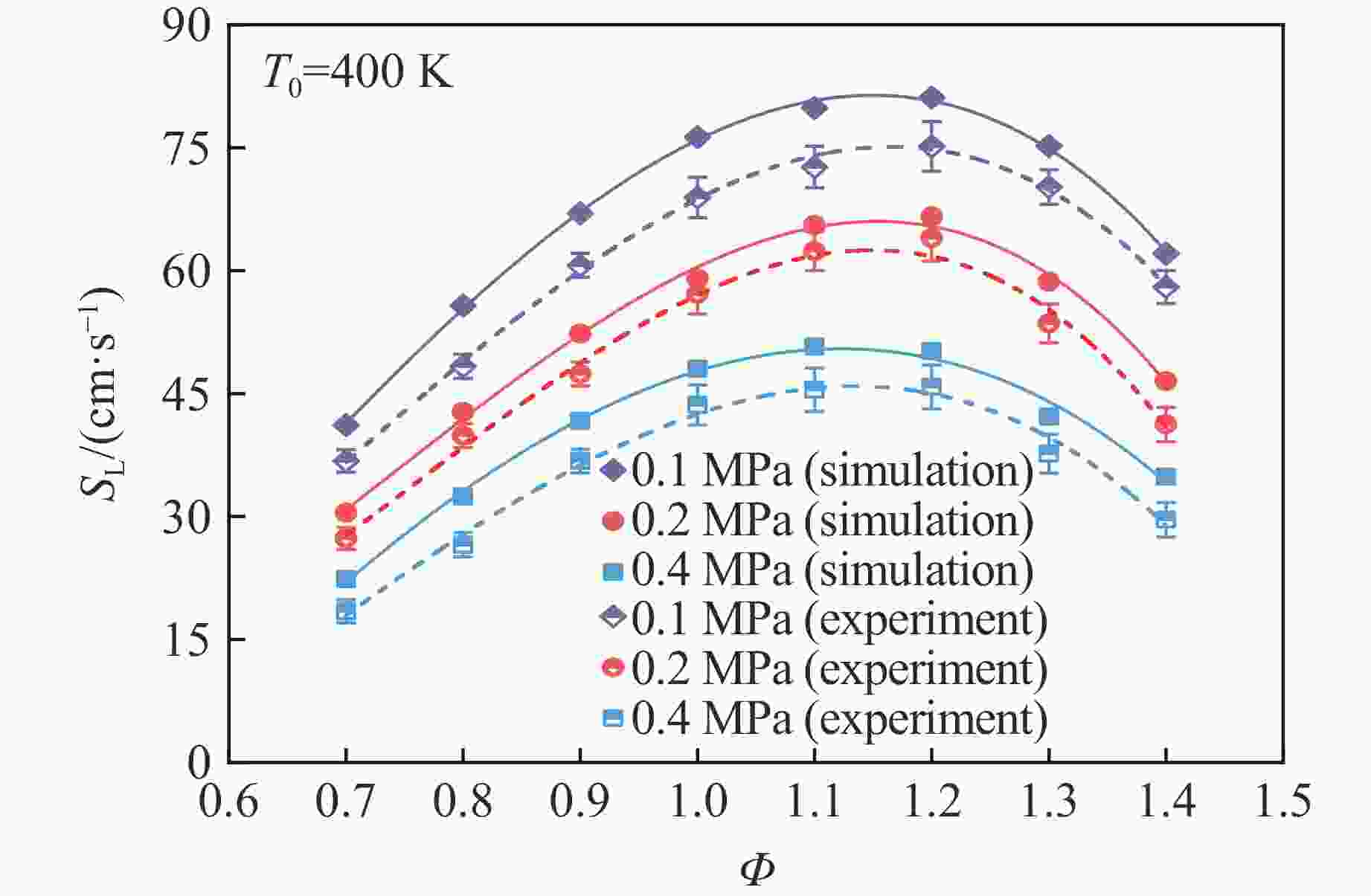

    图  18  C2H5OH/CH4/H2预混燃料实验得到的层流燃烧速度与整合机理模拟数据的对比

    Figure  18.  Comparison of experimental laminar burning velocity and integration mechanism simulation data of C2H5OH/CH4/H2 premixed fuel

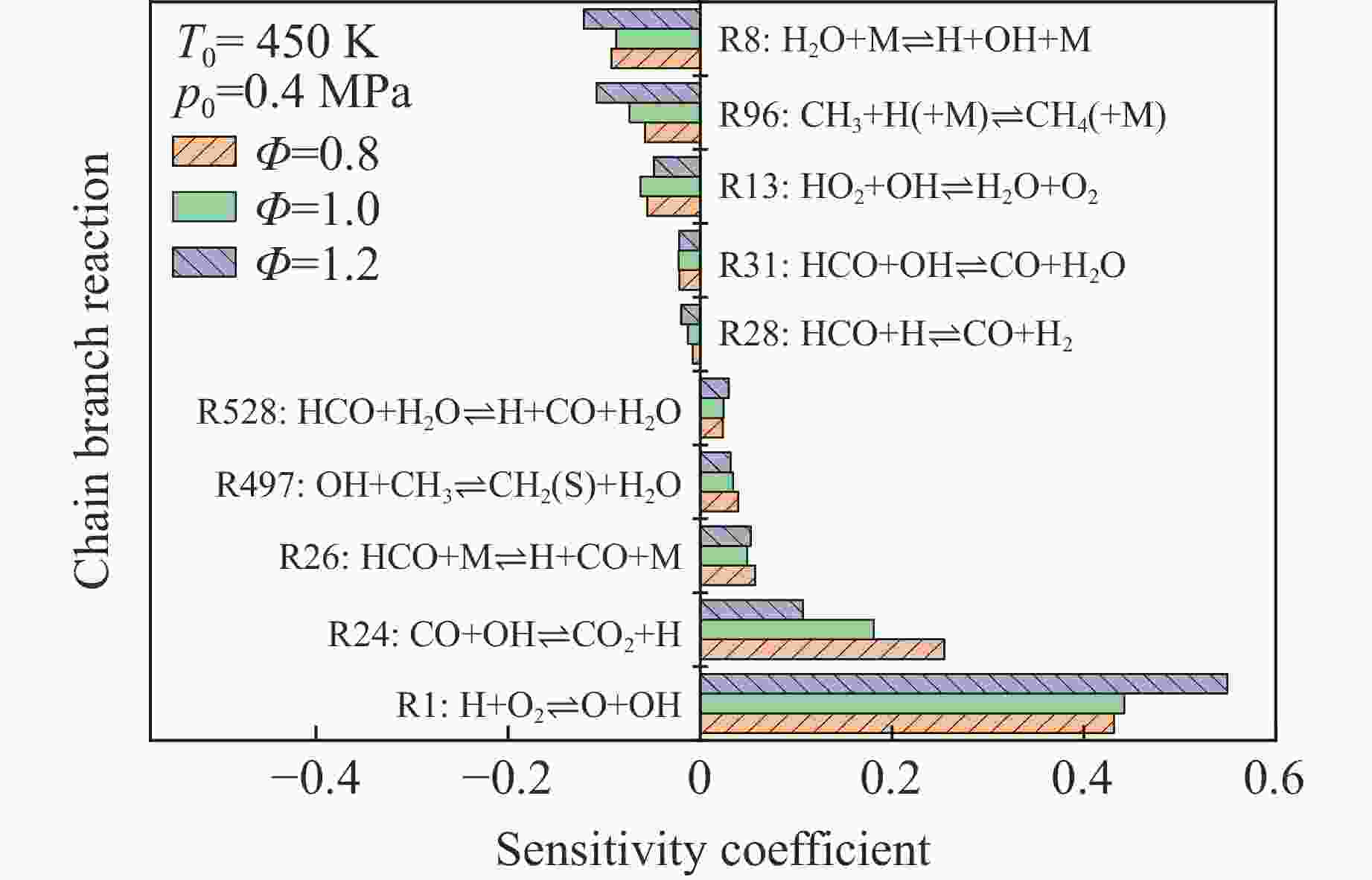

    图  19  不同当量比下的基元反应敏感性数据

    Figure  19.  Reaction sensitivity data of primitives at different equivalence ratios

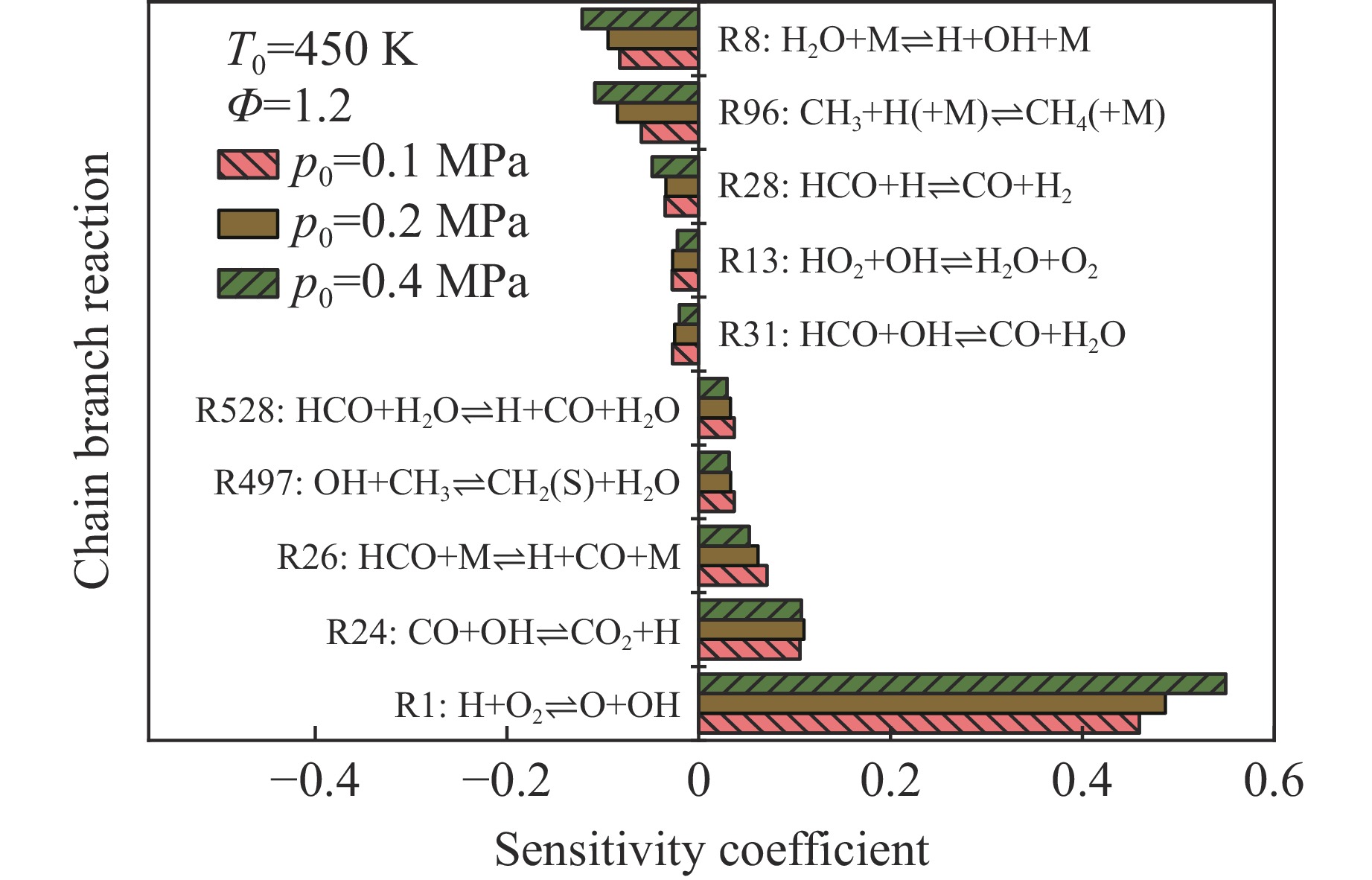

    图  20  不同初始压力下的基元反应敏感性数据

    Figure  20.  Reaction sensitivity data of primitives at different initial pressures

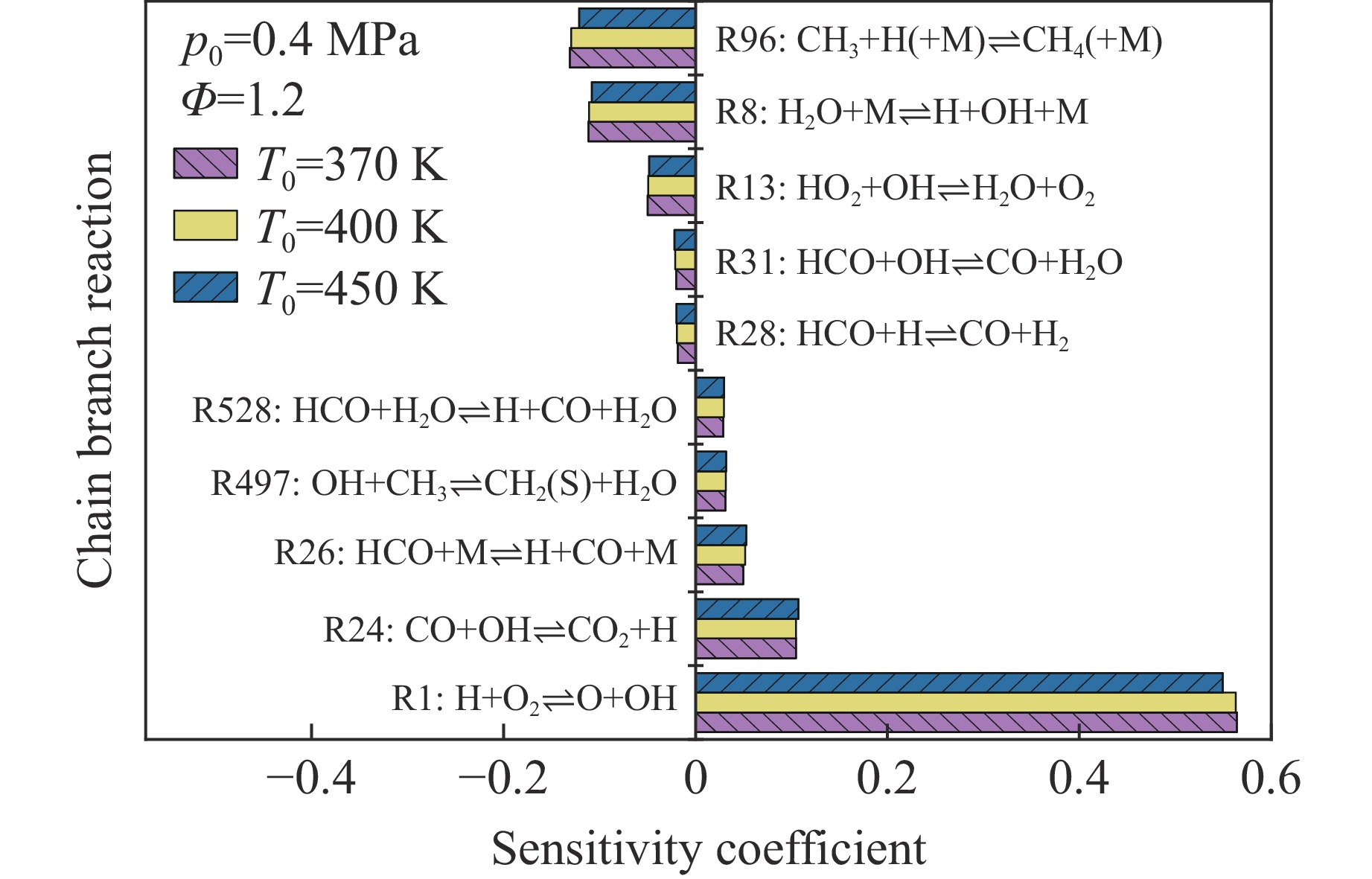

    图  21  不同初始温度下的基元反应敏感性数据

    Figure  21.  Reaction sensitivity data of the primitives at different initial temperatures

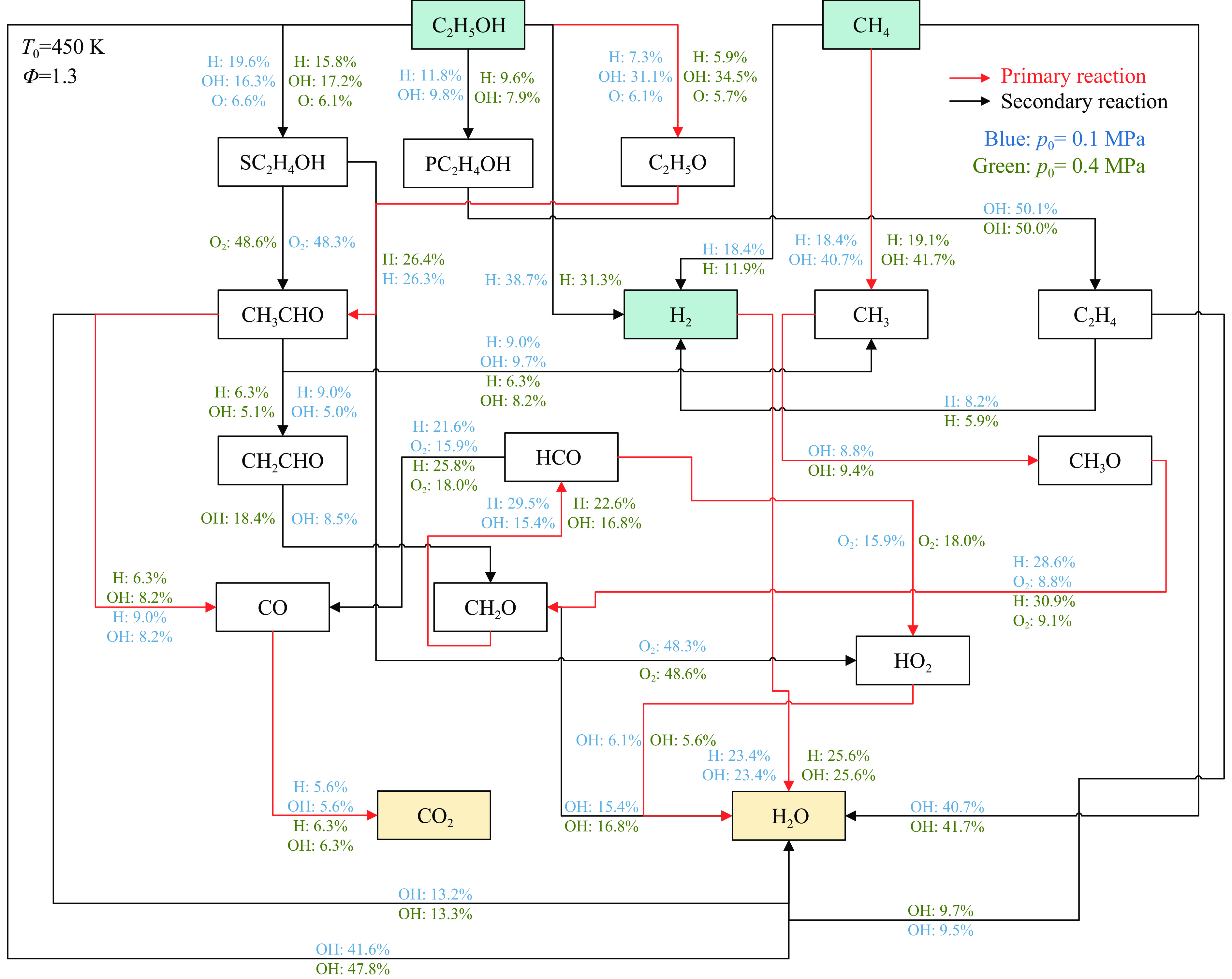

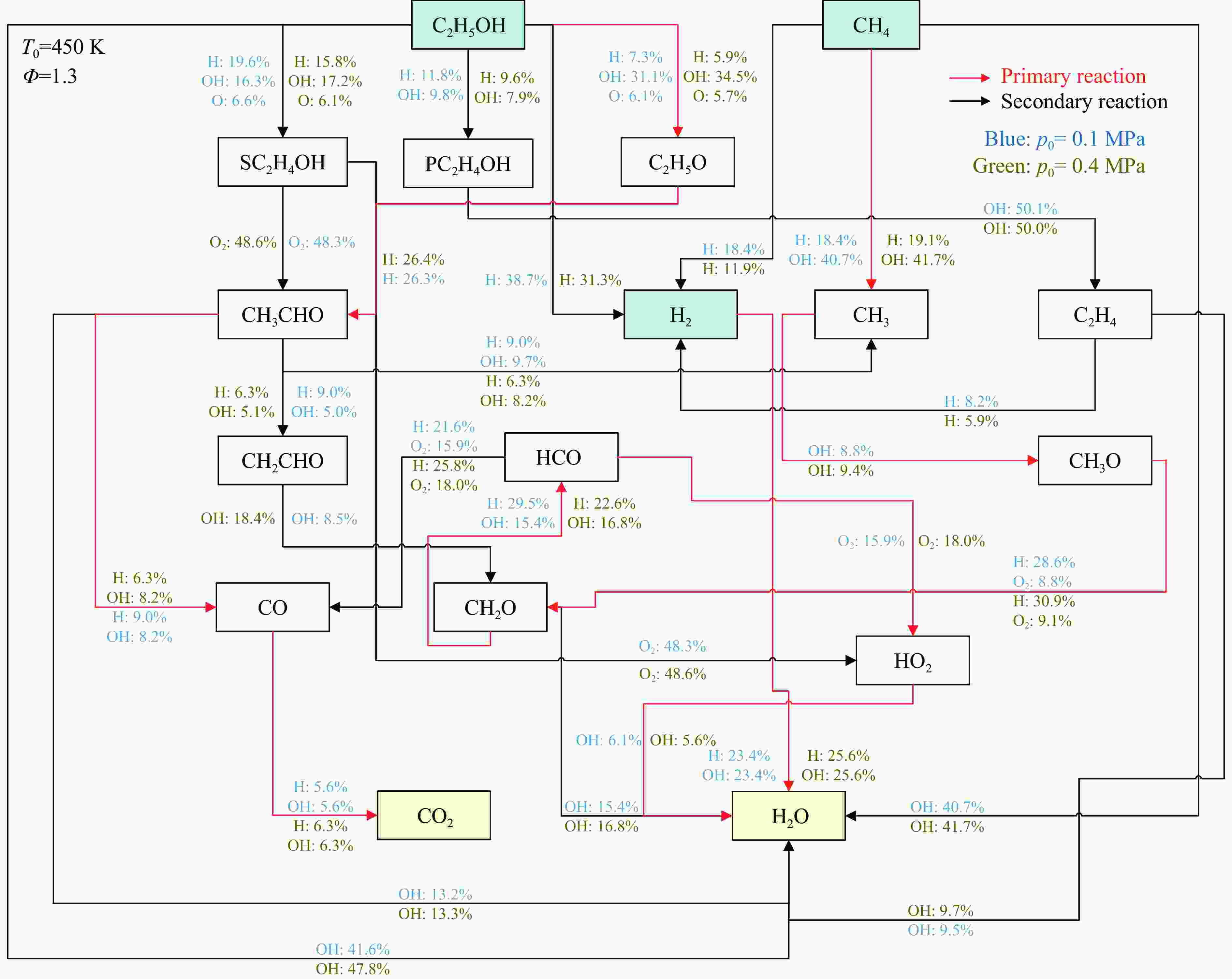

    图  22  不同初始压力下C2H5OH/CH4/H2的关键反应路径分析

    Figure  22.  Analysis of C2H5OH/CH4/H2 critical reaction pathways under different initial pressures

    表  1  实验的初始条件

    Table  1.   Initial conditions of the experiment

    Φ p0/MPa T0/K $ {\varphi}_{{\mathrm{C}}_{2}{\mathrm{H}}_{5}\mathrm{O}\mathrm{H}} $/% $ {\varphi}_{{\mathrm{C}\mathrm{H}}_{4}}$/% $ {\varphi}_{{\mathrm{H}}_{2}}$/%
    0.8−1.4 0.1, 0.2, 0.4 370, 400, 450 50 40 10
    下载: 导出CSV

    表  2  T0=450 K下峰值爆炸压力与初始压力的相关性系数

    Table  2.   Correlation coefficient between peak explosion pressure and initial pressure at T0=450 K

    Φ a b
    0.8 −0.039 30 4.716 11
    0.9 −0.024 41 5.268 32
    1.0 −0.006 71 5.439 43
    1.1 −0.020 74 5.788 41
    1.2 −0.009 14 5.997 85
    下载: 导出CSV

    表  3  p0=0.4 MPa下峰值爆炸压力与初始温度的相关性系数

    Table  3.   Correlation coefficient between peak explosion pressure and initial temperature at p0=0.4 MPa

    Φ c d
    0.8 3.409 94 −0.003 45
    0.9 3.588 53 −0.003 33
    1.0 4.428 85 −0.004 98
    1.1 4.585 72 −0.005 12
    1.2 4.551 11 −0.004 68
    下载: 导出CSV
