HPCD脱除紫甘蓝色素中烯丙基异硫氰酸酯工艺的优化

刘凤娇,  周兵,  张璐瑶,  胡国伟,  廖小军,  胡小松,  张燕

刘凤娇, 周兵, 张璐瑶, 胡国伟, 廖小军, 胡小松, 张燕. HPCD脱除紫甘蓝色素中烯丙基异硫氰酸酯工艺的优化[J]. 高压物理学报, 2016, 30(2): 170-176. doi: 10.11858/gywlxb.2016.02.013
引用本文: 刘凤娇, 周兵, 张璐瑶, 胡国伟, 廖小军, 胡小松, 张燕. HPCD脱除紫甘蓝色素中烯丙基异硫氰酸酯工艺的优化[J]. 高压物理学报, 2016, 30(2): 170-176. doi: 10.11858/gywlxb.2016.02.013
LIU Feng-Jiao, ZHOU Bing, ZHANG Lu-Yao, HU Guo-Wei, LIAO Xiao-Jun, HU Xiao-Song, ZHANG Yan. Technological Optimization in Removing Allyl Isothiocyanate fromPurple Cabbage Pigment by HPCD Treatment[J]. Chinese Journal of High Pressure Physics, 2016, 30(2): 170-176. doi: 10.11858/gywlxb.2016.02.013
Citation: LIU Feng-Jiao, ZHOU Bing, ZHANG Lu-Yao, HU Guo-Wei, LIAO Xiao-Jun, HU Xiao-Song, ZHANG Yan. Technological Optimization in Removing Allyl Isothiocyanate fromPurple Cabbage Pigment by HPCD Treatment[J]. Chinese Journal of High Pressure Physics, 2016, 30(2): 170-176. doi: 10.11858/gywlxb.2016.02.013

HPCD脱除紫甘蓝色素中烯丙基异硫氰酸酯工艺的优化

doi: 10.11858/gywlxb.2016.02.013
基金项目:

国家“十二五”科技支撑计划课题 2012BAD31B09

北京市科技新星计划 Z121105002512068

详细信息
    作者简介:

    刘凤娇(1991—), 女,硕士研究生,主要从事农产品加工及贮藏研究. E-mail:jiao23@foxmail.com

    通讯作者:

    张燕(1977—), 女,副教授,主要从事非热加工技术理论与应用研究. E-mail:zhangyan348@163.com

  • 中图分类号: O521.9

Technological Optimization in Removing Allyl Isothiocyanate fromPurple Cabbage Pigment by HPCD Treatment

  • 摘要: 在紫甘蓝色素提取过程中,由于硫代葡萄糖苷酶解产物烯丙基异硫氰酸酯(AITC)的产生,导致紫甘蓝色素提取液有不良风味,从而限制了它在食品工业上的应用。因此研究新型的高压二氧化碳(HPCD)技术脱除AITC工艺,分别考察了5种水平的压强、温度、处理时间和卸压时间对HPCD脱除AITC效果的影响。通过单因素实验和正交实验确定了HPCD脱除AITC的最佳工艺组合为:温度50 ℃,处理时间60 min,卸压时间2 min。在最佳条件下经HPCD处理后,紫甘蓝色素的风味物质种类由17种减至7种,许多异味物质得到不同程度的脱除,其中异味核心物质AITC的质量分数由3.15%减少至1.06%,达到较好的异味脱除效果。

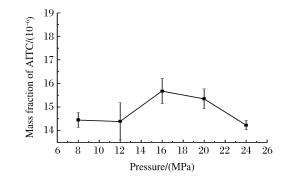

  • 图  1  不同压强下溶液中AITC的质量分数

    Figure  1.  Mass fraction of AITC in solutionunder different pressures

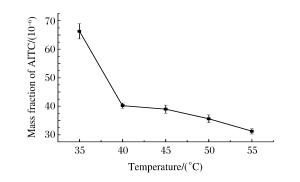

    图  2  不同处理温度下溶液中AITC的质量分数

    Figure  2.  Mass fraction of AITC in solutionunder different treatment temperatures

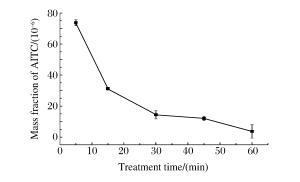

    图  3  不同处理时间下溶液中AITC的质量分数

    Figure  3.  Mass fraction of AITC in solutionunder different treatment time

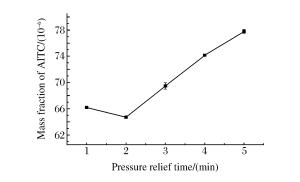

    图  4  不同卸压时间下溶液中AITC的质量分数

    Figure  4.  Mass fraction of AITC in solutionunder different pressure relief time

    表  1  正交实验设计因素水平表

    Table  1.   Experimental levels employed for orthogonal experimental design

    Factor Mark Level
    1 2 3
    Temperature/(℃) A 40 45 50
    Treatment time/(min) B 30 45 60
    Pressure relief time/(min) C 1 2 3
    下载: 导出CSV

    表  2  正交实验结果

    Table  2.   Response value of orthogonal experimental design

    Exp.
    No.
    A B C Mass fraction of
    AITC/(10-6)
    1 1 1 1 79.65
    2 1 2 2 44.84
    3 1 3 3 29.19
    4 2 1 2 30.97
    5 2 2 3 29.11
    6 2 3 1 26.04
    7 3 1 3 32.42
    8 3 2 1 19.76
    9 3 3 2 12.24
    下载: 导出CSV

    表  3  正交实验结果分析

    Table  3.   Analysis of orthogonal experimental results

    Item A B C
    K1 51.23 47.68 41.82
    K2 28.71 33.90 29.35
    K3 21.47 31.24 30.24
    Rb 29.76 16.44 12.47
    Note:Ki(i=1, 2, 3) is the mean value of factors at level i,and Rb is the extreme differences.
    下载: 导出CSV

    表  4  HPCD处理前、后紫甘蓝色素挥发性成分的GC-MS结果比较

    Table  4.   Comparison of GC-MS results of volatile compounds in purple cabbage pigmentbefore and after HPCD treatment

    Volatile compounds Formula Before HPCD treatment After HPCD treatment
    Retentiontime/(min) Mass fraction/(%) Retentiontime/(min) Mass fraction/(%)
    Allyl thiocyanate C4H5NS 5.079 2.69 5.049 0.42
    Allyl isothiocyanate C4H5NS 5.340 3.15 5.144 1.06
    Benzaldehyde C7H6O 6.907 0.80 6.931 0.92
    Dimethyl trisulfide C2H6S3 7.192 15.18 — —
    Octanal C8H16O 8.070 10.25 — —
    Benzeneacetaldehyde C8H8O 9.358 0.38 — —
    Nonanal C9H18O 11.311 23.86 11.323 1.53
    Naphthalene C10H8 13.946 1.46 13.958 0.29
    Decanal C10H20O 14.730 26.77 14.736 1.69
    Dimethyl tetrasulfide C2H6S4 15.056 1.21 — —
    1-Methyl-cyclohexene C7H12 15.531 0.16 — —
    2-Methyl-naphthalene C11H10 17.638 1.12 17.644 0.68
    Tridecanal C13H26O 18.119 2.48 — —
    2, 6-Dimethyl-naphthalene C12H12 21.817 0.20 — —
    Dodecanal C12H24O 22.173 0.64 — —
    1, 7-Dimethyl-naphthalene C12H12 22.511 0.24 — —
    Hexadecane C16H32 32.720 0.10 — —
    下载: 导出CSV
  • [1] SONG L J, MORRISON J J, BOTTING N P, et al.Analysis of glucosinolates, isothiocyanates, and amine degradation products in vegetable extracts and blood plasma by LC-MS/MS[J].Anal Biochem, 2005, 347(2):234-243. doi: 10.1016/j.ab.2005.09.040
    [2] HANSCHEN F S, LAMY E, SCHREINER M, et al.Reactivity and stability of glucosinolates and their breakdown products in foods[J].Angew Chem Int Edit, 2014, 54(43):11430-11450. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=320c8a0346937bfbd41c54cbf0c0b1aa
    [3] FAHEY J W, ZALCMANN A T, TALALAY P.The chemical diversity and distribution of glucosinolates and isothiocyanates among plants[J].Phytochemistry, 2001, 56(1):5-51. doi: 10.1016/S0031-9422(00)00316-2
    [4] KO J A, KIM W Y, PARK H J.Effects of microencapsulated Allyl isothiocyanate (AITC) on the extension of the shelf-life of Kimchi[J].Int J Food Microbiol, 2012, 153(1):92-98. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=e2545b738304b4c8548314a683c21a20
    [5] BONES A M, RPSSITER J T.The enzymic and chemically induced decomposition of glucosinolates[J].Phytochemistry, 2006, 67(11):1053-1067. doi: 10.1016/j.phytochem.2006.02.024
    [6] GERENDÁS J, BREUNING S, STAHL T, et al.Isothiocyanate concentration in kohlrabi (Brassica oleracea L.Var.gongylodes) plants as influenced by sulfur and nitrogen supply[J].J Agric Food Chem, 2008, 56(18):8334-8342. doi: 10.1021/jf800399x
    [7] 刘野, 赵晓燕, 邹磊, 等.高压二氧化碳对鲜榨西瓜汁杀菌效果和风味的影响[J].食品科学, 2012, 33(3):82-88. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=QK201200259769

    LIU Y, ZHAO X Y, ZOU L, et al.Effects of high pressure carbon dioxide on microbiological and flavor profiles of fresh watermelon juice[J].Food Science, 2012, 33(3):82-88. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=QK201200259769
    [8] DAMAR S, BALABAN M O.Review of dense phase CO2 technology:Microbial and enzyme inactivation, and effects on food quality[J].J Food Sci, 2006(71):1-11. doi: 10.1111-j.1365-2621.2006.tb12397.x/
    [9] 廖小军, 桂芬琦, 胡小松, 等.高密度CO2杀菌装置: 200520132590.X[P].2006-12-06.

    LIAO X J, GUI F Q, HU X S, et al.High-density CO2 sterilize: 200520132590.X[P].2006-12-06.
    [10] PECHACEK R, VELISEK J, HRABCOVA H.Decomposition products of allyl isothiocyanate in aqueous solutions[J].J Agric Food Chem, 1997, 45(12):4584-4588. doi: 10.1021/jf970316z
    [11] 陈元, 杨基础.超临界CO2萃取亚麻籽油的研究[J].天然产物研究与开发, 2001, 13(3):14-19. http://d.old.wanfangdata.com.cn/Periodical/zgyz201702002

    CHEN Y, YANG J C.Studies on the supercritical carbon dioxide extraction of linseed oil[J].Natural Product Research and Development, 2001, 13(3):14-19. http://d.old.wanfangdata.com.cn/Periodical/zgyz201702002
    [12] 胡国伟, 易俊杰, 杨瑛洁, 等.高压二氧化碳对烯丙基异硫氰酸酯脱除影响的研究[J].高压物理学报, 2012, 26(4):409-414. http://www.gywlxb.cn/CN/abstract/abstract1481.shtml

    HU G W, YI J J, YANG Y J, et al.Research on removing allyl isothiocyanates using high pressure carbon dioxide[J].Chinese Journal of High Pressure Physics, 2012, 26(4):409-414. http://www.gywlxb.cn/CN/abstract/abstract1481.shtml
    [13] 张清风, 姜子涛, 张久章, 等.紫外分光光度法测定辣根及芥末制品中异硫氰酸酯含量的研究[J].中国调味品, 2005(6):15-20. doi: 10.3969/j.issn.1000-9973.2005.06.004

    ZHANG Q F, JIANG Z T, ZHANG J Z, et al.Ultraviolet spectrophotometric determination of isothiocyanates in horseradish, mustard and the related products[J].China Condiment, 2005(6):15-20. doi: 10.3969/j.issn.1000-9973.2005.06.004
    [14] 刘登勇, 周光宏, 徐幸莲.确定食品关键风味化合物的一种新方法:"ROAV"法[J].食品科学, 2008, 29(7):370-374. doi: 10.3321/j.issn:1002-6630.2008.07.082

    LIU D Y, ZHOU G H, XU X L."ROAV" Method:a new method for determining key odor compounds of Rugao ham[J].Food Science, 2008, 29(7):370-374. doi: 10.3321/j.issn:1002-6630.2008.07.082
    [15] 贺云川, 李敏.同时蒸馏萃取-气质联机分析坛装风脱水榨菜挥发性成分[J].中国调味品, 2010, 35(10):116-119. doi: 10.3969/j.issn.1000-9973.2010.10.027

    HE Y C, LI M.Altar wind dehydration of volatile components in pickle by distillation extraction and temperament on-line analysis at the same time[J].China Condiment, 2010, 35(10):116-119. doi: 10.3969/j.issn.1000-9973.2010.10.027
    [16] 宋焕禄.食品风味化学[M].北京:化学工业出版社, 2008:40, 99.

    SONG H L.Food flavor chemistry[M].Beijing:Chemical Industry Press, 2008:40, 99.
    [17] 孙宝国, 何坚.香料化学与工艺学[M].第2版.北京:化学工业出版社, 2004:120, 429.

    SUN B G, HE J.Spices chemistry and technology[M].2nd ed.Beijing:Chemical Industry Press, 2004:120, 429.
