Static Electric Field Energy-Storaging Characteristics of PbLa(Zr, Sn, Ti)O3 Ceramics
-
摘要: 为了研究微量掺镧的反铁电陶瓷锆锡钛酸铅(PbLa(Zr, Sn, Ti)O3, PLZST)的静态存储电场能量的特性，采用传统的氧化物固态反应的陶瓷制备工艺，制备了4个锆锡比不同的PLZST陶瓷样品，样品组分均位于PLZST相图中铁电-反铁电相界附近。通过等静压压致放电的实验方法研究了PLZST陶瓷放电特性。结果表明，经过充分极化的PLZST处于亚稳态的铁电相，在压力作用下，PLZST发生铁电反铁电相变，把在直流电场下极化时储存于PLZST陶瓷的静电场能量瞬间释放出来，从而得到极高功率的电脉冲。最终，样品完全退极化，最大放电电流密度达到5.0nA/cm2，样品的静电场储能密度最高可达9.45J/cm3，因此PLZST陶瓷是爆电换能电源的理想材料。Abstract: In order to find out about the static electric field energy-storaging characteristics of lead zirconate stannate titanate ceramics doped with lanthanum, PbLa(Zr, Sn, Ti)O3 (PLZST) ceramics with different Sn/Zr ratios were fabricated using the conventional solid-state reaction of oxide method.The compositions of samples are all close to phase bound of ferroelectric (FE) and antiferroelectric (AFE).The energy-storaging characteristics of PLZST ceramics were investigated experimentally through hydrostatic pressure induced discharging.The results show polarized PLZST ceramics in the DC field are in a meta-stable FE state.Phase transitions from FE to AFE occur under the influence of the pressure, and the static electric field energy stored via polarization is released instantly, which leads to high-power current pulses.PLZST ceramics are totally depolarized after the discharging.The largest discharge current density and the largest electric field density are 5.0nA/cm2 and 9.45J/cm3 respectively.PLZST ceramics are ideal materials for explosive energy converter's power supply.
-

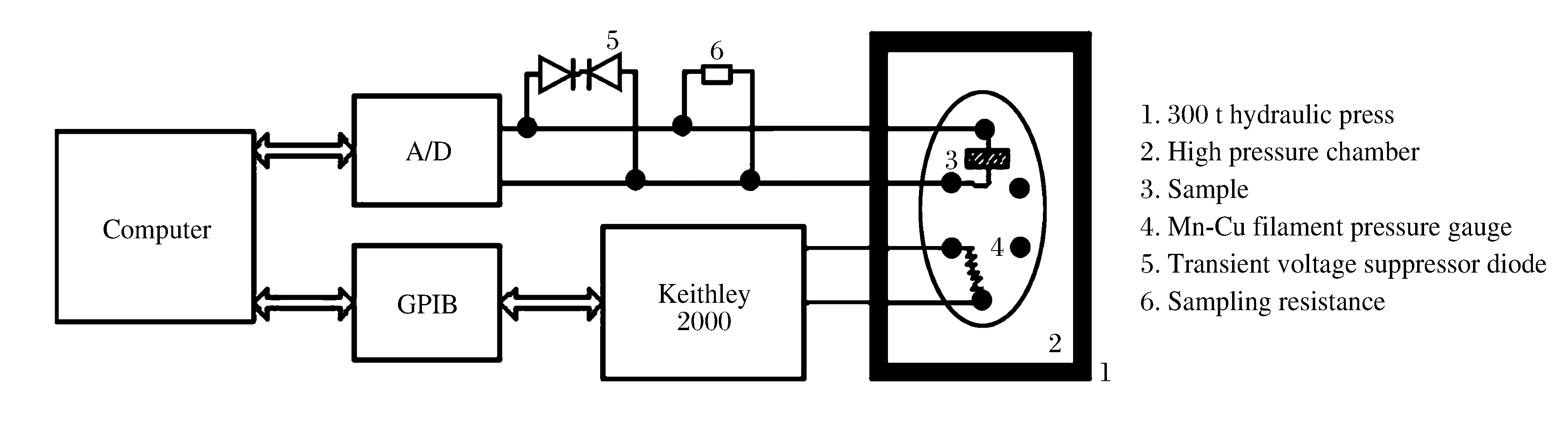

图 1 等静压压致放电测试装置示意图
Figure 1. Schematic diagram of the hydrostatic pressure induced discharging device

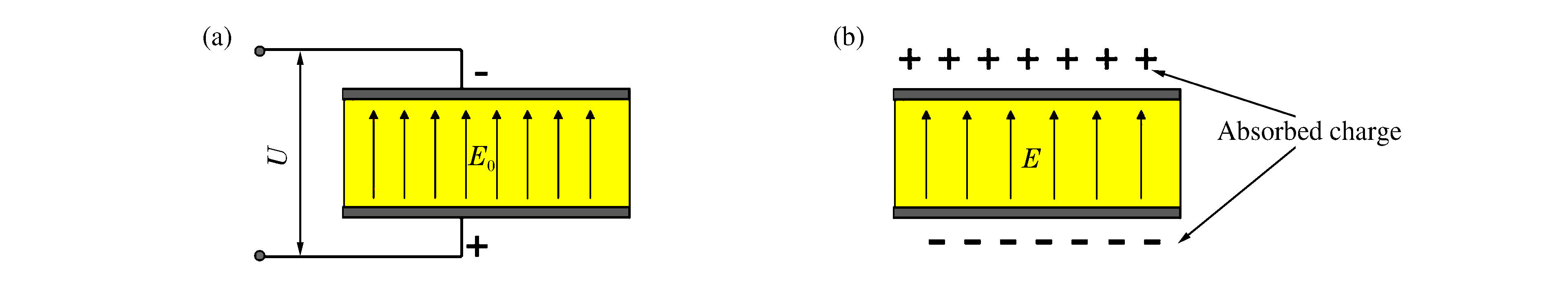

图 2 铁电陶瓷极化过程示意图
Figure 2. Schematic diagram of ferroelectric ceramic polarization processes

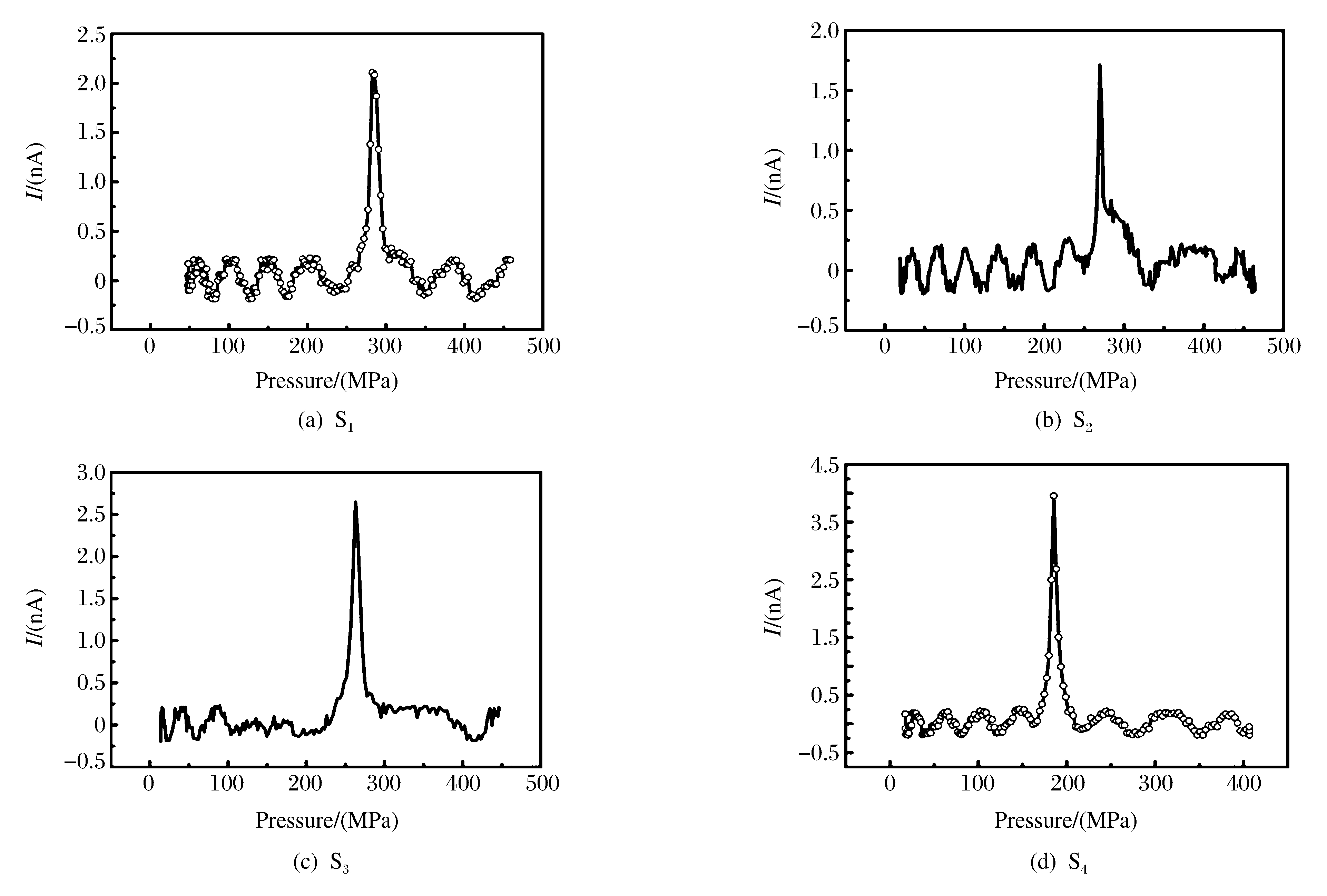

图 3 压力诱导的PLZST陶瓷放电电流曲线
Figure 3. Hydrostatic pressure induced discharging curves of PLZST ceramics
表 1 PLZST陶瓷样品的组分
Table 1. Component of PLZST ceramics
Sample No. Component S1 Pb0.97La0.02(Zr0.69Sn0.196Ti0.114)O3 S2 Pb0.97La0.02(Zr0.71Sn0.176Ti0.114)O3 S3 Pb0.97La0.02(Zr0.73Sn0.156Ti0.114)O3 S4 Pb0.97La0.02(Zr0.75Sn0.136Ti0.114)O3
下载: 导出CSV
表 2 PLZST陶瓷的静电储能参数
Table 2. Stored energy parameters of PLZST ceramics
Sample No. W/(J) w/(J/cm3) Q/(μC) S1 0.44 7.40 23.8 S2 0.56 9.45 25.9 S3 0.34 5.71 20.4 S4 0.55 9.40 25.2
下载: 导出CSV
表 3 等静压诱导的PLZST陶瓷放电电流参数
Table 3. Discharging current parameters induced by hydrostatic pressure of PLZST ceramics
Sample No. p/(MPa) Im/(nA) Jm/(nA/cm2) S1 290 2.3 2.7 S2 280 1.8 2.1 S3 260 2.7 3.2 S4 198 4.2 5.0
下载: 导出CSV
-
[1] 杜金梅, 张福平, 张毅, 等.爆电换能脉冲大电流输出研究[J].高压物理学报, 2006, 20(4):403-407. doi: 10.3969/j.issn.1000-5773.2006.04.011DU J M, ZHANG F P, ZHANG Y, et al.Study of pulsed large current out-put of shock-activated energy transducer[J].Chinese Journal of High Pressure Physics, 2006, 20(4):403-407. doi: 10.3969/j.issn.1000-5773.2006.04.011 [2] 张福平, 张毅, 杜金梅, 等.斜入射冲击波加载下PZT95/5铁电陶瓷的放电特性研究[J].高压物理学报, 2006, 20(2):217-219. doi: 10.3969/j.issn.1000-5773.2006.02.018ZHANG F P, ZHANG Y, DU J M, et al.Charge release characterization of PZT95/5 ferroelectric ceramics under tilted shock wave compression[J].Chinese Journal of High Pressure Physics, 2006, 20(2):217-219. doi: 10.3969/j.issn.1000-5773.2006.02.018 [3] 林其文, 袁万宗, 王维钧.铁电体爆电换能器的匹配研究[J].高压物理学报, 1988, 2(2):137-145. http://www.gywlxb.cn/CN/abstract/abstract336.shtmlLIN Q W, YUAN W Z, WANG W J.Investigation on the match of ferroelectric explosive-electric transducers[J].Chinese Journal of High Pressure Physics, 1988, 2(2):137-145. http://www.gywlxb.cn/CN/abstract/abstract336.shtml [4] 王永令, 袁万宗, 何国荣, 等.铁电体爆-电换能的实验研究[J].物理学报, 1983, 32(6):780-783. doi: 10.3321/j.issn:1000-3290.1983.06.010WANG Y L, YUAN W Z, HE G R, et al.Experimental study on explosive energy converter of ferroelectric[J].Acta Physica Sinica, 1983, 32(6):780-783. doi: 10.3321/j.issn:1000-3290.1983.06.010 [5] KIM T Y, JANG H M, CHO S M.Effects of La doping on the cubic-tetragonal phase transition and short-range ordering in PbTiO3[J].J Appl Phys, 2002, 91(1):336-343. doi: 10.1063/1.1421206 [6] 张崇辉, 徐卓, 高俊杰, 等.静压下0.75Pb (Mg1/3Nb2/3) O3-0.25PbTiO3陶瓷介电性能研究[J].物理学报, 2009, 58(9):6500-6504. doi: 10.3321/j.issn:1000-3290.2009.09.101ZHANG C H, XU Z, GAO J J, et al.Study on the dielectric properties of 0.75Pb (Mg1/3Nb2/3) O3-0.25PbTiO3 ceramic under hydrostatic pressure[J].Acta Physica Sinica, 2009, 58(9):6500-6504. doi: 10.3321/j.issn:1000-3290.2009.09.101 [7] SAMARA G A.The relaxational properties of compositionally disordered ABO3 perovskites[J].J Phys Condens Mat, 2003, 15(9):367-411. doi: 10.1088/0953-8984/15/9/202 [8] 徐卓, 冯玉军, 郑曙光, 等.等静压和温度诱导的PbLa (Zr, Sn, Ti) O3反铁电陶瓷相变和介电性能研究[J].物理学报, 2001, 50(9):1787-1793. doi: 10.3321/j.issn:1000-3290.2001.09.031XU Z, FENG Y J, ZHENG S G, et al.Hydrostatic pressure and temperature induced phase transition and dielectric properties of La-doped Pb (Zr, Sn, Ti) O3 antiferroelectric ceramics[J].Acta Physica Sinica, 2001, 50(9):1787-1793. doi: 10.3321/j.issn:1000-3290.2001.09.031 [9] ZHANG C H, XU Z, GAO J J, et al.Electromechanical induced antiferroelectric/ferroelectric phase transitions in PbLa (Zr, Sn, Ti) O3 ceramic[J].Chin Phys B, 2011, 20(9):097-702. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=CAS201303040000560252 -
