Detonation Characteristics of Light-Initiated Explosive Silver Acetylide-Silver Nitrate
-
摘要: 为研究酸性乙炔银作为光敏炸药用于模拟X射线热-力学效应的可行性，开展了酸性乙炔银涂层的闪光起爆性能研究。根据酸性乙炔银的基本性能和实验测定的感度，分析其光起爆作用机制，开展了酸性乙炔银涂层的爆轰性能测试，并实现了高压脉冲闪光条件下的大面积起爆。研究结果表明：酸性乙炔银是一种相对安全的光敏感炸药，在喷涂层表面的爆轰传播速度较低，可作为低过载瞬态加载源使用；在低密度条件下，其爆炸比冲量与喷涂层的面密度近似呈线性关系。Abstract: To investigate the feasibility of applying the light-initiated explosive, silver acetylide-silver nitrate (SASN), as an effective simulation of a cold X-ray blow-off event, we carried out experimental researches on the detonation property of SASN ignited by a light flash.First we presented the basic and sensitivity characteristics of SASN, and then based on the analysis of its light-initiated mechanisms, we succeeded in igniting a large area of SASN sprayed layer by a light flash with high voltage, and conducted tests on the detonation characteristics of SASN sprayed layer initiated by light.The results indicate that SASN is a relatively safe agent of light-sensitive explosive with a relatively low detonation velocity of sprayed layer capable of providing low impulsive loads.The test results confirmed that the specific impulse of explosion from SASN is almost linear to the areal density of sprayed layer under the conditions of low-level density.
-
图 1 酸性乙炔银爆速测量原理(a)及爆炸后的靶板(b)
Figure 1. Detonation velocity measurement of SASN (a) and the target after explosion (b)

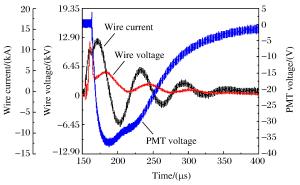

图 5 钨丝上脉冲电流、电压和产生的光脉冲波形
Figure 5. Relations among light pulse, voltage and current of tungsten wire

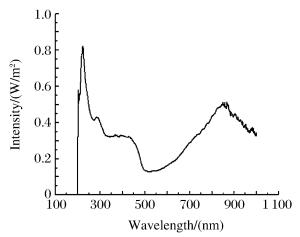

图 6 光谱分光辐射度计测得的相对光强波形
Figure 6. Relative light intensity measured by spectral spectrophotometer

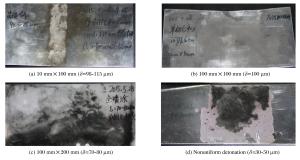

图 7 不同条件下闪光起爆后靶板情况
Figure 7. Targets after explosion ignited by light under different conditions

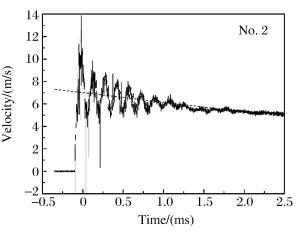

图 10 激光多普勒测速系统记录的典型靶板背面速度波形
Figure 10. Typical velocity curve of the target's back measured by PDV
表 1 实测不同涂层厚度的酸性乙炔银爆炸产生的比冲量
Table 1. Measured specific impulse of different thicknesses of SASN sprayed layers
Test No. Mass of explosive/(g) Areal density/ (mg/cm2) Velocity of target/(m/s) Mass of target after explosion/(g) Specific impulse/ (Pa·s) 1 0 0 0 10.384 5 0 2 0.160 0 22.6 7.05 10.525 6 103.4 3 0.211 0 29.9 14.30 10.582 6 209.8 4 0.232 2 32.8 13.28 10.586 8 194.5 5 0.109 8 15.5 － 10.485 2 － 6 0.332 2 47.0 19.56 10.698 1 286.8 7 0.072 9 10.3 3.24 10.437 3 47.5
下载: 导出CSV
-
[1] MATHEWS F H, BENHAM R A.X-Ray simulation with light-initiated explosive[C]//The 45th Shock and Vibration Bulletin.Naval Research Laboratory, 1975: 87-91. [2] NEVILL G E Jr, HOESE F O.Impulsive loading using sprayed silver acetylide-silver nitrate[J].Exp Mech, 1965, 5(9):294-298. doi: 10.1007/BF02326294 [3] HOESE F O, LANGNER C G, BAKER W E.Simultaneous initiation over large areas of a spray-deposited explosive[J].Exp Mech, 1968, 8(9):392-397. doi: 10.1007/BF02325999 [4] Benham R A.A new LIHE (Light Initiated High Explosive) test capability for spherical targets: SAND-86-2366C[R].Albuquerque, NM: Sandia National Laboratories, 1987. [5] COVERT T T.Staubli TX-90XL robot qualification at the light initiated high explosives facility (U): SAND2010-7222[R].Albuquerque, NM: Sandia National Laboratories, 2010. [6] HOLINKA S, MONTOYA R, TEAM L.Let there be LIHE[N].Sandia Lab News, 2007-03-02. [7] COVERT T T.In-situ silver acetylide silver nitrate explosive deposition measurements using X-ray fluorescence: SAND2014-17448[R].Albuquerque, NM: Sandia National Laboratories, 2014. [8] COVERT T.VISAR validation test series at the light initiated high explosive (LIHE) facility: SAND2007-0779[R].Albuquerque, NM: Sandia National Laboratories, 2007. [9] 胡明志.锥壳承受短脉冲载荷的实验研究[J].宇航学报, 1986(3):54-60. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=QK000004853887HU M Z.Experimental investigation on conical shells under short impulsive loading[J].Journal of Astronautics, 1986(3):54-60. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=QK000004853887 [10] 褚桂敏.核爆产生的强脉冲和冲击波载荷的模拟[J].强度与环境, 1989(5):46-50. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=QK000002386775 [11] BENHAM R A.An initiation and gas expansion model for the light-initiated explosive silver acetylide-silver nitrate: SAND79-1829[R].Albuquerque, NM: Sandia National Laboratories, 1979. [12] 高志崇.光子的能量在光化学中的应用[J].泰山学院学报, 2009, 31(6):67-73. doi: 10.3969/j.issn.1672-2590.2009.06.014GAO Z C.The application of photon energy in photochemistry[J].Journal of Taishan University, 2009, 31(6):67-73. doi: 10.3969/j.issn.1672-2590.2009.06.014 [13] 刘建, 熊鹰, 蒋小华, 等.含能材料激光诱导起爆特征波长分析[J].激光技术, 2013, 37(6): 816-819. http://www.cnki.com.cn/Article/CJFDTOTAL-JGJS201306026.htmLIU J, XIONG Y, JIANG X H, et, al.Characteristic wavelength analysis for laser-induced initiation in energetic material[J].Laser Technology, 2013, 37(6):816-819. http://www.cnki.com.cn/Article/CJFDTOTAL-JGJS201306026.htm [14] COVERT T T.In-situ silver acetylide silver nitrate explosive deposition measurements using X-ray fluorescence: SAND2014-17448[R].Albuquerque, NM: Sandia National Laboratories, 2014. -
