比较93钨合金材料的3种本构模型

陈青山 苗应刚 郭亚洲 李玉龙

陈青山, 苗应刚, 郭亚洲, 李玉龙. 比较93钨合金材料的3种本构模型[J]. 高压物理学报, 2017, 31(6): 753-760. doi: 10.11858/gywlxb.2017.06.010
引用本文: 陈青山, 苗应刚, 郭亚洲, 李玉龙. 比较93钨合金材料的3种本构模型[J]. 高压物理学报, 2017, 31(6): 753-760. doi: 10.11858/gywlxb.2017.06.010
CHEN Qing-Shan, MIAO Ying-Gang, GUO Ya-Zhou, LI Yu-Long. Comparative Analysis of 3 Constitutive Models for 93 Tungsten Alloy[J]. Chinese Journal of High Pressure Physics, 2017, 31(6): 753-760. doi: 10.11858/gywlxb.2017.06.010
Citation: CHEN Qing-Shan, MIAO Ying-Gang, GUO Ya-Zhou, LI Yu-Long. Comparative Analysis of 3 Constitutive Models for 93 Tungsten Alloy[J]. Chinese Journal of High Pressure Physics, 2017, 31(6): 753-760. doi: 10.11858/gywlxb.2017.06.010

比较93钨合金材料的3种本构模型

doi: 10.11858/gywlxb.2017.06.010
详细信息
    作者简介:

    陈青山(1992—), 男, 硕士, 主要从事材料力学性能研究及结构强度分析.E-mail:1274438517@qq.com

  • 中图分类号: O344.4; TG146.411

Comparative Analysis of 3 Constitutive Models for 93 Tungsten Alloy

  • 摘要: 在温度范围296~1 273 K、应变率范围0.000 5~6 000 s-1内, 对93钨合金材料(93%W-4.9%Ni-2.1%Fe)的力学行为进行了系统研究。实验结果表明:钨合金的塑性流动应力对温度和应变率非常敏感,它随温度的降低和应变率的增加而提高;真实塑性应变达到0.6时未出现剪切破坏。针对实验得到的应力-应变关系,分别进行了两种唯象本构模型(JC本构模型和KHL本构模型)和一种基于物理概念的本构模型(PB本构模型)的流动应力拟合。通过误差分析和应变率阶跃实验,对这3种本构模型的预测效果的精度进行了分析和评价。

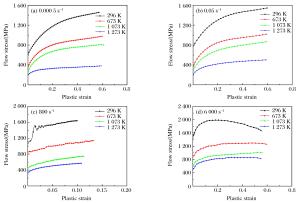

  • 图  钨合金在不同应变率不同温度下的流动应力-塑性应变曲线

    Figure  1.  Flow stress-plastic strain curves of tungsten at different temperatures and strain rates

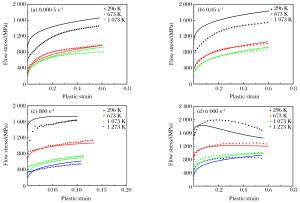

    图  实验数据与JC模型拟合数据的对比(实心点代表实验数据,实线代表JC模型拟合数据)

    Figure  2.  Experimental data vs. fitted JC model description (The symbols represent the former while the solid lines represent the latter, with the same color for each temperature.)

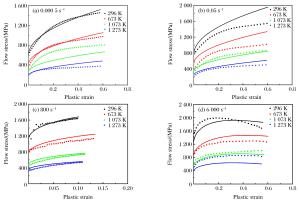

    图  实验数据与KHL模型拟合数据的对比(实心点代表实验数据,实线代表KHL模型拟合数据)

    Figure  3.  Experimental data vs. fitted KHL model description (The symbols represent the former while the solid lines represent the latter, with the same color for each temperature.)

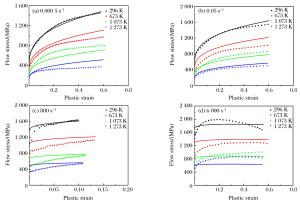

    图  实验数据与PB模型拟合数据的对比(实心点代表实验数据,实线代表PB模型拟合数据)

    Figure  4.  Experimental data vs. fitted PB model description (The symbols represent the former while the solid lines represent the latter, with the same color for each temperature.)

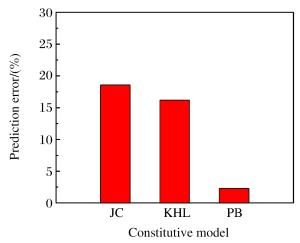

    图  不同本构模型对实验数据的预测效果比较

    Figure  5.  Comparison of different constructive models in description of experimental data

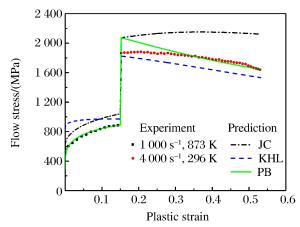

    图  不同本构模型对应变率跳跃试验的预测结果

    Figure  6.  Predictive results of different constructive models for the strain-rate jump test

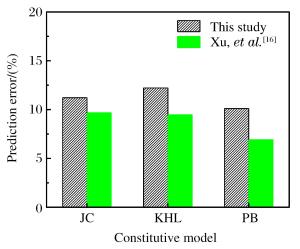

    图  不同本构模型对应变率跳跃试验的预测效果对比

    Figure  7.  Comparison of different constructive models in description of the strain-rate jump test

    表  1  JC模型参数

    Table  1.   Determined values of JC model parameters

    A/(MPa) B/(MPa) n C m
    600.8 1 200 0.494 4 0.059 0 0.820 3
    下载: 导出CSV

    表  2  KHL模型参数

    Table  2.   Determined values of KHL model parameters

    A/(MPa) B/(MPa) n1 n0 C m
    264.5 523.4 2.296 0.299 6 0.113 4 1.063
    下载: 导出CSV

    表  3  PB模型参数值

    Table  3.   Determined values of PB model parameters

    a/(MPa) n σ0/(MPa) (k/G0)/(K-1) ${{{\dot \varepsilon }_0}}$/(s-1) p q
    1 054.4 0.263 5 3 061.4 3.89×10-5 2×1010 0.5 1.5
    下载: 导出CSV
